SIST EN 301 240 V1.1.3:2003

• Abstract:

  An interworking profile, based on the Class 2 Data Services Profiles, for non-voice equipment with roaming mobility, for inter-operability between DECT equipment providing packet based Point-to-Point Protocol (PPP) transmission to provide dial-up internet access and general multi-protocol datagram transport, including remote LAN access.

• Status: Published
• Publication Date: 30-Nov-2003
• ICS: 33.070.30 - Digital Enhanced Cordless Telecommunications (DECT)
• Technical Committee: SS EIT - Technical Board for the electrotechnical, information technology and telecommunications fields
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Dec-2003
• Due Date: 01-Dec-2003
• Completion Date: 01-Dec-2003
• Ref Project: ETSI EN 301 240 V1.1.3 (1998-06) - Digital Enhanced Cordless Telecommunications (DECT); Data Services Profile (DSP); Point-to-Point Protocol (PPP) interworking for internet access and general multi-protocol datagram transport

Overview

SIST EN 301 240 V1.1.3:2003 defines a standard interworking profile for Digital Enhanced Cordless Telecommunications (DECT) systems, focusing on Data Services Profile (DSP) conformant equipment. The standard enables non-voice devices with roaming mobility to interoperate via DECT for packet-based Point-to-Point Protocol (PPP) transmissions. This capability supports dial-up internet access and general multi-protocol datagram transport, facilitating secure and efficient remote LAN access through DECT infrastructure. The standard ensures compatibility and interoperability across various network types, aligning with European and international best practices for telecommunications.

Key Topics

• DECT Data Services Profile (DSP): Defines roles for non-voice data services within DECT networks.
• PPP Interworking: Specifies methods for seamless Point-to-Point Protocol data transfer over DECT.
• Mobility Support: Targets mobility class 2, enabling both private and public roaming for non-voice terminals.
• Multi-Protocol Datagram Transport: Supports transfer of data beyond PPP, including other protocol types.
• Layered Architecture: Addresses requirements for Physical (PHL), Medium Access Control (MAC), Data Link Control (DLC), and Network (NWK) layers.
• Interworking Unit (IWU): Facilitates interconnection between DECT systems and varying fixed networks (such as X.25, Frame Relay, ATM, ISDN, or modem-based networks).
• Management Entity (ME): Provides management control, including link resource management and call handling.
• User and Control Signaling: Standardizes signaling procedures to ensure reliable communication between portable parts (PPs) and fixed parts (FPs).

Applications

SIST EN 301 240 V1.1.3:2003 provides practical value in diverse telecommunications environments where packet-based data access is required over wireless DECT connections:

• Wireless Dial-Up Internet Access: Enables mobile terminals to establish dial-up PPP sessions to internet service providers, replacing wired modems with flexible DECT connections.
• Remote LAN Access: Supports secure, transparent access to corporate networks from remote locations using DECT portable devices.
• Multi-Network Interworking: Facilitates integration with various fixed networks (PSTN, ISDN, X.25, ATM, Frame Relay) through adaptable interworking procedures.
• Business Telephony Applications: Empowers enterprises to offer data services such as email, intranet access, and secure file transfer on mobile DECT handsets or specialized terminals.
• Public Hotspot Services: Supports service providers in delivering wireless data connectivity in public areas (hotels, airports, conference centers) via PPP over DECT.

Related Standards

To ensure full interoperability and support across different network architectures and protocols, SIST EN 301 240 V1.1.3:2003 references several foundational standards, including:

• EN 300 175 (Parts 1-7): Core specification for DECT Common Interface, encompassing physical and higher layers, identities, addressing, and security.
• ETS 300 651: Data Services Profile for DECT, Service type C, class 2.
• ETS 300 701: Frame relay and mobility services over DECT.
• RFC 1618, RFC 1661, RFC 1662, RFC 1989: IETF specifications for PPP and related framing, essential for compliant data transport.

Organizations:

• SIST (Slovenski inštitut za standardizacijo)
• ETSI (European Telecommunications Standards Institute)

By adhering to SIST EN 301 240 V1.1.3:2003, manufacturers and operators ensure robust, scalable, and standardized packet-based data connectivity for mobile non-voice devices within DECT environments, fostering interoperability and smooth roaming for modern telecommunication services.

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.JUDPDDigital Enhanced Cordless Telecommunications (DECT); Data Services Profile (DSP); Point-to-Point Protocol (PPP) interworking for internet access and general multi-protocol datagram transport33.070.30'(&7Digital Enhanced Cordless Telecommunications (DECT)ICS:Ta slovenski standard je istoveten z:EN 301 240 Version 1.1.3SIST EN 301 240 V1.1.3:2003en01-december-2003SIST EN 301 240 V1.1.3:2003SLOVENSKI
STANDARD
EN 301 240 V1.1.3 (1998-06)European Standard (Telecommunications series)Digital Enhanced Cordless Telecommunications (DECT);Data Services Profile (DSP);Point-to-Point Protocol (PPP) interworking for internet accessand general multi-protocol datagram transportSIST EN 301 240 V1.1.3:2003

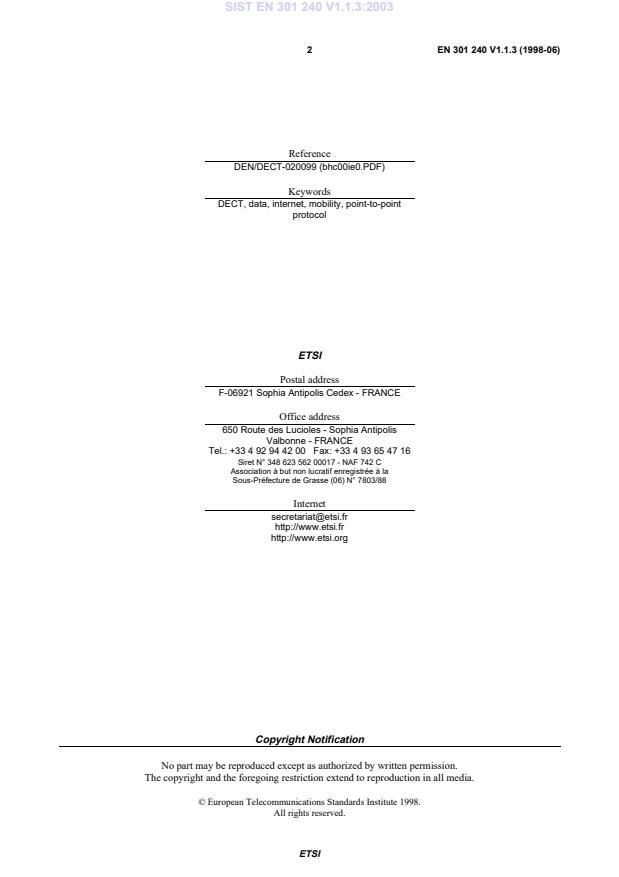

ETSIEN 301 240 V1.1.3 (1998-06)2ReferenceDEN/DECT-020099 (bhc00ie0.PDF)KeywordsDECT, data, internet, mobility, point-to-pointprotocolETSIPostal addressF-06921 Sophia Antipolis Cedex - FRANCEOffice address650 Route des Lucioles - Sophia AntipolisValbonne - FRANCETel.: [phone]
Fax: [phone]Siret N° 348 623 562 00017 - NAF 742 CAssociation à but non lucratif enregistrée à laSous-Préfecture de Grasse (06) N° 7803/[e-mail]://www.etsi.frhttp://www.etsi.orgCopyright NotificationNo part may be reproduced except as authorized by written permission.The copyright and the foregoing restriction extend to reproduction in all media.© European Telecommunications Standards Institute 1998.All rights reserved.SIST EN 301 240 V1.1.3:2003

ETSIEN 301 240 V1.1.3 (1998-06)3ContentsIntellectual Property Rights.4Foreword.41Scope.52Normative references.53Definitions and abbreviations.63.1Definitions.63.2Abbreviations.64Description of services.74.1Reference configuration.74.2Service objectives.75PHL layer requirements.86MAC layer requirements.87DLC layer requirements.87.1C-Plane requirements.87.2U-Plane requirements.88NWK layer requirements.89Management entity requirements.99.1Link resource management.910Generic interworking conventions and procedures.910.1LU3 SDU format.910.2Control frame for PPP lower layer up signal.1010.3Call control interworking.1010.3.1PP originated call.1010.3.2PP terminated call.12Annex A (normative):Interworking specific codings.13Annex B (normative):Interworking conventions to specific fixed network services.14B.1Native PPP service.14B.1.1Reference configuration.14B.1.2IWU attributes specific codings.14B.2Modem service.14B.2.1Interworking with octet-stuffed framing.14B.2.1.1Reference configuration.15B.2.1.2Specific interworking conventions.15B.2.2Interworking with bit-stuffed framing.16B.2.2.1Reference configuration.16B.2.2.2Specific interworking conventions.16B.2.3IWU attributes specific codings.16B.3ISDN service.18B.3.1Interworking with bit-synchronous framing.18B.3.1.1Reference configuration.18B.3.2Interworking with octet-synchronous framing.19B.3.2.1Reference configuration.19B.3.3IWU attributes specific codings.19History.20SIST EN 301 240 V1.1.3:2003

ETSIEN 301 240 V1.1.3 (1998-06)4Intellectual Property RightsIPRs essential or potentially essential to the present document may have been declared to ETSI. The informationpertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be foundin SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respectof ETSI standards", which is available free of charge from the ETSI Secretariat. Latest updates are available on theETSI Web server (http://www.etsi.fr/ipr or http://www.etsi.org/ipr).Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guaranteecan be given as to the existence of other IPRs not referenced in SR 000 314 (or the updates on the ETSI Web server)which are, or may be, or may become, essential to the present document.ForewordThis European Standard (Telecommunications series) has been produced by ETSI Project Digital Enhanced CordlessTelecommunications (DECT).National transposition datesDate of adoption of this EN:19 June 1998Date of latest announcement of this EN (doa):30 september 1998Date of latest publication of new National Standardor endorsement of this EN (dop/e):31 March 1999Date of withdrawal of any conflicting National Standard (dow):31 March 1999SIST EN 301 240 V1.1.3:2003

ETSIEN 301 240 V1.1.3 (1998-06)51ScopeThe present document defines a profile for Digital Enhanced Cordless Telecommunications (DECT) systemsconforming to EN 300 175, parts 1 to 7 [1] to [7]. It is part of a family of profiles that build upon and extend each other,aimed at the general connection of terminals supporting non-voice services to a fixed infra-structure, private and public.The present document is intended for use in roaming applications and so specifies mobility class 2. It thus specifies therequirements on the Network (NWK) layer Call Control (CC) and Mobility Management (MM) entities, to provide fullpublic services.The present document builds upon services offered by the data service profiles as defined in ETS 300 701 [9] andETS 300 651 [8]. It specifies an interworking profile for non-voice equipment with roaming mobility, providingPoint-to-Point Protocol (PPP) transmission to allow dial-up internet access and general multi-protocol datagramtransport. PPP packet transfers on the DECT air interface are specified via a high efficient DECT packet transmissionprotocol. However, interworking to the fixed network may be via a number of interface protocols, including X.25, framerelay, Asynchronous Transfer Mode (ATM), and traditional circuit switched voice band modem and Integrated ServicesDigital Network (ISDN) connection.The present document defines the specific requirements on the Physical (PHL), Medium Access Control (MAC), dataLink Control (DLC) and NWK layers of DECT. The standard also specifies Management Entity (ME) requirements andgeneric interworking conventions which ensure the efficient use of the DECT spectrum.2Normative referencesReferences may be made to:a)specific versions of publications (identified by date of publication, edition number, version number, etc.), inwhich case, subsequent revisions to the referenced document do not apply; orb)all versions up to and including the identified version (identified by "up to and including" before the versionidentity); orc)all versions subsequent to and including the identified version (identified by "onwards" following the versionidentity); ord)publications without mention of a specific version, in which case the latest version applies.A non-specific reference to an ETS shall also be taken to refer to later versions published as an EN with the samenumber.[1]EN 300 175-1: "Digital Enhanced Cordless Telecommunications (DECT); Common Interface (CI);Part 1: Overview".[2]EN 300 175-2: "Digital Enhanced Cordless Telecommunications (DECT); Common Interface (CI);Part 2: Physical layer (PHL)".[3]EN 300 175-3: "Digital Enhanced Cordless Telecommunications (DECT); Common Interface (CI);Part 3: Medium Access Control (MAC) layer".[4]EN 300 175-4: "Digital Enhanced Cordless Telecommunications (DECT); Common Interface (CI);Part 4: Data Link Control (DLC) layer".[5]EN 300 175-5: "Digital Enhanced Cordless Telecommunications (DECT); Common Interface (CI);Part 5: Network (NWK) layer".[6]EN 300 175-6: "Digital Enhanced Cordless Telecommunications (DECT); Common Interface (CI);Part 6: Identities and addressing".[7]EN 300 175-7: "Digital Enhanced Cordless Telecommunications (DECT); Common Interface (CI);Part 7: Security features".SIST EN 301 240 V1.1.3:2003

ETSIEN 301 240 V1.1.3 (1998-06)6[8]ETS 300 651: "Digital Enhanced Cordless Telecommunications (DECT); Data Services Profile(DSP); Generic data link service; Service type C, class 2".[9]ETS 300 701: "Digital Enhanced Cordless Telecommunications (DECT); Data Services Profile(DSP); Generic frame relay service with mobility (service types A and B, class 2)".[10]RFC 1618 (1994): "PPP over ISDN".[11]RFC 1661 (1994): "The Point-to-Point Protocol (PPP)".[12]RFC 1662 (1994): "PPP in HDLC-like Framing".[13]RFC 1989 (1996): "PPP Link Quality Monitoring".3Definitions and abbreviations3.1DefinitionsFor the purposes of the present document, the following definitions apply:interworking unit: A unit that is used to interconnect subnetworks.interworking functions: Functions contained into the interworking unit, in order to support the required subnetworkinterworking.mobility class 2: Private and public roaming applications for which terminals may move between Fixed Parts (FPs)within a given domain and for which association of service parameters is explicit at the time of service request.service type C: Non-transparent connection of data streams requiring Link Access Procedure (LAP) services, optimisedfor high reliability and low additional complexity. This builds upon the services offered by the type A or B profiles.3.2AbbreviationsFor the purposes of the present document, the following abbreviations apply:ACCMAsync-Control-Character-MapATMAsynchronous Transfer ModeCCCall ControlC-planeControl PlaneCRCCyclic Redundancy CheckDECTDigital Enhanced Cordless TelecommunicationsDLCData Link ControlDSPData Services ProfileFPFixed PartFTFixed radio TerminationHDLCHigh level Data Link ControlIPhigher layer Information channel (Protected)ISDNIntegrated Services Digital NetworkIWFInterWorking FunctionsIWUInterWorking UnitLAPLink Access ProcedureLAP-CLink Access Procedure (Control)LAP-ULink Access Procedure (U-plane)LCPLink Control ProtocolLLSLower Layer StatusMACMedium Access ControlMEManagement EntityMMMobility ManagementMNCCMobile Network Call ControlSIST EN 301 240 V1.1.3:2003

ETSIEN 301 240 V1.1.3 (1998-06)7NWKNetworkPDUProtocol Data UnitPHLPhysicalPICSProtocol Implementation Conformance StatementPPPortable PartPPPPoint-to-Point ProtocolPTPortable radio TerminationRFCRequest For CommentRFPRadio Fixed PartSAPService Access PointSAPIService Access Point IdentitySDUService Data UnitU-planeUser plane4Description of services4.1Reference configurationThe reference configuration for this profile shall be as shown in figure 1.PPPRFC 1661optional additionalencapsulationDECT packettransferDECT packettransferEncapsulationfor transportnetwork if any(RFC 1662, 1618, etc.)IWFPPPRFC 1661Encapsulationfor transportnetwork if any(RFC 1662, 1618, etc.)PPP packetsTransport networkif any(PSTN, ISDN, etc.)PPFPPPP entityFigure 1: Profile reference configuration (U-plane)This profile is aimed at applications requiring the transport of PPP packets to a peer entity. A typical application is theon-demand access to an internet service provider. The DECT air interface will be accessed by means of the standardprocedures already defined by the C.2 data services profile, ETS 300 651 [8]. A PP wishing to access this service shallrequest the PPP profile by means of the standard DECT signalling, specifying also the address of the peer entity, and themethod of encapsulation.The Interworking Unit (IWU), if necessary, shall set up a point-to-point connection through the transport network. Whensuch a connection is established, IWU shall encapsulate PPP packets in the way selected by the user.4.2Service objectivesThe profile has the following service objectives:Table 1Offered servicesStatuspoint-to-point SDU transfer PP-FPYespoint-to-point SDU transfer FP-PPYesService change and negotiationYesData streamingOptionalSegmentation of higher layer user informationMandatoryin-band user control signallingOptionalEncryptionOptionalSIST EN 301 240 V1.1.3:2003
