oSIST prEN 15955-2:2022

Railway applications - Infrastructure - Demountable machines, trailers and associated equipment - Part 2: General safety requirements

This document specifies the general safety requirements for demountable machines and trailers, including road-rail trailers - henceforward referred to as ‘machines, for use when travelling and working on railway track.
NOTE   Trailers, including road-rail trailers, are considered as machines because they are moved along the track by powered machines.
This document specifies the requirements to deal with the common hazards presented by their use on the railway during transport, assembly and installation, commissioning, travelling and working on track, use including setting, programming, and process changeover, operation, cleaning, fault finding, maintenance and de-commissioning of the machines and associated equipment when they are used as intended and under conditions of misuse which are reasonably foreseeable.
These machines will not run on railway lines open to normal traffic.
NOTE   Other rail mounted railway maintenance and infrastructure inspection machines are dealt with in other European standards, see Technical Report CEN/TR 17498:2020.
This document is also applicable to machines and associated equipment that in working mode are partly supported on the ballast or the formation.
The requirements in this document are based on the assumption that the machines are used, operated and maintained by skilled person(s).
This document does not apply to the following:
-   requirements for quality of the work or performance of the machine;
-   use of separate equipment temporarily mounted on machines;
-   machines that utilize external power supplies such as the overhead contact line system for traction purposes or as a power source;
-   hazards due to air pressure caused by the passing of high-speed trains at more than 200 km/h;
-   operation subject to special rules, e.g. potentially explosive atmospheres;
-   hazards due to natural causes, e.g. earthquake, lightning, flooding;
-   working methods;
-   operation in severe working conditions requiring special measures, e.g. corrosive environments, contaminating environments, strong magnetic fields;
-   hazards occurring when used to handle suspended loads which may swing freely.

Bahnanwendungen - Infrastruktur - Ausgleisbare Maschinen, Anhänger und zugehörige Ausstattung -Teil 2: Allgemeine Sicherheitsanforderungen

Dieses Dokument legt die allgemeinen Sicherheitsanforderungen für ausgleisbare Maschinen und Anhänger, einschließlich Zweiwege-Anhänger, die nachfolgend als "Maschinen" bezeichnet werden, für die Anwendung bei Versetzfahrten und Arbeiten auf Gleisen fest.
ANMERKUNG   Anhänger, einschließlich Zweiwege-Anhänger, werden als Maschinen angesehen, da sie von angetriebenen Maschinen auf dem Gleis bewegt werden.
Dieses Dokument beschreibt die Anforderungen, wie mit den üblichen Gefahren durch ihre Verwendung auf Bahngleisen während des Transports, der Montage und Installation, der Inbetriebnahme, der Versetzfahrt und Arbeiten im/am Gleis, der Nutzung einschließlich der Einstellung, Programmierung und Verfahrensumstellung, des Betriebs, der Reinigung, der Fehlersuche, der Wartung und der Außerbetriebnahme der Maschinen und der zugehörigen Ausrüstung bei bestimmungsgemäßer Verwendung und unter vernünftigerweise vorhersehbaren Fehlanwendung umzugehen ist.
Diese Maschinen werden nicht auf Eisenbahnstrecken betrieben, die für den normalen Verkehr freigegeben sind.
ANMERKUNG   Andere schienengebundene Eisenbahninstandhaltungsmaschinen und Maschinen zur Inspektion der Infrastruktur werden in anderen Europäischen Normen behandelt, siehe CEN/TR 17498:2020.
Dieses Dokument gilt auch für Maschinen und zugehörige Ausrüstungen, die sich in Arbeitsmodus teilweise auf dem Schotter oder dem Untergrund (Planum) abstützen.
Die Anforderungen in diesem Dokument basieren auf der Annahme, dass die Maschinen von geschultem Personal benutzt, bedient und gewartet werden.
Dieses Dokument gilt nicht für:
-   Anforderungen an die Arbeitsqualität oder die Leistung der Maschine;
-   Verwendung von separater Ausrüstung, die vorübergehend an Maschinen montiert ist;
-   Maschinen, die eine externe Energieversorgung wie die Oberleitungsanlage für Antriebszwecke oder als Energiequelle verwenden;
-   Gefahren verursacht durch Luftdruckstöße von vorbeifahrenden Hochgeschwindigkeitszügen mit mehr als 200 km/h;
-   Einsätze, die besonderen Regeln unterliegen, z. B. explosionsgefährdete Umgebungen;
-   Gefahren aufgrund natürlicher Ursachen, z. B. Erdbeben, Blitzschlag, Überschwemmung;
-   Arbeitsverfahren;
-   Betrieb unter schwierigen Arbeitsbedingungen, die besondere Maßnahmen erfordern, z. B. korrosive Umgebung, kontaminierte Umgebungen, starke Magnetfelder;
-   Gefahren durch freischwebende Lasten, die schwingen können.

Applications ferroviaires - Infrastructure - Machines déraillables, remorques et éléments associés - Partie 2 : Prescriptions générales pour la sécurité

Le présent document spécifie les prescriptions générales de sécurité applicables aux machines déraillables et aux remorques, notamment les remorques rail-route - désignées ci-après les « machines », durant le déplacement et le travail sur voie ferrée.
NOTE   Les remorques, y compris les remorques rail-route, sont considérées comme des machines, car elles sont déplacées le long de la voie par des machines motorisées.
Le présent document spécifie les prescriptions pour traiter les phénomènes dangereux courants induits par l'utilisation de ces machines sur l'infrastructure ferroviaire durant le transport, l'assemblage et l'installation, la réception, la circulation et le travail sur voie, l'utilisation (y compris montage, programmation et changement des procédés), l'exploitation, le nettoyage, la localisation des défauts, la maintenance et la radiation des machines et des équipements associés lorsqu'ils sont utilisés dans les conditions prévues et dans les mauvaises conditions d'emploi qui peuvent être raisonnablement anticipées.
Ces machines ne circuleront pas sur les lignes ferroviaires ouvertes au trafic normal.
NOTE   Les autres machines d'inspection de l'infrastructure et de maintenance ferroviaire montées sur rail sont traitées dans d'autres Normes européennes, voir Rapport technique CEN/TR 17498:2020.
Le présent document s'applique aussi aux machines et aux équipements associés qui, en mode travail, prennent partiellement appui sur le ballast ou sur la plate-forme.
Les prescriptions du présent document reposent sur l'hypothèse que les machines sont utilisées, exploitées et entretenues par des personnes qualifiées.
Le présent document ne s'applique pas :
-   aux prescriptions relatives à la qualité du travail ou aux performances de la machine ;
-   à l'utilisation d'équipements distincts montés pour une durée temporaire sur des machines ;
-   aux machines utilisant une alimentation électrique externe telle que le système caténaire pour la traction ou comme source d'alimentation ;
-   aux phénomènes dangereux dus à la pression de l'air causée par le passage des trains à grande vitesse à plus de 200 km/h ;
-   à la mise en œuvre de la machine dans des conditions faisant l'objet de règles spéciales, par exemple atmosphère potentiellement explosive ;
-   aux phénomènes dangereux dus à des causes naturelles, par exemple tremblement de terre, foudre, inondation ;
-   aux méthodes de travail ;
-   à l'exploitation dans des conditions de travail sévères exigeant des mesures particulières, par exemple environnements corrosifs ou contaminants, champs magnétiques de forte intensité ;
-   aux phénomènes dangereux dus aux mouvements de charges librement suspendues susceptibles de se balancer.

Železniške naprave - Infrastruktura - Vlečni stroji, priklopni vagoni in pripadajoča oprema - 2. del: Splošne varnostne zahteve

General Information

• Status: Not Published
• Public Enquiry End Date: 26-Oct-2022
• ICS: 45.060.20 - Trailing stock
• ICS: 45.120 - Equipment for railway/cableway construction and maintenance
• Technical Committee: IŽNP - Reilway applications
• Current Stage: 4020 - Public enquire (PE) (Adopted Project)
• Start Date: 23-Aug-2022
• Due Date: 10-Jan-2023
• Completion Date: 24-Oct-2022
• Directive: 2006/42/EC - Directive 2006/42/EC of the European Parliament and of the Council of 17 May 2006 on machinery, and amending Directive 95/16/EC (recast)
• Mandate: M/393 - Mandate to CEN for standards for Fatty Acid Ethyl Ester for use in diesel engines and heating fuels
• Mandate: M/396 - Mandate to CEN and Cenelec for standardisation in the field of machinery
• Ref Project: prEN 15955-2 - Railway applications - Infrastructure - Demountable machines, trailers and associated equipment - Part 2: General safety requirements

Relations

• Revised: SIST EN 15955-2:2014 - Railway applications - Track - Demountable machines and associated equipment - Part 2: General safety requirements
• Effective Date: 16-Jun-2021
• Revised: SIST EN 15954-2:2013 - Railway applications - Track - Trailers and associated equipment - Part 2: General safety requirements
• Effective Date: 16-Jun-2021
• Revised: SIST EN 15955-2:2014 - Railway applications - Track - Demountable machines and associated equipment - Part 2: General safety requirements
• Effective Date: 18-Jan-2023
• Revised: SIST EN 15954-2:2013 - Railway applications - Track - Trailers and associated equipment - Part 2: General safety requirements
• Effective Date: 18-Jan-2023
• Revised: SIST EN 15955-2:2014 - Railway applications - Track - Demountable machines and associated equipment - Part 2: General safety requirements
• Effective Date: 19-Jan-2023
• Revised: SIST EN 15954-2:2013 - Railway applications - Track - Trailers and associated equipment - Part 2: General safety requirements
• Effective Date: 19-Jan-2023

Standards Content (Sample)

SLOVENSKI STANDARD
oSIST prEN 15955-2:2022
01-oktober-2022
Železniške naprave - Infrastruktura - Vlečni stroji, priklopni vagoni in pripadajoča
oprema - 2. del: Splošne varnostne zahteve
Railway applications - Infrastructure - Demountable machines, trailers and associated
equipment - Part 2: General safety requirements
Bahnanwendungen - Infrastruktur - Ausgleisbare Maschinen, Anhänger und zugehörige
Ausstattung -Teil 2: Allgemeine Sicherheitsanforderungen
Applications ferroviaires - Infrastructure - Machines déraillables, remorques et éléments
associés - Partie 2 : Prescriptions générales pour la sécurité
Ta slovenski standard je istoveten z: prEN 15955-2
ICS:
45.060.20 Železniški vagoni Trailing stock
45.120 Oprema za gradnjo in Equipment for
vzdrževanje železnic oz. railway/cableway
žičnic construction and
maintenance
oSIST prEN 15955-2:2022 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
oSIST prEN 15955-2:2022

---------------------- Page: 2 ----------------------
oSIST prEN 15955-2:2022


DRAFT
EUROPEAN STANDARD
prEN 15955-2
NORME EUROPÉENNE

EUROPÄISCHE NORM

August 2022
ICS 45.060.20; 45.120 Will supersede EN 15954-2:2013, EN 15955-2:2013
English Version

Railway applications - Infrastructure - Demountable
machines, trailers and associated equipment - Part 2:
General safety requirements
Applications ferroviaires - Infrastructure - Machines Bahnanwendungen - Infrastruktur - Ausgleisbare
déraillables, remorques et éléments associés - Partie 2 : Maschinen, Anhänger und zugehörige Ausstattung -Teil
Prescriptions générales pour la sécurité 2: Allgemeine Sicherheitsanforderungen
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee
CEN/TC 256.

If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.

Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.


EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 15955-2:2022 E
worldwide for CEN national Members.

---------------------- Page: 3 ----------------------

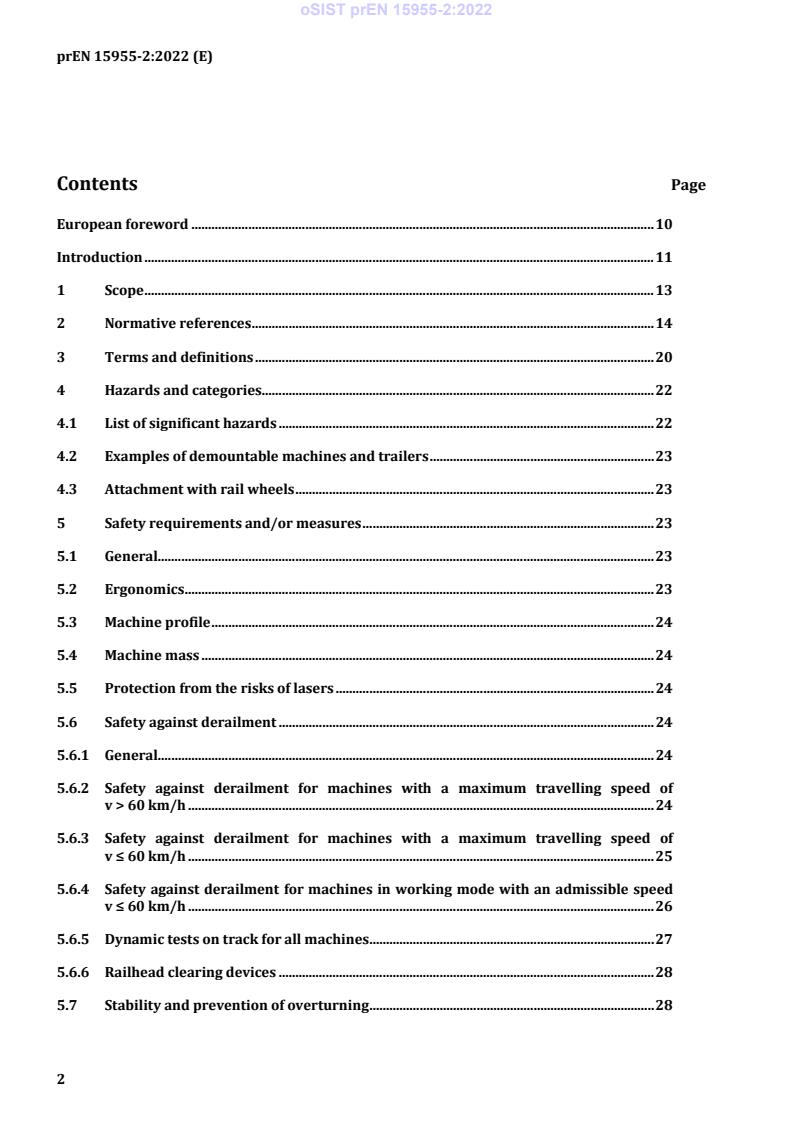

oSIST prEN 15955-2:2022
prEN 15955-2:2022 (E)
Contents Page
European foreword . 10
Introduction . 11
1 Scope . 13
2 Normative references . 14
3 Terms and definitions . 20
4 Hazards and categories. 22
4.1 List of significant hazards . 22
4.2 Examples of demountable machines and trailers . 23
4.3 Attachment with rail wheels . 23
5 Safety requirements and/or measures . 23
5.1 General. 23
5.2 Ergonomics . 23
5.3 Machine profile . 24
5.4 Machine mass . 24
5.5 Protection from the risks of lasers . 24
5.6 Safety against derailment . 24
5.6.1 General. 24
5.6.2 Safety against derailment for machines with a maximum travelling speed of
v > 60 km/h . 24
5.6.3 Safety against derailment for machines with a maximum travelling speed of
v ≤ 60 km/h . 25
5.6.4 Safety against derailment for machines in working mode with an admissible speed
v ≤ 60 km/h . 26
5.6.5 Dynamic tests on track for all machines. 27
5.6.6 Railhead clearing devices . 28
5.7 Stability and prevention of overturning . 28
2

---------------------- Page: 4 ----------------------
oSIST prEN 15955-2:2022
prEN 15955-2:2022 (E)
5.7.1 General . 28
5.7.2 Stationary stability . 28
5.7.3 Proof of stability when moving along the track in working mode . 30
5.7.4 Load moment control and display device . 31
5.7.5 Roll over protective structure (ROPS) . 33
5.8 Machine frame and structure . 34
5.8.1 Design of the machine frame for machines with a maximum speed v > 30 km/h . 34
5.8.2 Design of the machine frame for machines with a maximum speed v ≤ 30 km/h . 34
5.8.3 Lifting and jacking points . 34
5.9 Inter-machine couplings . 35
5.10 Rail gear . 35
5.11 Rail wheel suspension . 35
5.12 Braking . 35
5.12.1 General . 35
5.12.2 Holding on gradients . 36
5.13 Driving and working cabs . 36
5.13.1 Requirement to fit cab . 36
5.13.2 Emergency exit . 37
5.13.3 Visibility from driving position . 37
5.13.4 Minimum dimensions in cabs . 38
5.13.5 Cab floors . 39
5.13.6 Protection from dust . 39
5.13.7 Climatic conditions in cab . 40
5.13.8 Windows . 40
5.13.9 Storage for operating instructions . 41
5.13.10 Falling object protection structures (FOPS) . 41
5.13.11 Noise . 42
5.14 Access and egress to and from working places . 42
3

---------------------- Page: 5 ----------------------
oSIST prEN 15955-2:2022
prEN 15955-2:2022 (E)
5.14.1 Cabs . 42
5.14.2 Working places, places for control and maintenance outside of cabs . 42
5.14.3 Working platforms and walkways on the machine . 43
5.15 Seats . 43
5.15.1 Operator’s seat . 43
5.15.2 Additional seats . 43
5.15.3 Seat belts . 43
5.16 Standing places . 43
5.16.1 General. 43
5.16.2 Risk of falling . 44
5.17 Edges and corners . 44
5.18 Pressurized systems . 44
5.19 Controls . 44
5.19.1 General requirement . 44
5.19.2 Starting/stopping system . 45
5.19.3 Inadvertent activation . 45
5.19.4 Pedals . 45
5.19.5 Protection against uncontrolled motion in working mode . 46
5.19.6 Control panels and indicators . 46
5.19.7 Remote controls . 46
5.19.8 Movement controls. 47
5.20 Visibility of the machine . 47
5.21 Warning systems . 47
5.22 Electrical system . 47
5.22.1 Electrical equipment. 47
5.22.2 Disconnection devices . 47
5.22.3 Protection devices . 47
5.22.4 Conductors, cables and wiring practices . 48
4

---------------------- Page: 6 ----------------------
oSIST prEN 15955-2:2022
prEN 15955-2:2022 (E)
5.22.5 Batteries . 48
5.22.6 Overhead contact line system . 48
5.22.7 Equipotential bonding . 49
5.22.8 Antennas . 50
5.22.9 Pantograph. 50
5.23 Electromagnetic compatibility (Immunity of machines from railway environment)
. 50
5.24 Safety related control systems . 51
5.24.1 Specific control systems . 51
5.24.2 Software . 51
5.25 Noise reduction . 51
5.26 Failure recovery . 52
5.27 Vibration . 52
5.28 Setting up and packing away . 53
5.29 Mobile elevating work platform (MEWP) . 53
5.30 Moveable machine components . 53
5.31 Emergency stopping devices . 53
5.31.1 Emergency stopping devices for movement of the machine and working equipment
. 53
5.31.2 Action of emergency stopping devices . 54
5.32 Moving parts and materials . 54
5.33 Thermal hazards . 54
5.34 Emission of gas and particles . 55
5.35 Fuel tanks and hydraulic tanks . 55
5.36 Safe handling . 56
5.37 Environmental temperature conditions . 56
5.38 Protection from the risks of fire . 56
5.38.1 Material requirements . 56
5.38.2 Fire detection devices . 56
5

---------------------- Page: 7 ----------------------
oSIST prEN 15955-2:2022
prEN 15955-2:2022 (E)
5.38.3 Self-rescue devices . 56
5.38.4 Fire fighting equipment . 57
5.38.5 Fire extinguishing devices . 57
5.38.6 Built in fire extinguishing system . 57
5.39 Lighting . 57
5.39.1 Lighting general . 57
5.39.2 Lighting inside the machine . 57
5.39.3 Lighting for working places/areas beside the machine. 58
5.40 Movement Limiting Devices . 58
5.40.1 General. 58
5.40.2 Design of movement limiting devices . 59
5.40.3 High performance movement limiting device . 59
5.40.4 Movement limiting devices – manually overriding the limit . 60
5.40.5 Lateral limiting devices . 60
5.40.6 Height limiting device . 60
5.41 Machines with more than one moveable component . 61
5.42 Substances hazardous to health . 61
5.42.1 Storage . 61
5.42.2 Use . 61
5.42.3 Cleaning . 61
5.43 Maintenance . 62
5.43.1 General. 62
5.43.2 Support devices . 62
5.43.3 Unauthorized access to the engine compartment . 63
6 Additional safety requirements or measures for specific machine functions . 63
6.1 Conveyors . 63
6.2 Cranes and lifting devices fixed on the machine . 63
6.3 Transport of loads by machines used for lifting . 64
6

---------------------- Page: 8 ----------------------
oSIST prEN 15955-2:2022
prEN 15955-2:2022 (E)
6.4 Rail profiling machines (grinding, milling or planing) . 64
7 Marking of the machine . 64
7.1 Warning signs and pictograms . 64
7.2 Identification plate . 64
7.3 Warning signs and written warnings . 64
7.4 Marking . 65
8 Documentation . 66
8.1 General . 66
8.2 Technical description . 66
8.3 Instructions for use . 66
8.4 Restrictions of use . 67
8.5 Instructions for maintenance . 68
9 Verification of the conformity to the requirements and/or particular safety measures
. 68
9.1 General . 68
9.2 Methods of examination . 68
9.2.1 General . 68
9.2.2 Visual check . 68
9.2.3 Measurement . 68
9.2.4 Functional test . 69
9.2.5 Load test(s) . 69
9.2.6 Specific verification/measurements and other controls . 69
Annex A (normative) List of significant hazards . 70
Annex B (normative) Checklist for conformity . 74
Annex C (normative) Noise test code (grade of accuracy 2) . 83
C.1 Scope . 83
C.2 Definitions . 83
C.3 Determination of the emission sound pressure level at the working place and other
specified positions. 83
7

---------------------- Page: 9 ----------------------
oSIST prEN 15955-2:2022
prEN 15955-2:2022 (E)
C.4 Sound power level determination . 83
C.5 Installation and mounting conditions . 85
C.6 Working conditions . 85
C.7 Measurement uncertainties . 86
C.8 Information to be recorded . 87
C.9 Information to be reported . 87
C.10 Declaration and verification of noise emission values . 88
Annex D (normative) Vibration test code .
...
