SIST EN 61169-33:1998

Radio-frequency connectors -- Part 33: Sectional specification for series BMA r.f. connectors

Provides information and rules for the preparation of detail specifications for series BMA r.f. connectors together with the pro forma blank detail specification (BDS). Prescribes mating face dimensions for general purpose connectors, dimensional details of standard test connectors grade 0, gauging information and tests selected from QC 220000 (EN 61169-1) applicable to all detail specifications relating to series BMA connectors.

Hochfrequenz-Steckverbinder -- Teil 33: Rahmenspezifikation für HF-Steckverbinder der Baureihe BMA

Connecteurs pour fréquences radioélectriques -- Partie 33: Spécification intermédiaire pour les connecteurs de type BMA h.f.

Donne les informations et les directives pour préparer les spécifications particulières des connecteurs h.f. BMA ainsi que la spécification particulière cadre. Prescrit également les dimensions des faces d'accouplement pour connecteurs d'usage général, les dimension des connecterus d'essai normalisés de niveau 0, les informations sur les calibres et les essais issues de la QC 220000 (EN 61169-1) applicables à toutes les spécifications particulières pour les connecteurs BMA.

Radio-frequency connectors - Part 33: Sectional specification for series BMA r.f. connectors (IEC 61169-33:1996)

General Information

• Status: Published
• Publication Date: 31-Mar-1998
• ICS: 33.120.30 - RF connectors
• Technical Committee: iTEL - Communication cables
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Apr-1998
• Due Date: 01-Apr-1998
• Completion Date: 01-Apr-1998
• Ref Project: EN 61169-33:1997 - Radio-frequency connectors - Part 33: Sectional specification for series BMA r.f. connectors

Standards Content (Sample)

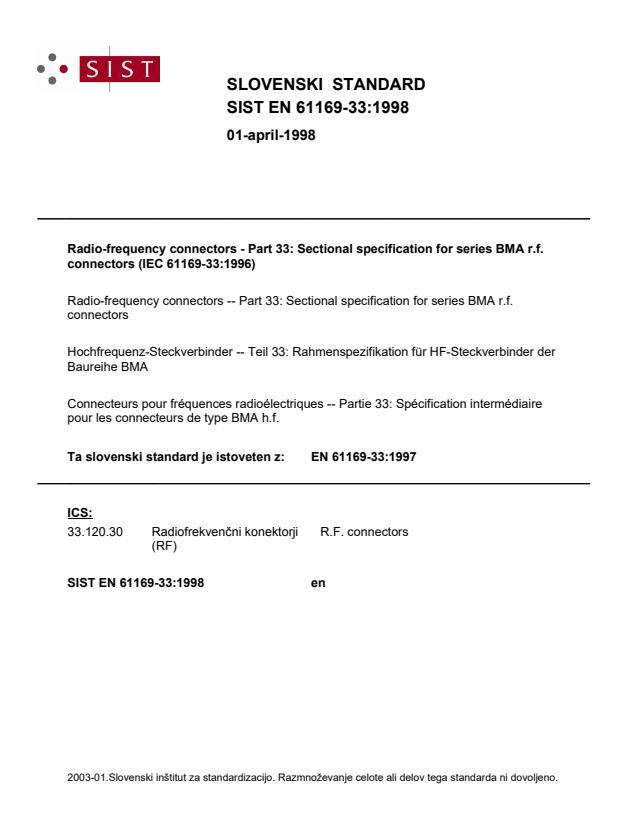

SLOVENSKI STANDARD
SIST EN 61169-33:1998
01-april-1998
Radio-frequency connectors - Part 33: Sectional specification for series BMA r.f.
connectors (IEC 61169-33:1996)
Radio-frequency connectors -- Part 33: Sectional specification for series BMA r.f.
connectors
Hochfrequenz-Steckverbinder -- Teil 33: Rahmenspezifikation für HF-Steckverbinder der
Baureihe BMA
Connecteurs pour fréquences radioélectriques -- Partie 33: Spécification intermédiaire
pour les connecteurs de type BMA h.f.
Ta slovenski standard je istoveten z: EN 61169-33:1997
ICS:
33.120.30 5DGLRIUHNYHQþQLNRQHNWRUML R.F. connectors
5)
SIST EN 61169-33:1998 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST EN 61169-33:1998

---------------------- Page: 2 ----------------------

SIST EN 61169-33:1998

---------------------- Page: 3 ----------------------

SIST EN 61169-33:1998

---------------------- Page: 4 ----------------------

SIST EN 61169-33:1998
NORME CEI
INTERNATIONALE IEC
61169-33
INTERNATIONAL
QC 222800
STAN DARD
Première édition
First edition
1996-03
Connecteurs pour fréquences radioélectriques
Partie 33:
Spécification intermédiaire
pour
les connecteurs de type BMA h.f.
Radio-frequency connectors
Part 33:
Sectional specification for
series BMA r.f. connectors
© IEC 1996 Droits
de reproduction réservés —
Copyright - all rights reserved
Aucune partie de cette publication
ne peut être reproduite ni No part of this publication may be reproduced or utilized in
utilisée sous quelque
forme que ce soit et par aucun any form or by any means, electronic or mechanical,
procédé, électronique ou mécanique,
y compris la photo- including photocopying and microfilm, without permission in
copie et les-microfilms, sans
l'accord écrit de l'éditeur. writing from the publisher.
International Electrotechnical Commission 3, rue de Varembé Geneva, Switzerland
Telefax: •:•41 22 919 0300 e-mail: [e-mail] IEC web site http: //www.iec.ch
CODE PRIX
Commission Electrotechnique Internationale
U
PRICE CODE
International Electrotechnical Commission
IEC
McHteyHapojaHaR 3neKTpoTe%HH4ecnaR HOMHCCHfi
Pour prix, voir
catalogue en vigueur
• • For price, see current catalogue

---------------------- Page: 5 ----------------------

SIST EN 61169-33:1998
1169-33 ©IEC:1996 - 3 -
CONTENTS
Page
FOREWORD 5
INTRODUCTION 7
Clause
1 Scope 9
2 Mating face and gauge information 9
2.1 Dimensions - High-performance connectors - Grade 1 9
2.2 Gauges 13
2.3 Dimensions - Standard test connectors - Grade 0 17
2.4 General requirements for connector mounting in modules and on panels 21
3 Quality assessment procedure 23
3.1 General 23
3.2 Ratings and characteristics (see clause 6 of IEC 1169-1/QC 220000) 23
3.3 Test schedule and inspection requirements - Acceptance tests 29
3.4 Instructions for preparation of detail specifications 35
3.5 Blank detail specification pro forma for series BMA connectors 37

---------------------- Page: 6 ----------------------

SIST EN 61169-33:1998
1169-33 ©IEC:1996 - 5 -
INTERNATIONAL ELECTROTECHNICAL COMMISSION
RADIO-FREQUENCY CONNECTORS -
Part 33: Sectional specification for series BMA r.f. connectors
FOREWORD
1)
The IEC (International Electrotechnical Commission) is a worldwide organization for standardization
comprising all national electrotechnical committees (IEC National Committees). The object of the IEC is to
promote international cooperation on all questions concerning standardization in the electrical and
electronic fields. To this end and in addition to other activities, the IEC publishes International Standards.
Their preparation is entrusted to technical committees; any IEC National Committee interested in
the subject dealt with may participate in this preparatory work. International, governmental and
non-governmental organizations liaising with the IEC also participate in this preparation. The IEC
collaborates closely with the International Organization for Standardization (ISO) in accordance with
conditions determined by agreement between the two organizations.
2)
The formal decisions or agreements of the IEC on technical matters, express as nearly as possible an
international consensus of opinion on the relevant subjects since each technical committee has
representation from all interested National Committees.
3) The documents produced have the form of recommendations for international use and are published in the
form of standards, technical reports or guides and they are accepted by the National Committees in that
sense.
4) In order to promote international unification, IEC National Committees undertake to apply IEC International
Standards transparently to the maximum extent possible in their national and regional standards. Any
divergence between the IEC Standard and the corresponding national or regional standard shall be clearly
indicated in the latter.
5) The IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with one of its standards.
6) Attention is drawn to the possibility that some of the elements of this International Standard may be the
subject of patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 1169-33 has been prepared by sub-committee 46D: R.F. connectors,
of IEC technical committee 46: Cables, wires, waveguides, r.f. connectors, and accessories
for communication and signalling.
The text of this standard is based on the following documents:
DIS Report on voting
ADIS Report on voting
46D(CO)180 46D(CO)198 46D(CO)206
46D(CO)210
Full information on the voting for the approval of this standard can be found in the repo
rt
on voting indicated in the above table.
This standard shall be read in conjunction with IEC 1169-1.
The QC number that appears on the front cover of this publication is the specification
number in the IEC quality assessment system for electronic components (IECQ).

---------------------- Page: 7 ----------------------

SIST EN 61169-33:1998
1169-33 © I EC :19 9 6 -7-
INTRODUCTION
The connector interface specified by this part of IEC 1169 includes patented matter which
is contained in a United States patent assigned to the manufacturer.
The International Electrotechnical Commission calls attention to the fact that certain inter-
face dimensions and features of the BMA connector are the subject of the United States
patent no. 4,426,127 now issued and owned by M/A-Com Omni Spectra, Inc. The IEC
takes no position with respect to patent validity. M/A-Com Omni Spectra has assured the
IEC that it is willing to grant a licence under these patents on reasonable and non-
discriminatory terms and conditions to anyone wishing to obtain such a licence.
M/A-Com Omni Spectra's undertakings (policy letter on licensing, the licence offer, and the
form of licence) in this respect are on file with the International Electrotechnical Commission
and are available for inspection by all interested parties at the IEC Central Office.
The licence details may be obtained from the legal department of M/A-Com Omni Spectra,
Incorporated whose address is:
21 Continental Boulevard
Merrimack, NH 03054
U.S.A.

---------------------- Page: 8 ----------------------

SIST EN 61169-33:1998
1169-33 ©IEC:1996 – 9 –
RADIO-FREQUENCY CONNECTORS -
Part
33: Sectional specification for series BMA r.f. connectors
1 Scope
Series BMA connectors have a characteristic impedance of 50 S2 and are normally used
for blind-entry low-power microwave applications in conjunction with flexible and semi-rigid
cables having a dielectric diameter of up to 3,00 mm. The connectors are usable up to a
frequency of at least 18 GHz.
This sectional specification provides information and rules for the preparation of detail
specifications for series BMA ri. connectors together with the pro forma blank detail
specification (BDS).
It also prescribes mating face dimensions for general purpose connectors, dimensional
details of standard test connectors grade 0, gauging information and tests selected from
QC 220000 (IEC 1169-1) applicable to all detail specifications relating to series BMA
connectors.
This specification indicates recommended pe
rformance characteristics to be considered
when writing a detail specification and it covers test schedules and inspection requirements
for assessment levels M and H
2 Mating face and gauge information
2.1 Dimensions – High-performance connectors – Grade 1
Inch dimensions are original dimensions. All undimensioned pictorial configurations are for
reference purposes only.

---------------------- Page: 9 ----------------------

SIST EN 61169-33:1998
1169-33 © I EC :19 9 6
Notes 1 and 3
45°
Note 1
10°
H
F D
EDUTSG
I
Note 5
Spring fingers
AA
°
6
IEC 186/96
Figure 1b
Figure 1 a
Table 1
mm in
Notes
Reference
Max.
Min. Max. Min.
0,38 0,51 0,015 0,020 Chamfer
A
- 0,112 - 4, 6
B 2,845
4,090 nominal 0,161 nominal Diameter
D
E - - - ( - 2 Diameter
I
Diameter
F 4,880 nominal 0,192 nominal
0,211 Diameter
G 5,309 1 5,359 0,209 I
0,300 nominal Diameter
H 7,620 nominal
0,120 0,127 3
K 3,048 3,225
- 0,115 -
M 2,921
- 0,199 -
P 5,055
0,198
Q - 5,029 -
Diameter
S 7,370 - 0,290 -
T 5,720 - 0,225 - Diameter
- - - - 4 Diameter
U
0,015 Diameter
V - 0,380 -
Diameter
W 0,9017 0,9398 0,0355 0,0370
X 3,252 3,429 0,128 0,135
2,159 2,413 0,085 0,095
Z
1,346 - 0,053 -
AA
1 Reference plane, mechanical and electrical.
Bore diameter closed to meet electrical and mechanical requirements
2
when mated with a 0,0355/0,0370 in (0,9017/0,9398 mm) diameter.
With spring finger bottomed.
3
To meet electrical and mechanical requirements.
4
5 Design and location of the sealing feature is optional but shall ensure
the environmental performance requirements are met with up to 0,015
in (0,38 mm) interface separation.
Location of point of electrical and mechanical contact from the refer-
6
ence plane.

---------------------- Page: 10 ----------------------

SIST EN 61169-33:1998
1169-33 © IEC:1996 -13 -
2.2
Gauges
Inch dimensions are original dimensions. All undimensioned pictorial configurations are for
reference purposes only.
2.2.1
Gauges for female center contact
c
^
50'±10'
A CE

I _Ie^
IEC 187/16
Figure 2 - Gauge pins for center contact of socket connectors
Table 2
Gauge A - Gauge B -
Maximum material for
Minimum material for
sizing purposes sizing purposes
Mass of gauge: 28 g min.
Ref
mm
in mm in
Min. Max. Min.
Max. Min. Max. Min. Max.
A 0,9398 0,9448 0,0370 0,0372 0,8967 0,9017 0,0353 0,0355
B 0,762
1,143 0,0300 0,045 1,270 1,905 0,050 0,0750
C — 0,380 — 0,015 — — — —
Material: polished steel.
Surface roughness Ra: 0,4 µm (16 pin) maximum.
Test procedure
Gauge A shall be inserted once only into the female center contact. This is a sizing
operation.
After this, gauge B shall be inserted into the female center contact. The contact shall
support the mass of the gauge in a ve rtical downward position.
NOTE - The minimum diameter of gauge A corresponds to the maximum diameter of a male contact.

---------------------- Page: 11 ----------------------

SIST EN 61169-33:1998
1169-33 © IEC:1996 - 15 -
2.2.2
Gauges for female outer contacts
E
Figure 3 - Gauge for outer contact of socket connectors
(for dimensions see table 3)
Table 3
Gauge C - Gauge D -
Maximum material for
Minimum material for measurement
sizing purposes of gauge retention force
Mass of gauge: 56 g min.
Ref.
mm in mm
in
Min. Max.
Min. Max. Min. Max. Min. Max.
A0 5,3594 5,3644 0,2110 0,2112 5,3036 5,3086 0,2088
0,2090
80 4,9124 4,9352 0,1934 0,1943 4,8133 4,8234 0,1895
0,1899
00 2,540 4,064 0,100
0,160 2,540 4,064 0,100 0,160
D 5,3086 5,6616 0,2090
0,2229 5,3086 5,3644 0,2090 0,2112
E 11°±30'
9°±30'
Material: polished steel.
Surface roughness Ra: 0,4 p.m (16 pin) maximum.
Test procedure
The gauge C shall be placed once inside the outer contact. This is a sizing operation.
The gauge D is placed inside the outer contact. The retention force of the gauge shall be
0,56 N minimum

---------------------- Page: 12 ----------------------

SIST EN 61169-33:1998

---------------------- Page: 13 ----------------------

SIST EN 61169-33:1998
1169-33 © IEC:1996 -19 -
2.3.2 Plug (male contact)
0,015 mm
0,0006 in
Notes 1 and 2
10°
h
f
Figure 5a
j
0,05 mm
60° ± 1°
0,002 in
190/96
Figure 5b 18C
Figure 5 - Male center contact
Table 5 - Standard test connectors, plug (Grade 0)
mm in
Reference Notes
min. max. min. max.
a 5,055 — 0,199 —
0,128 0,132
b 3,252 3,352
2,159 2,413 0,0850 0,095
d
0,300 n mina!
a0 7,62 nominal
f0 5,309 5,359 0,209 0,2110 4
0,192 nominal
g0 4,877 nominal
0,1600 I 0,1615 4
h0 4,064 I 0,102
JO 1,778 nominal 0,700 nominal 3 and 4
f 0,0368
kO 0,9017 0,9347 0,0355 4
1
10 0,2540 nominal 0,0100 nominal
For dimensions not included in this table, see 2.1.
1 Reference plane, mechanical and electrical.
2 Su rface roughness 0,8 µm (32 gin minimum).
3 Chosen to give the required pe rformance 50 ± 0,5 Q. The given nominal diameter in the
table is on the assumption of the dielectric having a dielectric constant of 1,00.
4 On MMC diameters f, h, j and k, shall be on or capable of taking up a common axis.

---------------------- Page: 14 ----------------------

SIST EN 61169-33:1998
1169-33 ©IEC:1996 - 21 -
2.4 General requirements for connector mounting in modules and on panels
2.4.1 Limits of permissible connector radial misalignment and axial misalignment
When designing the mounting arrangements for series BMA
connectors, it is essential
that the disposition of individual pairs of connectors and their engagement is controlled
within the following general limiting conditions.
2.4.1.1 Radial misalignment
The radial misalignment between engaging connectors refers to the concentricity error be-
tween diameter g of the plug and diameter f of the socket at the beginning and during the
engagement (see 2.1 for dimensions g and f of the plug and socket.
A rigidly mounted plug and socket shall accept a radial misalignment within
0 0,190 mm (0,0075 in)
(
at the beginning and during the engagement.
© I
A rigidly mounted plug and float-mounted socket shall accept a radial misalignment within
1,016 mm (0,040 in)
I © I 0 at the beginning of the engagement.
During the engagement, the floating connector shall be able to align itself with the rigidly
mounted connector within
0 0,190 mm (0,0075 in)
© I
2.4.1.2 Axial misalignment
a) Rigidly mounted plug and socket
To maintain the electrical and environmental performance, the connector reference
planes should be within 0,015 in (0,38 mm).
Further separation up to 0,030 in (0,76 mm) will degrade electrical pe rformance and
negate the environmental pe rformance.
b) Rigidly mounted plug and float-mounted socket
The float mounting allows a total of 0,060 in (1,52 mm) axial travel. The mounting
arrangements should, however, ensure a minimum length of travel of 0,010 in (0,26 mm)
[0,030 in (0,76 mm) preferred] to ensure that full length of engagement is maintained
under operational conditions.
2.4.2 Specific connector mounting details
In addition to details of the panel cut-out and maximum panel thickness, the detail specifi-
cation shall specify the minimum center-line separation between adjacent connectors, in
both the X and Y coordinates (if different).

---------------------- Page: 15 ----------------------

SIST EN 61169-33:1998
1169-33 © IEC:1996 – 23 –
3 Quality assessment procedure
3.1 General
The following subclauses provide recommended ratings, pe rformance and test conditions to
be considered when writing a detail specification. They also provide an appropriate schedule
of tests with minimum levels of conformance inspection sampling, together with the proforma
blank detail specification (BDS) and instructions for the preparation of a detail specification.
3.2 Ratings and characteristics (see clause 6 of IEC 1169-1/QC 220000)
The values indicated below are recommended for series BMA connectors and are given
for the writer of the detail specification. They are applicable for the condition when the
connectors are fully mated.
Certain tests are listed without any recommended values being given. These tests will
usually not be required. When these tests are required, appropriate values shall be
entered in the detail specification at the discretion of the specification writer.
Table 6 – Rating and characteristics
Test
Remarks,
method
deviations from
IEC 1169-1
Ratings and characteristics Value
g standard test
(QC 220000)
method
Subclause
Electrical
Nominal impedance 50 i2
Frequency range
Grade 1 connectors
- flexible cable, straight styles Up to 18 GHz Or upper frequency
- semi-rigid cable, straight styles Up to 18 GHz limit of cable
- right-angle styles Up to 18 GHz
Reflection factor 1) 9.2.1
Grade 1 connectors
*
- flexible cable, straight styles 50,070 + 0,007
f
- flexible cable, right-angle styles <--0,070 + 0,007 f
- semi-rigid cable, straight styles <0,035 + 0,003 f
- semi-rigid cable, right-angle styles 50,058 + 0,004 f
- component mounting styles See
- solder bucket and PCB detail
mounting styles specification
Center contact resistance 2l 9.2.3
- initial 53 mil
- change due to conditioning 56 mil
Outer conductor continuity2l
9.2.3
- initial 52 mû
- after conditioning 53 mil
Insulation resistance2l 9.2.5
- initial 5 Gil
- after conditioning 2200 Mil
* frequency in GHz

For the notes, see the end of the table. (continued on page 25)

---------------------- Page: 16 ----------------------

SIST EN 61169-33:1998
1169-33 © IEC:1996 - 25 -
(continued)
Table 6
Test
Remarks,
method
deviations from
IEC 1169-1 Ratings and characteristics
Value
standard test
(QC 220000)
method
Subclause
Electrical
4)
Proof voltage at sea-level3) 9.2.6
- cables 96 IEC 50-2-1, IEC 50-2-2 750 V
- cables 96 IEC 50-3-1, IEC 50-3-7,
1 000 V
- semi- rigid, 2,16 mm (0,085 in) diameter 750 V
- semi- rigid, 3,85 mm (0,141 in) diameter 1 000 V
4)
Proof voltage at 4,4 kPa3)
- cables 96 IEC 50-2-1, IEC 50-2-2 150 V
4,4 kPa approximately
- cables 96 IEC 50-3-1, IEC 50-3-7
200 V equivalent to 20 km
- semi-rigid, 2,16 mm (0,085 in) diameter 150 V
and 70 000 ft altitude
- semi-rigid, 3,85 mm (0,141 in) diameter 200 V
4)
Environmental test voltage at sea-level3)
- cables 96 IEC 50-2-1, IEC 50-2-2
250 V
- cables 96 IEC 50-3-1, IEC 50-3-7 400 V
- semi-rigid, 2,16 mm (0,085 in) diameter 250 V
- semi-rigid, 3,85 mm (0,141 in) diameter 335 V
4)
Environmental test voltage at 4,4 kPa3)
-
cables 96 IEC 50-2-1, IEC 50-2-2 65 V 4,4 kPa approximately
- cables 96 IEC 50-3-1, IEC 50-3-7 85 V equivalent to 20 km
- semi-rigid, 2,16 mm (0,085 in) diameter 85 V
and 70 000 ft altitude
- semi-rigid, 3,85 mm (0,141 in) diameter
65 V
Screening effectiveness ) 9.2.8 Z85 dB at 1 GHz
Z < 5,6 milt
(straight cables only)
Discharge test (corona effect) 9.2.9
- cables 96 IEC 50-2-1, IEC 50-2-2 190 V
Extinction voltage
- cables 96 IEC 50-3-1, IEC 50-3-7 250 V at 4,4 kPa
Mechanical
Center contact captivation 9.3.5
Maximum displacement
- axial force
26,7 N 0,25 mm in each
- torque N/As)
direction
Engagement and separation
9.3.6
- engagement force 13,3 N max.
- separation force
0,56 N max.
Gauge retention force 9.3.4
(resilient contacts)
- center 0,28 N min.
- outer 0,56 N min.
Technical tests on cable fixing
...
