SIST EN ISO 19958:2005

Footwear - Test methods for heels and top pieces - Top piece retention strength (ISO 19958:2004)

This European Standard specifies a test method for measuring the force required to detach the top piece from the underside of the shoe heel. The test is applicable to heels with the top piece already attached which have been removed from complete shoes, to heels alone with the top piece attached and, in some instances, to heels with separate push-in top pieces. All heels, except reinforced slender heels with top pieces attached by steel spigots and built stacked heels, can be tested by this method.

Schuhe - Prüfverfahren für Absätze und Oberflecken - Haltefestigkeit von Oberflecken (ISO 19958:2004)

Diese Europäische Norm legt ein Prüfverfahren zur Messung der Kraft fest, die erforderlich ist, um den Oberfleck von der Unterseite des Schuhabsatzes zu lösen. Die Prüfung gilt für Absätze, die von fertigen Schuhen entfernt wurden und deren Oberflecke bereits angebracht sind, bis hin zu Absätzen allein mit angebrachten Oberflecken und in manchen Fällen für Absätze mit gesonderten Einsteckoberflecken. Alle Absätze, ausgenommen verstärkte dünne Absätze mit Oberflecken, die mit Stahleinpresszapfen befestigt sind, und aufgebaute Absätze, dürfen nach diesem Verfahren geprüft werden.

Chaussures - Méthodes d'essai relatives aux talons et aux bonbouts - Force de rétention du bonbout (ISO 19958:2004)

L'ISO 19958:2004 spécifie une méthode d'essai pour mesurer la force requise pour détacher le bonbout de la face inférieure du talon de la chaussure. L'essai est applicable à des talons avec bonbout déjà attaché et qui ont été enlevés de chaussures complètes, à des talons isolés avec bonbout attaché et, dans certains cas, à des talons avec bonbout séparé inséré par pression. Tous les talons à l'exception des talons minces renforcés dont les bonbouts sont attachés par des goupilles en acier, et des talons bottiers, peuvent être testés avec cette méthode.

Obutev – Preskusne metode za pete in napetnike – Vzdržljivost napetnika (ISO 19958:2004)

General Information

• Status: Published
• Publication Date: 28-Feb-2005
• ICS: 61.060 - Footwear
• Technical Committee: SS SPL - Technical Board for the general field
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Mar-2005
• Due Date: 01-Mar-2005
• Completion Date: 01-Mar-2005
• Ref Project: EN ISO 19958:2004 - Footwear - Test methods for heels and top pieces - Top piece retention strength (ISO 19958:2004)

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN ISO 19958:2005
01-marec-2005
Obutev – Preskusne metode za pete in napetnike – Vzdržljivost napetnika (ISO
19958:2004)
Footwear - Test methods for heels and top pieces - Top piece retention strength (ISO
19958:2004)
Schuhe - Prüfverfahren für Absätze und Oberflecken - Haltefestigkeit von Oberflecken
(ISO 19958:2004)
Chaussures - Méthodes d'essai relatives aux talons et aux bonbouts - Force de rétention
du bonbout (ISO 19958:2004)
Ta slovenski standard je istoveten z: EN ISO 19958:2004
ICS:
61.060 Obuvala Footwear
SIST EN ISO 19958:2005 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST EN ISO 19958:2005

---------------------- Page: 2 ----------------------

SIST EN ISO 19958:2005



EUROPEAN STANDARD
EN ISO 19958

NORME EUROPÉENNE

EUROPÄISCHE NORM
September 2004
ICS 61.060

English version
Footwear - Test methods for heels and top pieces - Top piece
retention strength (ISO 19958:2004)
Chaussures - Méthodes d'essai relatives aux talons et aux Schuhe - Prüfverfahren für Absätze und Oberflecken -
bonbouts - Force de rétention du bonbout (ISO Haltefestigkeit von Oberflecken (ISO 19958:2004)
19958:2004)
This European Standard was approved by CEN on 16 January 2004.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.

CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,
Slovenia, Spain, Sweden, Switzerland and United Kingdom.




EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2004 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 19958:2004: E
worldwide for CEN national Members.

---------------------- Page: 3 ----------------------

SIST EN ISO 19958:2005
EN ISO 19958:2004 (E)

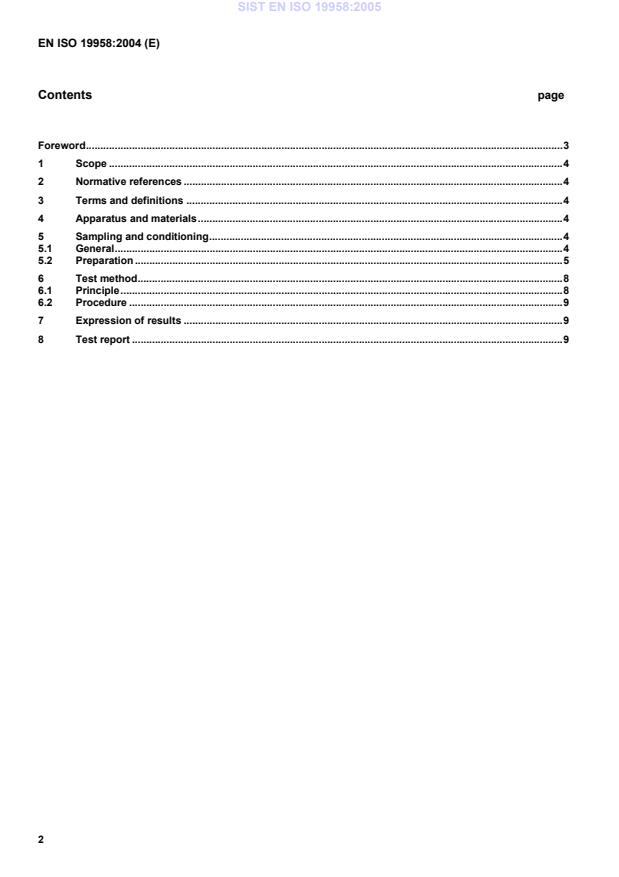

Contents           page
Foreword.3
1 Scope.4
2 Normative references.4
3 Terms and definitions .4
4 Apparatus and materials.4
5 Sampling and conditioning.4
5.1 General.4
5.2 Preparation.5
6 Test method.8
6.1 Principle.8
6.2 Procedure.9
7 Expression of results.9
8 Test report.9


2

---------------------- Page: 4 ----------------------

SIST EN ISO 19958:2005
EN ISO 19958:2004 (E)
Foreword
This document (EN ISO 19958:2004) has been prepared by Technical Committee CEN /TC 309 "Footwear", the
secretariat of which is held by AENOR, in collaboration with Technical Committee ISO/TC 216 "Footwear".
This European Standard shall be given the status of a national standard, either by publication of an identical text or
by endorsement, at the latest by March 2005, and conflicting national standards shall be withdrawn at the latest by
March 2005.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Cyprus, Czech Republic, Denmark,
Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
3

---------------------- Page: 5 ----------------------

SIST EN ISO 19958:2005
EN ISO 19958:2004 (E)
1 Scope
This European Standard specifies a test method for measuring the force required to detach the top piece from the
underside of the shoe heel. The test is applicable to heels with the top piece already attached which have been
removed from complete shoes, to heels alone with the top piece attached and, in some instances, to heels with
separate push-in top pieces. All heels, except reinforced slender heels with top pieces attached by steel spigots
and built stacked heels, can be tested by this method.
2 Normative references
The following referenced document is indispensable for the application of this document. For dated references, only
the edition cited applies. For undated references, the latest edition of the referenced document (including any
amendments) applies.
EN ISO 7500-1 Metallic materials - Verification of static uniaxial testing machines - Part 1: Tension/compression
testing machines (ISO 7500-1:1999).
3 Terms and definitions
For the purposes of this European Standard, the following term and definition apply.

top piece retention strength
maximum force, expressed in Newton, required to pull off a top piece from the heel
4 Apparatus and materials
4.1 The following apparatus and materials shall be used.
4.2 Tensile testing machine, complying with the requirements of EN ISO 7500-1 class 2, with a range of 0 N to
1000 N and a constant-rate-of-loading of 15 N/s ± 5 N/s. A constant-rate-of-traverse tester, for which increase of
force produces an appreciable movement of the load jaw (e.g. a “pendulum” tester”), may be used if the rate of
traverse is set to give, on average, the specified rate of force application when a test is carried out. Alternatively, a
constant-rate-of-traverse tester for which there is little movement on the load jaw may be used if the top piece is
attached to one jaw of the tester via one or more extensible cords which are substantially elastic over the force
range of the test and the rate of traverse is adjusted until the specified rate of force application is obtained.
4.3 Drill, with twist drill beats of suitable sizes (see 5.2.1.4 and 5.2.1.5).
4.4 Bolt, of size M 4 or size M 3 for slender heels, and preferably of length 40 mm or more with a small metal
ring or loop attached to its head by brazing. If only low heels are b
...
