SIST EN IEC 60115-8-10:2026

• Abstract:

  COMMENT The text of this clause may repeat information already given in some fields of the above title block. Essential information on the special type of components covered by the drafted detail specification may be added, preferably at the place marked with "…".; This detail specification specifies the characteristics and ratings of surface mount (SMD) film resistors for use in electronic equipment, which are typically assembled on the surface of circuit boards.; ... ; The resistors covered herein are classified to level G, as defined in IEC 60115-1:2020, 3.4 for general electronic equipment, typically operated under benign or moderate environmental conditions, where the major requirement is function. Examples for level G include consumer products and telecommunication user terminals.; This detail specification is based upon the blank detail specification IEC 60115-8-10:2026.; This detail specification establishes test schedules and performance requirements permitting the quality assessment of the resistors covered herein according to the quality assessment procedures prescribed by IEC 60115-1:2020, Annex Q.

• Status: Published
• Public Enquiry End Date: 26-Feb-2026
• Publication Date: 05-Nov-2026
• ICS: 31.040.10 - Fixed resistors
• Technical Committee: I11 - Imaginarni 11
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 03-Nov-2026
• Due Date: 08-Jan-2027
• Completion Date: 06-Nov-2026
• Ref Project: EN IEC 60115-8-10:2026 - Fixed resistors for use in electronic equipment - Part 8-10: Blank detail specification: Surface mount (SMD) low-power film resistors for assembly on circuit boards, for general electronic equipment, classification level G

• Replaces: SIST EN 60115-8-1:2015 - Fixed resistors for use in electronic equipment - Part 8-1: Blank detail specification: Fixed surface mount resistors categorized as level G - Assessment level EZ
• Effective Date: 01-Dec-2026
• Refers: SIST EN IEC 61760-1:2026 - Surface mounting technology - Part 1: Standard method for the specification of surface mounting components (SMDs).
• Effective Date: 27-Oct-2026
• Refers: SIST EN 61193-2:2008 - Quality assessment systems -- Part 2: Selection and use of sampling plans for inspection of electronic components and packages
• Effective Date: 27-Oct-2026
• Refers: SIST EN 60062:2016 - Marking codes for resistors and capacitors (IEC 60062:2016)
• Effective Date: 27-Oct-2026
• Refers: SIST EN 60115-1:2023 - Fixed resistors for use in electronic equipment - Part 1: Generic specification (IEC 60115-1:2020 (MOD)
• Effective Date: 27-Oct-2026
• Refers: SIST EN IEC 60115-8:2026 - Fixed resistors for use in electronic equipment - Part 8: Sectional specification - Fixed surface mount resistors (IEC 60115-8:2023)
• Effective Date: 27-Oct-2026
• Refers: SIST EN IEC 60286-3:2023 - Packaging of components for automatic handling - Part 3: Packaging of surface mount components on continuous tapes (IEC 60286-3:2022)
• Effective Date: 27-Oct-2026
• Refers: SIST EN 60063:2015 - Fixed capacitors for use in electronic equipment - Preferred number series for resistors and capacitors
• Effective Date: 27-Oct-2026

SIST EN IEC 60115-8-10:2026 is an IEC blank detail specification for surface mount (SMD) low-power film resistors for assembly on circuit boards, classified to level G. It is the template used to draft product detail specifications for these resistors and to set the characteristics, tests, marking, packaging and quality assessment rules that such a detail specification should contain.

What does SIST EN IEC 60115-8-10:2026 specify?

SIST EN IEC 60115-8-10:2026 specifies how to draft detail specifications for SMD low-power film resistors classified to level G, based on the product classification levels in IEC 60115-1. It is a blank detail specification, so its main role is to define the structure and minimum content of a usable product specification for this resistor family.

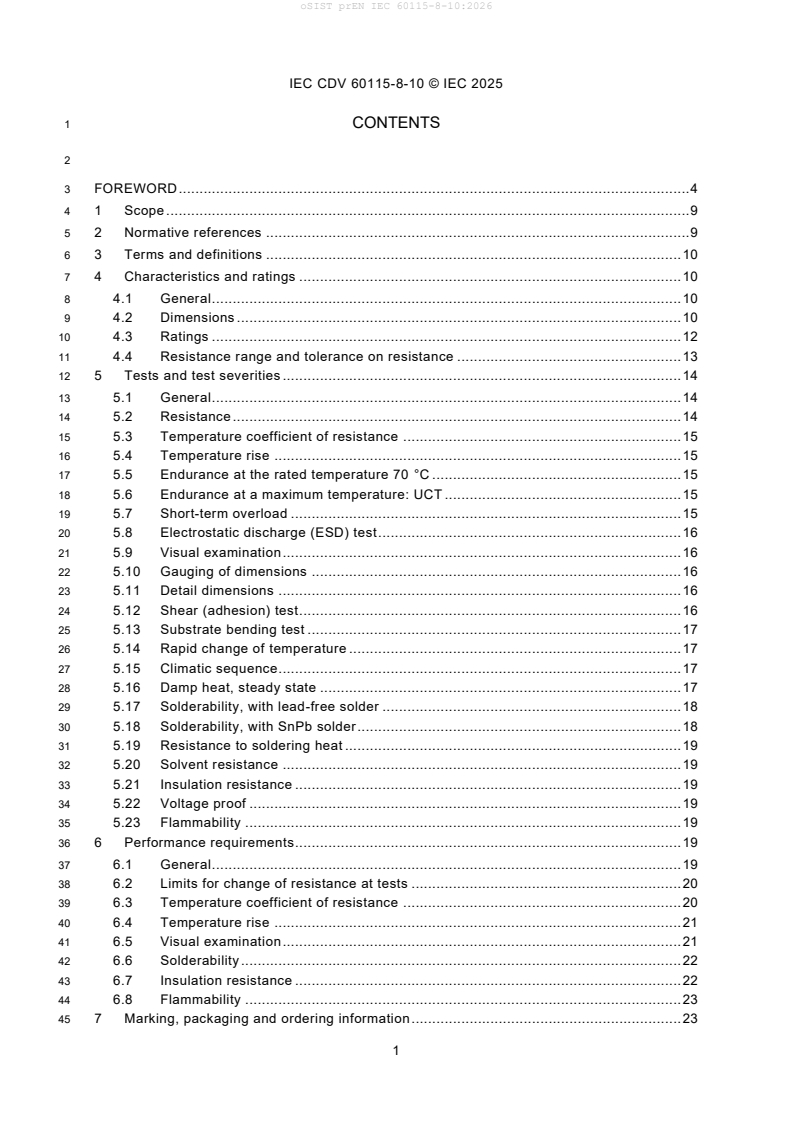

The document is organized into clauses 1 to 9, followed by four annexes:

Annex	What it covers
Annex A	Symbols and abbreviated terms
Annex B	Reference for visual examination
Annex C	0 Ω resistors (jumpers)
Annex X	Cross-references to the prior revision of this specification

Clause 1 covers the scope, Clause 2 the normative references, Clause 3 the terms and definitions, Clauses 4 to 6 the characteristics, tests and performance requirements, Clause 7 marking, packaging and ordering information, Clause 8 additional information, and Clause 9 quality assessment procedures.

What are the key requirements of SIST EN IEC 60115-8-10:2026?

SIST EN IEC 60115-8-10:2026 is mainly a drafting framework, but it still fixes the technical content that a level G detail specification has to address. In practice, it tells the writer what has to be stated for dimensions, ratings, test conditions, acceptance criteria and quality assessment.

Product definition and application level

Clause 1 places the resistors in general electronic equipment and identifies level G as the classification level. That matters because the intended environment and duty level drive the ratings, test severities and qualification choices that follow.

Clause 1 also states that the detail specification is used to support quality assessment under the procedures of IEC 60115-1. For a manufacturer or buyer, that means the document is not just descriptive - it becomes the basis for approval, routine control and product acceptance.

Dimensions, ratings and resistance classes

Clause 4 and Figure 1 define the outline and dimensions, while Table 1 gives the style-specific sizes. Clause 4.2 also allows other shapes within the stated dimensional framework, so the document writer can describe the exact form of the resistor family being specified.

Clause 4.3 sets climatic categories, ratings and the derating curve. Table 2 identifies the climatic categories, Table 3 gives rated dissipation, limiting element voltage and insulation voltage, and Figure 2 shows how dissipation is reduced above the rated temperature of 70 °C. In practice, this tells the user what electrical and thermal limits the component family is built around.

Clause 4.4 links resistance range, tolerance and temperature coefficient of resistance to climatic category. Table 4 is the place where approved combinations are listed, and those combinations are used for qualification and quality conformance. This matters because it prevents a specification from accepting values that have not been qualified.

Test methods and severities

Clause 5 is the core test section. It covers resistance, temperature coefficient of resistance, temperature rise, endurance at 70 °C, endurance at the maximum temperature UCT, short-term overload, ESD, visual examination, gauging, detail dimensions, shear, substrate bending, rapid change of temperature, climatic sequence, damp heat, solderability with lead-free solder, solderability with SnPb solder, resistance to soldering heat, solvent resistance, insulation resistance, voltage proof and flammability.

Most tests are carried out with specimens mounted on a test board, unless the relevant subclause gives a special method. That matters because it reflects how these parts are used in real assemblies, not as loose components.

The solderability clauses are especially practical. Clause 5.17 gives a lead-free solderability test, and Clause 5.18 gives a lead-bearing SnPb solderability test. The document therefore supports both current and traditional soldering processes, which is important for mixed manufacturing environments.

Performance limits after testing

Clause 6 translates the test results into pass/fail requirements. Table 10 gives the limits for change of resistance after the various tests, and Table 11 gives the permitted resistance change due to temperature variation.

Clause 6.4 ties temperature rise to the maximum element temperature MET, which is also the basis for UCT. Clause 6.6 gives the solderability acceptance criterion in terms of solder coverage and visible defects, while Clause 6.7 sets insulation resistance requirements for insulated resistors. Clause 6.8 gives the flammability requirement based on the duration of burning after the needle flame is removed.

Marking, packaging and ordering information

Clause 7 sets the information that should appear on the component, the package and the order. For marked parts, the document points to IEC 60062 for resistance coding and allows either colour code or letter-and-numeral code depending on shape.

Clause 7.2 requires taped packaging in accordance with IEC 60286-3 and says the primary and proximity packaging are subject to visual examination. Clause 7.4 lists the minimum ordering information: detail specification number, style reference, nominal resistance, tolerance, temperature coefficient and any special variant. For procurement, that is the information needed to order the intended part unambiguously.

Quality assessment and 0 Ω resistors

Clause 9 requires 100% resistance testing during manufacture, followed by sampling reinspection to monitor outgoing quality level. It also sets the qualification approval and quality conformance inspection routes, with test schedules in Tables 12 and 13.

Annex C gives special rules for 0 Ω resistors. It replaces the normal climatic category and ratings tables with jumper-specific tables, uses residual resistance instead of normal resistance-stability limits, and removes the temperature coefficient and ESD tests from applicability. That is important when the same detail specification includes both normal resistors and jumpers.

What terms does SIST EN IEC 60115-8-10:2026 define?

• TCR - Temperature coefficient of resistance; it describes how resistance changes with temperature.
• LCT - Lower category temperature; it is the low end of the climatic category used in temperature-related tests.
• UCT - Upper category temperature; it is the high end of the climatic category used for test procedures.
• MET - Maximum element temperature; it is the temperature basis used to derive UCT and temperature rise limits.
• ESD - Electrostatic discharge; the document uses ESD testing to check sensitivity to static discharge.
• HBM - Human body model; the model used to apply the ESD voltage in the test.
• SPC - Statistical process control; the quality section refers to it as a way to control dimensional or process variation.
• ND - Non destructive; used in the test schedules to identify tests that do not destroy the specimen.

Who uses SIST EN IEC 60115-8-10:2026?

SIST EN IEC 60115-8-10:2026 is used by resistor manufacturers, product engineers, quality managers, test laboratories and certification bodies that prepare or assess detail specifications for SMD low-power film resistors. It is also relevant to procurement teams and buyers who need to identify the exact specification basis for a qualified resistor family.

The document is aimed at general electronic equipment applications, including consumer products and telecommunication user terminals. It is also relevant where quality assessment is done under systems such as IECQ.

What changed in SIST EN IEC 60115-8-10:2026 from the previous edition?

SIST EN IEC 60115-8-10:2026 replaces IEC 60115-8-1:2014 and is described as a technical revision. The significant technical changes stated in the document are:

• support for solderability testing with both lead-bearing SnPb solder and lead-free solder
• support for detailed visual acceptance criteria
• a visual examination requirement for the primary and proximity packaging
• allowance for specific visual acceptance criteria in addition to those in Annex B of IEC 60115-8:2023

Which standards are used with SIST EN IEC 60115-8-10:2026?

The document relies on several standards to define coding, dimensions, packaging, test methods and quality assessment:

• IEC 60115-1:2020 - provides the generic specification, core test methods, quality assessment procedures and the product classification level definitions
• IEC 60115-8:2023 - provides the sectional specification for fixed surface mount resistors and the detailed test and visual criteria referenced throughout
• IEC 60062:2019 - gives the marking codes for resistors and capacitors, used for resistance coding in marking
• IEC 60063 - provides preferred number series for resistor values
• IEC 60286-3 - gives packaging rules for surface mount components on continuous tapes
• IEC 61760-1 - provides the standard method for specifying surface mounting components and soldering process compatibility
• IEC 61193-2:2007 - provides sampling plan methods used for inspection and quality assessment

What does the SIST EN IEC 60115-8-10:2026 document contain?

SIST EN IEC 60115-8-10:2026 contains one outline figure, one derating curve, and a set of tables for styles and dimensions, climatic categories, ratings, resistance combinations, test severities and quality assessment schedules. It also contains detailed procedures for electrical, mechanical, climatic, solderability and flammability testing.

The document includes worked test schedules for qualification approval and for lot-by-lot and periodic quality conformance inspection. It also contains the symbols and abbreviations used in the specification, a visual examination annex, a dedicated annex for 0 Ω resistors, and a cross-reference annex to the prior revision.

SLOVENSKI STANDARD
01-december-2026
Nadomešča:
SIST EN 60115-8-1:2015
Fiksni upori za uporabo v elektronski opremi - 8-10. del: Neizpolnjena podrobna
specifikacija - Površinsko montirani (SMD) tankoplastni upori nizke moči za
montažo na tiskana vezja, za univerzalno elektronsko opremo, razvrstitvena raven
G (IEC 60115-8-10:2026)
Fixed resistors for use in electronic equipment - Part 8-10: Blank detail specification:
Surface mount (SMD) low-power film resistors for assembly on circuit boards, for general
electronic equipment, classification level G (IEC 60115-8-10:2026)
Festwiderstände zur Verwendung in Geräten der Elektronik - Teil 8-10: Vordruck für
Bauartspezifikation - Oberflächenmontierbare (SMD) Schicht-Festwiderstände niedriger
Belastbarkeit für Geräte der Elektronik, Klassifikationsstufe G (IEC 60115-8-10:2026)
Résistances fixes utilisées dans les équipements électroniques - Partie 8-10:
Spécification particulière-cadre: Résistances à couche, à faible dissipation, pour
montage en surface (CMS) pour assemblage sur cartes de circuit imprimé pour des
équipements électroniques généraux, niveau de classification G (IEC 60115-8-10:2026)
Ta slovenski standard je istoveten z: EN IEC 60115-8-10:2026
ICS:
31.040.10 Fiksni upor Fixed resistors
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN IEC 60115-8-10

NORME EUROPÉENNE
EUROPÄISCHE NORM October 2026
ICS 31.040.10 Supersedes EN 60115-8-1:2015
English Version
Fixed resistors for use in electronic equipment - Part 8-10: Blank
detail specification: Surface mount (SMD) low-power film
resistors for assembly on circuit boards, for general electronic
equipment, classification level G
(IEC 60115-8-10:2026)
Résistances fixes utilisées dans les équipements Festwiderstände zur Verwendung in Geräten der Elektronik
électroniques - Partie 8-10: Spécification particulière-cadre: - Teil 8-10: Vordruck für Bauartspezifikation -
Résistances à couche, à faible dissipation, pour montage Oberflächenmontierbare (SMD) Schicht-Festwiderstände
en surface (CMS) pour assemblage sur cartes de circuit niedriger Belastbarkeit für Geräte der Elektronik,
imprimé pour des équipements électroniques généraux, Klassifikationsstufe G
niveau de classification G (IEC 60115-8-10:2026)
(IEC 60115-8-10:2026)
This European Standard was approved by CENELEC on 2026-10-23. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2026 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 60115-8-10:2026 E

European foreword
The text of document 40/3264/CDV, future edition 1 of IEC 60115-8-10, prepared by TC 40
"Capacitors and resistors for electronic equipment" was submitted to the IEC-CENELEC parallel vote
and approved by CENELEC as EN IEC 60115-8-10:2026.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2027-10-31
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2029-10-31
document have to be withdrawn
This document supersedes EN 60115-8-1:2015 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 60115-8-10:2026 was approved by CENELEC as a
European Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standard indicated:
IEC 60068-1 NOTE Approved as EN 60068-1
IEC 60068-2-1 NOTE Approved as EN IEC 60068-2-1
IEC 60068-2-2 NOTE Approved as EN IEC 60068-2-2
IEC 60068-2-6 NOTE Approved as EN 60068-2-6
IEC 60068-2-13 NOTE Approved as EN IEC 60068-2-13
IEC 60068-2-14 NOTE Approved as EN IEC 60068-2-14
IEC 60068-2-20 NOTE Approved as EN IEC 60068-2-20
IEC 60068-2-21 NOTE Approved as EN IEC 60068-2-21
IEC 60068-2-30 NOTE Approved as EN IEC 60068-2-30
IEC 60068-2-45 NOTE Approved as EN 60068-2-45
IEC 60068-2-58 NOTE Approved as EN 60068-2-58
IEC 60068-2-78 NOTE Approved as EN IEC 60068-2-78
IEC 60195 NOTE Approved as EN 60195
IEC 60695-11-5 NOTE Approved as EN 60695-11-5
IEC 60749-26 NOTE Approved as EN IEC 60749-26
IEC 80000 series NOTE Approved as EN IEC 80000 series
ISO 80000-5 NOTE Approved as EN ISO 80000-5
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1  Where an International Publication has been modified by common modifications, indicated by (mod),
the relevant EN/HD applies.
NOTE 2  Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cencenelec.eu.
Publication Year Title EN/HD Year
IEC 60062 2016 Marking codes for resistors and capacitors EN 60062 2016
IEC 60063 - Preferred number series for resistors and EN 60063 -
capacitors
IEC 60115-1 (mod) 2020 Fixed resistors for use in electronic EN 60115-1 2023
equipment - Part 1: Generic specification
IEC 60115-8 2023 Fixed resistors for use in electronic EN IEC 60115-8 2026
equipment - Part 8: Sectional specification:
Fixed surface mount resistors
+ A11 2026
bIEC 60115-8-10 2026 Fixed resistors for use in electronic EN IEC 60115-8-10 2026
equipment - Part 8-10: Blank detail
specification: Surface mount (SMD) low-
power film resistors for assembly on circuit
boards, for general electronic equipment,
classification level G
IEC 60286-3 - Packaging of components for automatic EN IEC 60286-3 -
handling - Part 3: Packaging of surface
mount components on continuous tapes
IEC 61193-2 2007 Quality assessment systems - Part 2: EN 61193-2 2007
Selection and use of sampling plans for
inspection of electronic components and
packages
IEC 61760-1 - Surface mounting technology - Part 1: EN IEC 61760-1 -
Standard method for the specification of
surface mounting components (SMDs)

IEC 60115-8-10 ®
Edition 1.0 2026-09
INTERNATIONAL
STANDARD
Fixed resistors for use in electronic equipment -
Part 8-10: Blank detail specification: Surface mount (SMD) low-power film
resistors for assembly on circuit boards, for general electronic equipment,
classification level G
ICS 31.040.10  ISBN 978-2-8327-1483-6

IEC 60115-8-10:2026-09(en)
IEC 60115-8-10:2026 © IEC 2026
CONTENTS
FOREWORD. 4
INTRODUCTION . 6
0 Introduction to the template provided by this blank detail specification . 6
0.1 Scope of this blank detail specification . 6
0.2 Function of this blank detail specification . 6
0.3 Identification of the detail specification and the resistor . 7
1 Scope . 9
2 Normative references . 9
3 Terms and definitions . 10
4 Characteristics and ratings . 10
4.1 General . 10
4.2 Dimensions . 10
4.3 Ratings . 12
4.4 Resistance range and tolerance on resistance . 13
5 Tests and test severities . 14
5.1 General . 14
5.2 Resistance . 14
5.3 Temperature coefficient of resistance . 14
5.4 Temperature rise . 14
5.5 Endurance at the rated temperature 70 °C . 15
5.6 Endurance at a maximum temperature: UCT . 15
5.7 Short-term overload . 15
5.8 Electrostatic discharge (ESD) test . 15
5.9 Visual examination . 16
5.10 Gauging of dimensions . 16
5.11 Detail dimensions . 16
5.12 Shear (adhesion) test . 16
5.13 Substrate bending test . 17
5.14 Rapid change of temperature . 17
5.15 Climatic sequence . 17
5.16 Damp heat, steady state . 17
5.17 Solderability, with lead-free solder . 18
5.18 Solderability, with SnPb solder . 18
5.19 Resistance to soldering heat . 18
5.20 Solvent resistance . 19
5.21 Insulation resistance . 19
5.22 Voltage proof . 19
5.23 Flammability . 19
6 Performance requirements . 19
6.1 General . 19
6.2 Limits for change of resistance at tests . 20
6.3 Temperature coefficient of resistance . 20
6.4 Temperature rise . 21
6.5 Visual examination . 21
6.5.1 General visual criteria . 21
6.5.2 Visual criteria after tests . 22
IEC 60115-8-10:2026 © IEC 2026
6.5.3 Visual criteria for packaging . 22
6.6 Solderability . 22
6.7 Insulation resistance . 22
6.8 Flammability . 23
7 Marking, packaging and ordering information . 23
7.1 Marking of the component . 23
7.2 Packaging . 23
7.3 Marking of the packaging . 23
7.4 Ordering information . 23
8 Additional information . 24
8.1 General . 24
8.2 Storage and transportation . 24
8.3 Substrate for assembly . 24
8.4 Soldering process . 24
8.5 Use of cleaning agents or solvents . 25
8.6 Coating or potting after assembly . 25
9 Quality assessment procedures . 25
9.1 General . 25
9.1.1 100 % test . 25
9.1.2 Certificate of conformity (CoC) . 26
9.1.3 Certified test records of released lots . 26
9.2 Qualification approval . 26
9.3 Maintenance of a qualification approval . 26
9.3.1 Quality conformance inspection . 26
9.3.2 Non-conforming specimen . 26
Annex A (normative) Symbols and abbreviated terms . 35
A.1 Symbols . 35
A.2 Abbreviated terms . 38
Annex B (normative) Reference for visual examination . 39
Annex C (normative) 0 Ω resistors (jumpers) . 40
C.1 General . 40
C.2 Characteristics and ratings . 40
C.3 Tests and test severities . 41
C.4 Performance requirements . 41
C.5 Marking, packaging and ordering information . 41
C.6 Additional information . 41
C.7 Quality assessment procedures . 41
C.7.1 Test schedule for qualification approval . 41
C.7.2 Test schedule for quality conformance inspection . 42
Annex D (informative) Cross-references to the prior revision of this specification . 43
Bibliography . 45

Figure 1 – Outline and dimensions . 11
Figure 2 – Derating curve . 13

Table 1 – Styles and dimensions . 11
Table 2 – Climatic categories . 12
IEC 60115-8-10:2026 © IEC 2026
Table 3 – Ratings . 12
Table 4 – Temperature coefficients, tolerances and resistance ranges for climatic
category . / . / . . 13
Table 5 – Short-term overload duration . 15
Table 6 – ESD test voltages . 16
Table 7 – Shear test force . 16
Table 8 – Additional cycles of the damp heat, cyclic test . 17
Table 9 – Damp heat, steady state test duration . 18
Table 10 – Limits for change of resistance at tests . 20
Table 11 – Permitted change of resistance due to the variation of temperature. 21
Table 12 – Test schedule for the qualification approval . 27
Table 13 – Test schedule for quality conformance inspection . 31
Table C.1 – Climatic category . 40
Table C.2 – Ratings for 0 Ω resistors . 40
Table D.1 – Cross-references to clauses of the prior edition . 43
Table D.2 – Cross-references to figures of the prior edition . 44
Table D.3 – Cross-references to tables of the prior edition . 44

IEC 60115-8-10:2026 © IEC 2026
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
Fixed resistors for use in electronic equipment -
Part 8-10: Blank detail specification: Surface mount (SMD)
low-power film resistors for assembly on circuit boards,
for general electronic equipment, classification level G

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
IEC 60115-8-10 has been prepared by IEC technical committee 40: Capacitors and resistors
for electronic equipment. It is an International Standard.
This edition includes the following significant technical changes with respect to the previous
edition IEC 60115-8-1:2014:
a) it supports solderability testing for both traditional lead-bearing soldering and up-to-date
lead-free soldering, as required;
b) it supports the provision of detailed visual acceptance criteria;
c) it includes the requirement for a visual examination of the primary and proximity packaging;
d) it provides for the inclusion of specific visual acceptance criteria, to be applied in addition
to those given in Annex B of the sectional specification IEC 60115-8:2023.
IEC 60115-8-10:2026 © IEC 2026
The text of this International Standard is based on the following documents:
Draft Report on voting
40/3264/CDV 40/3309/RVC
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
A list of all parts in the IEC 60115 series, published under the general title Fixed resistors for
use in electronic equipment, can be found on the IEC website.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
– reconfirmed,
– withdrawn, or
– revised.
IEC 60115-8-10:2026 © IEC 2026
INTRODUCTION
0 Introduction to the template provided by this blank detail specification
COMMENT This introduction is not intended to be copied into the drafted detail specification. Therefore, it is
positioned in front of the conventional document structure and clause numbering range. It nevertheless contains
normative requirements to the drafted detail specification.
0.1 Scope of this blank detail specification
This part of IEC 60115-8 is applicable to the drafting of detail specifications for surface mount
(SMD) low-power film resistors, classified to level G, based on the definition of the product
classification levels in IEC 60115-1:2020, 3.4.
Another part of IEC 60115-8 provides a separate blank detail specification for the drafting of
detail specifications for surface mount (SMD) low-power film resistors, classified to level P and
to level R.
Yet other parts of IEC 60115-8 may be issued to provide blank detail specifications for the
drafting of detail specifications for surface mount (SMD) resistors, of other technologies or of
other classification levels.
0.2 Function of this blank detail specification
A blank detail specification is a supplementary document to the sectional specification and
contains requirements for style, layout and minimum contents of detail specifications. Detail
specifications not complying with these requirements shall not be accepted as being in
accordance with IEC specifications nor shall they be described as such.
Detail specifications complying with the requirements of this blank detail specification are a
legitimate basis for the quality assessment of leaded fixed low-power film resistors under an
adequate quality assessment system, e.g. the IEC Quality Assessment System for Electronic
Components (IECQ System), whereas the plain blank detail specification is not a suitable basis.
The detail specification should contain a table of contents prior the first page of the actual
specification.
In the preparation of the detail specification, the content of IEC 60115-8:2023, 8.2 shall be
taken into account. The detail specification should be written by using the preferred values
given in IEC 60115-8.
Units, graphical symbols and letter symbols shall, whenever possible, be taken from those
prescribed by the following standards:
– IEC 60027-1, Letter symbols to be used in electrical technology - Part 1: General
– IEC 60617, Graphical symbols for diagrams
– IEC 80000 (all parts), Quantities and units
– ISO 80000 (all parts), Quantities and units
IEC 60115-8-10:2026 © IEC 2026
This blank detail specification uses for its purpose two different kinds of notes:
– NOTE For notes which give additional information intended to assist the
understanding or use of the resulting document and therefore shall be copied
as NOTE into the drafted detail specification. As outlined in the ISO/IEC
directives, these notes shall not contain any requirement, instruction,
recommendation or permission.
– COMMENT For editorial notes which are intended to aid and direct the specification
writer and therefore shall not be copied into the drafted detail specification.
In order to accomplish their function, editorial notes require the use of
instructions, recommendations and permissions addressed to the writer of
the detail specification.
0.3 Identification of the detail specification and the resistor
The first page of the detail specification should have a layout starting with a title block as
recommended on the following page.
The numbers in square brackets are editorial references, which are not intended to be copied
into the drafted detail specification, and which correspond to the following information on the
contents which shall be inserted in the indicated fields.
[1] The name of the standardisation organisation under whose authority the detail specification
is published and, if applicable, the organization from whom the detail specification is
available.
[2] The number allocated to the detail specification by the IEC or by the responsible
standardisation organisation, together with the date of issue and issue number, as
applicable. Further reference details required by the responsible standardisation
organisation or quality assessment system may be given here, including an established
mark of conformity, as applicable.
[3] The number and issue date and number, as applicable, of the relevant generic specification,
sectional specification and blank detail specification, where the referenced issues shall be
the most recent issues of the respective specifications.
[4] The title of the detail specification, providing a short description of the type of resistors.
This entry should support the discrimination between similar specifications and should be
suitable for an entry in a register of approvals or in a catalogue of standards. It may duplicate
information given in fields [6] and [7] and in the textual scope in Clause 1.
[5] An outline drawing or illustration of the products. This entry should aid the easy recognition
of the specified resistors and, if possible, support the discrimination between similar
specifications. It may duplicate information given in Figure 1.
[6] Information on the typical construction of the resistors (where applicable), information of the
specified resistors being insulated or non-insulated (see IEC 60115-1:2020, 3.1.7), and
information on compatibility with a specific soldering process (if applicable, see 8.4). This
entry may duplicate information given in the textual scope in Clause 1.
[7] The classification level of the resistors covered by this detail specification, the level of
quality assessment (Assessment level EZ), and the general level of stability requirements
at performance tests (Stability class).
This information may duplicate information given in the textual scope in Clause 1.
[8] Optional field for table notes.
[9] Statement(s) about the availability of information on components qualified to this detail
specification, if applied within a full quality assessment system.
Example for the use within the IECQ system:
Information about components qualified to this detail specification is available in the
approvals section of the website http://www.iecq.org.
IEC 60115-8-10:2026 © IEC 2026
Specification available from: IEC 60115-8-10xx:20yy
[1] [2]
Electronic components of assessed quality in accordance with:
Generic specification: IEC 60115-1:2020 [3]
Sectional specification: IEC 60115-8:2023
Blank detail specification: IEC 60115-8-10:2026
FIXED RESISTORS FOR USE IN ELECTRONIC EQUIPMENT –
Part 8-10xx: Detail specification – Surface mount (SMD) low-power film resistors for assembly on circuit
boards, …, for general electronic equipment, classification level G
[4]
Technology …
[6]
Insulated / Non-insulated
[5] Termination plating …
Product classification level G
Assessment level EZ [7]
Stability classes .
[8]
COMMENT The remainder of this page is intentionally left empty in order to start Clause 1 on top of the next page.
Information about components qualified to this detail specification is available ….
[9]
IEC 60115-8-10:2026 © IEC 2026
Fixed resistors for use in electronic equipment -
Part 8-10: Blank detail specification: Surface mount (SMD)
low-power film resistors for assembly on circuit boards,
for general electronic equipment, classification level G

COMMENT The above title without the introductory word "blank" is to become the title of the intended detail
specification, which is drafted on the basis of this blank detail specification.
The actual title of the intended detail specification should hold some wording descriptive for the particular kind of
components covered therein, where indicated by "…", in order to support the differentiation between parallel detail
specification on the same level. An example for such descriptive wording would be: "rectangular shape, stability
classes 0,1; 0,25".
1 Scope
COMMENT The text of this clause may repeat information already given in some fields of the above title block.
Essential information on the special type of components covered by the drafted detail specification may be added,
preferably at the place marked with "…".
This detail specification specifies the characteristics and ratings of surface mount (SMD) film
resistors for use in electronic equipment, which are typically assembled on the surface of circuit
boards.
...
The resistors covered herein are classified to level G, as defined in IEC 60115-1:2020, 3.4 for
general electronic equipment, typically operated under benign or moderate environmental
conditions, where the major requirement is function. Examples for level G include consumer
products and telecommunication user terminals.
This detail specification is based upon the blank detail specification IEC 60115-8-10:2026.
This detail specification establishes test schedules and performance requirements permitting
the quality assessment of the resistors covered herein according to the quality assessment
procedures prescribed by IEC 60115-1:2020, Annex Q.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60062:2016, Marking codes for resistors and capacitors
IEC 60063, Preferred number series for resistors and capacitors
IEC 60115-1:2020, Fixed resistors for use in electronic equipment - Part 1: Generic
specification
IEC 60115-8:2023, Fixed resistors for use in electronic equipment - Part 8: Sectional
specification: Fixed surface mount resistors
IEC 60115-8-10:2026, Fixed resistors for use in electronic equipment - Part 8-10: Blank detail
specification: Surface mount (SMD) low-power film resistors for assembly on circuit boards, for
general electronic equipment, classification level G
IEC 60115-8-10:2026 © IEC 2026
IEC 60286-3, Packaging of components for automatic handling - Part 3: Packaging of surface
mount components on continuous tapes
IEC 61193-2:2007, Quality assessment systems - Part 2: Selection and use of sampling plans
for inspection of electronic components and packages
IEC 61760-1, Surface mounting technology - Part 1: Standard method for the specification of
surface mounting components (SMDs)
...
COMMENT 1 The above list of normative references provides an example and needs to be adapted to the actual
requirements of the drafted detail specification, indicated by the space marked with "…", which however does not
preclude from sorting in proper numerical order.
COMMENT 2 According to the ISO/IEC directives, dated references are required when reference is made to a
specific part of the referenced standard and generally should be applied only in such cases.
COMMENT 3 It is recommended to update any dated references to the most recent revision of the referenced
standard when drafting a detail specification. This involves updating of the dated normative references within the
text of the drafted detail specification.
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 60115-1 and in
IEC 60115-8, as well as the following, apply.
ISO and IEC maintain terminology databases for use in standardization at the following
addresses:
– IEC Electropedia: available at https://www.electropedia.org/
– ISO Online browsing platform: available at https://www.iso.org/obp
…
COMMENT Any terms and their respective definitions specifically required for the scope of the drafted detail
specification may be inserted in the space marked with "…", using the prescribed numbering and format. Otherwise,
the above statement should be reduced to "For the purposes of this document, the terms and definitions given in
IEC 60115-1 and in IEC 60115-8 apply." if no further terms or definitions are required in the drafted detail
specification.
4 Characteristics and ratings
4.1 General
Various parameters of this component are precisely defined in this specification. Unspecified
parameters can vary from one component to another.
4.2 Dimensions
The shape and dimensions of the resistors covered by this specification are shown in Figure 1,
with the specific styles and their respective dimensions given in Table 1. Other shapes are
permissible within the given dimensions.
IEC 60115-8-10:2026 © IEC 2026

Figure 1 – Outline and dimensions
COMMENT 1 See IEC 60115-8:2023, 8.2.1.
COMMENT 2 The details shown in Figure 1 may repeat information already given in some fields of the title block
above. Figure 1 in particular needs to define all dimensions intended to be verified by measurements, which generally
includes those dimensions to be prescribed in Table 1.
Table 1 – Styles and dimensions
b
Style Dimensions
Mass
a
L W H Y T m
X
b min
mm mm mm mm mg
a
Historical style code, for information only.
b
For information only.
COMMENT 3 See IEC 60115-8:2023, 8.2.2.
COMMENT 4 The metric style designation is the normative designation used in all other places throughout this
detail specification, see IEC 60115-8:2023, 4.2. Column X is an optional column for additional style information, e.g.
for traditional alphabetic designations, which generally need to be marked with a respective footnote, e.g. as
"Historical style code, for information only".
COMMENT 5 The dimensions for body length L, body width W, body height H and minimum bottom side termination
length T are given as examples based on the requirements for rectangular (RR) and transversal (RT) resistors
b min
and need to correspond to the dimensions identified in Figure 1. The choice of prescribed dimensions needs to be
adapted to the actual requirements of the drafted detail specification and the shape of products covered therein. The
dimensions may be given in the format of nominal values plus tolerance, or by stating permissible minimum and
maximum values. Columns for additional dimensions may be inserted as required.
COMMENT 6 Column Y represents one or more optional column(s) for the prescription of an additional dimension.
COMMENT 7 The component mass is not intended to be verified by an inspection procedure. It should be given as
the maximum mass of a single component and should be marked with a respective footnote as "For information only".
IEC 60115-8-10:2026 © IEC 2026
4.3 Ratings
The climatic categories applied in this detail specification are given in Table 2.
Table 2 – Climatic categories
Climatic category
LCT / UCT / duration
... / ... / ...
... / ... / ...
COMMENT 1 See IEC 60115-8:2023, 8.2.3.
COMMENT 2 Table 2 may be amended with a column showing the key parameter to which different climatic
categories are allocated for the purpose of discrimination, e.g. the applied stability classes.
The upper category temperature (UCT), which is used for test procedures, should be based on
the maximum element temperature (MET).
Table 3 – Ratings
Limiting element voltage Insulation voltage
Style Rated dissipation X
DC or AC RMS DC or AC peak
P U U
70 max ins
mW V V
NOTE The insulation voltage U is verified with a test duration of 1 min. However, long-term insulation properties
ins
can be affected by the influence of moisture, organic material and electrical field across the insulating layer(s).
COMMENT 3 See IEC 60115-8:2023, 8.2.6, IEC 60115-8:2023, 8.2.7 and IEC 60115-8:2023, 8.2.8.
COMMENT 4 Column X is an optional column for additional information, e.g. an additional rated dissipation at
another ambient temperature than the rated temperature 70 °C. Such information should however only be presented
if it is traditionally well-established information.
COMMENT
...
