SIST EN ISO 8752:2012

Spring-type straight pins - Slotted, heavy duty (ISO 8752:2009)

ISO 8752:2009 specifies the characteristics of slotted spring-type straight pins, made of steel or of austenitic or martensitic stainless steel, heavy duty, with nominal diameter from 1 mm to 50 mm inclusive.

Spannstifte (-hülsen) - Geschlitzt, schwere Ausführung (ISO 8752:2009)

Diese Internationale Norm legt die Eigenschaften von geschlitzten Spannstiften (-hülsen) aus Stahl oder aus
austenitischem bzw. martensitischem nichtrostenden Stahl in schwerer Ausführung mit einem Nenndurchmesser
d1 von 1 mm bis einschließlich 50 mm fest.
ANMERKUNG Die Nenndurchmesser wurden so gewählt, dass die Spannstifte ineinander geschoben oder mit Spannstiften
in leichter Ausführung nach ISO 13337 verbunden werden können.

Goupilles cylindriques creuses, dites goupilles élastiques - Série épaisse (ISO 8752:2009)

L'ISO 8752:2009 spécifie les caractéristiques des goupilles cylindriques creuses, dites goupilles élastiques, en acier, ou en acier inoxydable austénitique ou martensitique, série épaisse, d'un diamètre nominal compris entre 1 mm et 50 mm inclus.

Valjasto zviti vzmetni zatiči - Težka izvedba (ISO 8752:2009)

Ta mednarodni standard določa značilnosti valjasto zvitih vzmetnih zatičev z zarezami, izdelanih iz jekla, avstenitnega ali martenzitnega nerjavnega jekla, težke izvedbe, z nominalnim premerom (d1) od 1 mm do vključno 50 mm.

General Information

• Status: Published
• Public Enquiry End Date: 19-Mar-2008
• Publication Date: 31-Jan-2012
• ICS: 21.060.50 - Pins, nails
• Technical Committee: ISEL - Mechanical elements
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 26-Jan-2012
• Due Date: 01-Apr-2012
• Completion Date: 01-Feb-2012
• Ref Project: EN ISO 8752:2009 - Spring-type straight pins - Slotted, heavy duty (ISO 8752:2009)

Relations

• Replaces: SIST EN ISO 8752:2001 - Spring-type straight pins - Slotted, heavy duty (ISO 8752:1997)
• Effective Date: 01-Mar-2012

Overview

SIST EN ISO 8752:2012 specifies the characteristics of slotted spring-type straight pins, heavy duty, made of steel or austenitic/martensitic stainless steel. These pins have nominal diameters ranging from 1 mm to 50 mm inclusive. The standard establishes dimensional requirements, material specifications, mechanical properties, and testing methods to ensure consistent quality and reliable performance in fastening applications.

Prepared by ISO Technical Committee ISO/TC 2 and endorsed by CEN as a European Standard, SIST EN ISO 8752:2012 supersedes the 1997 edition. It is internationally recognized and implemented across many European member countries.

Key Topics

• Material Types: Specifies use of plain carbon steel, silicon manganese steel, austenitic and martensitic stainless steels with detailed chemical composition and hardness requirements.
• Dimensions and Tolerances: Covers pin diameters from 1 mm to 50 mm, with detailed dimensional tables ensuring pins fit holes with H12 tolerance class to maintain secure fastening.
• Slot Design: Defines the slot configuration as slotted heavy duty with allowance for non-interlocking types by special agreement. Slot width and form are controlled to prevent full slot closure when mounted.
• Surface Finish: Pins are supplied with a natural, plain finish and lubricated as standard. If plating or coating is required, processes must avoid hydrogen embrittlement, per guidance from ISO 4042.
• Mechanical Properties: Includes minimum Vickers hardness values (420 HV to 560 HV depending on material) and shear strength requirements tested in compliance with ISO 8749.
• Quality Assurance: Workmanship criteria mandate burr-free pins without defects, inspected according to ISO 3269 acceptance procedures.
• Designation System: Clear format to identify pin type, diameter, length, slot type, and material (e.g., Spring pin ISO 8752-6 × 30-St).

Applications

SIST EN ISO 8752:2012 spring-type straight pins are widely used in:

• Mechanical fastening solutions where reliable, heavy-duty pin retention is needed.
• Automotive and machinery assembly for securing components subjected to shear loads.
• Aerospace and industrial equipment manufacturing requiring precision fasteners with controlled mechanical properties.
• Engineering applications where pins must precisely fit into holes with specific tolerance classes to ensure stability.
• Situations demanding corrosion resistance, achieved through selection of austenitic or martensitic stainless steel variants.

By adhering to this standard, manufacturers and users ensure compatibility and interchangeability of spring pins, contributing to safer and more efficient mechanical designs.

Related Standards

• ISO 13337 - Spring-type straight pins, slotted, light duty: Complements EN ISO 8752 by specifying lighter duty pins enabling combination and fitting compatibility.
• ISO 3269 - Fasteners - Acceptance inspection: Defines inspection protocols applicable to spring pins under EN ISO 8752.
• ISO 4042 - Fasteners - Electroplated coatings: Provides guidance on surface treatments related to hydrogen embrittlement prevention.
• ISO 6507-1 - Metallic materials - Vickers hardness test: Essential for verifying hardness of pins as stipulated by EN ISO 8752.
• ISO 8749 - Pins and grooved pins - Shear test: Specifies the method for mechanical shear strength testing of spring pins.

---

Standard SIST EN ISO 8752:2012 ensures that slotted spring-type straight pins meet robust mechanical and material requirements, facilitating reliable fastening solutions across diverse engineering sectors. Compliance with EN ISO 8752 enhances quality control, product safety, and international trade in fasteners.

Standards Content (Sample)

SLOVENSKI STANDARD
01-marec-2012
1DGRPHãþD
SIST EN ISO 8752:2001
9DOMDVWR]YLWLY]PHWQL]DWLþL7HåNDL]YHGED,62
Spring-type straight pins - Slotted, heavy duty (ISO 8752:2009)
Spannstifte (-hülsen) - Geschlitzt, schwere Ausführung (ISO 8752:2009)
Goupilles cylindriques creuses, dites goupilles élastiques - Série épaisse (ISO
8752:2009)
Ta slovenski standard je istoveten z: EN ISO 8752:2009
ICS:
21.060.50 =DWLþLåHEOML Pins, nails
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN ISO 8752
NORME EUROPÉENNE
EUROPÄISCHE NORM
June 2009
ICS 21.060.50 Supersedes EN ISO 8752:1997
English Version
Spring-type straight pins - Slotted, heavy duty (ISO 8752:2009)
Goupilles cylindriques creuses, dites goupilles élastiques - Spannstifte (-hülsen) - Geschlitzt, schwere Ausführung
Série épaisse (ISO 8752:2009) (ISO 8752:2009)
This European Standard was approved by CEN on 6 June 2009.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the
official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2009 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 8752:2009: E
worldwide for CEN national Members.

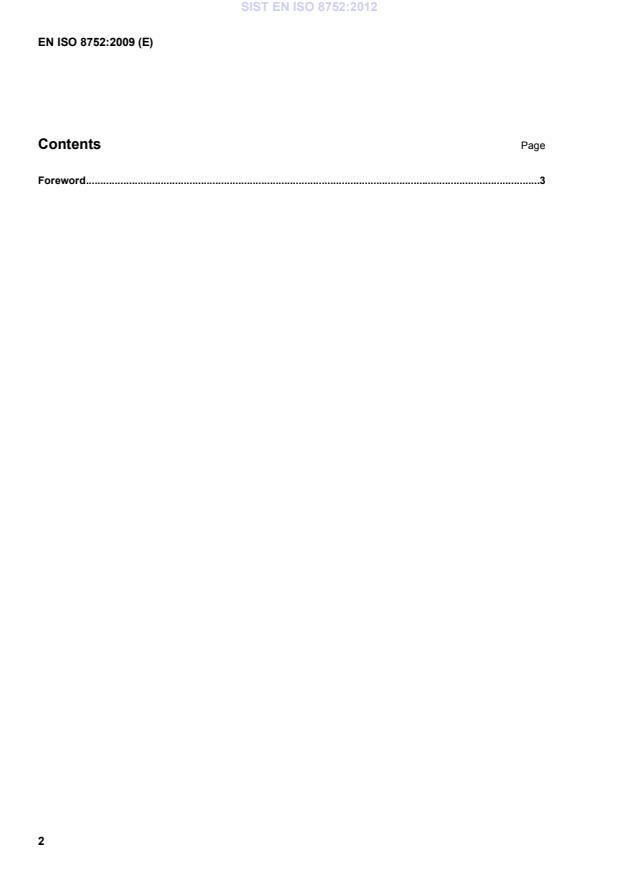

Contents Page
Foreword .3

Foreword
This document (EN ISO 8752:2009) has been prepared by Technical Committee ISO/TC 2 "Fasteners" in
collaboration with Technical Committee CEN/TC 185 “Fasteners” the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by December 2009, and conflicting national standards shall be withdrawn
at the latest by December 2009.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN ISO 8752:1997.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.
Endorsement notice
The text of ISO 8752:2009 has been approved by CEN as a EN ISO 8752:2009 without any modification.

INTERNATIONAL ISO
STANDARD 8752
Third edition
2009-06-15
Spring-type straight pins — Slotted,
heavy duty
Goupilles cylindriques creuses, dites goupilles élastiques — Série
épaisse
Reference number
ISO 8752:2009(E)
©
ISO 2009
ISO 8752:2009(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2009
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail [e-mail]
Web www.iso.org
Published in Switzerland
ii © ISO 2009 – All rights reserved

ISO 8752:2009(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 8752 was prepared by Technical Committee ISO/TC 2, Fasteners, Subcommittee SC 10, Product
standards for fasteners.
This third edition cancels and replaces the second edition (ISO 8752:1997), which has been technically
revised.
INTERNATIONAL STANDARD ISO 8752:2009(E)

Spring-type straight pins — Slotted, heavy duty
1 Scope
This International Standard specifies the characteristics of slotted spring-type straight pins, made of steel or of
austenitic or martensitic stainless steel, heavy duty, with nominal diameter, d ,
...
