Overview

EN 61300-3-39:2012 (CLC adoption of IEC 61300-3-39:2011) is a technical standard for fibre optic interconnecting devices and passive components that specifies procedures for selecting physical contact (PC) optical connector reference plugs used in return loss (RL) measurements. It applies to non‑angled PC plugs and defines how to choose a reference plug and set an acceptance return loss (RLa) for plug acceptance testing so that two randomly mated plugs will meet a minimum RL requirement.

This edition supersedes EN 61300-3-39:1997 and includes structural and descriptive revisions and an updated annex.

Key topics and requirements

• Reference plug selection: A reference plug is chosen from a group (minimum three) such that all pairwise matings among the group produce return loss within a specified range. The standard gives an operative method for selecting these plugs.
• Acceptance return loss (RLa): EN 61300-3-39 defines how to compute an acceptance limit RLa for a plug under test based on the reference plug return loss (RLref) and the measured result (RLm). This ensures guaranteed minimum RL when two random plugs are mated.
• Measurement procedure: Procedures cover mating schemes, measurement sequence and apparatus considerations for accurate RL assessment when testing plugs against the reference.
• Accuracy and specification details: The standard addresses accuracy considerations and lists the details that must be specified in test and product documentation (e.g., RLref value and tolerance).
• Informative annex: Provides background on physical mechanisms (surface damage layers, refractive index effects) that cause return loss in PC connectors and practical measurement guidance.

Practical applications

• Ensuring consistent optical performance of connectorized fibre assemblies in manufacturing and quality control.
• Defining acceptance criteria for connector plugs used in telecom, datacom, and fiber‑to‑the‑premises (FTTP) equipment.
• Establishing a repeatable return loss measurement methodology for suppliers, test labs and OEMs who need to guarantee mating performance of PC connectors.
• Supporting interoperability testing where minimum random‑mated RL performance must be guaranteed.

Who should use this standard

• Test laboratories performing connector qualification and production acceptance.
• Manufacturers of PC optical connectors and fibre optic transceivers.
• Quality engineers and compliance teams in telecom and datacom sectors.
• System integrators and designers specifying connector RL requirements.

Related standards

• IEC/EN 61300-3-6 - Part 3-6: Examinations and measurements - Return loss (normative reference).
• IEC/EN 61300-1 - General test methods (harmonized reference for the IEC 61300 series).

Keywords: EN 61300-3-39:2012, return loss, physical contact (PC) optical connector, reference plug selection, fibre optic connectors, plug acceptance testing, RL measurements.

Standards Content (Sample)

SLOVENSKI STANDARD
01-maj-2012
1DGRPHãþD
SIST EN 61300-3-39:1999
2SWLþQLVSRMQLHOHPHQWLLQSDVLYQHNRPSRQHQWH2VQRYQLSUHVNXVQLLQPHULOQL
SRVWRSNLGHO3UHLVNDYHLQPHULWYH,]ELUDUHIHUHQþQHJDYWLþD]DRSWLþQL
NRQHNWRUVIL]LþQLPNRQWDNWRP]DPHULWYHSRYUDWQLKL]JXE,(&
Fibre optic interconnecting devices and passive components - Basic test and
measurement procedures - Part 3-39: Examinations and measurements - Physical
contact (PC) optical connector reference plug selection for return loss measurements
(IEC 61300-3-39:2011)
Lichtwellenleiter - Verbindungselemente und passive Bauteile - Grundlegende Prüf- und
Messverfahren - Teil 3-39: Untersuchungen und Messungen - Auswahl des
Referenzsteckverbinders für Lichtwellenleiter-Steckverbinder mit physikalischem Kontakt
(PC) für Rückflussdämpfungsmessungen (IEC 61300-3-39:2011)
Dispositifs d'interconnexion et composants passifs à fibres optiques - Méthodes
fondamentales d'essais et de mesures - Partie 3-39: Examens et mesures - Choix d'une
fiche de référence pour connecteur optique à contact physique (PC) pour la mesure de
l’affaiblissement de réflexion (CEI 61300-3-39:2011)
Ta slovenski standard je istoveten z: EN 61300-3-39:2012
ICS:
33.180.20 3RYH]RYDOQHQDSUDYH]D Fibre optic interconnecting
RSWLþQDYODNQD devices
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 61300-3-39
NORME EUROPÉENNE
March 2012
EUROPÄISCHE NORM
ICS 33.180.20 Supersedes EN 61300-3-39:1997

English version
Fibre optic interconnecting devices and passive components -
Basic test and measurement procedures -
Part 3-39: Examinations and measurements -
Physical contact (PC) optical connector reference plug selection for return
loss measurements
(IEC 61300-3-39:2011)
Dispositifs d'interconnexion et composants Lichtwellenleiter -
passifs à fibres optiques - Verbindungselemente und passive
Méthodes fondamentales d'essais et de Bauteile -
mesures - Grundlegende Prüf- und Messverfahren -
Partie 3-39: Examens et mesures - Teil 3-39: Untersuchungen und
Choix d'une fiche de référence pour Messungen -
connecteur optique à contact physique Auswahl des Referenzsteckverbinders für
(PC) pour la mesure de l’affaiblissement Lichtwellenleiter-Steckverbinder mit
de réflexion physikalischem Kontakt (PC) für
(CEI 61300-3-39:2011) Rückflussdämpfungsmessungen
(IEC 61300-3-39:2011)
This European Standard was approved by CENELEC on 2011-12-27. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, Switzerland, Turkey and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2012 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 61300-3-39:2012 E
Foreword
The text of document 86B/3274/FDIS, future edition 2 of IEC 61300-3-39, prepared by SC 86B, "Fibre
optic interconnecting devices and passive components", of IEC/TC 86, "Fibre optics" was submitted to the
IEC-CENELEC parallel vote and approved by CENELEC as EN 61300-3-39:2012.

The following dates are fixed:
(dop) 2012-09-27
• latest date by which the document has
to be implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2012-12-27
standards conflicting with the
document have to be withdrawn
This document supersedes EN 61300-3-39:1997.

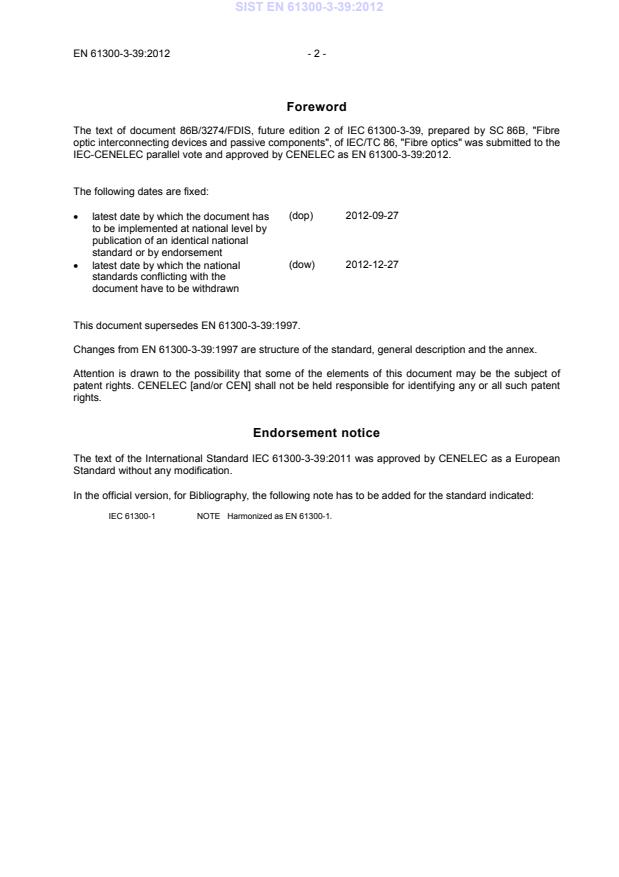

Changes from EN 61300-3-39:1997 are structure of the standard, general description and the annex.
