SIST ES 203 119-5 V1.1.1:2019

• Abstract:

  The present document specifies how the concepts of the TDL meta-model [1] are mapped to OMG® UML® to create a; UML Profile for TDL, called UP4TDL.; NOTE: OMG® and UML® are the trademarks of OMG (Object Management Group). This information is given; for the convenience of users of the present document and does not constitute an endorsement by ETSI of; the products named.

• Status: Published
• Publication Date: 03-Dec-2018
• ICS: 35.060 - Languages used in information technology
• Technical Committee: SPN - Services and Protocols for Networks
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 28-Nov-2018
• Due Date: 02-Feb-2019
• Completion Date: 04-Dec-2018
• Ref Project: ETSI ES 203 119-5 V1.1.1 (2018-05) - Methods for Testing and Specification (MTS); The Test Description Language (TDL); Part 5: UML profile for TDL

Overview

SIST ES 203 119-5 V1.1.1:2019 defines how the concepts of the Test Description Language (TDL) meta-model are mapped to OMG® Unified Modeling Language® (UML®) to create a dedicated UML Profile for TDL, known as UP4TDL. By specifying a formal mapping between TDL and UML elements, this standard enables integration of test modeling capabilities within the widely used UML ecosystem, enhancing the interoperability and tool support for test specification and execution.

This standard is published by the Slovenski inštitut za standardizacijo (SIST) and is technically aligned with ETSI ES 203 119-5 V1.1.1. UP4TDL is designed to support system testing, formal verification, and model-driven engineering through standardized test models.

Key Topics

• TDL Meta-Model Mapping: Details the approach to represent key TDL meta-model concepts as UML stereotypes and packages within a dedicated profile.
• UML Profile Structure: Outlines how the UP4TDL profile organizes TDL stereotypes, including foundational packages for data, behavior, configuration, and timing.
• Stereotypes and Extensions: Explains how TDL elements like data types, test objectives, annotations, and behaviors are extended or mapped to UML meta-classes and stereotypes for seamless integration.
• Test Data and Behavior Representation: Describes data definition, use, and behavior mapping (e.g., test objectives, configuration, combined and atomic behavior) to suitable UML constructs.
• Model-to-Model Transformation Guidance: Provides recommendations for ensuring the semantic alignment between TDL and UML during transformations.
• Normative References: Establishes dependencies on other standards, especially ETI ES 203 119-1 (TDL syntax and semantics) and OMG UML Superstructure.

Applications

Adopting the UML Profile for TDL (UP4TDL) brings several practical advantages:

• Test Model Interoperability: Facilitates the exchange and reuse of formal test descriptions between different modeling and testing tools that support UML profiles.
• Model-Driven Testing: Allows organizations to leverage UML tools for creating, managing, and executing TDL-based test specifications, supporting automation and consistency.
• System and Software Conformance Testing: Supports rigorous test definition and validation processes for complex systems, including communications equipment, embedded devices, and IT infrastructure.
• Enhanced Documentation and Traceability: Provides a standardized, graphical way to document test logic, data, and objectives directly linked to system models.
• Integration with UML Tooling: Enables direct use of UP4TDL within established UML modeling environments, streamlining the workflow for organizations already using UML for software and systems design.

Related Standards

• ETSI ES 203 119-1: Defines the abstract syntax and semantics of TDL, foundational for the UP4TDL mapping.
• OMG UML Superstructure (2.4.1): The underlying framework for UML meta-models and profile mechanisms.
• Other Parts of the TDL Standard Series: Including test architecture, semantics, and further profiles for specialized usage.
• ISO/IEC 19505 (UML Standard): Provides the international framework for UML usage in software and systems engineering.

Conclusion

SIST ES 203 119-5 V1.1.1:2019 presents a crucial framework for bridging standardized test description languages and model-driven engineering with the power and ubiquity of UML. By mapping TDL meta-model concepts to UML through UP4TDL, organizations gain a formal, interoperable, and tool-supported approach to system and software testing, enhancing quality, efficiency, and compliance within their development and verification processes.

Final draft ETSI ES 203 119-5 V1.1.1 (2018-03)

ETSI STANDARD
Methods for Testing and Specification (MTS);
The Test Description Language (TDL);
Part 5: UML profile for TDL

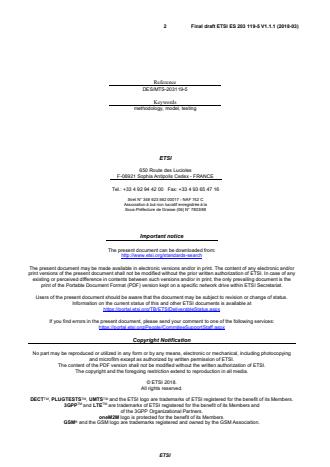

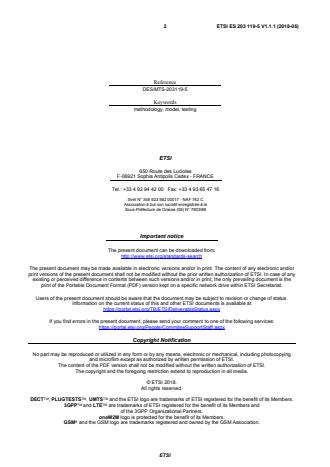

2 Final draft ETSI ES 203 119-5 V1.1.1 (2018-03)

Reference
DES/MTS-203119-5
Keywords
methodology, model, testing
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the only prevailing document is the
print of the Portable Document Format (PDF) version kept on a specific network drive within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying
and microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.

© ETSI 2018.
All rights reserved.
TM TM TM
DECT , PLUGTESTS , UMTS and the ETSI logo are trademarks of ETSI registered for the benefit of its Members.
TM TM
3GPP and LTE are trademarks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
oneM2M logo is protected for the benefit of its Members. ®
GSM and the GSM logo are trademarks registered and owned by the GSM Association.
ETSI
3 Final draft ETSI ES 203 119-5 V1.1.1 (2018-03)
Intellectual Property Rights 6
Foreword . 6
Modal verbs terminology . 6
1 Scope . 7
2 References . 7
2.1 Normative references . 7
2.2 Informative references . 7
3 Definitions, symbols and abbreviations . 7
3.1 Definitions . 7
3.2 Symbols . 8
3.3 Abbreviations . 8
4 Structure of the UML Profile for TDL . 8
5 Foundation . 9
5.1 Overview . 9
5.2 Element . 9
5.3 NamedElement . 9
5.4 PackageableElement . 10
5.5 Package . 10
5.6 ElementImport . 10
5.7 Comment . 11
5.8 Annotation . 11
5.9 AnnotationType . 12
5.10 TestObjective . 12
6 Data . 12
6.1 Data Definition . 12
6.1.1 Overview . 12
6.1.2 DataResourceMapping . 13
6.1.3 MappableDataElement . 13
6.1.4 DataElementMapping . 13
6.1.5 ParameterMapping . 14
6.1.6 DataType . 14
6.1.7 DataInstance . 14
6.1.8 SimpleDataType . 15
6.1.9 SimpleDataInstance . 15
6.1.10 StructuredDataType . 16
6.1.11 Member . 16
6.1.12 StructuredDataInstance . 16
6.1.13 MemberAssignment . 17
6.1.14 Parameter . 17
6.1.15 FormalParameter . 17
6.1.16 Variable . 18
6.1.17 Action . 18
6.1.18 Function . 18
6.2 Data Use . 19
6.2.1 Overview . 19
6.2.2 DataUse . 19
6.2.3 ParameterBinding . 20
6.2.4 StaticDataUse . 20
6.2.5 DataInstanceUse . 20
6.2.6 SpecialValueUse . 21
6.2.7 AnyValue . 21
6.2.8 AnyValueOrOmit . 21
6.2.9 OmitValue. 22
6.2.10 DynamicDataUse . 22
6.2.11 FunctionCall . 22
6.2.12 FormalParameterUse . 23
ETSI

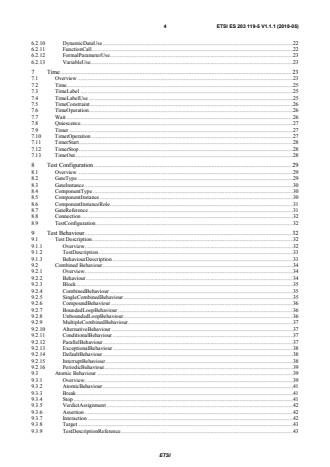

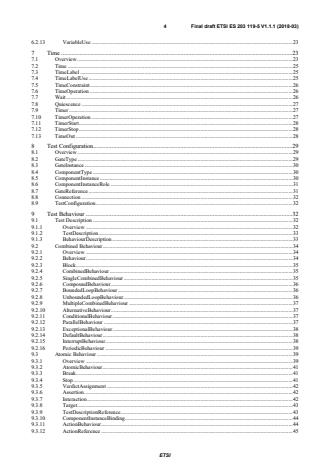

4 Final draft ETSI ES 203 119-5 V1.1.1 (2018-03)
6.2.13 VariableUse . 23
7 Time . 23
7.1 Overview . 23
7.2 Time . 25
7.3 TimeLabel . 25
7.4 TimeLabelUse . 25
7.5 TimeConstraint . 26
7.6 TimeOperation . 26
7.7 Wait . 26
7.8 Quiescence . 27
7.9 Timer . 27
7.10 TimerOperation . 27
7.11 TimerStart. 28
7.12 TimerStop . 28
7.13 TimeOut . 28
8 Test Configuration . 29
8.1 Overview . 29
8.2 GateType . 29
8.3 GateInstance . 30
8.4 ComponentType . 30
8.5 ComponentInstance . 30
8.6 ComponentInstanceRole . 31
8.7 GateReference . 31
8.8 Connection . 32
8.9 TestConfiguration . 32
9 Test Behaviour . 32
9.1 Test Description . 32
9.1.1 Overview . 32
9.1.2 TestDescription . 33
9.1.3 BehaviourDescription . 33
9.2 Combined Behaviour . 34
9.2.1 Overview . 34
9.2.2 Behaviour . 34
9.2.3 Block . 35
9.2.4 CombinedBehaviour . 35
9.2.5 SingleCombinedBehaviour . 35
9.2.6 CompoundBehaviour . 36
9.2.7 BoundedLoopBehaviour . 36
9.2.8 UnboundedLoopBehaviour . 36
9.2.9 MultipleCombinedBehaviour . 37
9.2.10 AlternativeBehaviour . 37
9.2.11 ConditionalBehaviour . 37
9.2.12 ParallelBehaviour . 37
9.2.13 ExceptionalBehaviour . 38
9.2.14 DefaultBehaviour . 38
9.2.15 InterruptBehaviour . 38
9.2.16 PeriodicBehaviour . 39
9.3 Atomic Behaviour . 39
9.3.1 Overview . 39
9.3.2 AtomicBehaviour . 41
9.3.3 Break . 41
9.3.4 Stop . 41
9.3.5 VerdictAssignment . 42
9.3.6 Assertion . 42
9.3.7 Interaction . 42
9.3.8 Target . 43
9.3.9 TestDescriptionReference . 43
9.3.10 ComponentInstanceBinding . 44
9.3.11 ActionBehaviour . 44
9.3.12 ActionReference . 45
ETSI
5 Final draft ETSI ES 203 119-5 V1.1.1 (2018-03)
9.3.13 InlineAction . 45
9.3.14 Assignment . 46
History . 47

ETSI
6 Final draft ETSI ES 203 119-5 V1.1.1 (2018-03)
Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (https://ipr.etsi.org/).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
Foreword
This final draft ETSI Standard (ES) has been produced by ETSI Technical Committee Methods for Testing and
Specification (MTS), and is now submitted for the ETSI standards Membership Approval Procedure.
The present document is part 5 of a multi-part deliverable. Full details of the entire series can be found in part 1 [1].
Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.

ETSI
7 Final draft ETSI ES 203 119-5 V1.1.1 (2018-03)
1 Scope
® ®
The present document specifies how the concepts of the TDL meta-model [1] are mapped to OMG UML to create a
UML Profile for TDL, called UP4TDL.
® ®
NOTE: OMG and UML are the trademarks of OMG (Object Management Group). This information is given
for the convenience of users of the present document and does not constitute an endorsement by ETSI of
the products named.
2 References
2.1 Normative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
https://docbox.etsi.org/Reference/.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are necessary for the application of the present document.
[1] ETSI ES 203 119-1 (V1.4.1): "Methods for Testing and Specification (MTS); The Test
Description Language (TDL); Part 1: Abstract Syntax and Associated Semantics".
[2] OMG® formal/2011-08-06: "OMG Unified Modeling Language™ (OMG UML) Superstructure,
Version 2.4.1".
NOTE: Available at http://www.omg.org/spec/UML/2.4.1/.
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
Not applicable.
3 Definitions, symbols and abbreviations
3.1 Definitions
For the purposes of the present document, the terms and definitions given in ETSI ES 203 119-1 [1] and the following
apply:
UML profile: extension mechanism provided by UML
ETSI
8 Final draft ETSI ES 203 119-5 V1.1.1 (2018-03)
3.2 Symbols
For the purposes of the present document, the symbols given in [2] apply.
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
OMG Object Management Group®
SUT System Under Test
TDL Test Description Language
UML Unified Modelling Language®
4 Structure of the UML Profile for TDL
The stereotypes representing concepts from the Foundation section of the TDL meta-model are directly stored in the
UP4TDL Profile, while other concepts are stored in various additional included Packages.

Figure 4.1: Structure of UMLProfile4TDL
The following clauses describe the content of each package. The subclauses describe how the TDL meta-model
elements can be mapped to UML.
ETSI
9 Final draft ETSI ES 203 119-5 V1.1.1 (2018-03)
5 Foundation
5.1 Overview
Most concepts of the Foundation Package are directly mapped to UML meta-classes. Exceptions are:
• TDL::Element : a stereotype is created to allow elements to have Annotations;
• TDL::Annotations and TDL::TestObjective for which there is no equivalent concept in UML.

Figure 5.1: Foundational language concepts
5.2 Element
Extended UML Meta-Class
• UML::Element
Generalization
None.
Properties
• <>
• TDL::Element.comment := Computed as the set of Comment whose annotatedElement Property contains this
element.
• TDL::Element. annotation := UP4TDL::Element.annotation : new (derived) property computed as the set of
Comment with stereotype Annotation applied whose annotatedElement property contains this Element.
Constraints
None.
5.3 NamedElement
Extended UML Meta-Class
• Direct mapping without a stereotype to UML::NamedElement
ETSI
10 Final draft ETSI ES 203 119-5 V1.1.1 (2018-03)
Generalization
None.
Properties
• TDL::NamedElement.qualifiedName := UML::NamedElement.qualifiedName
Constraints
None.
5.4 PackageableElement
Extended UML Meta-Class
• Direct mapping without a stereotype to UML::PackageableElement
Generalization
None.
Properties
None.
Constraints
None.
5.5 Package
Extended UML Meta-Class
• Direct mapping without a stereotype to UML::Package
Generalization
None.
Properties
• TDL::Package.packagedElement:= UML::Package.packagedElement
• TDL::Package.import := UML::Package.elementImport
• TDL::Package.nestedPackage := UML::Package.nestedPackage
Constraints
None.
5.6 ElementImport
Extended UML Meta-Class
• Direct mapping without a stereotype to UML::ElementImport
ETSI
11 Final draft ETSI ES 203 119-5 V1.1.1 (2018-03)
Generalization
None.
Properties
• TDL::ElementImport is resolved in UML by a set of UML::ElementImport
• TDL::ElementImport.importedPackage := UML::ElementImport.importedElement.namespace
• TDL::ElementImport.importedElement := UML::ElementImport. importedElement
Constraints
None.
Model to Model transformation advice
• In UML, an ElementImport can import exactly one element. This implies that for one TDL::ElementImport,
the equivalent model in UP4TDL can have several UML::ElementImport
5.7 Comment
Extended UML Meta-Class
• Direct mapping without a stereotype to UML::Comment
Generalization
• None
Properties
• TDL::Comment.commentedElement := UML::Comment.annotatedElement
• TDL::Comment.body := UML::Comment.body
Constraints
None.
5.8 Annotation
Extended UML Meta-Class
• UML::Comment
Generalization
None.
Properties
• <>
• TDL::Annotation.key :=UP4TDL::Annotation.key (new property)
• TDL::Annotation.value := UP4TDL::Annotation.base_Comment.body
ETSI
12 Final draft ETSI ES 203 119-5 V1.1.1 (2018-03)
• TDL::Annotation.annotatedElement := UP4TDL::Annotati
...

��������������
Methods for Testing and Specification (MTS);
The Test Description Language (TDL);
Part 5: UML profile for TDL
2 ETSI ES 203 119-5 V1.1.1 (2018-05)

Reference
DES/MTS-203119-5
Keywords
methodology, model, testing
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the only prevailing document is the
print of the Portable Document Format (PDF) version kept on a specific network drive within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying
and microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.

© ETSI 2018.
All rights reserved.
TM TM TM
DECT , PLUGTESTS , UMTS and the ETSI logo are trademarks of ETSI registered for the benefit of its Members.
TM TM
3GPP and LTE are trademarks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
oneM2M logo is protected for the benefit of its Members. ®
GSM and the GSM logo are trademarks registered and owned by the GSM Association.
ETSI
3 ETSI ES 203 119-5 V1.1.1 (2018-05)
Contents
Intellectual Property Rights . 6�
Foreword . 6�
Modal verbs terminology . 6�
1 Scope . 7�
2 References . 7�
2.1 Normative references . 7�
2.2 Informative references . 7�
3 Definitions, symbols and abbreviations . 7�
3.1 Definitions . 7�
3.2 Symbols . 8�
3.3 Abbreviations . 8�
4 Structure of the UML Profile for TDL . 8�
5 Foundation . 9�
5.1 Overview . 9�
5.2 Element . 9�
5.3 NamedElement . 9�
5.4 PackageableElement .10�
5.5 Package .10�
5.6 ElementImport .10�
5.7 Comment .11�
5.8 Annotation .11�
5.9 AnnotationType .12�
5.10 TestObjective .12�
6 Data . 12�
6.1 Data Definition .12�
6.1.1 Overview .12�
6.1.2 DataResourceMapping .13�
6.1.3 MappableDataElement .13�
6.1.4 DataElementMapping .13�
6.1.5 ParameterMapping .14�
6.1.6 DataType .14�
6.1.7 DataInstance .14�
6.1.8 SimpleDataType .15�
6.1.9 SimpleDataInstance .15�
6.1.10 StructuredDataType .16�
6.1.11 Member .16�
6.1.12 StructuredDataInstance .16�
6.1.13 MemberAssignment .17�
6.1.14 Parameter .17�
6.1.15 FormalParameter .17�
6.1.16 Variable .18�
6.1.17 Action.18�
6.1.18 Function .18�
6.2 Data Use .19�
6.2.1 Overview .19�
6.2.2 DataUse .19�
6.2.3 ParameterBinding .20�
6.2.4 StaticDataUse .20�
6.2.5 DataInstanceUse .20�
6.2.6 SpecialValueUse .21�
6.2.7 AnyValue .21�
6.2.8 AnyValueOrOmit .21�
6.2.9 OmitValue .22�
ETSI
4 ETSI ES 203 119-5 V1.1.1 (2018-05)
6.2.10 DynamicDataUse .22�
6.2.11 FunctionCall .22�
6.2.12 FormalParameterUse .23�
6.2.13 VariableUse.23�
7 Time . 23�
7.1 Overview .23�
7.2 Time.25�
7.3 TimeLabel .25�
7.4 TimeLabelUse .25�
7.5 TimeConstraint .26�
7.6 TimeOperation .26�
7.7 Wait .26�
7.8 Quiescence .27�
7.9 Timer .27�
7.10 TimerOperation .27�
7.11 TimerStart .28�
7.12 TimerStop .28�
7.13 TimeOut .28�
8 Test Configuration . 29�
8.1 Overview .29�
8.2 GateType .29�
8.3 GateInstance .30�
8.4 ComponentType .30�
8.5 ComponentInstance .30�
8.6 ComponentInstanceRole .31�
8.7 GateReference .31�
8.8 Connection .32�
8.9 TestConfiguration .32�
9 Test Behaviour . 32�
9.1 Test Description .32�
9.1.1 Overview .32�
9.1.2 TestDescription .33�
9.1.3 BehaviourDescription .33�
9.2 Combined Behaviour .34�
9.2.1 Overview .34�
9.2.2 Behaviour .34�
9.2.3 Block .35�
9.2.4 CombinedBehaviour .35�
9.2.5 SingleCombinedBehaviour .35�
9.2.6 CompoundBehaviour .36�
9.2.7 BoundedLoopBehaviour .36�
9.2.8 UnboundedLoopBehaviour .36�
9.2.9 MultipleCombinedBehaviour .37�
9.2.10 AlternativeBehaviour .37�
9.2.11 ConditionalBehaviour .37�
9.2.12 ParallelBehaviour .37�
9.2.13 ExceptionalBehaviour .38�
9.2.14 DefaultBehaviour .38�
9.2.15 InterruptBehaviour .38�
9.2.16 PeriodicBehaviour .39�
9.3 Atomic Behaviour .39�
9.3.1 Overview .39�
9.3.2 AtomicBehaviour .41�
9.3.3 Break .41�
9.3.4 Stop .41�
9.3.5 VerdictAssignment .42�
9.3.6 Assertion .42�
9.3.7 Interaction .42�
9.3.8 Target .43�
9.3.9 TestDescriptionReference .43�
ETSI
5 ETSI ES 203 119-5 V1.1.1 (2018-05)
9.3.10 ComponentInstanceBinding .44�
9.3.11 ActionBehaviour .44�
9.3.12 ActionReference .45�
9.3.13 InlineAction .45�
9.3.14 Assignment .46�
History . 47�

ETSI
6 ETSI ES 203 119-5 V1.1.1 (2018-05)
Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (https://ipr.etsi.org/).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
Foreword
This ETSI Standard (ES) has been produced by ETSI Technical Committee Methods for Testing and Specification
(MTS).
The present document is part 5 of a multi-part deliverable. Full details of the entire series can be found in part 1 [1].
Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.

ETSI
7 ETSI ES 203 119-5 V1.1.1 (2018-05)
1 Scope
® ®
The present document specifies how the concepts of the TDL meta-model [1] are mapped to OMG UML to create a
UML Profile for TDL, called UP4TDL.
® ®
NOTE: OMG and UML are the trademarks of OMG (Object Management Group). This information is given
for the convenience of users of the present document and does not constitute an endorsement by ETSI of
the products named.
2 References
2.1 Normative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
https://docbox.etsi.org/Reference/.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are necessary for the application of the present document.
[1] ETSI ES 203 119-1 (V1.4.1): "Methods for Testing and Specification (MTS); The Test
Description Language (TDL); Part 1: Abstract Syntax and Associated Semantics".
[2] OMG® formal/2011-08-06: "OMG Unified Modeling Language™ (OMG UML) Superstructure,
Version 2.4.1".
NOTE: Available at http://www.omg.org/spec/UML/2.4.1/.
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
Not applicable.
3 Definitions, symbols and abbreviations
3.1 Definitions
For the purposes of the present document, the terms and definitions given in ETSI ES 203 119-1 [1] and the following
apply:
UML profile: extension mechanism provided by UML
ETSI
8 ETSI ES 203 119-5 V1.1.1 (2018-05)
3.2 Symbols
For the purposes of the present document, the symbols given in [2] apply.
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
OMG Object Management Group®
SUT System Under Test
TDL Test Description Language
UML Unified Modelling Language®
4 Structure of the UML Profile for TDL
The stereotypes representing concepts from the Foundation section of the TDL meta-model are directly stored in the
UP4TDL Profile, while other concepts are stored in various additional included Packages.

Figure 4.1: Structure of UMLProfile4TDL
The following clauses describe the content of each package. The subclauses describe how the TDL meta-model
elements can be mapped to UML.
ETSI
9 ETSI ES 203 119-5 V1.1.1 (2018-05)
5 Foundation
5.1 Overview
Most concepts of the Foundation Package are directly mapped to UML meta-classes. Exceptions are:
� TDL::Element : a stereotype is created to allow elements to have Annotations;
� TDL::Annotations and TDL::TestObjective for which there is no equivalent concept in UML.

Figure 5.1: Foundational language concepts
5.2 Element
Extended UML Meta-Class
� UML::Element
Generalization
None.
Properties
� <>
� TDL::Element.comment := Computed as the set of Comment whose annotatedElement Property contains this
element
� TDL::Element. annotation := UP4TDL::Element.annotation : new (derived) property computed as the set of
Comment with stereotype Annotation applied whose annotatedElement property contains this Element
Constraints
None.
5.3 NamedElement
Extended UML Meta-Class
� Direct mapping without a stereotype to UML::NamedElement
ETSI
10 ETSI ES 203 119-5 V1.1.1 (2018-05)
Generalization
None.
Properties
� TDL::NamedElement.qualifiedName := UML::NamedElement.qualifiedName
Constraints
None.
5.4 PackageableElement
Extended UML Meta-Class
� Direct mapping without a stereotype to UML::PackageableElement
Generalization
None.
Properties
None.
Constraints
None.
5.5 Package
Extended UML Meta-Class
� Direct mapping without a stereotype to UML::Package
Generalization
None.
Properties
� TDL::Package.packagedElement:= UML::Package.packagedElement
� TDL::Package.import := UML::Package.elementImport
� TDL::Package.nestedPackage := UML::Package.nestedPackage
Constraints
None.
5.6 ElementImport
Extended UML Meta-Class
� Direct mapping without a stereotype to UML::ElementImport
ETSI
11 ETSI ES 203 119-5 V1.1.1 (2018-05)
Generalization
None.
Properties
� TDL::ElementImport is resolved in UML by a set of UML::ElementImport
� TDL::ElementImport.importedPackage := UML::ElementImport.importedElement.namespace
� TDL::ElementImport.importedElement := UML::ElementImport. importedElement
Constraints
None.
Model to Model transformation advice
� In UML, an ElementImport can import exactly one element. This implies that for one TDL::ElementImport,
the equivalent model in UP4TDL can have several UML::ElementImport
5.7 Comment
Extended UML Meta-Class
� Direct mapping without a stereotype to UML::Comment
Generalization
None.
Properties
� TDL::Comment.commentedElement := UML::Comment.annotatedElement
� TDL::Comment.body := UML::Comment.body
Constraints
None.
5.8 Annotation
Extended UML Meta-Class
� UML::Comment
Generalization
None.
Properties
� <>
� TDL::Annotation.key :=UP4TDL::Annotation.key (new property)
� TDL::Annotation.value := UP4TDL::Annotation.base_Comment.body
ETSI
------------------
...

SLOVENSKI STANDARD
01-januar-2019
Metode za preskušanje in specificiranje (MTS) - Jezik za opis preskusa (TDL) - 5.
del: Profil UML za TDL
Methods for Testing and Specification (MTS) - The Test Description Language (TDL) -
Part 5: UML profile for TDL
Ta slovenski standard je istoveten z: ETSI ES 203 119-5 V1.1.1 (2018-05)
ICS:
35.060 Jeziki, ki se uporabljajo v Languages used in
informacijski tehniki in information technology
tehnologiji
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

��������������
Methods for Testing and Specification (MTS);
The Test Description Language (TDL);
Part 5: UML profile for TDL
2 ETSI ES 203 119-5 V1.1.1 (2018-05)

Reference
DES/MTS-203119-5
Keywords
methodology, model, testing
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the only prevailing document is the
print of the Portable Document Format (PDF) version kept on a specific network drive within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying
and microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.

© ETSI 2018.
All rights reserved.
TM TM TM
DECT , PLUGTESTS , UMTS and the ETSI logo are trademarks of ETSI registered for the benefit of its Members.
TM TM
3GPP and LTE are trademarks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
oneM2M logo is protected for the benefit of its Members. ®
GSM and the GSM logo are trademarks registered and owned by the GSM Association.
ETSI
3 ETSI ES 203 119-5 V1.1.1 (2018-05)
Contents
Intellectual Property Rights . 6�
Foreword . 6�
Modal verbs terminology . 6�
1 Scope . 7�
2 References . 7�
2.1 Normative references . 7�
2.2 Informative references . 7�
3 Definitions, symbols and abbreviations . 7�
3.1 Definitions . 7�
3.2 Symbols . 8�
3.3 Abbreviations . 8�
4 Structure of the UML Profile for TDL . 8�
5 Foundation . 9�
5.1 Overview . 9�
5.2 Element . 9�
5.3 NamedElement . 9�
5.4 PackageableElement .10�
5.5 Package .10�
5.6 ElementImport .10�
5.7 Comment .11�
5.8 Annotation .11�
5.9 AnnotationType .12�
5.10 TestObjective .12�
6 Data . 12�
6.1 Data Definition .12�
6.1.1 Overview .12�
6.1.2 DataResourceMapping .13�
6.1.3 MappableDataElement .13�
6.1.4 DataElementMapping .13�
6.1.5 ParameterMapping .14�
6.1.6 DataType .14�
6.1.7 DataInstance .14�
6.1.8 SimpleDataType .15�
6.1.9 SimpleDataInstance .15�
6.1.10 StructuredDataType .16�
6.1.11 Member .16�
