SIST EN ISO 52017-1:2017
(Main)Energy performance of buildings - Sensible and latent heat loads and internal temperatures - Part 1: Generic calculation procedures (ISO 52017-1:2017)
Energy performance of buildings - Sensible and latent heat loads and internal temperatures - Part 1: Generic calculation procedures (ISO 52017-1:2017)
This new international standard will, in two parts, integrate EN 15265, EN 15255, EN-ISO 13791 and EN-ISO 13792.
Depending on the development, the split between part 1 and part 3 will be between a detailed method(s) (part 1) and simple method(s) (part 3).
This standard will contain a consistent and integrated set of requirements and additional descriptions of the thermal balance model for the hourly calculation of the energy needs for heating and cooling, the heating and cooling loads and indoor temperature in a thermal zone of a building. It will be directly usable by ISO 52016-1 for the calculation of the energy needs and by other EPB standards (e.g. from CEN/TC 156) dealing with needs, loads or indoor (e.g. summer) temperature calculations.
Energieeffiziens von Gebäuden - Fühlbare und latente Wärmelasten und Innentemperaturen - Teil 1: Allgemeine Berechnungsverfahren (ISO 52017-1:2017)
Dieses Dokument legt die allgemeinen Annahmen, Randbedingungen und Gleichungen für die Berechnung in stündlichen oder noch kürzeren Abständen der Innentemperaturen (Luft- und operative Temperatur) und/oder der Heiz- und Kühllast sowie der Be- und Entfeuchtungslast zur Aufrechterhaltung eines spezifischen Sollwerts (Temperatur, Feuchte) in einer einzelnen Gebäudezone fest. In diesem Dokument werden keine konkreten numerischen Verfahren vorgeschrieben.
Spezielle Berechnungsverfahren ausgehend von den allgemeinen Berechnungsverfahren in diesem Dokument sind in ISO 52016-1 angegeben. Die konkreten Vereinfachungen, Annahmen und Randbedingungen aus ISO 52016-1 sind auf die jeweiligen Anwendungsgebiete wie den Energiebedarf zum Heizen und Kühlen sowie zum Be- und Entfeuchten, die stündliche Innentemperatur, die konstruktionsmäßige Heiz-, Kühl-, Befeuchtungs- und Entfeuchtungslast zugeschnitten.
Performance énergétique des bâtiments - Charges thermiques latentes et sensibles et températures intérieures - Partie 1: Méthodes de calcul génériques (ISO 52017-1:2017)
L'ISO 52017-1:2017 spécifie les hypothèses, conditions aux limites et équations générales pour le calcul, en régime transitoire horaire ou subhoraire, des températures intérieures (de l'air et opérative) et/ou des charges calorifique, frigorifique et d'humidification et de déshumidification pour maintenir un point de consigne spécifique (température, humidité) au sein d'une zone de bâtiment unique. L'ISO 52017-1:2017 n'impose aucune technique numérique particulière.
Des méthodes de calcul spécifiques basées sur les méthodes de calcul génériques de l'ISO 52017-1:2017 sont données dans l'ISO 52016‑1. Les simplifications, hypothèses et conditions aux limites spécifiques de l'ISO 52016‑1 sont adaptées aux domaines d'application respectifs, tels que les besoins énergétiques pour le chauffage, le refroidissement et l'humidification et la déshumidification, la température intérieure horaire, et les charges calorifique, frigorifique et d'humidification et de déshumidification nominales.
NOTE Le Tableau 1 de l'Introduction indique la position relative de l'ISO 52017-1:2017 dans la série de normes PEB dans le contexte de la structure modulaire définie dans l'ISO 52000‑1.
Energetska učinkovitost stavb - Zaznavne in latentne toplotne obremenitve ter notranje temperature - 1. del: Splošni računski postopki (ISO 52017-1:2017)
Ta novi mednarodni standard bo v dveh delih integriral standarde EN 15265, EN 15255, EN-ISO 13791 in EN-ISO 13792. Odvisno od razvoja se bo razdelitev med deloma 1 in 3 odražala v razdelitvi med podrobno opisanimi metodami (del 1) in preprostimi metodami (del 3). Ta standard bo vseboval dosleden in integriran nabor zahtev ter dodatnih opisov modela toplotnega ravnovesja za urni izračun potrebne energije za ogrevanje in hlajenje, ogrevalne in hladilne obremenitve ter notranje temperature v toplotnem območju stavbe. Ta standard bo neposredno uporabljen v okviru standarda ISO 52016-1 za izračun potrebne energije in v okviru drugih standardov EPB (npr. iz CEN/TC 156), ki obravnavajo izračune potreb, obremenitev ali notranjih temperatur (npr. poleti).
General Information
Relations
Standards Content (Sample)

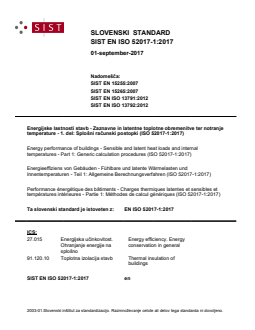

SLOVENSKI STANDARD
SIST EN ISO 52017-1:2017
01-september-2017
1DGRPHãþD
SIST EN 15255:2007
SIST EN 15265:2007
SIST EN ISO 13791:2012
SIST EN ISO 13792:2012
(QHUJHWVNDXþLQNRYLWRVWVWDYE=D]QDYQHLQODWHQWQHWRSORWQHREUHPHQLWYHWHU
QRWUDQMHWHPSHUDWXUHGHO 6SORãQLUDþXQVNLSRVWRSNL ,62
Energy performance of buildings - Sensible and latent heat loads and internal
temperatures - Part 1: Generic calculation procedures (ISO 52017-1:2017)
Energieeffiziens von Gebäuden - Fühlbare und latente Wärmelasten und
Innentemperaturen - Teil 1: Allgemeine Berechnungsverfahren (ISO 52017-1:2017)
Performance énergétique des bâtiments - Charges thermiques latentes et sensibles et
températures intérieures - Partie 1: Méthodes de calcul génériques (ISO 52017-1:2017)
Ta slovenski standard je istoveten z: EN ISO 52017-1:2017
ICS:
27.015 (QHUJLMVNDXþLQNRYLWRVW Energy efficiency. Energy
2KUDQMDQMHHQHUJLMHQD conservation in general
VSORãQR
91.120.10 Toplotna izolacija stavb Thermal insulation of
buildings
SIST EN ISO 52017-1:2017 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST EN ISO 52017-1:2017
---------------------- Page: 2 ----------------------
SIST EN ISO 52017-1:2017

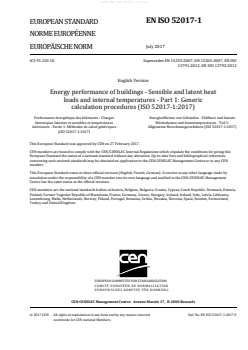

EN ISO 52017-1
EUROPEAN STANDARD
NORME EUROPÉENNE
July 2017
EUROPÄISCHE NORM
ICS 91.120.10 Supersedes EN 15255:2007, EN 15265:2007, EN ISO
13791:2012, EN ISO 13792:2012
English Version
Energy performance of buildings - Sensible and latent heat
loads and internal temperatures - Part 1: Generic
calculation procedures (ISO 52017-1:2017)
Performance énergétique des bâtiments - Charges Energieeffiziens von Gebäuden - Fühlbare und latente
thermiques latentes et sensibles et températures Wärmelasten und Innentemperaturen - Teil 1:
intérieures - Partie 1: Méthodes de calcul génériques Allgemeine Berechnungsverfahren (ISO 52017-1:2017)
(ISO 52017-1:2017)
This European Standard was approved by CEN on 27 February 2017.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2017 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 52017-1:2017 E
worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN ISO 52017-1:2017
EN ISO 52017-1:2017 (E)

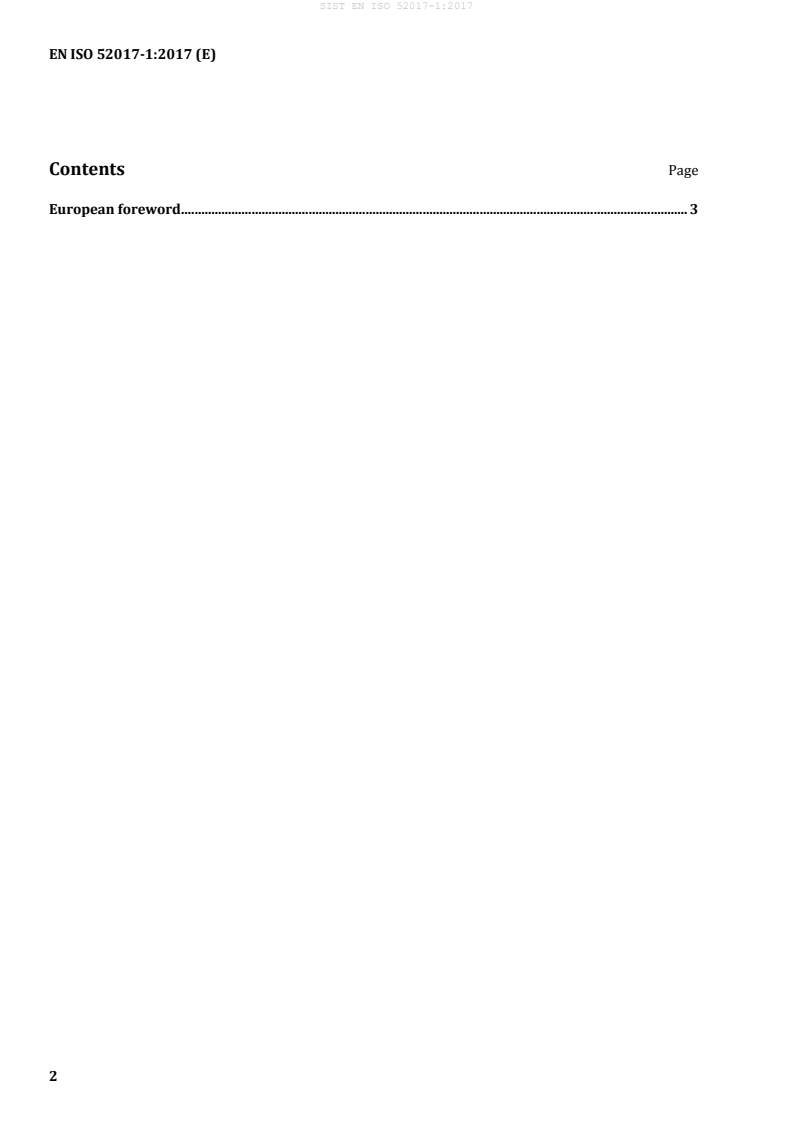

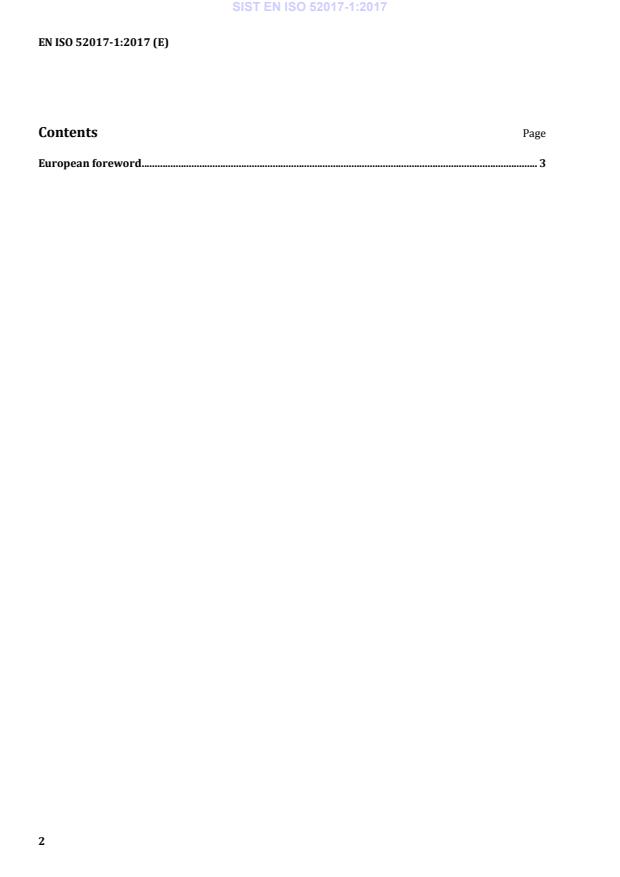

Contents Page
European foreword . 3
2
---------------------- Page: 4 ----------------------
SIST EN ISO 52017-1:2017
EN ISO 52017-1:2017 (E)
European foreword
This document (EN ISO 52017-1:2017) has been prepared by Technical Committee ISO/TC 163
"Thermal performance and energy use in the built environment" in collaboration with Technical
Committee CEN/TC 89 “Thermal performance of buildings and building components” the secretariat of
which is held by SIS.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by January 2018, and conflicting national standards shall
be withdrawn at the latest by January 2018.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association.
This document is part of the set of standards on the energy performance of buildings (the set of EPB
standards) and has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association (Mandate M/480, see reference [EF1] below), and supports essential
requirements of EU Directive 2010/31/EC on the energy performance of buildings (EPBD, [EF2]).
In case this standard is used in the context of national or regional legal requirements, mandatory
choices may be given at national or regional level for such specific applications, in particular for the
application within the context of EU Directives transposed into national legal requirements.
Further target groups are users of the voluntary common European Union certification scheme for the
energy performance of non-residential buildings (EPBD art.11.9) and any other regional (e.g. Pan
European) parties wanting to motivate their assumptions by classifying the building energy
performance for a dedicated building stock.
References:
[EF1] Mandate M/480, Mandate to CEN, CENELEC and ETSI for the elaboration and adoption of
standards for a methodology calculating the integrated energy performance of buildings and
promoting the energy efficiency of buildings, in accordance with the terms set in the recast of
the Directive on the energy performance of buildings (2010/31/EU) of 14th December 2010
[EF2] EPBD, Recast of the Directive on the energy performance of buildings (2010/31/EU) of
th
14 December 2010
[EF3] EN 15265:2007, Energy performance of buildings — Calculation of energy needs for space
heating and cooling using dynamic methods — General criteria and validation procedures
[EF4] EN 15255:2007, Thermal performance of buildings Sensible room cooling load calculation -
General criteria and validation procedures
Together with EN ISO 52016-1 this document supersedes EN ISO 13791:2012, EN ISO 13792:2012,
EN 15255:2007 [EF3] and EN 15265:2007 [EF4].
3
---------------------- Page: 5 ----------------------
SIST EN ISO 52017-1:2017
EN ISO 52017-1:2017 (E)
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
Endorsement notice
The text of ISO 52017-1:2017 has been approved by CEN as EN ISO 52017-1:2017 without any
modification.
4
---------------------- Page: 6 ----------------------
SIST EN ISO 52017-1:2017
INTERNATIONAL ISO
STANDARD 52017-1
First edition
2017-06
Energy performance of buildings —
Sensible and latent heat loads and
internal temperatures —
Part 1:
Generic calculation procedures
Performance énergétique des bâtiments — Charges thermiques
latentes et sensibles et températures intérieures —
Partie 1: Méthodes de calcul génériques
Reference number
ISO 52017-1:2017(E)
©
ISO 2017
---------------------- Page: 7 ----------------------
SIST EN ISO 52017-1:2017
ISO 52017-1:2017(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2017, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2017 – All rights reserved
---------------------- Page: 8 ----------------------
SIST EN ISO 52017-1:2017
ISO 52017-1:2017(E)
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 2
4 Symbols and subscripts . 3
4.1 Symbols . 3
4.2 Subscripts . 4
5 Brief description of the method . 5
5.1 Output of the method . 5
5.2 General description of the method . 5
6 Calculation method . 5
6.1 Output data . 5
6.2 Calculation time interval and calculation period . 6
6.3 Input data . 6
6.4 Calculation procedure . 7
6.4.1 Applicable time interval . 7
6.4.2 Assumptions . 7
6.4.3 Calculation of relevant temperatures . 8
6.4.4 Building zone thermal balance (sensible heat) .12
6.4.5 Heat transfer components .13
6.4.6 Building zone moisture and latent heat balance .22
6.4.7 Calculation steps .23
6.4.8 Boundary conditions .24
7 Quality control .25
7.1 Report of the calculation .25
7.2 Validation cases .25
8 Compliance check .26
Annex A (normative) Input and method selection data sheet — Template .27
Annex B (informative) Input and method selection data sheet — Default choices .29
Bibliography .31
© ISO 2017 – All rights reserved iii
---------------------- Page: 9 ----------------------
SIST EN ISO 52017-1:2017
ISO 52017-1:2017(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO’s adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: w w w . i s o .org/ iso/ foreword .html.
ISO 52017-1 was prepared by ISO Technical Committee ISO/TC 163, Thermal performance and energy
use in the built environment, Subcommittee SC 2, Calculation methods, in collaboration with the European
Committee for Standardization (CEN) Technical Committee CEN/TC 89, Thermal performance of
buildings and building components, in accordance with the Agreement on technical cooperation between
ISO and CEN (Vienna Agreement).
This first edition of ISO 52017-1 cancels and replaces ISO 13791:2012, which has been technically
revised.
A list of all parts in the ISO 52017 series can be found on the ISO website.
iv © ISO 2017 – All rights reserved
---------------------- Page: 10 ----------------------
SIST EN ISO 52017-1:2017
ISO 52017-1:2017(E)
Introduction
This document is part of a series aimed at the international harmonization of the methodology for
assessing the energy performance of buildings. Throughout, this series is referred to as a “set of EPB
standards”.
All EPB standards follow specific rules to ensure overall consistency, unambiguity and transparency.
All EPB standards provide a certain flexibility with regard to the methods, the required input data and
references to other EPB standards, by the introduction of a normative template in Annex A and Annex B
with informative default choices.
For the correct use of this document, a normative template is given in Annex A to specify these choices.
Informative default choices are provided in Annex B.
The main target groups for this document are architects, engineers and regulators.
Use by or for regulators: In case the document is used in the context of national or regional legal
requirements, mandatory choices may be given at national or regional level for such specific
applications. These choices (either the informative default choices from Annex B or choices adapted to
national/regional needs, but in any case following the template of Annex A) can be made available as
national annex or as separate (e.g. legal) document (national data sheet).
NOTE 1 So in this case:
— the regulators will specify the choices;
— the individual user will apply the document to assess the energy performance of a building, and thereby use
the choices made by the regulators.
Topics addressed in this document can be subject to public regulation. Public regulation on the same
topics can override the default values in Annex B. Public regulation on the same topics can even, for
certain applications, override the use of this document. Legal requirements and choices are in general
not published in standards but in legal documents. In order to avoid double publications and difficult
updating of double documents, a national annex may refer to the legal texts where national choices
have been made by public authorities. Different national annexes or national data sheets are possible,
for different applications.
It is expected, if the default values, choices and references to other EPB standards in Annex B are not
followed due to national regulations, policy or traditions, that:
— national or regional authorities prepare data sheets containing the choices and national or regional
values, according to the model in Annex A. In this case a national annex (e.g. NA) is recommended,
containing a reference to these data sheets;
— or, by default, the national standards body will consider the possibility to add or include a national
annex in agreement with the template of Annex A, in accordance to the legal documents that give
national or regional values and choices.
Further target groups are parties wanting to motivate their assumptions by classifying the building
energy performance for a dedicated building stock.
More information is provided in the Technical Report accompanying this document (ISO/TR 52016-
[3]
2 ) accompanying this document.
The subset of EPB standards prepared under the responsibility of ISO/TC 163/SC 2 cover inter alia:
— calculation procedures on the overall energy use and energy performance of buildings;
— calculation procedures on the internal temperature in buildings (e.g. in case of no space heating or
cooling);
© ISO 2017 – All rights reserved v
---------------------- Page: 11 ----------------------
SIST EN ISO 52017-1:2017
ISO 52017-1:2017(E)
— indicators for partial EPB requirements related to thermal energy balance and fabric features;
— calculation methods covering the performance and thermal, hygrothermal, solar and visual
characteristics of specific parts of the building and specific building elements and components, such
as opaque envelope elements, ground floor, windows and facades.
ISO/TC 163/SC 2 cooperates with other TC’s for the details on, e.g. appliances, technical building
systems and indoor environment.
This document is intended for use by specialists to develop methods for the hourly or subhourly
calculation of the internal temperatures and/or the heating, cooling and/or the humidification loads of
a thermal zone in a building.
Examples of application of such methods includes the following:
a) assessing the risk of internal overheating;
b) optimizing aspects of building design (building thermal mass, solar protection, ventilation rate,
etc.) to provide thermal comfort conditions;
c) assessing whether a building requires mechanical cooling;
d) assessing the energy needs for heating and cooling and for humidification and dehumidification;
e) assessing the sensible heating and cooling and humidification and dehumidification loads under
system design conditions.
Criteria for building performance are not included. They can be considered at national level. This
document can also be used as a reference to develop more simplified methods for the above and similar
applications.
Specific calculation procedures based on the generic calculation procedures of this document are given
in ISO 52016-1. The specific simplifications, assumptions and boundary conditions in ISO 52016-1 are
tailored to the respective application areas.
The main differences compared to ISO 13791 are the following:
— assumptions or procedures that are not relevant for the generic calculation procedures have been
moved to the standard with specific application and combined with other specific assumptions and
procedures, for example, specification of the convective heat transfer coefficients;
— the calculation of the operative temperature is added. The solution techniques for the calculation of
the operative temperature are not provided in this document, but left up to the specific application
standards (e.g. ISO 52016-1);
— the heat flow rates representing the sensible heating and cooling loads and the humidification and
dehumidification loads to hold a specific (temperature, moisture) set point are added to the formulae.
This widens the application range of the generic calculation procedures without adding complexity.
The solution techniques for the calculation of these loads are not provided in this standard, but
left up to the specific application standards (e.g. ISO 52016-1), because this is highly application
dependent;
— the validation cases have been removed, because there is no need to validate the implementation of
the generic calculation method itself. Conformance criteria and deviation allowances highly depend
[1]
on the application area. Moreover, the reference results of the main validation cases of ISO 13791
were questioned and could not be reproduced. Instead, the “BESTEST” test suite, standardized
[9]
as ANSI/ASHRAE 140 , comprises a number of test cases that are appropriate for (optional)
validation of the calculation methods described in this document. The relevant subset of BESTEST
cases is similar to the test cases of ISO 13791. The most relevant BESTEST cases have been adopted
in ISO 52016-1 for verification of the specific calculation procedures of that standard.
vi © ISO 2017 – All rights reserved
---------------------- Page: 12 ----------------------
SIST EN ISO 52017-1:2017
ISO 52017-1:2017(E)
Relevant editorial changes have been made, based on the detailed technical rules for all EPB standards,
including moving all (still relevant) informative annexes to a separate accompanying technical report
[3]
(ISO/TR 52016-2 ).
Table 1 shows the relative position of this document within the set of EPB standards in the context of
the modular structure as set out in ISO 52000-1.
[6]
NOTE In ISO/TR 52000-2 , the same table can be found, with, for each module, the numbers of the relevant
EPB standards and accompanying technical reports that are published or in preparation.
The modules represent EPB standards, although one EPB standard may cover more than one module
and one module may be covered by more than one EPB standard, for instance, a simplified and a detailed
method respectively. See also Clause 2 and Tables A.1 and B.1.
Table 1 — Position of this document (in casu M2–2, M2–3, M3–3, M4–3, M6–3, M7–3), within the
modular structure of the set of EPB standards
Building
Overarching Technical building systems
(as such)
Build-
Do- ing
Sub- De- Ven- PV,
Descrip- Descrip- Humidifi- Dehumidi- mestic Light- auto-
mod- scrip- Heating Cooling tila- wind
tions tions cation fication hot ing mation
ule tions tion ,.
water and
control
sub1 M1 M2 M3 M4 M5 M6 M7 M8 M9 M10 M11
1 General General General
Common
terms
and defi-
Building
nitions;
a
2 energy ISO 52017-1 Needs
symbols,
needs
units and
sub-
scripts
(Free)
Indoor Maxi-
Applica- condi- mum
3 ISO 52017-1 ISO 52017-1 ISO 52017-1 ISO 52017-1 ISO 52017-1
tions tions load and
without power
systems
Ways to Ways to Ways to
express express express
4 energy energy energy
perfor- perfor- perfor-
mance mance mance
a
The shaded modules are not applicable
© ISO 2017 – All rights reserved vii
---------------------- Page: 13 ----------------------
SIST EN ISO 52017-1:2017
ISO 52017-1:2017(E)
Building
Overarching Technical building systems
(as such)
Build-
Do- ing
Sub- De- Ven- PV,
Descrip- Descrip- Humidifi- Dehumidi- mestic Light- auto-
mod- scrip- Heating Cooling tila- wind
tions tions cation fication hot ing mation
ule tions tion ,.
water and
control
sub1 M1 M2 M3 M4 M5 M6 M7 M8 M9 M10 M11
Building
catego- Heat
Emis-
ries and transfer
5 sion and
building by trans-
control
bounda- mission
ries
Building Heat
occupan- transfer Distri-
cy and by infil- bution
6
operat- tration and
ing con- and ven- control
ditions tilation
Aggre-
gation of
energy Internal Storage
7 services heat and
and gains control
energy
carriers
Solar Genera-
Building
8 heat tion and
zoning
gains control
Load
Calcu- Building dis-
lated dy- patching
9 energy namics and op-
perfor- (thermal erating
mance mass) condi-
tions
Meas- Meas- Meas-
ured ured ured
10 energy energy energy
perfor- perfor- perfor-
mance mance mance
a
The shaded modules are not applicable
viii © ISO 2017 – All rights reserved
---------------------- Page: 14 ----------------------
SIST EN ISO 52017-1:2017
ISO 52017-1:2017(E)
TTabablele 1 1 ((ccoonnttiinnueuedd))
Building
Overarching Technical building systems
(as such)
Build-
Do- ing
Sub- De- Ven- PV,
Descrip- Descrip- Humidifi- Dehumidi- mestic Light- auto-
mod- scrip- Heating Cooling tila- wind
tions tions cation fication hot ing mation
ule tions tion ,.
water and
control
sub1 M1 M2 M3 M4 M5 M6 M7 M8 M9 M10 M11
Inspec- Inspec- Inspec-
11
tion tion tion
Ways to
express
12 BMS
indoor
comfort
External
envi-
13 ronment
condi-
tions
Economic
14 calcula-
tion
a
The shaded modules are not applicable
© ISO 2017 – All rights reserved ix
---------------------- Page: 15 ----------------------
SIST EN ISO 52017-1:2017
---------------------- Page: 16 ----------------------
SIST EN ISO 52017-1:2017
INTERNATIONAL STANDARD ISO 52017-1:2017(E)
Energy performance of buildings — Sensible and latent
heat loads and internal temperatures —
Part 1:
Generic calculation procedures
1 Scope
This document specifies the general assumptions, boundary conditions and equations for the
calculation, under transient hourly or subhourly conditions, of the internal temperatures (air and
operative) and/or the heating, cooling and humidification and dehumidification loads to hold a specific
(temperature, moisture) set point, in a single building zone. No specific numerical techniques are
imposed by this document.
Specific calculation procedures based on the generic calculation procedures of this document are given
in ISO 52016-1. The specific simplifications, assumptions and boundary conditions in ISO 52016-1 are
tailored to the respective application areas, such as the energy need for heating and cooling and for
humidification and dehumidification, hourly internal temperature, design heating and cooling and
humidification and dehumidification load.
NOTE Table 1 in the Introduction shows the relative position of this document within the set of EPB
standards in the context of the modular structure as set out in ISO 52000-1
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
