SIST EN 13451-10:2018

Swimming pool equipment - Part 10: Additional specific safety requirements and test methods for diving platforms, diving springboards and associated equipment

This part of the EN 13451 series specifies safety requirements for diving platforms, diving springboards and associated equipment in addition to the general safety requirements of EN 13451 1 and should be read in conjunction with it.
The requirements of this part of the EN 13451 series take priority over those in EN 13451 1.
This part of the EN 13451 series is applicable to platforms and springboards, and associated equipment for use in classified swimming pools as specified in EN 15288 1 and EN 15288 2.

Schwimmbadgeräte - Teil 10: Zusätzliche besondere sicherheitstechnische Anforderungen und Prüfverfahren für Sprungplattformen, Sprungbretter und zugehörige Geräte

Dieser Teil der EN 13451-Normenreihe legt sicherheitstechnische Anforderungen an Sprungplattformen, Sprungbretter und zugehörige Geräte zusätzlich zu den allgemeinen sicherheitstechnischen Anforderungen nach EN 13451 1 fest und sollte in Verbindung damit gelesen werden.
Die Anforderungen dieses Teils der EN 13451-Normenreihe haben Vorrang gegenüber EN 13451 1.
Dieser Teil der EN 13451 gilt für Sprungplattformen, Sprungbretter und zugehörige Geräte zum Gebrauch in klassifizierten Schwimmbädern nach den Festlegungen in EN 15288 1 und EN 15288 2.

Équipement de piscine - Partie 10 : Exigences de sécurité et méthodes d’essai complémentaires propres aux plates-formes de plongeon, aux plongeoirs et à l’équipement associé

La présente partie de l’EN 13451 spécifie les exigences de sécurité relatives aux plates-formes de plongeon, aux plongeoirs et à l’équipement associé qui viennent compléter les exigences générales de sécurité de l’EN 13451 1 et il convient de la lire conjointement avec cette dernière.
Les exigences de la présente partie de l’EN 13451 ont la priorité sur celles de l’EN 13451 1.
La présente partie de l’EN 13451 est applicable aux plates-formes de plongeon, aux plongeoirs et à l’équipement associé destinés à être utilisés pour les piscines classées comme spécifié dans l’EN 15288 1 et l’EN 15288 2.

Oprema za plavalne bazene - 10. del: Dodatne posebne varnostne zahteve in preskusne metode za odskočne ploščadi, odskočne deske in pripadajočo opremo

Ta del skupine standardov EN 13451 določa posebne varnostne zahteve za odskočne ploščadi, odskočne deske in pripadajočo opremo ter se uporablja poleg splošnih varnostnih zahtev standarda EN 13451-1, pri čemer naj bi se ga bralo skupaj z njim.
Zahteve tega dela skupine standardov EN 13451 imajo prednost pred zahtevami standarda EN 13451-1.
Ta del skupine standardov EN 13451 se uporablja za ploščadi, odskočne deske in pripadajočo opremo za uporabo v klasificiranih plavalnih bazenih, kot določata standarda EN 15288-1 in EN 15288-2.

General Information

• Status: Published
• Public Enquiry End Date: 19-Sep-2016
• Publication Date: 11-Nov-2018
• ICS: 97.220.10 - Sports facilities
• Technical Committee: SPO - Sports
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 19-Oct-2018
• Due Date: 24-Dec-2018
• Completion Date: 12-Nov-2018
• Ref Project: EN 13451-10:2018 - Swimming pool equipment - Part 10: Additional specific safety requirements and test methods for diving platforms, diving springboards and associated equipment

RELATIONS

• Replaces: SIST EN 13451-10:2014 - Swimming pool equipment - Part 10: Additional specific safety requirements and test methods for diving platforms, diving springboards and associated equipment
• Effective Date: 01-Dec-2018

Standards Content (sample)

SLOVENSKI STANDARD
SIST EN 13451-10:2018
01-december-2018
1DGRPHãþD
SIST EN 13451-10:2014
2SUHPD]DSODYDOQHED]HQHGHO'RGDWQHSRVHEQHYDUQRVWQH]DKWHYHLQ
SUHVNXVQHPHWRGH]DRGVNRþQHSORãþDGLRGVNRþQHGHVNHLQSULSDGDMRþRRSUHPR

Swimming pool equipment - Part 10: Additional specific safety requirements and test

methods for diving platforms, diving springboards and associated equipment
Schwimmbadgeräte - Teil 10: Zusätzliche besondere sicherheitstechnische

Anforderungen und Prüfverfahren für Sprungplattformen, Sprungbretter und zugehörige

Geräte
Équipement de piscine - Partie 10 : Exigences de sécurité et méthodes d’essai
complémentaires propres aux plates-formes de plongeon, aux plongeoirs et à
l’équipement associé
Ta slovenski standard je istoveten z: EN 13451-10:2018
ICS:
97.220.10 Športni objekti Sports facilities
SIST EN 13451-10:2018 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 13451-10:2018
---------------------- Page: 2 ----------------------
SIST EN 13451-10:2018
EN 13451-10
EUROPEAN STANDARD
NORME EUROPÉENNE
August 2018
EUROPÄISCHE NORM
ICS 97.220.10 Supersedes EN 13451-10:2014
English Version
Swimming pool equipment - Part 10: Additional specific
safety requirements and test methods for diving platforms,
diving springboards and associated equipment

Équipement de piscine - Partie 10 : Exigences de Schwimmbadgeräte - Teil 10: Zusätzliche besondere

sécurité et méthodes d'essai complémentaires propres sicherheitstechnische Anforderungen und

aux plates-formes de plongeon, aux plongeoirs et à Prüfverfahren für Sprungplattformen, Sprungbretter

l'équipement associé und zugehörige Geräte
This European Standard was approved by CEN on 6 May 2018.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this

European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references

concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN

member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by

translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management

Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,

Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,

Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2018 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13451-10:2018 E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN 13451-10:2018
EN 13451-10:2018 (E)

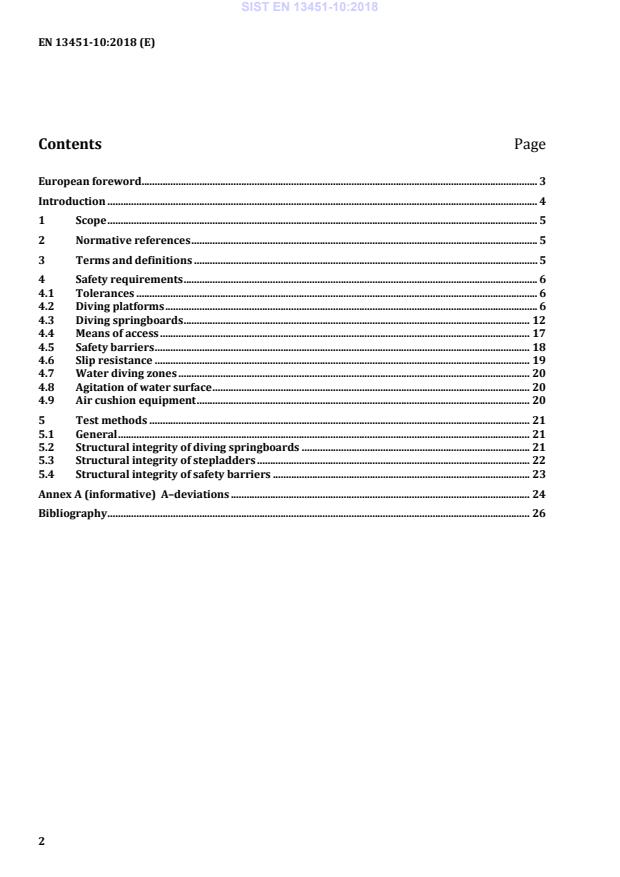

Contents Page

European foreword ....................................................................................................................................................... 3

Introduction .................................................................................................................................................................... 4

1 Scope .................................................................................................................................................................... 5

2 Normative references .................................................................................................................................... 5

3 Terms and definitions ................................................................................................................................... 5

4 Safety requirements ....................................................................................................................................... 6

4.1 Tolerances ......................................................................................................................................................... 6

4.2 Diving platforms .............................................................................................................................................. 6

4.3 Diving springboards .................................................................................................................................... 12

4.4 Means of access ............................................................................................................................................. 17

4.5 Safety barriers ............................................................................................................................................... 18

4.6 Slip resistance ............................................................................................................................................... 19

4.7 Water diving zones ...................................................................................................................................... 20

4.8 Agitation of water surface ......................................................................................................................... 20

4.9 Air cushion equipment ............................................................................................................................... 20

5 Test methods ................................................................................................................................................. 21

5.1 General ............................................................................................................................................................. 21

5.2 Structural integrity of diving springboards ....................................................................................... 21

5.3 Structural integrity of stepladders ........................................................................................................ 22

5.4 Structural integrity of safety barriers .................................................................................................. 23

Annex A (informative) A–deviations .................................................................................................................. 24

Bibliography ................................................................................................................................................................. 26

---------------------- Page: 4 ----------------------
SIST EN 13451-10:2018
EN 13451-10:2018 (E)
European foreword

This document (EN 13451-10:2018) has been prepared by Technical Committee CEN/TC 136 “Sports,

playground and other recreational facilities and equipment”, the secretariat of which is held by DIN.

This European Standard shall be given the status of a national standard, either by publication of an

identical text or by endorsement, at the latest by February 2019, and conflicting national standards

shall be withdrawn at the latest by February 2019.

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CEN shall not be held responsible for identifying any or all such patent rights.

This document supersedes EN 13451-10:2014.
In relation to EN 13451-10 the following main amendments have been made:

a) the values in Tables 2 and 4 have been compared with and where required revised according to the

values of the current FINA Table;
b) clause on stepladders for diving facilities revised (4.4.2);
c) clause on safety barriers revised (4.5);
d) clause on slip resistance revised (4.6);
e) Adding informative Annex regarding A-Deviation from Estonia.
This document includes an A-Deviation from Estonia.
The EN 13451 series, Swimming pool equipment consists of the following parts:
— Part 1: General safety requirements and test methods

— Part 2: Additional specific safety requirements and test methods for ladders, stepladders and handle

bends

— Part 3: Additional specific safety requirements and test methods for inlets and outlets and water/air

based water leisure features

— Part 4: Additional specific safety requirements and test methods for starting platforms

— Part 5: Additional specific safety requirements and test methods for lane lines and dividing line

— Part 6: Additional specific safety requirements and test methods for turning boards

— Part 7: Additional specific safety requirements and test methods for water polo goals

— Part 10: Additional specific safety requirements and test methods for diving platforms, diving

springboards and associated equipment

— Part 11: Additional specific safety requirements and test methods for moveable pool floors and

moveable bulkheads

According to the CEN-CENELEC Internal Regulations, the national standards organisations of the

following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,

Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia,

France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,

Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,

Turkey and the United Kingdom.
---------------------- Page: 5 ----------------------
SIST EN 13451-10:2018
EN 13451-10:2018 (E)
Introduction

Diving is a voluntary movement into water with arms and head entering the water first or a voluntary

movement into water with feet entering the water first while performing acrobatics.

There can be additional requirements for purposes such as competition swimming, and advice should

be sought from the governing body of the sport in question (see [1] and [2]).
---------------------- Page: 6 ----------------------
SIST EN 13451-10:2018
EN 13451-10:2018 (E)
1 Scope

This part of the EN 13451 series specifies safety requirements for diving platforms, diving springboards

and associated equipment in addition to the general safety requirements of EN 13451-1 and is meant to

be read in conjunction with it.

The requirements of this part of the EN 13451 series take priority over those in EN 13451-1.

This part of the EN 13451 series is applicable to platforms and springboards, and associated equipment

for use in classified swimming pools as specified in EN 15288-1 and EN 15288-2.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

EN 13451-1:2011+A1:2016, Swimming pool equipment — Part 1: General safety requirements and test

methods

EN 13451-3, Swimming pool equipment — Part 3: Additional specific safety requirements and test

methods for inlets and outlets and water/air based water leisure features

EN 22768-1, General tolerances — Part 1: Tolerances for linear and angular dimensions without

individual tolerance indications (ISO 2768-1)
3 Terms and definitions

For the purposes of this document, the terms and definitions given in EN 13451-1:2011+A1:2016 and

the following apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
diving facility
installation designed to provide the opportunity of diving
3.2
diving platform
raised rigid horizontal platform, protruding over the water, intended for diving
3.3
diving springboard type 1

raised flexible board, installed at a height 1,0 m ≤ h ≤ 3,05 m above water level and protruding over the

water, intended for diving
3.4
diving springboard type 2

raised flexible board, which can be permanently installed or portable, with a height < 1,0 m from water

level and protruding over the water, intended for recreational diving
---------------------- Page: 7 ----------------------
SIST EN 13451-10:2018
EN 13451-10:2018 (E)
3.5
plummet line

vertical line extending through the centre of the front edge of a platform or springboard

3.6
water agitation device
equipment designed to improve visibility of the water surface by disturbance
3.7
air cushion equipment

training device, designed for introducing air from the bottom of a diving pool, in front of a diving

platform and/or springboard, to reduce the effects of the impact of the diver with the pool water and

make training safer
4 Safety requirements
4.1 Tolerances
+0,05
Tolerances of height of the diving platform and diving springboards are m .
For all other tolerances, if not indicated, EN 22768-1 applies.
4.2 Diving platforms
4.2.1 General

Particular attention shall be paid to avoid glare and reflecting surfaces, which can disturb the vision of

the diver.
In Europe, outdoor diving facilities should face north.
4.2.2 Dimensions

The dimensions indicated in Figures 1 to 4 and Tables 1 to 2 shall be complied with. The design of the

equipment does not need to comply with the examples given.
Platforms shall be horizontal.
The minimum dimensions of the platforms shall comply with Table 1.
Table 1 — Areas of use
Dimensions in metres
Height of platforms from water
Minimum usable width
Length reserved for the diver
level
1 0,60 0,75
3 0,60 1,25
5 1,50 1,25
7,5 1,50 1,50
10 3,00 1,50
Minimum distance back from plummet.
---------------------- Page: 8 ----------------------
SIST EN 13451-10:2018
EN 13451-10:2018 (E)

NOTE 1 In addition to the length reserved for the diver (minimum distance back from plummet), additional

space can be necessary for other purposes, as wider range of dives (e.g. dives with preliminary run), space for

waiting for the dive, space for divers passing to the next platform.

If synchronized diving (more than one diver starting at a same time from the platform) is foreseen, the

width of the platforms should be suitably increased. As an alternative, during synchronized diving

activities only there should be the possibility to increase temporarily the distance of the safety barriers

for arm movement (see [1]).

The minimum dimensions of the platform facilities shall comply with Table 2 and with Figure 1.

Table 2 — Minimum dimensions of diving platform facilities
Dimensions in metres
1 m 3 m 5 m 7,5 m 10 m
Minimum height of platform

horizont vertic horizonta vertical horizonta vertical horizonta vertical horizonta vertical

from water level
al al l l l l
From plummet back to
A 0,75 — 1,25 — 1,25 — 1,25 — 1,50 —
pool wall
From plummet back to
A/A platform plummet — — — — 0,75 — 0,75 — 0,75 —
vertically below
From plummet to pool wall
B 2,30 — 2,80 — 3,25 — 4,25 — 5,25 —
at side
From plummet to adjacent
b c
C , 1,65 — 2,00 — 2,25 — 2,50 — 2,75 —
plummet
From plummet to pool wall
D 8,00 — 9,50 — 10,25 — 11,00 — 13,50 —
ahead
On plummet, from board to
E — 3,25 — 3,25 — 3,25 — 3,25 — 4,00
ceiling
Distance behind and each
F side of plummet with 2,30 — 2,75 — 2,75 — 2,75 — 2,75 —
height E
Distance ahead of plummet
G 5,00 — 5,00 — 5,00 — 5,00 — 6,00 —
with height E
H Depth of water at plummet — 3,20 — 3,50 — 3,70 — 4,10 — 4,50
Distance ahead of plummet
J 4,50 — 5,50 — 6,00 — 8,00 — 11,00 —
with a water depth K
minimum water depth
K between plummet and — 3,10 — 3,40 — 3,60 — 4,00 — 4,25
distance J
Distance on each side of
L plummet with a water 1,40 — 1,80 — 3,00 — 3,75 — 4,50 —
depth M
minimum water depth
M between plummet and — 3,10 — 3,40 — 3,60 — 4,00 — 4,25
distance L
---------------------- Page: 9 ----------------------
SIST EN 13451-10:2018
EN 13451-10:2018 (E)

on plummet, also from platform to the bottom side of a platform, if vertically above

Dimensions B and C apply to platforms with widths as in Table 1; if platform widths are increased then B, C, F and L shall be

increased by half of the additional width(s).

The dimension C applies also to combinations of platform and spring board (e.g. 5 m platform combined with a 3 m spring

board).

F is also valid for arm moves backwards, so for the 1 m platform F = 2,75 (backwards) applies.

The maximum slope of surfaces to reduce dimensions beyond full requirements shall be ≤ 30° for

ceilings and pool bottoms.
Dimensions in metres
a) Longitudinal section b) Cross section
Key
1 platform
2 platform underneath other platform
Figure 1 — Diagrammatic side and front view of diving platform facilities

Intermediate heights from water level are allowed, provided the user is made aware of the actual height

and the safety requirements of the next higher facility are fulfilled.

The front edge of each platform shall be vertical, or inclined up to an angle ≤ 10° to the vertical inside

the plummet line. The thickness of the front edge shall be between 200 mm and 300 mm.

---------------------- Page: 10 ----------------------
SIST EN 13451-10:2018
EN 13451-10:2018 (E)
Dimensions in millimetres
Key
1 water level
Figure 2 — Diving platform (1 m high)
---------------------- Page: 11 ----------------------
SIST EN 13451-10:2018
EN 13451-10:2018 (E)
Dimensions in millimetres
Key
1 water level
Figure 3 — Diving platform (3 m high)
---------------------- Page: 12 ----------------------
SIST EN 13451-10:2018
EN 13451-10:2018 (E)
Dimensions in millimetres
Key
1 water level
See also 4.2.2, paragraph after NOTE 1
NOTE The shown constellation of the diving platforms is only an example.
Figure 4 — Diving platforms (3 m, 5 m, 7,5 m and 10 m high)

NOTE 2 Figure 4 shows the side profile of diving platforms (no description of the real construction, referring to

the measures E of Table 2).

NOTE 3 Dimensional requirements for competitive use, stipulated by the governing body FINA (Fédération

Internationale de Natation), are given in [1] and [2] for information.

If a diving board is installed below a platform,, the dimension C (from plummet to adjacent plummet) of

Table 4 shall be complied with.
4.2.3 Structural integrity
For the design loads, see EN 13451-1.
The diving platforms shall be rigid.
---------------------- Page: 13 ----------------------
SIST EN 13451-10:2018
EN 13451-10:2018 (E)
4.2.4 Clearance zones

Clearance zones shall comply with E, F and G of Table 2 and with Figure 1. For safety barriers within the

clearance zone, see 4.5.
4.3 Diving springboards
4.3.1 General

For diving springboards type 1 and type 2, the installation of the equipment shall comply with the

safety requirements and dimensions given in Table 3 and Table 4.

The installation of portable diving springboards type 2 shall comply also with the specific requirements

given by the manufacturer/supplier/importer (characteristics of the location and its capacity to bear

the loads caused by the equipment and by the action of the user). Adjustable fulcrums are not allowed

for type 2 diving springboards.

Particular attention shall be paid to avoid glare and reflecting surfaces, which can disturb the vision of

the diver.
In Europe, outdoor diving
...
