SIST EN 301 511 V12.5.1:2017
(Main)Global System for Mobile communications (GSM) - Mobile Stations (MS) equipment - Harmonised Standard covering the essential requirements of article 3.2 of Directive 2014/53/EU
Global System for Mobile communications (GSM) - Mobile Stations (MS) equipment - Harmonised Standard covering the essential requirements of article 3.2 of Directive 2014/53/EU
The present document specifies technical characteristics and methods of measurements for the following radio
equipment type:
- GSM mobile station.
This radio equipment type is for operation within the Digital cellular telecommunications system in the GSM 900
and/or GSM 1800 frequency bands as shown in table 1, with a channel separation of 200 kHz, utilizing constant
envelope modulation and carrying traffic channels according to the Time Division Multiple Access (TDMA) principle.
The present document covers the essential requirements of article 3.2 of Directive 2014/53/EU [i.9] under the
conditions identified in annex A.
The present document covers the general access requirements for terminal equipment up to and including 3GPP Rel-12.
The general access requirements, applied to the terminal equipment, are for one release only. The present document
does not cover the GPRS Class A mobiles and the ECSD mobiles.
For each test purpose and its corresponding conformance requirement, a reference is given to the test method in
ETSI TS 151 010-1 [2]. The requirements apply at the air interface, which may be stimulated to perform the tests by
additional equipment if necessary.
The measurement uncertainty is described in ETSI TS 151 010-1 [2], annex 5.
In addition to the present document, other ENs that specify technical requirements in respect of essential requirements
under other parts of article 3 of the Radio Equipment Directive [i.9] will apply to equipment within the scope of the
present document.
NOTE 1: A list of such ENs is included on the web site http://www.newapproach.org.
ETSI TS 151 010-1 [2] constitutes the conformance test suite for GSM. The verification of the conformance
requirements in the present document is based on the tests described in this reference. The set of requirements in
ETSI TS 151 010-1 [2] and the set of requirements in the present document need not be identical.
Some requirements only apply to specific types of mobile station (e.g. data tests only apply to mobile stations with a
data facility, tests that only apply to GSM 900 or only to GSM 1800 or to both). The present document indicates the
specific test which should be carried out for each mobile station type.
An active accessory is covered by the present document if it modifies the terminal performance in an aspect which
affects conformance to essential requirements.
NOTE 2: Only active devices are subject to the present document. Accessories may be tested with specific
terminals, and either approved for use with those terminals only, or may possibly be approved for use
with a wider range of terminals, depending on the nature and effect of the accessory.
Globalni sistem mobilnih komunikacij (GSM) - Oprema mobilnih postaj (MS) - Harmonizirani standard, ki zajema bistvene zahteve člena 3.2 direktive 2014/53/EU
Ta dokument določa tehnične lastnosti in merilne metode za naslednjo vrsto radijske opreme:
– mobilne postaje GSM.
Ta vrsta radijske opreme je namenjena delovanju znotraj digitalnega mobilnega telekomunikacijskega sistema v frekvenčnih pasovih GSM 900 in/ali GSM 1800, kot je prikazano v preglednici 1, z medkanalskim razmikom 200 kHz, ki uporablja modulacijo s konstantno ovojnico in podpira prometne kanale v skladu z načelom časovno porazdeljenih sodostopov (TDMA).
Ta dokument zajema bistvene zahteve člena 3.2 direktive 2014/53/EU [i.9] pod pogoji iz dodatka A.
Ta dokument zajema splošne zahteve za dostop terminalske opreme do in vključno z 3GPP Rel-12.
Splošne zahteve za dostop, ki se nanašajo na terminalsko opremo, veljajo samo za eno izdajo. Ta dokument ne zajema mobilnih naprav GPRS razreda A in mobilnih naprav ECSD.
Za vsak namen preskusa in njegove zahteve glede skladnosti je v dokumentu ETSI TS 151 010-1 [2] naveden sklic do preskusne metode. Zahteve veljajo za radijski vmesnik, ki lahko opravi preskuse z uporabo dodatne opreme, če je ta potrebna.
Merilna negotovost je opisana v dodatku 5 dokumenta ETSI TS 151 010-1 [2].
Poleg tega dokumenta se za opremo na področju uporabe tega dokumenta uporabljajo tudi drugi standardi EN, ki določajo tehnične zahteve v zvezi z bistvenimi zahtevami iz drugih delov 3. člena direktive o radijski opremi [i.9].
ETSI TS 151 010-1 [2] določa niz preskusov skladnosti za GSM. Preverjanje zahtev o skladnosti v tem dokumentu temelji na preskusih, opisanih v tem sklicu. Ni potrebno, da sta niza zahtev v dokumentu ETSI TS 151 010-1 [2] in v tem dokumentu enaka.
Nekatere zahteve veljajo samo za določene vrste mobilnih postaj (npr. preskusi podatkov, ki se uporabljajo samo za mobilne postaje s podatkovnim obratom (data facility), preskusi, ki se uporabljajo samo za pasove GSM 900, samo za pasove GSM 1800 ali oboje). Ta dokument navaja določene preskuse, ki naj bi se izvedli za vsako vrsto mobilne postaje.
Aktivni dodatek je zajet v tem dokumentu, če spreminja delovanje terminala tako, da to vpliva na skladnost z osnovnimi zahtevami.
General Information
Buy Standard
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Global System for Mobile communications (GSM) - Mobile Stations (MS) equipment - Harmonised Standard covering the essential requirements of article 3.2 of Directive 2014/53/EU33.070.50Globalni sistem za mobilno telekomunikacijo (GSM)Global System for Mobile Communication (GSM)ICS:Ta slovenski standard je istoveten z:ETSI EN 301 511 V12.5.1 (2016-12)SIST EN 301 511 V12.5.1:2017en01-maj-2017SIST EN 301 511 V12.5.1:2017SLOVENSKI
STANDARD
SIST EN 301 511 V12.5.1:2017
ETSI EN 301 511 V12.5.1 (2017-03) Global System for Mobile communications (GSM); Mobile Stations (MS) equipment; Harmonised Standard covering the essential requirements of article 3.2 of Directive 2014/53/EU
HARMONISED EUROPEAN STANDARD SIST EN 301 511 V12.5.1:2017
ETSI ETSI EN 301 511 V12.5.1 (2017-03) 2
Reference REN/MSG-0020-RED Keywords cellular, ER-GSM, GSM, mobile, R-GSM ETSI 650 Route des Lucioles F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00
Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C Association à but non lucratif enregistrée à la Sous-Préfecture de Grasse (06) N° 7803/88
Important notice The present document can be downloaded from: http://www.etsi.org/standards-search The present document may be made available in electronic versions and/or in print. The content of any electronic and/or print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any existing or perceived difference in contents between such versions and/or in print, the only prevailing document is the print of the Portable Document Format (PDF) version kept on a specific network drive within ETSI Secretariat. Users of the present document should be aware that the document may be subject to revision or change of status. Information on the current status of this and other ETSI documents is available at https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx If you find errors in the present document, please send your comment to one of the following services: https://portal.etsi.org/People/CommiteeSupportStaff.aspx Copyright Notification No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm except as authorized by written permission of ETSI. The content of the PDF version shall not be modified without the written authorization of ETSI. The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2017. All rights reserved.
DECTTM, PLUGTESTSTM, UMTSTM and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members. 3GPPTM and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners. GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association. SIST EN 301 511 V12.5.1:2017
ETSI ETSI EN 301 511 V12.5.1 (2017-03) 3 Contents Intellectual Property Rights . 6 Foreword . 6 Modal verbs terminology . 6 Introduction . 6 1 Scope . 7 2 References . 8 2.1 Normative references . 8 2.2 Informative references . 8 3 Definitions and abbreviations . 9 3.1 Definitions . 9 3.2 Abbreviations . 10 4 Technical requirements specifications . 10 4.1 Environmental profile . 10 4.2 Conformance requirements . 10 4.2.0 Introduction. 10 4.2.1 Transmitter - Frequency error and phase error . 12 4.2.2 Transmitter - Frequency error under multipath and interference conditions . 12 4.2.3 Transmitter - Frequency error and phase error in HSCSD multislot configuration . 13 4.2.4 Frequency error and phase error in GPRS multislot configuration . 13 4.2.5 Transmitter output power and burst timing . 13 4.2.6 Transmitter - Output RF spectrum . 13 4.2.7 Transmitter output power and burst timing in HSCSD multislot configurations . 13 4.2.8 Transmitter - Output RF spectrum in HSCSD multislot configuration. 13 4.2.9 Transmitter - Output RF spectrum for MS supporting the R-GSM or ER-GSM frequency band . 13 4.2.10 Transmitter output power in GPRS multislot configuration . 13 4.2.11 Output RF spectrum in GPRS multislot configuration . 13 4.2.12 Conducted spurious emissions - MS allocated a channel . 13 4.2.13 Conducted spurious emissions - MS in idle mode . 13 4.2.14 Conducted spurious emissions for MS supporting the R-GSM or ER-GSM frequency band - MS allocated a channel . 13 4.2.15 Conducted spurious emissions for MS supporting the R-GSM or ER-GSM frequency band - MS in idle mode . 14 4.2.16 Radiated spurious emissions - MS allocated a channel . 14 4.2.17 Radiated spurious emissions - MS in idle mode . 14 4.2.18 Radiated spurious emissions for MS supporting the R-GSM or ER-GSM frequency band - MS allocated a channel . 14 4.2.19 Radiated spurious emissions for MS supporting the R-GSM or ER-GSM frequency band - MS in idle mode . 14 4.2.20 Receiver Blocking and spurious response - speech channels . 14 4.2.21 Receiver Blocking and spurious response - speech channels for MS supporting the R-GSM or ER-GSM frequency band . 14 4.2.22 Improved Receiver Blocking and spurious response - speech channels for 8W MS supporting the R-GSM or ER-GSM frequency band . 14 4.2.23 Improved Receiver Blocking and spurious response - speech channels for 2W MS supporting the R-GSM or ER-GSM frequency band . 14 4.2.24 Improved Receiver Blocking and spurious response - control channels for 8W MS supporting the R-GSM or ER-GSM frequency band not supporting speech . 14 4.2.25 Improved Receiver Blocking and spurious response - control channels for 2W MS supporting the R-GSM or ER-GSM frequency band not supporting speech . 15 4.2.26 Frequency error and Modulation accuracy in EGPRS Configuration . 15 4.2.27 Frequency error under multipath and interference conditions in EGPRS Configuration . 15 4.2.28 EGPRS Transmitter output power . 15 4.2.29 Output RF spectrum in EGPRS configuration . 15 4.2.30 Blocking and spurious response in EGPRS configuration . 15 SIST EN 301 511 V12.5.1:2017
ETSI ETSI EN 301 511 V12.5.1 (2017-03) 4 4.2.31 Blocking and spurious response in DLMC configuration . 15 4.2.32 Intermodulation rejection - speech channels . 15 4.2.33 Intermodulation rejection - control channels . 15 4.2.34 Intermodulation rejection - EGPRS . 15 4.2.35 AM suppression - speech channels . 15 4.2.36 AM suppression - control channels . 15 4.2.37 AM suppression - packet channels . 15 4.2.38 Adjacent channel rejection - speech channels (TCH/FS). 16 4.2.39 Adjacent channel rejection - control channels . 16 4.2.40 Adjacent channel rejection - EGPRS . 16 4.2.41 Adjacent channel rejection in DLMC configuration . 16 4.2.42 Reference sensitivity - TCH/FS . 16 4.2.43 Reference sensitivity - FACCH/F . 16 4.2.44 Minimum Input level for Reference Performance - GPRS . 16 4.2.45 Minimum Input level for Reference Performance - EGPRS . 16 4.2.46 Reference sensitivity - TCH/FS for MS supporting the R-GSM or ER-GSM band . 16 5 Testing for compliance with technical requirements . 16 5.1 Environmental conditions for testing . 16 5.2 Interpretation of the measurement results . 17 5.3 Essential radio test suites . 17 5.3.1 Transmitter - Frequency error and phase error . 17 5.3.2 Transmitter - Frequency error under multipath and interference conditions . 17 5.3.3 Transmitter - Frequency error and phase error in HSCSD multislot configuration . 17 5.3.4 Frequency error and phase error in GPRS multislot configuration . 17 5.3.5 Transmitter output power and burst timing . 17 5.3.6 Transmitter - Output RF spectrum . 17 5.3.7 Transmitter output power and burst timing in HSCSD multislot configurations . 17 5.3.8 Transmitter - Output RF spectrum in HSCSD multislot configuration. 17 5.3.9 Transmitter - Output RF spectrum for MS supporting the R-GSM or ER-GSM frequency band . 18 5.3.10 Transmitter output power in GPRS multislot configuration . 18 5.3.11 Output RF spectrum in GPRS multislot configuration . 18 5.3.12 Conducted spurious emissions - MS allocated a channel . 18 5.3.13 Conducted spurious emissions - MS in idle mode . 18 5.3.14 Conducted spurious emissions for MS supporting the R-GSM or ER-GSM frequency band - MS allocated a channel . 18 5.3.15 Conducted spurious emissions for MS supporting the R-GSM or ER-GSM frequency band - MS in idle mode . 18 5.3.16 Radiated spurious emissions - MS allocated a channel . 18 5.3.17 Radiated spurious emissions - MS in idle mode . 18 5.3.18 Radiated spurious emissions for MS supporting the R-GSM or ER-GSM frequency band - MS allocated a channel . 18 5.3.19 Radiated spurious emissions for MS supporting the R-GSM or ER-GSM frequency band - MS in idle mode . 18 5.3.20 Receiver Blocking and spurious response - speech channels . 18 5.3.21 Receiver Blocking and spurious response - speech channels for MS supporting the R-GSM or ER-GSM frequency band . 19 5.3.22 Improved Receiver Blocking and spurious response - speech channels for 8W MS supporting the R-GSM or ER-GSM frequency band . 19 5.3.23 Improved Receiver Blocking and spurious response - speech channels for 2W MS supporting the R-GSM or ER-GSM frequency band . 19 5.3.24 Improved Receiver Blocking and spurious response - control channels for 8W MS supporting the R-GSM or ER-GSM frequency band not supporting speech . 19 5.3.25 Improved Receiver Blocking and spurious response - control channels for 2W MS supporting the R-GSM or ER-GSM frequency band not supporting speech . 19 5.3.26 Frequency error and Modulation accuracy in EGPRS Configuration . 19 5.3.27 Frequency error under multipath and interference conditions in EGPRS Configuration . 19 5.3.28 EGPRS Transmitter output power . 19 5.3.29 Output RF spectrum in EGPRS configuration . 19 5.3.30 Blocking and spurious response in EGPRS configuration . 19 5.3.31 Blocking and spurious response in DLMC configuration . 19 5.3.32 Intermodulation rejection - speech channels . 20 SIST EN 301 511 V12.5.1:2017
ETSI ETSI EN 301 511 V12.5.1 (2017-03) 5 5.3.33 Intermodulation rejection - speech channels . 20 5.3.34 Intermodulation rejection - EGPRS . 20 5.3.35 AM suppression - speech channels . 20 5.3.36 AM suppression - control channels . 20 5.3.37 AM suppression - packet channels . 20 5.3.38 Adjacent channel rejection - speech channels (TCH/FS). 20 5.3.39 Adjacent channel rejection - control channels . 20 5.3.40 Adjacent channel rejection - EGPRS . 20 5.3.41 Adjacent channel rejection in DLMC configuration . 20 5.3.42 Reference sensitivity - TCH/FS . 20 5.3.43 Reference sensitivity - FACCH/F . 20 5.3.44 Minimum Input level for Reference Performance - GPRS . 20 5.3.45 Minimum Input level for Reference Performance - EGPRS . 20 5.3.46 Reference sensitivity - TCH/FS for MS supporting the R-GSM or ER-GSM band . 21 Annex A (informative): Relationship between the present document and the essential requirements of Directive 2014/53/EU . 22 Annex B (informative): Type of Mobile Stations . 25 Annex C (informative): Additional information . 26 Annex D (informative): Change history . 27 History . 28
SIST EN 301 511 V12.5.1:2017
ETSI ETSI EN 301 511 V12.5.1 (2017-03) 6 Intellectual Property Rights IPRs essential or potentially essential to the present document may have been declared to ETSI. The information pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web server (https://ipr.etsi.org/). Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become, essential to the present document. Foreword This Harmonised European Standard (EN) has been produced by ETSI Technical Committee Mobile Standards Group (MSG). The present document has been prepared under the Commission's standardisation request C(2015) 5376 final [i.10] to provide one voluntary means of conforming to the essential requirements of Directive 2014/53/EU on the harmonisation of the laws of the Member States relating to the making available on the market of radio equipment and repealing Directive 1999/5/EC [i.9]. Once the present document is cited in the Official Journal of the European Union under that Directive, compliance with the normative clauses of the present document given in table A.1 confers, within the limits of the scope of the present document, a presumption of conformity with the corresponding essential requirements of that Directive, and associated EFTA regulations.
National transposition dates Date of adoption of this EN: 13 March 2017 Date of latest announcement of this EN (doa): 30 June 2017 Date of latest publication of new National Standard or endorsement of this EN (dop/e):
31 December 2017 Date of withdrawal of any conflicting National Standard (dow): 31 December 2018
Modal verbs terminology In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and "cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of provisions). "must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation. Introduction The present document is part of a set of standards developed by ETSI that are designed to fit in a modular structure to cover radio equipment within the scope of the Radio Equipment Directive [i.9]. The present document is produced following the guidance in ETSI EG 203 336 [i.12] as applicable. SIST EN 301 511 V12.5.1:2017
ETSI ETSI EN 301 511 V12.5.1 (2017-03) 7 1 Scope The present document specifies technical characteristics and methods of measurements for the following radio equipment type: - GSM mobile station. This radio equipment type is for operation within the Digital cellular telecommunications system in the GSM 900 and/or GSM 1800 frequency bands as shown in table 1, with a channel separation of 200 kHz, utilizing constant envelope modulation and carrying traffic channels according to the Time Division Multiple Access (TDMA) principle. Table 1: Frequency bands for GSM 900 and GSM 1800 Mobile Station system Type TX RX P-GSM 900 890 MHz to 915 MHz 935 MHz to 960 MHz GSM 1800 1 710 MHz to 1 785 MHz 1 805 MHz to 1 880 MHz E-GSM 900 880 MHz to 915 MHz 925 MHz to 960 MHz R-GSM 900 876 MHz to 915 MHz 921 MHz to 960 MHz ER-GSM 900 873 MHz to 915 MHz 918 MHz to 960 MHz
The present document covers the essential requirements of article 3.2 of Directive 2014/53/EU [i.9] under the conditions identified in annex A. The present document covers the general access requirements for terminal equipment up to and including 3GPP Rel-12. The general access requirements, applied to the terminal equipment, are for one release only. The present document does not cover the GPRS Class A mobiles and the ECSD mobiles. For each test purpose and its corresponding conformance requirement, a reference is given to the test method in ETSI TS 151 010-1 [2]. The requirements apply at the air interface, which may be stimulated to perform the tests by additional equipment if necessary. The measurement uncertainty is described in ETSI TS 151 010-1 [2], annex 5. In addition to the present document, other ENs that specify technical requirements in respect of essential requirements under other parts of article 3 of the Radio Equipment Directive [i.9] will apply to equipment within the scope of the present document. NOTE 1: A list of such ENs is included on the web site http://www.newapproach.org. ETSI TS 151 010-1 [2] constitutes the conformance test suite for GSM. The verification of the conformance requirements in the present document is based on the tests described in this reference. The set of requirements in ETSI TS 151 010-1 [2] and the set of requirements in the present document need not be identical. Some requirements only apply to specific types of mobile station (e.g. data tests only apply to mobile stations with a data facility, tests that only apply to GSM 900 or only to GSM 1800 or to both). The present document indicates the specific test which should be carried out for each mobile station type. An active accessory is covered by the present document if it modifies the terminal performance in an aspect which affects conformance to essential requirements. NOTE 2: Only active devices are subject to the present document. Accessories may be tested with specific terminals, and either approved for use with those terminals only, or may possibly be approved for use with a wider range of terminals, depending on the nature and effect of the accessory. SIST EN 301 511 V12.5.1:2017
ETSI ETSI EN 301 511 V12.5.1 (2017-03) 8 2 References 2.1 Normative references References are specific, identified by date of publication and/or edition number or version number. Only the cited version applies. Referenced documents which are not found to be publicly available in the expected location might be found at https://docbox.etsi.org/Reference/. NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee their long term validity. The following referenced documents are necessary for the application of the present document. [1] Void. [2] ETSI TS 151 010-1 (V12.8.0) (05-2016): "Digital cellular telecommunications system (Phase 2+); Mobile Station (MS) conformance specification; Part 1: Conformance specification (3GPP TS 51.010-1 version 12.8.0 Release 12)". [3] Void. [4] ETSI TS 102 933-2 (V2.1.1) (06-2015): "Railway Telecommunications (RT); GSM-R improved Receiver parameters; Part 2: Radio conformance testing". 2.2 Informative references References are either specific (identified by date of publication and/or edition number or version number) or non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the referenced document (including any amendments) applies. NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee their long term validity. The following referenced documents are not necessary for the application of the present document but they assist the user with regard to a particular subject area. [i.1] ETSI TS 102 933-1 (V2.1.1) (06-2015): "Railway Telecommunications (RT); GSM-R improved Receiver parameters; Part 1: Requirements for radio reception". [i.2] ETSI ETS 300 905 (V5.3.2) (01-1998): "Digital cellular telecommunications system (Phase 2+) (GSM); Teleservices supported by a GSM Public Land Mobile Network (PLMN) (GSM 02.03 version 5.3.2)". [i.3] ETSI TS 122 060 (V4.4.0) (06-2002): "Digital cellular telecommunications system (Phase 2+); Universal Mobile Telecommunications System (UMTS); General Packet Radio Service (GPRS); Service description; Stage 1 (3GPP TS 22.060 version 4.4.0 Releas
...
ETSI EN 301 511 V12.5.1 (2017-03)
HARMONISED EUROPEAN STANDARD
Global System for Mobile communications (GSM);
Mobile Stations (MS) equipment;
Harmonised Standard covering the essential requirements
of article 3.2 of Directive 2014/53/EU
---------------------- Page: 1 ----------------------

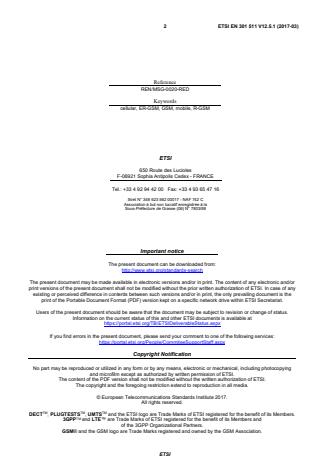

2 ETSI EN 301 511 V12.5.1 (2017-03)
Reference
REN/MSG-0020-RED
Keywords
cellular, ER-GSM, GSM, mobile, R-GSM
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the only prevailing document is the
print of the Portable Document Format (PDF) version kept on a specific network drive within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying
and microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2017.
All rights reserved.
TM TM TM
DECT , PLUGTESTS , UMTS and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members.
TM
3GPP and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
---------------------- Page: 2 ----------------------
3 ETSI EN 301 511 V12.5.1 (2017-03)
Contents
Intellectual Property Rights . 6
Foreword . 6
Modal verbs terminology . 6
Introduction . 6
1 Scope . 7
2 References . 8
2.1 Normative references . 8
2.2 Informative references . 8
3 Definitions and abbreviations . 9
3.1 Definitions . 9
3.2 Abbreviations . 10
4 Technical requirements specifications . 10
4.1 Environmental profile . 10
4.2 Conformance requirements . 10
4.2.0 Introduction. 10
4.2.1 Transmitter - Frequency error and phase error . 12
4.2.2 Transmitter - Frequency error under multipath and interference conditions . 12
4.2.3 Transmitter - Frequency error and phase error in HSCSD multislot configuration . 13
4.2.4 Frequency error and phase error in GPRS multislot configuration . 13
4.2.5 Transmitter output power and burst timing . 13
4.2.6 Transmitter - Output RF spectrum . 13
4.2.7 Transmitter output power and burst timing in HSCSD multislot configurations . 13
4.2.8 Transmitter - Output RF spectrum in HSCSD multislot configuration. 13
4.2.9 Transmitter - Output RF spectrum for MS supporting the R-GSM or ER-GSM frequency band . 13
4.2.10 Transmitter output power in GPRS multislot configuration . 13
4.2.11 Output RF spectrum in GPRS multislot configuration . 13
4.2.12 Conducted spurious emissions - MS allocated a channel . 13
4.2.13 Conducted spurious emissions - MS in idle mode . 13
4.2.14 Conducted spurious emissions for MS supporting the R-GSM or ER-GSM frequency band - MS
allocated a channel . 13
4.2.15 Conducted spurious emissions for MS supporting the R-GSM or ER-GSM frequency band - MS in
idle mode . 14
4.2.16 Radiated spurious emissions - MS allocated a channel . 14
4.2.17 Radiated spurious emissions - MS in idle mode . 14
4.2.18 Radiated spurious emissions for MS supporting the R-GSM or ER-GSM frequency band - MS
allocated a channel . 14
4.2.19 Radiated spurious emissions for MS supporting the R-GSM or ER-GSM frequency band - MS in
idle mode . 14
4.2.20 Receiver Blocking and spurious response - speech channels . 14
4.2.21 Receiver Blocking and spurious response - speech channels for MS supporting the R-GSM or ER-
GSM frequency band . 14
4.2.22 Improved Receiver Blocking and spurious response - speech channels for 8W MS supporting the R-
GSM or ER-GSM frequency band . 14
4.2.23 Improved Receiver Blocking and spurious response - speech channels for 2W MS supporting the R-
GSM or ER-GSM frequency band . 14
4.2.24 Improved Receiver Blocking and spurious response - control channels for 8W MS supporting the R-
GSM or ER-GSM frequency band not supporting speech . 14
4.2.25 Improved Receiver Blocking and spurious response - control channels for 2W MS supporting the R-
GSM or ER-GSM frequency band not supporting speech . 15
4.2.26 Frequency error and Modulation accuracy in EGPRS Configuration . 15
4.2.27 Frequency error under multipath and interference conditions in EGPRS Configuration . 15
4.2.28 EGPRS Transmitter output power . 15
4.2.29 Output RF spectrum in EGPRS configuration . 15
4.2.30 Blocking and spurious response in EGPRS configuration . 15
ETSI
---------------------- Page: 3 ----------------------

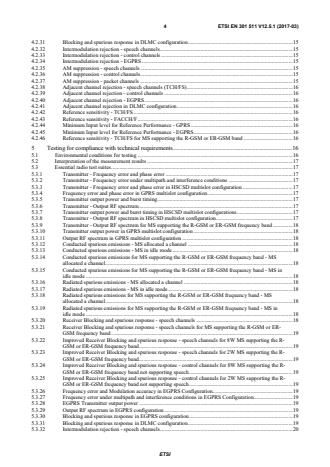

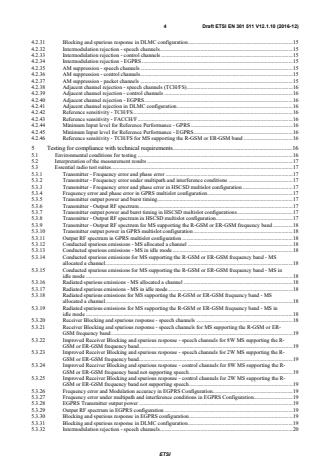

4 ETSI EN 301 511 V12.5.1 (2017-03)
4.2.31 Blocking and spurious response in DLMC configuration . 15
4.2.32 Intermodulation rejection - speech channels . 15
4.2.33 Intermodulation rejection - control channels . 15
4.2.34 Intermodulation rejection - EGPRS . 15
4.2.35 AM suppression - speech channels . 15
4.2.36 AM suppression - control channels . 15
4.2.37 AM suppression - packet channels . 15
4.2.38 Adjacent channel rejection - speech channels (TCH/FS). 16
4.2.39 Adjacent channel rejection - control channels . 16
4.2.40 Adjacent channel rejection - EGPRS . 16
4.2.41 Adjacent channel rejection in DLMC configuration . 16
4.2.42 Reference sensitivity - TCH/FS . 16
4.2.43 Reference sensitivity - FACCH/F . 16
4.2.44 Minimum Input level for Reference Performance - GPRS . 16
4.2.45 Minimum Input level for Reference Performance - EGPRS . 16
4.2.46 Reference sensitivity - TCH/FS for MS supporting the R-GSM or ER-GSM band . 16
5 Testing for compliance with technical requirements . 16
5.1 Environmental conditions for testing . 16
5.2 Interpretation of the measurement results . 17
5.3 Essential radio test suites . 17
5.3.1 Transmitter - Frequency error and phase error . 17
5.3.2 Transmitter - Frequency error under multipath and interference conditions . 17
5.3.3 Transmitter - Frequency error and phase error in HSCSD multislot configuration . 17
5.3.4 Frequency error and phase error in GPRS multislot configuration . 17
5.3.5 Transmitter output power and burst timing . 17
5.3.6 Transmitter - Output RF spectrum . 17
5.3.7 Transmitter output power and burst timing in HSCSD multislot configurations . 17
5.3.8 Transmitter - Output RF spectrum in HSCSD multislot configuration. 17
5.3.9 Transmitter - Output RF spectrum for MS supporting the R-GSM or ER-GSM frequency band . 18
5.3.10 Transmitter output power in GPRS multislot configuration . 18
5.3.11 Output RF spectrum in GPRS multislot configuration . 18
5.3.12 Conducted spurious emissions - MS allocated a channel . 18
5.3.13 Conducted spurious emissions - MS in idle mode . 18
5.3.14 Conducted spurious emissions for MS supporting the R-GSM or ER-GSM frequency band - MS
allocated a channel . 18
5.3.15 Conducted spurious emissions for MS supporting the R-GSM or ER-GSM frequency band - MS in
idle mode . 18
5.3.16 Radiated spurious emissions - MS allocated a channel . 18
5.3.17 Radiated spurious emissions - MS in idle mode . 18
5.3.18 Radiated spurious emissions for MS supporting the R-GSM or ER-GSM frequency band - MS
allocated a channel . 18
5.3.19 Radiated spurious emissions for MS supporting the R-GSM or ER-GSM frequency band - MS in
idle mode . 18
5.3.20 Receiver Blocking and spurious response - speech channels . 18
5.3.21 Receiver Blocking and spurious response - speech channels for MS supporting the R-GSM or ER-
GSM frequency band . 19
5.3.22 Improved Receiver Blocking and spurious response - speech channels for 8W MS supporting the R-
GSM or ER-GSM frequency band . 19
5.3.23 Improved Receiver Blocking and spurious response - speech channels for 2W MS supporting the R-
GSM or ER-GSM frequency band . 19
5.3.24 Improved Receiver Blocking and spurious response - control channels for 8W MS supporting the R-
GSM or ER-GSM frequency band not supporting speech . 19
5.3.25 Improved Receiver Blocking and spurious response - control channels for 2W MS supporting the R-
GSM or ER-GSM frequency band not supporting speech . 19
5.3.26 Frequency error and Modulation accuracy in EGPRS Configuration . 19
5.3.27 Frequency error under multipath and interference conditions in EGPRS Configuration . 19
5.3.28 EGPRS Transmitter output power . 19
5.3.29 Output RF spectrum in EGPRS configuration . 19
5.3.30 Blocking and spurious response in EGPRS configuration . 19
5.3.31 Blocking and spurious response in DLMC configuration . 19
5.3.32 Intermodulation rejection - speech channels . 20
ETSI
---------------------- Page: 4 ----------------------
5 ETSI EN 301 511 V12.5.1 (2017-03)
5.3.33 Intermodulation rejection - speech channels . 20
5.3.34 Intermodulation rejection - EGPRS . 20
5.3.35 AM suppression - speech channels . 20
5.3.36 AM suppression - control channels . 20
5.3.37 AM suppression - packet channels . 20
5.3.38 Adjacent channel rejection - speech channels (TCH/FS). 20
5.3.39 Adjacent channel rejection - control channels . 20
5.3.40 Adjacent channel rejection - EGPRS . 20
5.3.41 Adjacent channel rejection in DLMC configuration . 20
5.3.42 Reference sensitivity - TCH/FS . 20
5.3.43 Reference sensitivity - FACCH/F . 20
5.3.44 Minimum Input level for Reference Performance - GPRS . 20
5.3.45 Minimum Input level for Reference Performance - EGPRS . 20
5.3.46 Reference sensitivity - TCH/FS for MS supporting the R-GSM or ER-GSM band . 21
Annex A (informative): Relationship between the present document and the essential
requirements of Directive 2014/53/EU . 22
Annex B (informative): Type of Mobile Stations . 25
Annex C (informative): Additional information . 26
Annex D (informative): Change history . 27
History . 28
ETSI
---------------------- Page: 5 ----------------------
6 ETSI EN 301 511 V12.5.1 (2017-03)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (https://ipr.etsi.org/).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Harmonised European Standard (EN) has been produced by ETSI Technical Committee Mobile Standards Group
(MSG).
The present document has been prepared under the Commission's standardisation request C(2015) 5376 final [i.10] to
provide one voluntary means of conforming to the essential requirements of Directive 2014/53/EU on the harmonisation
of the laws of the Member States relating to the making available on the market of radio equipment and repealing
Directive 1999/5/EC [i.9].
Once the present document is cited in the Official Journal of the European Union under that Directive, compliance with
the normative clauses of the present document given in table A.1 confers, within the limits of the scope of the present
document, a presumption of conformity with the corresponding essential requirements of that Directive, and associated
EFTA regulations.
National transposition dates
Date of adoption of this EN: 13 March 2017
Date of latest announcement of this EN (doa): 30 June 2017
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 31 December 2017
Date of withdrawal of any conflicting National Standard (dow): 31 December 2018
Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
Introduction
The present document is part of a set of standards developed by ETSI that are designed to fit in a modular structure to
cover radio equipment within the scope of the Radio Equipment Directive [i.9]. The present document is produced
following the guidance in ETSI EG 203 336 [i.12] as applicable.
ETSI
---------------------- Page: 6 ----------------------
7 ETSI EN 301 511 V12.5.1 (2017-03)
1 Scope
The present document specifies technical characteristics and methods of measurements for the following radio
equipment type:
- GSM mobile station.
This radio equipment type is for operation within the Digital cellular telecommunications system in the GSM 900
and/or GSM 1800 frequency bands as shown in table 1, with a channel separation of 200 kHz, utilizing constant
envelope modulation and carrying traffic channels according to the Time Division Multiple Access (TDMA) principle.
Table 1: Frequency bands for GSM 900 and GSM 1800 Mobile Station system
Type TX RX
P-GSM 900 890 MHz to 915 MHz 935 MHz to 960 MHz
GSM 1800
1 710 MHz to 1 785 MHz 1 805 MHz to 1 880 MHz
E-GSM 900
880 MHz to 915 MHz 925 MHz to 960 MHz
R-GSM 900 876 MHz to 915 MHz 921 MHz to 960 MHz
ER-GSM 900 873 MHz to 915 MHz 918 MHz to 960 MHz
The present document covers the essential requirements of article 3.2 of Directive 2014/53/EU [i.9] under the
conditions identified in annex A.
The present document covers the general access requirements for terminal equipment up to and including 3GPP Rel-12.
The general access requirements, applied to the terminal equipment, are for one release only. The present document
does not cover the GPRS Class A mobiles and the ECSD mobiles.
For each test purpose and its corresponding conformance requirement, a reference is given to the test method in
ETSI TS 151 010-1 [2]. The requirements apply at the air interface, which may be stimulated to perform the tests by
additional equipment if necessary.
The measurement uncertainty is described in ETSI TS 151 010-1 [2], annex 5.
In addition to the present document, other ENs that specify technical requirements in respect of essential requirements
under other parts of article 3 of the Radio Equipment Directive [i.9] will apply to equipment within the scope of the
present document.
NOTE 1: A list of such ENs is included on the web site http://www.newapproach.org.
ETSI TS 151 010-1 [2] constitutes the conformance test suite for GSM. The verification of the conformance
requirements in the present document is based on the tests described in this reference. The set of requirements in
ETSI TS 151 010-1 [2] and the set of requirements in the present document need not be identical.
Some requirements only apply to specific types of mobile station (e.g. data tests only apply to mobile stations with a
data facility, tests that only apply to GSM 900 or only to GSM 1800 or to both). The present document indicates the
specific test which should be carried out for each mobile station type.
An active accessory is covered by the present document if it modifies the terminal performance in an aspect which
affects conformance to essential requirements.
NOTE 2: Only active devices are subject to the present document. Accessories may be tested with specific
terminals, and either approved for use with those terminals only, or may possibly be approved for use
with a wider range of terminals, depending on the nature and effect of the accessory.
ETSI
---------------------- Page: 7 ----------------------
8 ETSI EN 301 511 V12.5.1 (2017-03)
2 References
2.1 Normative references
References are specific, identified by date of publication and/or edition number or version number. Only the cited
version applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
https://docbox.etsi.org/Reference/.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are necessary for the application of the present document.
[1] Void.
[2] ETSI TS 151 010-1 (V12.8.0) (05-2016): "Digital cellular telecommunications system (Phase 2+);
Mobile Station (MS) conformance specification; Part 1: Conformance specification (3GPP
TS 51.010-1 version 12.8.0 Release 12)".
[3] Void.
[4] ETSI TS 102 933-2 (V2.1.1) (06-2015): "Railway Telecommunications (RT); GSM-R improved
Receiver parameters; Part 2: Radio conformance testing".
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] ETSI TS 102 933-1 (V2.1.1) (06-2015): "Railway Telecommunications (RT); GSM-R improved
Receiver parameters; Part 1: Requirements for radio reception".
[i.2] ETSI ETS 300 905 (V5.3.2) (01-1998): "Digital cellular telecommunications system (Phase 2+)
(GSM); Teleservices supported by a GSM Public Land Mobile Network (PLMN) (GSM 02.03
version 5.3.2)".
[i.3] ETSI TS 122 060 (V4.4.0) (06-2002): "Digital cellular telecommunications system (Phase 2+);
Universal Mobile Telecommunications System (UMTS); General Packet Radio Service (GPRS);
Service description; Stage 1 (3GPP TS 22.060 version 4.4.0 Release 4)".
[i.4] ETSI TS 100 905 (V7.0.0) (08-1999): "Digital cellula
...
Draft ETSI EN 301 511 V12.1.10 (2016-12)
HARMONISED EUROPEAN STANDARD
Global System for Mobile communications (GSM);
Mobile Stations (MS) equipment;
Harmonised Standard covering the essential requirements
of article 3.2 of Directive 2014/53/EU
---------------------- Page: 1 ----------------------
2 Draft ETSI EN 301 511 V12.1.10 (2016-12)
Reference
REN/MSG-0020-RED
Keywords
cellular, ER-GSM, GSM, mobile, R-GSM
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the only prevailing document is the
print of the Portable Document Format (PDF) version kept on a specific network drive within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying
and microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2016.
All rights reserved.
TM TM TM
DECT , PLUGTESTS , UMTS and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members.
TM
3GPP and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
---------------------- Page: 2 ----------------------
3 Draft ETSI EN 301 511 V12.1.10 (2016-12)
Contents
Intellectual Property Rights . 6
Foreword . 6
Modal verbs terminology . 6
Introduction . 6
1 Scope . 7
2 References . 8
2.1 Normative references . 8
2.2 Informative references . 8
3 Definitions and abbreviations . 9
3.1 Definitions . 9
3.2 Abbreviations . 10
4 Technical requirements specifications . 10
4.1 Environmental profile . 10
4.2 Conformance requirements . 10
4.2.0 Introduction. 10
4.2.1 Transmitter - Frequency error and phase error . 12
4.2.2 Transmitter - Frequency error under multipath and interference conditions . 12
4.2.3 Transmitter - Frequency error and phase error in HSCSD multislot configuration . 13
4.2.4 Frequency error and phase error in GPRS multislot configuration . 13
4.2.5 Transmitter output power and burst timing . 13
4.2.6 Transmitter - Output RF spectrum . 13
4.2.7 Transmitter output power and burst timing in HSCSD multislot configurations . 13
4.2.8 Transmitter - Output RF spectrum in HSCSD multislot configuration. 13
4.2.9 Transmitter - Output RF spectrum for MS supporting the R-GSM or ER-GSM frequency band . 13
4.2.10 Transmitter output power in GPRS multislot configuration . 13
4.2.11 Output RF spectrum in GPRS multislot configuration . 13
4.2.12 Conducted spurious emissions - MS allocated a channel . 13
4.2.13 Conducted spurious emissions - MS in idle mode . 13
4.2.14 Conducted spurious emissions for MS supporting the R-GSM or ER-GSM frequency band - MS
allocated a channel . 13
4.2.15 Conducted spurious emissions for MS supporting the R-GSM or ER-GSM frequency band - MS in
idle mode . 14
4.2.16 Radiated spurious emissions - MS allocated a channel . 14
4.2.17 Radiated spurious emissions - MS in idle mode . 14
4.2.18 Radiated spurious emissions for MS supporting the R-GSM or ER-GSM frequency band - MS
allocated a channel . 14
4.2.19 Radiated spurious emissions for MS supporting the R-GSM or ER-GSM frequency band - MS in
idle mode . 14
4.2.20 Receiver Blocking and spurious response - speech channels . 14
4.2.21 Receiver Blocking and spurious response - speech channels for MS supporting the R-GSM or ER-
GSM frequency band . 14
4.2.22 Improved Receiver Blocking and spurious response - speech channels for 8W MS supporting the R-
GSM or ER-GSM frequency band . 14
4.2.23 Improved Receiver Blocking and spurious response - speech channels for 2W MS supporting the R-
GSM or ER-GSM frequency band . 14
4.2.24 Improved Receiver Blocking and spurious response - control channels for 8W MS supporting the R-
GSM or ER-GSM frequency band not supporting speech . 14
4.2.25 Improved Receiver Blocking and spurious response - control channels for 2W MS supporting the R-
GSM or ER-GSM frequency band not supporting speech . 15
4.2.26 Frequency error and Modulation accuracy in EGPRS Configuration . 15
4.2.27 Frequency error under multipath and interference conditions in EGPRS Configuration . 15
4.2.28 EGPRS Transmitter output power . 15
4.2.29 Output RF spectrum in EGPRS configuration . 15
4.2.30 Blocking and spurious response in EGPRS configuration . 15
ETSI
---------------------- Page: 3 ----------------------
4 Draft ETSI EN 301 511 V12.1.10 (2016-12)
4.2.31 Blocking and spurious response in DLMC configuration . 15
4.2.32 Intermodulation rejection - speech channels . 15
4.2.33 Intermodulation rejection - control channels . 15
4.2.34 Intermodulation rejection - EGPRS . 15
4.2.35 AM suppression - speech channels . 15
4.2.36 AM suppression - control channels . 15
4.2.37 AM suppression - packet channels . 15
4.2.38 Adjacent channel rejection - speech channels (TCH/FS). 16
4.2.39 Adjacent channel rejection - control channels . 16
4.2.40 Adjacent channel rejection - EGPRS . 16
4.2.41 Adjacent channel rejection in DLMC configuration . 16
4.2.42 Reference sensitivity - TCH/FS . 16
4.2.43 Reference sensitivity - FACCH/F . 16
4.2.44 Minimum Input level for Reference Performance - GPRS . 16
4.2.45 Minimum Input level for Reference Performance - EGPRS . 16
4.2.46 Reference sensitivity - TCH/FS for MS supporting the R-GSM or ER-GSM band . 16
5 Testing for compliance with technical requirements . 16
5.1 Environmental conditions for testing . 16
5.2 Interpretation of the measurement results . 17
5.3 Essential radio test suites . 17
5.3.1 Transmitter - Frequency error and phase error . 17
5.3.2 Transmitter - Frequency error under multipath and interference conditions . 17
5.3.3 Transmitter - Frequency error and phase error in HSCSD multislot configuration . 17
5.3.4 Frequency error and phase error in GPRS multislot configuration . 17
5.3.5 Transmitter output power and burst timing . 17
5.3.6 Transmitter - Output RF spectrum . 17
5.3.7 Transmitter output power and burst timing in HSCSD multislot configurations . 17
5.3.8 Transmitter - Output RF spectrum in HSCSD multislot configuration. 17
5.3.9 Transmitter - Output RF spectrum for MS supporting the R-GSM or ER-GSM frequency band . 18
5.3.10 Transmitter output power in GPRS multislot configuration . 18
5.3.11 Output RF spectrum in GPRS multislot configuration . 18
5.3.12 Conducted spurious emissions - MS allocated a channel . 18
5.3.13 Conducted spurious emissions - MS in idle mode . 18
5.3.14 Conducted spurious emissions for MS supporting the R-GSM or ER-GSM frequency band - MS
allocated a channel . 18
5.3.15 Conducted spurious emissions for MS supporting the R-GSM or ER-GSM frequency band - MS in
idle mode . 18
5.3.16 Radiated spurious emissions - MS allocated a channel . 18
5.3.17 Radiated spurious emissions - MS in idle mode . 18
5.3.18 Radiated spurious emissions for MS supporting the R-GSM or ER-GSM frequency band - MS
allocated a channel . 18
5.3.19 Radiated spurious emissions for MS supporting the R-GSM or ER-GSM frequency band - MS in
idle mode . 18
5.3.20 Receiver Blocking and spurious response - speech channels . 18
5.3.21 Receiver Blocking and spurious response - speech channels for MS supporting the R-GSM or ER-
GSM frequency band . 19
5.3.22 Improved Receiver Blocking and spurious response - speech channels for 8W MS supporting the R-
GSM or ER-GSM frequency band . 19
5.3.23 Improved Receiver Blocking and spurious response - speech channels for 2W MS supporting the R-
GSM or ER-GSM frequency band . 19
5.3.24 Improved Receiver Blocking and spurious response - control channels for 8W MS supporting the R-
GSM or ER-GSM frequency band not supporting speech . 19
5.3.25 Improved Receiver Blocking and spurious response - control channels for 2W MS supporting the R-
GSM or ER-GSM frequency band not supporting speech . 19
5.3.26 Frequency error and Modulation accuracy in EGPRS Configuration . 19
5.3.27 Frequency error under multipath and interference conditions in EGPRS Configuration . 19
5.3.28 EGPRS Transmitter output power . 19
5.3.29 Output RF spectrum in EGPRS configuration . 19
5.3.30 Blocking and spurious response in EGPRS configuration . 19
5.3.31 Blocking and spurious response in DLMC configuration . 19
5.3.32 Intermodulation rejection - speech channels . 20
ETSI
---------------------- Page: 4 ----------------------
5 Draft ETSI EN 301 511 V12.1.10 (2016-12)
5.3.33 Intermodulation rejection - speech channels . 20
5.3.34 Intermodulation rejection - EGPRS . 20
5.3.35 AM suppression - speech channels . 20
5.3.36 AM suppression - control channels . 20
5.3.37 AM suppression - packet channels . 20
5.3.38 Adjacent channel rejection - speech channels (TCH/FS). 20
5.3.39 Adjacent channel rejection - control channels . 20
5.3.40 Adjacent channel rejection - EGPRS . 20
5.3.41 Adjacent channel rejection in DLMC configuration . 20
5.3.42 Reference sensitivity - TCH/FS . 20
5.3.43 Reference sensitivity - FACCH/F . 20
5.3.44 Minimum Input level for Reference Performance - GPRS . 20
5.3.45 Minimum Input level for Reference Performance - EGPRS . 20
5.3.46 Reference sensitivity - TCH/FS for MS supporting the R-GSM or ER-GSM band . 21
Annex A (informative): Relationship between the present document and the essential
requirements of Directive 2014/53/EU . 22
A.1 Requirement Table . 22
Annex B (informative): Type of Mobile Stations . 25
Annex C (informative): Additional information . 26
Annex D (informative): Change history . 27
History . 28
ETSI
---------------------- Page: 5 ----------------------
6 Draft ETSI EN 301 511 V12.1.10 (2016-12)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (https://ipr.etsi.org/).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This draft Harmonised European Standard (EN) has been produced by ETSI Technical Committee Mobile Standards
Group (MSG), and is now submitted for the combined Public Enquiry and Vote phase of the ETSI standards EN
Approval Procedure.
The present document has been prepared under the Commission's standardisation request C(2015) 5376 final [i.10] to
provide one voluntary means of conforming to the essential requirements of Directive 2014/53/EU on the harmonisation
of the laws of the Member States relating to the making available on the market of radio equipment and repealing
Directive 1999/5/EC [i.9].
Once the present document is cited in the Official Journal of the European Union under that Directive, compliance with
the normative clauses of the present document given in table A.1 confers, within the limits of the scope of the present
document, a presumption of conformity with the corresponding essential requirements of that Directive, and associated
EFTA regulations.
Proposed national transposition dates
Date of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa
Date of withdrawal of any conflicting National Standard (dow): 18 months after doa
Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
Introduction
The present document is part of a set of standards developed by ETSI that are designed to fit in a modular structure to
cover radio equipment within the scope of the Radio Equipment Directive [i.9]. The present document is produced
following the guidance in ETSI EG 203 336 [i.12] as applicable.
ETSI
---------------------- Page: 6 ----------------------
7 Draft ETSI EN 301 511 V12.1.10 (2016-12)
1 Scope
The present document specifies technical characteristics and methods of measurements for the following radio
equipment type:
- GSM mobile station.
This radio equipment type is for operation within the Digital cellular telecommunications system in the GSM 900
and/or GSM 1800 frequency bands as shown in table 1, with a channel separation of 200 kHz, utilizing constant
envelope modulation and carrying traffic channels according to the Time Division Multiple Access (TDMA) principle.
Table 1: Frequency bands for GSM 900 and GSM 1800 Mobile Station system
Type TX RX
P-GSM 900 890 MHz to 915 MHz 935 MHz to 960 MHz
GSM 1800
1 710 MHz to 1 785 MHz 1 805 MHz to 1 880 MHz
E-GSM 900
880 MHz to 915 MHz 925 MHz to 960 MHz
R-GSM 900 876 MHz to 915 MHz 921 MHz to 960 MHz
ER-GSM 900 873 MHz to 915 MHz 918 MHz to 960 MHz
The present document covers the essential requirements of article 3.2 of Directive 2014/53/EU [i.9] under the
conditions identified in annex A.
The present document covers the general access requirements for terminal equipment up to and including 3GPP Rel-12.
The general access requirements, applied to the terminal equipment, are for one release only. The present document
does not cover the GPRS Class A mobiles and the ECSD mobiles.
For each test purpose and its corresponding conformance requirement, a reference is given to the test method in
ETSI TS 151 010-1 [2]. The requirements apply at the air interface, which may be stimulated to perform the tests by
additional equipment if necessary.
The measurement uncertainty is described in ETSI TS 151 010-1 [2], annex 5.
In addition to the present document, other ENs that specify technical requirements in respect of essential requirements
under other parts of article 3 of the Radio Equipment Directive [i.9] will apply to equipment within the scope of the
present document.
NOTE 1: A list of such ENs is included on the web site http://www.newapproach.org.
ETSI TS 151 010-1 [2] constitutes the conformance test suite for GSM. The verification of the conformance
requirements in the present document is based on the tests described in this reference. The set of requirements in
ETSI TS 151 010-1 [2] and the set of requirements in the present document need not be identical.
Some requirements only apply to specific types of mobile station (e.g. data tests only apply to mobile stations with a
data facility, tests that only apply to GSM 900 or only to GSM 1800 or to both). The present document indicates the
specific test which should be carried out for each mobile station type.
An active accessory is covered by the present document if it modifies the terminal performance in an aspect which
affects conformance to essential requirements.
NOTE 2: Only active devices are subject to the present document. Accessories may be tested with specific
terminals, and either approved for use with those terminals only, or may possibly be approved for use
with a wider range of terminals, depending on the nature and effect of the accessory.
ETSI
---------------------- Page: 7 ----------------------
8 Draft ETSI EN 301 511 V12.1.10 (2016-12)
2 References
2.1 Normative references
References are specific, identified by date of publication and/or edition number or version number. Only the cited
version applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
https://docbox.etsi.org/Reference/.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are necessary for the application of the present document.
[1] Void.
[2] ETSI TS 151 010-1 (V12.8.0) (05-2016): "Digital cellular telecommunications system (Phase 2+);
Mobile Station (MS) conformance specification; Part 1: Conformance specification (3GPP
TS 51.010-1 version 12.8.0 Release 12)".
[3] Void.
[4] ETSI TS 102 933-2 (V2.1.1) (06-2015): "Railway Telecommunications (RT); GSM-R improved
Receiver parameters; Part 2: Radio conformance testing".
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] ETSI TS 102 933-1 (V2.1.1) (06-2015): "Railway Telecommunications (RT); GSM-R improved
Receiver parameters; Part 1: Requirements for radio reception".
[i.2] ETSI ETS 300 905 (V5.3.2) (01-1998): "Digital cellular telecommunications system (Phase 2+)
(GSM); Teleservices supported by a GSM Public Land Mobile Network (PLMN) (GSM 02.03
version 5.3.2
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
