SIST-TP CWA 16926-67:2023
(Main)Extensions for Financial Services (XFS) interface specification Release 3.50 - Part 67: Depository Device Class Interface - Programmer's Reference - Migration from Version 3.40 (CWA 16926:2020) to Version 3.50 (this CWA)
Extensions for Financial Services (XFS) interface specification Release 3.50 - Part 67: Depository Device Class Interface - Programmer's Reference - Migration from Version 3.40 (CWA 16926:2020) to Version 3.50 (this CWA)
This specification shows the modifications made to version 3.40 of CWA 16926-8 in version 3.50.
Specifikacija vmesnika razširitev za finančne storitve (XFS), izdaja 3.50 - 67. del: Razred vmesnika depozitne naprave - Referenca za programerje - Prehod z različice 3.40 (CWA 16926:2020) na različico 3.50 (ta CWA)
Ta specifikacija prikazuje spremembe različice 3.40 standarda CWA 16926-8 v različici 3.50.
General Information
Standards Content (Sample)

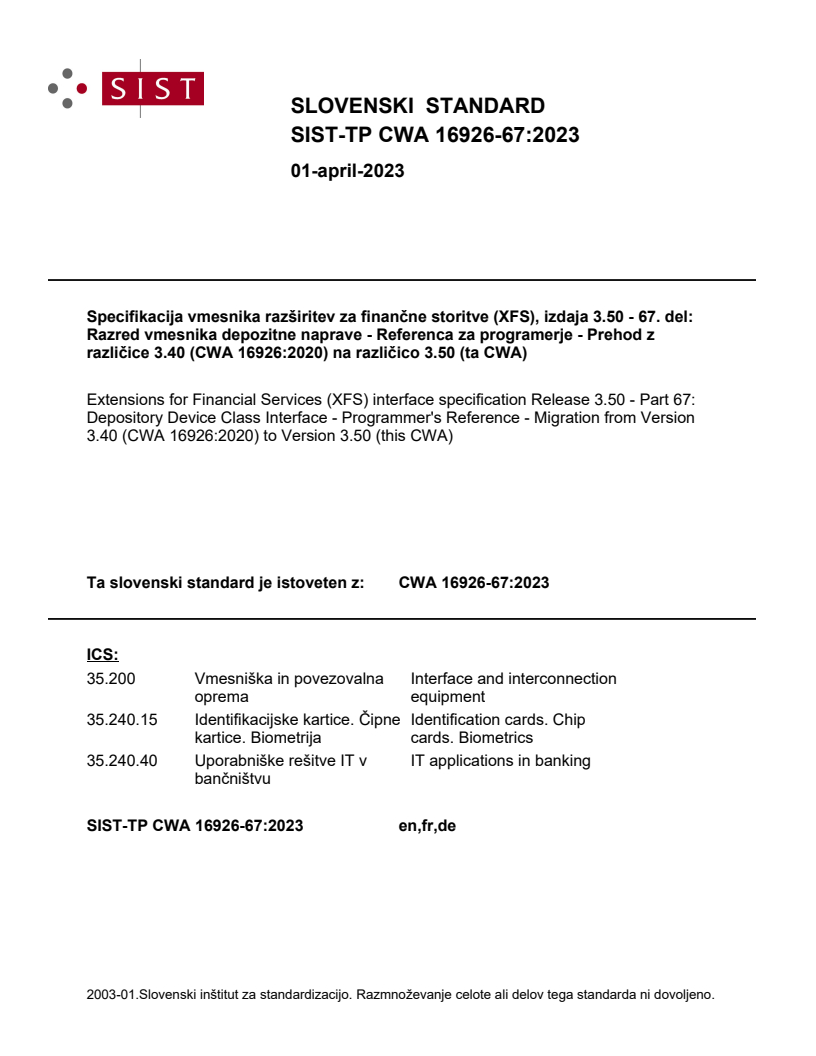

SLOVENSKI STANDARD
SIST CWA 16926-67:2023
01-april-2023
Specifikacija vmesnika razširitev za finančne storitve (XFS), izdaja 3.50 - 67. del:
Razred vmesnika depozitne naprave - Referenca za programerje - Prehod z
različice 3.40 (CWA 16926:2020) na različico 3.50 (ta CWA)
Extensions for Financial Services (XFS) interface specification Release 3.50 - Part 67:
Depository Device Class Interface - Programmer's Reference - Migration from Version
3.40 (CWA 16926:2020) to Version 3.50 (this CWA)
Ta slovenski standard je istoveten z: CWA 16926-67:2023
ICS:
35.200 Vmesniška in povezovalna Interface and interconnection
oprema equipment
35.240.15 Identifikacijske kartice. Čipne Identification cards. Chip
kartice. Biometrija cards. Biometrics
35.240.40 Uporabniške rešitve IT v IT applications in banking
bančništvu
SIST CWA 16926-67:2023 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST CWA 16926-67:2023
---------------------- Page: 2 ----------------------
SIST CWA 16926-67:2023

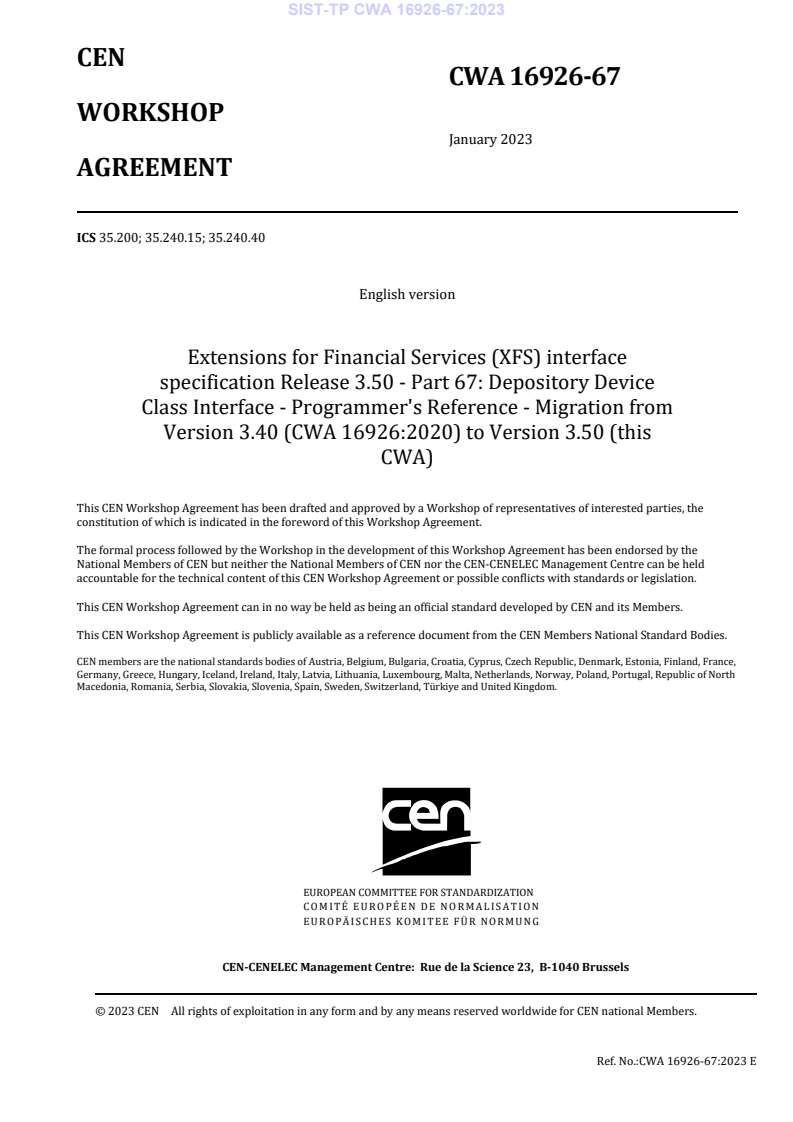

CEN
CWA 16926-67
WORKSHOP
January 2023
AGREEMENT
ICS 35.200; 35.240.15; 35.240.40
English version
Extensions for Financial Services (XFS) interface
specification Release 3.50 - Part 67: Depository Device
Class Interface - Programmer's Reference - Migration from
Version 3.40 (CWA 16926:2020) to Version 3.50 (this
CWA)
This CEN Workshop Agreement has been drafted and approved by a Workshop of representatives of interested parties, the
constitution of which is indicated in the foreword of this Workshop Agreement.
The formal process followed by the Workshop in the development of this Workshop Agreement has been endorsed by the
National Members of CEN but neither the National Members of CEN nor the CEN-CENELEC Management Centre can be held
accountable for the technical content of this CEN Workshop Agreement or possible conflicts with standards or legislation.
This CEN Workshop Agreement can in no way be held as being an official standard developed by CEN and its Members.
This CEN Workshop Agreement is publicly available as a reference document from the CEN Members National Standard Bodies.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members.
Ref. No.:CWA 16926-67:2023 E
---------------------- Page: 3 ----------------------
SIST CWA 16926-67:2023
CWA 16926-67:2023 (E)

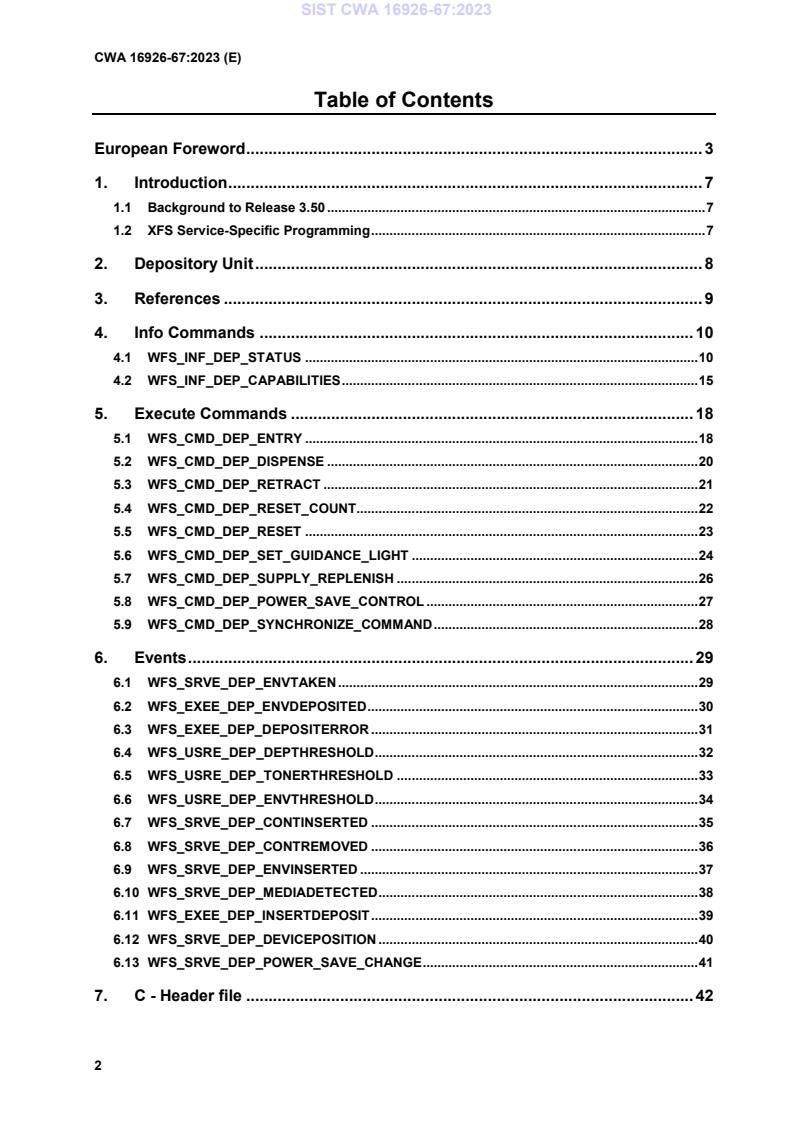

Table of Contents
European Foreword . 3
1. Introduction . 7
1.1 Background to Release 3.50 . 7
1.2 XFS Service-Specific Programming . 7
2. Depository Unit . 8
3. References . 9
4. Info Commands . 10
4.1 WFS_INF_DEP_STATUS . 10
4.2 WFS_INF_DEP_CAPABILITIES . 15
5. Execute Commands . 18
5.1 WFS_CMD_DEP_ENTRY . 18
5.2 WFS_CMD_DEP_DISPENSE . 20
5.3 WFS_CMD_DEP_RETRACT . 21
5.4 WFS_CMD_DEP_RESET_COUNT . 22
5.5 WFS_CMD_DEP_RESET . 23
5.6 WFS_CMD_DEP_SET_GUIDANCE_LIGHT . 24
5.7 WFS_CMD_DEP_SUPPLY_REPLENISH . 26
5.8 WFS_CMD_DEP_POWER_SAVE_CONTROL . 27
5.9 WFS_CMD_DEP_SYNCHRONIZE_COMMAND . 28
6. Events . 29
6.1 WFS_SRVE_DEP_ENVTAKEN . 29
6.2 WFS_EXEE_DEP_ENVDEPOSITED . 30
6.3 WFS_EXEE_DEP_DEPOSITERROR . 31
6.4 WFS_USRE_DEP_DEPTHRESHOLD . 32
6.5 WFS_USRE_DEP_TONERTHRESHOLD . 33
6.6 WFS_USRE_DEP_ENVTHRESHOLD . 34
6.7 WFS_SRVE_DEP_CONTINSERTED . 35
6.8 WFS_SRVE_DEP_CONTREMOVED . 36
6.9 WFS_SRVE_DEP_ENVINSERTED . 37
6.10 WFS_SRVE_DEP_MEDIADETECTED . 38
6.11 WFS_EXEE_DEP_INSERTDEPOSIT . 39
6.12 WFS_SRVE_DEP_DEVICEPOSITION . 40
6.13 WFS_SRVE_DEP_POWER_SAVE_CHANGE . 41
7. C - Header file . 42
2
---------------------- Page: 4 ----------------------
SIST CWA 16926-67:2023
CWA 16926-67:2023 (E)
European Foreword
This CEN Workshop Agreement has been developed in accordance with the CEN-CENELEC Guide 29
“CEN/CENELEC Workshop Agreements – The way to rapid consensus” and with the relevant provisions of
CEN/CENELEC Internal Regulations – Part 2. It was approved by a Workshop of representatives of interested parties
on 2022-11-08, the constitution of which was supported by CEN following several public calls for participation, the
first of which was made on 1998-06-24. However, this CEN Workshop Agreement does not necessarily include all
relevant stakeholders.
The final text of this CEN Workshop Agreement was provided to CEN for publication on 2022-11-18.
The following organizations and individuals developed and approved this CEN Workshop Agreement:
• AURIGA SPA
• CIMA SPA
• DIEBOLD NIXDORF SYSTEMS GMBH
• FIS BANKING SOLUTIONS UK LTD (OTS)
• FUJITSU TECHNOLOGY SOLUTIONS
• GLORY LTD
• GRG BANKING EQUIPMENT HK CO LTD
• HITACHI CHANNEL SOLUTIONS CORP
• HYOSUNG TNS INC
• JIANGSU GUOGUANG ELECTRONIC INFORMATION TECHNOLOGY
• KAL
• KEBA HANDOVER AUTOMATION GMBH
• NCR FSG
• NEXUS SOFTWARE
• OBERTHUR CASH PROTECTION
• OKI ELECTRIC INDUSTRY SHENZHEN
• SALZBURGER BANKEN SOFTWARE
• SECURE INNOVATION
• SIGMA SPA
It is possible that some elements of this CEN/CWA may be subject to patent rights. The CEN-CENELEC policy on
patent rights is set out in CEN-CENELEC Guide 8 “Guidelines for Implementation of the Common IPR Policy on
Patents (and other statutory intellectual property rights based on inventions)”. CEN shall not be held responsible for
identifying any or all such patent rights.
The Workshop participants have made every effort to ensure the reliability and accuracy of the technical and non-
technical content of CWA 16926-8, but this does not guarantee, either explicitly or implicitly, its correctness. Users
of CWA 16926-8 should be aware that neither the Workshop participants, nor CEN can be held liable for damages
3
---------------------- Page: 5 ----------------------
SIST CWA 16926-67:2023
CWA 16926-67:2023 (E)
or losses of any kind whatsoever which may arise from its application. Users of CWA 16926-8 do so on their own
responsibility and at their own risk.
The CWA is published as a multi-part document, consisting of:
Part 1: Application Programming Interface (API) - Service Provider Interface (SPI) - Programmer's Reference
Part 2: Service Classes Definition - Programmer's Reference
Part 3: Printer and Scanning Device Class Interface - Programmer's Reference
Part 4: Identification Card Device Class Interface - Programmer's Reference
Part 5: Cash Dispenser Device Class Interface - Programmer's Reference
Part 6: PIN Keypad Device Class Interface - Programmer's Reference
Part 7: Check Reader/Scanner Device Class Interface - Programmer's Reference
Part 8: Depository Device Class Interface - Programmer's Reference
Part 9: Text Terminal Unit Device Class Interface - Programmer's Reference
Part 10: Sensors and Indicators Unit Device Class Interface - Programmer's Reference
Part 11: Vendor Dependent Mode Device Class Interface - Programmer's Reference
Part 12: Camera Device Class Interface - Programmer's Reference
Part 13: Alarm Device Class Interface - Programmer's Reference
Part 14: Card Embossing Unit Device Class Interface - Programmer's Reference
Part 15: Cash-In Module Device Class Interface - Programmer's Reference
Part 16: Card Dispenser Device Class Interface - Programmer's Reference
Part 17: Barcode Reader Device Class Interface - Programmer's Reference
Part 18: Item Processing Module Device Class Interface - Programmer's Reference
Part 19: Biometrics Device Class Interface - Programmer's Reference
Parts 20 - 28: Reserved for future use.
Parts 29 through 47 constitute an optional addendum to this CWA. They define the integration between the SNMP
standard and the set of status and statistical information exported by the Service Providers.
Part 29: XFS MIB Architecture and SNMP Extensions - Programmer’s Reference
Part 30: XFS MIB Device Specific Definitions - Printer Device Class
Part 31: XFS MIB Device Specific Definitions - Identification Card Device Class
Part 32: XFS MIB Device Specific Definitions - Cash Dispenser Device Class
Part 33: XFS MIB Device Specific Definitions - PIN Keypad Device Class
Part 34: XFS MIB Device Specific Definitions - Check Reader/Scanner Device Class
Part 35: XFS MIB Device Specific Definitions - Depository Device Class
Part 36: XFS MIB Device Specific Definitions - Text Terminal Unit Device Class
Part 37: XFS MIB Device Specific Definitions - Sensors and Indicators Unit Device Class
Part 38: XFS MIB Device Specific Definitions - Camera Device Class
Part 39: XFS MIB Device Specific Definitions - Alarm Device Class
Part 40: XFS MIB Device Specific Definitions - Card Embossing Unit Class
Part 41: XFS MIB Device Specific Definitions - Cash-In Module Device Class
Part 42: Reserved for future use.
Part 43: XFS MIB Device Specific Definitions - Vendor Dependent Mode Device Class
Part 44: XFS MIB Application Management
Part 45: XFS MIB Device Specific Definitions - Card Dispenser Device Class
4
---------------------- Page: 6 ----------------------
SIST CWA 16926-67:2023
CWA 16926-67:2023 (E)
Part 46: XFS MIB Device Specific Definitions - Barcode Reader Device Class
Part 47: XFS MIB Device Specific Definitions - Item Processing Module Device Class
Part 48: XFS MIB Device Specific Definitions - Biometrics Device Class
Parts 49 - 60 are reserved for future use.
Part 61: Application Programming Interface (API) - Migration from Version 3.40 (CWA 16296:2020) to Version
3.50 (this CWA) - Service Provider Interface (SPI) - Programmer's Reference
Part 62: Printer and Scanning Device Class Interface - Migration from Version 3.40 (CWA 16296:2020) to Version
3.50 (this CWA) - Programmer's Reference
Part 63: Identification Card Device Class Interface - Migration from Version 3.40 (CWA 16296:2020) to Version
3.50 (this CWA) - Programmer's Reference
Part 64: Cash Dispenser Device Class Interface - Migration from Version 3.40 (CWA 16296:2020) to Version 3.50
(this CWA) - Programmer's Reference
Part 65: PIN Keypad Device Class Interface - Migration from Version 3.40 (CWA 16296:2020) to Version 3.50 (this
CWA) - Programmer's Reference
Part 66: Check Reader/Scanner Device Class Interface - Migration from Version 3.40 (CWA 16296:2020) to Version
3.50 (this CWA) - Programmer's Reference
Part 67: Depository Device Class Interface - Migration from Version 3.40 (CWA 16296:2020) to Version 3.50 (this
CWA) - Programmer's Reference
Part 68: Text Terminal Unit Device Class Interface - Migration from Version 3.40 (CWA 16296:2020) to Version
3.50 (this CWA) - Programmer's Reference
Part 69: Sensors and Indicators Unit Device Class Interface - Migration from Version 3.40 (CWA 16296:2020) to
Version 3.50 (this CWA) - Programmer's Reference
Part 70: Vendor Dependent Mode Device Class Interface - Migration from Version 3.40 (CWA 16296:2020) to
Version 3.50 (this CWA) - Programmer's Reference
Part 71: Camera Device Class Interface - Migration from Version 3.40 (CWA 16296:2020) to Version 3.50 (this
CWA) - Programmer's Reference
Part 72: Alarm Device Class Interface - Migration from Version 3.40 (CWA 16296:2020) to Version 3.50 (this CWA)
- Programmer's Reference
Part 73: Card Embossing Unit Device Class Interface - Migration from Version 3.40 (CWA 16296:2020) to Version
3.50 (this CWA) - Programmer's Reference
Part 74: Cash-In Module Device Class Interface - Migration from Version 3.40 (CWA 16296:2020) to Version 3.50
(this CWA) - Programmer's Reference
Part 75: Card Dispenser Device Class Interface - Migration from Version 3.40 (CWA 16296:2020) to Version 3.50
(this CWA) - Programmer's Reference
Part 76: Barcode Reader Device Class Interface - Migration from Version 3.40 (CWA 16296:2020) to Version 3.50
(this CWA) - Programmer's Reference
Part 77: Item Processing Module Device Class Interface - Migration from Version 3.40 (CWA 16296:2020) to
Version 3.50 (this CWA) - Programmer's Reference
Part 78: Biometric Device Class Interface - Migration from Version 3.40 (CWA 16296:2020) to Version 3.50 (this
CWA) - Programmer's Reference
In addition to these Programmer's Reference specifications, the reader of this CWA is also referred to a
complementary document, called Release Notes. The Release Notes contain clarifications and explanations on the
CWA specifications, which are not requiring functional changes. The current version of the Release Notes is available
online from: https://www.cencenelec.eu/areas-of-work/cen-sectors/digital-society-cen/cwa-download-area/.
The information in this document represents the Workshop's current views on the issues discussed as of the date of
publication. It is provided for informational purposes only and is subject to change without notice. CEN makes no
warranty, express or implied, with respect to this document.
5
---------------------- Page: 7 ----------------------
SIST CWA 16926-67:2023
CWA 16926-67:2023 (E)
Revision History:
3.00 October 18, 2000 Initial Release.
3.10 November 29, 2007 For a description of changes from version 3.00 to version
3.10 see the DEP 3.10 Migration document.
3.20 March 2, 2011 For a description of changes from version 3.10 to version
3.20 see the DEP 3.20 Migration document.
3.30 March 19, 2015 For a description of changes from version 3.20 to version
3.30 see the DEP 3.30 Migration document.
3.40 December 06, 2019 For a description of changes from version 3.30 to version
3.40 see the DEP 3.40 Migration document.
3.50 November 18, 2022 For a description of changes from version 3.40 to version
3.50 see the DEP 3.50 Migration document.
6
---------------------- Page: 8 ----------------------
SIST CWA 16926-67:2023
CWA 16926-67:2023 (E)
1. Introduction
1.1 Background to Release 3.50
The CEN/XFS Workshop aims to promote a clear and unambiguous specification defining a multi-vendor software
interface to financial peripheral devices. The XFS (eXtensions for Financial Services) specifications are developed
within the CEN (European Committee for Standardization/Information Society Standardization System) Workshop
environment. CEN Workshops aim to arrive at a European consensus on an issue that can be published as a CEN
Workshop Agreement (CWA).
The CEN/XFS Workshop encourages the participation of both banks and vendors in the deliberations required to
create an industry standard. The CEN/XFS Workshop achieves its goals by focused sub-groups working
electronically and meeting quarterly.
Release 3.50 of the XFS specification is based on a C API and is delivered with the continued promise for the
protection of technical investment for existing applications. This release of the specification extends the
functionality and capabilities of the existing devices covered by the specification:
• Addition of E2E security
• PIN Password Entry
1.2 XFS Service-Specific Programming
The service classes are defined by their service-specific commands and the associated data structures, error codes,
messages, etc. These commands are used to request functions that are specific to one or more classes of Service
Providers, but not all of them, and therefore are not included in the common API for basic or administration
functions.
When a service-specific command is common among two or more classes of Service Providers, the syntax of the
command is as similar as possible across all services, since a major objective of XFS is to standardize function
codes and structures for the broadest variety of services. For example, using the WFSExecute function, the
commands to read data from various services are as similar as possible to each other in their syntax and data
structures.
In general, the specific command set for a service class is defined as a superset of the specific capabilities likely to
be provided by the developers of the services of that class; thus any particular device will normally support only a
subset of the defined command set.
There are three cases in which a Service Provider may receive a service-specific command that it does not support:
The requested capability is defined for the class of Service Providers by the XFS specification, the particular vendor
implementation of that service does not support it, and the unsupported capability is not considered to be
fundamental to the service. In this case, the Service Provider returns a successful completion, but does no operation.
An example would be a request from an application to turn on a control indicator on a passbook printer; the Service
Provider recognizes the command, but since the passbook printer it is managing does not include that indicator, the
Service Provider does no operation and returns a successful completion to the application.
The requested capability is defined for the class of Service Providers by the XFS specification, the particular vendor
implementation of that service does not support it, and the unsupported capability is considered to be fundamental
to the service. In this case, a WFS_ERR_UNSUPP_COMMAND error for Execute commands or
WFS_ERR_UNSUPP_CATEGORY error for Info commands is returned to the calling application. An example
would be a request from an application to a cash dispenser to retract items where the dispenser hardware does not
have that capability; the Service Provider recognizes the command but, since the cash dispenser it is managing is
unable to fulfil the request, returns this error.
The requested capability is not defined for the class of Service Providers by the XFS specification. In this case, a
WFS_ERR_INVALID_COMMAND error for Execute commands or WFS_ERR_INVALID_CATEGORY error
for Info commands is returned to the calling application.
This design allows implementation of applications that can be used with a range of services that provide differing
subsets of the functionalities that are defined for their service class. Applications may use the WFSGetInfo and
WFSAsyncGetInfo commands to inquire about the capabilities of the service they are about to use, and modify
their behavior accordingly, or they may use functions and then deal with error returns to make decisions as to how
to use the service.
7
---------------------- Page: 9 ----------------------
SIST CWA 16926-67:2023
CWA 16926-67:2023 (E)
2. Depository Unit
This specification describes the functionality of the services provided by the Depository (DEP) services under XFS,
by defining the service-specific commands that can be issued, using the WFSGetInfo, WFSAsyncGetInfo,
WFSExecute and WFSAsyncExecute functions.
A Depository is used for the acceptance and deposit of media into the device or terminal. There are two main types
of depository: an envelope depository for the deposit of media in envelopes and a night safe depository for the
deposit of bags containing bulk media.
An envelope depository accepts media, prints on the media and deposits the media into a holding container or bin.
Some envelope depositories offer the capability to dispense an envelope to the customer at the start of a transaction.
The customer takes this envelope, fills in the deposit media, possibly inscribes it and puts it into the deposit slot.
The envelope is then accepted, printed and transported into a deposit container.
The envelope dispense mechanism may be part of the envelope depository device mechanism with the same
entry/exit slot or it may be a separate mechanism with separate entry/exit slot.
Envelopes dispensed and not taken by the customer can be retracted back into the device. When the dispenser is a
separate mechanism the envelope is retracted back into the dispenser container. When the dispenser is a common
mechanism the envelope is retracted into the depository container.
A night safe depository normally only logs the deposit of a bag and does not print on the media.
8
---------------------- Page: 10 ----------------------
SIST CWA 16926-67:2023
CWA 16926-67:2023 (E)
3. References
1. XFS Application Programming Interface (API)/Service Provider Interface (SPI), Programmer’s Reference
Revision 3.4050
9
---------------------- Page: 11 ----------------------
SIST CWA 16926-67:2023
CWA 16926-67:2023 (E)
4. Info Commands
4.1 WFS_INF_DEP_STATUS
Description This command reports the full range of information available, including the information that is
provided by the Service Provider.
Input Param None.
Output Param LPWFSDEPSTATUS lpStatus;
typedef struct _wfs_dep_status
{
WORD fwDevice;
WORD fwDepContainer;
WORD fwDepTransport;
WORD fwEnvSupply;
WORD fwEnvDispenser;
WORD fwPrinter;
WORD fwToner;
WORD fwShutter;
WORD wNumOfDeposits;
LPSTR lpszExtra;
DWORD dwGuidLights[WFS_DEP_GUIDLIGHTS_SIZE];
WORD fwDepositLocation;
WORD wDevicePosition;
USHORT usPowerSaveRecoveryTime;
WORD wAntiFraudModule;
} WFSDEPSTATUS, *LPWFSDEPSTATUS;
fwDevice
Specifies the state of the Depository device as one of the following flags:
Value Meaning
WFS_DEP_DEVONLINE The device is online (i.e. powered on and
operable).
WFS_DEP_DEVOFFLINE The device is off-line (e.g. the operator has
taken the device offline by turning a switch).
WFS_DEP_DEVPOWEROFF The device is powered off or physically not
connected.
WFS_DEP_DEVNODEVICE There is no device intended to be there; e.g.
this type of self service machine does not
contain such a device or it is internally not
configured.
WFS_DEP_DEVHWERROR The device is inoperable due to a hardware
error. The device is present but a hardware
fault prevents it from being used.
WFS_DEP_DEVUSERERROR The device is present but a person is
preventing proper operation. The application
should suspend the device operation or
remove the device from service until the
Service Provider generates a device state
change event indicating the condition of the
device has changed, i.e. the error is removed
or a permanent error condition has occurred.
WFS_DEP_DEVBUSY The device is busy and not able to process an
Execute command at this time.
WFS_DEP_DEVFRAUDATTEMPT The device is present but is inoperable
because it has detected a fraud attempt.
WFS_DEP_DEVPOTENTIALFRAUD The device has detected a potential fraud
attempt and is capable of remaining in
service. In this case the application should
make the decision as to whether to take the
device offline.
10
---------------------- Page: 12 ----------------------
SIST CWA 16926-67:2023
CWA 16926-67:2023 (E)
fwDepContainer
Specifies the state of the deposit container that contains the deposited envelopes or bags as one of
the following flags:
Value Meaning
WFS_DEP_DEPOK The deposit container is in a good state.
WFS_DEP_DEPHIGH The deposit container is almost full
(threshold).
WFS_DEP_DEPFULL The deposit container is full.
WFS_DEP_DEPINOP The deposit container is inoperable.
WFS_DEP_DEPMISSING The deposit container is missing.
WFS_DEP_DEPUNKNOWN Due to a hardware error or other condition,
the state of the deposit container cannot be
determined.
WFS_DEP_DEPNOTSUPP The physical device is not able to determine
the status of the deposit container.
fwDepTransport
Specifies the state of the deposit transport mechanism that transports the envelope into the deposit
container. Specified as one of the following flags:
Value Meaning
WFS_DEP_DEPOK The deposit transport is in a good state.
WFS_DEP_DEPINOP The deposit transport is inoperative due to a
hardware failure or media jam.
WFS_DEP_DEPUNKNOWN Due to a hardware error or other condition,
the state of the deposit transport cannot be
determined.
WFS_DEP_DEPNOTSUPP The physical device has no deposit transport.
fwEnvSupply
Specifies the state of the envelope supply unit as one of the following flags:
Value Meaning
WFS_DEP_ENVOK The envelope supply unit is in a good state
(and locked).
WFS_DEP_ENVLOW The envelope supply unit is present but low.
WFS_DEP_ENVEMPTY The envelope supply unit is present but
empty. No envelopes can be dispensed.
WFS_DEP_ENVINOP The envelope supply unit is in an inoperable
state. No envelopes can be dispensed.
WFS_DEP_ENVMISSING The envelope supply unit is missing.
WFS_DEP_ENVNOTSUPP The physical device has no envelope supply.
WFS_DEP_ENVUNLOCKED The envelope supply unit is unlocked.
WFS_DEP_ENVUNKNOWN Due to a hardware error or other condition,
the state of the envelope supply cannot be
determined.
fwEnvDispenser
Specifies the state of the envelope dispenser. Specified as one of the following flags:
Value Meaning
WFS_DEP_ENVOK The envelope dispenser is present and in a
good state.
WFS_DEP_ENVINOP The envelope dispenser is present but in an
inoperable state. No envelopes can be
dispensed.
WFS_DEP_ENVUNKNOWN Due to a hardware error or other condition,
the state of the envelope dispenser cannot be
determined.
WFS_DEP_ENVNOTSUPP The physical device has no envelope
dispenser.
fwPrinter
Specifies the state of the printer. Specified as one of the following flags:
11
---------------------- Page: 13 ----------------------
SIST CWA 16926-67:2023
CWA 16926-67:2023 (E)
Value Meaning
WFS_DEP_PTROK The printer is present and in a good state.
WFS_DEP_PTRINOP The printer is inoperative.
WFS_DEP_PTRUNKNOWN Due to a hardware error or other condition,
the state of the printer cannot be determined.
WFS_DEP_PTRNOTSUPP The physical device has no printer.
fwToner
Specifies the state of the toner (or ink) for the printer. Specified as one of the following flags:
Value Meaning
WFS_DEP_TONERFULL The toner cassette is full.
WFS_DEP_TONERLOW The toner in the printer is low.
WFS_DEP_TONEROUT The toner in the printer is empty.
WFS_DEP_TONERUNKNOWN Due to a hardware error or other condition,
the state of the toner for the printer cannot be
determined.
WFS_DEP_TONERNOTSUPP The physical device has no toner.
fwShutter
Specifies the state of the shutter or door. Specified as one of the following flags:
Value Meaning
WFS_DEP_SHTCLOSED The shutter is closed.
WFS_DEP_SHTOPEN The shutter is open.
WFS_DEP_SHTJAMMED The shutter is jammed.
WFS_DEP_SHTUNKNOWN Due to a hardware error or other condition,
the state of the shutter cannot be determined.
WFS_DEP_SHTNOTSUP
...
SLOVENSKI STANDARD
SIST-TP CWA 16926-67:2023
01-april-2023
Specifikacija vmesnika razširitev za finančne storitve (XFS), izdaja 3.50 - 67. del:
Razred vmesnika depozitne naprave - Referenca za programerje - Prehod z
različice 3.40 (CWA 16926:2020) na različico 3.50 (ta CWA)
Extensions for Financial Services (XFS) interface specification Release 3.50 - Part 67:
Depository Device Class Interface - Programmer's Reference - Migration from Version
3.40 (CWA 16926:2020) to Version 3.50 (this CWA)
Ta slovenski standard je istoveten z: CWA 16926-67:2023
ICS:
35.200 Vmesniška in povezovalna Interface and interconnection
oprema equipment
35.240.15 Identifikacijske kartice. Čipne Identification cards. Chip
kartice. Biometrija cards. Biometrics
35.240.40 Uporabniške rešitve IT v IT applications in banking
bančništvu
SIST-TP CWA 16926-67:2023 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST-TP CWA 16926-67:2023
---------------------- Page: 2 ----------------------
SIST-TP CWA 16926-67:2023
CEN
CWA 16926-67
WORKSHOP
January 2023
AGREEMENT
ICS 35.200; 35.240.15; 35.240.40
English version
Extensions for Financial Services (XFS) interface
specification Release 3.50 - Part 67: Depository Device
Class Interface - Programmer's Reference - Migration from
Version 3.40 (CWA 16926:2020) to Version 3.50 (this
CWA)
This CEN Workshop Agreement has been drafted and approved by a Workshop of representatives of interested parties, the
constitution of which is indicated in the foreword of this Workshop Agreement.
The formal process followed by the Workshop in the development of this Workshop Agreement has been endorsed by the
National Members of CEN but neither the National Members of CEN nor the CEN-CENELEC Management Centre can be held
accountable for the technical content of this CEN Workshop Agreement or possible conflicts with standards or legislation.
This CEN Workshop Agreement can in no way be held as being an official standard developed by CEN and its Members.
This CEN Workshop Agreement is publicly available as a reference document from the CEN Members National Standard Bodies.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members.
Ref. No.:CWA 16926-67:2023 E
---------------------- Page: 3 ----------------------
SIST-TP CWA 16926-67:2023
CWA 16926-67:2023 (E)
Table of Contents
European Foreword . 3
1. Introduction . 7
1.1 Background to Release 3.50 . 7
1.2 XFS Service-Specific Programming . 7
2. Depository Unit . 8
3. References . 9
4. Info Commands . 10
4.1 WFS_INF_DEP_STATUS . 10
4.2 WFS_INF_DEP_CAPABILITIES . 15
5. Execute Commands . 18
5.1 WFS_CMD_DEP_ENTRY . 18
5.2 WFS_CMD_DEP_DISPENSE . 20
5.3 WFS_CMD_DEP_RETRACT . 21
5.4 WFS_CMD_DEP_RESET_COUNT . 22
5.5 WFS_CMD_DEP_RESET . 23
5.6 WFS_CMD_DEP_SET_GUIDANCE_LIGHT . 24
5.7 WFS_CMD_DEP_SUPPLY_REPLENISH . 26
5.8 WFS_CMD_DEP_POWER_SAVE_CONTROL . 27
5.9 WFS_CMD_DEP_SYNCHRONIZE_COMMAND . 28
6. Events . 29
6.1 WFS_SRVE_DEP_ENVTAKEN . 29
6.2 WFS_EXEE_DEP_ENVDEPOSITED . 30
6.3 WFS_EXEE_DEP_DEPOSITERROR . 31
6.4 WFS_USRE_DEP_DEPTHRESHOLD . 32
6.5 WFS_USRE_DEP_TONERTHRESHOLD . 33
6.6 WFS_USRE_DEP_ENVTHRESHOLD . 34
6.7 WFS_SRVE_DEP_CONTINSERTED . 35
6.8 WFS_SRVE_DEP_CONTREMOVED . 36
6.9 WFS_SRVE_DEP_ENVINSERTED . 37
6.10 WFS_SRVE_DEP_MEDIADETECTED . 38
6.11 WFS_EXEE_DEP_INSERTDEPOSIT . 39
6.12 WFS_SRVE_DEP_DEVICEPOSITION . 40
6.13 WFS_SRVE_DEP_POWER_SAVE_CHANGE . 41
7. C - Header file . 42
2
---------------------- Page: 4 ----------------------
SIST-TP CWA 16926-67:2023
CWA 16926-67:2023 (E)
European Foreword
This CEN Workshop Agreement has been developed in accordance with the CEN-CENELEC Guide 29
“CEN/CENELEC Workshop Agreements – The way to rapid consensus” and with the relevant provisions of
CEN/CENELEC Internal Regulations – Part 2. It was approved by a Workshop of representatives of interested parties
on 2022-11-08, the constitution of which was supported by CEN following several public calls for participation, the
first of which was made on 1998-06-24. However, this CEN Workshop Agreement does not necessarily include all
relevant stakeholders.
The final text of this CEN Workshop Agreement was provided to CEN for publication on 2022-11-18.
The following organizations and individuals developed and approved this CEN Workshop Agreement:
• AURIGA SPA
• CIMA SPA
• DIEBOLD NIXDORF SYSTEMS GMBH
• FIS BANKING SOLUTIONS UK LTD (OTS)
• FUJITSU TECHNOLOGY SOLUTIONS
• GLORY LTD
• GRG BANKING EQUIPMENT HK CO LTD
• HITACHI CHANNEL SOLUTIONS CORP
• HYOSUNG TNS INC
• JIANGSU GUOGUANG ELECTRONIC INFORMATION TECHNOLOGY
• KAL
• KEBA HANDOVER AUTOMATION GMBH
• NCR FSG
• NEXUS SOFTWARE
• OBERTHUR CASH PROTECTION
• OKI ELECTRIC INDUSTRY SHENZHEN
• SALZBURGER BANKEN SOFTWARE
• SECURE INNOVATION
• SIGMA SPA
It is possible that some elements of this CEN/CWA may be subject to patent rights. The CEN-CENELEC policy on
patent rights is set out in CEN-CENELEC Guide 8 “Guidelines for Implementation of the Common IPR Policy on
Patents (and other statutory intellectual property rights based on inventions)”. CEN shall not be held responsible for
identifying any or all such patent rights.
The Workshop participants have made every effort to ensure the reliability and accuracy of the technical and non-
technical content of CWA 16926-8, but this does not guarantee, either explicitly or implicitly, its correctness. Users
of CWA 16926-8 should be aware that neither the Workshop participants, nor CEN can be held liable for damages
3
---------------------- Page: 5 ----------------------
SIST-TP CWA 16926-67:2023
CWA 16926-67:2023 (E)
or losses of any kind whatsoever which may arise from its application. Users of CWA 16926-8 do so on their own
responsibility and at their own risk.
The CWA is published as a multi-part document, consisting of:
Part 1: Application Programming Interface (API) - Service Provider Interface (SPI) - Programmer's Reference
Part 2: Service Classes Definition - Programmer's Reference
Part 3: Printer and Scanning Device Class Interface - Programmer's Reference
Part 4: Identification Card Device Class Interface - Programmer's Reference
Part 5: Cash Dispenser Device Class Interface - Programmer's Reference
Part 6: PIN Keypad Device Class Interface - Programmer's Reference
Part 7: Check Reader/Scanner Device Class Interface - Programmer's Reference
Part 8: Depository Device Class Interface - Programmer's Reference
Part 9: Text Terminal Unit Device Class Interface - Programmer's Reference
Part 10: Sensors and Indicators Unit Device Class Interface - Programmer's Reference
Part 11: Vendor Dependent Mode Device Class Interface - Programmer's Reference
Part 12: Camera Device Class Interface - Programmer's Reference
Part 13: Alarm Device Class Interface - Programmer's Reference
Part 14: Card Embossing Unit Device Class Interface - Programmer's Reference
Part 15: Cash-In Module Device Class Interface - Programmer's Reference
Part 16: Card Dispenser Device Class Interface - Programmer's Reference
Part 17: Barcode Reader Device Class Interface - Programmer's Reference
Part 18: Item Processing Module Device Class Interface - Programmer's Reference
Part 19: Biometrics Device Class Interface - Programmer's Reference
Parts 20 - 28: Reserved for future use.
Parts 29 through 47 constitute an optional addendum to this CWA. They define the integration between the SNMP
standard and the set of status and statistical information exported by the Service Providers.
Part 29: XFS MIB Architecture and SNMP Extensions - Programmer’s Reference
Part 30: XFS MIB Device Specific Definitions - Printer Device Class
Part 31: XFS MIB Device Specific Definitions - Identification Card Device Class
Part 32: XFS MIB Device Specific Definitions - Cash Dispenser Device Class
Part 33: XFS MIB Device Specific Definitions - PIN Keypad Device Class
Part 34: XFS MIB Device Specific Definitions - Check Reader/Scanner Device Class
Part 35: XFS MIB Device Specific Definitions - Depository Device Class
Part 36: XFS MIB Device Specific Definitions - Text Terminal Unit Device Class
Part 37: XFS MIB Device Specific Definitions - Sensors and Indicators Unit Device Class
Part 38: XFS MIB Device Specific Definitions - Camera Device Class
Part 39: XFS MIB Device Specific Definitions - Alarm Device Class
Part 40: XFS MIB Device Specific Definitions - Card Embossing Unit Class
Part 41: XFS MIB Device Specific Definitions - Cash-In Module Device Class
Part 42: Reserved for future use.
Part 43: XFS MIB Device Specific Definitions - Vendor Dependent Mode Device Class
Part 44: XFS MIB Application Management
Part 45: XFS MIB Device Specific Definitions - Card Dispenser Device Class
4
---------------------- Page: 6 ----------------------
SIST-TP CWA 16926-67:2023
CWA 16926-67:2023 (E)
Part 46: XFS MIB Device Specific Definitions - Barcode Reader Device Class
Part 47: XFS MIB Device Specific Definitions - Item Processing Module Device Class
Part 48: XFS MIB Device Specific Definitions - Biometrics Device Class
Parts 49 - 60 are reserved for future use.
Part 61: Application Programming Interface (API) - Migration from Version 3.40 (CWA 16296:2020) to Version
3.50 (this CWA) - Service Provider Interface (SPI) - Programmer's Reference
Part 62: Printer and Scanning Device Class Interface - Migration from Version 3.40 (CWA 16296:2020) to Version
3.50 (this CWA) - Programmer's Reference
Part 63: Identification Card Device Class Interface - Migration from Version 3.40 (CWA 16296:2020) to Version
3.50 (this CWA) - Programmer's Reference
Part 64: Cash Dispenser Device Class Interface - Migration from Version 3.40 (CWA 16296:2020) to Version 3.50
(this CWA) - Programmer's Reference
Part 65: PIN Keypad Device Class Interface - Migration from Version 3.40 (CWA 16296:2020) to Version 3.50 (this
CWA) - Programmer's Reference
Part 66: Check Reader/Scanner Device Class Interface - Migration from Version 3.40 (CWA 16296:2020) to Version
3.50 (this CWA) - Programmer's Reference
Part 67: Depository Device Class Interface - Migration from Version 3.40 (CWA 16296:2020) to Version 3.50 (this
CWA) - Programmer's Reference
Part 68: Text Terminal Unit Device Class Interface - Migration from Version 3.40 (CWA 16296:2020) to Version
3.50 (this CWA) - Programmer's Reference
Part 69: Sensors and Indicators Unit Device Class Interface - Migration from Version 3.40 (CWA 16296:2020) to
Version 3.50 (this CWA) - Programmer's Reference
Part 70: Vendor Dependent Mode Device Class Interface - Migration from Version 3.40 (CWA 16296:2020) to
Version 3.50 (this CWA) - Programmer's Reference
Part 71: Camera Device Class Interface - Migration from Version 3.40 (CWA 16296:2020) to Version 3.50 (this
CWA) - Programmer's Reference
Part 72: Alarm Device Class Interface - Migration from Version 3.40 (CWA 16296:2020) to Version 3.50 (this CWA)
- Programmer's Reference
Part 73: Card Embossing Unit Device Class Interface - Migration from Version 3.40 (CWA 16296:2020) to Version
3.50 (this CWA) - Programmer's Reference
Part 74: Cash-In Module Device Class Interface - Migration from Version 3.40 (CWA 16296:2020) to Version 3.50
(this CWA) - Programmer's Reference
Part 75: Card Dispenser Device Class Interface - Migration from Version 3.40 (CWA 16296:2020) to Version 3.50
(this CWA) - Programmer's Reference
Part 76: Barcode Reader Device Class Interface - Migration from Version 3.40 (CWA 16296:2020) to Version 3.50
(this CWA) - Programmer's Reference
Part 77: Item Processing Module Device Class Interface - Migration from Version 3.40 (CWA 16296:2020) to
Version 3.50 (this CWA) - Programmer's Reference
Part 78: Biometric Device Class Interface - Migration from Version 3.40 (CWA 16296:2020) to Version 3.50 (this
CWA) - Programmer's Reference
In addition to these Programmer's Reference specifications, the reader of this CWA is also referred to a
complementary document, called Release Notes. The Release Notes contain clarifications and explanations on the
CWA specifications, which are not requiring functional changes. The current version of the Release Notes is available
online from: https://www.cencenelec.eu/areas-of-work/cen-sectors/digital-society-cen/cwa-download-area/.
The information in this document represents the Workshop's current views on the issues discussed as of the date of
publication. It is provided for informational purposes only and is subject to change without notice. CEN makes no
warranty, express or implied, with respect to this document.
5
---------------------- Page: 7 ----------------------
SIST-TP CWA 16926-67:2023
CWA 16926-67:2023 (E)
Revision History:
3.00 October 18, 2000 Initial Release.
3.10 November 29, 2007 For a description of changes from version 3.00 to version
3.10 see the DEP 3.10 Migration document.
3.20 March 2, 2011 For a description of changes from version 3.10 to version
3.20 see the DEP 3.20 Migration document.
3.30 March 19, 2015 For a description of changes from version 3.20 to version
3.30 see the DEP 3.30 Migration document.
3.40 December 06, 2019 For a description of changes from version 3.30 to version
3.40 see the DEP 3.40 Migration document.
3.50 November 18, 2022 For a description of changes from version 3.40 to version
3.50 see the DEP 3.50 Migration document.
6
---------------------- Page: 8 ----------------------
SIST-TP CWA 16926-67:2023
CWA 16926-67:2023 (E)
1. Introduction
1.1 Background to Release 3.50
The CEN/XFS Workshop aims to promote a clear and unambiguous specification defining a multi-vendor software
interface to financial peripheral devices. The XFS (eXtensions for Financial Services) specifications are developed
within the CEN (European Committee for Standardization/Information Society Standardization System) Workshop
environment. CEN Workshops aim to arrive at a European consensus on an issue that can be published as a CEN
Workshop Agreement (CWA).
The CEN/XFS Workshop encourages the participation of both banks and vendors in the deliberations required to
create an industry standard. The CEN/XFS Workshop achieves its goals by focused sub-groups working
electronically and meeting quarterly.
Release 3.50 of the XFS specification is based on a C API and is delivered with the continued promise for the
protection of technical investment for existing applications. This release of the specification extends the
functionality and capabilities of the existing devices covered by the specification:
• Addition of E2E security
• PIN Password Entry
1.2 XFS Service-Specific Programming
The service classes are defined by their service-specific commands and the associated data structures, error codes,
messages, etc. These commands are used to request functions that are specific to one or more classes of Service
Providers, but not all of them, and therefore are not included in the common API for basic or administration
functions.
When a service-specific command is common among two or more classes of Service Providers, the syntax of the
command is as similar as possible across all services, since a major objective of XFS is to standardize function
codes and structures for the broadest variety of services. For example, using the WFSExecute function, the
commands to read data from various services are as similar as possible to each other in their syntax and data
structures.
In general, the specific command set for a service class is defined as a superset of the specific capabilities likely to
be provided by the developers of the services of that class; thus any particular device will normally support only a
subset of the defined command set.
There are three cases in which a Service Provider may receive a service-specific command that it does not support:
The requested capability is defined for the class of Service Providers by the XFS specification, the particular vendor
implementation of that service does not support it, and the unsupported capability is not considered to be
fundamental to the service. In this case, the Service Provider returns a successful completion, but does no operation.
An example would be a request from an application to turn on a control indicator on a passbook printer; the Service
Provider recognizes the command, but since the passbook printer it is managing does not include that indicator, the
Service Provider does no operation and returns a successful completion to the application.
The requested capability is defined for the class of Service Providers by the XFS specification, the particular vendor
implementation of that service does not support it, and the unsupported capability is considered to be fundamental
to the service. In this case, a WFS_ERR_UNSUPP_COMMAND error for Execute commands or
WFS_ERR_UNSUPP_CATEGORY error for Info commands is returned to the calling application. An example
would be a request from an application to a cash dispenser to retract items where the dispenser hardware does not
have that capability; the Service Provider recognizes the command but, since the cash dispenser it is managing is
unable to fulfil the request, returns this error.
The requested capability is not defined for the class of Service Providers by the XFS specification. In this case, a
WFS_ERR_INVALID_COMMAND error for Execute commands or WFS_ERR_INVALID_CATEGORY error
for Info commands is returned to the calling application.
This design allows implementation of applications that can be used with a range of services that provide differing
subsets of the functionalities that are defined for their service class. Applications may use the WFSGetInfo and
WFSAsyncGetInfo commands to inquire about the capabilities of the service they are about to use, and modify
their behavior accordingly, or they may use functions and then deal with error returns to make decisions as to how
to use the service.
7
---------------------- Page: 9 ----------------------
SIST-TP CWA 16926-67:2023
CWA 16926-67:2023 (E)
2. Depository Unit
This specification describes the functionality of the services provided by the Depository (DEP) services under XFS,
by defining the service-specific commands that can be issued, using the WFSGetInfo, WFSAsyncGetInfo,
WFSExecute and WFSAsyncExecute functions.
A Depository is used for the acceptance and deposit of media into the device or terminal. There are two main types
of depository: an envelope depository for the deposit of media in envelopes and a night safe depository for the
deposit of bags containing bulk media.
An envelope depository accepts media, prints on the media and deposits the media into a holding container or bin.
Some envelope depositories offer the capability to dispense an envelope to the customer at the start of a transaction.
The customer takes this envelope, fills in the deposit media, possibly inscribes it and puts it into the deposit slot.
The envelope is then accepted, printed and transported into a deposit container.
The envelope dispense mechanism may be part of the envelope depository device mechanism with the same
entry/exit slot or it may be a separate mechanism with separate entry/exit slot.
Envelopes dispensed and not taken by the customer can be retracted back into the device. When the dispenser is a
separate mechanism the envelope is retracted back into the dispenser container. When the dispenser is a common
mechanism the envelope is retracted into the depository container.
A night safe depository normally only logs the deposit of a bag and does not print on the media.
8
---------------------- Page: 10 ----------------------
SIST-TP CWA 16926-67:2023
CWA 16926-67:2023 (E)
3. References
1. XFS Application Programming Interface (API)/Service Provider Interface (SPI), Programmer’s Reference
Revision 3.4050
9
---------------------- Page: 11 ----------------------
SIST-TP CWA 16926-67:2023
CWA 16926-67:2023 (E)
4. Info Commands
4.1 WFS_INF_DEP_STATUS
Description This command reports the full range of information available, including the information that is
provided by the Service Provider.
Input Param None.
Output Param LPWFSDEPSTATUS lpStatus;
typedef struct _wfs_dep_status
{
WORD fwDevice;
WORD fwDepContainer;
WORD fwDepTransport;
WORD fwEnvSupply;
WORD fwEnvDispenser;
WORD fwPrinter;
WORD fwToner;
WORD fwShutter;
WORD wNumOfDeposits;
LPSTR lpszExtra;
DWORD dwGuidLights[WFS_DEP_GUIDLIGHTS_SIZE];
WORD fwDepositLocation;
WORD wDevicePosition;
USHORT usPowerSaveRecoveryTime;
WORD wAntiFraudModule;
} WFSDEPSTATUS, *LPWFSDEPSTATUS;
fwDevice
Specifies the state of the Depository device as one of the following flags:
Value Meaning
WFS_DEP_DEVONLINE The device is online (i.e. powered on and
operable).
WFS_DEP_DEVOFFLINE The device is off-line (e.g. the operator has
taken the device offline by turning a switch).
WFS_DEP_DEVPOWEROFF The device is powered off or physically not
connected.
WFS_DEP_DEVNODEVICE There is no device intended to be there; e.g.
this type of self service machine does not
contain such a device or it is internally not
configured.
WFS_DEP_DEVHWERROR The device is inoperable due to a hardware
error. The device is present but a hardware
fault prevents it from being used.
WFS_DEP_DEVUSERERROR The device is present but a person is
preventing proper operation. The application
should suspend the device operation or
remove the device from service until the
Service Provider generates a device state
change event indicating the condition of the
device has changed, i.e. the error is removed
or a permanent error condition has occurred.
WFS_DEP_DEVBUSY The device is busy and not able to process an
Execute command at this time.
WFS_DEP_DEVFRAUDATTEMPT The device is present but is inoperable
because it has detected a fraud attempt.
WFS_DEP_DEVPOTENTIALFRAUD The device has detected a potential fraud
attempt and is capable of remaining in
service. In this case the application should
make the decision as to whether to take the
device offline.
10
---------------------- Page: 12 ----------------------
SIST-TP CWA 16926-67:2023
CWA 16926-67:2023 (E)
fwDepContainer
Specifies the state of the deposit container that contains the deposited envelopes or bags as one of
the following flags:
Value Meaning
WFS_DEP_DEPOK The deposit container is in a good state.
WFS_DEP_DEPHIGH The deposit container is almost full
(threshold).
WFS_DEP_DEPFULL The deposit container is full.
WFS_DEP_DEPINOP The deposit container is inoperable.
WFS_DEP_DEPMISSING The deposit container is missing.
WFS_DEP_DEPUNKNOWN Due to a hardware error or other condition,
the state of the deposit container cannot be
determined.
WFS_DEP_DEPNOTSUPP The physical device is not able to determine
the status of the deposit container.
fwDepTransport
Specifies the state of the deposit transport mechanism that transports the envelope into the deposit
container. Specified as one of the following flags:
Value Meaning
WFS_DEP_DEPOK The deposit transport is in a good state.
WFS_DEP_DEPINOP The deposit transport is inoperative due to a
hardware failure or media jam.
WFS_DEP_DEPUNKNOWN Due to a hardware error or other condition,
the state of the deposit transport cannot be
determined.
WFS_DEP_DEPNOTSUPP The physical device has no deposit transport.
fwEnvSupply
Specifies the state of the envelope supply unit as one of the following flags:
Value Meaning
WFS_DEP_ENVOK The envelope supply unit is in a good state
(and locked).
WFS_DEP_ENVLOW The envelope supply unit is present but low.
WFS_DEP_ENVEMPTY The envelope supply unit is present but
empty. No envelopes can be dispensed.
WFS_DEP_ENVINOP The envelope supply unit is in an inoperable
state. No envelopes can be dispensed.
WFS_DEP_ENVMISSING The envelope supply unit is missing.
WFS_DEP_ENVNOTSUPP The physical device has no envelope supply.
WFS_DEP_ENVUNLOCKED The envelope supply unit is unlocked.
WFS_DEP_ENVUNKNOWN Due to a hardware error or other condition,
the state of the envelope supply cannot be
determined.
fwEnvDispenser
Specifies the state of the envelope dispenser. Specified as one of the following flags:
Value Meaning
WFS_DEP_ENVOK The envelope dispenser is present and in a
good state.
WFS_DEP_ENVINOP The envelope dispenser is present but in an
inoperable state. No envelopes can be
dispensed.
WFS_DEP_ENVUNKNOWN Due to a hardware error or other condition,
the state of the envelope dispenser cannot be
determined.
WFS_DEP_ENVNOTSUPP The physical device has no envelope
dispenser.
fwPrinter
Specifies the state of the printer. Specified as one of the following flags:
11
---------------------- Page: 13 ----------------------
SIST-TP CWA 16926-67:2023
CWA 16926-67:2023 (E)
Value Meaning
WFS_DEP_PTROK The printer is present and in a good state.
WFS_DEP_PTRINOP The printer is inoperative.
WFS_DEP_PTRUNKNOWN Due to a hardware error or other condition,
the state of the printer cannot be determined.
WFS_DEP_PTRNOTSUPP The physical device has no printer.
fwToner
Specifies the state of the toner (or ink) for the printer. Specified as one of the following flags:
Value Meaning
WFS_DEP_TONERFULL The toner cassette is full.
WFS_DEP_TONERLOW The toner in the printer is low.
WFS_DEP_TONEROUT The toner in the printer is empty.
WFS_DEP_TONERUNKNOWN Due to a hardware error or other condition,
the state of the toner for the printer cannot be
determined.
WFS_DEP_TONERNOTSUPP The physical device has no toner.
fwShutter
Specifies the state of the shutter or door. Specified as one of the following flags:
Value Meaning
WFS_DEP_SHTCLOSED The shutter is closed.
WFS_DEP_SHTOPEN The shutter is open.
WFS_DEP_SHTJAMMED The shutter is jammed.
WFS_DEP_SHTUNKNOWN Due to a hardware error or other condition,
the state of the shu
...
