SIST EN ISO 14910-2:2006
(Main)Plastics - Thermoplastic polyester/ester and polyether/ester elastomers for moulding and extrusion - Part 2: Preparation of test specimens and determination of properties (ISO 14910-2:1997)
Plastics - Thermoplastic polyester/ester and polyether/ester elastomers for moulding and extrusion - Part 2: Preparation of test specimens and determination of properties (ISO 14910-2:1997)
This part of the standard specifies the methods of preparation of test specimens and the standard test methods to be used in determining the properties of thermoplastic polyester/ester and polyether/ester moulding and extrusion materials. Requirements for handling test material and for conditioning both the test material before moulding and the specimens before testing are given here.
Kunststoffe - Thermoplastische Polyester/Ester- und Polyehter/Ester- Elastomer-Formmassen - Teil 2: Herstellung von Probekörpern und Bestimmung von Eigenschaften (ISO 14910-2:1997)
Dieser Teil von ISO 14910 legt die Verfahren zur Herstellung von Probekörpern und die anzuwendenden
Norm-Prüfverfahren für die Bestimmung der Eigenschaften von thermoplastischen Polyester/Ester- und
Polyether/Ester-Formmassen fest. In der Norm werden die Anforderungen an die Handhabung des Prüf-materials
und an die Konditionierung des Prüfmaterials sowohl vor der Formgebung und als auch der fertigen
Probekörper vor der Prüfung gegeben.
Angegeben werden Verfahren und Bedingungen für die Herstellung der Probekörper in einem bestimmten
Zustand und Verfahren zum Messen der Eigenschaften des Materials, aus dem diese Probekörper hergestellt
werden. Aufgeführt sind die Eigenschaften und Prüfverfahren, die geeignet und notwendig sind, um die
thermoplastischen Polyester/Ester- und Polyether/Ester-Formmassen zu charakterisieren.
Die Eigenschaften wurden von den allgemeinen Prüfverfahren in ISO 10350 ausgewählt. Weitere Prüf-verfahren,
die bei diesen Formmassen häufig angewendet werden oder von besonderer Bedeutung sind, sind
ebenfalls in dem vorliegenden Teil von ISO 14910 enthalten, wie die in Teil 1 festgelegten kennzeichnenden
Eigenschaften (Härte, Schmelztemperatur und Elastizitätsmodul bei Zug- und Biegebeanspruchung).
Um reproduzierbare und vergleichbare Prüfergebnisse zu erzielen, ist es notwendig, die in der vorliegenden
Norm angegebenen Herstellungs- und Konditionierungsverfahren, Probekörpermaße und Prüfverfahren
anzuwenden. Die ermittelten Messergebnisse müssen nicht notwendigerweise mit denen identisch sein, die
mit Probekörpern anderer Maße oder Probekörpern, die nach anderen Verfahren hergestellt wurden, erhalten
wurden.
Plastiques - Elastomeres thermoplastiques a base de polyester/ester et polyéther/ester, pour moulage et extrusion - Partie 2: Préparation des éprouvettes et détermination des propriétés (ISO 14910-2:1997)
Polimerni materiali - Plastomerni poliester/ester in polieter/ester elastomeri za oblikovanje in ekstrudiranje – 2. del: Priprava preskušancev in ugotavljanje lastnosti (ISO 14910-2:1997)
General Information
Relations
Standards Content (Sample)

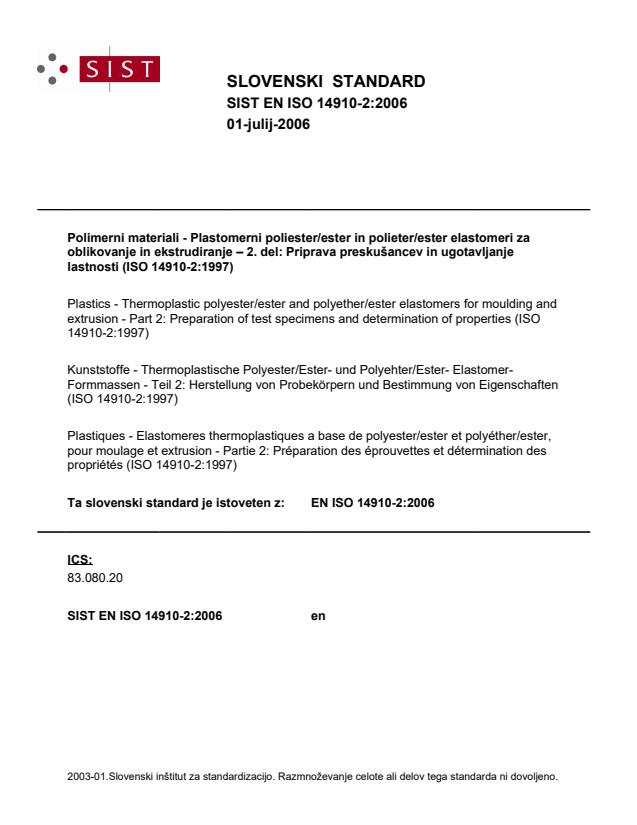

SLOVENSKI STANDARD
01-julij-2006
Polimerni materiali - Plastomerni poliester/ester in polieter/ester elastomeri za
oblikovanje in ekstrudiranje – 2. del: Priprava preskušancev in ugotavljanje
lastnosti (ISO 14910-2:1997)
Plastics - Thermoplastic polyester/ester and polyether/ester elastomers for moulding and
extrusion - Part 2: Preparation of test specimens and determination of properties (ISO
14910-2:1997)
Kunststoffe - Thermoplastische Polyester/Ester- und Polyehter/Ester- Elastomer-
Formmassen - Teil 2: Herstellung von Probekörpern und Bestimmung von Eigenschaften
(ISO 14910-2:1997)
Plastiques - Elastomeres thermoplastiques a base de polyester/ester et polyéther/ester,
pour moulage et extrusion - Partie 2: Préparation des éprouvettes et détermination des
propriétés (ISO 14910-2:1997)
Ta slovenski standard je istoveten z: EN ISO 14910-2:2006
ICS:
83.080.20
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

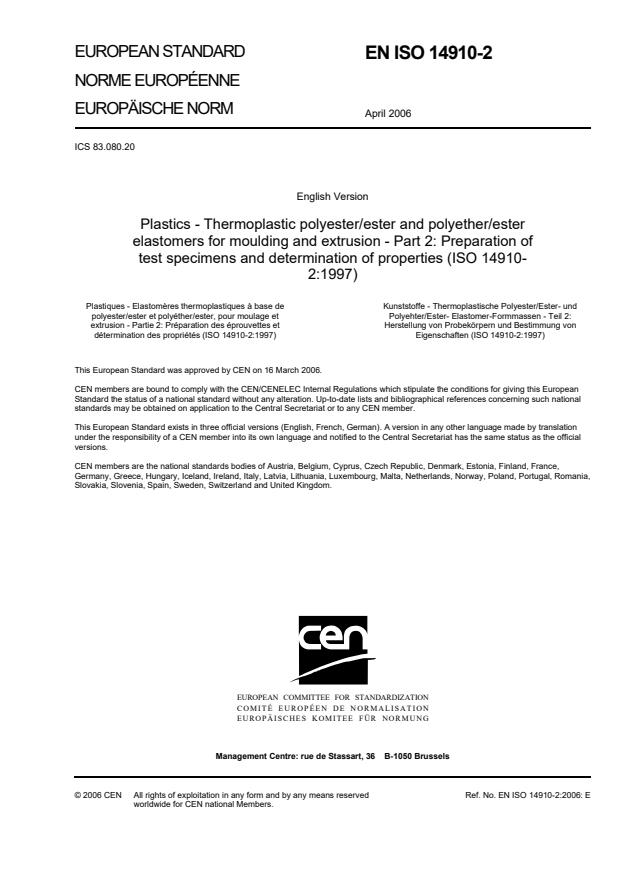

EUROPEAN STANDARD
EN ISO 14910-2
NORME EUROPÉENNE
EUROPÄISCHE NORM
April 2006
ICS 83.080.20
English Version
Plastics - Thermoplastic polyester/ester and polyether/ester
elastomers for moulding and extrusion - Part 2: Preparation of
test specimens and determination of properties (ISO 14910-
2:1997)
Plastiques - Elastomères thermoplastiques à base de Kunststoffe - Thermoplastische Polyester/Ester- und
polyester/ester et polyéther/ester, pour moulage et Polyehter/Ester- Elastomer-Formmassen - Teil 2:
extrusion - Partie 2: Préparation des éprouvettes et Herstellung von Probekörpern und Bestimmung von
détermination des propriétés (ISO 14910-2:1997) Eigenschaften (ISO 14910-2:1997)
This European Standard was approved by CEN on 16 March 2006.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,
Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36 B-1050 Brussels
© 2006 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 14910-2:2006: E
worldwide for CEN national Members.
Foreword
The text of ISO 14910-2:1997 has been prepared by Technical Committee ISO/TC 61 "Plastics”
of the International Organization for Standardization (ISO) and has been taken over as EN ISO
14910-2:2006 by Technical Committee CEN/TC 249 "Plastics", the secretariat of which is held
by IBN.
This European Standard shall be given the status of a national standard, either by publication of
an identical text or by endorsement, at the latest by October 2006, and conflicting national
standards shall be withdrawn at the latest by October 2006.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of
the following countries are bound to implement this European Standard: Austria, Belgium,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary,
Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
Endorsement notice
The text of ISO 14910-2:1997 has been approved by CEN as EN ISO 14910-2:2006 without any
modifications.
INTERNATIONAL ISO
STANDARD 14910-2
First edition
1997-12-15
Plastics — Thermoplastic polyester/ester
and polyether/ester elastomers for
moulding and extrusion —
Part 2:
Preparation of test specimens and
determination of properties
Plastiques — Élastomères thermoplastiques à base de polyester/ester et
polyéther/ester, pour moulage et extrusion —
Partie 2: Préparation des éprouvettes et détermination des propriétés
A
Reference number
ISO 14910-2:1997(E)
ISO 14910-2:1997(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide
federation of national standards bodies (ISO member bodies). The work of
preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which
a technical committee has been established has the right to be represented
on that committee. International organizations, governmental and non-
governmental, in liaison with ISO, also take part in the work. ISO
collaborates closely with the International Electrotechnical Commission
(IEC) on all matters of electrotechnical standardization.
Draft International Standards adopted by the technical committees are
circulated to the member bodies for voting. Publication as an International
Standard requires approval by at least 75 % of the member bodies casting
a vote.
International Standard ISO 14910-2 was prepared by Technical Committee
ISO/TC 61, Plastics, Subcommittee SC 9, Thermoplastic materials.
ISO 14910 consists of the following parts, under the general title Plastics —
Thermoplastic polyester/ester and polyether/ester elastomers for moulding
and extrusion :
— Part 1: Designation system and basis for specifications
— Part 2: Preparation of test specimens and determination of properties
© ISO 1997
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced
or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from the publisher.
International Organization for Standardization
Case postale 56 • CH-1211 Genève 20 • Switzerland
Internet central@iso.ch
X.400 c=ch; a=400net; p=iso; o=isocs; s=central
Printed in Switzerland
ii
©
INTERNATIONAL STANDARD ISO ISO 14910-2:1997(E)
Plastics — Thermoplastic polyester/ester and polyether/ester
elastomers for moulding and extrusion —
Part 2:
Preparation of test specimens and determination of properties
1 Scope
This part of ISO 14910 specifies the methods of preparation of test specimens and the standard test methods to be
used in determining the properties of thermoplastic polyester/ester and polyether/ester moulding and extrusion
materials. Requirements for handling test material and for conditioning both the test material before moulding and
the specimens before testing are given here.
Procedures and conditions for the preparation of test specimens in a specified state and procedures for measuring
properties of the materials from which these specimens are made are given. Properties and test methods which are
suitable and necessary to characterize thermoplastic polyester/ester and polyether/ester moulding and extrusion
materials are listed.
The properties have been selected from the general test methods in ISO 10350. Other test methods in wide use for
or of particular significance to these moulding and extrusion materials are also included in this part of ISO 14910, as
are the designatory properties specified in part 1 (hardness, melting temperature and tensile/flexural modulus of
elasticity).
In order to obtain reproducible and comparable test results, it is necessary to use the methods of preparation and
conditioning, the specimen dimensions and the test procedures specified herein. Values determined will not
necessarily be identical to those obtained using specimens of different dimensions or prepared using different
procedures.
2 Normative references
The following standards contain provisions which, through reference in this text, constitute provisions of this part of
ISO 14910. At the time of publication, the editions indicated were valid. All standards are subject to revision, and
parties to agreements based on this part of ISO 14910 are encouraged to investigate the possibility of applying the
most recent editions of the standards indicated below. Members of IEC and ISO maintain registers of currently valid
International Standards.
ISO 34-1:1994, Rubber, vulcanized or thermoplastic — Determination of tear strength — Part 1: Trouser, angle and
crescent test pieces.
ISO 62:1980, Plastics — Determination of water absorption.
ISO 75-1:1993, Plastics — Determination of temperature of deflection under load — Part 1: General test method.
ISO 75-2:1993, Plastics — Determination of temperature of deflection under load — Part 2: Plastic
...
