SIST EN 14201:2004
(Main)Blinds and shutters - Resistance to repeated operations (mechanical endurance) - Methods of testing
Blinds and shutters - Resistance to repeated operations (mechanical endurance) - Methods of testing
This European Standard specifies the tests to be carried out to determine the mechanical endurance of products comprising :
- internal blinds,
- external blinds,
- shutters,
according to a defined number of extension/retraction cycles of the curtain and tilting of the laths (for blinds and shutters with tilting laths).
It applies to complete products e.g. those equipped with their hardware and operating mechanisms in normal operating conditions.
Manual override mechanisms for use in case of mechanical breakdown are excluded when they form part of motorized blinds and shutters.
Abschlüsse und Läden - Widerstand gegen wiederholte Bedienungen (mechanische Lebensdauer) - Prüfverfahren
Diese Europäische Norm legt die auszuführenden Prüfungen zur Bestimmung der mechanischen Lebensdauer folgender Produkte fest:
3 Abschlüsse innen;
3 Markisen;
3 Abschlüsse außen.
Hierfür wird eine festgelegte Anzahl von Zyklen durchgeführt, in denen der Behang eingefahren bzw. ausgefahren wird, und das Wenden der Lamellen (bei Abschlüssen mit wendbaren Lamellen) untersucht wird.
Diese Norm gilt für vollständige Produkte, z. B. Produkte, die mit Beschlägen und Bedienungsmechanismen unter normalen Bedienungsbedingungen ausgestattet sind.
Manuelle Notfallmechanismen für den Fall des mechanischen Versagens werden, sofern sie Teil von angetriebenen Abschlüssen sind, ausgeschlossen.
Fermetures pour baies équipées de fenetres, stores intérieurs et stores extérieurs - Résistance aux manoeuvres répétées (endurance mécanique) - Méthodes d'essai
La présente Norme européenne spécifie les essais a réaliser pour déterminer l'endurance mécanique des produits composant :
- les stores intérieurs ;
- les stores extérieurs ;
- les fermetures ;
apres un nombre défini de cycles de repliement/déploiement du tablier et d'orientation des lames (dans le cas des fermetures et des stores a lames orientables).
Elle s'applique aux produits complets c'est-a-dire munis de leur quincaillerie et de leur dispositif de manoeuvre dans les conditions normales de manoeuvre.
Les organes de manoeuvre manuelle de dépannage, lorsqu'ils équipent les fermetures et stores motorisés, ne sont pas visés.
Rolete in polokna - Odpornost proti ponavljajočemu delovanju (mehanske poškodbe) - Metode preskušanja
General Information
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.DQVNHAbschlüsse und Läden - Widerstand gegen wiederholte Bedienungen (mechanische Lebensdauer) - PrüfverfahrenFermetures pour baies équipées de fenetres, stores intérieurs et stores extérieurs
- Résistance aux manoeuvres répétées (endurance mécanique) - Méthodes d'essaiBlinds and shutters - Resistance to repeated operations (mechanical endurance) - Methods of testing91.060.50Vrata in oknaDoors and windowsICS:Ta slovenski standard je istoveten z:EN 14201:2004SIST EN 14201:2004en01-september-2004SIST EN 14201:2004SLOVENSKI
STANDARD
SIST EN 14201:2004
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 14201February 2004ICS 91.060.50English versionBlinds and shutters - Resistance to repeated operations(mechanical endurance) - Methods of testingFermetures pour baies équipées de fenêtres storesintérieurs et stores extérieurs
- Résistance auxmanoeuvres répétées (endurance mécanique) - Méthodesd'essaiAbschlüsse und Läden - Widerstand gegen wiederholteBedienungen (mechanische Lebensdauer) - PrüfverfahrenThis European Standard was approved by CEN on 11 December 2003.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2004 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 14201:2004: ESIST EN 14201:2004

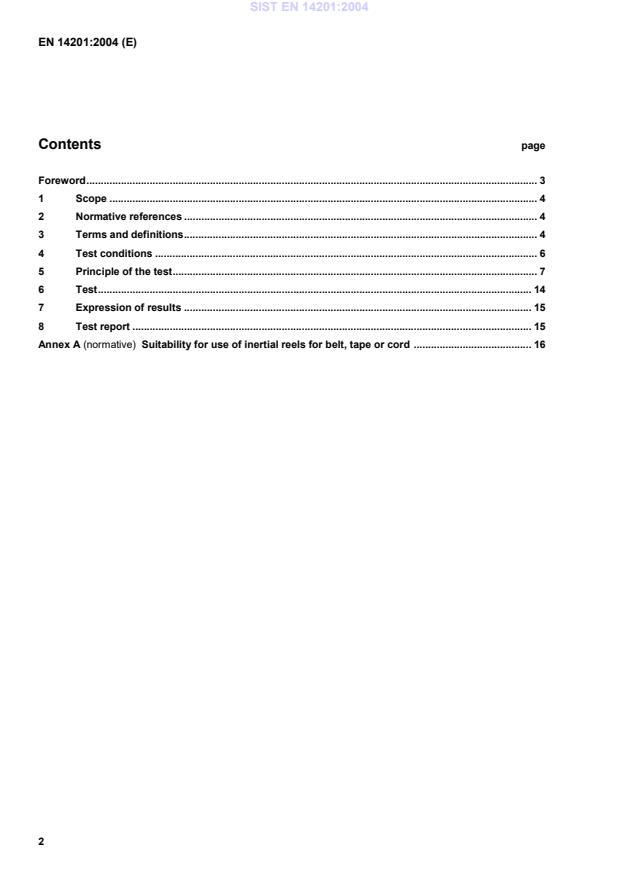

EN 14201:2004 (E)2ContentspageForeword.31Scope.42Normative references.43Terms and definitions.44Test conditions.65Principle of the test.76Test.147Expression of results.158Test report.15Annex A (normative)
Suitability for use of inertial reels for belt, tape or cord .16SIST EN 14201:2004
EN 14201:2004 (E)3ForewordThis document (EN 14201:2004) has been prepared by Technical Committee CEN/TC 33 “Doors, windows,shutters, building hardware and curtain walling”, the secretariat of which is held by AFNOR.This European Standard shall be given the status of a national standard, either by publication of an identicaltext or by endorsement, at the latest by August 2004, and conflicting national standards shall be withdrawn atthe latest by August 2004.It is part of a series of standards dealing with blinds and shutters for buildings as defined in EN 12216.The methods of testing are linked to the performances requirements for internal blinds, external blinds andshutters, as specified in prEN 13120, prEN 13561 and prEN 13659.No existing European Standard is superseded.Annex A is normative.According to the CEN/CENELEC Internal Regulations, the national standards organizations of the followingcountries are bound to implement this European Standard: Austria, Belgium, Cyprus, Czech Republic,Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerlandand United Kingdom.SIST EN 14201:2004
EN 14201:2004 (E)41 ScopeThis European Standard specifies the tests to be carried out to determine the mechanical endurance ofproducts comprising :— internal blinds,— external blinds,— shutters,according to a defined number of extension/retraction cycles of the curtain and tilting of the laths (for blindsand shutters with tilting laths).It applies to complete products e.g. those equipped with their hardware and operating mechanisms in normaloperating conditions.Manual override mechanisms for use in case of mechanical breakdown are excluded when they form part ofmotorized blinds and shutters.2 Normative referencesThis European Standard incorporates by dated or undated reference, provisions from other publications.These normative references are cited at the appropriate places in the text, and the publications are listedhereafter. For dated references, subsequent amendments to or revisions of any of these publications apply tothis European Standard only when incorporated in it by amendment or revision. For undated references, thelatest edition of the publication referred to applies (including amendments).EN 12216:2002, Shutters, external blinds, internal blinds - Terminology, glossary and definitions.prEN 13120:1997, Internal blinds - Performance requirements.EN 13527:1999, Shutters and blinds - Measurement of operating force - Test methods.prEN 13561:1999, External blinds - Performance requirements including safety.prEN 13659:1999, Shutters – Performance requirements including safety.3 Terms and definitionsFor the purposes of this European Standard, the terms and definitions given in EN 12216:2002, prEN13120:1997, prEN 13561:1999, prEN 13659:1999 and the following apply.3.1override operationmanual operation available on power operated shutters and blinds in the case of power failureSIST EN 14201:2004
EN 14201:2004 (E)53.2reference velocityaccording to the product :— speed of the operating mechanism :- speed of rotation in the case of rotation of the operating mechanism, expressed in rpm ;- linear speed in the case of one direction or endless operation of the operating mechanism, expressed inm/min ;- speed of rotation of drive for power operated operation, expressed in rpm .— speed of movement of the closing "edge" of the curtain or the bottom lath or tilting lath in the case of directoperation :- tangential speed of pivoting products (wing shutter, venetian shutter, lever), expressed in m/min ;- linear speed for products extending or retracting in a plane (concertina shutter, flat closing concertinashutter, sliding shutter, panel shutter and awning), expressed in m/min.3.3effect of inertiaeffect obtained with
linear operations of the operating mechanism allowing the curtain by its inertia, tocomplete its travel after stopping the operation before reaching the fully extended or retracted position3.4phase ( retraction / extension)movement of the curtain from a fully extended or retracted position to a fully opposing retracted or extendedposition3.5rest timeperiod of immobilisation between phases and / or cyclesNOTEThe rest time is given in second(s).3.6retraction / extension cycleconsists of a retraction phase, of an extension phase and of the rest times. The operations of locking andunlocking when these are not automatic are excluded from the cycle3.7tilting laths cyclefull cycle of the mechanism for tilting the laths from an extreme position (laths closed) then returning to theextreme position. In the case of operation by monocommand, the tilting lath cycle is included in the cycle ofretraction / extension3.8drivemotor and other components which control the movement of the curtainNOTEExamples of components are gears, controls and brakes.3.9rated torquetorque assigned to the drive by the manufacturer of the driveNOTEThe torque is expressed in Nm.SIST EN 14201:2004
EN 14201:2004 (E)63.10judderingmovement of the curtain in a series of small jerks when the operation is continuous4 Test conditions4.1Definition of test samplesFor testing a range, the samples tested are those specified in tests measuring the operating effort inEN 13527: dimensions of the test sample, exit positions of the operating mechanism.4.2Test preparationThe sample is set up for the test in its operating position, fully equipped, with all necessary operatingmechanisms including handle, guide rails for the curtain, etc., and projection mechanism if exists. This ismounted on the test rig according to the conditions described in 4.2 of EN 13527:1999.Curtains which can be projected (roller shutter, venetian shutter, etc.) are in the projected position with theirprojection mechanisms locked or blocked.If the product cannot be extended or retracted when in the projected position, the manufacturer shall provide awarning.If fitted, non automatic locks or bolts to secure the curtain are left unlocked or left in place when the locking /unlocking is automatic.4.3Test equipment4.3.1GeneralAll parts of the test rig and operating mechanisms shall ensure that the curtain and the slats are operated asthey would be in reality. They complement the operating mechanisms for test purpose, e g hydraulic,pneumatic or electric motors and linear pistons, or all other mechanisms which are compatible with:— the operating speeds and rest periods ;— the mass of the curtain to put into motion ;— the forces of friction incurred ;— the operating force ;— the inertia effect if it occurs in the case of linear operation by the operating mechanism ;— the duration of the test.The equipment for operation may be an automation reproducing human movements.SIST EN 14201:2004
EN 14201:2004 (E)74.3.2Types of operation (reminder)4.3.2.1Operation by rotation of the mechanism— gear with crank handle,— winch with handle (cord, cable belt, chain),— wand or rod (specifically for tilting of the laths in the case of an internal blind).4.3.2.2Operation of the mechanism producing movement in one direction— Open operating mechanism:pull by belt, cord, with or without reel;— Endless operating mechanism:pull by cord or chain;— Direct pull:pull with hand, wand or rod, lever (only in the case of tilting laths in wing shutters).4.3.2.3Power operationThe equipment for operation consists of the drive provided with the product.4.4Measuring equipment— Measuring devices :- to measure force and torque, accurate to ± 3%,- to determine widths, accurate to ± 1 mm,- to measure angles, accurate to ± 2°;— cycles counter.5 Principle of the test5.1.Extension and retraction test5.1.1GeneralCarrying out of the retraction and extension cycles specified for the particular class aimed (or until failureoccurs) departing from the fully extended position with the help of suitable test equipment in the conditionsdescribed in 5.1.2 to 5.1.5 and complying with the reference velocity and rest times at the end of phases givenin 5.3.SIST EN 14201:2004
EN 14201:2004 (E)85.1.2Product operated by direct pull and endless mechanismThe test equipment stops the movement of the curtain when it reaches a position of 20 mm from the end ofthe phase allowing the eventual overcoming of the effect of inertia.When the effect of inertia does not exist (ie. the mass in motion is too weak) the pull stops equa
...
