SIST ETS 300 924 E2:2003

Digital cellular telecommunications system (Phase 2+) (GSM); enhanced Multi-Level Precedence and Pre-emption service (eMLPP); Stage 1 (GSM 02.67 version 5.0.5)

This European Telecommunication Standard (ETS) specifies the stage 1 d escription of the enhanced Multi-Level Precedence and Pre-emption Serv ice (eMLPP). This service has two parts: precedence and pre-emption. P recedence involves assigning a priority level to a call in combination with fast call set-up. Pre-emption involves the seizing of resources, which are in use by a call of a lower precedence, by a higher level p recedence call in the absence of idle resources. Pre-emption can also involve the disconnection of an on-going call of lower precedence to a ccept an incoming call of higher precedence. The eMLPP service is provided as a network operator s option to a doma in of a network. The domain can be the whole network or a subset of th e network. The eMLPP service applies to all network resources in the d omain that is in common use. The eMLPP service is applicable to all mo bile stations in the domain with all or some mobile stations having a respective subscription assigning precedence according to the eMLPP se rvice. eMLPP is a supplementary service and shall be provided to a subscriber for all basic services subscribed to and for which eMLPP applies. NOTE:   It is under study whether normal GSM phase 2 mobile stations wil l be able to be used for this service. The service is described from the service subscriber s and user s poin t of view, in particular: -   the procedure for normal operation with successful outcome;  -   the action to be taken in exceptional circumstances;  -   the interaction with other GSM services and features.  This ETS does not deal with the Man-Machine Interface (MMI) requiremen ts, but makes reference to the appropriate Global System for Mobile co mmunications (GSM) specifications. This ETS is applicable to telese vices 1x and 6x and to all bearer ser vices used in a mobile network according to the digital cellular telec ommunications system GSM if eMLPP is provided. Any interaction with ot her services and/or networks not dealt with in s

Digitalni celični telekomunikacijski sistem (faza 2+) – Izboljšana večnivojska prednostna storitev (eMLPP) – Stopnja 1 (GSM 02.67, različica 5.0.5)

General Information

• Status: Published
• Publication Date: 30-Nov-2003
• ICS: 33.070.50 - Global System for Mobile Communication (GSM)
• Technical Committee: SS EIT - Technical Board for the electrotechnical, information technology and telecommunications fields
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Dec-2003
• Due Date: 01-Dec-2003
• Completion Date: 01-Dec-2003
• Mandate: UIC
• Ref Project: ETSI ETS 300 924 ed.2 (1997-12) - Digital cellular telecommunications system (Phase 2+) (GSM); enhanced Multi-Level Precedence and Pre-emption service (eMLPP); Stage 1 (GSM 02.67 version 5.0.5)

Standards Content (Sample)

SLOVENSKI STANDARD
SIST ETS 300 924 E2:2003
01-december-2003
'LJLWDOQLFHOLþQLWHOHNRPXQLNDFLMVNLVLVWHPID]D±,]EROMãDQDYHþQLYRMVND
SUHGQRVWQDVWRULWHYH0/33±6WRSQMD*60UD]OLþLFD
Digital cellular telecommunications system (Phase 2+) (GSM); enhanced Multi-Level
Precedence and Pre-emption service (eMLPP); Stage 1 (GSM 02.67 version 5.0.5)
Ta slovenski standard je istoveten z: ETS 300 924 Edition 2
ICS:
33.070.50 Globalni sistem za mobilno Global System for Mobile
telekomunikacijo (GSM) Communication (GSM)
SIST ETS 300 924 E2:2003 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST ETS 300 924 E2:2003

---------------------- Page: 2 ----------------------

SIST ETS 300 924 E2:2003
EUROPEAN ETS 300 924
TELECOMMUNICATION December 1997
STANDARD Second Edition
Source: SMG Reference: RE/SMG-010267QR1
ICS: 33.020
Key words: Digital cellular telecommunications system, Global System for Mobile communications (GSM)
R
GLOBAL SYSTEM FOR
MOBILE COMMUNICATIONS
Digital cellular telecommunications system (Phase 2+);
enhanced Multi-Level Precedence and Pre-emption service
(eMLPP) - Stage 1
(GSM 02.67 version 5.0.5)
ETSI
European Telecommunications Standards Institute
ETSI Secretariat
Postal address: F-06921 Sophia Antipolis CEDEX - FRANCE
Office address: 650 Route des Lucioles - Sophia Antipolis - Valbonne - FRANCE
X.400: c=fr, a=atlas, p=etsi, s=secretariat - Internet: [e-mail]
Tel.: [phone] - Fax: [phone]
Copyright Notification: No part may be reproduced except as authorized by written permission. The copyright
and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 1997. All rights reserved.

---------------------- Page: 3 ----------------------

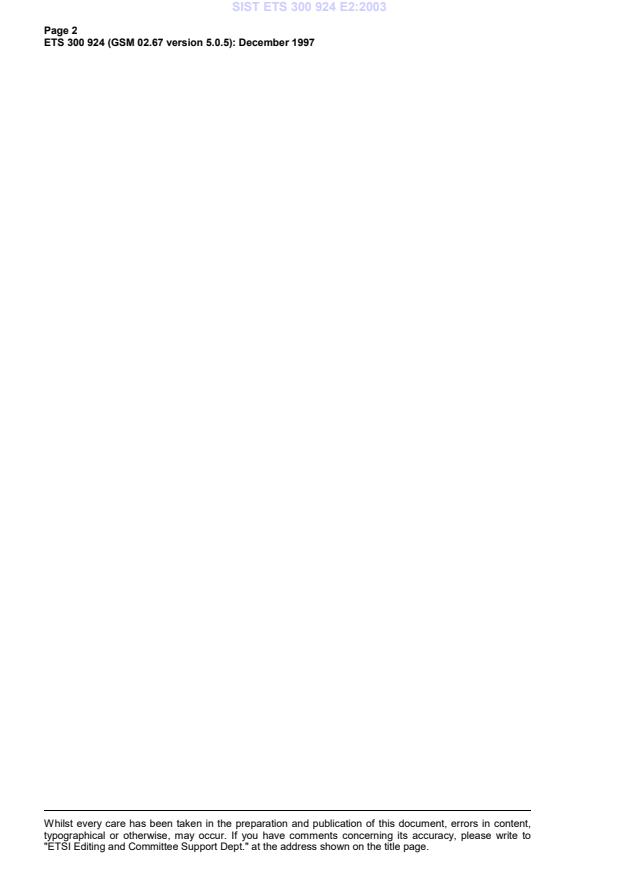

SIST ETS 300 924 E2:2003
Page 2
ETS 300 924 (GSM 02.67 version 5.0.5): December 1997
Whilst every care has been taken in the preparation and publication of this document, errors in content,
typographical or otherwise, may occur. If you have comments concerning its accuracy, please write to
"ETSI Editing and Committee Support Dept." at the address shown on the title page.

---------------------- Page: 4 ----------------------

SIST ETS 300 924 E2:2003
Page 3
ETS 300 924 (GSM 02.67 version 5.0.5): December 1997
Contents
Foreword .5
1 Scope .7
2 Normative references.7
3 Definitions and abbreviations .8
3.1 Definitions .8
3.2 Abbreviations .8
4 Description .9
4.1 Applicability to telecommunication services.11
5 Normal operation with successful outcome.12
5.1 Provision .12
5.2 Withdrawal .12
5.3 Registration.12
5.4 Erasure .12
5.5 Network related service configuration.12
5.6 Activation .12
5.7 Deactivation .12
5.8 Invocation.12
5.9 Normal operation .13
5.10 Interrogation.13
5.11 Charging requirements .13
6 Exceptional procedures or unsuccessful outcome.13
7 Alternate procedures.13
8 Interaction with other supplementary services .14
8.1 Calling Line Identification Presentation (CLIP) .14
8.2 Calling Line Identification Restriction (CLIR) .14
8.3 Connected Line Identification Presentation (COLP) .14
8.4 Connected Line Identification Restriction (COLR) .14
8.5 Call Forwarding Unconditional (CFU) .14
8.6 Call Forwarding on mobile subscriber busy (CFB) .14
8.7 Call Forwarding on No Reply (CFNRy).14
8.8 Call Forwarding on mobile subscriber Not Reachable (CFNRc) .14
8.9 Call Waiting (CW).14
8.10 Call Hold .14
8.11 Multi-party Service (MPTY).14
8.12 Closed User Group (CUG).15
8.13 Advice of Charge (AoC).15
8.14 Barring of Outgoing Calls (BAOC) .15
8.15 Barring of Outgoing International Calls (BOIC).15
8.16 Barring of Outgoing International Calls except those to the Home PLMN country
(BOIC-exHC) .15
8.17 Barring of All Incoming Calls (BAIC).15
8.18 Barring of Incoming Calls when Roaming outside the home PLMN country (BIC-Roam).15
8.19 Call Transfer (ECT).15
9 Interworking considerations.15
Annex A (informative): Status of Technical Specification GSM 02.67 .16
History.17

---------------------- Page: 5 ----------------------

SIST ETS 300 924 E2:2003
Page 4
ETS 300 924 (GSM 02.67 version 5.0.5): December 1997
Blank page

---------------------- Page: 6 ----------------------

SIST ETS 300 924 E2:2003
Page 5
ETS 300 924 (GSM 02.67 version 5.0.5): December 1997
Foreword
This second edition European Telecommunication Standard (ETS) has been produced by the Special
Mobile Group (SMG) of the European Telecommunications Standards Institute (ETSI).
This ETS specifies the stage 1 description of the enhanced Multi-Level Precedence and Pre-emption
Service (eMLPP) within the digital cellular telecommunications system.
Transposition dates
Date of adoption of this ETS: 5 December 1997
Date of latest announcement of this ETS (doa): 31 March 1998
Date of latest publication of new National Standard
or endorsement of this ETS (dop/e): 30 September 1998
Date of withdrawal of any conflicting National Standard (dow): 30 September 1998

---------------------- Page: 7 ----------------------

SIST ETS 300 924 E2:2003
Page 6
ETS 300 924 (GSM 02.67 version 5.0.5): December 1997
Blank page

---------------------- Page: 8 ----------------------

SIST ETS 300 924 E2:2003
Page 7
ETS 300 924 (GSM 02.67 version 5.0.5): December 1997
1 Scope
This European Telecommunication Standard (ETS) specifies the stage 1 description of the enhanced
Multi-Level Precedence and Pre-emption Service (eMLPP). This service has two parts: precedence and
pre-emption. Precedence involves assigning a priority level to a call in combination with fast call set-up.
Pre-emption involves the seizing of resources, which are in use by a call of a lower precedence, by a
higher level precedence call in the absence of idle resources. Pre-emption can also involve the
disconnection of an on-going call of lower precedence to accept an incoming call of higher precedence.
The eMLPP service is provided as a network operator's option to a domain of a network. The domain can
be the whole network or a subset of the network. The eMLPP service applies to all network resources in
the domain that is in common use. The eMLPP service is applicable to all mobile stations in the domain
with all or some mobile stations having a respective subscription assigning precedence according to the
eMLPP service.
eMLPP is a supplementary service and shall be provided to a subscriber for all basic services subscribed
to and for which eMLPP applies.
NOTE: It is under study whether normal GSM Phase 2 Mobile Stations will be able to be used
for this service.
The service is described from the service subscriber's and user's point of view, in particular:
- the procedure for normal operation with successful outcome;
- the action to be taken in exceptional circumstances;
- the interaction with other GSM services and features.
This ETS does not deal with the Man-Machine Interface (MMI) requirements, but makes reference to the
appropriate Global System for Mobile communications (GSM) specifications.
This ETS is applicable to teleservices 1x and 6x and to all bearer services used in a mobile network
according to the digital cellular telecommunications system GSM if eMLPP is provided. Any interaction
with other services and/or networks not dealt with in clauses 8 or 9 are outside the scope of this ETS.
2 Normative references
This ETS incorporates by dated and undated reference, provisions from other publications. These
normative references are cited at the appropriate places in the text and the publications are listed
hereafter. For dated references, subsequent amendments to or revisions of any of these publications
apply to this ETS only when incorporated in it by the amendment or revision. For undated references, the
latest edition of the publication referred to applies.
[1] GSM 01.04 (ETR 350): "Digital cellular telecommunications system (Phase 2+);
Abbreviations and acronyms".
[2] GSM 02.04 (ETS 300 918): "Digital cellular telecommunications system
(Phase 2+); General on supplementary services".
[3] GSM 02.24 (ETS 300 923): "Digital cellular telecommunications system;
Description of Charge Advice Information (CAI)".
[4] GSM 02.40: "Digital cellular telecommunications system; Procedures for call
progress indications".
[5] GSM 02.68 (ETS 300 925): "Digital cellular telecommunications system
(Phase 2+); Voice Group Call Service (VGCS) - Stage 1".
[6] GSM 02.69 (ETS 300 926): "Digital cellular telecommunications system
(Phase 2+); Voice Broadcast Service (VBS) - Stage 1".

---------------------- Page: 9 ----------------------

SIST ETS 300 924 E2:2003
Page 8
ETS 300 924 (GSM 02.67 version 5.0.5): December 1997
[7] GSM 03.05 (ETR 351): "Digital cellular telecommunications system; Technical
performance objectives".
[8] GSM 03.68 (ETS 300 933): "Digital cellular telecommunications system
(Phase 2+); Voice Group Call Service (VGCS) - Stage 2".
[9] GSM 03.69 (ETS 300 934): "Digital cellular telecommunications system
(Phase 2+); Voice Broadcast Service (VBS) - Stage 2".
[10] ITU-T Recommendation I.255.3: "ISDN Multi-Level Precedence and
Pre-emption (MLPP) stage 1".
3 Definitions and abbreviations
3.1 Definitions
For the purposes of this ETS, the following definitions apply:
calling subscriber: Service subscriber which invokes the eMLPP service.
network operator: Entity which provides the network operating elements and resources for the execution
of the enhanced Multi-Level Precedence and Pre-emption service (eMLPP).
precedence: Precedence is the priority associated with a call.
service provider: Entity which offers the eMLPP service for subscription. The network operator may be
the service provider.
service subscriber: Mobile subscriber which subscribes to the eMLPP service. In principle, if a network
provides eMLPP service, all users are able to subscribe to this service.
3.2 Abbreviations
For the purposes of this ETS, the following abbreviations apply, in addition to those listed in GSM 01.04:
eMLPP enhanced Multi-Level Precedence and Pre-emption

---------------------- Page: 10 ----------------------

SIST ETS 300 924 E2:2003
Page 9
ETS 300 924 (GSM 02.67 version 5.0.5): December 1997
4 Description
a) The enhanced Multi-Level Precedence and Pre-emption service (eMLPP) provides different levels
of precedence for call set-up and for call continuity in case of handover.
eMLPP shall be applicable also in case of roaming if supported by the related networks.
The maximum precedence level of a subscriber is set at the subscription time by the service
provider, based on the subscriber's need. The subscriber may select a precedence level up to and
including the maximum precedence level subscribed to, on a per call basis.
There are at maximum 7 priority levels. The two highest levels are reserved for network internal
use, e.g. for emergency calls or the network related service configurations for specific voice
broadcast or voice group call services. These two levels can only be used locally, i.e. in the domain
of one MSC. The other five priority levels are offered for subscription and can be applied globally,
e.g. on inter switch trunks, if supported by all related network elements, and also for interworking
with ISDN networks providing the MLPP service.
The seven priority levels are defined as follows:
A (highest, for network internal use).
B (for network internal use).
0 (for subscription).
1 (for subscription).
2 (for subscription).
3 (for subscription).
4 (lowest, for subscription).
Levels A and B shall be mapped to level 0 for priority treatment outside of the MSC area in which
they are applied.
b) Priorities shall be treated in the network as defined for the following call scenarios:
- Mobile originated calls:
- The priority level depends on the calling subscriber.
- If the user has no eMLPP subscription, the call shall have a default priority level
defined in the network.
- If the user has an eMLPP subscription, the call shall have the priority level selected by
the user at set-up or the priority level predefined by the subscriber as default priority
level by registration.
- Mobile terminated calls:
- The priority level depends on the calling party. For this, interworking with the ISDN
MLPP (Multi-Level Precedence and Pre-emption) service is required.
- If th
...
