Fixed electric double-layer capacitors for use in electronic equipment -- Part 2: Sectional specification - Electric double-layer capacitors for power application

This part of IEC 62391 applies to electric double-layer capacitors for power application. Electric double-layer capacitors for power are intended for applications that require discharge currents in the range from mA to A. The characteristics of the capacitors include such performance as relatively high capacitance and low internal resistance, which is applicable to Class 3 of the measurement classification specified in IEC 62391-1. The definition of power density and its calculating procedure should be in accordance with Annex A.

Elektrische Doppelschichtfestkondensatoren zur Verwendung in Geräten der Elektronik -- Teil 2: Rahmenspezifikation: Elektrische Doppelschichtfestkondensatoren für Leistungsanwendungen

Condensateurs électriques fixes à double couche utilisés dans les équipements électroniques -- Partie 2: Spécification intermédiaire - Condensateurs électriques fixes à double couche pour application de puissance

La CEI 62391-2:2006 s'applique aux condensateurs électriques à double couche pour les applications de puissance. Les condensateurs électriques double couche pour application de puissance sont destinés aux applications qui nécessitent des courants de décharge dans la gamme des milliampères aux ampères. Les caractéristiques des condensateurs incluent des performances comme une capacité relativement élevée et une faible résistance interne, ce qui est applicable à la classe 3 de la classification des mesures spécifiée dans la CEI 62391-1. La présente norme a pour objet de prescrire les valeurs assignées et caractéristiques préférentielles, de sélectionner, en se référant à la norme CEI 62391-1, les procédures d'assurance de la qualité appropriées, les essais et les méthodes de mesure et de donner les exigences de performances générales pour ce type de condensateur. Les sévérités et les exigences d'essai prescrites dans les spécifications particulières se rapportant à cette spécification intermédiaire doivent présenter des niveaux de performances supérieurs ou égaux, parce que les niveaux de performance inférieurs ne sont pas autorisés.

Fiksni električni dvoplastni kondenzatorji za elektronsko opremo – 2. del: Področna specifikacija – Električni dvoplastni kondenzatorji za elektroenergetske aplikacije (IEC 62391-2:2006)

General Information

Status
Published
Publication Date
30-Sep-2006
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
01-Oct-2006
Due Date
01-Oct-2006
Completion Date
01-Oct-2006

Buy Standard

Standard
SIST EN 62391-2:2006
English language
26 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

SIST EN 62391-2:2006SLOVENSKIoct 2006

STANDARDFiksni električni dvoplastni kondenzatorji za elektronsko opremo – 2. del: Področna specifikacija – Električni dvoplastni kondenzatorji za elektroenergetske aplikacije (IEC 62391-2:2006)Fixed electric double-layer capacitors for use in electronic equipment – Part 2: Sectional specification – Electric double-layer capacitors for power application (IEC 62391-2:2006)©

Standard je založil in izdal Slovenski inštitut za standardizacijo. Razmnoževanje ali kopiranje celote ali delov tega dokumenta ni dovoljenoReferenčna številkaSIST EN 62391-2:2006(en)ICS31.060.10

EUROPEAN STANDARD EN 62391-2 NORME EUROPÉENNE
EUROPÄISCHE NORM June 2006

CENELEC European Committee for Electrotechnical Standardization Comité Européen de Normalisation Electrotechnique Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels
© 2006 CENELEC -

All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.

Ref. No. EN 62391-2:2006 E
ICS 31.060.10
English version
Fixed electric double-layer capacitors
for use in electronic equipment Part 2: Sectional specification -
Electric double-layer capacitors
for power application (IEC 62391-2:2006)
Condensateurs électriques fixes
à double couche utilisés dans

les équipements électroniques Partie 2: Spécification intermédiaire -Condensateurs électriques fixes à double couche pour application de puissance

(CEI 62391-2:2006)

Elektrische Doppelschichtfestkondensatoren zur Verwendung in Geräten der Elektronik Teil 2: Rahmenspezifikation:

Elektrische Doppelschichtfestkondensatoren für Leistungsanwendungen (IEC 62391-2:2006)

This European Standard was approved by CENELEC on 2006-05-01. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Cyprus, the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and the United Kingdom.

EN 62391-2:2006
- 2 -

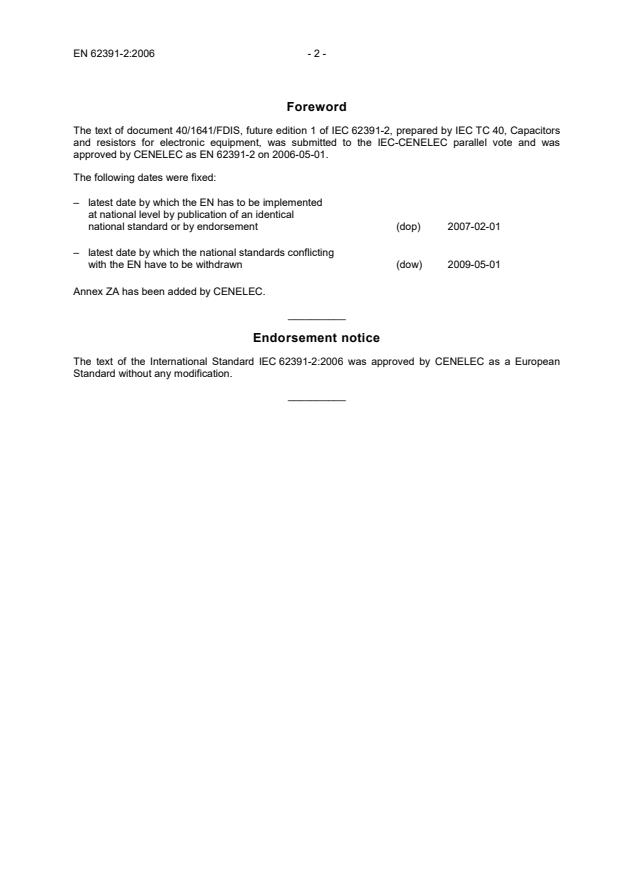

Foreword The text of document 40/1641/FDIS, future edition 1 of IEC 62391-2, prepared by IEC TC 40, Capacitors and resistors for electronic equipment, was submitted to the IEC-CENELEC parallel vote and was approved by CENELEC as EN 62391-2 on 2006-05-01. The following dates were fixed: – latest date by which the EN has to be implemented

at national level by publication of an identical
national standard or by endorsement
(dop)
2007-02-01 – latest date by which the national standards conflicting
with the EN have to be withdrawn
(dow)

2009-05-01 Annex ZA has been added by CENELEC. __________ Endorsement notice The text of the International Standard IEC 62391-2:2006 was approved by CENELEC as a European Standard without any modification. __________

- 3 - EN 62391-2:2006
Annex ZA
(normative)

Normative references to international publications with their corresponding European publications

The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.

NOTE

When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD applies.

Publication Year Title EN/HD Year
IEC 60063 -1) Preferred number series for resistors and capacitors - -
IEC 60068-1 + corr. October
-1) Environmental testing -
Part 1: General and guidance EN 60068-1 19942)
IEC 60384-1 (mod) -1) Fixed capacitors for use in electronic equipment -
Part 1: Generic specification EN 60384-1 + corr. October
20012)2001
IEC 60410 -1) Sampling plans and procedures for inspection by attributes - -

IEC 62391-1 -1) Fixed electric double-layer capacitors for use in electronic equipment -

Part 1: Generic specification EN 62391-1 20062)

IEC 62391-2-1 -1) Fixed electric double-layer capacitors for use in electronic equipment -

Part 2-1: Blank detail specification - Electric-double layer capacitors for power application - Assessment level EZ EN 62391-2-1 20062)

ISO 3 -1) Preferred numbers - Series of preferred numbers - -
1) Undated reference. 2) Valid edition at date of issue.

INTERNATIONAL STANDARD IEC62391-2 First edition2006-04 Fixed electric double-layer capacitors for use in electronic equipment – Part 2: Sectional specification – Electric double-layer capacitors for power application

 IEC 2006

Copyright - all rights reserved No part of this publication may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from the publisher. International Electrotechnical Commission,

3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, SwitzerlandTelephone: +41 22 919 02 11 Telefax: +41 22 919 03 00 E-mail: inmail@iec.ch

Web: www.iec.ch T For price, see current cataloguePRICE CODE

Commission Electrotechnique InternationaleInternational Electrotechnical Commission

– 2 – 62391-2  IEC:2006(E) CONTENTS FOREWORD...........................................................................................................................3

1 General............................................................................................................................5 1.1 Scope......................................................................................................................5 1.2 Object.....................................................................................................................5 1.3 Normative references..............................................................................................5 1.4 Information to be given in a detail specification.......................................................6 1.5 Terminology............................................................................................................7 1.6 Marking...................................................................................................................7 2 Preferred rating and characteristics..................................................................................8 2.1 Preferred characteristics.........................................................................................8 2.2 Preferred values of ratings......................................................................................8 3 Quality assessment procedures........................................................................................9 3.1 Primary stage of manufacture..................................................................................9 3.2 Structurally similar components...............................................................................9 3.3 Declaration of conformity (basic requirements)........................................................9 3.4 Test schedule and requirement for initial assessment (mandatory and optional tests).........................................................................................................9 3.5 Quality conformance inspection.............................................................................14 4 Test and measurement procedures.................................................................................16 4.1 Preliminary drying.................................................................................................16 4.2 Measuring conditions............................................................................................16 4.3 Visual examination and check of dimensions.........................................................16 4.4 Electrical tests.......................................................................................................16 4.5 Robustness of terminations...................................................................................17 4.6 Resistance to soldering heat.................................................................................17 4.7 Solderability..........................................................................................................18 4.8 Rapid change of temperature................................................................................18 4.9 Vibration................................................................................................................18 4.10 Endurance.............................................................................................................19 4.11 Self-discharge.......................................................................................................19 4.12 Storage at high temperature..................................................................................20 4.13 Characteristics at high and low temperature..........................................................20 4.14 Damp heat, steady state........................................................................................20 4.15 Passive flammability (if applicable)........................................................................20 4.16 Pressure relief (if applicable).................................................................................21

Annex A (informative)

Calculation procedure for power density............................................22

Figure A.1 – Voltage characteristics between capacitor terminals.........................................23

Table 1 – Fixed sample size test plan for qualification approval............................................11 Table 2 – Tests schedule for qualification approval...............................................................12 Table 3a – Lot-by-lot inspection............................................................................................15 Table 3b – Periodic test........................................................................................................15

62391-2  IEC:2006(E) – 3 – INTERNATIONAL ELECTROTECHNICAL COMMISSION ____________

FIXED ELECTRIC DOUBLE-LAYER CAPACITORS
FOR USE IN ELECTRONIC EQUIPMENT –

Part 2: Sectional specification – Electric double-layer capacitors for power application

FOREWORD 1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with may participate in this preparatory work. International, governmental and non-governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for Standardization (ISO) in accordance with conditions determined by agreement between the two organizations. 2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international consensus of opinion on the relevant subjects since each technical committee has representation from all interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any misinterpretation by any end user. 4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications transparently to the maximum extent possible in their national and regional publications. Any divergence between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter. 5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any equipment declared to be in conformity with an IEC Publication. 6) All users should ensure that they have the latest edition of this publication. 7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and members of its technical committees and IEC National Committees for any personal injury, property damage or other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is indispensable for the correct application of this publication. 9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent rights. IEC shall not be held responsible for identifying any or all such patent rights. International Standard IEC 62391-2 has been prepared by IEC technical committee 40: Capacitors and resistors for electronic equipment. The text of this standard is based on the following documents: FDIS Report on voting 40/1641/FDIS 40/1713/RVD

Full information on the voting for the approval of this standard can be found in the report on voting indicated in the above table. This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

– 4 – 62391-2  IEC:2006(E) IEC 62391 consists of the following parts, under the general title Fixed electric double-layer capacitors for use in electronic equipment: Part 1: Generic specification Part 2: Sectional specification – Electric double-layer capacitors for power application The sectional specification mentioned above does have a blank detail specification being a supplementary document, containing requirements for style, layout and minimum content of detail specifications. The committee has decided that the contents of this publication will remain unchanged until the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in the data related to the specific publication. At this date, the publication will be

• reconfirmed; • withdrawn; • replaced by a revised edition, or • amended.
A bilingual version of this standard may be issued at a later date.

62391-2  IEC:2006(E) – 5 – FIXED ELECTRIC DOUBLE-LAYER CAPACITORS FOR USE IN ELECTRONIC EQUIPMENT –

Part 2: Sectional specification – Electric double-layer capacitors for power application

1 General 1.1 Scope This part of IEC 62391 applies to electric double-layer capacitors for power application. Electric double-layer capacitors for power are intended for applications that require discharge currents in the range from mA to A. The characteristics of the capacitors include such performance as relatively high capacitance and low internal resistance, which is applicable to Class 3 of the measurement classification specified in IEC 62391-1. The definition of power density and its calculating procedure should be in accordance with Annex A. 1.2 Object The object of this standard is to prescribe preferred ratings and characteristics and to select from IEC 62391-1 the appropriate quality assessment procedures, tests and measuring methods and to give general performance requirements for this type of capacitor. Test severities and requirements prescribed in detail specifications referring to this sectional specification shall be of equal or higher performance level; lower performance levels are not permitted. 1.3 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. IEC 60063, Preferred number series for resistors and capacitors IEC 60068-1, Environmental testing – Part 1: General and guidance IEC 60384-1, Fixed capacitors for use in electronic equipment – Part 1: Generic specification IEC 60410, Sampling plans and procedures for inspection by attributes IEC 62391-1, Fixed electric double-layer capacitors for use in electronic equipment – Part 1: Generic specification 1

IEC 62391-2-1, Fixed electric double-layer capacitors for use in electronic equipment – Part 2-1: Electric double-layer capacitors for power application – Assessment level EZ

ISO 3, Preferred numbers – Series of preferred numbers

– 6 – 62391-2  IEC:2006(E) 1.4 Information to be given in a detail specification Detail specifications shall be derived from the relevant blank detail specification. Detail specifications shall not specify requirements inferior to those of the generic, sectional or blank detail specification. When more severe requirements are included, they shall be listed in 1.9 of the detail specification and indicated in the test schedules, for example by an asterisk. NOTE The information given in 1.4.1 may, for convenience, be presented in tabular form. The following information shall be given in each detail specification and the values quoted shall preferably be selected from those given in the appropriate clause of this sectional specification. 1.4.1 Outline drawing and dimensions There shall be an illustration of the surface mount capacitors as an aid to easy recognition and for comparison of the surface mount capacitors with others. Dimensions and their associated tolerances, which affect interchangeability and mounting, shall be given in the detail specification. All dimensions shall preferably be stated in millimetres; however, when the original dimensions are given in inches, the converted metric dimensions in millimetres shall be added. Normally, numerical values shall be given for the length of the body, the width and height of the body and wire spacing, or, for cylindrical types, the body diameter and length, and the length and diameter of the terminations. When necessary, for example, when a number of case sizes are covered by a detail specification, the dimensions and their associated tolerances shall be placed in a table below the drawing. When the configuration is other than described above, the detail specification shall state such dimensional information as will adequately describe the capacitor. When the capacitor is not designed for use on printed boards, this shall be clearly stated in the detail specification.

1.4.2 Mounting The detail specification shall specify the method of mounting to be applied for normal use and for the application of the vibration and the bump or shock test. The capacitors shall be mounted by their normal means. The design of the capacitor may be such that special mounting fixtures are required for its use. In this case, the detail specification shall describe the mounting fixtures and they shall be used in the application of the vibration and bump or shock tests.

1.4.3 Rating and characteristics The ratings and characteristics shall be in accordance with the relevant clauses of this specification, together with the following. 1.4.3.1 Rated capacitance range See 2.2.1. NOTE When products approved to the detail specification have different ranges, the following statement should be added: “The range of capacitance values available in each voltage range is given in IEC QC 001005.”

62391-2  IEC:2006(E) – 7 – 1.4.3.2 Particular characteristics Additional characteristics may be listed, when they are considered necessary to specify adequately the component for design and application purposes. 1.4.3.3 Soldering The detail specification shall prescribe the test methods, severities and requirements applicable to the solderability and the resistance to soldering heat tests. 1.4.4 Marking The detail specification shall specify the content of the marking on the capacitor and on the package. Deviations from 1.6 of this sectional specification shall be specifically stated. 1.5 Terminology For the purposes of this document, the terms and definitions of IEC 62391-1, together with the following, apply. 1.5.1 surface mount capacitor capacitor whose small dimensions and nature or shape of terminations make it suitable for surface mounting

1.5.2 electric double layer capacitors for power application capacitors intended for the applications that require discharge currents in the range from mA to A

NOTE The characteristics of the capacitors include such performance as relatively high capacitance and low internal resistance, which is applicable to Class 3 of the measurement classification specified in IEC 62391-1. 1.6 Marking IEC 62391-1, 2.4, applies with the following details. 1.6.1 The information given in the marking is normally selected from the following list; the relative importance of each item is indicated by its position in the list: a) polarity of the terminations (unless identified by the construction); b) rated capacitance;

c) rated voltage (d.c. voltage may be indicated by the symbol

); d) style (in accordance with 1.1); e) year and month (or week) of manufacture; f) manufacturer’s name or trade mark; g) manufacturer’s type designation; h) classification of processing lead terminals (if applicable). 1.6.2 Capacitors shall bear a), b) and c) in 1.6.1, and as many of the rest of the items as possible which should be as legible as possible. Indication of marked items on a capacitor shall not overlap. 1.6.3 Any marking shall be legible and not easily smeared or removed by rubbing with the finger.

– 8 – 62391-2  IEC:2006(E) 1.6.4 The package containing the capacitor(s) shall be clearly marked with all the information listed in 1.6.1, except polarity, unless this is applicable to the method of packaging. 1.6.5 Any additional marking shall be so applied that no confusion can arise. 2 Preferred rating and characteristics 2.1

Preferred characteristics The values given in the detail specification shall preferably be selected from the following: 2.1.1 Preferred climatic categories The surface mount capacitors covered by this specification are classified into climatic categories according to the general rules given in IEC 60068-1. The lower and upper category temperatures and the duration of the damp-heat, steady-state test shall be chosen from the following. Lower category temperature:

−25 °C (−40 °C) Upper category temperature:
+60 °C and +70 °C Duration of the damp-heat, steady-state test:

10 days The severities for the cold and dry heat tests are the lower and upper category temperatures respectively. NOTE The damp-heat steady-state test conditions here should be at a temperature of 40 °C, and the relative humidity should be between 90 % and 95 %. 2.2 Preferred values of ratings 2.2.1 Rated capacitance (CR) The rated capacitance shall be expressed in farads (F) and as agreed between the sending and receiving parties. Preferred values of rated capacitance are the values from the E24 series of IEC 60063 and their decimal multiples. 2.2.2 Tolerance on rated capacitance The preferred values of tolerance on rated capacitance are: ±20 % and −20 %/+80 %. 2.2.3 Rated voltage (UR) The rated voltage shall be as agreed between the sending and receiving parties. The preferred values of the rated direct voltages are taken from the R20 series of ISO 3 and their decimal multiples. 2.2.4 Rated temperature The value of the rated temperature is 60 °C or 70 °C.

62391-2  IEC:2006(E) – 9 – 2.2.5 Internal resistance The internal resistance shall be as agreed between the sending and receiving parties.

The internal resistance shall be measured with the d.c. resistance method. However, if a coefficient can be obtained from both d.c. and a.c. resistance methods, the a.c. resistance method may be used for measurement. 3 Quality assessment procedures 3.1 Primary stage of manufacture The primary stage of manufacture is the inspection process for activated carbon electrodes, provided that the activated carbon electrodes include the condition where the collector has been bonded in advance. 3.2 Structurally similar components Capacitors considered as being structurally similar are capacitors produced with similar processes and materials, though they may be of different case sizes and values. 3.3 Declaration of conformity (basic requirements) 3.4 Test schedule and requirement for initial assessment (mandatory and optional tests) The procedures for qualification approval testing are given in IEC 60384-1, 3.5. The schedule to be used for qualification approval testing on the basis of lot-by-lot and periodic tests is given in 3.5 of this specification. The procedure using a fixed sample size schedule is given in 3.4.1 and 3.4.2. 3.4.1 Qualification approval on the basis of the fixed sample size procedures

The fixed sample size procedure is described in IEC 60384-1, 3.5.3b). The sample shall be representative of the range of capacitors for which approval is sought. This may or may not be the complete range covered by the detail specification. For each temperature characteristic, the sample shall consist of specimens of capacitors of maximum and minimum size and, for each of these sizes, the maximum capacitance value for the highest rated voltage and the minimum rated voltage of the voltage ranges for which approval is sought. When there are more than four rated voltages, an intermediate voltage shall also be tested.

The numbers given in Group 0 assume that all groups are applicable. If this is not so, the numbers may be reduced accordingly.

When additional groups are introduced into the qualification approval test schedule, the number of specimens required for Group 0 shall be increased by the same number as that required for the additional groups. Table 1 gives the number of samples to be tested in each group or subgroup together with the number of permissible non-conformances for the qualification approval test.

– 10 – 62391-2  IEC:2006(E) 3.4.2 Tests The complete series of tests specified in Tables 1 and 2 is required for the approval of capacitors covered by one detail specification. The tests of each group shall be carried out in the order given. The whole sample shall be subjected to the tests of Group 0 and then divided for the other groups. Non-conforming specimens (Table 1) found during the tests of Group 0 shall not be used for the other groups. “One non-conforming item” is counted when a capacitor has not satisfied the whole or a part of the tests of a group.

Approval is granted when the number of nonconforming items does not exceed the specified number of permissible non-conforming items for each group or subgroup and the total number of permissible non-conforming items. NOTE Tables 1 and 2 together form the fixed sample size test schedule. Table 1 includes the details for the

sampling and permissible non-conforming items for the different tests or groups of tests. Table 2, together with the details of the test contained in Clause 4, gives a complete summary of test conditions and performance requirements and indicates where, for example for the test method or conditions of test, a choice has to be made in the detail specification. The conditions of test and performance requirements for the fixed sample size test schedule should be identical to those prescribed in the detail specification for quality conformance inspection.

62391-2  IEC:2006(E) – 11 – Table 1 – Fixed sample size test plan for qualification approval

Assessment level EZ Group No. Test Subclause of this publication Number of specimens

Permissible number of

non-conforming items c 0b Visual examination Dimensions Leakage current Capacitance Internal resistance Spare specimens

4.3
4.3
4.4.1
4.4.2
4.4.3 56
2 0 c) 1A Robustness of terminations Resistance to soldering heat
4.5
4.6 8
1B Solderability Rapid change of temperature Vibration
4.7
4.8
4.9 8 0 2 Endurance
4.10 16 0 3A
Self-discharge Storage at high temperature
4.11
4.12 8
0 3B Damp heat, steady state
4.14 8 0 4 Characteristics at high and low temperature

4.13 8 0 4A Passive flammability (if applicable) 4.15 4 0 4B Pressure relief (if applicable) 4.16 4 0 a For case size/voltage combinations, see 3.4.1. b The values of these measurements serve as initial measurements for the tests of Subgroup 0. c Specimens found to be nonconforming shall not be taken into account when calculating the permissible non-conforming items for the following tests. They shall be replaced by spare parts.

– 12 – 62391-2  IEC:2006(E) Table 2 – Tests schedule for qualification approval Subclause number and testa

D or ND b Conditions of testa
n and cb
Performance
requirementsa
Group 0
4.3
Visual examination
As in 4.3.2 Legible marking and as specified in the detail specification 4.4
Dimension (detail)
See the detail specification 4.4.1
Leakage current Protective resistor: …. Ω As in 4.4.1.2 4.4.2
Capacitance Per Class 3
As in 4.4.2.2 4.4.3
Internal resistance ND D.C. resistance d): per Class 3
See
Table 1 As in 4.4.3.2 Group 1A D
4.5 Robustness of
term
...
