SIST EN 300 949 V8.0.1:2003

Digital cellular telecommunications system (Phase 2+) (GSM); Broadcast Call Control (BCC) protocol (GSM 04.69 version 8.0.1 Release 1998)

Upgrade to Release 1999

Digitalni celični telekomunikacijski sistem (faza 2+) – Protokol krmiljenja radiodifuzijskega klica (BCC) (GSM 04.69, različica 8.0.1, izdaja 1999)

General Information

• Status: Published
• Publication Date: 30-Nov-2003
• ICS: 33.070.50 - Global System for Mobile Communication (GSM)
• Technical Committee: SS EIT - Technical Board for the electrotechnical, information technology and telecommunications fields
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Dec-2003
• Due Date: 01-Dec-2003
• Completion Date: 01-Dec-2003
• Mandate: UIC
• Ref Project: ETSI EN 300 949 V8.0.1 (2000-08) - Digital cellular telecommunications system (Phase 2+) (GSM); Broadcast Call Control (BCC) protocol (GSM 04.69 version 8.0.1 Release 1998)

Standards Content (Sample)

SLOVENSKI STANDARD
01-december-2003
'LJLWDOQLFHOLþQLWHOHNRPXQLNDFLMVNLVLVWHPID]D±3URWRNRONUPLOMHQMD
UDGLRGLIX]LMVNHJDNOLFD%&&*60UD]OLþLFDL]GDMD
Digital cellular telecommunications system (Phase 2+) (GSM); Broadcast Call Control
(BCC) protocol (GSM 04.69 version 8.0.1 Release 1998)
Ta slovenski standard je istoveten z: EN 300 949 Version 8.0.1
ICS:
33.070.50 Globalni sistem za mobilno Global System for Mobile
telekomunikacijo (GSM) Communication (GSM)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

European Standard (Telecommunications series)
Digital cellular telecommunications system (Phase 2+);
Broadcast Call Control (BCC) protocol
(GSM 04.69 version 8.0.1 Release 1999)
R
GLOBAL SYSTEM FOR
MOBILE COMMUNICATIONS

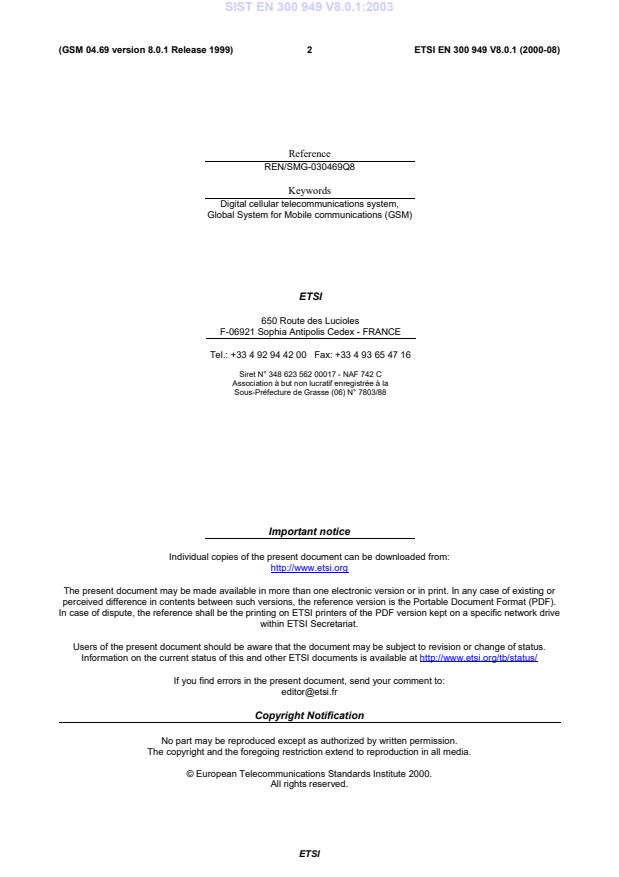

2 ETSI EN 300 949 V8.0.1 (2000-08)
(GSM 04.69 version 8.0.1 Release 1999)
Reference
REN/SMG-030469Q8
Keywords
Digital cellular telecommunications system,
Global System for Mobile communications (GSM)
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.:[phone] Fax:[phone]
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at http://www.etsi.org/tb/status/
If you find errors in the present document, send your comment to:
[e-mail]
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2000.
All rights reserved.
ETSI
3 ETSI EN 300 949 V8.0.1 (2000-08)
(GSM 04.69 version 8.0.1 Release 1999)
Contents
Intellectual Property Rights.5
Foreword.5
1 Scope .6
2 References .6
3 Definitions and abbreviations.6
3.1 Definitions.6
3.2 Abbreviations .7
4 Applicability.7
5 Main concepts .7
6 Elementary procedures for Broadcast Call Control.8
6.1 Overview .8
6.1.1 General.8
6.1.2 Broadcast call control states.8
6.1.2.1 Broadcast call control states at the MS side of the interface .8
6.1.2.1.1 Attributes and Parameters of BCC in the MS.8
6.1.2.1.2 NULL (U0).9
6.1.2.1.3 MM CONNECTION PENDING (U0.p) .9
6.1.2.1.4 BROADCAST CALL INITIATED (U1) .9
6.1.2.1.5 BROADCAST CALL ACTIVE (U2) .9
6.1.2.1.6 BROADCAST CALL PRESENT (U3).9
6.1.2.1.7 BROADCAST CALL CONNECTION REQUESTED (U4).9
6.1.2.1.8 TERMINATION REQUESTED (U5).9
6.1.2.1.9 RECEIVE MODE ACTIVE (U6) .10
6.1.2.1.10 BCC TIMERS IN THE MS.10
6.1.2.1.11 CONSISTENCY OF PARAMETERS AND STATES .10
6.1.2.2 BROADCAST CALL CONTROL STATES AT THE NETWORK SIDE OF THE INTERFACE.10
6.1.2.2.1 NULL (State N0).10
6.1.2.2.2 BROADCAST CALL INITIATED (N1) .11
6.1.2.2.3 BROADCAST CALL ACTIVE (N2) .11
6.1.2.2.4 BROADCAST CALL ESTABLISHMENT PROCEEDING (N3) .11
6.1.2.2.5 TERMINATION REQUESTED (N4).11
6.2 Procedures for establishment of a broadcast call.11
6.2.1 Activation of a broadcast call by the network.11
6.2.2 Mobile originated establishment.11
6.2.2.1 Termination during mobile originated establishment.12
6.2.2.2 Abnormal cases .12
6.2.3 Mobile terminating broadcast call establishment in the MS .12
6.3 Procedures during the active state and receive mode active state of a broadcast call .13
6.3.1 Mobile station procedures in the active state .13
6.3.2 Network procedures in the active state .13
6.3.3 Mobile station procedures in the RECEIVE MODE ACTIVE state.13
6.4 Procedures for release, abortion, and termination of a broadcast call .13
6.4.1 Termination procedure.13
6.4.2 Abort and release procedures.14
6.5 Miscellaneous procedures .14
6.5.1 Status procedures .14
6.5.1.1 Get status procedure.14
6.5.1.2 Set parameter procedure.14
7 Handling of unknown, unforeseen, and erroneous protocol data.15
7.1 General .15
7.2 Message too short.15
7.3 Unknown or unforeseen transaction identifier .15
ETSI
4 ETSI EN 300 949 V8.0.1 (2000-08)
(GSM 04.69 version 8.0.1 Release 1999)
7.4 Unknown or unforeseen message type .15
7.5 Non-semantical mandatory information element errors .16
7.6 Unknown and unforeseen information elements in the non-imperative message part .16
7.6.1 Information elements unknown in the message .16
7.6.2 Out of sequence information elements.16
7.6.3 Repeated Information elements .16
7.7 Non-imperative message part errors.16
7.7.1 Syntactically incorrect optional Information elements .16
7.8 Messages with semantically incorrect contents.17
8 Message functional definitions and contents.17
8.1 CONNECT.18
8.2 GET STATUS.18
8.2.1 mobile identity .18
8.3 IMMEDIATE SETUP.19
8.3.1 Mobile identity.19
8.4 SET PARAMETER.19
8.5 SETUP.20
8.6 STATUS.20
8.6.1 Call state .20
8.6.2 State attributes .21
8.7 TERMINATION .21
8.8 TERMINATION REJECT .21
8.9 TERMINATION REQUEST .22
9 Contents of information elements value parts.22
9.1 Protocol Discriminator .22
9.2 Transaction identifier .22
9.3 Message Type.22
9.4 Other information elements.23
9.4.1 Call Reference .23
9.4.2 Call state .23
9.4.3 Cause .24
9.4.4 Originator indication.25
9.4.5 Spare Half Octet .26
9.4.6 State attributes .26
Annex A (Informative): Change Request History.27
History .28
ETSI
5 ETSI EN 300 949 V8.0.1 (2000-08)
(GSM 04.69 version 8.0.1 Release 1999)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://www.etsi.org/ipr).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This European Standard (Telecommunications series) has been produced by ETSI Technical Committee Special Mobile
Group (SMG).
The present document specifies the Broadcast Call Control (BCC) protocol within the digital cellular
telecommunications system (Phase 2+).
The contents of the present document is subject to continuing work within SMG and may change following formal
SMG approval. Should SMG modify the contents of the present document it will be re-released with an identifying
change of release date and an increase in version number as follows:
Version 8.x.y
where:
8 indicates Release 1999 of GSM Phase 2+.
x the second digit is incremented for all changes of substance, i.e. technical enhancements, corrections,
updates, etc.
y the third digit is incremented when editorial only changes have been incorporated in the specification.
National transposition dates
Date of adoption of this EN: 14 July 2000
Date of latest announcement of this EN (doa): 31 October 2000
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 30 April 2001
Date of withdrawal of any conflicting National Standard (dow): 30 April 2001
ETSI
6 ETSI EN 300 949 V8.0.1 (2000-08)
(GSM 04.69 version 8.0.1 Release 1999)
1 Scope
The present document specifies the Broadcast Call Control (BCC) protocol used by the Voice Broadcast Call Service
(VBCS) on the radio interface.
2 References
The following documents contain provisions which, through reference in this text, constitute provisions of the present
document.
• References are either specific (identified by date of publication, edition number, version number, etc.) or
non-specific.
• For a specific reference, subsequent revisions do not apply.
• For a non-specific reference, the latest version applies.
• A non-specific reference to an ETS shall also be taken to refer to later versions published as an EN with the same
number.
• For this Release 1999 document, references to GSM documents are for Release 1999 versions (version 8.x.y).
[1] GSM 01.04: "Digital cellular telecommunications system (Phase 2+); Abbreviations and
acronyms".
[2] GSM 02.69): "Digital cellular telecommunications system (Phase 2+); Voice Broadcast Call
Service (VBCS) stage 1".
[3] GSM 03.03: "Digital cellular telecommunications system (Phase 2+); Numbering, addressing and
identification".
[4] GSM 03.67: "Digital cellular telecommunications system (Phase 2+); enhanced Multi-Level
Precedence and Pre-emption service (eMLPP) - Stage 2".
[5] GSM 03.69: "Digital cellular telecommunications system (Phase 2+); Voice Broadcast Call
Service (VBCS) stage 2".
[6] GSM 04.06: "Digital cellular telecommunications system (Phase 2+); Mobile Station - Base
Station System (MS - BSS) interface Data Link (DL) layer specification".
[7] GSM 04.07: "Digital cellular telecommunications system (Phase 2+); Mobile radio interface
signalling layer 3 General aspects".
[8] GSM 04.08: "Digital cellular telecommunications system (Phase 2+); Mobile radio interface
layer 3 specification".
3 Definitions and abbreviations
3.1 Definitions
Definitions used in the present document are also defined in GSM 02.69.
For the purposes of the present document, the following terms and definitions apply:
Attachment of the user connection: see GSM 04.08, subclause 5.2.
Broadcast call channel: downlink channel to be allocated in each cell of the group call area for a particular broadcast
call. All MSs of the listening service subscribers in one cell shall listen to the common downlink.
ETSI
7 ETSI EN 300 949 V8.0.1 (2000-08)
(GSM 04.69 version 8.0.1 Release 1999)
Broadcast call: is used in the same sense as "voice broadcast call".
Calling user: BCC entity in the Mobile Station (MS) initiating or having initiated a broadcast call.
Clearing the context related to the broadcast call establishment: all running BCC timers in the relevant BCC entity
are stopped, all attributes in the relevant BCC entity are deleted.
Downlink: network to MS direction.
Group receive mode: see GSM 04.08.
Originating mobile station: MS initiating or having initiated the broadcast call.
Uplink: Mobile station to network direction.
3.2 Abbreviations
Abbreviations used in the present document are also listed in GSM 01.04.
For the purposes of the present document, the following abbreviation applies:
BCC Broadcast Call Control
4 Applicability
Support of the broadcast call protocol is optional in the MS and in the network.
5 Main concepts
The present document describes the broadcast call control (BCC) protocol, which is one of the protocols of the
Connection Management (CM) sublayer (see GSM 04.07).
There is in general more than one MS engaged in a broadcast call. Consequently, there is in general more than one MS
with a BCC entity engaged in the same broadcast call, and there is one BCC entity in the network engaged in that
broadcast call.
Under which conditions a BCC message is passed from lower (sub-)layers to the BCC entity is defined in the
specifications of the sub-layers.
The MS shall ignore BCC messages that it receives which were sent in unacknowledged mode and which explicitly
specify as destination a mobile identity which is not a mobile identity of the MS.
Higher layers and the MM sub-layer decide when to accept parallel BCC transactions and when/whether to accept BCC
transactions in parallel to other CM transactions.
The broadcast call may be initiated by a mobile user or by a dispatcher. Specification of a protocol for dispatchers is out
of the scope of the present document. Hence, in the scope of the present document, there are:
- one BCC entity in the network; and
- one or more than one BCC entities in different MSs;
engaged in a broadcast call, and one ore none of the MSs is the originator of the broadcast call (called the originating
MS in the present document).
NOTE: Whereas for the Group Call Control (GCC) protocol (see GSM 04.68), in certain situations, the GCC
entity in a MS assumes to be the originator of a broadcast call without being the originator, this is not the
case for the BCC protocol.
ETSI
8 ETSI EN 300 949 V8.0.1 (2000-08)
(GSM 04.69 version 8.0.1 Release 1999)
The originator of the BCC transaction chooses the Transaction Identifier (TI). A MS not assuming to be the originator
of the transaction will chose the transaction identifier received from the network, setting the TI flag to 1+x mod 2 where
x is the received TI flag.
The present document describes the broadcast call control protocol only with regard to two peer entities, one in a MS,
the other one in the network. The call control entities are described as communicating finite state machines which
exchange messages across the radio interface and communicate internally with other protocol (sub)layers. In particular,
the BCC protocol uses the MM and RR sublayer specified in GSM 04.08. The BCC entity in a MS that is not the
originator of the broadcast call shall not send messages to its peer entity. This description in only normative as far as the
consequential externally observable behaviour is concerned. For simplicity, instead of using the terms "BCC entity in
the MS" and "BCC entity in the network", the present document often uses the terms "MS" and "network" if no
confusion may arise.
Certain sequences of actions of the two peer entities compose "elementary procedures" which are used as a basis for the
description in the present document. These elementary procedures are defined in clause 6.
The network should apply supervisory functions to verify that the BCC procedures are progressing and if not, take
appropriate means to resolve the problems. This, however, is out of the scope of the present document.
6 Elementary procedures for Broadcast Call Control
6.1 Overview
6.1.1 General
The elementary procedures may be broadcasted into the following classes:
- broadcast call establishment procedures;
- broadcast call termination procedures;
- broadcast call information phase procedures;
- miscellaneous procedures.
6.1.2 Broadcast call control states
6.1.2.1 Broadcast call control states at the MS side of the interface
The BCC entity of the MS is described as an extended finite state machine. It performs transitions between states. It has
certain parameters and attributes, e.g. configuration parameters and behaviour parameters, which it sets and changes
based on interaction with higher and lower (sub-)layers and on message exchange with its peer entity. If a configuration
parameter is set to a certain value, the MS shall also adapt the configuration accordingly. Behaviour parameters decide
on (part of) the behaviour of the BCC entity. When the BCC entity in the MS receives a message, it shall first analyse
whether it shall ignore the message, see clauses 5 and 7.
6.1.2.1.1 Attributes and Parameters of BCC in the MS
For the following behaviour parameters, the description is informative.
Parameter Description
ORIG Depending on the context, the MS assumes to be the originator of the call (ORIG=T) or not to be the
originator of the call (ORIG=F).
COMM Depending on the context, the MS assumes that communication with its peer entity is enabled in
both directions (COMM = T) or not (COMM = F).
For the following configuration parameters the MS shall adapt its configuration according to the parameter value and
parameter definition.
ETSI
9 ETSI EN 300 949 V8.0.1 (2000-08)
(GSM 04.69 version 8.0.1 Release 1999)
Parameter Definition
D-ATT D-ATT = T means that the MS attaches the user connection for the broadcast call in the downlink.
D-ATT = F means that the MS does not attach the user connection for the broadcast call in the
downlink.
U-ATT U-ATT = T means that the MS attaches the user connection for the broadcast call in the uplink.
U-ATT = F means that the MS does not attach the user connection for the broadcast call in the
uplink.
6.1.2.1.2 NULL (U0)
No broadcast call exists for the BCC entity. When entering the state, parameters shall be set to the following values, and
configuration shall be adapted to the new values of configuration parameters: ORIG = F, COMM = F, D-ATT = F,
U-ATT = F.
6.1.2.1.3 MM CONNECTION PENDING (U0.p)
The BCC entity has requested the explicit establishment of an MM connection. When entering the state, parameters
shall be set to the following values, and configuration shall be adapted to the new values of configuration parameters:
ORIG = T, COMM = F, D-ATT = F, U-ATT = F.
6.1.2.1.4 BROADCAST CALL INITIATED (U1)
The BCC entity has requested the peer entity in the network to establish a broadcast call. When entering the state,
parameters shall be set to the following values, and configuration shall be adapted to the new values of configuration
parameters: ORIG = T, COMM = T, D-ATT = F, U-ATT = F.
6.1.2.1.5 BROADCAST CALL ACTIVE (U2)
The broadcast call is established at least in one cell. When entering the state, parameters shall be set to the following
values, and configuration shall be adapted to the new values of configuration parameters: ORIG = T, COMM = T,
D-ATT = T, U-ATT = T.
6.1.2.1.6 BROADCAST CALL PRESENT (U3)
The MS has received a notification about an ongoing broadcast call. Higher layers are requested to accept or reject the
call. When entering the state, parameters shall be set to the following values, and configuration shall be adapted to the
new values of configuration parameters: ORIG = F, COMM = F, D-ATT = F, U-ATT = F.
6.1.2.1.7 BROADCAST CALL CONNECTION REQUESTED (U4)
The MS has received a notification about an ongoing broadcast call. Higher layers have decided to accept the call.
When entering the state, parameters shall be set to the following values, and configuration shall be adapted to the new
values of configuration parameters: ORIG = F, COMM = F, D-ATT = F, U-ATT = F.
6.1.2.1.8 TERMINATION REQUESTED (U5)
The MS which is the originator of the broadcast call has been in state U1 or U2 and has sent a TERMINATION
REQUEST message to the network. When entering the state, parameters shall be set to the following values, and
configuration shall be adapted to the new values of configuration parameters: ORIG = T, COMM = T, D-ATT = T,
U-ATT = T.
ETSI
10 ETSI EN 300 949 V8.0.1 (2000-08)
(GSM 04.69 version 8.0.1 Release 1999)
6.1.2.1.9 RECEIVE MODE ACTIVE (U6)
The BCC entity in the MS in state U4, BROADCAST CALL CONNECTION REQUESTED, has got an indication
from lower (sub-)layers that RR has entered group receive mode (see GSM 04.08). When entering the state, parameters
shall be set to the following values, and configuration shall be adapted to the new values of configuration parameters:
ORIG = F, COMM = F, D-ATT = T, U-ATT = F.
6.1.2.1.10 BCC TIMERS IN THE MS
Table 6.1 specifies the timers used in BCC. The denotation of columns is defined as follows:
timer ::= name of the timer;
set ::= under which conditions the timer is set (i.e., started);
stopped ::= under which conditions the timer is stopped;
running in state(s) ::= in which state(s) the timer may be running;
action at expiry ::= which actions the BCC entity shall perform at expiry;
value ::= the duration between setting the timer and expiry of the timer ("s" denotes
"second(s)" "xx - yy" means that any value between xx and yy is permitted).
Table 6.1: Specification of timers used in BCC
timer set stopped running in action at value
state(s) expiry
T in state U6 on receipt of an when leaving U6 or when in U6, see 3s
no channel
indication from lower receivinginU6anindication depending on subclause
(sub-)layers that no channel from lower (sub-)layers that a further 6.3.1
is currently available channel is available conditions
T when entering U0.p using the when leaving U0.p or U1 U0.p, U1 see 5s
MM-est
set-up procedure subclause
when entering U1 using the 6.2.1
immediate set-up procedure
T when sending a when receiving a U5 abort 10 s
term
TERMINATION REQUEST TERMINATION or broadcast
TERMINATION REJECT call
T when entering state U4 when leaving state U4 U4 abort 10-30 s
conn req
broadcast
call
6.1.2.1.11 CONSISTENCY OF PARAMETERS AND STATES
The MS shall consider the following parameter values as inconsistent with the state or sub-state:
ORIG = T is inconsistent with states U3, U4, and U6.
COMM = T is inconsistent with states U0, U3, U4, and U6.
All other values of parameters ORIG, COMM, D-ATT, and U-ATT shall not be considered by the MS as inconsistent
with a state.
6.1.2.2 BROADCAST CALL CONTROL STATES AT THE NETWORK SIDE OF THE
INTERFACE
6.1.2.2.1 NULL (State N0)
No broadcast call exists for the BCC entity.
ETSI
11 ETSI EN 300 949 V8.0.1 (2000-08)
(GSM 04.69 version 8.0.1 Release 1999)
6.1.2.2.2 BROADCAST CALL INITIATED (N1)
The BCC entity has received the indication that a peer entity in a MS wants to establish a broadcast call for a certain
broadcast identity.
6.1.2.2.3 BROADCAST CALL ACTIVE (N2)
The broadcast call is established in at least one cell; there may be a MS which has seized the uplink or not; there may be
talking dispatchers or not.
6.1.2.2.4 BROADCAST CALL ESTABLISHMENT PROCEEDING (N3)
The BCC entity wants to accept the broadcast call, has initiated establishment of corresponding broadcast call channels,
and, if there is a calling user. has sent a CONNECT message to the calling user.
6.1.2.2.5 TERMINATION REQUESTED (N4)
The BCC entity has asked lower sub-layers to terminate the broadcast call in all cells and waits for a confirmation that
the broadcast call has been terminated in all cells.
6.2 Procedures for establishment of a broadcast call
6.2.1 Activation of a broadcast call by the network
The BCC entity in the network may initiate the activation of a broadcast call with a certain broadcast call reference and
priority in a list of cells by asking lower layers to establish the broadcast call with that broadcast call reference and
priority in those cells. It then waits until it is informed by lower (sub-)layers that resource activation was sufficiently
successful, and enters state N2, BC ACTIVE,
6.2.2 Mobile originated establishment
Higher layers in the MS may ask the BCC entity in state U0, NULL, to establish a broadcast call, either using the
immediate set-up procedure or using the set-up procedure. The request contains a group-id and may contain a priority
indication.
On request of higher layers to establish a broadcast call using the set-up procedure, the BCC entity of the MS builds an
appropriate SETUP message and asks lower (sub-)layers to establish an MM connection explicitly (i.e. by use of a CM
SERVICE REQUEST message) and to transmit the SETUP message. It then enters state U0.p, MM CONNECTION
PENDING. In state U0.p, when informed by lower sub-layers that an MM connection has been established, the BCC
entity in the MS shall stop timer T and enter state U1, BC INITIATED.
MM-est
On request of higher layers to establish a broadcast call using the immediate set-up procedure, the BCC entity of the MS
builds an appropriate IMMEDIATE SETUP message and asks lower (sub-)layers to establish an MM connection
implicitly (see GSM 04.08) and to transmit the IMMEDIATE SETUP message. It sets timer T and then enters
MM-est
state U1, BC INITIATED.
The network BCC entity in state NULL may receive a set-up message from its peer entity in the originating MS. This
set-up message is either a SETUP message or an IMMEDIATE SETUP message. The network enters state N1, BC
INITIATED.
In state N1, the network decides whether:
a) the establishment is accepted; or
b) the establishment rejected.
ETSI
12 ETSI EN 300 949 V8.0.1 (2000-08)
(GSM 04.69 version 8.0.1 Release 1999)
In case a), the BCC entity in the network considers the peer entity in the MS having sent the set-up message to be the
calling user and asks lower layers to activate the appropriate resources. It then:
1) waits until it is informed by lower (sub-)layers that resource activation was sufficiently successful, then sends a
CONNECT message to the calling user, and enters state N2, BC ACTIVE; or
2) sends a CONNECT message to the calling user and enters N3, BC ESTABLISHMENT PROCEEDING. In state
N3, the BCC entity is informed by lower layers whenever the status of resources for the broadcast call is
changed. When informed that activation of resources was sufficiently successful, the BCC entity in the network
enters state N2, ACTIVE.
The CONNECT message specifies the broadcast call reference of the broadcast call and indicates that the MS is
the originator of the broadcast call.
In case b), the further proceeding is as defined in subclause 6.2.2.1.
In state U0.p or U1, the BCC entity in the MS shall, on receipt of a CONNECT message, establish the conditions
defined for state U2, ACTIVE and the suitable sub-state (see subclause 6.1.2.1), stop timer T (if running) and
MM-est
enter state U2, ACTIVE. If the immediate set-up procedure has been used, the BCC entity in the MS shall inform lower
sub-layers that the MM connection has been implicitly established.
6.2.2.1 Termination during mobile originated establishment
At any time during the mobile originated establishment of a broadcast call, the network may decide to terminate the
connection between the two peer entities in the network and MS. In this case the network sends a TERMINATION
message to the MS specifying the appropriate cause; it may ask lower (sub-)layers to release associated resources. The
further actions are specified in subclause 6.4.
During mobile originated establishment of a broadcast call, the MS may abort the broadcast call, see subclause 6.4.
6.2.2.2 Abnormal cases
At expiry of T , or radio link failure (see GSM 04.08), the BCC entity in the MS requests lower sub-layers to abort
MM-est
the MM connection establishment and returns to state U0, NULL(this includes clearing of the context related to the
broadcast call establishment).
On receipt of an indication of lower sub-layers that the MM connection establishment was unsuccessful, the BCC entity
in the MS returns to state U0, NULL (this includes clearing of the context related to the broadcast call establishment).
6.2.3 Mobile terminating broadcast call establishment in the MS
The BCC entity in the MS, being in state U0, NULL, may receive an indication of lower layers that a broadcast call
exists. This indication specifies the broadcast-id and a priority. It shall then inform higher layers and enter state U3, BC
present. This state may be supervised by a timer at expiry of which the BCC entity clears the context and returns to
state U0, NULL.
In state U3, on request of higher layers to join the broadcast call, the BCC entity in the MS stops any running timer,
asks lower sub-layers to join the broadcast call, starts timer T , and enters state U4, BC CONNECTION
conn req
REQUESTED.
In state U4, on indication of lower sub-layers that the broadcast call has been joint (this indication specifies the mode of
the RR connection), the BCC entity in the MS stops any running timer, enters state U6, RECEIVE MODE ACTIVE,
establishes the appropriate configurations (see subclause 6.1) and informs higher layers (this includes information about
the sub-state).
ETSI
13 ETSI EN 300 949 V8.0.1 (2000-08)
(GSM 04.69 version 8.0.1 Release 1999)
6.3 Procedures during the active state and receive mode active
state of a broadcast call
6.3.1 Mobile station procedures in the active state
In the active state, the BCC entity in the MS performs, on receipt of messages from its peer entity, on request of higher
layers, and on indication of lower sub-layers, actions as defined below.
On request of higher layers, the MS initiates abort or termination of the broadcast call, see subclause 6.4.
If the network initiates broadcast call abortion or termination, the MS reacts as specified in subclause 6.4.
On radio link failure, the MS aborts the broadcast call, see subclause 6.4.
6.3.2 Network procedures in the active state
In the active state the BCC entity in the network performs supervisory functions, maintenance functions and resource
modifications which are not further specified. (This includes through-connection of the application data stream(s),
which is defined in GSM 03.69).
The network may initiate abort or termination of the broadcast call, see subclause 6.4.
If the MS initiates broadcast call abortion or termination, the network reacts as specified in subclause 6.4.
The network may send a SET PARAMETER message to the MS in order to ask the MS to set parameters to certain
values and to take consequential actions.
6.3.3 Mobile station procedures in the RECEIVE MODE ACTIVE state
In state U6, RECEIVE MODE ACTIVE, the BCC entity in the MS performs, on receipt of messages from its peer
entity, on request of higher layers, and on indication of lower sub-layers, actions as defined below.
On request of higher layers, the MS initiates abort of the broadcast call, see subclause 6.4.
If the network initiates broadcast call abortion or termination, the MS reacts as specified in subclause 6.4.
Upon indication from lower layers that no channel is available, the BCC entity in the MS informs higher layers and
starts timer T . Then:
no channel
if T expires, the BCC entity in the MS informs higher layers, asks lower sub-layers to abort resources and enters
no channel
the idle state
upon indication from lower layers that a channel is available, the BCC entity in the MS informs higher layers and stops
timer T .
no channel
6.4 Procedures for release, abortion, and termination of a
broadcast call
6.4.1 Termination procedure
The MS being the originator of the broadcast call (ORIG = T) shall, on request of higher layers,
initiate the termination procedure by sending a TERMINATION REQUEST message to its peer entity in the network
and setting timer T .
term
The network either accepts the termination by sending a TERMINATION or rejects termination by sending a
TERMINATION REJECT. These messages indicate an appropriate cause.
In state U5, on receipt of a TERMINATION REJECT message, the BCC entity in the MS informs higher layers and
stops T .
term
ETSI
14 ETSI EN 300 949 V8.0.1 (2000-08)
(GSM 04.69 version 8.0.1 Release 1999)
In state U5, on T expiry, the BCC entity in the MS informs higher layers, asks lower sub-layers to abort the
term
broadcast call, clears the context related to the broadcast call, and returns to state U0, NULL.
In any state, on receipt of a TERMINATION message, the BCC entity in the MS informs higher layers, asks lower
sub-layers to release the broadcast call, clears the context related to the broadcast call, and returns to state U0, NULL.
At any time during a broadcast call, the network may decide to terminate the connection between the two peer entities
in the network and MS. In this case the network sends a TERMINATION message to the MS specifying the appropriate
cause; it may ask lower (sub-)layers to release associated resources. The further actions are specified above in this
subclause 6.4.
6.4.2 Abort and release procedures
The network may ask lower sub-layers to abort or release the broadcast call. The MS will detect abort of the broadcast
call by detecting the abort of RR resources, and a broadcast call release by detecting the release of RR resources. The
BCC entity in the MS shall then inform higher layers, ask lower sub-layers to abort the broadcast call, clear the context
related to the broadcast call, and return to state U0, NULL.
The MS shall, on request of higher layers, initiate the release procedure by asking lower sub-layers to release the
broadcast call, clearing the context related to the broadcast call, and returning to state U0, NULL.
The BCC entity in the MS shall when required by the BCC protocol, abort the broadcast call by requesting lower layers
to abort the broadcast call, informing higher layers, clearing the context related to the broadcast call, and returning to
state U0, NULL.
6.5 Miscellaneous procedures
6.5.1 Status procedures
6.5.1.1 Get status procedure
Upon receipt of a GET STATUS message, the MS shall:
- if COMM = T, respond with a STATUS message, reporting the current call state, the current values of
configuration and behaviour parameters and cause value # 30 "Response to GET STATUS";
- if COMM = F, ignore the message.
6.5.1.2 Set parameter procedure
Upon receipt of a SET PARAMETER message the MS shall set the parameters to the indicated values and the
configuration shall be adapted to the new values of configuration parameters, if they are consistent with the current
BCC state and sub-state (see subclause 6.1.2). If they are not:
- if COMM , before the message was received, is equal to T, it shall send a STATUS message specifying error
cause "message incompatible with protocol state", the state and, if applicable, sub-state, and the state attributes
IE;
- if COMM , before the message was received, is equal to F, it shall ignore the message.
ETSI
15 ETSI EN 300 949 V8.0.1 (2000-08)
(GSM 04.69 version 8.0.1 Release 1999)
7 Handling of unknown, unforeseen, and erroneous
protocol data
7.1 General
This subclause spe
...
