SIST EN 1666:2001

Prevailing torque type hexagon nuts with flange (with non-metallic insert) with metric fine pitch thread (ISO 12125:1997, modified)

This European Standard specifies the characteristics of prevailing torque type hexagon nuts with flange, with non-metallic annular insert and metric fine pitchthread with nominal thread diameters from 8 up to and including 20 mm, in product grade A for sizes d up to and including 16 mm and product grade B for sizes d > 16 mm and property classes 6, 8 and 10.

Sechskantmuttern mit Klemmteil und Flansch (mit nichtmetallischem Einsatz) und metrischem Feingewinde (ISO 12125:1997, modifiziert)

Diese Europäische Norm enthält Festlegungen für Sechskantmuttern mit Klemmteil und Flansch (mit nichtmetallischem Einsatz) und Feingewinde mit Gewinde-Nenndurchmessern von 8 mm bis 20 mm, in Produktklasse A für Größen bis 16 mm und Produktklasse B für Größen über 16 mm und Festigkeitsklassen 6, 8 und 10.

Ecrous hexagonaux a embase, autofreinés, (avec anneau non métallique), a filetage métrique a pas fin (ISO 12125:1997, modifiée)

La présente Norme européenne définit les caractéristiques des écrous hexagonaux à embase autofreinés, avec anneau non métallique, et filetage métrique à pas fin, de diamètre nominal de filetage 8 mm à 20 mm, de grade A pour les diamètresd 16 mm et classes de qualité 6, 8 et 10.

Šestrobe zaščitne matice z deformacijo (s plastičnim vložkom) s poševnim krajcem in z drobnim metrskim navojem (ISO 12125:1997, dopolnjen)

General Information

• Status: Published
• Publication Date: 30-Jun-2001
• ICS: 21.040.10 - Metric screw threads
• ICS: 21.060.20 - Nuts
• Technical Committee: ISEL - Mechanical elements
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Jul-2001
• Due Date: 01-Jul-2001
• Completion Date: 01-Jul-2001
• Ref Project: EN 1666:1997 - Prevailing torque type hexagon nuts with flange (with non-metallic insert) with metric fine pitch thread (ISO 12125:1997, modified)

Overview

SIST EN 1666:2001 is a European Standard established by CEN that defines the specifications for prevailing torque type hexagon nuts with flange. These nuts feature a non-metallic annular insert and utilize metric fine pitch threads, based on the modified ISO 12125:1997 standard. The standard covers nominal thread diameters ranging from 8 mm up to and including 20 mm. It specifies two product grades: Grade A for sizes up to 16 mm and Grade B for sizes greater than 16 mm, with applicable property classes 6, 8, and 10.

This standard ensures compatibility, reliability, and performance consistency for hex flange nuts requiring prevailing torque characteristics in mechanical assemblies, particularly for metric fine pitch threaded connections.

Key Topics

• Prevailing Torque Hexagon Nuts: Nuts designed to maintain a controlled torque value due to the friction provided by the non-metallic insert, preventing loosening under vibration or dynamic loads.
• Flanged Design: Hexagon nuts with an integrated flange that distributes the load over a wider area, reducing the risk of damage to connected materials.
• Non-Metallic Insert: The annular insert made from synthetic materials provides effective locking action without metallic wear.
• Metric Fine Pitch Threads: Threads conform to a finer pitch than standard metric threads, ensuring precise fitment for applications demanding high thread engagement and load distribution.
• Nominal Diameter Range: Covers sizes from 8 mm to 20 mm, accommodating a variety of mechanical fastening needs.
• Product Grades and Property Classes:
  • Grade A for thread sizes up to 16 mm
  • Grade B for thread sizes above 16 mm
  • Property classes 6, 8, and 10, indicating different strength levels suitable for diverse application requirements.

Applications

SIST EN 1666:2001 hexagon nuts with flange and non-metallic inserts are widely employed in industries requiring reliable, vibration-resistant fasteners with precise thread engagement. Application areas include:

• Automotive Industry: For securing components exposed to vibration and dynamic loads.
• Machinery and Equipment: In machines requiring dependable locking nuts that avoid loosening during operation.
• Construction: For structural assemblies needing high-strength fasteners with fine thread precision.
• Aerospace and Engineering: Where reliable torque retention and controlled fastening are critical for safety and performance.
• Electronics and Electrical Installations: Fine pitch threading supports delicate assembly requirements with secure fastening.

These nuts provide enhanced performance benefits such as reduced maintenance, longer service life, and improved safety margins due to their prevailing torque feature and flange design.

Related Standards

• ISO 12125:1997 (Modified): The primary international standard that SIST EN 1666:2001 modifies for prevailing torque hexagon nuts with flange and fine pitch metric threads.
• ISO Metric Thread Standards: For general guidance on metric thread dimensions and tolerances.
• EN 1665: Detailed specifications for hexagon nuts without flange but similar prevailing torque features.
• ISO 7040 & ISO 10511: Standards related to prevailing torque nuts with different locking mechanisms.
• Other CEN Standards on Fasteners: Covering bolts, screws, washers, and nuts to ensure system-wide compatibility.

---

By adhering to SIST EN 1666:2001, manufacturers and users benefit from harmonized quality and performance criteria for hexagon nuts with flanged design and non-metallic inserts. This ensures optimized fastening solutions in industries where secure, vibration-resistant connections with metric fine pitch threads are essential.

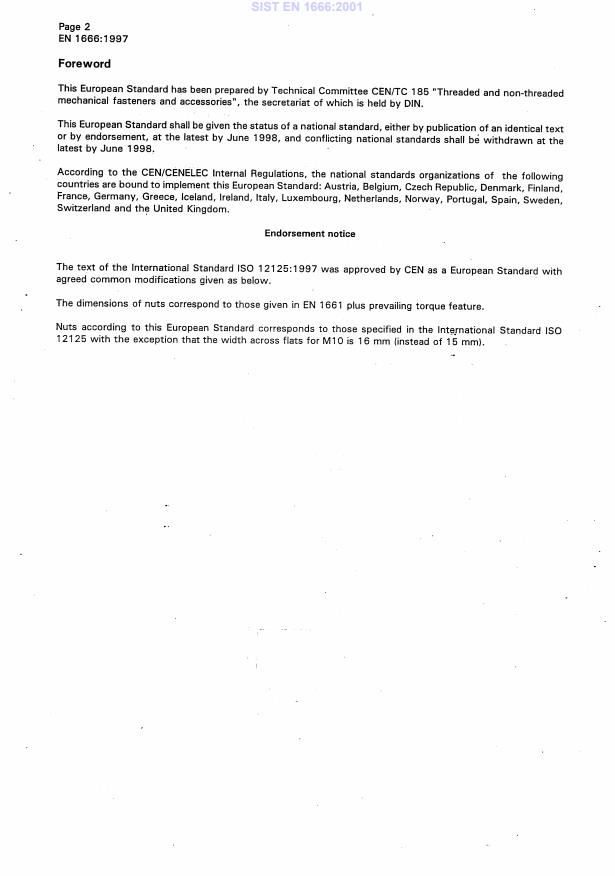

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.RãHYQLPSechskantmuttern mit Klemmteil und Flansch (mit nichtmetallischem Einsatz) und metrischem Feingewinde (ISO 12125:1997, modifiziert)Ecrous hexagonaux a embase, autofreinés, (avec anneau non métallique), a filetage métrique a pas fin (ISO 12125:1997, modifiée)Prevailing torque type hexagon nuts with flange (with
...
