SLOVENSKI STANDARD
SIST EN ISO 6149-3:2007
01-maj-2007

3ULNOMXþNLYIOXLGQLWHKQLNLLQ]DVSORãQRXSRUDER±9KRGLLQUDYQL]DNOMXþNL]QDYRML

SR,62LQWHVQLONDPL2±GHO0HUHREOLNHSUHVNXVQHPHWRGHLQ]DKWHYH]D

PDORREUHPHQMHQHUDYQH]DNOMXþNH YUVWH/  ,62

Connections for hydraulic fluid power and general use - Ports and stud ends with ISO

261 metric threads and O-ring sealing - Part 3: Dimensions, design, test methods and

requirements for light-duty (L series) stud ends (ISO 6149-3:2006)

Leitungsanschlüsse für Fluidtechnik und allgemeine Anwendung - Einschraublöcher und

Einschraubzapfen mit metrischem Gewinde nach ISO 261 und O-Ring-Abdichtung - Teil

3: Maße, Konstruktion, Prüfverfahren und Anforderungen für Einschraubzapfen, leichte

Reihe (L-Reihe) (ISO 6149-3:2006)

Raccordements pour transmissions hydrauliques et applications générales - Orifices et

éléments mâles a filetage métrique ISO 261 et joint torique - Partie 3: Dimensions,

conception, méthodes d'essai et exigences des éléments mâles de série légere (série L)

(ISO 6149-3:2006)
Ta slovenski standard je istoveten z: EN ISO 6149-3:2007
ICS:
23.100.40 Cevna napeljava in sklopke Piping and couplings
SIST EN ISO 6149-3:2007 en

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
EUROPEAN STANDARD
EN ISO 6149-3
NORME EUROPÉENNE
EUROPÄISCHE NORM
February 2007
ICS 23.100.40
English Version
Connections for hydraulic fluid power and general use - Ports
and stud ends with ISO 261 metric threads and O-ring sealing -
Part 3: Dimensions, design, test methods and requirements for
light-duty (L series) stud ends (ISO 6149-3:2006)

Raccordements pour transmissions hydrauliques et Leitungsanschlüsse für Fluidtechnik und allgemeine

applications générales - Orifices et éléments mâles à Anwendung - Einschraublöcher und Einschraubzapfen mit

filetage métrique ISO 261 et joint torique - Partie 3: metrischem Gewinde nach ISO 261 und O-Ring-

Dimensions, conception, méthodes d'essai et exigences Abdichtung - Teil 3: Maße, Konstruktion, Prüfverfahren und

des éléments mâles de série légère (série L) (ISO 6149- Anforderungen für Einschraubzapfen, leichte Reihe (L-

3:2006) Reihe) (ISO 6149-3:2006)
This European Standard was approved by CEN on 4 February 2007.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European

Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national

standards may be obtained on application to the CEN Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation

under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the

official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,

France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,

Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36 B-1050 Brussels

© 2007 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 6149-3:2007: E

worldwide for CEN national Members.
---------------------- Page: 2 ----------------------
EN ISO 6149-3:2007 (E)

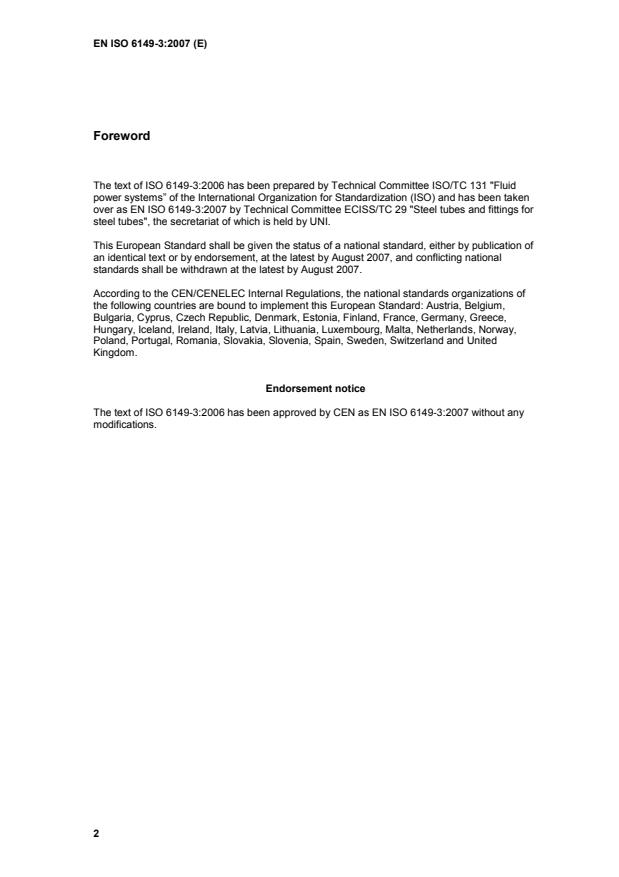

Foreword

The text of ISO 6149-3:2006 has been prepared by Technical Committee ISO/TC 131 "Fluid

power systems” of the International Organization for Standardization (ISO) and has been taken

over as EN ISO 6149-3:2007 by Technical Committee ECISS/TC 29 "Steel tubes and fittings for

steel tubes", the secretariat of which is held by UNI.

This European Standard shall be given the status of a national standard, either by publication of

an identical text or by endorsement, at the latest by August 2007, and conflicting national

standards shall be withdrawn at the latest by August 2007.

According to the CEN/CENELEC Internal Regulations, the national standards organizations of

the following countries are bound to implement this European Standard: Austria, Belgium,

Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece,

Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,

Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United

Kingdom.
Endorsement notice

The text of ISO 6149-3:2006 has been approved by CEN as EN ISO 6149-3:2007 without any

modifications.
---------------------- Page: 3 ----------------------
INTERNATIONAL ISO
STANDARD 6149-3
Second edition
2006-02-15
Connections for hydraulic fluid power
and general use — Ports and stud ends
with ISO 261 metric threads and O-ring
sealing —
Part 3:
Dimensions, design, test methods and
requirements for light-duty (L series) stud
ends
Raccordements pour transmissions hydrauliques et applications
générales — Orifices et éléments mâles à filetage métrique ISO 261 et
joint torique —
Partie 3: Dimensions, conception, méthodes d'essai et exigences des
éléments mâles de série légère (série L)
Reference number
ISO 6149-3:2006(E)
ISO 2006
---------------------- Page: 4 ----------------------
ISO 6149-3:2006(E)
PDF disclaimer

This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but

shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In

downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat

accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.

Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation

parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In

the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

© ISO 2006

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,

electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or

ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2006 – All rights reserved
---------------------- Page: 5 ----------------------
ISO 6149-3:2006(E)
Contents Page

Foreword............................................................................................................................................................ iv

Introduction ........................................................................................................................................................ v

1 Scope ..................................................................................................................................................... 1

2 Normative references ........................................................................................................................... 1

3 Terms and definitions........................................................................................................................... 2

4 Dimensions............................................................................................................................................ 2

5 Requirements ........................................................................................................................................ 2

6 O-rings ................................................................................................................................................... 3

7 Test methods......................................................................................................................................... 3

8 Designation of stud ends..................................................................................................................... 3

9 Identification.......................................................................................................................................... 3

10 Identification statement (reference to this part of ISO 6149)............................................................... 3

Bibliography ..................................................................................................................................................... 10

© ISO 2006 – All rights reserved iii
---------------------- Page: 6 ----------------------
ISO 6149-3:2006(E)
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies

(ISO member bodies). The work of preparing International Standards is normally carried out through ISO

technical committees. Each member body interested in a subject for which a technical committee has been

established has the right to be represented on that committee. International organizations, governmental and

non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the

International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.

International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.

The main task of technical committees is to prepare International Standards. Draft International Standards

adopted by the technical committees are circulated to the member bodies for voting. Publication as an

International Standard requires approval by at least 75 % of the member bodies casting a vote.

Attention is drawn to the possibility that some of the elements of this document may be the subject of patent

rights. ISO shall not be held responsible for identifying any or all such patent rights.

ISO 6149-3 was prepared by Technical Committee ISO/TC 131, Fluid power systems, Subcommittee SC 4,

Connectors and similar products and components.

This second edition cancels and replaces the first edition (ISO 6149-3:1993), which has been technically

revised.

ISO 6149 consists of the following parts, under the general title Connections for hydraulic fluid power and

general use — Ports and stud ends with ISO 261 metric threads and O-ring sealing:

— Part 1: Ports with truncated housing for O-ring seal

— Part 2: Dimensions, design, test methods and requirements for heavy-duty (S series) stud ends

— Part 3: Dimensions, design, test methods and requirements for light-duty (L series) stud ends

— Part 4: Dimensions, design, test methods and requirements of external and internal hexport plugs

iv © ISO 2006 – All rights reserved
---------------------- Page: 7 ----------------------
ISO 6149-3:2006(E)
Introduction

In hydraulic fluid power systems, power is transmitted and controlled through a liquid under pressure within an

enclosed circuit. In general applications, a fluid (liquid or gas) may be conveyed under pressure.

Components are connected through their threaded ports by stud ends on fluid conductor connectors to tubes

and pipes or to hose connectors and hoses.

For threaded ports and stud ends specified in new designs in hydraulic fluid power applications,

ISO/TC 131/SC 4 recommends that the ISO 6149 series be used because these International Standards

specify ports and stud ends with metric threads and O-ring sealing and because the subcommittee would like

to help users by recommending one preferred system. ISO/TC 131/SC 4 further recommends that threaded

ports and stud ends in accordance with the ISO 1179 series, ISO 9974 series and ISO 11926 series not be

used for new designs in hydraulic fluid power applications; these International Standards will be maintained

because they specify ports and stud ends that are currently used in hydraulic systems worldwide.

© ISO 2006 – All rights reserved v
---------------------- Page: 8 ----------------------
INTERNATIONAL STANDARD ISO 6149-3:2006(E)
Connections for hydraulic fluid power and general use — Ports
and stud ends with ISO 261 metric threads and O-ring
sealing —
Part 3:
Dimensions, design, test methods and requirements
for light-duty (L series) stud ends
1 Scope

This part of ISO 6149 specifies dimensions, performance requirements and test procedures for metric

adjustable and non-adjustable light-duty (L series) stud ends and O-rings.

Stud ends in accordance with this part of ISO 6149 may be used at working pressures up to 40 MPa

[400 bar ] for non-adjustable stud ends and 31,5 MPa (315 bar) for adjustable stud ends. The permissible

working pressure depends upon the stud end size, materials, design, working conditions, application, etc.

Conformance to the dimensional information in this part of ISO 6149 does not guarantee rated performance.

Each manufacturer should perform testing according to the specification contained in this part of ISO 6149 to

assure that components comply with the performance ratings.

NOTE 1 A significant number of tests have been conducted to confirm the performance requirements of connection

ends made from carbon steel.

NOTE 2 This part of ISO 6149 applies to connectors detailed in ISO 8434-1 and ISO 8434-2 (see ISO 12151-4 for

related hose fitting specification).

NOTE 3 The Introduction of this part of ISO 6149 gives recommendations for ports and stud ends to be used for new

designs in hydraulic fluid power applications.
2 Normative references

The following referenced documents are indispensable for the application of this document. For dated

references, only the edition cited applies. For undated references, the latest edition of the referenced

document (including any amendments) applies.
ISO 48, Rubber, vulcanized or t
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
