Overview

EN 61300-3-49:2013 (CLC adoption of IEC 61300-3-49:2013) defines the procedure to measure the guide pin retention force for rectangular ferrule multi-fibre connectors. The standard ensures guide pins remain securely retained during mating and unmating operations for connector families such as MPO, Mini‑MPO and MT‑RJ. It describes test environment, required apparatus and two accepted measurement methods to support both design verification and routine pass/fail inspection.

Key topics and requirements

• Scope and purpose: Verify the retention of guide pins in rectangular ferrule multi‑fibre connectors so pins do not displace during normal connector handling.
• Applicable connector types: Connectors specified in IEC 61754-7 (MPO), IEC 61754-10 (Mini‑MPO) and IEC 61754-18 (MT‑RJ).
• Test conditions: Controlled environment recommended for precision testing; typical conditions referenced are 22.0 °C to 24.0 °C and 50 ± 10 % RH.
• Apparatus:
  • Fixture that holds the connector without influencing results;
  • Guide pin chuck (recommended retention >> required retention; >200 N ideal when using a tensile testing machine);
  • Weights for pass/fail tests;
  • Tensile testing machine capable of recording/holding maximum force for design verification.
• Two measurement methods:
  • Method A - Weight (pass/fail): Attach a specified weight to the guide pin chuck, apply slowly in‑axis, maintain for at least 5 s, and record whether the pin remains.
  • Method B - Tensile testing machine (design verification): Apply controlled axial tension, measure maximum retention force, and record results.
• Procedure controls: Ensure vertical alignment, axis application of force, consistent fixture placement and adherence to inspection (visual) per IEC 61300-3-1.

Applications and who uses it

• Connector manufacturers: design validation, production qualification and specification compliance.
• Quality assurance and test labs: routine incoming inspection and final inspection using the weight method for pass/fail.
• R&D and reliability engineers: use tensile testing method for quantitative retention data and tolerance studies.
• Systems integrators and spec writers: reference the standard when specifying connector mechanical robustness in data center, telecom and datacom projects.

Related standards

• IEC/EN 61300-1:2011 - General guidance for fibre optic test procedures
• IEC/EN 61300-3-1 - Visual examination
• IEC 61754 series - Connector interface definitions (notably Parts 7, 10 and 18)

This standard is essential when specifying or testing mechanical integrity of guide pins for rectangular ferrule multi‑fibre connectors and supports consistent, reproducible measurements of guide pin retention force.

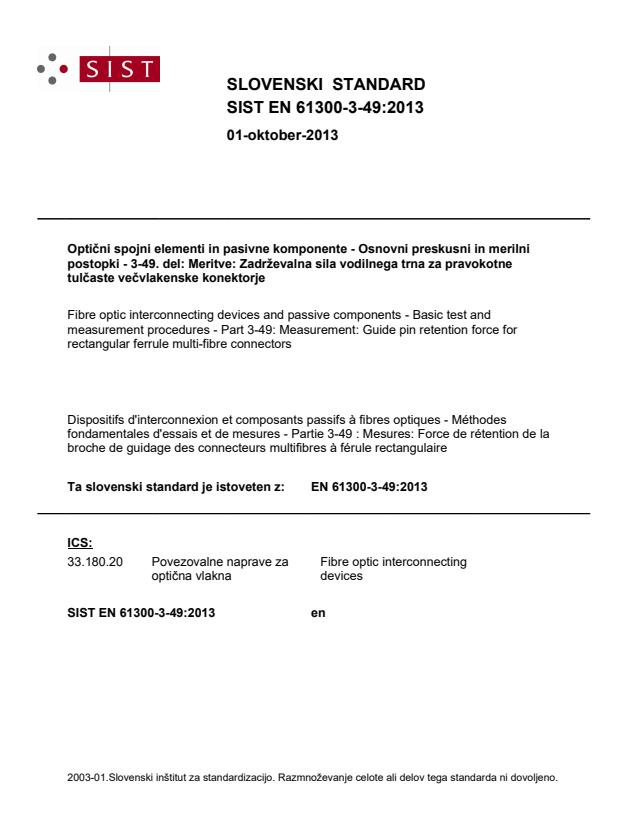

SLOVENSKI STANDARD
01-oktober-2013
2SWLþQLVSRMQLHOHPHQWLLQSDVLYQHNRPSRQHQWH2VQRYQLSUHVNXVQLLQPHULOQL
SRVWRSNLGHO0HULWYH=DGUåHYDOQDVLODYRGLOQHJDWUQD]DSUDYRNRWQH
WXOþDVWHYHþYODNHQVNHNRQHNWRUMH
Fibre optic interconnecting devices and passive components - Basic test and
measurement procedures - Part 3-49: Measurement: Guide pin retention force for
rectangular ferrule multi-fibre connectors
Dispositifs d'interconnexion et composants passifs à fibres optiques - Méthodes
fondamentales d'essais et de mesures - Partie 3-49 : Mesures: Force de rétention de la
broche de guidage des connecteurs multifibres à férule rectangulaire
Ta slovenski standard je istoveten z: EN 61300-3-49:2013
ICS:
33.180.20 3RYH]RYDOQHQDSUDYH]D Fibre optic interconnecting
RSWLþQDYODNQD devices
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

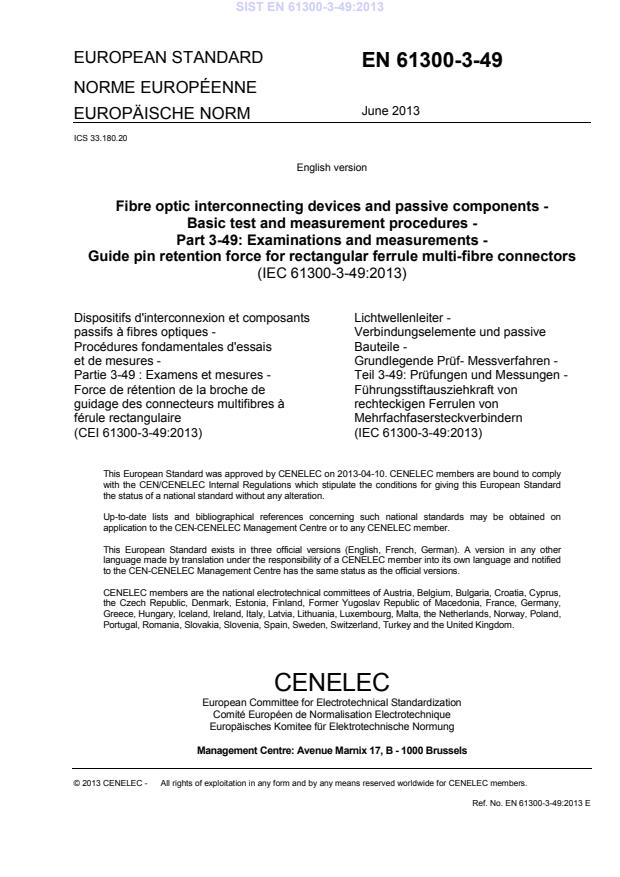

EUROPEAN STANDARD
EN 61300-3-49
NORME EUROPÉENNE
June 2013
EUROPÄISCHE NORM
ICS 33.180.20
English version
Fibre optic interconnecting devices and passive components -
Basic test and measurement procedures -
Part 3-49: Examinations and measurements -
Guide pin retention force for rectangular ferrule multi-fibre connectors
(IEC 61300-3-49:2013)
Dispositifs d'interconnexion et composants Lichtwellenleiter -
passifs à fibres optiques - Verbindungselemente und passive
Procédures fondamentales d'essais Bauteile -
et de mesures - Grundlegende Prüf- Messverfahren -
Partie 3-49 : Examens et mesures - Teil 3-49: Prüfungen und Messungen -
Force de rétention de la broche de Führungsstiftausziehkraft von
guidage des connecteurs multifibres à rechteckigen Ferrulen von
férule rectangulaire Mehrfachfasersteckverbindern
(CEI 61300-3-49:2013) (IEC 61300-3-49:2013)

This European Standard was approved by CENELEC on 2013-04-10. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany,
Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2013 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 61300-3-49:2013 E

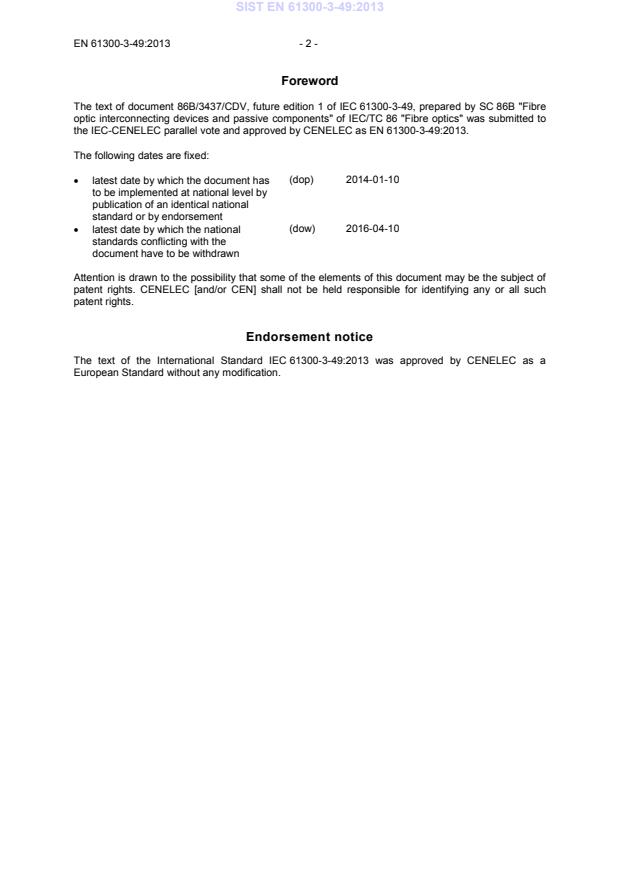

Foreword
