Digital Enhanced Cordless Telecommunications (DECT); Integrated Services Digital Network (ISDN); DECT/ISDN interworking for intermediate system configuration; Profile Implementation Conformance Statement (ICS); Part 1: Portable radio Termination (PT)

Profile ICS for voluntary testing of terminals complying to DE/RES-03039 (DECT/ISDN ISC).

Digitalne izboljšane brezvrvične telekomunikacije (DECT) - Digitalno omrežje z integriranimi storitvami (ISDN) - Vzajemno delovanje DECT/ISDN v obliki vmesnega sistema - Profil izjave o skladnosti izvedbe (ICS) - 1. del: Prenosna radijska zaključitev (PT)

General Information

Status
Published
Publication Date
31-Dec-1999
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
01-Jan-2000
Due Date
01-Jan-2000
Completion Date
01-Jan-2000
Mandate

Buy Standard

Standard
PSIST EN 301 241-1:1999
English language
33 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day
Standard
SIST EN 301 241-1:2000
English language
33 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.REOLNLDigital Enhanced Cordless Telecommunications (DECT); Integrated Services Digital Network (ISDN); DECT/ISDN interworking for intermediate system configuration; Profile Implementation Conformance Statement (ICS); Part 1: Portable radio Termination (PT)33.080Digitalno omrežje z integriranimi storitvami (ISDN)Integrated Services Digital Network (ISDN)33.070.30'(&7Digital Enhanced Cordless Telecommunications (DECT)ICS:Ta slovenski standard je istoveten z:EN 301 241-1 V1.1.13SIST EN 301 241-1:en01QRYHPEHU3SIST EN 301 241-1:SLOVENSKI

STANDARD
SIST EN 301 241-1:2000

EN 301 241-1 V1.1.1 (1998-12)European Standard (Telecommunications series)Digital Enhanced Cordless Telecommunications (DECT);Integrated Services Digital Network (ISDN);DECT/ISDN interworking for intermediatesystem configuration;Profile Implementation Conformance Statement (ICS);Part 1: Portable radio Termination (PT)SIST EN 301 241-1:2000

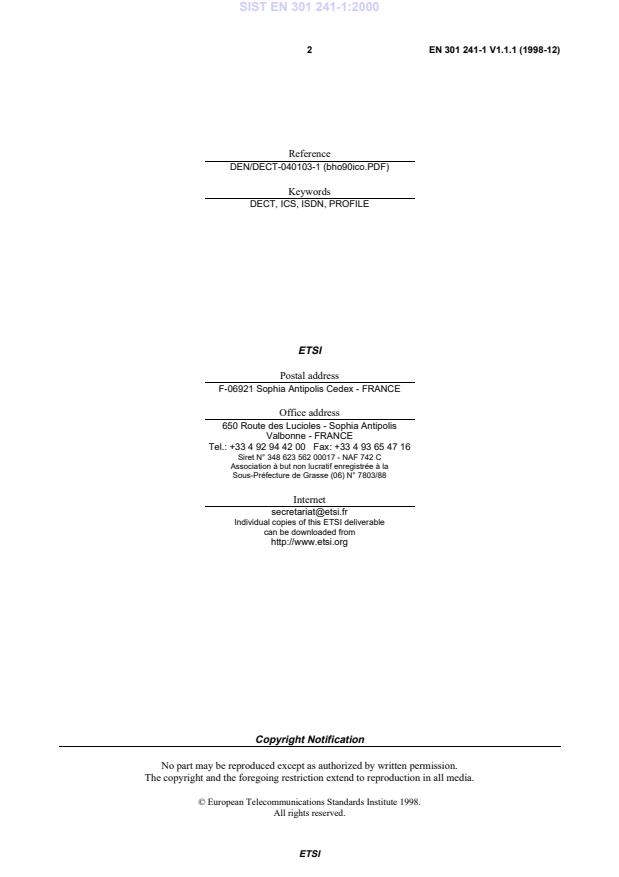

ETSIEN 301 241-1 V1.1.1 (1998-12)2ReferenceDEN/DECT-040103-1 (bho90ico.PDF)KeywordsDECT, ICS, ISDN, PROFILEETSIPostal addressF-06921 Sophia Antipolis Cedex - FRANCEOffice address650 Route des Lucioles - Sophia AntipolisValbonne - FRANCETel.: +33 4 92 94 42 00

Fax: +33 4 93 65 47 16Siret N° 348 623 562 00017 - NAF 742 CAssociation à but non lucratif enregistrée à laSous-Préfecture de Grasse (06) N° 7803/88Internetsecretariat@etsi.frIndividual copies of this ETSI deliverablecan be downloaded fromhttp://www.etsi.orgCopyright NotificationNo part may be reproduced except as authorized by written permission.The copyright and the foregoing restriction extend to reproduction in all media.© European Telecommunications Standards Institute 1998.All rights reserved.SIST EN 301 241-1:2000

ETSIEN 301 241-1 V1.1.1 (1998-12)3ContentsIntellectual Property Rights................................................................................................................................5Foreword............................................................................................................................................................51Scope........................................................................................................................................................62References................................................................................................................................................62.1Normative references.........................................................................................................................................62.2Informative references.......................................................................................................................................73Definitions and abbreviations..................................................................................................................83.1Definitions.........................................................................................................................................................83.2Abbreviations.....................................................................................................................................................84Conformance requirement concerning Profile ICS..................................................................................9Annex A (normative):System Conformance Statement (SCS) proforma for DECT PTIntermediate ISDN access Profile (IIP).......................................................10A.1Identification..........................................................................................................................................10A.1.1Description of the system.................................................................................................................................10A.1.2Supplier of the system......................................................................................................................................10A.1.3Client identification.........................................................................................................................................11A.1.4Contact person identification...........................................................................................................................11A.1.5Signature of the client or of the supplier..........................................................................................................11A.2Protocol identification............................................................................................................................12A.3Profile identification..............................................................................................................................12A.4Additional information...........................................................................................................................12Annex B (normative):RLs for DECT PT IIP...................................................................................13B.1General...................................................................................................................................................13B.1AProfile RL...............................................................................................................................................13B.2RL on DECT network layer...................................................................................................................14B.2.1Network entities...............................................................................................................................................14B.2.2Network features..............................................................................................................................................14B.2.2.1CC features.................................................................................................................................................14B.2.2.2MM features...............................................................................................................................................14B.2.2.3LCE features...............................................................................................................................................15B.2.3Procedures.......................................................................................................................................................15B.2.3.1CC procedures supported...........................................................................................................................15B.2.3.2MM procedures supported.........................................................................................................................16B.2.3.3LCE procedures supported.........................................................................................................................16B.2.3.4LLME procedures supported......................................................................................................................17B.2.4Messages..........................................................................................................................................................17B.2.4.1CC messages..............................................................................................................................................17B.2.4.2MM messages.............................................................................................................................................18B.2.4.3LCE messages............................................................................................................................................18B.3RL on DECT DLC layer........................................................................................................................19B.3.1Services............................................................................................................................................................19B.3.1.1Data link services.......................................................................................................................................19B.3.1.2C-plane services.........................................................................................................................................19B.3.1.3U-plane services.........................................................................................................................................19B.3.1.4Management services.................................................................................................................................19B.3.2Procedures.......................................................................................................................................................19B.3.2.1Generic signalling procedures....................................................................................................................19SIST EN 301 241-1:2000

ETSIEN 301 241-1 V1.1.1 (1998-12)4B.3.2.2Class B procedures.....................................................................................................................................20B.3.2.3LU1 procedures..........................................................................................................................................20B.3.2.4FU1 options................................................................................................................................................20B.3.2.5Management procedures.............................................................................................................................20B.3.2.6 MAC connection management procedures................................................................................................20B.3.2.7DLC C-plane management procedures.......................................................................................................21B.3.2.8DLC U-plane management procedures......................................................................................................21B.3.2.9Connection ciphering management procedures..........................................................................................21B.3.3Parameters........................................................................................................................................................21B.3.3ALU1 Connection types.....................................................................................................................................21B.4RL on DECT MAC layer.......................................................................................................................21B.4.1Capabilities......................................................................................................................................................21B.4.1.1Services......................................................................................................................................................21B.4.1.1.1Connection oriented control services....................................................................................................22B.4.1.1.2Broadcast control services....................................................................................................................22B.4.1.1.3Multiplexing services............................................................................................................................23B.4.1.1.4Management services............................................................................................................................23B.4.1.2Procedures..................................................................................................................................................24B.4.1.2.1Connection procedures.........................................................................................................................24B.4.1.2.1.1Connection setup procedures..........................................................................................................24B.4.1.2.1.2Connection modification procedures..............................................................................................24B.4.1.2.1.3Connection release procedures........................................................................................................24B.4.1.2.2Broadcast procedures............................................................................................................................24B.4.2Protocol parameters.........................................................................................................................................25B.4.2.1Timer support.............................................................................................................................................25B.4.2.2Protocol constants......................................................................................................................................25B.4.2.3Channels supported....................................................................................................................................25B.4.2.4Bearer types supported...............................................................................................................................25B.4.2.5Slot types supported...................................................................................................................................25B.4.2.6Paging tail messages supported..................................................................................................................26Annex C (normative):Profile specific ICS proforma for DECT PT IIP........................................27C.1Guidance for completing the profile specific ICS proforma..................................................................27C.1.1Purposes and structure.....................................................................................................................................27C.1.2Instructions for completing the Profile specific ICS proforma........................................................................29C.2Identification of the implementation......................................................................................................29C.2.1Date of statement.............................................................................................................................................29C.2.2Identification of the implementation................................................................................................................29C.2.3Contact person identification...........................................................................................................................29C.2.4Relationship with the System Conformance Statement (SCS).........................................................................30C.3Identification of the profile....................................................................................................................30C.3.1Defect report numbers and amendments implemented....................................................................................30C.3.2Addenda implemented.....................................................................................................................................30C.4Profile ICS proforma tables...................................................................................................................31C.4.1Global statement of conformance....................................................................................................................31C.4.2Profile ICS DECT NWK layer tables..............................................................................................................31C.4.3Profile ICS DECT DLC layer tables................................................................................................................31C.4.4Profile ICS DECT MAC layer tables...............................................................................................................32History..............................................................................................................................................................33SIST EN 301 241-1:2000

ETSIEN 301 241-1 V1.1.1 (1998-12)5Intellectual Property RightsIPRs essential or potentially essential to the present document may have been declared to ETSI. The informationpertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be foundin SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respectof ETSI standards", which is available free of charge from the ETSI Secretariat. Latest updates are available on theETSI Web server (http://www.etsi.org/ipr).Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guaranteecan be given as to the existence of other IPRs not referenced in SR 000 314 (or the updates on the ETSI Web server)which are, or may be, or may become, essential to the present document.ForewordThis European Standard (Telecommunications series) has been produced by ETSI Project Digital Enhanced CordlessTelecommunications (DECT).The present document is part 1 of a multi-part standard covering the DECT/ISDN interworking for intermediate systemconfiguration Profile Implementation Conformance Statement (ICS), as identified below:Part 1:"Portable radio Termination (PT)";Part 2:"Fixed radio Termination (FT)".National transposition datesDate of adoption of this EN:23 October 1998Date of latest announcement of this EN (doa):31 January 1999Date of latest publication of new National Standardor endorsement of this EN (dop/e):31 July 1999Date of withdrawal of any conflicting National Standard (dow):31 July 1999SIST EN 301 241-1:2000

ETSIEN 301 241-1 V1.1.1 (1998-12)61ScopeThe present document provides the Profile Implementation Conformance Statement (Profile ICS) proforma for theDECT/ISDN interworking for intermediate system configuration profile at the Portable radio Termination (PT) asdefined in ETS 300 822 [9] in compliance with the relevant requirements and in accordance with the relevant guidancegiven in ISO/IEC 9646-7 [15].The supplier of an implementation which claims to conform to ETS 300 822 [9] is required to complete a copy of thePICS proforma ETS 300 476 parts 1, 2, 3, and 7, [10], [11], [12] and [13], with the replacements provided by theRequirement Lists (RLs) given in annex B of the present document, as well as a copy of the specific ICS proformaprovided in the annex C of the present document.2ReferencesReferences may be made to:a)specific versions of publications (identified by date of publication, edition number, version number, etc.), inwhich case, subsequent revisions to the referenced document do not apply; orb)all versions up to and including the identified version (identified by "up to and including" before the versionidentity); orc)all versions subsequent to and including the identified version (identified by "onwards" following the versionidentity); ord)publications without mention of a specific version, in which case the latest version applies.A non-specific reference to an ETS shall also be taken to refer to later versions published as an EN with the samenumber.2.1Normative references[1]EN 300 175-1: "Digital Enhanced Cordless Telecommunications (DECT); Common Interface (CI);Part 1: Overview".[2]EN 300 175-2: "Digital Enhanced Cordless Telecommunications (DECT); Common Interface (CI);Part 2: Physical layer (PHL)".[3]EN 300 175-3: "Digital Enhanced Cordless Telecommunications (DECT); Common Interface (CI);Part 3: Medium Access Control (MAC) layer".[4]EN 300 175-4: "Digital Enhanced Cordless Telecommunications (DECT); Common Interface (CI);Part 4: Data Link Control (DLC) layer".[5]EN 300 175-5: "Digital Enhanced Cordless Telecommunications (DECT); Common Interface (CI);Part 5: Network (NWK) layer".[6]EN 300 175-6: "Digital Enhanced Cordless Telecommunications (DECT); Common Interface (CI);Part 6: Identities and addressing".[7]EN 300 175-7: "Digital Enhanced Cordless Telecommunications (DECT); Common Interface (CI);Part 7: Security features".[8]EN 300 175-8: "Digital Enhanced Cordless Telecommunications (DECT); Common Interface (CI);Part 8: Speech coding and transmission".[9]ETS 300 822: "Digital Enhanced Cordless Telecommunications (DECT); Integrated ServicesDigital Network (ISDN); DECT/ISDN interworking for intermediate system configuration;Interworking and profile specification".SIST EN 301 241-1:2000

ETSIEN 301 241-1 V1.1.1 (1998-12)7[10]ETS 300 476-1: "Digital Enhanced Cordless Telecommunications (DECT); Common Interface(CI); Protocol Implementation Conformance Statement (PICS) proforma; Part 1: Network (NWK)layer - Portable radio Termination (PT)".[11]ETS 300 476-2: "Digital Enhanced Cordless Telecommunications (DECT); Common Interface(CI); Protocol Implementation Conformance Statement (PICS) proforma; Part 2: Data LinkControl (DLC) layer - Portable radio Termination (PT)".[12]ETS 300 476-3: "Digital Enhanced Cordless Telecommunications (DECT); Common Interface(CI); Protocol Implementation Conformance Statement (PICS) proforma; Part 3: Medium AccessControl (MAC) layer - Portable radio Termination (PT)".[13]ETS 300 476-7: "Digital Enhanced Cordless Telecommunications (DECT); Common Interface(CI); Protocol Implementation Conformance Statement (PICS) proforma; Part 7: Physical layer".[14]ISO/IEC 9646-1: "Information technology; Open Systems Interconnection; Conformance testingmethodology and framework; Part 1: General concepts".[15]ISO/IEC 9646-7: "Information technology; Open Systems Interconnection; Conformance testingmethodology and framework; Part 7: Implementation Conformance Statements".[16]EN 300 403-1: "Integrated Services Digital Network (ISDN); Digital Subscriber Signalling SystemNo. one (DSS1) protocol; Signalling network layer for circuit-mode basic call control; Part 1:Protocol specification [ITU-T Recommendation Q.931 (1993), modified]".[17]EN 300 403-3: "Integrated Services Digital Network (ISDN); Digital Subscriber Signalling SystemNo. one (DSS1) protocol; Signalling network layer for circuit-mode basic call control; Part 3:Protocol Implementation Conformance Statement (PICS) proforma specification".[18]ETS 300 402-2: "Integrated Services Digital Network (ISDN); Digital Subscriber SignallingSystem No. one (DSS1) protocol; Data link layer; Part 2: General protocol specification[ITU-T Recommendation Q.921 (1993), modified]".[19]ETS 300 402-4: "Integrated Services Digital Network (ISDN); Digital Subscriber SignallingSystem No. one (DSS1) protocol; Data link layer; Part 4: Protocol Implementation ConformanceStatement (PICS) proforma specification for the general protocol".[20]ETS 300 011 (1992) including Amendment 2: "Integrated Services Digital Network (ISDN);Primary rate user-network interface; Layer 1 specification and test principles".[21]ETS 300 011/A2: "Amendment 2 to ETS 300 011 (1992), adding a SCS, a PICS and a PIXIT forinterface points Ia and Ib".[22]ETS 300 012 (1992) including Amendment 2: "Integrated Services Digital Network (ISDN); Basicuser-network interface; Layer 1 specification and test principles".[23]ETS 300 012/A2: "Amendment 2 to ETS 300 012 (1992), adding a SCS, a PICS and a PIXIT forinterface points Ia and Ib".2.2Informative references[24]ETS 300 434-1: "Digital Enhanced Cordless Telecommunications (DECT) and Integrated ServicesDigital Network (ISDN); DECT/ISDN interworking for end system configuration; Part 1:Interworking specification".[25]ETS 300 434-2: "Digital Enhanced Cordless Telecommunications (DECT) and Integrated ServicesDigital Network (ISDN); DECT/ISDN interworking for end system configuration; Part 2: Accessprofile".[26]ISO/IEC 9646-6: "Information technology; Open Systems Interconnection; Conformance testingmethodology and framework; Part 6: Protocol profile test specification".SIST EN 301 241-1:2000

ETSIEN 301 241-1 V1.1.1 (1998-12)8[27]ETS 300 406: "Methods for Testing and Specification (MTS); Protocol and profile conformancetesting specifications; Standardization methodology".3Definitions and abbreviations3.1DefinitionsFor the purposes of the present document, the following terms and definitions apply:a)the terms defined in ISO/IEC 9646-7 [15];b)the definitions in ETS 300 822 [9]; andc)the following terms defined in ISO/IEC 9646-1 [14]:-Protocol Implementation Conformance Statement (PICS) proforma;-Profile Implementation Conformance Statement (Profile ICS).3.2AbbreviationsFor the purposes of the present document, the following abbreviations apply:CCCall ControlC-planeControl planeDECTDigital Enhanced Cordless TelecommunicationsDLCData Link ControlFTFixed radio TerminationICSImplementation Conformance StatementIIPIntermediate ISDN access ProfileISDNIntegrated Services Digital NetworkLCELink Control EntityLLMELower Layer Management EntityMACMedium Access ControlMMMobility ManagementNWKNetworkPCTRProtocol Conformance Test ReportPHLPhysicalPICSProtocol Implementation Conformance StatementPPPortable PartPTPortable radio TerminationPTPortable radio TerminationRLRequirements ListSCSSystem Conformance StatementSCTRSystem Conformance Test ReportTRUPTransparent Unprotected serviceU-planeUser planeSIST EN 301 241-1:2000

ETSIEN 301 241-1 V1.1.1 (1998-12)94Conformance requirement concerning Profile ICSThe supplier of a protocol implementation which is claimed to conform to the Portable radio Termination (PT) specificrequirements of ETS 300 822 [9] shall:-verify that his protocol implementation meets the Profile Requirements Lists (Profile RLs) for each DECTprotocol layer, contained in annex B of the present document;-complete a copy of the Profile specific ICS proforma provided in annex C;-complete a copy of the System Conformance Statement (SCS) proforma provided in annex A; and-provide the information necessary to identify both the supplier and the implementation.Table 1 provides guidance to indicate how to fulfil the PICS proforma required for the profile.Table 1: DECT PICS proforma tablePICSTablesChangeETS 300 476-1 [10]A.12Status column updated by RL subclause B.2.1A.13Status column updated by RL subclause B.2.2.1A.14Status column updated by RL subclause B.2.2.2A.16Status column updated by RL subclause B.2.2.3A.18Status column updated by RL subclause B.2.3.1A.19Status column updated by RL subclause B.2.3.2A.23Status column updated by RL subclause B.2.3.3A.24Status column updated by RL subclause B.2.3.4A.25 and A.26Status column updated by RL subclause B.2.4.1A.51 and A.52Status column updated by RL subclause B.2.4.2A.126 and A.127Status column updated by RL subclause B.2.4.3All other tablesUnchangedETS 300 476-2 [11]A.9Status column updated by RL subclause B.3.1.1A.10Status column updated by RL subclause B.3.1.2A.11Status column updated by RL subclause B.3.1.3A.12Status column updated by RL subclause B.3.1.4A.13Status column updated by RL subclause B.3.2.1A.16Status column updated by RL subclause B.3.2.2A.18Status column updated by RL subclause B.3.2.3A.19Status column updated by RL subclause B.3.2.4A.30Status column updated by RL subclause B.3.2.5A.31Status column updated by RL subclause B.3.2.6A.32Status column updated by RL subclause B.3.2.7A.33Status column updated by RL subclause B.3.2.8A.34Status column updated by RL subclause B.3.2.9A.40Status column updated by RL subclause B.3.3.1All other tablesUnchangedETS 300 476-3 [12]A.9Status column updated by RL subclause B.4.1.1A.10 to A.12 and A.14Status column updated by RL subclause B.4.1.1.1A.15Status column updated by RL subclause B.4.1.1.2A.19 to A.23Status column updated by RL subclause B.4.1.1.3A.24Status column updated by RL subclause B.4.1.1.4A.26 and A.29Status column updated by RL subclause B.4.1.2.1.1A.30Status column updated by RL subclause B.4.1.2.1.2A.33Status column updated by RL subclause B.4.1.2.1.3A.34Status column updated by RL subclause B.4.1.2.2A.41Status column updated by RL subclause B.4.2.1A.42Status column updated by RL subclause B.4.2.2A.44Status column updated by RL subclause B.4.2.3A.45Status column updated by RL subclause B.4.2.4A.46Status column updated by RL subclause B.4.2.5A.58Status column updated by RL subclause B.4.2.6All other tablesUnchangedETS 300 476-7 [13]All tablesUnchangedSIST EN 301 241-1:2000

ETSIEN 301 241-1 V1.1.1 (1998-12)10Annex A (normative):System Conformance Statement (SCS) proforma for DECTPT Intermediate ISDN access Profile (IIP)Notwithstanding the provisions of the copyright clause related to the text of the present document, ETSI grants that usersof the present document may freely reproduce the SCS proforma in this annex so that it can be used for its intendedpurposes and may further publish the completed SCS.A.1IdentificationA.1.1Description of the systemTable A.1: Description of the systemProduct name:Hardware version number:Software version number:CPU type:Bus-system:Operating system name:Operating system version number:Additional:A.1.2Supplier of the systemTable A.2: Supplier of the systemCompany:Street:Postal code / city:Country:SIST EN 301 241-1:2000

ETSIEN 301 241-1 V1.1.1 (1998-12)11A.1.3Client identificationIf different from the supplier.Table A.3: Client identificationCompany:Street:Postal code / city:Country:A.1.4Contact person identificationTable A.4: Contact person identificationName:Telephone:Fax:Telex:E-mail:A.1.5Signature of the client or of the supplierTable A.5: Signature of the client or of the supplierName:Position:Signature:Date:SIST EN 301 241-1:2000

ETSIEN 301 241-1 V1.1.1 (1998-12)12A.2Protocol identificationThis tab
...

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.REOLNLDigital Enhanced Cordless Telecommunications (DECT); Integrated Services Digital Network (ISDN); DECT/ISDN interworking for intermediate system configuration; Profile Implementation Conformance Statement (ICS); Part 1: Portable radio Termination (PT)33.080Digitalno omrežje z integriranimi storitvami (ISDN)Integrated Services Digital Network (ISDN)33.070.30'(&7Digital Enhanced Cordless Telecommunications (DECT)ICS:Ta slovenski standard je istoveten z:EN 301 241-1 Version 1.1.1SIST EN 301 241-1:2000en01-januar-2000SIST EN 301 241-1:2000SLOVENSKI

STANDARD
SIST EN 301 241-1:2000

EN 301 241-1 V1.1.1 (1998-12)European Standard (Telecommunications series)Digital Enhanced Cordless Telecommunications (DECT);Integrated Services Digital Network (ISDN);DECT/ISDN interworking for intermediatesystem configuration;Profile Implementation Conformance Statement (ICS);Part 1: Portable radio Termination (PT)SIST EN 301 241-1:2000

ETSIEN 301 241-1 V1.1.1 (1998-12)2ReferenceDEN/DECT-040103-1 (bho90ico.PDF)KeywordsDECT, ICS, ISDN, PROFILEETSIPostal addressF-06921 Sophia Antipolis Cedex - FRANCEOffice address650 Route des Lucioles - Sophia AntipolisValbonne - FRANCETel.: +33 4 92 94 42 00

Fax: +33 4 93 65 47 16Siret N° 348 623 562 00017 - NAF 742 CAssociation à but non lucratif enregistrée à laSous-Préfecture de Grasse (06) N° 7803/88Internetsecretariat@etsi.frIndividual copies of this ETSI deliverablecan be downloaded fromhttp://www.etsi.orgCopyright NotificationNo part may be reproduced except as authorized by written permission.The copyright and the foregoing restriction extend to reproduction in all media.© European Telecommunications Standards Institute 1998.All rights reserved.SIST EN 301 241-1:2000

ETSIEN 301 241-1 V1.1.1 (1998-12)3ContentsIntellectual Property Rights................................................................................................................................5Foreword............................................................................................................................................................51Scope........................................................................................................................................................62References................................................................................................................................................62.1Normative references.........................................................................................................................................62.2Informative references.......................................................................................................................................73Definitions and abbreviations..................................................................................................................83.1Definitions.........................................................................................................................................................83.2Abbreviations.....................................................................................................................................................84Conformance requirement concerning Profile ICS..................................................................................9Annex A (normative):System Conformance Statement (SCS) proforma for DECT PTIntermediate ISDN access Profile (IIP).......................................................10A.1Identification..........................................................................................................................................10A.1.1Description of the system.................................................................................................................................10A.1.2Supplier of the system......................................................................................................................................10A.1.3Client identification.........................................................................................................................................11A.1.4Contact person identification...........................................................................................................................11A.1.5Signature of the client or of the supplier..........................................................................................................11A.2Protocol identification............................................................................................................................12A.3Profile identification..............................................................................................................................12A.4Additional information...........................................................................................................................12Annex B (normative):RLs for DECT PT IIP...................................................................................13B.1General...................................................................................................................................................13B.1AProfile RL...............................................................................................................................................13B.2RL on DECT network layer...................................................................................................................14B.2.1Network entities...............................................................................................................................................14B.2.2Network features..............................................................................................................................................14B.2.2.1CC features.................................................................................................................................................14B.2.2.2MM features...............................................................................................................................................14B.2.2.3LCE features...............................................................................................................................................15B.2.3Procedures.......................................................................................................................................................15B.2.3.1CC procedures supported...........................................................................................................................15B.2.3.2MM procedures supported.........................................................................................................................16B.2.3.3LCE procedures supported.........................................................................................................................16B.2.3.4LLME procedures supported......................................................................................................................17B.2.4Messages..........................................................................................................................................................17B.2.4.1CC messages..............................................................................................................................................17B.2.4.2MM messages.............................................................................................................................................18B.2.4.3LCE messages............................................................................................................................................18B.3RL on DECT DLC layer........................................................................................................................19B.3.1Services............................................................................................................................................................19B.3.1.1Data link services.......................................................................................................................................19B.3.1.2C-plane services.........................................................................................................................................19B.3.1.3U-plane services.........................................................................................................................................19B.3.1.4Management services.................................................................................................................................19B.3.2Procedures.......................................................................................................................................................19B.3.2.1Generic signalling procedures....................................................................................................................19SIST EN 301 241-1:2000

ETSIEN 301 241-1 V1.1.1 (1998-12)4B.3.2.2Class B procedures.....................................................................................................................................20B.3.2.3LU1 procedures..........................................................................................................................................20B.3.2.4FU1 options................................................................................................................................................20B.3.2.5Management procedures.............................................................................................................................20B.3.2.6 MAC connection management procedures................................................................................................20B.3.2.7DLC C-plane management procedures.......................................................................................................21B.3.2.8DLC U-plane management procedures......................................................................................................21B.3.2.9Connection ciphering management procedures..........................................................................................21B.3.3Parameters........................................................................................................................................................21B.3.3ALU1 Connection types.....................................................................................................................................21B.4RL on DECT MAC layer.......................................................................................................................21B.4.1Capabilities......................................................................................................................................................21B.4.1.1Services......................................................................................................................................................21B.4.1.1.1Connection oriented control services....................................................................................................22B.4.1.1.2Broadcast control services....................................................................................................................22B.4.1.1.3Multiplexing services............................................................................................................................23B.4.1.1.4Management services............................................................................................................................23B.4.1.2Procedures..................................................................................................................................................24B.4.1.2.1Connection procedures.........................................................................................................................24B.4.1.2.1.1Connection setup procedures..........................................................................................................24B.4.1.2.1.2Connection modification procedures..............................................................................................24B.4.1.2.1.3Connection release procedures........................................................................................................24B.4.1.2.2Broadcast procedures............................................................................................................................24B.4.2Protocol parameters.........................................................................................................................................25B.4.2.1Timer support.............................................................................................................................................25B.4.2.2Protocol constants......................................................................................................................................25B.4.2.3Channels supported....................................................................................................................................25B.4.2.4Bearer types supported...............................................................................................................................25B.4.2.5Slot types supported...................................................................................................................................25B.4.2.6Paging tail messages supported..................................................................................................................26Annex C (normative):Profile specific ICS proforma for DECT PT IIP........................................27C.1Guidance for completing the profile specific ICS proforma..................................................................27C.1.1Purposes and structure.....................................................................................................................................27C.1.2Instructions for completing the Profile specific ICS proforma........................................................................29C.2Identification of the implementation......................................................................................................29C.2.1Date of statement.............................................................................................................................................29C.2.2Identification of the implementation................................................................................................................29C.2.3Contact person identification...........................................................................................................................29C.2.4Relationship with the System Conformance Statement (SCS).........................................................................30C.3Identification of the profile....................................................................................................................30C.3.1Defect report numbers and amendments implemented....................................................................................30C.3.2Addenda implemented.....................................................................................................................................30C.4Profile ICS proforma tables...................................................................................................................31C.4.1Global statement of conformance....................................................................................................................31C.4.2Profile ICS DECT NWK layer tables..............................................................................................................31C.4.3Profile ICS DECT DLC layer tables................................................................................................................31C.4.4Profile ICS DECT MAC layer tables...............................................................................................................32History..............................................................................................................................................................33SIST EN 301 241-1:2000

ETSIEN 301 241-1 V1.1.1 (1998-12)5Intellectual Property RightsIPRs essential or potentially essential to the present document may have been declared to ETSI. The informationpertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be foundin SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respectof ETSI standards", which is available free of charge from the ETSI Secretariat. Latest updates are available on theETSI Web server (http://www.etsi.org/ipr).Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guaranteecan be given as to the existence of other IPRs not referenced in SR 000 314 (or the updates on the ETSI Web server)which are, or may be, or may become, essential to the present document.ForewordThis European Standard (Telecommunications series) has been produced by ETSI Project Digital Enhanced CordlessTelecommunications (DECT).The present document is part 1 of a multi-part standard covering the DECT/ISDN interworking for intermediate systemconfiguration Profile Implementation Conformance Statement (ICS), as identified below:Part 1:"Portable radio Termination (PT)";Part 2:"Fixed radio Termination (FT)".National transposition datesDate of adoption of this EN:23 October 1998Date of latest announcement of this EN (doa):31 January 1999Date of latest publication of new National Standardor endorsement of this EN (dop/e):31 July 1999Date of withdrawal of any conflicting National Standard (dow):31 July 1999SIST EN 301 241-1:2000

ETSIEN 301 241-1 V1.1.1 (1998-12)61ScopeThe present document provides the Profile Implementation Conformance Statement (Profile ICS) proforma for theDECT/ISDN interworking for intermediate system configuration profile at the Portable radio Termination (PT) asdefined in ETS 300 822 [9] in compliance with the relevant requirements and in accordance with the relevant guidancegiven in ISO/IEC 9646-7 [15].The supplier of an implementation which claims to conform to ETS 300 822 [9] is required to complete a copy of thePICS proforma ETS 300 476 parts 1, 2, 3, and 7, [10], [11], [12] and [13], with the replacements provided by theRequirement Lists (RLs) given in annex B of the present document, as well as a copy of the specific ICS proformaprovided in the annex C of the present document.2ReferencesReferences may be made to:a)specific versions of publications (identified by date of publication, edition number, version number, etc.), inwhich case, subsequent revisions to the referenced document do not apply; orb)all versions up to and including the identified version (identified by "up to and including" before the versionidentity); orc)all versions subsequent to and including the identified version (identified by "onwards" following the versionidentity); ord)publications without mention of a specific version, in which case the latest version applies.A non-specific reference to an ETS shall also be taken to refer to later versions published as an EN with the samenumber.2.1Normative references[1]EN 300 175-1: "Digital Enhanced Cordless Telecommunications (DECT); Common Interface (CI);Part 1: Overview".[2]EN 300 175-2: "Digital Enhanced Cordless Telecommunications (DECT); Common Interface (CI);Part 2: Physical layer (PHL)".[3]EN 300 175-3: "Digital Enhanced Cordless Telecommunications (DECT); Common Interface (CI);Part 3: Medium Access Control (MAC) layer".[4]EN 300 175-4: "Digital Enhanced Cordless Telecommunications (DECT); Common Interface (CI);Part 4: Data Link Control (DLC) layer".[5]EN 300 175-5: "Digital Enhanced Cordless Telecommunications (DECT); Common Interface (CI);Part 5: Network (NWK) layer".[6]EN 300 175-6: "Digital Enhanced Cordless Telecommunications (DECT); Common Interface (CI);Part 6: Identities and addressing".[7]EN 300 175-7: "Digital Enhanced Cordless Telecommunications (DECT); Common Interface (CI);Part 7: Security features".[8]EN 300 175-8: "Digital Enhanced Cordless Telecommunications (DECT); Common Interface (CI);Part 8: Speech coding and transmission".[9]ETS 300 822: "Digital Enhanced Cordless Telecommunications (DECT); Integrated ServicesDigital Network (ISDN); DECT/ISDN interworking for intermediate system configuration;Interworking and profile specification".SIST EN 301 241-1:2000

ETSIEN 301 241-1 V1.1.1 (1998-12)7[10]ETS 300 476-1: "Digital Enhanced Cordless Telecommunications (DECT); Common Interface(CI); Protocol Implementation Conformance Statement (PICS) proforma; Part 1: Network (NWK)layer - Portable radio Termination (PT)".[11]ETS 300 476-2: "Digital Enhanced Cordless Telecommunications (DECT); Common Interface(CI); Protocol Implementation Conformance Statement (PICS) proforma; Part 2: Data LinkControl (DLC) layer - Portable radio Termination (PT)".[12]ETS 300 476-3: "Digital Enhanced Cordless Telecommunications (DECT); Common Interface(CI); Protocol Implementation Conformance Statement (PICS) proforma; Part 3: Medium AccessControl (MAC) layer - Portable radio Termination (PT)".[13]ETS 300 476-7: "Digital Enhanced Cordless Telecommunications (DECT); Common Interface(CI); Protocol Implementation Conformance Statement (PICS) proforma; Part 7: Physical layer".[14]ISO/IEC 9646-1: "Information technology; Open Systems Interconnection; Conformance testingmethodology and framework; Part 1: General concepts".[15]ISO/IEC 9646-7: "Information technology; Open Systems Interconnection; Conformance testingmethodology and framework; Part 7: Implementation Conformance Statements".[16]EN 300 403-1: "Integrated Services Digital Network (ISDN); Digital Subscriber Signalling SystemNo. one (DSS1) protocol; Signalling network layer for circuit-mode basic call control; Part 1:Protocol specification [ITU-T Recommendation Q.931 (1993), modified]".[17]EN 300 403-3: "Integrated Services Digital Network (ISDN); Digital Subscriber Signalling SystemNo. one (DSS1) protocol; Signalling network layer for circuit-mode basic call control; Part 3:Protocol Implementation Conformance Statement (PICS) proforma specification".[18]ETS 300 402-2: "Integrated Services Digital Network (ISDN); Digital Subscriber SignallingSystem No. one (DSS1) protocol; Data link layer; Part 2: General protocol specification[ITU-T Recommendation Q.921 (1993), modified]".[19]ETS 300 402-4: "Integrated Services Digital Network (ISDN); Digital Subscriber SignallingSystem No. one (DSS1) protocol; Data link layer; Part 4: Protocol Implementation ConformanceStatement (PICS) proforma specification for the general protocol".[20]ETS 300 011 (1992) including Amendment 2: "Integrated Services Digital Network (ISDN);Primary rate user-network interface; Layer 1 specification and test principles".[21]ETS 300 011/A2: "Amendment 2 to ETS 300 011 (1992), adding a SCS, a PICS and a PIXIT forinterface points Ia and Ib".[22]ETS 300 012 (1992) including Amendment 2: "Integrated Services Digital Network (ISDN); Basicuser-network interface; Layer 1 specification and test principles".[23]ETS 300 012/A2: "Amendment 2 to ETS 300 012 (1992), adding a SCS, a PICS and a PIXIT forinterface points Ia and Ib".2.2Informative references[24]ETS 300 434-1: "Digital Enhanced Cordless Telecommunications (DECT) and Integrated ServicesDigital Network (ISDN); DECT/ISDN interworking for end system configuration; Part 1:Interworking specification".[25]ETS 300 434-2: "Digital Enhanced Cordless Telecommunications (DECT) and Integrated ServicesDigital Network (ISDN); DECT/ISDN interworking for end system configuration; Part 2: Accessprofile".[26]ISO/IEC 9646-6: "Information technology; Open Systems Interconnection; Conformance testingmethodology and framework; Part 6: Protocol profile test specification".SIST EN 301 241-1:2000

ETSIEN 301 241-1 V1.1.1 (1998-12)8[27]ETS 300 406: "Methods for Testing and Specification (MTS); Protocol and profile conformancetesting specifications; Standardization methodology".3Definitions and abbreviations3.1DefinitionsFor the purposes of the present document, the following terms and definitions apply:a)the terms defined in ISO/IEC 9646-7 [15];b)the definitions in ETS 300 822 [9]; andc)the following terms defined in ISO/IEC 9646-1 [14]:-Protocol Implementation Conformance Statement (PICS) proforma;-Profile Implementation Conformance Statement (Profile ICS).3.2AbbreviationsFor the purposes of the present document, the following abbreviations apply:CCCall ControlC-planeControl planeDECTDigital Enhanced Cordless TelecommunicationsDLCData Link ControlFTFixed radio TerminationICSImplementation Conformance StatementIIPIntermediate ISDN access ProfileISDNIntegrated Services Digital NetworkLCELink Control EntityLLMELower Layer Management EntityMACMedium Access ControlMMMobility ManagementNWKNetworkPCTRProtocol Conformance Test ReportPHLPhysicalPICSProtocol Implementation Conformance StatementPPPortable PartPTPortable radio TerminationPTPortable radio TerminationRLRequirements ListSCSSystem Conformance StatementSCTRSystem Conformance Test ReportTRUPTransparent Unprotected serviceU-planeUser planeSIST EN 301 241-1:2000

ETSIEN 301 241-1 V1.1.1 (1998-12)94Conformance requirement concerning Profile ICSThe supplier of a protocol implementation which is claimed to conform to the Portable radio Termination (PT) specificrequirements of ETS 300 822 [9] shall:-verify that his protocol implementation meets the Profile Requirements Lists (Profile RLs) for each DECTprotocol layer, contained in annex B of the present document;-complete a copy of the Profile specific ICS proforma provided in annex C;-complete a copy of the System Conformance Statement (SCS) proforma provided in annex A; and-provide the information necessary to identify both the supplier and the implementation.Table 1 provides guidance to indicate how to fulfil the PICS proforma required for the profile.Table 1: DECT PICS proforma tablePICSTablesChangeETS 300 476-1 [10]A.12Status column updated by RL subclause B.2.1A.13Status column updated by RL subclause B.2.2.1A.14Status column updated by RL subclause B.2.2.2A.16Status column updated by RL subclause B.2.2.3A.18Status column updated by RL subclause B.2.3.1A.19Status column updated by RL subclause B.2.3.2A.23Status column updated by RL subclause B.2.3.3A.24Status column updated by RL subclause B.2.3.4A.25 and A.26Status column updated by RL subclause B.2.4.1A.51 and A.52Status column updated by RL subclause B.2.4.2A.126 and A.127Status column updated by RL subclause B.2.4.3All other tablesUnchangedETS 300 476-2 [11]A.9Status column updated by RL subclause B.3.1.1A.10Status column updated by RL subclause B.3.1.2A.11Status column updated by RL subclause B.3.1.3A.12Status column updated by RL subclause B.3.1.4A.13Status column updated by RL subclause B.3.2.1A.16Status column updated by RL subclause B.3.2.2A.18Status column updated by RL subclause B.3.2.3A.19Status column updated by RL subclause B.3.2.4A.30Status column updated by RL subclause B.3.2.5A.31Status column updated by RL subclause B.3.2.6A.32Status column updated by RL subclause B.3.2.7A.33Status column updated by RL subclause B.3.2.8A.34Status column updated by RL subclause B.3.2.9A.40Status column updated by RL subclause B.3.3.1All other tablesUnchangedETS 300 476-3 [12]A.9Status column updated by RL subclause B.4.1.1A.10 to A.12 and A.14Status column updated by RL subclause B.4.1.1.1A.15Status column updated by RL subclause B.4.1.1.2A.19 to A.23Status column updated by RL subclause B.4.1.1.3A.24Status column updated by RL subclause B.4.1.1.4A.26 and A.29Status column updated by RL subclause B.4.1.2.1.1A.30Status column updated by RL subclause B.4.1.2.1.2A.33Status column updated by RL subclause B.4.1.2.1.3A.34Status column updated by RL subclause B.4.1.2.2A.41Status column updated by RL subclause B.4.2.1A.42Status column updated by RL subclause B.4.2.2A.44Status column updated by RL subclause B.4.2.3A.45Status column updated by RL subclause B.4.2.4A.46Status column updated by RL subclause B.4.2.5A.58Status column updated by RL subclause B.4.2.6All other tablesUnchangedETS 300 476-7 [13]All tablesUnchangedSIST EN 301 241-1:2000

ETSIEN 301 241-1 V1.1.1 (1998-12)10Annex A (normative):System Conformance Statement (SCS) proforma for DECTPT Intermediate ISDN access Profile (IIP)Notwithstanding the provisions of the copyright clause related to the text of the present document, ETSI grants that usersof the present document may freely reproduce the SCS proforma in this annex so that it can be used for its intendedpurposes and may further publish the completed SCS.A.1IdentificationA.1.1Description of the systemTable A.1: Description of the systemProduct name:Hardware version number:Software version number:CPU type:Bus-system:Operating system name:Operating system version number:Additional:A.1.2Supplier of the systemTable A.2: Supplier of the systemCompany:Street:Postal code / city:Country:SIST EN 301 241-1:2000

ETSIEN 301 241-1 V1.1.1 (1998-12)11A.1.3Client identificationIf different from the supplier.Table A.3: Client identificationCompany:Street:Postal code / city:Country:A.1.4Contact person identificationTable A.4: Contact person identificationName:Telephone:Fax:Telex:E-mail:A.1.5Signature of the client or of the supplierTable A.5: Signature of the client or of the supplierName:Position:Signature:Date:SIST EN 301 241-1:2000

ETSIEN 301 241-1 V1.1.1 (1998-12)12A.2Protocol ident
...
