Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN IEC 62149-4:2023
01-april-2023
Aktivne komponente in naprave optičnih vlaken - Izvedbeni standardi - 4. del: 1300
nm oddajnikov in sprejemnikov optičnih vlaken za Gigabit Ethernet uporabo (IEC
62149-4:2022)
Fibre optic active components and devices - Performance standards - Part 4: 1 300 nm
fibre optic transceivers for Gigabit Ethernet application (IEC 62149-4:2022)
Aktive Lichtwellenleiterbauelemente und -geräte - Betriebsverhalten - Teil 4: 1 300-nm-
Lichtwellenleiter-Sende- und Empfangsmodule für Gigabit-Ethernet-Anwendungen (IEC
62149-4:2022)
Composants et dispositifs actifs fibroniques - Normes de performance - Partie 4:
Emetteurs-récepteurs fibroniques de 1 300 nm pour application Gigabit Ethernet (IEC
62149-4:2022)
Ta slovenski standard je istoveten z: EN IEC 62149-4:2023
ICS:
33.180.20 Povezovalne naprave za Fibre optic interconnecting
optična vlakna devices
SIST EN IEC 62149-4:2023 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN IEC 62149-4:2023

---------------------- Page: 2 ----------------------
SIST EN IEC 62149-4:2023


EUROPEAN STANDARD EN IEC 62149-4

NORME EUROPÉENNE

EUROPÄISCHE NORM February 2023
ICS 33.180.20 Supersedes EN 62149-4:2010
English Version
Fibre optic active components and devices - Performance
standards - Part 4: 1 300 nm fibre optic transceivers for Gigabit
Ethernet application
(IEC 62149-4:2022)
Composants et dispositifs actifs fibroniques - Normes de Aktive Lichtwellenleiterbauelemente und -geräte -
performance - Partie 4: Émetteurs-récepteurs fibroniques Betriebsverhalten - Teil 4: 1 300-nm-Lichtwellenleiter-
de 1 300 nm pour application Gigabit Ethernet Sende- und Empfangsmodule für Gigabit-Ethernet-
(IEC 62149-4:2022) Anwendungen
(IEC 62149-4:2022)
This European Standard was approved by CENELEC on 2023-01-20. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.


European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
 Ref. No. EN IEC 62149-4:2023 E

---------------------- Page: 3 ----------------------
SIST EN IEC 62149-4:2023
EN IEC 62149-4:2023 (E)

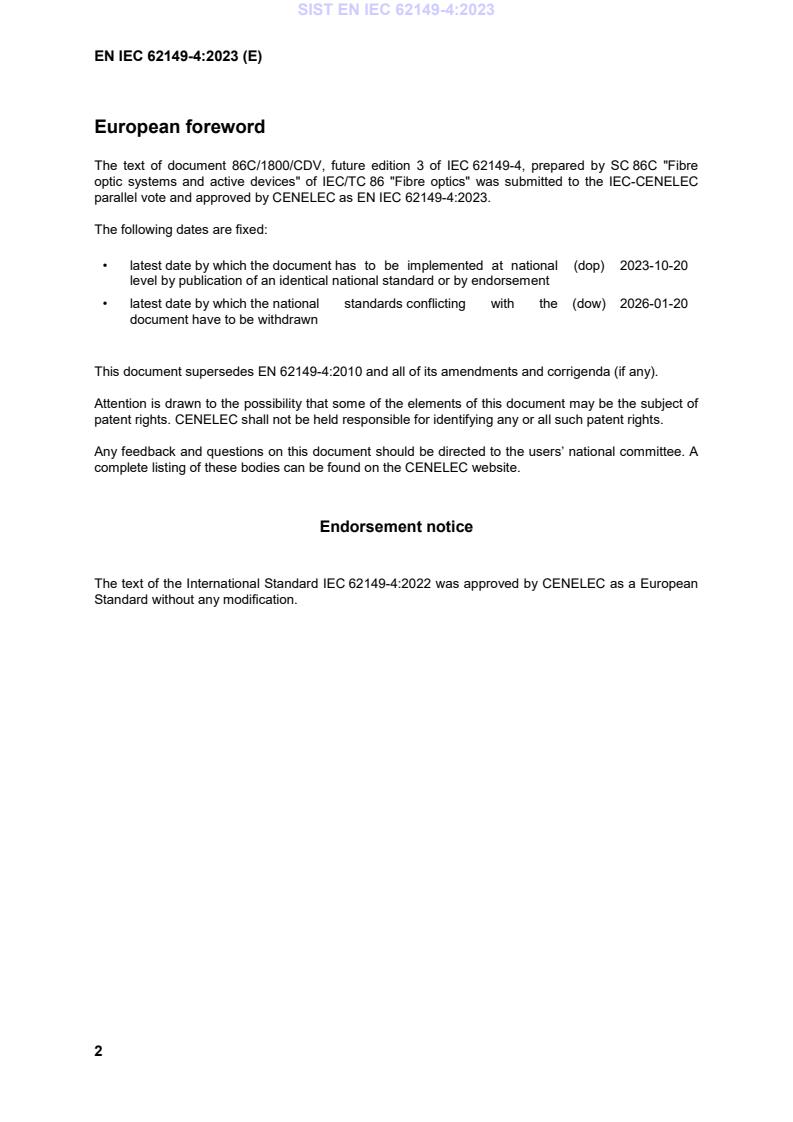

European foreword
The text of document 86C/1800/CDV, future edition 3 of IEC 62149-4, prepared by SC 86C "Fibre
optic systems and active devices" of IEC/TC 86 "Fibre optics" was submitted to the IEC-CENELEC
parallel vote and approved by CENELEC as EN IEC 62149-4:2023.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2023-10-20
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2026-01-20
document have to be withdrawn

This document supersedes EN 62149-4:2010 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 62149-4:2022 was approved by CENELEC as a European
Standard without any modification.
2

---------------------- Page: 4 ----------------------
SIST EN IEC 62149-4:2023
EN IEC 62149-4:2023 (E)
Annex A
(normative)

Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod), the
relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 60068-2-6 - Environmental testing - Part 2-6: Tests - EN 60068-2-6 -
Test Fc: Vibration (sinusoidal)
IEC 60068-2-20 - Environmental testing - Part 2-20: Tests - EN IEC 60068-2-20 -
Test Ta and Tb: Test methods for
solderability and resistance to soldering
heat of devices with leads
IEC 60068-2-27 - Environmental testing - Part 2-27: Tests - EN 60068-2-27 -
Test Ea and guidance: Shock
IEC 60068-2-38 - Environmental testing - Part 2-38: Tests - EN IEC 60068-2-38 -
Test Z/AD: Composite
temperature/humidity cyclic test
IEC 60068-2-78 - Environmental testing - Part 2-78: Tests - EN 60068-2-78 -
Test Cab: Damp heat, steady state
IEC 60749-25 - Semiconductor devices - Mechanical and EN 60749-25 -
climatic test methods - Part 25:
Temperature cycling
IEC 60749-26 - Semiconductor devices - Mechanical and EN IEC 60749-26 -
climatic test methods - Part 26:
Electrostatic discharge (ESD) sensitivity
testing - Human body model (HBM)
IEC 60825-1 - Safety of laser products - Part 1: EN 60825-1 -
Equipment classification and requirements
IEC 60938-1 - Fixed inductors for electromagnetic EN IEC 60938-1 -
interference suppression - Part 1: Generic
specification
IEC 60950-1 - Information technology equipment - Safety - -
- Part 1: General requirements
IEC 61300-2-47 - Fibre optic interconnecting devices and EN 61300-2-47 -
passive components - Basic test and
measurement procedures - Part 2-47:
Tests - Thermal shocks
3

---------------------- Page: 5 ----------------------
SIST EN IEC 62149-4:2023
EN IEC 62149-4:2023 (E)
ISO/IEC/IEEE 8802-3 2021 Telecommunications and exchange - -
between information technology systems -
Requirements for local and metropolitan
area networks - Part 3: Standard for
Ethernet

4

---------------------- Page: 6 ----------------------
SIST EN IEC 62149-4:2023



IEC 62149-4

®


Edition 3.0 2022-12




INTERNATIONAL



STANDARD




NORME



INTERNATIONALE











Fibre optic active components and devices – Performance standards –

Part 4: 1 300 nm fibre optic transceivers for Gigabit Ethernet application




Composants et dispositifs actifs fibroniques – Normes de performance –

Partie 4: Émetteurs-récepteurs fibroniques de 1 300 nm pour application Gigabit

Ethernet















INTERNATIONAL

ELECTROTECHNICAL

COMMISSION


COMMISSION

ELECTROTECHNIQUE


INTERNATIONALE




ICS 33.180.20 ISBN 978-2-8322-6226-9



Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale

---------------------- Page: 7 ----------------------
SIST EN IEC 62149-4:2023
– 2 – IEC 62149-4:2022 © IEC 2022
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms, definitions, symbols and abbreviated terms . 7
3.1 Terms and definitions . 7
3.2 Symbols . 7
3.3 Abbreviated terms . 8
4 Product parameters . 8
4.1 Absolute limiting ratings . 8
4.2 Operating environment . 9
4.3 Functional specification. 9
4.4 Diagrams . 10
4.5 Labelling . 11
5 Testing . 11
5.1 General . 11
5.2 Characterization testing . 11
5.3 Performance testing . 12
5.3.1 Sequence of testing . 12
5.3.2 Sample size, sequencing and groupings . 12
6 Environmental specifications . 14
6.1 General safety . 14
6.2 Laser safety . 14
6.3 Electromagnetic emission . 14
Annex A (normative) Sample size, sequencing and grouping requirements . 15

Figure 1 – Receiver section schematic . 10
Figure 2 – Transmitter section schematic . 11

Table 1 – Absolute limiting ratings . 8
Table 2 – Operating environment . 9
Table 3 – Receiver section: functional specification . 9
Table 4 – Transmitter section: functional specification . 10
Table 5 – Transmitter section characterization tests. 12
Table 6 – Receiver section characterization tests . 12
Table 7 – Performance test plan . 13
Table A.1 – Sample size, sequencing and grouping requirements . 15

---------------------- Page: 8 ----------------------
SIST EN IEC 62149-4:2023
IEC 62149-4:2022 © IEC 2022 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________

FIBRE OPTIC ACTIVE COMPONENTS AND DEVICES –
PERFORMANCE STANDARDS –

Part 4: 1 300 nm fibre optic transceivers
for Gigabit Ethernet application

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
IEC 62149-4 has been prepared by subcommittee 86C: Fibre optic systems and active devices,
of IEC technical committee 86: Fibre optics. It is an International Standard.
This third edition cancels and replaces the second edition published in 2010. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) the normative references are updated;
b) the condition "for short periods" in 4.1 is removed;
c) the absolute limiting rating for soldering temperature in Table 1 is modified;
d) the maximal optical output power (multimode fibre) in Table 4 is increased from −3,5 dBm
to −3 dBm, to align value with the referenced document;

---------------------- Page: 9 ----------------------
SIST EN IEC 62149-4:2023
– 4 – IEC 62149-4:2022 © IEC 2022
e) a note is added to Table 7 to clarify that out-of-specification products are not allowed to
pass the performance tests.
The text of this International Standard is based on the following documents:
Draft Report on voting
86C/1800/CDV 86C/1826/RVC

Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
A list of all parts of the IEC 62149 series, published under the general title Fibre optic active
components and devices – Performance standards, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

---------------------- Page: 10 ----------------------
SIST EN IEC 62149-4:2023
IEC 62149-4:2022 © IEC 2022 – 5 –
INTRODUCTION
Fibre optic transceivers are used to convert electrical signals into optical signals and vice versa.
This document specifies performance standards for 1 300 nm fibre optic transceivers for Gigabit
Ethernet application. The ISO/IEC/IEEE 8802-3 Gigabit Ethernet standard is used as the basis
for determining the optical characteristics of the transceiver, which operates at a lin
...

SLOVENSKI STANDARD
oSIST prEN IEC 62149-4:2022
01-september-2022
Aktivne komponente in naprave optičnih vlaken - Izvedbeni standardi - 4. del: 1300
nm oddajnikov in sprejemnikov optičnih vlaken za Gigabit Ethernet uporabo
Fibre optic active components and devices - Performance standards - Part 4: 1 300 nm
fibre optic transceivers for Gigabit Ethernet application
Aktive Lichtwellenleiterbauelemente und -geräte - Betriebsverhalten - Teil 4: 1 300-nm-
Lichtwellenleiter-Sende- und Empfangsmodule für Gigabit-Ethernet-Anwendungen
Composants et dispositifs actifs fibroniques - Normes de performance - Partie 4:
Emetteurs-récepteurs fibroniques de 1 300 nm pour application Gigabit Ethernet
Ta slovenski standard je istoveten z: prEN IEC 62149-4:2022
ICS:
33.180.20 Povezovalne naprave za Fibre optic interconnecting
optična vlakna devices
oSIST prEN IEC 62149-4:2022 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
oSIST prEN IEC 62149-4:2022

---------------------- Page: 2 ----------------------
oSIST prEN IEC 62149-4:2022
86C/1800/CDV

COMMITTEE DRAFT FOR VOTE (CDV)
PROJECT NUMBER:
IEC 62149-4 ED3
DATE OF CIRCULATION: CLOSING DATE FOR VOTING:
2022-07-01 2022-09-23
SUPERSEDES DOCUMENTS:
86C/1724/CD, 86C/1739A/CC

IEC SC 86C : FIBRE OPTIC SYSTEMS AND ACTIVE DEVICES
SECRETARIAT: SECRETARY:
United States of America Mr Fred Heismann
OF INTEREST TO THE FOLLOWING COMMITTEES: PROPOSED HORIZONTAL STANDARD:


Other TC/SCs are requested to indicate their interest, if
any, in this CDV to the secretary.
FUNCTIONS CONCERNED:
EMC ENVIRONMENT QUALITY ASSURANCE SAFETY
SUBMITTED FOR CENELEC PARALLEL VOTING NOT SUBMITTED FOR CENELEC PARALLEL VOTING
Attention IEC-CENELEC parallel voting
The attention of IEC National Committees, members of
CENELEC, is drawn to the fact that this Committee Draft
for Vote (CDV) is submitted for parallel voting.
The CENELEC members are invited to vote through the
CENELEC online voting system.

This document is still under study and subject to change. It should not be used for reference purposes.
Recipients of this document are invited to submit, with their comments, notification of any relevant patent rights of
which they are aware and to provide supporting documentation.

TITLE:
Fibre optic active components and devices - Performance standards - Part 4: 1 300 nm fibre optic
transceivers for Gigabit Ethernet application

PROPOSED STABILITY DATE: 2026

NOTE FROM TC/SC OFFICERS:


Copyright © 2022 International Electrotechnical Commission, IEC. All rights reserved. It is permitted to download this
electronic file, to make a copy and to print out the content for the sole purpose of preparing National Committee positions.
You may not copy or "mirror" the file or printed version of the document, or any part of it, for any other purpose without
permission in writing from IEC.

---------------------- Page: 3 ----------------------
oSIST prEN IEC 62149-4:2022
IEC CDV 62149-4/Ed3  IEC:2022 – 2 – 86C/1800/CDV
1 CONTENTS
2 FOREWORD . 3
3 INTRODUCTION . 5
4 1 Scope . 6
5 2 Normative references . 6
6 3 Terms, definitions, symbols and abbreviated terms . 7
7 3.1 Terms and definitions . 7
8 3.2 Symbols . 7
9 3.3 Abbreviated terms . 7
10 4 Product parameters . 8
11 4.1 Absolute limiting ratings . 8
12 4.2 Operating environment . 8
13 4.3 Functional specification . 9
14 4.4 Diagrams . 10
15 4.5 Labelling . 11
16 5 Testing . 11
17 5.1 General . 11
18 5.2 Characterization testing . 11
19 5.3 Performance testing . 12
20 5.3.1 Sequence of testing . 12
21 5.3.2 Sample size, sequencing and groupings . 12
22 6 Environmental specifications . 14
23 6.1 General safety . 14
24 6.2 Laser safety . 14
25 6.3 Electromagnetic emission . 15
26 Annex A (normative) Sample size, sequencing and grouping requirements . 16
27
28 Figure 1 – Receiver section schematic . 10
29 Figure 2 – Transmitter section schematic . 11
30 Table 1 – Absolute limiting ratings . 8
31 Table 2 – Operating environment . 8
32 Table 3 – Receiver section: functional specification . 9
33 Table 4 – Transmitter section: functional specification . 10
34 Table 5 – Transmitter section characterization tests . 12
35 Table 6 – Receiver section characterization tests . 12
36 Table 7 – Performance test plan . 13
37
38

---------------------- Page: 4 ----------------------
oSIST prEN IEC 62149-4:2022
IEC CDV 62149-4/Ed3  IEC:2022 – 3 – 86C/1800/CDV
39 INTERNATIONAL ELECTROTECHNICAL COMMISSION
40 ____________
41
42 FIBRE OPTIC ACTIVE COMPONENTS AND DEVICES –
43 PERFORMANCE STANDARDS –
44
45 Part 4: 1 300 nm fibre optic transceivers
46 for Gigabit Ethernet application
47
48
49 FOREWORD
50 1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
51 all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
52 international co-operation on all questions concerning standardization in the electrical and electronic fields. To
53 this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
54 Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
55 Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
56 in the subject dealt with may participate in this preparatory work. International, governmental and non-
57 governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
58 with the International Organization for Standardization (ISO) in accordance with conditions determined by
59 agreement between the two organizations.
60 2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
61 consensus of opinion on the relevant subjects since each technical committee has representation from all
62 interested IEC National Committees.
63 3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
64 Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
65 Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
66 misinterpretation by any end user.
67 4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
68 transparently to the maximum extent possible in their national and regional publications. Any divergence
69 between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
70 the latter.
71 5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
72 assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
73 services carried out by independent certification bodies.
74 6) All users should ensure that they have the latest edition of this publication.
75 7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
76 members of its technical committees and IEC National Committees for any personal injury, property damage or
77 other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
78 expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
79 Publications.
80 8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
81 indispensable for the correct application of this publication.
82 9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
83 patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
84 IEC 62149-4 has been prepared by subcommittee 86C: Fibre optic active devices, of IEC
85 technical committee 86: Fibre optics. It is an International Standard.
86 This third edition cancels and replaces the second edition published in 2010. This edition
87 constitutes a technical revision.
88 This edition includes the following significant technical changes with respect to the previous
89 edition:
90 a) the normative references are updated;
91 b) the condition “for short periods” in Clause 5.1 is removed;
92 c) the absolute limiting rating for soldering temperature in Table 1 is modified;
93 d) the maximal optical output power (multimode fibre) in Table 4 is increased from −3,5 dBm
94 to −3 dBm, to align value with the referenced document;

---------------------- Page: 5 ----------------------
oSIST prEN IEC 62149-4:2022
IEC CDV 62149-4/Ed3  IEC:2022 – 4 – 86C/1800/CDV
95 e) a note is added to Table 7 to clarify that out-of-specification products are not allowed to
96 pass the performance tests.
97 The text of this International Standard is based on the following documents:
Draft Report on voting
86C/XX/FDIS 86C/XX/RVD
98
99 Full information on the voting for its approval can be found in the report on voting indicated in
100 the above table.
101 The language used for the development of this International Standard is English.
102 This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
103 accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement,
104 available at www.iec.ch/members_experts/refdocs. The main document types developed by
105 IEC are described in greater detail at www.iec.ch/standardsdev/publications.
106 A list of all parts of the IEC 62149 series, published under the general title Fibre optic active
107 components and devices – Performance standards, can be found on the IEC website.
108 The committee has decided that the contents of this document will remain unchanged until the
109 stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
110 the specific document. At this date, the document will be
111 • reconfirmed,
112 • withdrawn,
113 • replaced by a revised edition, or
114 • amended.
115
116
117

---------------------- Page: 6 ----------------------
oSIST prEN IEC 62149-4:2022
IEC CDV 62149-4/Ed3  IEC:2022 – 5 – 86C/1800/CDV
118 INTRODUCTION
119 Fibre optic transceivers are used to convert electrical signals into optical signals and vice
120 versa. This document specifies performance standards for 1 300 nm fibre optic transceivers
121 for Gigabit Ethernet application. The ISO/IEC/IEEE 8802-3 Gigabit Ethernet standard is used
122 as the basis for determining the optical characteristics of the transceiver, which operates at a
123 line rate of 1,25 Gbit/s.
124

---------------------- Page: 7 ----------------------
oSIST prEN IEC 62149-4:2022
IEC CDV 62149-4/Ed3  IEC:2022 – 6 – 86C/1800/CDV
125 FIBRE OPTIC ACTIVE COMPONENTS AND DEVICES –
126 PERFORMANCE STANDARDS –
127
128 Part 4: 1 300 nm fibre optic transceivers
129 for Gigabit Ethernet application
130
131 1 Scope
132 This part of IEC 62149 defines performance specifications for 1 300 nm fibre optic transceiver
133 modules used for the ISO/IEC/IEEE 8802-3 Gigabit Ethernet application. The document
134 contains definitions for product performance requirements as well as a series of tests and
135 measurements, for which clearly defined conditions, severities and pass/fail criteria are
136 provided. The tests are intended to be run on a “once-off” basis to prove any product’s ability
137 to satisfy the performance standard’s requirements.
138 A product that has been shown to meet all the requirements of a performance standard can be
139 declared as complying with the performance standard but will then be controlled by a quality
140 assurance/quality conformance program.
141 2 Normative references
142 The following referenced documents are indispensable for the application of this document.
143 For dated references, only the edition cited applies. For undated references, the latest edition
144 of the referenced document (including any amendments) applies.
145 IEC 60068-2-6, Environmental testing – Part 2-6: Tests – Test Fc: Vibration (sinusoidal)
146 IEC 60068-2-14, Environmental testing – Part 2-14: Tests – Test N: Change of temperature
147 IEC 60068-2-20, Environmental testing – Part 2-20: Tests – Test Ta and Tb: Test methods for
148 solderability and resistance to soldering heat of devices with leads
149 IEC 60068-2-27, Environmental testing – Part 2-27: Tests – Test Ea and guidance: Shock
150 IEC 60068-2-38, Environmental testing – Part 2-38: Tests – Test Z/AD: Composite
151 temperature/humidity cyclic test
152 IEC 60028-2-78, Environmental testing – Part 2-78: Tests – Test Cab: Damp heat, steady
153 state
154 IEC 60749-26, Semiconductor devices – Mechanical and climatic test methods – Part 26:
155 Electrostatic discharge (ESD) sensitivity testing – Human body model (HBM)
156 IEC 60825-1, Safety of laser products – Part 1: Equipment classification and requirements
157 IEC 60938-1, Fixed inductors for electromagnetic interference suppression – Part 1: Generic
158 specification
159 IEC 60950-1, Information technology equipment – Safety – Part 1: General requirements
160 IEC 61300-2-47, Fibre optic interconnecting devices and passive components – Basic test and
161 measurement procedures – Part 2-47: Tests – Thermal shocks
162 ISO/IEC/IEEE 8802-3:2021, Telecommunications and exchange between information
163 technology systems – Requirements for local and metropolitan area networks – Part 3: Standard
164 for Ethernet

---------------------- Page: 8 ----------------------
oSIST prEN IEC 62149-4:2022
IEC CDV 62149-4/Ed3  IEC:2022 – 7 – 86C/1800/CDV
165 3 Terms, definitions, symbols and abbreviated terms
166 3.1 Term
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
