SIST EN IEC 61754-4:2022/oprA1:2025

Amendment 1 - Fibre optic interconnecting devices and passive components - Fibre optic connector interfaces - Part 4: Type SC connector family

Lichtwellenleiter - Verbindungselemente und passive Bauteile - Steckgesichter von Lichtwellenleiter-Steckverbindern - Teil 4: Steckverbinderfamilie der Bauart SC

Amendement 1 - Dispositifs d’interconnexion et composants passifs fibroniques - Interfaces de connecteurs fibroniques - Partie 4: Famille de connecteurs de type SC

Optični spojni elementi in pasivne komponente - Vmesniki za optične konektorje - 4. del: Konektorska družina vrste SC - Dopolnilo A1

General Information

• Status: Not Published
• Public Enquiry End Date: 31-Dec-2025
• ICS: 33.180.20 - Fibre optic interconnecting devices
• Technical Committee: MOC - Mobile Communications
• Current Stage: 4020 - Public enquire (PE) (Adopted Project)
• Start Date: 22-Oct-2025
• Due Date: 11-Mar-2026
• Completion Date: 22-Dec-2025
• Ref Project: EN IEC 61754-4:2022/prA1:2025 - Amendment 1 - Fibre optic interconnecting devices and passive components - Fibre optic connector interfaces - Part 4: Type SC connector family

Relations

• Amends: SIST EN IEC 61754-4:2022 - Fibre optic interconnecting devices and passive components - Fibre optic connector interfaces - Part 4: Type SC connector family (IEC 61754-4:2022)
• Effective Date: 14-Jan-2025

Overview

EN IEC 61754-4:2022/prA1:2025 - Amendment 1 updates the Type SC connector family interfaces in the IEC/EN 61754‑4 series. This Committee Draft for Vote (CDV) proposes edits to interface drawings, dimensional tables and grade characteristics for simplex and duplex SC PC and angled‑PC plug connectors, and adds important normative references. The draft is under IEC SC 86B and submitted for parallel voting (circulation 2025‑10‑17 to 2026‑01‑09); it is still under study and should not be used as a final reference.

Key topics and technical changes

• Normative references added
  • IEC 61755‑3 series (connector optical interface parameters for dispersion‑unshifted single‑mode physically contacting fibres)
  • IEC 63267‑3 series (connector parameters for enhanced macro bend multimode fibres, 50 µm core physically contacting)
• Interface drawings and dimensions
  • Replacement of simplex and duplex PC plug connector interface figures with updated drawings.
  • Specific dimensional edits: e.g., Table 17 row P changed from 9.2 mm to 9.1 mm; Table 13 row DB now includes 12.65 mm and 12.75 mm values.
  • Deletions of some angled PC plug connector figures and certain legacy notes.
• Grade characteristics
  • Grade A: “Grade not specified at this time”
  • Grades B–D: redirected to IEC 61755‑3 series
  • Certain multimode grade values: redirected to IEC 63267‑3 series
• Test/inspection details
  • Pin gauge row CK updated to a different surface finish requirement (listed in draft as Ra: ≤0,000 2).
  • Removal of legacy endface dome offset/eccentricity notes (previous 50 µm references deleted).
• Bibliography cleanup
  • Removal of outdated IEC 61755‑3‑1, 61755‑3‑2 and IEC 61755‑6‑1 references.

Applications and users

This amendment is essential for:

• Connector manufacturers ensuring mechanical interchangeability and updated dimensional tolerances for SC connector designs.
• Component designers integrating SC receptacles in active devices and patch panels.
• Quality and test laboratories that verify connector endface geometry and grade characteristics in line with referenced IEC interface and endface standards.
• Procurement and compliance teams referencing up‑to‑date standards for product acceptance and interoperability in telecom, datacom and FTTx installations.

Related standards

• IEC 61754‑4 (Part 4: Type SC connector family) - base document
• IEC 61755‑3 series - connector optical interfaces / endface parameters (single‑mode)
• IEC 63267‑3 series - connector parameters for enhanced macro bend multimode fibres

Note: This amendment has a proposed stability date of 2032 and remains a draft; consult the final published EN/IEC document and national adoption for authoritative requirements.

Standards Content (Sample)

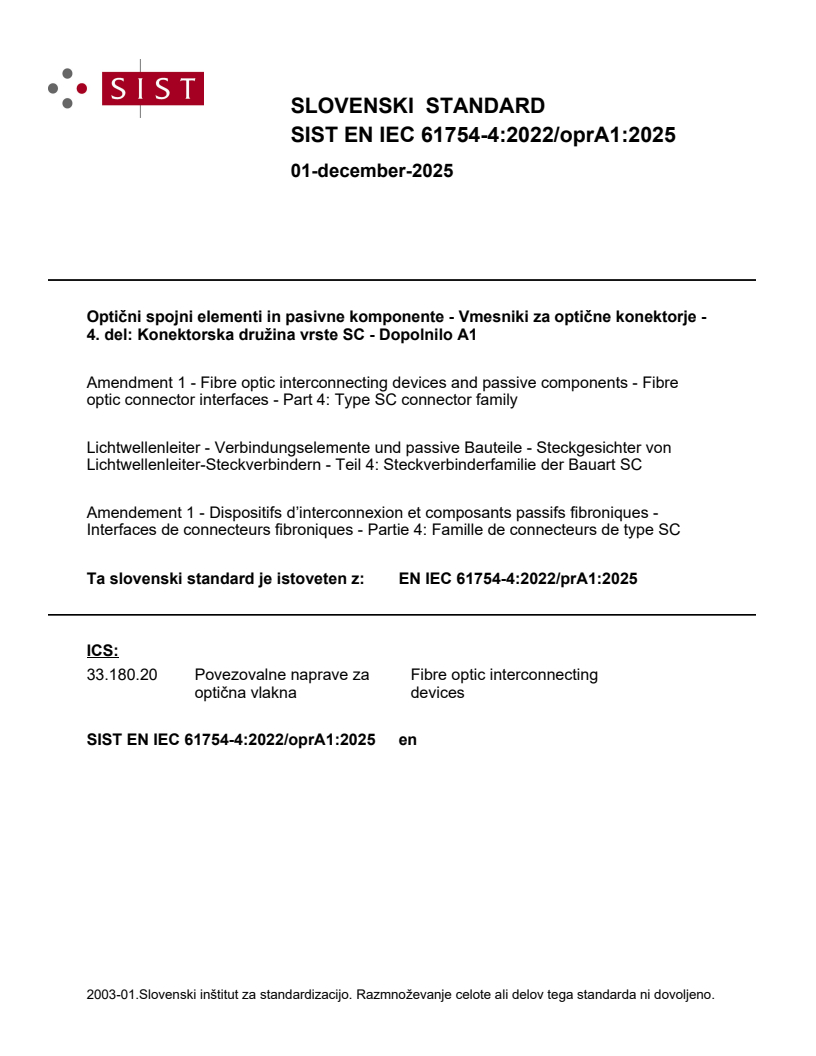

SLOVENSKI STANDARD
01-december-2025
Optični spojni elementi in pasivne komponente - Vmesniki za optične konektorje -
4. del: Konektorska družina vrste SC - Dopolnilo A1
Amendment 1 - Fibre optic interconnecting devices and passive components - Fibre
optic connector interfaces - Part 4: Type SC connector family
Lichtwellenleiter - Verbindungselemente und passive Bauteile - Steckgesichter von
Lichtwellenleiter-Steckverbindern - Teil 4: Steckverbinderfamilie der Bauart SC
Amendement 1 - Dispositifs d’interconnexion et composants passifs fibroniques -
Interfaces de connecteurs fibroniques - Partie 4: Famille de connecteurs de type SC
Ta slovenski standard je istoveten z: EN IEC 61754-4:2022/prA1:2025
ICS:
33.180.20 Povezovalne naprave za Fibre optic interconnecting
optična vlakna devices
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

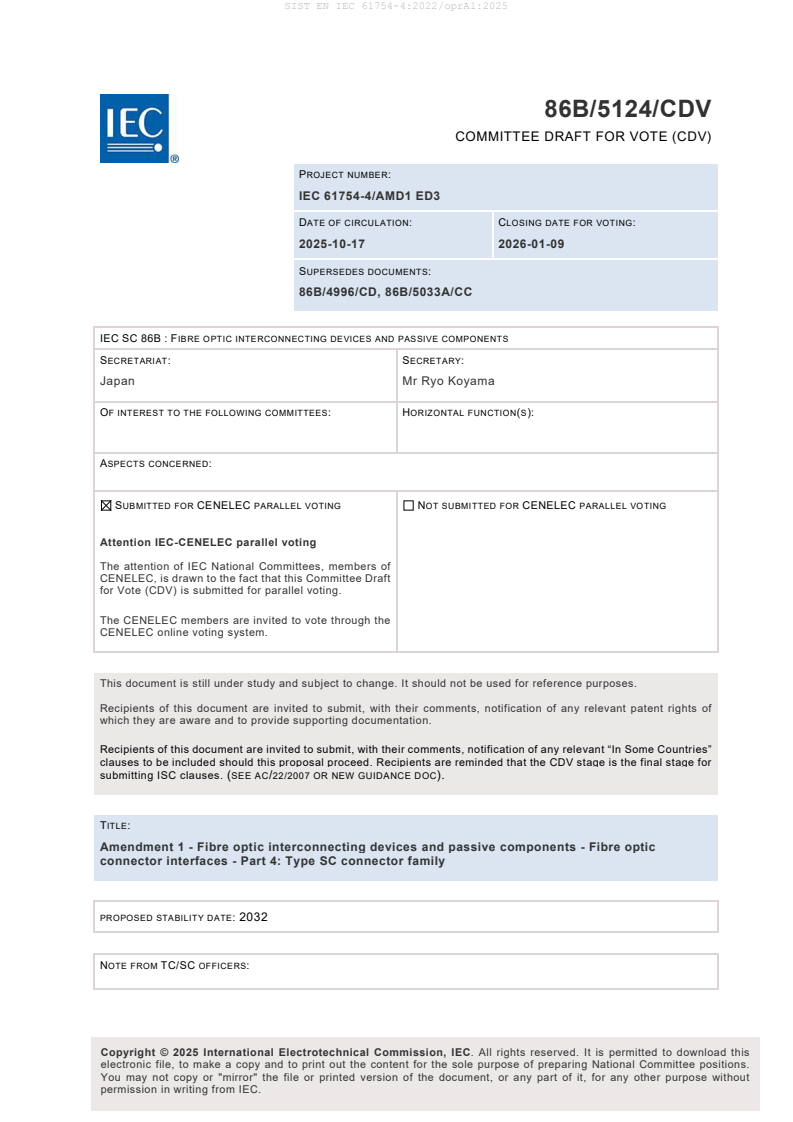

86B/5124/CDV
COMMITTEE DRAFT FOR VOTE (CDV)

PROJECT NUMBER:
IEC 61754-4/AMD1 ED3
DATE OF CIRCULATION: CLOSING DATE FOR VOTING:
2025-10-17 2026-01-09
SUPERSEDES DOCUMENTS:
86B/4996/CD, 86B/5033A/CC
IEC SC 86B : FIBRE OPTIC INTERCONNECTING DEVICES AND PASSIVE COMPONENTS
SECRETARIAT: SECRETARY:
Japan Mr Ryo Koyama
OF INTEREST TO THE FOLLOWING COMMITTEES: HORIZONTAL FUNCTION(S):

ASPECTS CONCERNED:
SUBMITTED FOR CENELEC PARALLEL VOTING NOT SUBMITTED FOR CENELEC PARALLEL VOTING
Attention IEC-CENELEC parallel voting
The attention of IEC National Committees, members of
CENELEC, is drawn to the fact that this Committee Draft
for Vote (CDV) is submitted for parallel voting.
The CENELEC members are invited to vote through the
CENELEC online voting system.
This document is still under study and subject to change. It should not be used for reference purposes.
Recipients of this document are invited to submit, with their comments, notification of any relevant patent rights of
which they are aware and to provide supporting documentation.
Recipients of this document are invited to submit, with their comments, notification of any relevant “In Some Countries”
clauses to be included should this proposal proceed. Recipients are reminded that the CDV stage is the final stage for
submitting ISC clauses. (SEE AC/22/2007 OR NEW GUIDANCE DOC).

TITLE:
Amendment 1 - Fibre optic interconnecting devices and passive components - Fibre optic
connector interfaces - Part 4: Type SC connector family

PROPOSED STABILITY DATE: 2032
NOTE FROM TC/SC OFFICERS:
electronic file, to make a copy and to print out the content for the sole purpose of preparing National Committee positions.
You may not copy or "mirror" the file or printed version of the document, or any part of it, for any other purpose without
permission in writing from IEC.

IEC CDV 61754-4/AMD1 © IEC 2025
1 INTERNATIONAL ELECTROTECHNICAL COMMISSION
3 _____________
5 IEC 61754-4
6 Edition 3.0 2022-02
7 Fibre optic interconnecting devices and passive components – Fibre optic connector
8 interfaces - Part 4: Type SC connector family
9 AMENDMENT 1
10 2 Normative references
11 Add the following references:
12 IEC 61755-3 (all parts), Fibre optic interconnecting devices and passive components - Connector optical interfaces:
13 Connector parameters of dispersion unshifted single-mode physically contacting fibres
14 IEC 63267-3 (all parts), Fibre optic interconnecting devices and passive components – Connector optical interfaces
15 for enhanced macro bend multimode fibres: Connector par
...
