SLOVENSKI STANDARD
01-julij-2025
Ultrazvok - Hidrofoni - 3. del: Lastnosti hidrofonov za ultrazvočna polja - Dopolnilo
A1
Amendment 1 - Ultrasonics - Hydrophones - Part 3: Properties of hydrophones for
ultrasonic fields
Ultraschall - Hydrophone - Teil 3: Eigenschaften von Hydrophonen zur Verwendung in
Ultraschallfeldern
Amendement 1 - Ultrasons - Hydrophones - Partie 3: Propriétés des hydrophones pour
les champs ultrasoniques
Ta slovenski standard je istoveten z: EN IEC 62127-3:2023/prA1:2025
ICS:
11.040.01 Medicinska oprema na Medical equipment in general
splošno
17.140.50 Elektroakustika Electroacoustics
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
87/897/CDV
COMMITTEE DRAFT FOR VOTE (CDV)
PROJECT NUMBER:
IEC 62127-3/AMD1 ED2
DATE OF CIRCULATION: CLOSING DATE FOR VOTING:
2025-05-30 2025-08-22
SUPERSEDES DOCUMENTS:
87/880/CD, 87/888A/CC
IEC TC 87 : ULTRASONICS
SECRETARIAT: SECRETARY:
United Kingdom Mr Petar Luzajic
OF INTEREST TO THE FOLLOWING COMMITTEES: HORIZONTAL FUNCTION(S):
ASPECTS CONCERNED:
SUBMITTED FOR CENELEC PARALLEL VOTING NOT SUBMITTED FOR CENELEC PARALLEL VOTING
Attention IEC-CENELEC parallel voting
The attention of IEC National Committees, members of
CENELEC, is drawn to the fact that this Committee Draft
for Vote (CDV) is submitted for parallel voting.
The CENELEC members are invited to vote through the
CENELEC online voting system.
This document is still under study and subject to change. It should not be used for reference purposes.
Recipients of this document are invited to submit, with their comments, notification of any relevant patent rights of
which they are aware and to provide supporting documentation.
Recipients of this document are invited to submit, with their comments, notification of any relevant “In Some
Countries” clauses to be included should this proposal proceed. Recipients are reminded that the CDV stage is the
final stage for submitting ISC clauses. (SEE AC/22/2007 OR NEW GUIDANCE DOC).
TITLE:
Amendment 1 - Ultrasonics - Hydrophones - Part 3: Properties of hydrophones for ultrasonic
fields
PROPOSED STABILITY DATE: 2028
NOTE FROM TC/SC OFFICERS:
electronic file, to make a copy and to print out the content for the sole purpose of preparing National Committee positions.
You may not copy or "mirror" the file or printed version of the document, or any part of it, for any other purpose without
permission in writing from IEC.

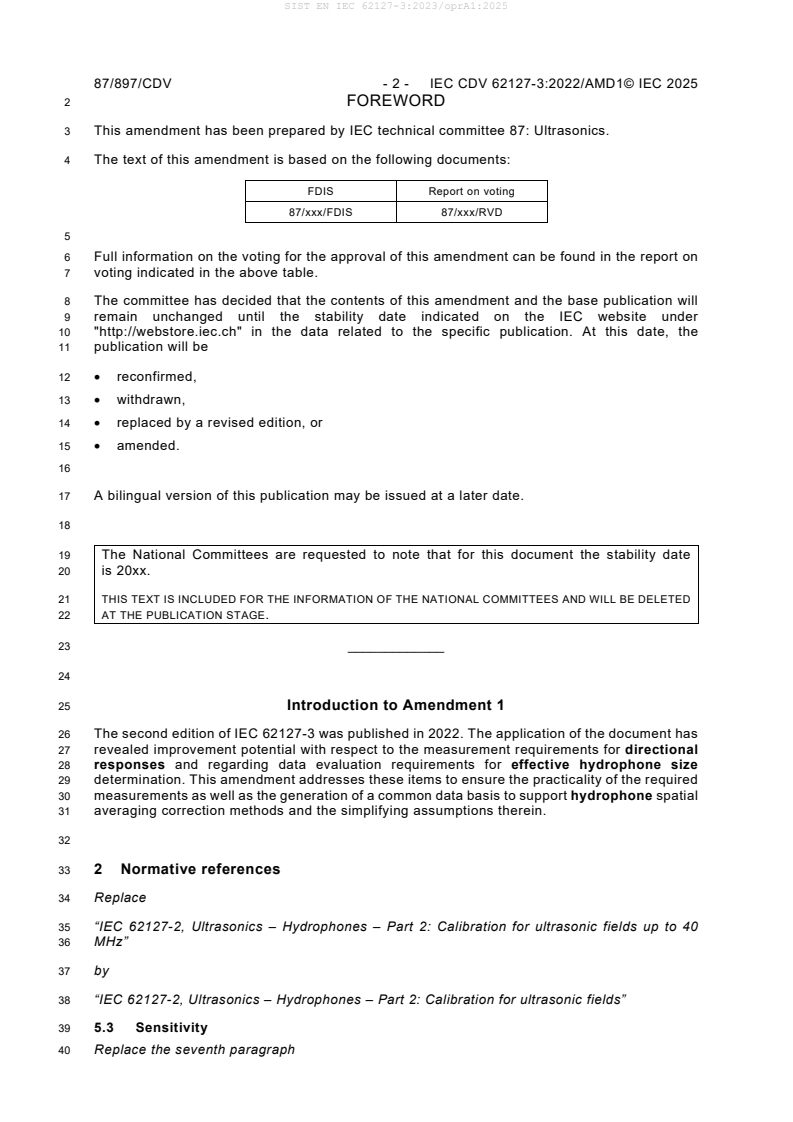

87/897/CDV - 2 - IEC CDV 62127-3:2022/AMD1© IEC 2025
2 FOREWORD
3 This amendment has been prepared by IEC technical committee 87: Ultrasonics.
4 The text of this amendment is based on the following documents:
FDIS Report on voting
87/xxx/FDIS 87/xxx/RVD
6 Full information on the voting for the approval of this amendment can be found in the report on
7 voting indicated in the above table.
8 The committee has decided that the contents of this amendment and the base publication will
9 remain unchanged until the stability date indicated on the IEC website under
10 "http://webstore.iec.ch" in the data related to the specific publication. At this date, the
11 publication will be
12 • reconfirmed,
13 • withdrawn,
14 • replaced by a revised edition, or
15 • amended.
17 A bilingual version of this publication may be issued at a later date.
19 The National Committees are requested to note that for this document the stability date
20 is 20xx.
21 THIS TEXT IS INCLUDED FOR THE INFORMATION OF THE NATIONAL COMMITTEES AND WILL BE DELETED
22 AT THE PUBLICATION STAGE.
23 _____________
25 Introduction to Amendment 1
26 The second edition of IEC 62127-3 was published in 2022. The application of the document has
27 revealed improvement potential with respect to the measurement requirements for directional
28 responses and regarding data evaluation requirements for effective hydrophone size
29 determination. This amendment addresses these items to ensure the practicality of the required
30 measurements as well as the generation of a common data basis to support hydrophone spatial
31 averaging correction methods and the simplifying assumptions therein.
33 2 Normative references
34 Replace
35 “IEC 62127-2, Ultrasonics – Hydrophones – Part 2: Calibration for ultrasonic fields up to 40
36 MHz”
37 by
38 “IEC 62127-2, Ultrasonics – Hydrophones – Part 2: Calibration for ultrasonic fields”
39 5.3 Sensitivity
40 Replace the seventh paragraph
IEC CDV 62127-3:2022/AMD1 © IEC 2025 - 3 - 87/897/CDV
41 “The temperature dependence of the sensitivity shall be given. The hydrophone sensitivity
42 shall be stated as a function of the water temperature, at least over the temperature range 19 °C
43 to 25 °C, or the particular water temperature to which the stated sensitivity relates shall be
44 stated together with the temperature coefficient of the sensitivity.”
45 by
46 “The particular water temperature to which the stated sensitivity relates shall be given. The
47 temperature dependence of the sensitivity should be described. The hydrophone sensitivity
48 should be stated as a function of the water temperature, at least over the temperature range
49 19 °C to 25 °C, or the particular water temperature to which the stated sensitivity relates should
50 be stated together with the temperature coefficient of the sensitivity.”
51 NOTE 2 The former requirement to state the temperature dependence has been modified to become a
52 recommendation for practical reasons. Though being of importance for some applications, the former general
53 requirement here posed disproportional measurement burden to conform with IEC 62127-3. As long as water
54 temperatures at calibration and measurement application differ by one or two degrees only, consideration of the
55 effect within an uncertainty component is reasonable [15,16,17].
57 Replace “NOTE 2” by “NOTE 3”.
58 Replace “NOTE 3” by “NOTE 4”.
60 5.4.2 Frequency dependence
61 Replace the first paragraph
62 “The modulus of the end-of-cable sensitivity or sensitivity level of the hydrophone or
63 hydrophone assembly as a function of frequency shall be stated either graphically or as a list
64 of values and over a frequency range containing at least the frequency band claimed under
65 5.4.1. If it is given as a list of values or as discrete points in a graph, the frequency distance
66 between adjacent points should be low enough so that all important details of the frequency
67 dependence are shown and the sensitivity level does not vary by more than ±1 dB between
68 adjacent points.”
69 by
70 “The modulus of the end-of-cable sensitivity or sensitivity level of the hydrophone or
71 hydrophone assembly as a function of frequency shall be stated as a list of values and over
72 a frequency range containing at least the frequency band claimed under 5.4.1. The frequency
73 distance between adjacent points should be low enough so that all important details of the
74 frequency dependence are shown and the sensitivity level does not vary by more than ±1 dB
75 between adjacent points. In addition to the list of values, a graphical representation of the data
76 may be provided.”
77 Replace the third paragraph
78 “The phase of the end-of-cable sensitivity may be given as a function of frequency either
79 graphically or as a list of values.”
80 by
81 "The phase of the end-of-cable sensitivity may be given as a function of frequency as a list of
82 values. In addition,
...
