OPC unified architecture - Part 100: Devices (IEC 62541-100:2025)

IEC 62541-100:2025 defines the information model associated with Devices. This document describes three models which build upon each other as follows:
• The (base) Device Model is intended to provide a unified view of devices and their hardware and software parts irrespective of the underlying device protocols.
• The Device Communication Model adds Network and Connection information elements so that communication topologies can be created.
• The Device Integration Host Model finally adds additional elements and rules required for host systems to manage integration for a complete system. It enables reflecting the topology of the automation system with the devices as well as the connecting communication networks.
This document also defines AddIns that can be used for the models in this document but also for models in other information models. They are:
• Locking model – a generic AddIn to control concurrent access,
• Software update model – an AddIn to manage software in a Device.
This second edition cancels and replaces the first edition published in 2015. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous edition:
a a ComponentType that can be used to model any HW or SW element of a device has been defined and a SoftwareType has been added as subtype of ComponentType;
b the new OPC UA interface concept and defined interfaces for Nameplate, DeviceHealth, and SupportInfo has been added.
c) a new model for Software Update (Firmware Update) has been added;
d) a new entry point for documents where each document is represented by a FileType instance has been specified;
e) a model that provides information about the lifetime, related limits and semantic of the lifetime of things like tools, material or machines has been added.

OPC Unified Architecture - Teil 100: Geräteschnittstelle (IEC 62541-100:2025)

Architecture unifiée OPC - Partie 100: Appareils (IEC 62541-100:2025)

IEC 62541-100:2025 définit le modèle d'information associé aux Appareils. Le présent document décrit trois modèles qui s'appuient les uns sur les autres, comme suit:
• le Modèle d'appareil (de base) vise à fournir une vue unifiée des appareils et de leurs parties matérielles et logicielles, et ce, indépendamment des protocoles d'appareils sous-jacents;
• le Modèle de communication d'appareil ajoute des éléments d'information de Réseau et de Connexion afin de pouvoir créer les topologies de communication;
• enfin, le Modèle d'hôte d'intégration d'appareil ajoute des éléments et des règles supplémentaires exigés pour que les systèmes hôtes gèrent l'intégration pour un système complet. Il permet également de refléter la topologie du système d'automatisation avec les appareils ainsi qu'avec les réseaux de communication connectés.
Le présent document définit également les AddIns qui peuvent être utilisés pour les modèles de ce document, mais également pour ceux d'autres modèles d'information. À savoir:
• Modèle de verrouillage – AddIn générique pour contrôler l'accès simultané;
• Modèle de mise à jour logicielle – AddIn pour gérer le logiciel dans un Appareil.
Cette deuxième édition annule et remplace la première édition parue en 2015. Cette édition constitue une révision technique.
Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
a) un ComponentType qui peut être utilisé pour modéliser tout élément matériel ou logiciel d'un appareil a été ajouté, ainsi qu'un SoftwareType en tant que sous-type de ComponentType;
b) le nouveau concept d'interface OPC UA et des interfaces définies pour Nameplate, DeviceHealth et SupportInfo ont été ajoutés;
c) un nouveau modèle pour la mise à jour logicielle (mise à jour du micrologiciel) a été ajouté;
d) un nouveau point d'entrée pour les documents où chacun d'entre eux est représenté par une instance de FileType a été spécifié;
e) un modèle qui fournit des informations relatives à la durée de vie, aux limites associées et à la sémantique de la durée de vie d'éléments tels que des outils, du matériel ou des machines a été ajouté.

Enotna arhitektura OPC - 100. del: Naprave (IEC 62541-100:2025)

IEC 62541-100:2025 določa informacijski model, povezan z napravami. Ta dokument opisuje tri modele, ki temeljijo drug na drugem, kot sledi:
- (Osnovni) model naprave je namenjen zagotavljanju enotnega pogleda na naprave ter njihove strojne in programske dele ne glede na osnovne protokole naprav.
- Model komunikacije naprave dodaja elemente informacij o omrežju in povezavah, da je mogoče ustvariti komunikacijske topologije.
- Model gostitelja za integracijo naprav končno dodaja dodatne elemente in pravila, potrebna za gostiteljske sisteme za upravljanje integracije celotnega sistema. Omogoča odsev topologije avtomatizacijskega sistema z napravami ter povezanimi komunikacijskimi omrežji.
Ta dokument prav tako določa AddIn-e (dodatke), ki se lahko uporabljajo za modele v tem dokumentu, pa tudi za modele v drugih informacijskih modelih. Ti so:
- Model zaklepanja – generični AddIn za nadzor sočasnega dostopa,
- Model posodobitve programske opreme – AddIn za upravljanje programske opreme v napravi.
To drugo izdajo preklicuje in nadomešča prva izdaja, objavljena leta 2015. Ta izdaja predstavlja tehnično revizijo.
Ta izdaja vključuje naslednje pomembne tehnične spremembe glede na prejšnjo izdajo:
a) Določen je bil ComponentType (tip komponente), ki ga je mogoče uporabiti za modeliranje katerega koli HW (strojne opreme) ali SW (programske opreme) elementa naprave, in dodan je bil SoftwareType (tip programske opreme) kot podtip ComponentType;
b) Dodan je bil nov koncept vmesnika OPC UA in definirani vmesniki za Nameplate (tablica z imenom), DeviceHealth (zdravje naprave) in SupportInfo (informacije o podpori);
c) Dodan je bil nov model za posodobitev programske opreme (posodobitev vdelane programske opreme);
d) Določena je bila nova vstopna točka za dokumente, kjer je vsak dokument predstavljen z instanco FileType (tip datoteke);
e) Dodan je bil model, ki zagotavlja informacije o življenjski dobi, povezanih omejitvah in semantiki življenjske dobe stvari, kot so orodja, materiali ali stroji.

General Information

• Status: Published
• Public Enquiry End Date: 30-Mar-2024
• Publication Date: 12-Apr-2026
• ICS: 25.040.40 - Industrial process measurement and control
• ICS: 35.100.05 - Multilayer applications
• ICS: 35.240.50 - IT applications in industry
• Technical Committee: MOV - Measuring equipment for electromagnetic quantities
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 24-Feb-2026
• Due Date: 01-May-2026
• Completion Date: 13-Apr-2026
• Mandate: M/490 - Standardisation mandate to the European Standardisation Organisations (ESOs) to support European Smart Grid deployment
• Ref Project: EN IEC 62541-100:2026 - OPC unified architecture - Part 100: Devices

Relations

• Refers: SIST EN IEC 62541-8:2020 - OPC Unified Architecture - Part 8: Data Access (IEC 62541-8:2020)
• Effective Date: 10-Feb-2026
• Refers: SIST EN IEC 62541-3:2020 - OPC unified architecture - Part 3: Address Space Model (IEC 62541-3:2020)
• Effective Date: 10-Feb-2026
• Refers: SIST EN IEC 62541-6:2020 - OPC Unified Architecture - Part 6: Mappings (IEC 62541-6:2020)
• Effective Date: 10-Feb-2026
• Refers: SIST EN IEC 62541-5:2020 - OPC Unified Architecture - Part 5: Information Model
• Effective Date: 10-Feb-2026
• Refers: SIST EN IEC 62541-9:2020 - OPC Unified Architecture - Part 9: Alarms and conditions (IEC 62541-9:2020)
• Effective Date: 03-Feb-2026
• Refers: SIST EN IEC 62541-7:2026 - OPC Unified Architecture - Part 7: Profiles (IEC 62541-7:2025)
• Effective Date: 03-Feb-2026
• Refers: SIST EN IEC 62541-6:2026 - OPC unified architecture - Part 6: Mappings (IEC 62541-6:2025)
• Effective Date: 03-Feb-2026
• Refers: SIST EN IEC 62541-4:2020 - OPC Unified Architecture - Part 4: Services (IEC 62541-4:2020)
• Effective Date: 03-Feb-2026
• Refers: SIST EN IEC 62541-7:2020 - OPC unified architecture - Part 7: Profiles (IEC 62541-7:2020)
• Effective Date: 03-Feb-2026
• Refers: SIST EN IEC 62541-1:2026 - OPC unified architecture - Part 1: Overview and concepts (IEC 62541-1:2025)
• Effective Date: 03-Feb-2026
• Refers: SIST EN IEC 62541-8:2026 - OPC unified architecture - Part 8: Data access (IEC 62541-8:2025)
• Effective Date: 03-Feb-2026
• Refers: SIST EN IEC 62541-3:2026 - OPC unified architecture - Part 3: Address space model (IEC 62541-3:2025)
• Effective Date: 03-Feb-2026
• Refers: SIST EN IEC 62541-4:2026 - OPC unified architecture - Part 4: Services (IEC 62541-4:2025)
• Effective Date: 03-Feb-2026
• Refers: SIST EN IEC 62541-5:2026 - OPC unified architecture - Part 5: Information model (IEC 62541-5:2026)
• Effective Date: 03-Feb-2026
• Referred By: SIST EN IEC 62769-101-2:2023 - Field Device Integration (FDI)® - Part 101-2: Profiles - Foundation Fieldbus HSE (IEC 62769-101-2:2023)
• Effective Date: 10-Feb-2026

Overview

prEN IEC 62541-100:2024 - OPC unified architecture - Part 100: Devices (CLC / IEC 62541-100:2025) defines the OPC UA information model for representing industrial devices, their hardware/software components, communications and host integration. The document specifies three layered models - the Device Model, Device Communication Model, and Device Integration Host Model - plus reusable AddIns (Locking, Software Update). This second edition is a technical revision that replaces the 2015 edition.

Key topics and technical requirements

• Device Model

  • Provides a unified, protocol-agnostic representation of devices and their HW/SW elements.
  • Introduces a generic ComponentType and a SoftwareType (subtype) to model components consistently.

• Device Communication Model

  • Adds Network and Connection elements so communication topologies and network relationships can be represented.
  • Defines ConnectionPoint, NetworkSet and reference types (e.g., ConnectsTo).

• Device Integration Host Model

  • Adds elements and rules for host systems to manage device integration and to reflect automation-system topology (DeviceTopology, Online/Offline semantics, data transfer methods).

• Interfaces and AddIns

  • New OPC UA interface concept with defined interfaces for Nameplate, DeviceHealth, and SupportInfo.
  • Locking model AddIn to control concurrent access to device resources.
  • Software update (Firmware Update) model AddIn covering update behaviors, state machines, update packages and safety/security considerations.

• Other notable features

  • New entry point for documents where each document is represented by a FileType instance.
  • Lifetime model to represent lifetime, limits and semantic indicators (e.g., tools, consumables, machines).
  • Profiles and conformance units to support phased implementation.

Practical applications

• Enables consistent device representation across OT/IT systems for:
  • Device manufacturers exposing device metadata and firmware/update capabilities via OPC UA.
  • System integrators and automation engineers mapping device topologies and networks.
  • Software vendors building Asset Management, Maintenance, and Device Management tools that consume standardized device information.
  • Operational teams implementing safe, auditable firmware update workflows and concurrent-access control.

Who should use this standard

• Device vendors, automation OEMs, systems integrators, industrial software developers, asset/maintenance managers, and OT/IT architects implementing OPC UA-based device models, software update mechanisms and topology-aware integration.

Related standards

• Part of the IEC/IEC 62541 (OPC UA) series; consult base OPC UA specifications and other 62541 parts for communication stacks, security and data modeling guidance.

Standards Content (Sample)

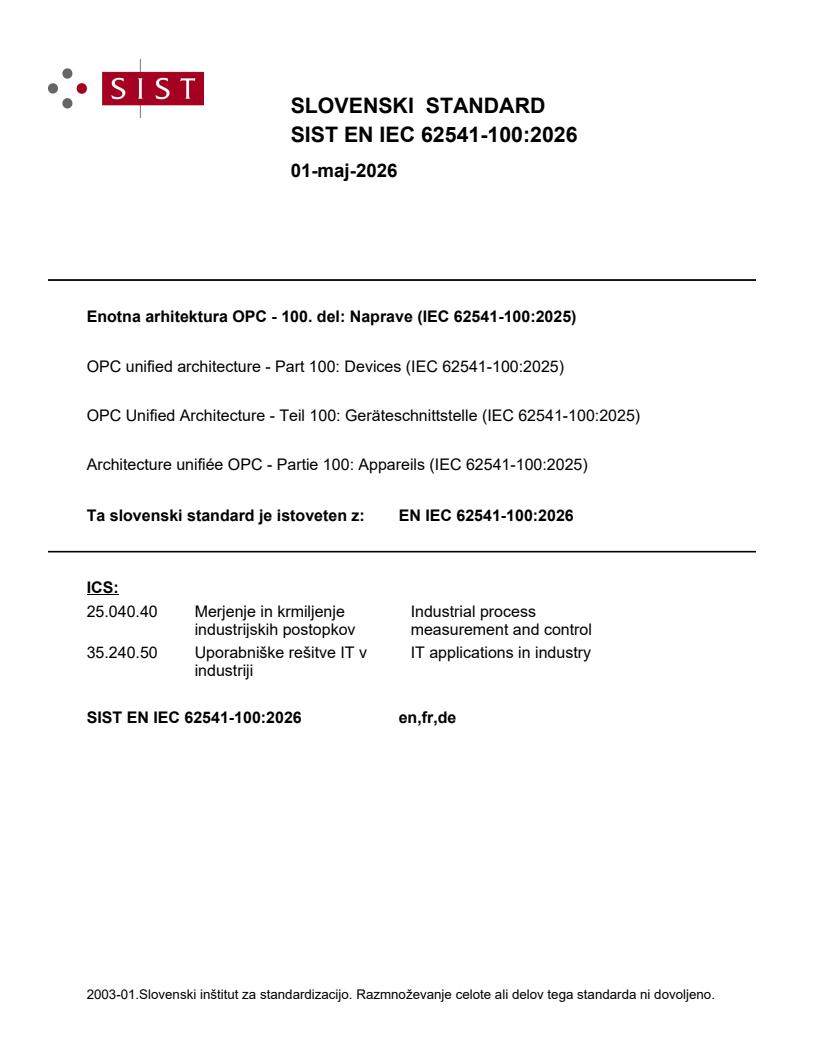

SLOVENSKI STANDARD
01-maj-2026
Enotna arhitektura OPC - 100. del: Naprave (IEC 62541-100:2025)
OPC unified architecture - Part 100: Devices (IEC 62541-100:2025)
OPC Unified Architecture - Teil 100: Geräteschnittstelle (IEC 62541-100:2025)
Architecture unifiée OPC - Partie 100: Appareils (IEC 62541-100:2025)
Ta slovenski standard je istoveten z: EN IEC 62541-100:2026
ICS:
25.040.40 Merjenje in krmiljenje Industrial process
industrijskih postopkov measurement and control
35.240.50 Uporabniške rešitve IT v IT applications in industry
industriji
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

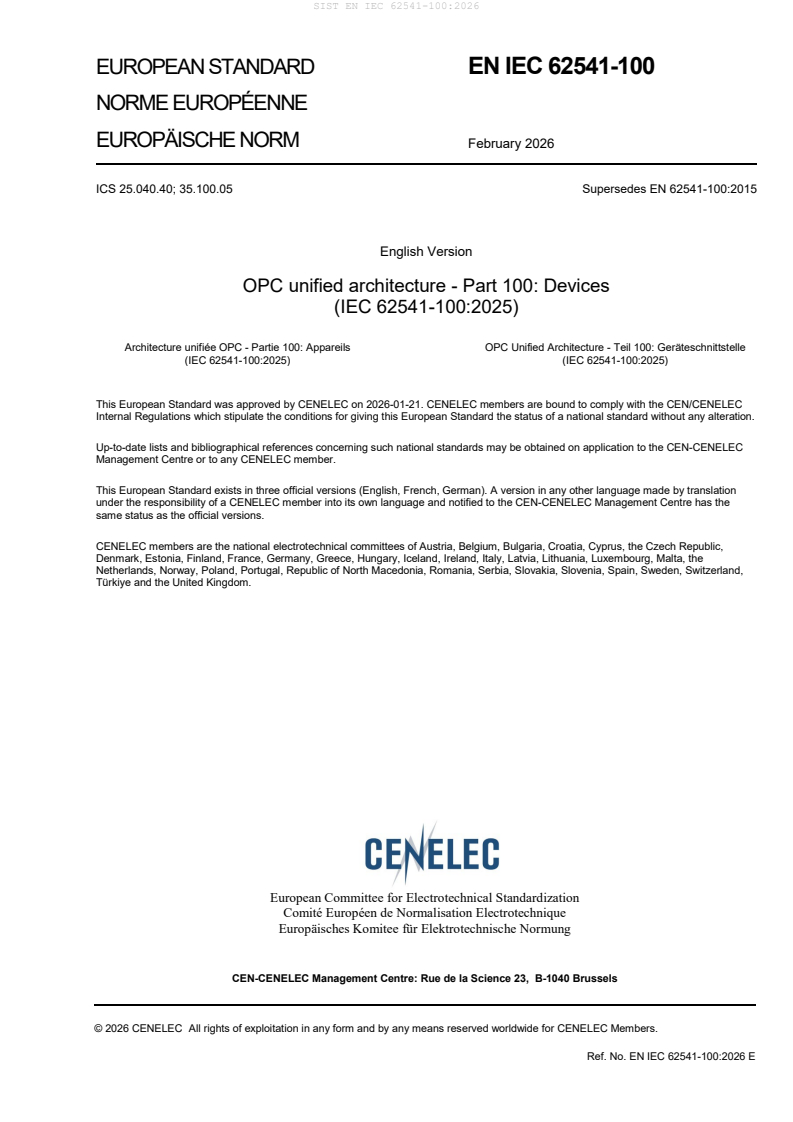

EUROPEAN STANDARD EN IEC 62541-100

NORME EUROPÉENNE
EUROPÄISCHE NORM February 2026
ICS 25.040.40; 35.100.05 Supersedes EN 62541-100:2015
English Version
OPC unified architecture - Part 100: Devices
(IEC 62541-100:2025)
Architecture unifiée OPC - Partie 100: Appareils OPC Unified Architecture - Teil 100: Geräteschnittstelle
(IEC 62541-100:2025) (IEC 62541-100:2025)
This European Standard was approved by CENELEC on 2026-01-21. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2026 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 62541-100:2026 E

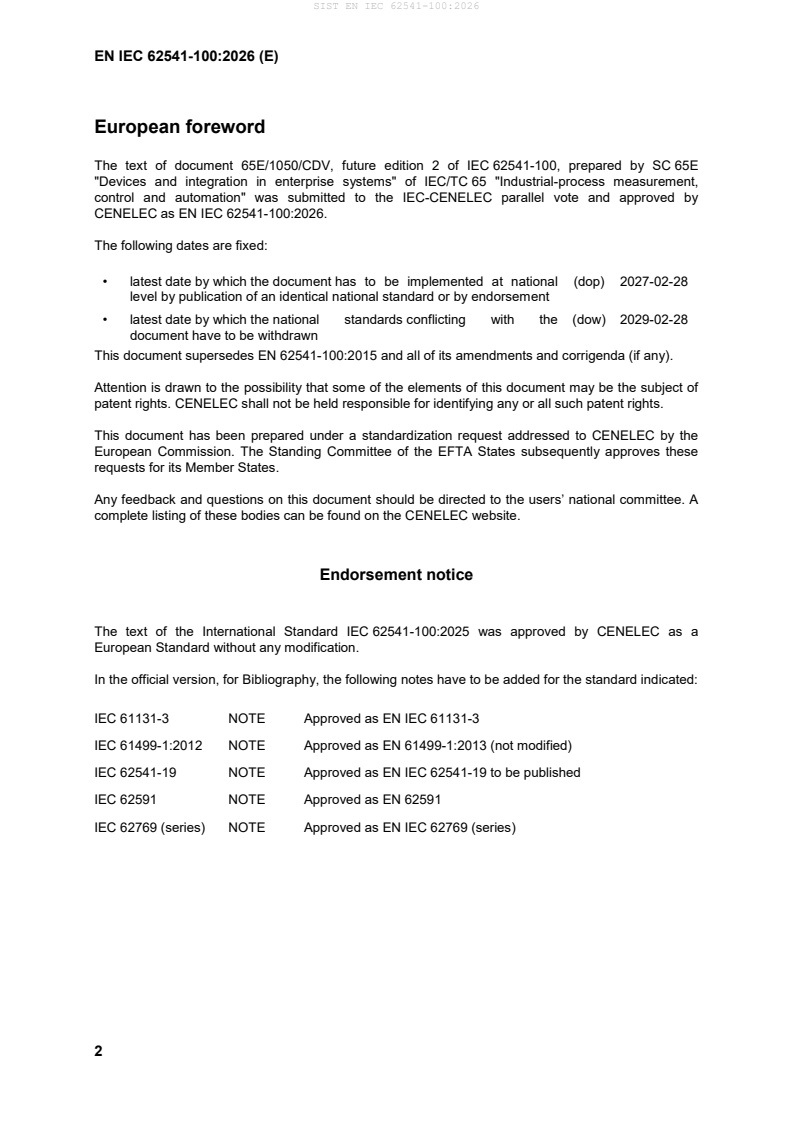

European foreword
