SIST EN 3660-035:2017
(Main)Aerospace series - Cable outlet accessories for circular and rectangular electrical and optical connectors - Part 035: Cable outlet, style K, 90°, for heat shrinkable boot, shielded, sealed - Product standard
Aerospace series - Cable outlet accessories for circular and rectangular electrical and optical connectors - Part 035: Cable outlet, style K, 90°, for heat shrinkable boot, shielded, sealed - Product standard
This European Standard defines a range of cable outlets, style K, 90°, shielded, sealed for heat shrinkable
boot, for use with memory metal rings under the following conditions.
The mating connectors are listed in EN 3660-002.
Temperature range, Class N : − 65 °C to 200 °C
Class K : − 65 °C to 200 °C
Class W : − 65 °C to 175 °C
Class T : − 65 °C to 175 °C (Nickel PTFE plating)
Class Z : − 65 °C to 175 °C (Zinc nickel plating)
Associated electrical accessories : EN 3660-034 memory metal rings (for shield termination
backshells).
These cable outlets are designed for termination of overall shielding braid or individual cable shields.
They accommodate/permit the termination of heat shrinkable boots.
Luft- und Raumfahrt - Endgehäuse für elektrische und optische Rund- und Rechtecksteckverbinder - Teil 035: Endgehäuse, Bauform K, 90°, für wärmeschrumpfende Bauteile, Schirmanschluß, abgedichtet, selbstsichernd - Produktnorm
Série Aérospatiale - Accessoires arrière pour connecteurs circulaires et rectangulaires électriques et optiques - Partie 035 : Raccord, type K, coudé 90°, blindé, étanche, pour manchon thermorétractable - Norme de produit
Aeronavtika - Dodatki za okrogle in pravokotne električne in optične konektorje - 035. del: Kabelska spojka, tip K, 90°, za toplotno skrčljive dele, oklopljena, tesnjena - Standard za proizvod
Ta evropski standard opredeljuje različne vrste kabelskih spojk (tip K, 90-stopinjske, oklopljene, tesnjene za toplotno skrčljive dele) za uporabo s spominskimi kovinskimi obročki pod naslednjimi pogoji.
Stikalni priključki so navedeni v standardu EN 3660-002.
Temperaturni razpon, razred N: od −65 °C do 200 °C
Razred K: od −65 °C do 200 °C
Razred W: od −65 °C do 175 °C
Razred T: od −65 °C do 175 °C (nikljeva prevleka PTFE)
Razred Z: od −65 °C do 175 °C (cink-nikljeva prevleka)
Povezani električni dodatki: spominski kovinski obročki iz standarda EN 3660-034 (za oklepe zaključnega oklopa)
Te kabelske spojke so zasnovane za zaključitev celotne oklopljene pletenice ali posameznih kabelskih oklopov. Omogočajo/dovoljujejo zaključevanje toplotno skrčljivih delov.
General Information
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Luft- und Raumfahrt - Endgehäuse für elektrische und optische Rund- und Rechtecksteckverbinder - Teil 035: Endgehäuse, Bauform K, 90°, für wärmeschrumpfende Bauteile, Schirmanschluß, abgedichtet, selbstsichernd - ProduktnormSérie Aérospatiale - Accessoires arrière pour connecteurs circulaires et rectangulaires électriques et optiques - Partie 035 : Raccord, type K, coudé 90°, blindé, étanche, pour manchon thermorétractable - Norme de produitAerospace series - Cable outlet accessories for circular and rectangular electrical and optical connectors - Part 035: Cable outlet, style K, 90°, for heat shrinkable boot, shielded, sealed - Product standard49.060Aerospace electric equipment and systems31.220.99Druge elektromehanske komponenteOther electromechanical componentsICS:Ta slovenski standard je istoveten z:EN 3660-035:2017SIST EN 3660-035:2017en,fr,de01-november-2017SIST EN 3660-035:2017SLOVENSKI
STANDARD
SIST EN 3660-035:2017
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 3660-035
September
t r s y ICS
v {ä r x r English Version
Aerospace series æ Cable outlet accessories for circular and rectangular electrical and optical connectors æ Part
r u wã Cable outletá style Ká
{ r ¹á for heat shrinkable bootá shieldedá sealed æ Product standard Série Aérospatiale æ Accessoires arrière pour connecteurs circulaires et rectangulaires électriques et optiques æ Partie
r u w ã Raccordá type Ká coudé
{ r ¹á blindéá étancheá pour manchon thermorétractable æ Norme de produit
Luftæ und Raumfahrt æ Endgehäuse für elektrische und optische Rundæ und Rechtecksteckverbinder æ Teil
r u wã Endgehäuseá Bauform Ká
{ r ¹á für wärmeschrumpfende Bauteileá Schirmanschlußá abgedichtetá selbstsichernd æProduktnorm This European Standard was approved by CEN on
s y April
t r s yä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Serbiaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels
9
t r s y CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
u x x ræ r u wã t r s y ESIST EN 3660-035:2017

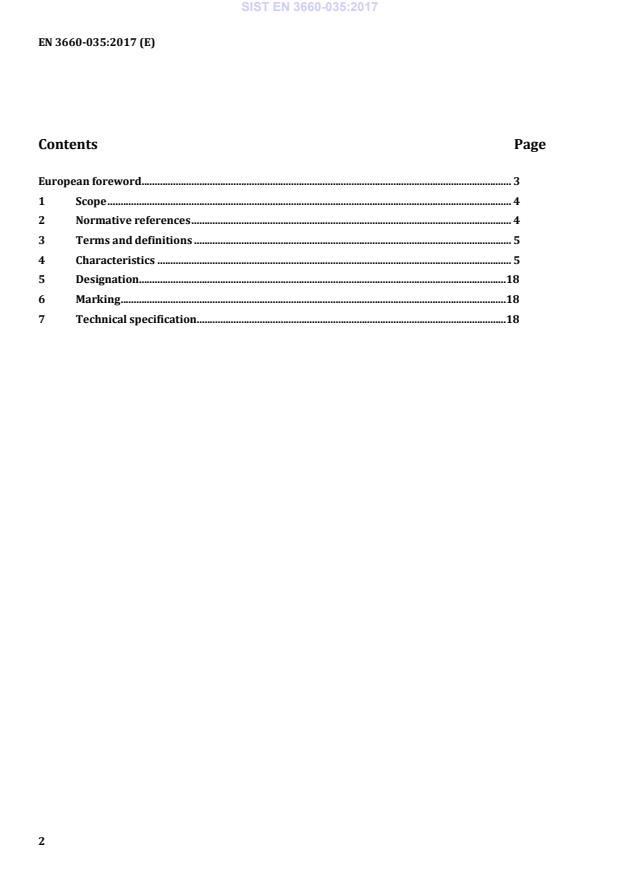

EN 3660-035:2017 (E) 2 Contents Page European foreword . 3 1 Scope . 4 2 Normative references . 4 3 Terms and definitions . 5 4 Characteristics . 5 5 Designation.18 6 Marking .18 7 Technical specification .18
SIST EN 3660-035:2017
EN 3660-035:2017 (E) 3 European foreword This document (EN 3660-035:2017) has been prepared by the Aerospace and Defence Industries Association of Europe - Standardization (ASD-STAN). After enquiries and votes carried out in accordance with the rules of this Association, this Standard has received the approval of the National Associations and the Official Services of the member countries of ASD, prior to its presentation to CEN. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by March 2018, and conflicting national standards shall be withdrawn at the latest by March 2018. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN shall not be held responsible for identifying any or all such patent rights. According to the CEN-CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.
SIST EN 3660-035:2017
EN 3660-035:2017 (E) 4 1 Scope This European Standard defines a range of cable outlets, style K, 90°, shielded, sealed for heat shrinkable boot, for use with memory metal rings under the following conditions. The mating connectors are listed in EN 3660-002. Temperature range, Class N : − 65 °C to 200 °C Class K : − 65 °C to 200 °C Class W : − 65 °C to 175 °C Class T : − 65 °C to 175 °C (Nickel PTFE plating) Class Z :
− 65 °C to 175 °C (Zinc nickel plating) Associated electrical accessories
: EN 3660-034 memory metal rings (for shield termination backshells). These cable outlets are designed for termination of overall shielding braid or individual cable shields. They accommodate/permit the termination of heat shrinkable boots. 2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.
EN 2591-100*, Aerospace series — Elements of electrical and optical connection — Test methods — Part 100: General EN 3645 (all parts), Connectors, electrical, circular, scoop-proof, triple start threaded coupling operating temperature 175 °C or 200 °C continuous EN 3660-001, Aerospace series — Cable outlet accessories for circular and rectangular electrical and optical connectors — Part 001: Technical specification EN 3660-002, Aerospace series — Cable outlet accessories for circular and rectangular electrical and optical connectors — Part 002: Index of product standards EN 3660-034, Aerospace series — Cable outlet accessories for circular and rectangular electrical and optical connectors — Part 034: Memory metal rings for the attachment of screens — Product standard
EN 3909, Aerospace series — Test fluids and test methods for electrical and optical components and sub-assemblies
* All its parts quoted in this European Standard. SIST EN 3660-035:2017
EN 3660-035:2017 (E) 5 IEC 60529, Degrees of protection provided by enclosures (IP Code) AS85049, Connector accessories, electrical general specification for- 1) A-A-59569, Braid, wire (copper, tin-coated, silver-coated, or nickel coated, tubular or flat) 3 Terms and definitions For the purposes of this document, the terms and definitions given in EN 3660-001 apply. 4 Characteristics 4.1 Dimensions and mass For dimensions and mass, see Figures 1, 2 and 3 and Tables 1, 2, 3 and 4. For cable entry dimensions, see 4.2. Dimensions are in millimetres.
1) Published by: SAE National (US) Society of Automotive Engineers. http://www.sae.org/ SIST EN 3660-035:2017
EN 3660-035:2017 (E) 6
Key 1 O-ring 2 Thread C 3 Marking 4 Three equally spaced holes 1 mm diameter for locking wire 5 Straight knurl, pitch manufacturers option 6 EN 3660-034 memory metal ring NOTE Valley of start tooth to be at vertical centre line of accessory at position shown:
Within ± 3° for shell sizes 09-13;
Within ± 2° for shell sizes 15-19;
Within ± 1° for shell sizes 21 and larger. Bend radius to be determined by method of manufacture. Cable outlets may be manufactured as cast, fabricated or machined (manufacturers option). No sharp edges/burrs permissible on internal surfaces/joints. Surface finish of on all internal surfaces. Figure 1 — Cable outlet 1,6 µm max. SIST EN 3660-035:2017
EN 3660-035:2017 (E) 7 Table 1 — Fixed dimensions of shell Dimensions in millimetres Shell size Entry size Cable dia. (ref) C Thread ∅B ∅D E W
max. max.
max. min. max. max. 09 04 5,4 M12 × 1,0-6H 19,1 27,9 14,5 31,2 11 07 9,4 M15 u 1,0-6H 21,6 30,5 14,5 36,1 13 08 10,8 M18 u 1,0-6H 25,
...
