SIST EN ISO 7792-1:2004

Plastics - Thermoplastic polyester (TP) moulding and extrusion materials - Part 1: Designation system and basis for specifications (ISO 7792-1:1997)

Kunststoffe - Thermoplastische Polyester (TP)-Formmassen - Teil 1: Bezeichnungssystem und Basis für Spezifikationen (ISO 7792-1:1997)

1.1   Dieser Teil von ISO 7792 legt ein Bezeichnungssystem für Formmassen thermoplastischer Polyester (TP) fest, das als Grundlage für Spezifikationen verwendet kann.
Berücksichtigt werden Polyester-Homopolymere (Reinpolymerisate) für Formmassen auf Basis von Polyethylenterephthalat (PET), Polybutylenterephthalat (PBT), Polycyclohexylendimethylenterephthalat (PCT), Polyethylennaphthalat (PEN) und andere TP-Arten sowie Polyester-Copolymere verschiedener Zusammensetzung für Formmassen.
1.2   Die Arten thermoplastischer Polyester werden mit Hilfe eines Einteilungssystems voneinander unterschieden, das auf geeigneten Wertebereichen der folgenden kennzeichnenden Eigenschaften:
a)   Viskositätszahl;
b)   Zugelastizitätsmodul;
und auf Angaben über Zusammensetzung, vorgesehene Verwendung und/oder Verarbeitungsverfahren, wichtige Eigenschaften, Additive, Farbstoffe, Füll- und Verstärkungsstoffe beruht.
1.3   Dieser Teil von ISO 7792 gilt für Rein- und Copolymerisate thermoplastischer Polyester.
Die Norm gilt für gebrauchsfertige Werkstoffe in Form von Pulver, Granulat oder Pellets, die mit Farbstoffen, Additiven, Füllstoffen usw. modifiziert sein können.
Dieser Teil von ISO 7792 gilt nicht für Formmassen gesättigter Polyester/Ester- und Polyether/Ester-Thermoplastelastomere, die in ISO 16910 behandelt werden.
1.4   Es soll nicht behauptet werden, dass Formmassen mit gleicher Bezeichnung zwangsläufig Gleiches leisten. Dieser Teil von ISO 7792 enthält keine technischen Daten, Leistungsangaben oder Verarbeitungsbedingungen, die erforderlich sein können, um eine Formmasse für eine spezielle Anwendung und/oder ein bestimmtes Verarbeitungsverfahren zu spezifizieren.
Wenn derartige zusätzliche Eigenschaften gefragt sind, müssen sie, so weit möglich, nach den in Teil 2 dieser Internationalen Norm festgelegten Prüfverfahren bestimmt werden.
1.5   Um eine thermoplastische Formmasse für eine bestimmte Anwendung zu spezifizieren oder eine reproduzierbare Verarbeitung sicherzustellen, dür

Plastiques - Polyesters thermoplastiques (TP) pour moulage et extrusion - Partie 1: Systeme de désignation et base de spécification (ISO 7792-1:1997)

Polimerni materiali - Materiali za oblikovanje in ekstrudiranje iz plastomernih poliestrov – 1. del: Sistem označevanja in podlage za specifikacije (ISO 7792-1:1997)

General Information

• Status: Withdrawn
• Publication Date: 30-Sep-2004
• Withdrawal Date: 08-Apr-2014
• ICS: 83.080.20 - Thermoplastic materials
• Technical Committee: IPMA - Polimer materials and products
• Current Stage: 9900 - Withdrawal (Adopted Project)
• Start Date: 25-Mar-2014
• Due Date: 17-Apr-2014
• Completion Date: 09-Apr-2014
• Ref Project: EN ISO 7792-1:2004 - Plastics - Thermoplastic polyester (TP) moulding and extrusion materials - Part 1: Designation system and basis for specifications (ISO 7792-1:1997)

Relations

• Replaced By: SIST EN ISO 7792-1:2014 - Plastics - Thermoplastic polyester (TP) moulding and extrusion materials - Part 1: Designation system and basis for specifications (ISO 7792-1:2012)
• Effective Date: 01-May-2014

Standards Content (Sample)

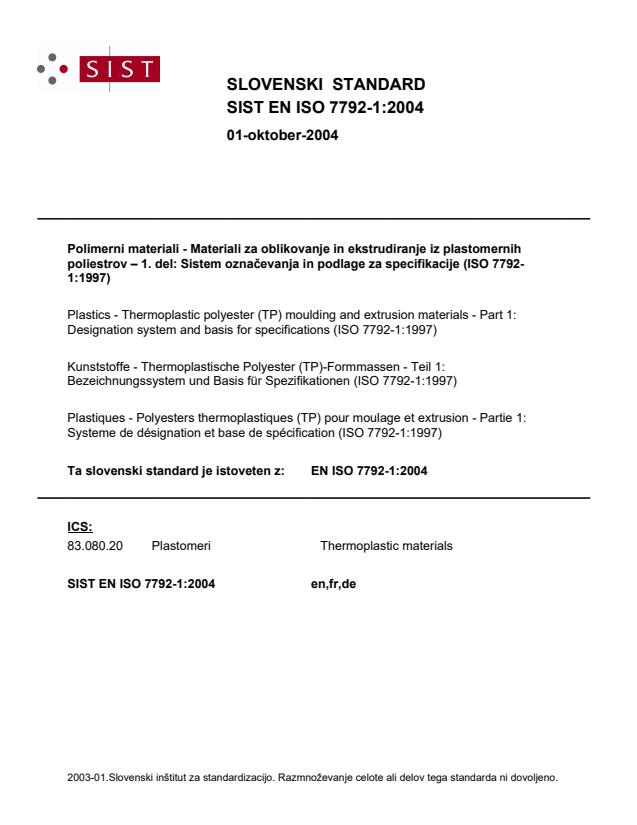

SLOVENSKI STANDARD
01-oktober-2004
3ROLPHUQLPDWHULDOL0DWHULDOL]DREOLNRYDQMHLQHNVWUXGLUDQMHL]SODVWRPHUQLK
SROLHVWURY±GHO6LVWHPR]QDþHYDQMDLQSRGODJH]DVSHFLILNDFLMH,62

Plastics - Thermoplastic polyester (TP) moulding and extrusion materials - Part 1:
Designation system and basis for specifications (ISO 7792-1:1997)
Kunststoffe - Thermoplastische Polyester (TP)-Formmassen - Teil 1:
Bezeichnungssystem und Basis für Spezifikationen (ISO 7792-1:1997)
Plastiques - Polyesters thermoplastiques (TP) pour moulage et extrusion - Partie 1:
Systeme de désignation et base de spécification (ISO 7792-1:1997)
Ta slovenski standard je istoveten z: EN ISO 7792-1:2004
ICS:
83.080.20 Plastomeri Thermoplastic materials
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

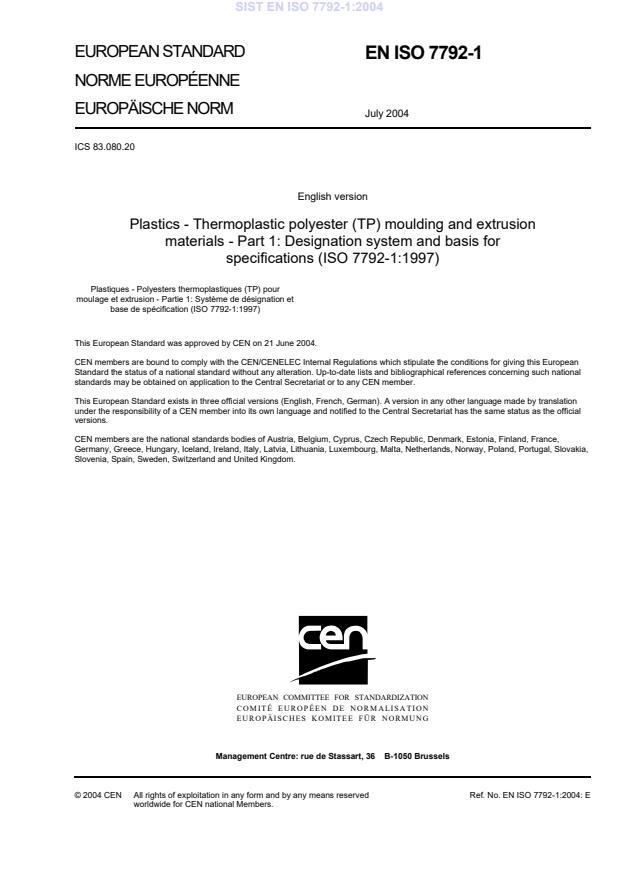

EUROPEAN STANDARD
EN ISO 7792-1
NORME EUROPÉENNE
EUROPÄISCHE NORM
July 2004
ICS 83.080.20
English version
Plastics - Thermoplastic polyester (TP) moulding and extrusion
materials - Part 1: Designation system and basis for
specifications (ISO 7792-1:1997)
Plastiques - Polyesters thermoplastiques (TP) pour
moulage et extrusion - Partie 1: Système de désignation et
base de spécification (ISO 7792-1:1997)
This European Standard was approved by CEN on 21 June 2004.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,
Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2004 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 7792-1:2004: E
worldwide for CEN national Members.

Foreword
The text of ISO 7792-1:1997 has been prepared by Technical Committee ISO/TC 61 "Plastics”
of the International Organization for Standardization (ISO) and has been taken over as EN ISO
7792-1:2004 by Technical Committee CEN/TC 249 "Plastics", the secretariat of which is held by
IBN.
This European Standard shall be given the status of a national standard, either by publication of
an identical text or by endorsement, at the latest by January 2005, and conflicting national
standards shall be withdrawn at the latest by January 2005.

According to the CEN/CENELEC Internal Regulations, the national standards organizations of
the following countries are bound to implement this European Standard: Austria, Belgium,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary,
Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,
Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.

Endorsement notice
The text of ISO 7792-1:1997 has been approved by CEN as EN ISO 7792-1:2004 without any
modifications.
NOTE Normative references to International Standards are listed in Annex ZA (normative).

Annex ZA
(normative)
Normative references to international publications
with their relevant European publications

This European Standard incorporates by dated or undated reference, provisions from other
publications. These normative references are cited at the appropriate places in the text and the
publications are listed hereafter. For dated references, subsequent amendments to or revisions of
any of these publications apply to this European Standard only when incorporated in it by
amendment or revision. For undated references the latest edition of the publication referred to
applies (including amendments).

NOTE Where an International Publication has been modified by common modifications, indicated
by (mod.), the relevant EN/HD applies.

Publication Year Title EN Year

ISO 1043-1 2001 Plastics - Symbols and abbreviated EN ISO 1043-1 2001
terms - Part 1: Basic polymers and
their special characteristics
ISO 1043-2 2000 Plastics - Symbols and abbreviated EN ISO 1043-2 2001
terms - Part 2: Fillers and reinforcing
materials
ISO 1874-1 1992 Plastics - Polyamide (PA) moulding EN ISO 1874-1 2000
and extrusion materials - Part 1:
Designation
INTERNATIONAL ISO
STANDARD 7792-1
Third edition
1997-12-01
Plastics — Thermoplastic polyester (TP)
moulding and extrusion materials —
Part 1:
Designation system and basis for
specifications
Plastiques — Polyesters thermoplastiques (TP) pour moulage et extrusion —
Partie 1: Système de désignation et base de spécification
A
Reference number
ISO 7792-1:1997(E)
ISO 7792-1:1997(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide
federation of national standards bodies (ISO member bodies). The work of
preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which
a technical committee has been established has the right to be represented
on that committee. International organizations, governmental and non-
governmental, in liaison with ISO, also take part in the work. ISO
collaborates closely with the International Electrotechnical Commission
(IEC) on all matters of electrotechnical standardization.
Draft International Standards adopted by the technical committees are
circulated to the member bodies for voting. Publication as an International
Standard requires approval by at least 75 % of the member bodies casting
a vote.
International Standard ISO 7792-1 was prepared by Technical Committee
ISO/TC 61, Plastics, Subcommittee SC 9, Thermoplastic materials.
This third edition cancels and replaces the second edition
(ISO 7792-1:1995) and includes the following changes:
— The scope has been expanded to include all polyester homopolymers
and copolymers.
— The title has been changed from
Plastics — Poly(alkylene
terephthalate) moulding and extrusion materials to Plastics —
Thermoplastic polyester (TP) moulding and extrusion materials to
reflect the change in scope.
ISO 7792 consists of the following parts, under the general title Plastics —
Thermoplastic polyester (TP) moulding and extrusion materials:
— Part 1: Designation system and basis for specifications
— Part 2: Preparation of test specimens and determination of properties
Annex A forms an integral part of this part of ISO 7792.
©  ISO 1997
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced
or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from the publisher.
International Organization for Standardization
Case postale 56 • CH-1211 Genève 20 • Switzerland
Internet [e-mail]
X.400 c=ch; a=400net; p=iso; o=isocs; s=central
Printed in Switzerland
ii
©
INTERNATIONAL STANDARD  ISO ISO 7792-1:1997(E)
Plastics — Thermoplastic polyester (TP) moulding and extrusion
materials —
Part 1:
Designation system and basis for specifications
1  Scope
1.1  This part of ISO 7792 establishes a system of designation for thermoplastic polyester (TP) material, which may
be used as the basis for specifications.
It covers polyester homopolymers for moulding and extrusion based on poly(ethylene terephthalate) (PET),
poly(butylene terephthalate) (PBT), poly(cyclohexylenedimethylene terephthalate) (PCT), poly(ethylene
naphthalate) (PEN) and other TP-types and copolyesters of various compositions for moulding and extrusion.
1.2  The types of thermoplastic polyester are differentiated from each other by a classification system based on
appropriate levels of the designatory properties:
a) viscosity number
b) tensile modulus of elasticity
and on information about the intended application and/or method of processing, important properties, additives,
colorants, fillers and reinforcing materials.
1.3  This part of ISO 7792 is applicable to thermoplastic polyester homopolymers and copolymers.
It applies to materials ready for normal use in the form of powder, granules or pellets, unmodified or modified by
colorants, additives, fillers, etc.
This part of ISO 7792 does not apply to the saturated polyester/ester and polyether/ester thermoplastic elastomers
covered by ISO 14910.
1.4  It is not intended to imply that materials having the same designation give necessarily the same performance.
This part of ISO 7792 does not provide engineering data, performance data or data on processing conditions which
may be required to specify a material for a particular application and/or method of processing.
If such additional properties are required, they shall be determined in accordance with the test methods specified in
part 2 of this International Standard, if suitable.
1.5  In order to specify a thermoplastic polyester material for a particular application or to ensure reproducible
processing, additional requirements may be given in data block 5.
©
ISO
ISO 7792-1:1997(E)
2  Normative references
The following standards contain provisions which, through reference in this text, constitute provisions of this part of
ISO 7792. At the time of publication, the editions indicated were valid. All standards are subject to revision, and
parties to agreements based on this part of ISO 7792 are encouraged to investigate the possibility of applying the
most recent editions of the standards indicated below. Members of IEC and ISO maintain registers of currently valid
International Standards.
ISO 1043-1:1997, Plastics — Symbols and abbreviated terms — Part 1: Basic polymers and their special
characteristics.
ISO 1043-2:1988, Plastics — Symbols — Part 2: Fillers and reinforcing materials.
1)
ISO 1628-5:— , Plastics — Determination of viscosity number and limiting viscosity number — Part 5:
Thermoplastic polyester (TP) homopolymers and copolymers.
ISO 1874-1:1992, Plastics — Polyamide (PA) moulding and extrusion materials — Part 1: Designation.
ISO 7792-2:1997, Plastics — Thermoplastic polyester (TP) moulding and extrusion materials — Part 2: Preparation
of test specimens and determination of properties.
ASTM D 4507-93a, Specification for thermoplastic polyester (TPES) materials.
3  Designation system
The designation system for thermoplastics is based on the following standardized pattern:
Designation
Identity block
Individual-item block
Description block
(optional)
International
Data Data Data Data Data
Standard number
block block block block block
block
1 2 3 4 5
The designation consists of an optional description block, reading “Thermoplastics”, and an identity block
comprising the International Standard number and an individual-item block. For unambiguous designation, the
individual-item block is subdivided into 5 data blocks comprising the following information:
— Data block 1: Identification of the plastic by its symbol PET, PBT, PCT or PEN, or TP for all such
polyesters and copolyesters in general, in accordance with ISO 1043-1 (see 3.1).
— Data block 2: Position 1: Intended application or method of processing (see 3.2).
Positions 2 to 8: Important properties, additives and supplementary information (see 3.2).
— Data block 3: Designatory properties (see 3.3).
— Data block 4: Fillers or reinforcing materials and their nominal content (see 3.4).
— Data block 5: Information required for specification purposes. The use of data block 5 converts the
designation to a specification. Only information listed in data block 5 becomes part of the
specification requirements.
————
1)  To be published. (Revision of ISO 1628-5:1986)
©
ISO
ISO 7792-1:1997(E)
The first character of the individual-item block shall be a hyphen. The data blocks shall be separated from each
other by commas.
If a data block is not used, this shall be indicated by doubling the separation sign, i.e. by two commas (,,).
3.1  Data block 1
In this data block, after the hyphen, thermoplastic polyesters are identified using the symbols and designations
listed in tables 1 and 2.
Table 1 — Symbols indicating the chemical structure of polyester materials in data block 1 (examples)
Symbol Name and chemical identification
PET Poly(ethylene terephthalate): polyester based on ethylene glycol and terephthalic acid (or its ester).
(TP 2 T)
PTT Poly(trimethylene terephthalate): polyester based on 1,3-propanediol and terephthalic acid (or its ester).
(TP 3 T)
PBT Poly(butylene terephthalate): polyester based on 1,4-butanediol and terephthalic acid (or its ester).
(TP 4 T)
PCT Poly(cyclohexylenedimethylene terephthalate): polyester based on cyclohexanedimethanol and
(TP CH T) terephthalic acid (or its ester).
PEN Poly(ethylene naphthalate): polyester based on ethylene glycol and 2,6-naphthalenedicarboxylic acid
(TP 2 N) (or its ester).
TP 2 6 Poly(ethylene adipate): polyester based on ethylene glycol and adipic acid.
TP 4 I Poly(butylene isophthalate): polyester based on 1,4-butanediol and isophthalic acid.
TP CH 10 Polyester based on cyclohexanedimethanol and sebacic acid.
Table 2 — Symbols indicating the chemical structure of copolyester materials in data block 1 (examples)
Symbol Chemical identification
TP 6I/6T Copolyester based on hexanediol, isophthalic acid and terephthalic acid.
TP BAI/BAT Copolyester based on bisphenol A, isophthalic acid and t
...
