SIST EN 300 392-10-6 V1.3.1:2006

• Abstract:

  The present document defines the stage 1 specifications of the Supplementary Service Call Authorized by Dispatcher (SS-CAD) for the Terrestrial Trunked Radio (TETRA) system. Stage 1 is an overall service description from the users point of view but does not deal with the details of the human interface itself. The present document specifies the service description of the supplementary service and the procedures to be expected with successful and unsuccessful outcomes. In addition, the present document specifies the interactions with other TETRA supplementary services and interworking considerations. Charging principles are outside the scope of the present document. The SS-CAD ensures that predefined TETRA calls do not proceed without first being authorized by a dispatcher.

• Status: Published
• Publication Date: 31-Mar-2006
• ICS: 33.070.10 - Terrestrial Trunked Radio (TETRA)
• Technical Committee: SS EIT - Technical Board for the electrotechnical, information technology and telecommunications fields
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Apr-2006
• Due Date: 01-Apr-2006
• Completion Date: 01-Apr-2006
• Mandate: T-172-1A
• Ref Project: ETSI EN 300 392-10-6 V1.3.1 (2004-02) - Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D); Part 10: Supplementary services stage 1; Sub-part 6: Call Authorized by Dispatcher (CAD)

SIST EN 300 392-10-6 V1.3.1:2006 is the Slovenian adoption of ETSI EN 300 392-10-6 V1.3.1 for Terrestrial Trunked Radio (TETRA) Voice plus Data (V+D). It specifies the stage 1 service description for Call Authorized by Dispatcher (SS-CAD), a supplementary service used to make sure defined TETRA calls are approved by a dispatcher before they proceed.

What does SIST EN 300 392-10-6 V1.3.1:2006 specify?

SIST EN 300 392-10-6 V1.3.1:2006 defines SS-CAD from the user-service point of view. It covers service description, normal and exceptional procedures, interactions with other TETRA supplementary services, and interworking considerations. Charging principles are outside the scope.

The document is organized into:

• Clause 1 - Scope
• Clause 2 - References
• Clause 3 - Definitions and abbreviations
• Clause 4 - SS-CAD stage 1 specification
• Annex A - Change Requests

Annex	What it covers
Annex A	Informative change requests and the clause areas they affected

What are the key requirements of SIST EN 300 392-10-6 V1.3.1:2006?

SIST EN 300 392-10-6 V1.3.1:2006 says that SS-CAD is a dispatcher-controlled authorization step for calls. In practice, a restricted call request is intercepted until a dispatcher accepts it, and the call only continues after that approval.

Service scope and applicability

Clause 4.1 states that SS-CAD applies to all TETRA speech services and circuit mode data services. It can also apply to incoming calls to specified TETRA addresses, including users and gateways. This matters because system designers must know which call types can be put under dispatcher control.

Provisioning and authorization setup

Clause 4.2.1 says SS-CAD is provided by prior arrangement with the service provider and may be withdrawn by the provider. The authorized user supplies the restricted users, the relevant basic service, the dispatcher address, and, depending on the option, restricted destination, source, or area. That means service setup is a controlled administration task, not an end-user toggle.

Verification and service control

Clause 4.2.1.5 requires verification of restricted users before SS-CAD definition is completed. The service provider then returns acceptance or rejection. Clause 4.2.2 allows activation and deactivation, definition, registration on provision, and interrogation on a per-number basis. For operators, this defines the management actions they must support.

Call handling

Clause 4.2.2.2 says the infrastructure decides whether SS-CAD is invoked using the calling address, called address or area, and the basic service request. If authorization is needed, the call may be suspended and sent to the dispatcher, or diverted directly to the dispatcher. In practice, this defines how the network blocks or routes calls until approval arrives.

Exceptional cases

Clause 4.2.3 lists rejection conditions for activation, deactivation, definition, and interrogation, such as invalid identities, unauthorized users, unsupported range, or no dispatcher available. This helps implementers define clear failure responses instead of leaving the user with an unexplained blocked call.

Service interactions

Clause 4.3 says SS-CAD has no interaction with many other supplementary services, but it overrides SS-BOC and SS-BIC, and SS-PPC takes precedence over SS-CAD. It also notes that SS-CAD may override SS-CLIR against the dispatcher and that a call can generate multiple SS-CAD invocations. This is important when several service controls apply to the same call.

Interworking

Clause 4.4 says SS-CAD is available across the intersystem interface. If a restricted user is in a visited SwMI, a call may be routed back to the home TETRA system dispatcher for authorization. That supports consistent control even when users roam.

What terms does SIST EN 300 392-10-6 V1.3.1:2006 define?

• authorized user - the user who defines SS-CAD and may also activate, deactivate, and interrogate it.
• dispatcher - the user who receives the authorization request and approves or rejects the call.
• restricted user - the user whose calls must be authorized before they can proceed.
• SwMI - Switching and Management Infrastructure, the TETRA network infrastructure that handles service control.
• SS-CAD - Call Authorized by Dispatcher, the supplementary service covered by this document.
• V+D - Voice plus Data, the TETRA bearer family covered by the series.
• SDL - Specification and Description Language, used for the overall process model in Clause 4.5.

Who uses SIST EN 300 392-10-6 V1.3.1:2006?

SIST EN 300 392-10-6 V1.3.1:2006 is used by TETRA network operators, service providers, system integrators, and dispatcher-controlled user organizations. They use it to specify service behavior, configure restricted users and dispatcher addresses, and verify how call authorization should work in the network.

What changed in SIST EN 300 392-10-6 V1.3.1:2006 from the previous edition?

SIST EN 300 392-10-6 V1.3.1:2006 updates the earlier V1.3.0 version. Annex A states that the change request aligned selected clauses with stage 3 and included editorial corrections.

Which standards are used with SIST EN 300 392-10-6 V1.3.1:2006?

• ITU-T Recommendation Z.100 - provides the SDL method used for the overall behavioral model in Clause 4.5.
• ITU-T Recommendation I.210 - gives the service-description principles used for the three-stage supplementary service approach.
• EN 300 392-9 - the general requirements part for TETRA supplementary services.
• EN 300 392-11 - stage 2 supplementary services.
• EN 300 392-12 - stage 3 supplementary services.

What does the SIST EN 300 392-10-6 V1.3.1:2006 document contain?

SIST EN 300 392-10-6 V1.3.1:2006 contains two implementation-option tables and an overall SDL model. Clause 4.2.1 uses tables to show which authorization conditions can be linked to source, destination, basic service, and area. It also gives the options for whether the calling user is told that interception is happening and whether the dispatcher number is shown.

Clause 4.5 provides the SDL process for SS-CAD, showing the states and outcomes for intercepting, diverting, accepting, rejecting, and releasing a call. Annex A records the change request history.

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.&$'Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D); Part 10: Supplementary services stage 1; Sub-part 6: Call Authorized by Dispatcher (CAD)33.070.10Prizemni snopovni radio (TETRA)Terrestrial Trunked Radio (TETRA)ICS:Ta slovenski standard je istoveten z:EN 300 392-10-6 Version 1.3.1SIST EN 300 392-10-6 V1.3.1:2006en01-april-2006SIST EN 300 392-10-6 V1.3.1:2006SLOVENSKI
STANDARD

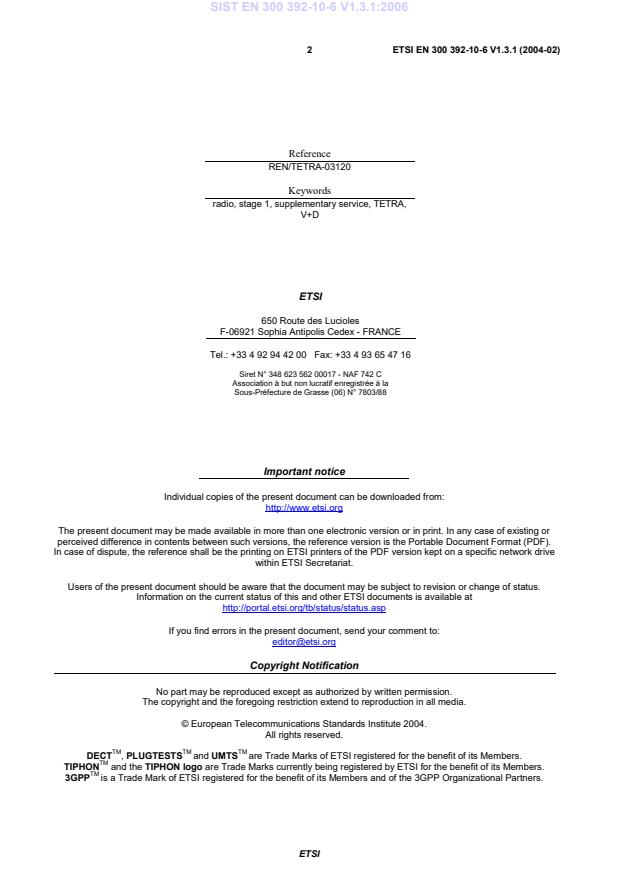

ETSI ETSI EN 300 392-10-6 V1.3.1 (2004-02) 2
Reference REN/TETRA-03120 Keywords radio, stage 1, supplementary service, TETRA, V+D ETSI 650 Route des Lucioles F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: [phone]
Fax: [phone]
Siret N° 348 623 562 00017 - NAF 742 C Association à but non lucratif enregistrée à la Sous-Préfecture de Grasse (06) N° 7803/88
Important notice Individual copies of the present document can be downloaded from: http://www.etsi.org The present document may be made available in more than one electronic version or in print. In any case of existing or perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF). In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive within ETSI Secretariat. Users of the present document should be aware that the document may be subject to revision or change of status. Information on the current status of this and other ETSI documents is available at http://portal.etsi.org/tb/status/status.asp If you find errors in the present document, send your comment to: [e-mail] Copyright Notification No part may be reproduced except as authorized by written permission. The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2004. All rights reserved.
DECTTM, PLUGTESTSTM and UMTSTM are Trade Marks of ETSI registered for the benefit of its Members. TIPHONTM and the TIPHON logo are Trade Marks currently being registered by ETSI for the benefit of its Members. 3GPPTM is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners. SIST EN 300 392-10-6 V1.3.1:2006

ETSI ETSI EN 300 392-10-6 V1.3.1 (2004-02) 3
Contents Intellectual Property Rights.5 Foreword.5 Introduction.6 1 Scope.7 2 References.7 3 Definitions and abbreviations.7 3.1 Definitions.7 3.2 Abbreviations.8 3.2.1 General abbreviations.8 3.2.2 Supplementary service abbreviations.8 4 Supplementary Service Call Authorized by Dispatcher (SS-CAD) stage 1 specification.9 4.1 Description.9 4.1.1 General description.9 4.1.2 Qualifications on applicability to telecommunication services.9 4.2 Procedures.9 4.2.1 Provision and withdrawal.9 4.2.1.1 Restricted basic service.10 4.2.1.2 Restricted destination address.10 4.2.1.3 Restricted source address.10 4.2.1.4 Restricted area.10 4.2.1.5 Verification and acceptance.11 4.2.2 Normal procedures.11 4.2.2.1 Activation, deactivation, definition, registration, interrogation, and cancellation.11 4.2.2.1.1 Activation and deactivation.11 4.2.2.1.2 Definition.11 4.2.2.1.3 Registration.11 4.2.2.1.4 Interrogation.11 4.2.2.2 Invocation and operation.11 4.2.2.2.1 Outgoing calls.11 4.2.2.2.2 Incoming calls.12 4.2.2.2.3 Restricted basic service.12 4.2.2.2.4 Restricted area.12 4.2.2.3 Cancellation.12 4.2.3 Exceptional procedures.12 4.2.3.1 Activation, deactivation, definition, registration, interrogation, and cancellation.12 4.2.3.1.1 Activation.12 4.2.3.1.2 Deactivation.13 4.2.3.1.3 Definition.13 4.2.3.1.4 Registration.13 4.2.3.1.5 Interrogation.13 4.2.3.2 Cancellation.13 4.2.3.3 Invocation and operation.14 4.3 Interactions with supplementary services.14 4.3.1 Calling Line Identification Presentation (SS-CLIP).14 4.3.2 Connected Line identification Presentation (SS-COLP).14 4.3.3 Calling/Connected Line Identification Restriction (SS-CLIR).14 4.3.4 Call Report (SS-CR).14 4.3.5 Talking Party Identification (SS-TPI).14 4.3.6 Call Forwarding Unconditional (SS-CFU).14 4.3.7 Call Forwarding on Busy (SS-CFB).14 4.3.8 Call Forwarding on No Reply (SS-CFNRy).14 4.3.9 Call Forwarding on Not Reachable (SS-CFNRc).14 4.3.10 List Search Call (SS-LSC).14 SIST EN 300 392-10-6 V1.3.1:2006

ETSI ETSI EN 300 392-10-6 V1.3.1 (2004-02) 4
4.3.11 Call Authorized by Dispatcher (SS-CAD).14 4.3.12 Short Number Addressing (SS-SNA).15 4.3.13 Area Selection (SS-AS).15 4.3.14 Access Priority (SS-AP).15 4.3.15 Priority Call (SS-PC).15 4.3.16 Call Waiting (SS-CW).15 4.3.17 Call Hold (SS-HOLD).15 4.3.18 Call Completion to Busy Subscriber (SS-CCBS).15 4.3.19 Late Entry (SS-LE).15 4.3.20 (Void).15 4.3.21 Pre-emptive Priority Call (SS-PPC).15 4.3.22 Include Call (SS-IC).15 4.3.23 (Void).16 4.3.24 Barring of Outgoing Calls (SS-BOC).16 4.3.25 Barring of Incoming Calls (SS-BIC).16 4.3.26 Discreet Listening (SS-DL).16 4.3.27 Ambience Listening (SS-AL).16 4.3.28 Dynamic Group Number Assignment (SS-DGNA).16 4.3.29 Call Completion on No Reply (SS-CCNR).16 4.3.30 Call Retention (SS-CRT).16 4.4 Interworking considerations.16 4.5 Overall SDL.16 Annex A (informative): Change Requests.19 History.20
ETSI ETSI EN 300 392-10-6 V1.3.1 (2004-02) 5
Intellectual Property Rights IPRs essential or potentially essential to the present document may have been declared to ETSI. The information pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web server (http://webapp.etsi.org/IPR/home.asp). Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become, essential to the present document. Foreword This European Standard (Telecommunications series) has been produced by ETSI Project Terrestrial Trunked Radio (TETRA). The present document is part 10, sub-part 6 of a multi-part deliverable covering Voice plus Data (V+D), as identified below: EN 300 392-1: "General network design"; EN 300 392-2: "Air Interface (AI)"; EN 300 392-3: "Interworking at the Inter-System Interface (ISI)"; ETS 300 392-4: "Gateways basic operation"; EN 300 392-5: "Peripheral Equipment Interface (PEI)"; EN 300 392-7: "Security"; EN 300 392-9: "General requirements for supplementary services"; EN 300 392-10: "Supplementary services stage 1"; EN 300 392-10-1: "Call Identification (CI)"; ETS 300 392-10-2: "Call report"; ETS 300 392-10-3: "Talking Party Identification (TPI)"; EN 300 392-10-4: "Call Forwarding (CF)"; ETS 300 392-10-5: "List Search Call (LSC)"; EN 300 392-10-6: "Call Authorized by Dispatcher (CAD)"; ETS 300 392-10-7: "Short number addressing"; EN 300 392-10-8: "Area Selection (AS)"; ETS 300 392-10-9: "Access priority"; EN 300 392-10-10: "Priority Call (PC)"; EN 300 392-10-11: "Call Waiting (CW)"; EN 300 392-10-12: "Call Hold (HOLD)"; ETS 300 392-10-13: "Call completion to busy subscriber"; EN 300 392-10-14: "Late Entry (LE)"; SIST EN 300 392-10-6 V1.3.1:2006

ETSI ETSI EN 300 392-10-6 V1.3.1 (2004-02) 6
ETS 300 392-10-15: "Transfer of control"; ETS 300 392-10-16: "Pre-emptive priority call"; EN 300 392-10-17: "Include Call (IC)"; EN 300 392-10-18: "Barring of Outgoing Calls (BOC)"; EN 300 392-10-19: "Barring of Incoming Calls (BIC)"; ETS 300 392-10-20: "Discreet Listening (DL)"; EN 300 392-10-21: "Ambience Listening (AL)"; EN 300 392-10-22: "Dynamic Group Number Assignment (DGNA)"; ETS 300 392-10-23: "Call completion on no reply"; ETS 300 392-10-24: "Call Retention (CRT)"; EN 300 392-11: "Supplementary services stage 2"; EN 300 392-12: "Supplementary services stage 3"; ETS 300 392-13: "SDL model of the Air Interface (AI)"; ETS 300 392-14: "Protocol Implementation Conformance Statement (PICS) proforma specification"; TS 100 392-15: "TETRA frequency bands, duplex spacings and channel numbering"; TS 100 392-16: "Network Performance Metrics"; TS 100 392-17: "TETRA V+D and DMO Release 1.1 specifications".
National transposition dates Date of adoption of this EN: 6 February 2004 Date of latest announcement of this EN (doa): 31 May 2004 Date of latest publication of new National Standard or endorsement of this EN (dop/e):
30 November 2004 Date of withdrawal of any conflicting National Standard (dow): 30 November 2004
Introduction Supplementary services specifications are produced in three stages, according to the method described in ITU-T Recommendation I.210 [2]. The present document contains the stage 1 specification of SS-CAD. The stage 1 descriptions specify the supplementary services as seen by users of networks. The Call Authorized by Dispatcher service is specific to TETRA. SIST EN 300 392-10-6 V1.3.1:2006

ETSI ETSI EN 300 392-10-6 V1.3.1 (2004-02) 7
1 Scope The present document defines the stage 1 specifications of the Supplementary Service Call Authorized by Dispatcher (SS-CAD) for the Terrestrial Trunked Radio (TETRA) system. Stage 1 is an overall service description from the users point of view but does not deal with the details of the human interface itself. The present document specifies the service description of the supplementary service and the procedures to be expected with successful and unsuccessful outcomes. In addition, the present document specifies the interactions with other TETRA supplementary services and interworking considerations. Charging principles are outside the scope of the present document. The SS-CAD ensures that predefined TETRA calls do not proceed without first being authorized by a dispatcher. 2 References The following documents contain provisions which, through reference in this text, constitute provisions of the present document. • References are either specific (identified by date of publication and/or edition number or version number) or non-specific. • For a specific reference, subsequent revisions do not apply. • For a non-specific reference, the latest version applies. Referenced documents which are not found to be publicly available in the expected location might be found at http://docbox.etsi.org/Reference. [1] ITU-T Recommendation Z.100:
...
