SIST EN 300 444 V1.3.3:2003

• Abstract:

  To specify the mandatory frame synchronization requirements for public GAP FP. To specify requirements for a GAP CRFP terminal and requireme nts for GAP FP support of CRFP terminals.

• Status: Published
• Publication Date: 30-Nov-2003
• ICS: 33.070.30 - Digital Enhanced Cordless Telecommunications (DECT)
• Technical Committee: SS EIT - Technical Board for the electrotechnical, information technology and telecommunications fields
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Dec-2003
• Due Date: 01-Dec-2003
• Completion Date: 01-Dec-2003
• Mandate: T-317
• Ref Project: ETSI EN 300 444 V1.3.3 (1999-05) - Digital Enhanced Cordless Telecommunications (DECT); Generic Access Profile (GAP)

SIST EN 300 444 V1.3.3:2003 is the SIST version of the ETSI European Standard for Digital Enhanced Cordless Telecommunications (DECT) Generic Access Profile (GAP). It specifies the technical requirements that DECT Fixed Part (FP) and DECT Portable Part (PP) need to interoperate for 3.1 kHz telephony, including public GAP FP frame synchronization, call control, mobility management, access rights, and related radio procedures.

This standard is aimed at equipment that must work across different DECT implementations. In practice, it tells a designer, tester, or buyer which GAP functions are mandatory, which are optional but process-mandatory if implemented, and how the FP and PP are expected to behave on the air interface.

What does SIST EN 300 444 V1.3.3:2003 specify?

SIST EN 300 444 V1.3.3:2003 specifies the DECT GAP requirements for the FP and PP needed to support interoperable 3.1 kHz voice services. The scope includes public GAP FP, GAP CRFP terminal requirements, and the minimum functions needed to establish, maintain, and release calls with appropriate access rights.

The document is organized as follows:

• Clauses 1-3 cover scope, references, and definitions.
• Clauses 4-5 define features and services.
• Clauses 6-14 set interoperability requirements, procedures, layer requirements, speech transmission, management, and application procedures.
• Annex A and Annex B are informative.
• Annex C is normative and covers synchronization requirements for fixed parts.

Annex	What it covers
Annex A	PP locking procedure for on-air subscription
Annex B	Tones, progress indicator, and U-plane connection
Annex C	Synchronization requirements for fixed parts

What are the key requirements of SIST EN 300 444 V1.3.3:2003?

The standard separates requirements by feature, service, and procedure, and uses status codes to show what each side must support. That matters because implementers can see whether a function is mandatory, optional, or conditional for the PT, FT, or both.

Feature and service coverage

Clause 6 lists the GAP features and services that the PT and FT support. Core items include outgoing and incoming calls, off-hook and on-hook, dialled digits, alerting, location registration, identification, link control, and subscription registration on-air. The practical result is that a GAP handset and base station can place and receive basic telephony calls and perform the registrations needed to make service work.

Call control and message handling

Clauses 8 and 9 define the NWK and DLC procedures for call setup, alerting, connection, keypad signalling, release, partial release, and internal or service calls. The standard also defines how keypad information is sent, how release collisions are handled, and how timers such as CC setup and CC release are managed. In practice, this is what makes call progress predictable between different vendors’ equipment.

Mobility, access rights, and security

Clauses 8 and 13 cover identification of PT, authentication of FT, authentication of user, location registration, obtaining access rights, terminating access rights, key allocation, and storing the DCK. Clause 10 adds MAC-level encryption activation and deactivation, SARI support, handover, and extended frequency allocation. This is the part that controls who is allowed to use the FP and how secure sessions are established and changed.

Radio, frame sync, and speech behavior

Clause 11 gives the PHL requirements, including NTP, receiver sensitivity, sliding collision detection, physical channel availability, and synchronization window. Clause 12 covers speech transmission and user-controlled volume control. Annex C then adds fixed-part synchronization requirements. These requirements matter because radio timing and sync determine whether a FP can be locked to and used reliably by a PP.

What terms does SIST EN 300 444 V1.3.3:2003 define?

• Fixed Part (FP) - The part of the DECT system between the local network and the DECT air interface.
• Fixed radio Termination (FT) - The logical fixed-side functions that handle DECT processes and procedures.
• Portable Part (PP) - The user-side DECT equipment between the user and the air interface.
• Portable radio Termination (PT) - The logical portable-side DECT functions that handle DECT processes and procedures.
• Location Area (LA) - The area in which a PP can receive or make calls after one location registration.
• subscription registration - The process by which a subscriber obtains access rights to one or more FPs.
• handover - Switching a call in progress from one physical channel to another.

Who uses SIST EN 300 444 V1.3.3:2003?

DECT equipment manufacturers use this standard to design interoperable handsets, base stations, and protocol stacks. Test laboratories and approval teams use it to verify message handling, synchronization, call control, and feature support. Network operators, integrators, and buyers use it to check that equipment will support GAP interoperability for 3.1 kHz telephony in residential, business, or public access environments.

Which standards are used with SIST EN 300 444 V1.3.3:2003?

Standard	Contribution
EN 300 175-1 to EN 300 175-8	DECT Common Interface parts for overview, PHL, MAC, DLC, NWK, identities and addressing, security, and speech coding/transmission
EN 300 176-1	DECT radio approval test specification
EN 300 176-2	DECT speech approval test specification
TBR 6	General terminal attachment requirements
TBR 10	General terminal attachment requirements for telephony applications
ISO/IEC 9646-6	Protocol profile test specification method
ISO/IEC 9646-7	Implementation Conformance Statement method
ISO/IEC 8073	Connection-oriented transport protocol reference

What does the SIST EN 300 444 V1.3.3:2003 document contain?

The document contains feature and service status tables, mapping tables that link features to procedures, and detailed procedures for call setup, release, keypad entry, alerting, registration, authentication, encryption, handover, broadcast, and link control. It also includes timer management, exceptional cases, and message content requirements for NWK, DLC, and MAC operation.

It uses figures to show the normal and exceptional message sequences for outgoing and incoming calls, release cases, partial release, and related procedures. The result is a working reference for implementation, interoperability testing, and conformance checking of GAP equipment.

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Digital Enhanced Cordless Telecommunications (DECT); Generic Access Profile (GAP)33.070.30'(&7Digital Enhanced Cordless Telecommunications (DECT)ICS:Ta slovenski standard je istoveten z:EN 300 444 Version 1.3.3SIST EN 300 444 V1.3.3:2003en01-december-2003SIST EN 300 444 V1.3.3:2003SLOVENSKI
STANDARD
EN 300 444 V1.3.3 (1999-05)European Standard (Telecommunications series)Digital Enhanced Cordless Telecommunications (DECT);Generic Access Profile (GAP)SIST EN 300 444 V1.3.3:2003

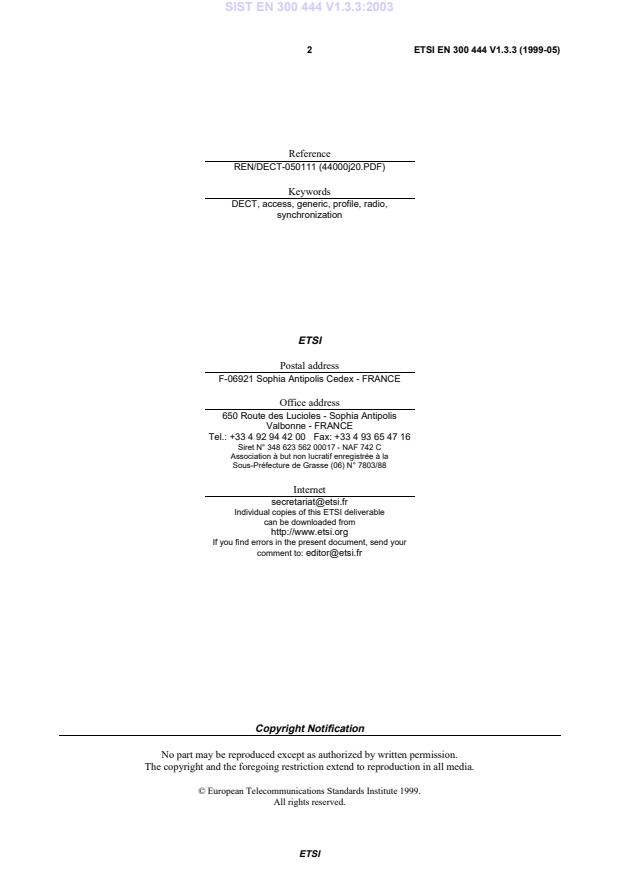

ETSIETSI EN 300 444 V1.3.3 (1999-05)2ReferenceREN/DECT-050111 (44000j20.PDF)KeywordsDECT, access, generic, profile, radio,synchronizationETSIPostal addressF-06921 Sophia Antipolis Cedex - FRANCEOffice address650 Route des Lucioles - Sophia AntipolisValbonne - FRANCETel.: [phone]
Fax: [phone]Siret N° 348 623 562 00017 - NAF 742 CAssociation à but non lucratif enregistrée à laSous-Préfecture de Grasse (06) N° 7803/[e-mail] copies of this ETSI deliverablecan be downloaded fromhttp://www.etsi.orgIf you find errors in the present document, send yourcomment to: [e-mail] NotificationNo part may be reproduced except as authorized by written permission.The copyright and the foregoing restriction extend to reproduction in all media.© European Telecommunications Standards Institute 1999.All rights reserved.SIST EN 300 444 V1.3.3:2003

ETSIETSI EN 300 444 V1.3.3 (1999-05)3ContentsIntellectual Property Rights.9Foreword.91Scope.102References.103Definitions, symbols and abbreviations.113.1Definitions.113.2Symbols.133.3Abbreviations.144Feature definitions.154.1Network (NWK) features.154.2Application features.175Service definitions.175.1DLC service definitions.175.2MAC service definitions.186Inter-operability requirements.186.1General.186.2NWK features.196.3DLC services.206.4MAC services.206.5Physical (PHL) layer services.206.6Application features.216.7NWK feature to procedure mapping.216.8Service to procedure mapping.236.8.1DLC service to procedure mapping.236.8.2MAC service to procedure mapping.246.8.3Application feature to procedure mapping.256.9General requirements.256.9.1NWK layer message contents.256.9.2Transaction identifier.256.9.3Length of a NWK layer message.256.9.4Handling of error and exception conditions.256.9.5GAP default setup attributes.266.9.6Coexistence of MM and CC procedures.266.9.7Coding rules for information elements.267Procedure description.268NWK layer procedures.278.1Summary of outgoing call messages, normal cases.278.2Outgoing call request.288.2.1Associated procedures.298.2.1.1Timer P- management.298.2.2Exceptional cases.308.2.2.1Timer P- expiry.308.2.2.2PT releases the outgoing call request.308.2.2.3FT rejects the outgoing call request.318.3Overlap sending.318.3.1Associated procedure.328.3.1.1Timer F- management.328.3.2Exceptional cases.328.3.2.1PT releases the outgoing call request.328.3.2.2FT rejects the outgoing call request.328.3.2.3Timer F- expiry.33SIST EN 300 444 V1.3.3:2003

ETSIETSI EN 300 444 V1.3.3 (1999-05)48.3.2.4FT releases the outgoing call request.338.4Outgoing call proceeding.348.4.1Exceptional cases.348.4.1.1PT releases the outgoing call request.348.4.1.2FT releases the outgoing call request.358.5Outgoing call confirmation.358.5.1Exceptional cases.358.5.1.1PT releases the outgoing call request.358.5.1.2FT releases the outgoing call request.368.6Outgoing call connection.368.7Normal call release.378.7.1Associated procedures.388.7.1.1Timer P- management.388.7.1.2Timer F- management.388.7.2Exceptional cases.388.7.2.1Release collisions.388.7.2.2Timer F- expiry.398.7.2.3Timer P- expiry.398.8Abnormal call release.408.9Partial release.408.10Sending keypad information.418.11Summary of incoming call related messages, normal cases.428.12Incoming call request.438.12.1Associated procedure.448.12.1.1Timer F- management.448.12.2Exceptional cases.458.12.2.1FT releases the incoming call request.458.12.2.2PT rejects the incoming call request.458.12.2.3Timer F- expiry.468.12.3Collective and group ringing.468.13Incoming call confirmation.468.13.1Exceptional cases.478.13.1.1FT releases the incoming call transaction.478.13.1.2PT releases the incoming call transaction.478.14PT alerting.478.15Incoming call connection.488.15.1Associated procedure.498.15.1.1Timer P- management.498.15.2Exceptional cases.498.15.2.1FT releases the incoming call transaction.498.15.2.2PT releases the incoming call transaction.498.15.2.3Timer P- expiry.508.16Display.508.17Terminal capability indication.518.18Internal call setup.528.19Internal call keypad.528.20Service call setup.528.21Service call keypad.538.22Identification of PP.538.22.1Associated procedure.548.22.1.1Timer F- management.548.22.2Exceptional cases.548.22.2.1Identity not existing in the PT.548.22.2.2Timer F- expiry.548.23Authentication of FT.558.23.1Associated procedure.558.23.1.1Timer P- management.558.23.2Exceptional cases.568.23.2.1Authentication algorithm/key not supported.568.23.2.2Authentication challenge RES has wrong value.56SIST EN 300 444 V1.3.3:2003

ETSIETSI EN 300 444 V1.3.3 (1999-05)58.23.2.3Timer P- expiry.568.24Authentication of PP.568.24.1Associated procedure.588.24.1.1Timer F- management.588.24.2Exceptional cases.588.24.2.1Authentication algorithm/key not supported.588.24.2.2Timer F- expiry.588.25Authentication of user.588.25.1Associated procedure.598.25.1.1Timer F- management.598.25.2Exceptional cases.598.25.2.1Authentication algorithm/key not supported.598.25.2.2Timer F- expiry.598.26Incrementing the ZAP value.598.27Storing the DCK.608.28Location registration.608.28.1Associated procedures.628.28.1.1Timer P- management.628.28.1.2Timer F- management.628.28.2Exceptional cases.628.28.2.1FT rejects the location registration procedure.628.28.2.2Failure of location registration procedure.638.28.2.3PT rejects the identity assignment.638.28.2.4Timer F- expiry.638.29Location update.638.30Obtaining access rights.648.30.1Associated procedure.668.30.1.1Timer P- management.668.30.2Exceptional cases.668.30.2.1FT rejects the access rights.668.30.2.2Timer P- expiry.678.31FT terminating access rights.678.31.1Associated procedure.688.31.1.1Timer F- management.688.31.2Exceptional cases.688.31.2.1PT rejects the termination request.688.31.2.2Timer F- expiry.688.32Key allocation.698.32.1Associated procedures.708.32.1.1Timer F- management.708.32.1.2Timer P- management.708.32.2Exceptional cases.708.32.2.1Timer F- expiry.708.32.2.2Timer P- expiry.708.32.2.3Allocation-type element is unacceptable.718.32.2.4Authentication of PT fails.718.32.2.5Authentication of FT fails.728.33Cipher-switching initiated by FT.728.33.1Associated procedure.738.33.1.1Timer F- management.738.33.2Exceptional cases.738.33.2.1PT rejects the cipher request.738.33.2.2Timer F- expiry.738.34Cipher-switching initiated by PT.748.34.1Associated procedure.758.34.1.1Timer P- management.758.34.2Exceptional cases.758.34.2.1FT rejects the cipher request.758.34.2.2Timer P- expiry.758.35Indirect FT initiated link establishment.76SIST EN 300 444 V1.3.3:2003

ETSIETSI EN 300 444 V1.3.3 (1999-05)68.35.1Associated procedure.778.35.1.1Timer F- management.778.35.2Exceptional cases.778.35.2.1The IPUI received in the {LCE-PAGE-RESPONSE} does not match.778.35.2.2Timer expiry.788.35.2.3Release from the higher entity.788.36Direct PT initiated link establishment.788.36.1Exceptional case.808.36.1.1Link establishment failure.808.37Link release "normal".808.37.1Associated procedure.818.37.1.1Timer management.818.37.2Exceptional cases.828.37.2.1Timer expiry.828.37.2.2Outstanding data has been discarded.828.38Link release "abnormal".838.39Link release "maintain".838.39.1Associated procedure.838.39.1.1Timer management.838.40Enhanced FT initiated U- plane connection.839DLC layer procedures.849.1Class A link establishment.849.1.1Associated procedures.869.1.1.1Timer P management.869.1.1.2Re-transmission counter management.869.1.1.3Multiple frame operation variables management.869.1.1.4Lower Layer Management Entity (LLME) establishment of a MAC connection.869.1.2Exceptional cases.879.1.2.1Timer P expiry.879.1.2.2Receipt of a request for link release.889.1.2.3Receipt of an indication for a connection release.889.2Class A Acknowledged Information transfer.889.2.1Acknowledgement with an I_frame.889.2.2Acknowledgement with a RR_frame.899.2.3Class A acknowledged information transfer with segment reassemble.909.2.4Associated procedures.909.2.4.1Timer management.909.2.4.2Re-transmission counter management.909.2.4.3Multiple frame operation variables management.909.2.5Exceptional cases.919.2.5.1Timer expiry.919.2.5.2Receipt of a request for link release.919.2.5.3Receipt of an indication for a connection release.919.2.5.4DLC wants to make a connection handover.919.3Class A link release.919.3.1Associated procedures.929.3.1.1LLME U-plane release.929.3.1.2LLME release a MAC connection.929.4Class A link re-establishment.929.5Cs channel fragmentation and recombination.929.6Normal broadcast.929.7Class A basic connection handover.939.7.1Voluntary handover.949.7.2Associated procedure.949.7.2.1LLME connection handover management.949.7.3Exceptional case.949.7.3.1Receipt of a request for link release.949.8Encryption switching.949.8.1Associated procedure.959.8.1.1Providing Encryption key to the MAC layer.95SIST EN 300 444 V1.3.3:2003

ETSIETSI EN 300 444 V1.3.3 (1999-05)79.8.2Exceptional cases.959.8.2.1Encryption fails.959.8.2.2Connection handover of ciphered connections.959.9U-plane class 0/min delay.959.9.1Associated procedure.959.9.1.1LLME U-plane establishment.959.10FU1 frame operation.9510MAC layer procedures.9610.1General.9610.2Downlink broadcast.9610.2.1Nt message.9710.2.2Qt - static system information.9710.2.3Qt - FP capabilities.9710.2.4Qt - SARI list contents.9810.3Paging broadcast.9810.3.1Short page, normal/extended paging.9810.3.2Zero page normal/extended paging.9910.3.3Blind slot information.9910.3.4Bearer handover information.10010.4Setup of basic connection, basic bearer setup (A-field).10010.4.1Mt message.10010.4.2Associated procedures.10110.4.2.1Timer T200 management.10110.4.2.2Counter N200 management.10110.4.3Exceptional cases.10110.4.3.1Bearer setup attempt fails N200+1 times.10110.4.3.2Timer T200 expiry.10210.5Connection/bearer release.10210.5.1Mt message.10210.6Bearer handover request.10310.6.1Mt message.10310.7Connection handover request.10310.7.1Mt message.10310.8Cs channel data.10410.9Q2 bit setting.10410.10RFPI handshake.10410.11Antenna diversity.10410.12Sliding collision.10410.13Encryption process - initialization and synchronization.10410.14Encryption mode control.10510.14.1Mt message.10510.15Handover encryption process.10510.16Extended frequency allocation.10511PHL layer requirements.10611.1General.10611.2Minimum Normal Transmit Power (NTP).10611.3Radio receiver sensitivity.10611.4Z-field.10611.5Sliding collision detection.10611.6Physical channel availability.10611.7Synchronization window.10612Requirements regarding the speech transmission.10712.1
...
