SIST EN IEC 60730-2-23:2025

Automatic electrical controls - Part 2-23: Particular requirements for electrical sensors and sensor elements

IEC 60730-2-23:2025 applies to the safety of electrical, electro-mechanical and electronic sensors including sensing elements and any conditioning circuitry. Sensors covered under the scope of this document serve only to transform an activating quantity into a usable output and do not perform a control operation as defined in IEC 60730-1. This document applies to sensors in so far as defining the reliability and accuracy of their inherent operating characteristics and corresponding response under normal and abnormal conditions within the sensor. Sensors, as defined herein, are used in or as part of an automatic electrical control or as independently mounted devices in connection with controls and control systems. The use of this document for other applications in which sensors are used is possible provided that the appropriate safety is maintained as defined by the end product standard. This document applies to discrete sensors constructed of, but not limited to, conductive, semi-conductive, or substrate, for the detection of activating quantities such as voltage, current, temperature, pressure, humidity, light (e.g. optical), gasoline vapours, and the like.
NOTE 1 Future consideration will be given to other sensor technologies constructed of other materials such as chemical, mechanical and micro-electromechanical systems (MEMS), along with other activating quantities like mass flow, liquid, movement, weight, vibration, or other as needed.
This document applies to sensing element(s) as well as any electronic hardware, software, or other conditioning circuits that are inherent to the sensor and relied upon to reliably transform the input signal into a useable response signal (output) for functional safety purposes. Conditioning circuits that are inseparable from the control for which the sensing element relies upon to perform its desired function are evaluated by the requirements of the relevant control Part 2 standard and/or IEC 60730-1.
NOTE 2 Additional requirements can be also applied by the application standard in which the sensor is used.
Throughout this document, whenever it is indicated that the IEC 60730-1 requirements are applicable, the term "control(s)", is replaced by the term "sensor(s)", and the term "equipment" is replaced by the term "control", as they are used in IEC 60730-1, respectively, unless otherwise specified herein.
This document does not apply to sensors explicitly described in another relevant part 2 of the IEC 60730 series.
NOTE 3 For example, a flame sensor as described in IEC 60730-2-5.

-

Dispositifs de commande électriques automatiques - Partie 2-23: Exigences particulières pour les capteurs électriques et les éléments sensibles

L'IEC 60730-2-23:2025 s'applique à la sécurité des capteurs électriques, électromécaniques et électroniques, y compris les éléments sensibles et les circuits de conditionnement éventuels. Les capteurs couverts par le domaine d'application du présent document permettent uniquement de transformer une grandeur de manœuvre en sortie utilisable et n'effectuent aucune opération de commande définie dans l'IEC 60730-1. Le présent document s'applique aux capteurs dans la mesure où il définit la fiabilité et l'exactitude de leurs caractéristiques de fonctionnement intrinsèques et leur réponse correspondante dans des conditions normales et anormales à l'intérieur du capteur. Les capteurs définis dans le présent document sont utilisés dans un dispositif de commande électrique automatique ou comme partie de celui-ci, ou comme des dispositifs à montage indépendant connectés à des dispositifs et systèmes de commande. L'application du présent document dans le cadre d'autres utilisations des capteurs est possible sous réserve d'assurer la sécurité adéquate, selon la définition donnée dans la norme du produit final. Le présent document s'applique aux capteurs discrets composés notamment d'un conducteur ou d'un substrat semiconducteur, pour la détection de grandeurs de manœuvre comme la tension, le courant, la température, la pression, l'humidité, la lumière (optique, par exemple), les vapeurs d'essence, etc.
NOTE 1 D'autres technologies de capteurs seront envisagées à l'avenir comme les systèmes chimiques, mécaniques et microélectromécaniques (MEMS) ainsi que d'autres grandeurs de manœuvre comme le débit massique, le liquide, le mouvement, le poids, les vibrations, etc.
Le présent document s'applique à l'élément ou aux éléments sensibles, ainsi qu'aux matériels électroniques, logiciels ou autres circuits de conditionnement qui sont intrinsèques au capteur et qui permettent de transformer de manière fiable le signal d'entrée en un signal de réponse (sortie) utilisable à des fins de sécurité fonctionnelle. Les circuits de conditionnement qui sont inséparables du dispositif de commande sur lequel repose l'élément sensible pour accomplir sa fonction souhaitée sont évalués conformément aux exigences de la Partie 2 applicable au dispositif de commande et/ou de l'IEC 60730-1.
NOTE 2 Des exigences supplémentaires peuvent également s'appliquer au titre de la norme d'application dans laquelle le capteur est utilisé.
Dans l'ensemble du présent document, s'il est indiqué que les exigences de l'IEC 60730-1 s'appliquent, le terme "dispositif(s) de commande" est remplacé par le terme "capteur(s)" et le terme "équipement" est remplacé par le terme "dispositif de commande", lorsque ces termes sont respectivement utilisés dans l'IEC 60730-1, sauf spécification contraire dans le présent document.
Le présent document ne s'applique pas aux capteurs décrits de manière explicite dans une autre partie 2 pertinente de la série IEC 60730.
NOTE 3 Par exemple, un capteur de flamme décrit dans l'IEC 60730-2-5.

Avtomatske električne krmilne naprave - 2-23. del: Posebne zahteve za električne senzorje in njihove elemente

General Information

• Status: Published
• Public Enquiry End Date: 31-Jul-2024
• Publication Date: 22-Jul-2025
• ICS: 97.120 - Automatic controls for household use
• Technical Committee: ISS EIT.NZG - Household apliances
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 02-Jul-2025
• Due Date: 06-Sep-2025
• Completion Date: 23-Jul-2025
• Ref Project: EN IEC 60730-2-23:2025 - Automatic electrical controls - Part 2-23: Particular requirements for electrical sensors and sensing elements

Standards Content (Sample)

SLOVENSKI STANDARD
01-september-2025
Avtomatske električne krmilne naprave - 2-23. del: Posebne zahteve za električne
senzorje in njihove elemente
Automatic electrical controls - Part 2-23: Particular requirements for electrical sensors
and sensor elements
-
Dispositifs de commande électriques automatiques - Partie 2-23: Exigences particulières
pour les capteurs électriques et les éléments sensibles
Ta slovenski standard je istoveten z: EN IEC 60730-2-23:2025
ICS:
97.120 Avtomatske krmilne naprave Automatic controls for
za dom household use
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

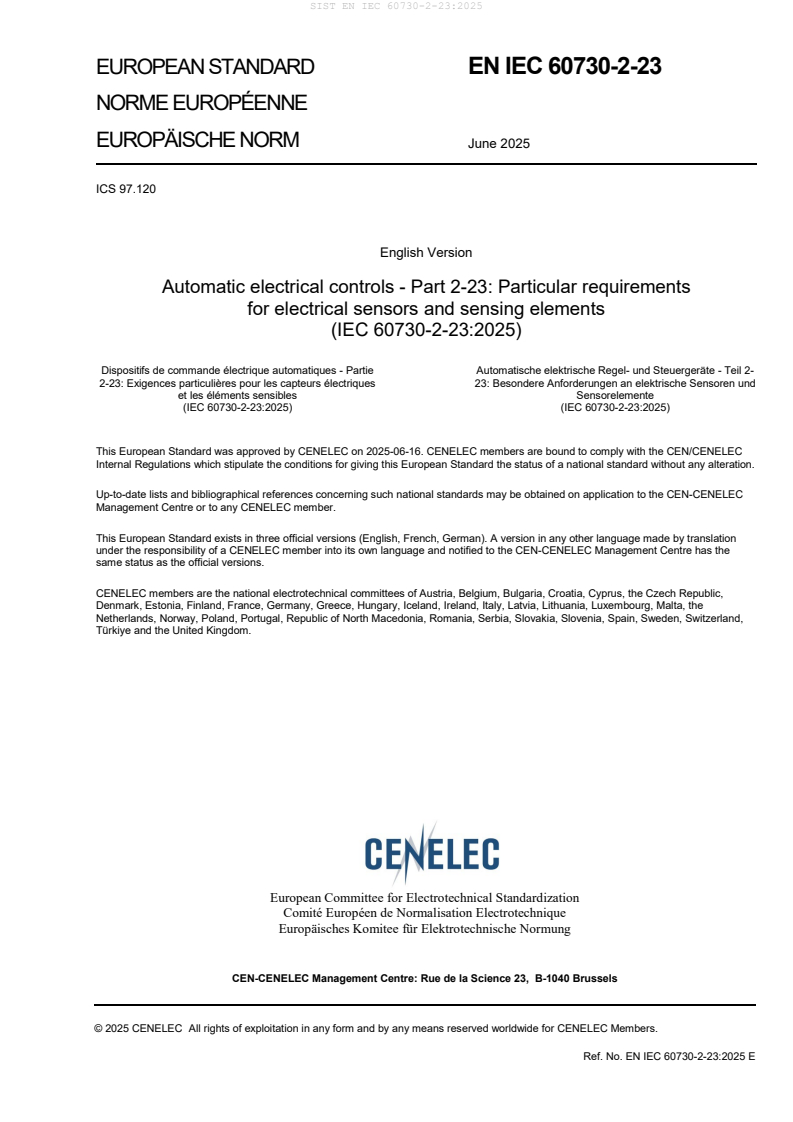

EUROPEAN STANDARD EN IEC 60730-2-23

NORME EUROPÉENNE
EUROPÄISCHE NORM June 2025
ICS 97.120
English Version
Automatic electrical controls - Part 2-23: Particular requirements
for electrical sensors and sensing elements
(IEC 60730-2-23:2025)
Dispositifs de commande électrique automatiques - Partie Automatische elektrische Regel- und Steuergeräte - Teil 2-
2-23: Exigences particulières pour les capteurs électriques 23: Besondere Anforderungen an elektrische Sensoren und
et les éléments sensibles Sensorelemente
(IEC 60730-2-23:2025) (IEC 60730-2-23:2025)
This European Standard was approved by CENELEC on 2025-06-16. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 60730-2-23:2025 E

European foreword
The text of document 72/1477/FDIS, future edition 1 of IEC 60730-2-23, prepared by TC 72
"Automatic electrical controls" was submitted to the IEC-CENELEC parallel vote and approved by
CENELEC as EN IEC 60730-2-23:2025.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2026-06-30
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2028-06-30
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
This document is read in conjunction with EN IEC 60730-1.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 60730-2-23:2025 was approved by CENELEC as a
European Standard without any modification.
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1  Where an International Publication has been modified by common modifications, indicated by (mod),
the relevant EN/HD applies.
NOTE 2  Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cencenelec.eu.
Annex ZA of Part 1 is applicable except as follows.
Addition:
Publication Year Title EN/HD Year
IEC 60730-1 2022 Automatic electrical controls - Part 1: EN IEC 60730-1 2024
General requirements
IEC 60751 2022 Industrial platinum resistance EN IEC 60751 2022
thermometers and platinum temperature
sensors
IEC 60730-2-23 ®
Edition 1.0 2025-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Automatic electrical controls –
Part 2-23: Particular requirements for electrical sensors and sensing elements

Dispositifs de commande électrique automatiques –
Partie 2-23: Exigences particulières pour les capteurs électriques et les éléments
sensibles
ICS 97.120  ISBN 978-2-8327-0412-7

IEC 60730-2-23:2025-05(en-fr)
– 2 – IEC 60730-2-23:2025 © IEC 2025
CONTENTS
FOREWORD . 4
1 Scope . 6
2 Normative references . 7
3 Terms and definitions . 7
4 General . 11
5 Required technical information . 14
6 Protection against electric shock . 15
7 Provision for protective earthing . 15
8 Terminals and terminations . 15
9 Constructional requirements . 15
10 Threaded parts and connections . 16
11 Creepage distances, clearances and distances through solid insulation . 16
12 Components . 16
13 Fault assessment on electronic circuits. 17
14 Moisture and dust resistance . 17
15 Electric strength and insulation resistance . 17
16 Heating . 17
17 Manufacturing deviation and drift . 17
18 Environmental stress . 17
19 Endurance . 17
20 Mechanical strength . 21
21 Resistance to heat, fire and tracking . 21
22 Resistance to corrosion . 21
23 Electromagnetic compatibility (EMC) requirements – Emission . 21
24 Normal operation . 21
25 Electromagnetic compatibility (EMC) requirements – Immunity . 21
26 Abnormal operation tests . 22
Annex H (normative) Requirements related to functional safety . 23
Annex J (normative) Requirements for thermistor elements and controls using
thermistors . 31
Bibliography . 32

Figure 101 – Schematic diagram of a typical sensor . 8
Figure H.101 – Typical flammable vapor sensor test chamber (side view external wall) . 28
Figure H.102 – Typical flammable vapor sensor test chamber (side view internal
cutout) . 28
Figure H.103 – Typical flammable vapor sensor test chamber (top view) . 29

Table 101 – Samples and test sequence for sensors . 12
Table 102 – Electrical and thermal ratings of a sensor . 13
Table 1 – Required technical information and methods of providing these information . 14
Table 103 – Number of cycles for endurance test . 19

IEC 60730-2-23:2025 © IEC 2025 – 3 –
Table H.101 – Calibration tests and compliance criteria for sensors . 24
Table H.102 – Calibration classes for sensors . 25
Table H.103 – Temperature/relative humidity conditions . 29
Table H.104 – Specifications for vapour measurement test equipment . 29
Table H.105 – Specifications for vapour measurement test chamber . 30
