SIST EN 302 500-2 V2.1.1:2010

• Abstract:

  The present document specifies the requirements for ultra-wideband Location Tracking equipment operating in all or part of the frequency range from 6 GHz to 9 GHz. The present document applies for indoor as well as portable or mobile outdoor applications. It covers ultra-wideband location tracking tags which are attached to people or objects and are tracked using a fixed receiver infrastructure to only receive the UWB emission by the tags. Equipment covered by the present document is fitted with an integral or dedicated antenna. The present document is intended to cover the provisions of article 3.2 of Directive 1999/5/EC [i.2] R&TTE Directive, which states that "... radio equipment shall be so constructed that it effectively uses the spectrum allocated to terrestrial/space radio communications and orbital resources so as to avoid harmful interference". In addition to the present document, other ENs that specify technical requirements in respect of essential requirements under other parts of article 3 of the R&TTE Directive may apply to equipment within the scope of the present document.

• Status: Published
• Public Enquiry End Date: 30-Apr-2010
• Publication Date: 08-Nov-2010
• ICS: 33.060.20 - Receiving and transmitting equipment
• ICS: 33.100.01 - Electromagnetic compatibility in general
• Technical Committee: MOC - Mobile Communications
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 18-Oct-2010
• Due Date: 23-Dec-2010
• Completion Date: 09-Nov-2010
• Directive: 1999/5/EC - Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity
  Conflicting Date: 31-Mar-2010
• Directive:

  ---

  TRRTP124 - Splošni akt o načrtu uporabe radijskih frekvenc (NURF-4)
• Mandate: M/407
• Ref Project: ETSI EN 302 500-2 V2.1.1 (2010-10) - Electromagnetic compatibility and Radio spectrum Matters (ERM); Short Range Devices (SRD) using Ultra WideBand (UWB) technology; Location Tracking equipment operating in the frequency range from 6 GHz to 9 GHz; Part 2: Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive

Overview

SIST EN 302 500-2 V2.1.1:2010 is a harmonized European standard developed by SIST and ETSI, focusing on electromagnetic compatibility and radio spectrum matters for short range devices (SRD) utilizing Ultra WideBand (UWB) technology. This standard specifically addresses location tracking equipment operating within the frequency range of 6 GHz to 9 GHz. It establishes the essential requirements under Article 3.2 of the R&TTE Directive (1999/5/EC), ensuring that radio equipment efficiently uses allocated spectrum and avoids harmful interference.

The standard applies to both indoor and outdoor portable or mobile applications, covering UWB location tracking tags attached to people or objects that are tracked by a fixed receiver infrastructure. Equipment within the scope may be fitted with integral or dedicated antennas.

Key Topics

• Ultra WideBand (UWB) Technology: Guidance for equipment utilizing the wide frequency range from 6 GHz to 9 GHz for location tracking applications.
• Electromagnetic Compatibility (EMC): Requirements for minimizing electromagnetic interference to ensure the safe and efficient operation of radio spectrum assets.
• Essential Requirements (R&TTE Directive Article 3.2): Compliance to ensure that devices do not cause harmful interference and operate efficiently within allocated frequency bands.
• Technical Specifications:
  • Maximum permissible levels for equivalent isotropically radiated power (e.i.r.p.) spectral density.
  • Requirements for transmitter and receiver performance, including spurious radiation limits.
  • Implementation of Indirect Detect-And-Avoid (DAA) for certain frequency sub-ranges.
• Testing and Conformance: Outlines test procedures that manufacturers must follow for both transmitters and receivers to demonstrate compliance.
• Operational Environments: Standard applicable across a range of environmental profiles, as declared by the manufacturer.

Applications

SIST EN 302 500-2 V2.1.1:2010 provides practical requirements for a variety of UWB location tracking solutions used across industries, including:

• Asset Tracking: Accurate indoor and outdoor tracking of valuable equipment, tools, or shipments using UWB tags and fixed receivers.
• Personnel Safety: Monitoring the real-time location of individuals in industrial sites, healthcare facilities, or event venues.
• Logistics and Supply Chain: Optimizing inventory management with precise location data for goods in warehouses or during transportation.
• Security Systems: Enhancing security through real-time tracking solutions for restricted areas or sensitive assets.
• Smart Environments: Integration into smart building management systems for efficient space utilization and workflow optimization.

The requirements ensure robust operation in diverse and challenging radio environments, supporting the deployment of reliable and compliant UWB-based location tracking systems.

Related Standards

• SIST EN 302 500-1 V2.1.1: Defines technical characteristics and methods of measurement for UWB location tracking equipment in the 6 GHz to 9 GHz range.
• Directive 1999/5/EC (R&TTE Directive): European regulatory framework for radio equipment and telecommunications terminal equipment.
• ECC/DEC/(06)04: ECC Decision on the harmonized conditions for devices using UWB technology in bands below 10.6 GHz.
• ETSI TR 102 495-3: Technical characteristics for SRD equipment using UWB sensor technology for location tracking applications.

Practical Value

By adhering to this harmonized standard, manufacturers and integrators can ensure that their UWB location tracking equipment:

• Aligns with European regulatory requirements for lawful market access and CE marking.
• Minimizes interference risks, ensuring reliable operation alongside other radio services.
• Supports international interoperability and market acceptance for UWB-based tracking solutions.

SIST EN 302 500-2 V2.1.1:2010 is fundamental for the development, testing, and deployment of compliant UWB location tracking systems, offering confidence in both regulatory compliance and technical performance.

Draft ETSI EN 302 500-2 V2.1.1 (2010-01)
Harmonized European Standard (Telecommunications series)

Electromagnetic compatibility
and Radio spectrum Matters (ERM);
Short Range Devices (SRD) using
Ultra WideBand (UWB) technology;
Location Tracking equipment operating in
the frequency range from 6 GHz to 9 GHz;
Part 2: Harmonized EN covering the essential requirements of
article 3.2 of the R&TTE Directive

2 Draft ETSI EN 302 500-2 V2.1.1 (2010-01)

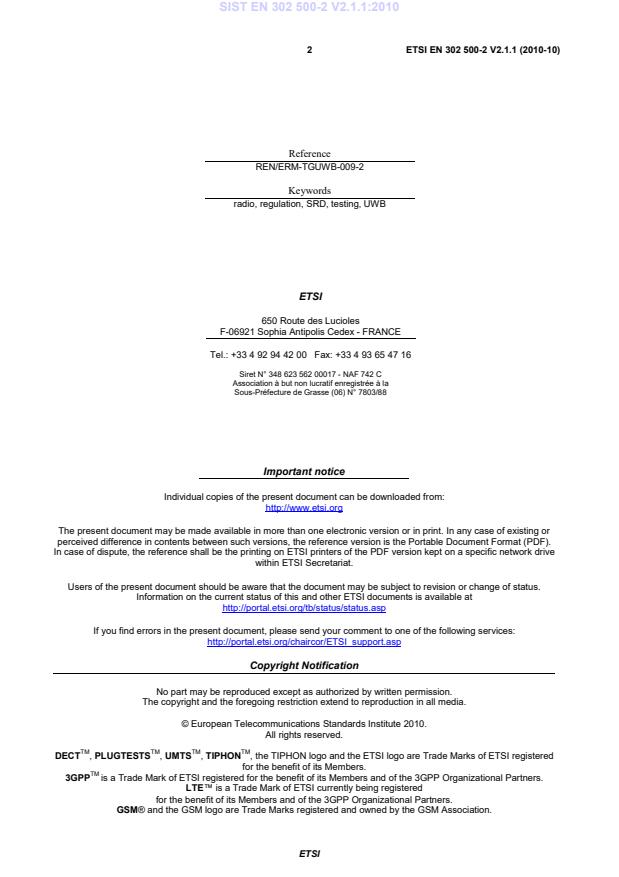

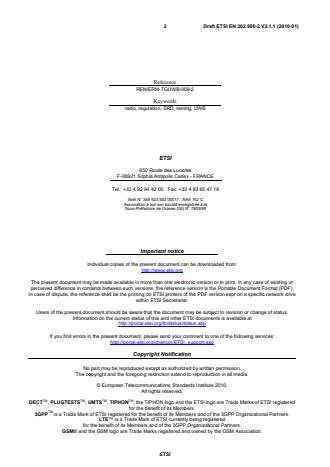

Reference
REN/ERM-TGUWB-009-2
Keywords
radio, regulation, SRD, testing, UWB
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2010.
All rights reserved.
TM TM TM TM
DECT , PLUGTESTS , UMTS , TIPHON , the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered
for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
LTE™ is a Trade Mark of ETSI currently being registered
for the benefit of its Members and of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 Draft ETSI EN 302 500-2 V2.1.1 (2010-01)

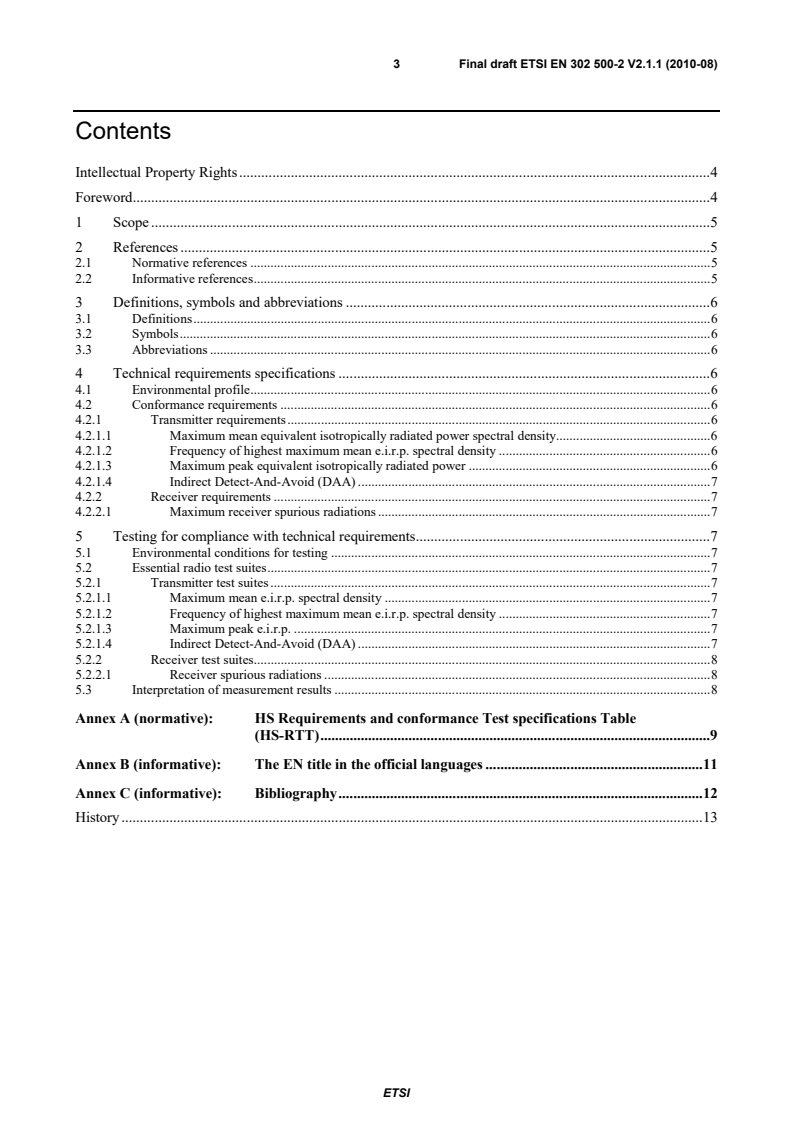

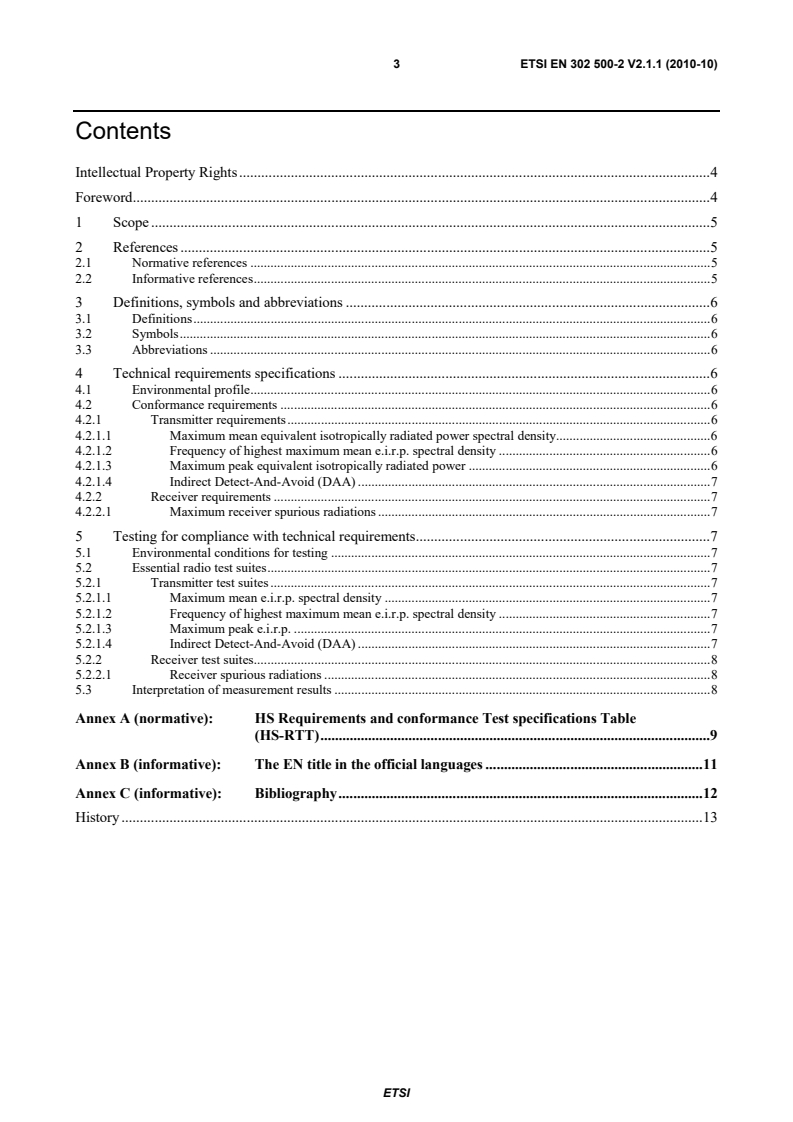

Contents
Intellectual Property Rights . 4
Foreword . 4
1 Scope . 5
2 References . 5
2.1 Normative references . 5
2.2 Informative references . 6
3 Definitions, symbols and abbreviations . 6
3.1 Definitions . 6
3.2 Symbols . 6
3.3 Abbreviations . 6
4 Technical requirements specifications . 6
4.1 Environmental profile . 6
4.2 Conformance requirements . 6
4.2.1 Transmitter requirements . 6
4.2.1.1 Maximum mean equivalent isotropically radiated power spectral density. 6
4.2.1.2 Frequency of highest maximum mean e.i.r.p. spectral density . 6
4.2.1.3 Maximum peak equivalent isotropically radiated power . 7
4.2.1.4 Indirect Detect-And-Avoid (DAA) . 7
4.2.2 Receiver requirements . 7
4.2.2.1 Maximum receiver spurious radiations . 7
5 Testing for compliance with technical requirements . 7
5.1 Environmental conditions for testing . 7
5.2 Essential radio test suites . 7
5.2.1 Transmitter test suites . 7
5.2.1.1 Maximum mean e.i.r.p. spectral density . 7
5.2.1.2 Frequency of highest maximum mean e.i.r.p. spectral density . 7
5.2.1.3 Maximum peak e.i.r.p. . 8
5.2.1.4 Indirect Detect-And-Avoid (DAA) . 8
5.2.2 Receiver test suites. 8
5.2.2.1 Receiver spurious radiations . 8
5.3 Interpretation of measurement results . 8
Annex A (normative): HS Requirements and conformance Test specifications Table
(HS-RTT) . 9
Annex B (informative): The EN title in the official languages . 11
Annex C (informative): Bibliography . 12
History . 13

ETSI
4 Draft ETSI EN 302 500-2 V2.1.1 (2010-01)

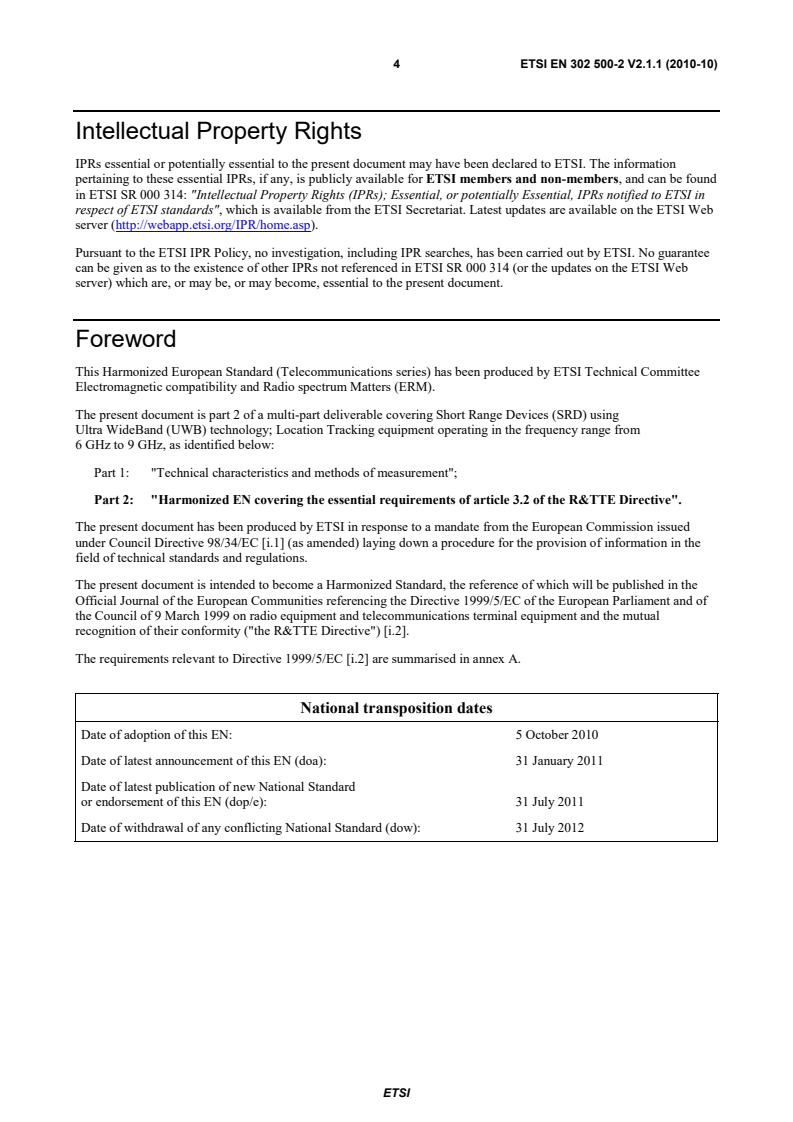

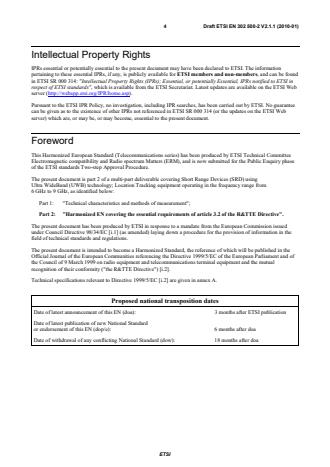

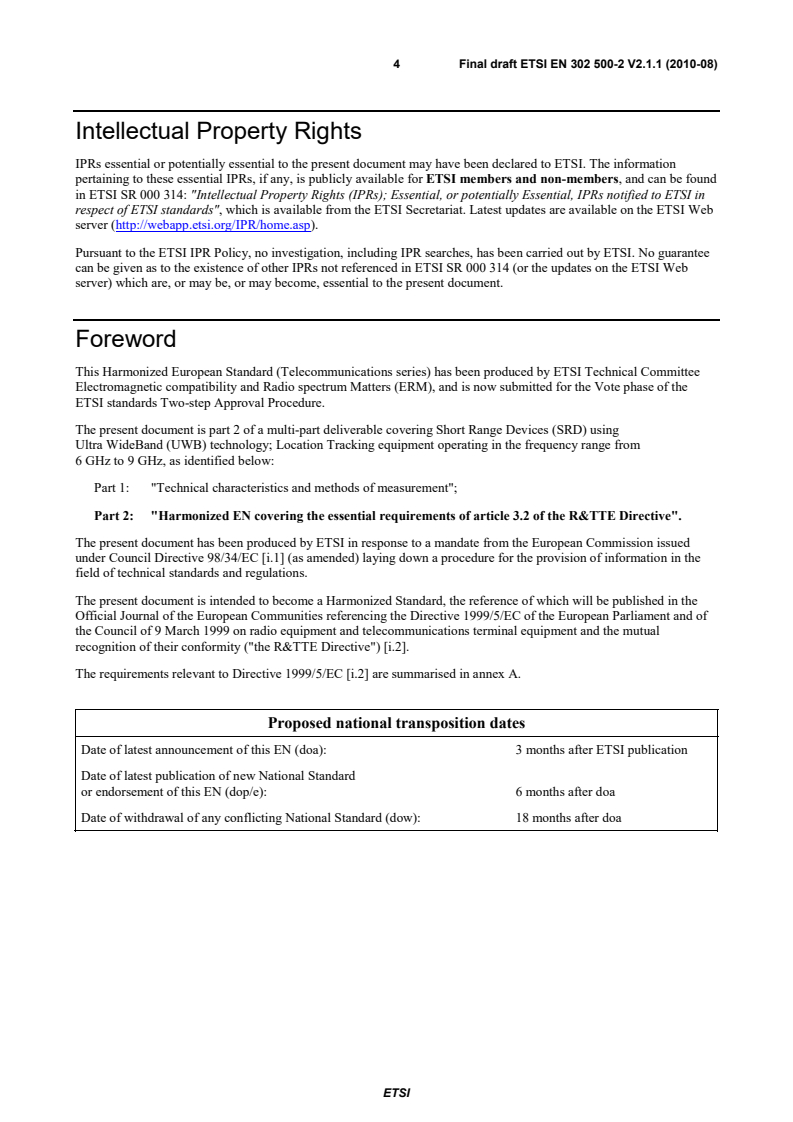

Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/home.asp).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Harmonized European Standard (Telecommunications series) has been produced by ETSI Technical Committee
Electromagnetic compatibility and Radio spectrum Matters (ERM), and is now submitted for the Public Enquiry phase
of the ETSI standards Two-step Approval Procedure.
The present document is part 2 of a multi-part deliverable covering Short Range Devices (SRD) using
Ultra WideBand (UWB) technology; Location Tracking equipment operating in the frequency range from
6 GHz to 9 GHz, as identified below:
Part 1: "Technical characteristics and methods of measurement";
Part 2: "Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive".
The present document has been produced by ETSI in response to a mandate from the European Commission issued
under Council Directive 98/34/EC [i.1] (as amended) laying down a procedure for the provision of information in the
field of technical standards and regulations.
The present document is intended to become a Harmonized Standard, the reference of which will be published in the
Official Journal of the European Communities referencing the Directive 1999/5/EC of the European Parliament and of
the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual
recognition of their conformity ("the R&TTE Directive") [i.2].
Technical specifications relevant to Directive 1999/5/EC [i.2] are given in annex A.

Proposed national transposition dates
Date of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa
Date of withdrawal of any conflicting National Standard (dow): 18 months after doa

ETSI
5 Draft ETSI EN 302 500-2 V2.1.1 (2010-01)
1 Scope
The present document specifies the requirements for ultra-wideband Location Tracking equipment operating in all or
part of the frequency range from 6 GHz to 9 GHz.
The present document applies for indoor as well as portable or mobile outdoor applications.
It covers ultra-wideband location tracking tags which are attached to people or objects and are tracked using a fixed
receiver infrastructure to only receive the UWB emission by the tags. Equipment covered by the present document is
fitted with an integral or dedicated antenna.
The present document is intended to cover the provisions of article 3.2 of Directive 1999/5/EC [i.2] R&TTE Directive,
which states that ". radio equipment shall be so constructed that it effectively uses the spectrum allocated to
terrestrial/space radio communications and orbital resources so as to avoid harmful interference".
In addition to the present document, other ENs that specify technical requirements in respect of essential requirements
under other parts of article 3 of the R&TTE Directive may apply to equipment within the scope of the present
document.
NOTE: A list of such ENs is included on the web site http://www.newapproach.org.
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-sp
...

Final draft ETSI EN 302 500-2 V2.1.1 (2010-08)
Harmonized European Standard (Telecommunications series)

Electromagnetic compatibility
and Radio spectrum Matters (ERM);
Short Range Devices (SRD) using
Ultra WideBand (UWB) technology;
Location Tracking equipment operating in
the frequency range from 6 GHz to 9 GHz;
Part 2: Harmonized EN covering the essential requirements of
article 3.2 of the R&TTE Directive

2 Final draft ETSI EN 302 500-2 V2.1.1 (2010-08)

Reference
REN/ERM-TGUWB-009-2
Keywords
radio, regulation, SRD, testing, UWB
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2010.
All rights reserved.
TM TM TM TM
DECT , PLUGTESTS , UMTS , TIPHON , the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered
for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
LTE™ is a Trade Mark of ETSI currently being registered
for the benefit of its Members and of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 Final draft ETSI EN 302 500-2 V2.1.1 (2010-08)
Contents
Intellectual Property Rights . 4
Foreword . 4
1 Scope . 5
2 References . 5
2.1 Normative references . 5
2.2 Informative references . 5
3 Definitions, symbols and abbreviations . 6
3.1 Definitions . 6
3.2 Symbols . 6
3.3 Abbreviations . 6
4 Technical requirements specifications . 6
4.1 Environmental profile . 6
4.2 Conformance requirements . 6
4.2.1 Transmitter requirements . 6
4.2.1.1 Maximum mean equivalent isotropically radiated power spectral density. 6
4.2.1.2 Frequency of highest maximum mean e.i.r.p. spectral density . 6
4.2.1.3 Maximum peak equivalent isotropically radiated power . 6
4.2.1.4 Indirect Detect-And-Avoid (DAA) . 7
4.2.2 Receiver requirements . 7
4.2.2.1 Maximum receiver spurious radiations . 7
5 Testing for compliance with technical requirements . 7
5.1 Environmental conditions for testing . 7
5.2 Essential radio test suites . 7
5.2.1 Transmitter test suites . 7
5.2.1.1 Maximum mean e.i.r.p. spectral density . 7
5.2.1.2 Frequency of highest maximum mean e.i.r.p. spectral density . 7
5.2.1.3 Maximum peak e.i.r.p. . 7
5.2.1.4 Indirect Detect-And-Avoid (DAA) . 7
5.2.2 Receiver test suites. 8
5.2.2.1 Receiver spurious radiations . 8
5.3 Interpretation of measurement results . 8
Annex A (normative): HS Requirements and conformance Test specifications Table
(HS-RTT) . 9
Annex B (informative): The EN title in the official languages . 11
Annex C (informative): Bibliography . 12
History . 13

ETSI
4 Final draft ETSI EN 302 500-2 V2.1.1 (2010-08)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/home.asp).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Harmonized European Standard (Telecommunications series) has been produced by ETSI Technical Committee
Electromagnetic compatibility and Radio spectrum Matters (ERM), and is now submitted for the Vote phase of the
ETSI standards Two-step Approval Procedure.
The present document is part 2 of a multi-part deliverable covering Short Range Devices (SRD) using
Ultra WideBand (UWB) technology; Location Tracking equipment operating in the frequency range from
6 GHz to 9 GHz, as identified below:
Part 1: "Technical characteristics and methods of measurement";
Part 2: "Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive".
The present document has been produced by ETSI in response to a mandate from the European Commission issued
under Council Directive 98/34/EC [i.1] (as amended) laying down a procedure for the provision of information in the
field of technical standards and regulations.
The present document is intended to become a Harmonized Standard, the reference of which will be published in the
Official Journal of the European Communities referencing the Directive 1999/5/EC of the European Parliament and of
the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual
recognition of their conformity ("the R&TTE Directive") [i.2].
The requirements relevant to Directive 1999/5/EC [i.2] are summarised in annex A.

Proposed national transposition dates
Date of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa
Date of withdrawal of any conflicting National Standard (dow): 18 months after doa

ETSI
5 Final draft ETSI EN 302 500-2 V2.1.1 (2010-08)
1 Scope
The present document specifies the requirements for ultra-wideband Location Tracking equipment operating in all or
part of the frequency range from 6 GHz to 9 GHz.
The present document applies for indoor as well as portable or mobile outdoor applications.
It covers ultra-wideband location tracking tags which are attached to people or objects and are tracked using a fixed
receiver infrastructure to only receive the UWB emission by the tags. Equipment covered by the present document is
fitted with an integral or dedicated antenna.
The present document is intended to cover the provisions of article 3.2 of Directive 1999/5/EC [i.2] R&TTE Directive,
which states that ". radio equipment shall be so constructed that it effectively uses the spectrum allocated to
terrestrial/space radio communications and orbital resources so as to avoid harmful interference".
In addition to the present document, other ENs that specify technical requirements in respect of essential requirements
under other parts of article 3 of the R&TTE Directive may apply to equipment within the scope of the present
document.
NOTE: A list of su
...

Harmonized European Standard (Telecommunications series)

Electromagnetic compatibility
and Radio spectrum Matters (ERM);
Short Range Devices (SRD) using
Ultra WideBand (UWB) technology;
Location Tracking equipment operating in
the frequency range from 6 GHz to 9 GHz;
Part 2: Harmonized EN covering the essential requirements
of article 3.2 of the R&TTE Directive

2 ETSI EN 302 500-2 V2.1.1 (2010-10)

Reference
REN/ERM-TGUWB-009-2
Keywords
radio, regulation, SRD, testing, UWB
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2010.
All rights reserved.
TM TM TM TM
DECT , PLUGTESTS , UMTS , TIPHON , the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered
for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
LTE™ is a Trade Mark of ETSI currently being registered
for the benefit of its Members and of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 ETSI EN 302 500-2 V2.1.1 (2010-10)
Contents
Intellectual Property Rights . 4
Foreword . 4
1 Scope . 5
2 References . 5
2.1 Normative references . 5
2.2 Informative references . 5
3 Definitions, symbols and abbreviations . 6
3.1 Definitions . 6
3.2 Symbols . 6
3.3 Abbreviations . 6
4 Technical requirements specifications . 6
4.1 Environmental profile . 6
4.2 Conformance requirements . 6
4.2.1 Transmitter requirements . 6
4.2.1.1 Maximum mean equivalent isotropically radiated power spectral density. 6
4.2.1.2 Frequency of highest maximum mean e.i.r.p. spectral density . 6
4.2.1.3 Maximum peak equivalent isotropically radiated power . 6
4.2.1.4 Indirect Detect-And-Avoid (DAA) . 7
4.2.2 Receiver requirements . 7
4.2.2.1 Maximum receiver spurious radiations . 7
5 Testing for compliance with technical requirements . 7
5.1 Environmental conditions for testing . 7
5.2 Essential radio test suites . 7
5.2.1 Transmitter test suites . 7
5.2.1.1 Maximum mean e.i.r.p. spectral density . 7
5.2.1.2 Frequency of highest maximum mean e.i.r.p. spectral density . 7
5.2.1.3 Maximum peak e.i.r.p. . 7
5.2.1.4 Indirect Detect-And-Avoid (DAA) . 7
5.2.2 Receiver test suites. 8
5.2.2.1 Receiver spurious radiations . 8
5.3 Interpretation of measurement results . 8
Annex A (normative): HS Requirements and conformance Test specifications Table
(HS-RTT) . 9
Annex B (informative): The EN title in the official languages . 11
Annex C (informative): Bibliography . 12
History . 13

ETSI
4 ETSI EN 302 500-2 V2.1.1 (2010-10)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/home.asp).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Harmonized European Standard (Telecommunications series) has been produced by ETSI Technical Committee
Electromagnetic compatibility and Radio spectrum Matters (ERM).
The present document is part 2 of a multi-part deliverable covering Short Range Devices (SRD) using
Ultra WideBand (UWB) technology; Location Tracking equipment operating in the frequency range from
6 GHz to 9 GHz, as identified below:
Part 1: "Technical characteristics and methods of measurement";
Part 2: "Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive".
The present document has been produced by ETSI in response to a mandate from the European Commission issued
under Council Directive 98/34/EC [i.1] (as amended) laying down a procedure for the provision of information in the
field of technical standards and regulations.
The present document is intended to become a Harmonized Standard, the reference of which will be published in the
Official Journal of the European Communities referencing the Directive 1999/5/EC of the European Parliament and of
the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual
recognition of their conformity ("the R&TTE Directive") [i.2].
The requirements relevant to Directive 1999/5/EC [i.2] are summarised in annex A.

National transposition dates
Date of adoption of this EN: 5 October 2010
Date of latest announcement of this EN (doa): 31 January 2011
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 31 July 2011
Date of withdrawal of any conflicting National Standard (dow): 31 July 2012

ETSI
5 ETSI EN 302 500-2 V2.1.1 (2010-10)
1 Scope
The present document specifies the requirements for ultra-wideband Location Tracking equipment operating in all or
part of the frequency range from 6 GHz to 9 GHz.
The present document applies for indoor as well as portable or mobile outdoor applications.
It covers ultra-wideband location tracking tags which are attached to people or objects and are tracked using a fixed
receiver infrastructure to only receive the UWB emission by the tags. Equipment covered by the present document is
fitted with an integral or dedicated antenna.
The present document is intended to cover the provisions of article 3.2 of Directive 1999/5/EC [i.2] R&TTE Directive,
which states that ". radio equipment shall be so constructed that it effectively uses the spectrum allocated to
terrestrial/space radio communications and orbital resources so as to avoid harmful interference".
In addition to the present document, other ENs that specify technical requirements in respect of essential requirements
under other parts of article 3 of the R&TTE Directive may apply to equipment within the scope of the present
document.
NOTE: A list of such ENs is included on the web site http:
...

SLOVENSKI STANDARD
01-december-2010
(OHNWURPDJQHWQD]GUXåOMLYRVWLQ]DGHYHY]YH]L]UDGLMVNLPVSHNWURP(50
1DSUDYHNUDWNHJDGRVHJD65'NLXSRUDEOMDMRXOWUDãLURNRSDVRYQR8:%
WHKQRORJLMR2SUHPD]DVOHGHQMHNLGHOXMHYIUHNYHQþQHPREPRþMXRG*+]GR
*+]GHO+DUPRQL]LUDQL(1NL]DMHPDELVWYHQH]DKWHYHþOHQDGLUHNWLYH
5 77(
Electromagnetic compatibility and Radio spectrum Matters (ERM) - Short Range Devices
(SRD) using Ultra WideBand (UWB) technology - Location Tracking equipment operating
in the frequency range from 6 GHz to 9 GHz - Part 2: Harmonized EN covering the
essential requirements of article 3.2 of the R&TTE Directive
Ta slovenski standard je istoveten z: EN 302 500-2 Version 2.1.1
ICS:
33.060.20 Sprejemna in oddajna Receiving and transmitting
oprema equipment
33.100.01 Elektromagnetna združljivost Electromagnetic compatibility
na splošno in general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

Harmonized European Standard (Telecommunications series)

Electromagnetic compatibility
and Radio spectrum Matters (ERM);
Short Range Devices (SRD) using
Ultra WideBand (UWB) technology;
Location Tracking equipment operating in
the frequency range from 6 GHz to 9 GHz;
Part 2: Harmonized EN covering the essential requirements
of article 3.2 of the R&TTE Directive

2 ETSI EN 302 500-2 V2.1.1 (2010-10)

Reference
REN/ERM-TGUWB-009-2
Keywords
radio, regulation, SRD, testing, UWB
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2010.
All rights reserved.
TM TM TM TM
DECT , PLUGTESTS , UMTS , TIPHON , the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered
for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
LTE™ is a Trade Mark of ETSI currently being registered
for the benefit of its Members and of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 ETSI EN 302 500-2 V2.1.1 (2010-10)
Contents
Intellectual Property Rights . 4
Foreword . 4
1 Scope . 5
2 References . 5
2.1 Normative references . 5
2.2 Informative references . 5
3 Definitions, symbols and abbreviations . 6
3.1 Definitions . 6
3.2 Symbols . 6
3.3 Abbreviations . 6
4 Technical requirements specifications . 6
4.1 Environmental profile . 6
4.2 Conformance requirements . 6
4.2.1 Transmitter requirements . 6
4.2.1.1 Maximum mean equivalent isotropically radiated power spectral density. 6
4.2.1.2 Frequency of highest maximum mean e.i.r.p. spectral density . 6
4.2.1.3 Maximum peak equivalent isotropically radiated power . 6
4.2.1.4 Indirect Detect-And-Avoid (DAA) . 7
4.2.2 Receiver requirements . 7
4.2.2.1 Maximum receiver spurious radiations . 7
5 Testing for compliance with technical requirements . 7
5.1 Environmental conditions for testing . 7
5.2 Essential radio test suites . 7
5.2.1 Transmitter test suites . 7
5.2.1.1 Maximum mean e.i.r.p. spectral density . 7
5.2.1.2 Frequency of highest maximum mean e.i.r.p. spectral density . 7
5.2.1.3 Maximum peak e.i.r.p. . 7
5.2.1.4 Indirect Detect-And-Avoid (DAA) . 7
5.2.2 Receiver test suites. 8
5.2.2.1 Receiver spurious radiations . 8
5.3 Interpretation of measurement results . 8
Annex A (normative): HS Requirements and conformance Test specifications Table
(HS-RTT) . 9
Annex B (informative): The EN title in the official languages . 11
Annex C (informative): Bibliography . 12
History . 13

ETSI
4 ETSI EN 302 500-2 V2.1.1 (2010-10)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/home.asp).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Harmonized European Standard (Telecommunications series) has been produced by ETSI Technical Committee
Electromagnetic compatibility and Radio spectrum Matters (ERM).
The present document is part 2 of a multi-part deliverable covering Short Range Devices (SRD) using
Ultra WideBand (UWB) technology; Location Tracking equipment operating in the frequency range from
6 GHz to 9 GHz, as identified below:
Part 1: "Technical characteristics and methods of measurement";
Part 2: "Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive".
The present document has been produced by ETSI in response to a mandate from the European Commission issued
under Council Directive 98/34/EC [i.1] (as amended) laying down a procedure for the provision of information in the
field of technical standards and regulations.
The present document is intended to become a Harmonized Standard, the reference of which will be published in the
Official Journal of the European Communities referencing the Directive 1999/5/EC of the European Parliament and of
the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual
recognition of their conformity ("the R&TTE Directive") [i.2].
The requirements relevant to Directive 1999/5/EC [i.2] are summarised in annex A.

National transposition dates
Date of adoption of this EN: 5 October 2010
Date of latest announcement of this EN (doa): 31 January 2011
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 31 July 2011
Date of withdrawal of any conflicting National Standard (dow): 31 July 2012

ETSI
5 ETSI EN 302 500-2 V2.1.1 (2010-10)
1 Scope
The present document specifies the requirements for ultra-wideband Location Tracking equipment operating in all or
part of the frequency range from 6 GHz to 9 GHz.
The present document applies for indoor as well as portable or mobile outdoor applications.
It covers ultra-wideband location tracking tags which are attached to people or objects and are tracked using a fixed
receiver infrastructure to only receive the UWB emission by the tags. Equipment covered by the present document is
fitted with an integral or dedicated antenna.
The present document is intended to cover the provisions of article 3.2 of Di
...
