ASTM A872/A872M-21

Standard Specification for Centrifugally Cast Ferritic/Austenitic Stainless Steel Pipe for Corrosive Environments

ABSTRACT
This specification covers centrifugally cast ferritic/austenitic steel pipe intended for general corrosive service. These steels are susceptible to embrittlement if used for prolonged periods at elevated temperatures. The pipe shall be made by centrifugal casting process and furnished in the specified heat-treatment condition. The pipe shall also be machined. The grades shall conform to the required chemical composition for carbon, manganese, phosphorus, sulfur, silicon, nickel, chromium, molybdenum, nitrogen, copper, and cobalt. Heat analysis and product analysis shall be done. Tensile requirements shall conform to the specified tensile strength, yield strength, and elongation; and hardness requirements shall conform to the specified Brinell and Rockwell C values. Tension test shall also be made.
SCOPE
1.1 This specification covers centrifugally cast ferritic/austenitic steel pipe intended for general corrosive service. These steels are susceptible to embrittlement if used for prolonged periods at elevated temperatures.
1.2 Optional supplementary requirements are provided when additional testing may be required.
1.3 The values stated in either inch-pound units or SI units are to be regarded separately as standard. Within the text, SI units are shown in brackets. The values stated in each system are not exact equivalents; therefore, each system must be used independently of each other. Combining values from the two systems may result in nonconformance with the specification.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

General Information

• Status: Published
• Publication Date: 30-Apr-2021
• ICS: 23.040.10 - Iron and steel pipes
• Technical Committee: A01 - Steel, Stainless Steel and Related Alloys
• Drafting Committee: A01.18 - Castings

Standards Content (Sample)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

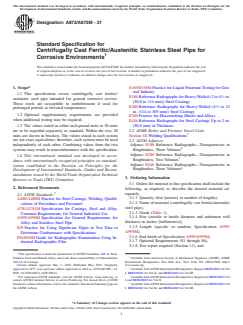

Designation:A872/A872M −21
Standard Specification for
Centrifugally Cast Ferritic/Austenitic Stainless Steel Pipe for
1
Corrosive Environments
This standard is issued under the fixed designationA872/A872M; the number immediately following the designation indicates the year
of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval.
A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope* E165/E165M Practice for Liquid Penetrant Testing for Gen-
eral Industry
1.1 This specification covers centrifugally cast ferritic/
1
E186 Reference Radiographs for Heavy-Walled (2 to 4 ⁄2 in.
austenitic steel pipe intended for general corrosive service.
(50.8 to 114 mm)) Steel Castings
These steels are susceptible to embrittlement if used for
1
E280 Reference Radiographs for Heavy-Walled (4 ⁄2 to 12
prolonged periods at elevated temperatures.
in. (114 to 305 mm)) Steel Castings
1.2 Optional supplementary requirements are provided
E340 Practice for Macroetching Metals and Alloys
when additional testing may be required.
E446 Reference Radiographs for Steel Castings Up to 2 in.
1.3 The values stated in either inch-pound units or SI units (50.8 mm) in Thickness
are to be regarded separately as standard. Within the text, SI 2.2 ASME Boiler and Pressure Vessel Code:
3
units are shown in brackets. The values stated in each system Section IX Welding Qualifications
are not exact equivalents; therefore, each system must be used 2.3 ASTM Adjuncts:
independently of each other. Combining values from the two
Adjunct E186 Reference Radiographs—Transparencies in
4
systems may result in nonconformance with the specification. Ringbinders, Three Volumes
Adjunct E280 Reference Radiographs—Transparencies in
1.4 This international standard was developed in accor-
5
Ringbinders, Two Volumes
dance with internationally recognized principles on standard-
Adjunct E446 Reference Radiographs—Transparencies in
ization established in the Decision on Principles for the
6
Ringbinders, Three Volumes
Development of International Standards, Guides and Recom-
mendations issued by the World Trade Organization Technical
3. Ordering Information
Barriers to Trade (TBT) Committee.
3.1 Orders for material to this specification shall include the
2. Referenced Documents
following, as required, to describe the desired material ad-
2
equately.
2.1 ASTM Standards:
3.1.1 Quantity (feet [metres] or number of lengths),
A488/A488M Practice for Steel Castings, Welding, Qualifi-
3.1.2 Name of material (centrifugally cast ferritic/austenitic
cations of Procedures and Personnel
steel pipe),
A781/A781M Specification for Castings, Steel and Alloy,
3.1.3 Grade (Table 1),
Common Requirements, for General Industrial Use
3.1.4 Size (outside or inside diameter and minimum wall
A999/A999M Specification for General Requirements for
thickness in inches [millimetres]),
Alloy and Stainless Steel Pipe
3.1.5 Length (specific or random, Specification A999/
E29 Practice for Using Significant Digits in Test Data to
A999M),
Determine Conformance with Specifications
3.1.6 End finish of Specification A999/A999M,
E94/E94M Guide for Radiographic Examination Using In-
3.1.7 Optional Requirements (S1 through S6),
dustrial Radiographic Film
3.1.8 Test report required (Section 12), and
1
This specification is under the jurisdiction of ASTM Committee A01 on Steel,
3
Stainless Steel and Related Alloys and is the direct responsibility of Subcommittee Available from American Society of Mechanical Engineers (ASME), ASME
A01.18 on Castings. International Headquarters, Two Park Ave., New York, NY 10016-5990, http://
Current edition approved May 1, 2021. Published May 2021. Originally www.asme.org.
4
approved in 1977. Last previous edition approved in 2014 as A872/A872M – 14. AvailablefromASTMInternationalHeadquarters.RequestRRE018601forVol
DOI: 10.1520/A0872_A0872M-21. I, RRE018602 for Vol II, and RRE018603 for Vol III.
2 5
For referenced ASTM standards, visit the ASTM website, www.astm.org, or AvailablefromASTMInternationalHeadquarters.RequestforRRE028001 Vol
contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM I and RRE028002 for Vol II.
6
Standards volume information, refer to the standard’s Document Summary page on AvailablefromASTMInternationalHeadquarters.RequestforRRE044601 Vol
the ASTM website. I, RRE044602 for Vol II, and RRE044603 for Vol III.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page:
...

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
Designation: A872/A872M − 14 A872/A872M − 21
Standard Specification for
Centrifugally Cast Ferritic/Austenitic Stainless Steel Pipe for
1
Corrosive Environments
This standard is issued under the fixed designation A872/A872M; the number immediately following the designation indicates the year
of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval.
A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope*
1.1 This specification covers centrifugally cast ferritic/austenitic steel pipe intended for general corrosive service. These steels are
susceptible to embrittlement if used for prolonged periods at elevated temperatures.
1.2 Optional supplementary requirements are provided when additional testing may be required.
1.3 The values stated in either inch-pound units or SI units are to be regarded separately as standard. Within the text, SI units are
shown in brackets. The values stated in each system are not exact equivalents; therefore, each system must be used independently
of each other. Combining values from the two systems may result in nonconformance with the specification.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2
2.1 ASTM Standards:
A488/A488M Practice for Steel Castings, Welding, Qualifications of Procedures and Personnel
A781/A781M Specification for Castings, Steel and Alloy, Common Requirements, for General Industrial Use
A999/A999M Specification for General Requirements for Alloy and Stainless Steel Pipe
E29 Practice for Using Significant Digits in Test Data to Determine Conformance with Specifications
E94E94/E94M Guide for Radiographic Examination Using Industrial Radiographic Film
E165E165/E165M Practice for Liquid Penetrant Testing for General Industry
1
E186 Reference Radiographs for Heavy-Walled (2 to 4 ⁄2 in. (50.8 to 114 mm)) Steel Castings
1
E280 Reference Radiographs for Heavy-Walled (4 ⁄2 to 12 in. (114 to 305 mm)) Steel Castings
E340 Practice for Macroetching Metals and Alloys
E446 Reference Radiographs for Steel Castings Up to 2 in. (50.8 mm) in Thickness
2.2 ASME Boiler and Pressure Vessel Code:
3
Section IX Welding Qualifications
1
This specification is under the jurisdiction of ASTM Committee A01 on Steel, Stainless Steel and Related Alloys and is the direct responsibility of Subcommittee A01.18
on Castings.
Current edition approved May 1, 2014May 1, 2021. Published June 2014May 2021. Originally approved in 1977. Last previous edition approved in 20122014 as
A872/A872M – 07a (2012).A872/A872M – 14. DOI: 10.1520/A0872_A0872M-14.10.1520/A0872_A0872M-21.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
3
Available from American Society of Mechanical Engineers (ASME), ASME International Headquarters, Two Park Ave., New York, NY 10016-5990, http://
www.asme.org.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------

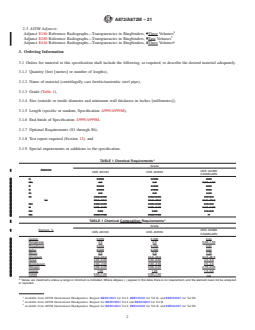

A872/A872M − 21
2.3 ASTM Adjuncts:
4
Adjunct E186 Reference Radiographs—Transparencies in Ringbinders, 3Three Volumes
5
Adjunct E280 Reference Radiographs—Transparencies in Ringbinders, 2Two Volumes
6
Adjunct E446 Reference Radiographs—Transparencies in Ringbinders, 3Three Volumes
3. Ordering Information
3.1 Orders for material to this specification shall include the following, as required, to describe the desired material adequately.
3.1.1 Quantity (feet [metres] or number of lengths),
3.1.2 Name of material (centrifugally cast ferritic/austenitic steel pipe),
3.1.3 Grade (Table 1),
3.1.4 Size (outside or inside diameter and minimum wall thickness in inches [millimetres]),
3.1.5 Length (specific or random, Specification A999/A999M),
3.1.6 End finish of Specification A999/A999M,
3.1.7 Optional Requirements (S1 through S6),
3.1.8 Test report required (Section 12), and
3.1.9 Special requirements or additions to the specification.
A
TABLE 1 Chemical Requireme
...
