Standards Content (Sample)


This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

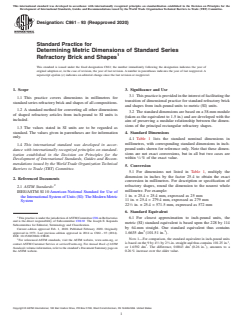

Designation: C861 − 93 (Reapproved 2020)
Standard Practice for
Determining Metric Dimensions of Standard Series
Refractory Brick and Shapes
This standard is issued under the fixed designation C861; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision.Anumber in parentheses indicates the year of last reapproval.A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope 3. Significance and Use
3.1 Thispracticeisprovidedintheinterestoffacilitatingthe
1.1 This practice covers dimensions in millimetres for
transition of dimensional practice for standard refractory brick
standardseriesrefractorybrickandshapesofallcompositions.
and shapes from inch-pound units to metric (SI) units.
1.2 A standard method for converting all other dimensions
3.2 The standard dimensions are based on a 38-mm module
of shaped refractory articles from inch-pound to SI units is
(taken as the equivalent to 1.5 in.) and are developed with the
included.
aim of preserving a modular relationship between the dimen-
sions of the principal rectangular refractory shapes.
1.3 The values stated in SI units are to be regarded as
standard. The values given in parentheses are for information
4. Standard Dimensions
only.
4.1 Table 1 lists the standard nominal dimensions in
millimetres, with corresponding standard dimensions in inch-
1.4 This international standard was developed in accor-
pound units shown for reference only. Note that these dimen-
dance with internationally recognized principles on standard-
sions are not exact conversions, but in all but two cases are
ization established in the Decision on Principles for the
within ⁄4% of the exact value.
Development of International Standards, Guides and Recom-
mendations issued by the World Trade Organization Technical
5. Conversion
Barriers to Trade (TBT) Committee.
5.1 For dimensions not listed in Table 1, multiply the
dimension in inches by the factor 25.4 to obtain the exact
2. Referenced Documents
conversion in millimetres. For description or specification of
refractory shapes, round the dimension to the nearest whole
2.1 ASTM Standards:
millimetre. For example:
IEEE/ASTM SI10American National Standard for Use of
1 in. × 25.4 = 25.4 mm, expressed as 25 mm
theInternationalSystemofUnits(SI):TheModernMetric
11 in. × 25.4 = 279.4 mm, expressed as 279 mm
System
22 ⁄2 in. × 25.4 = 571.5 mm, expressed as 572 mm
6. Standard Equivalent
ThispracticeisunderthejurisdictionofASTMCommitteeC08onRefractories
6.1 For closest approximation to inch-pound units, the
and is the direct
...
