ASTM D1557-12(2021)

Standard Test Methods for Laboratory Compaction Characteristics of Soil Using Modified Effort (56,000 ft-lbf/ft³ (2,700 kN-m/m³))

SIGNIFICANCE AND USE
5.1 Soil placed as engineering fill (embankments, foundation pads, road bases) is compacted to a dense state to obtain satisfactory engineering properties such as shear strength, compressibility, or permeability. In addition, foundation soils are often compacted to improve their engineering properties. Laboratory compaction tests provide the basis for determining the percent compaction and molding water content needed to achieve the required engineering properties, and for controlling construction to assure that the required compaction and water contents are achieved.
Note 3: The degree of soil compaction required to achieve the desired engineering properties is often specified as a percentage of the modified maximum dry unit weight as determined using this test method. If the required degree of compaction is substantially less than the modified maximum dry unit weight using this test method, it may be practicable for testing to be performed using Test Method and to specify the degree of compaction as a percentage of the standard maximum dry unit weight. Since more energy is applied for compaction using this test method, the soil particles are more closely packed than when D698 is used. The general overall result is a higher maximum dry unit weight, lower optimum moisture content, greater shear strength, greater stiffness, lower compressibility, lower air voids, and decreased permeability. However, for highly compacted fine-grained soils, absorption of water may result in swelling, with reduced shear strength and increased compressibility, reducing the benefits of the increased effort used for compaction (2). Use of D698, on the other hand, allows compaction using less effort and generally at a higher optimum moisture content. The compacted soil may be less brittle, more flexible, more permeable, and less subject to effects of swelling and shrinking. In many applications, building or construction codes may direct which test method, D698 or this one, should be used...
SCOPE
1.1 These test methods cover laboratory compaction methods used to determine the relationship between molding water content and dry unit weight of soils (compaction curve) compacted in a 4- or 6-in. (101.6- or 152.4-mm) diameter mold with a 10.00-lbf. (44.48-N) rammer dropped from a height of 18.00 in. (457.2 mm) producing a compactive effort of 56 000 ft-lbf/ft3  (2700 kN-m/m3).
Note 1: The equipment and procedures are the same as proposed by the U.S. Corps of Engineers in 1945. The modified effort test (see 3.1.3) is sometimes referred to as the Modified Proctor Compaction Test.
1.1.1 Soils and soil-aggregate mixtures are to be regarded as natural occurring fine- or coarse-grained soils, or composites or mixtures of natural soils, or mixtures of natural and processed soils or aggregates such as gravel or crushed rock. Hereafter referred to as either soil or material.
1.2 These test methods apply only to soils (materials) that have 30 % or less by mass of their particles retained on the 3/4-in. (19.0-mm) sieve and have not been previously compacted in the laboratory; that is, do not reuse compacted soil.
1.2.1 For relationships between unit weights and molding water contents of soils with 30 % or less by weight of material retained on the 3/4-in. (19.0-mm) sieve to unit weights and molding water contents of the fraction passing the 3/4-in. (19.0-mm) sieve, see Practice D4718/D4718M.
1.3 Three alternative methods are provided. The method used shall be as indicated in the specification for the material being tested. If no method is specified, the choice should be based on the material gradation.
1.3.1 Method A:
1.3.1.1 Mold—4-in. (101.6-mm) diameter.
1.3.1.2 Material—Passing No. 4 (4.75-mm) sieve.
1.3.1.3 Layers—Five.
1.3.1.4 Blows per layer—25.
1.3.1.5 Usage—May be used if 25 % or less by mass of the material is retained on the No. 4 (4.75-mm) sieve. However, if 5 to 25 % by mass of the materi...

General Information

• Status: Published
• Publication Date: 30-Jun-2021
• ICS: 93.020 - Earthworks. Excavations. Foundation construction. Underground works
• Technical Committee: D18 - Soil and Rock
• Drafting Committee: D18.03 - Texture, Plasticity and Density Characteristics of Soils

Relations

• Refers: ASTM C670-24a - Standard Practice for Preparing Precision and Bias Statements for Test Methods for Construction Materials
• Effective Date: 01-Feb-2024
• Refers: ASTM D4753-24 - Standard Guide for Evaluating, Selecting, and Specifying Balances and Standard Masses for Use in Soil, Rock, and Construction Materials Testing
• Effective Date: 01-Feb-2024
• Refers: ASTM C670-24 - Standard Practice for Preparing Precision and Bias Statements for Test Methods for Construction Materials
• Effective Date: 01-Jan-2024
• Refers: ASTM D3740-23 - Standard Practice for Minimum Requirements for Agencies Engaged in Testing and/or Inspection of Soil and Rock as Used in Engineering Design and Construction
• Effective Date: 01-Nov-2023
• Refers: ASTM D854-23 - Standard Test Methods for Specific Gravity of Soil Solids by the Water Displacement Method
• Effective Date: 01-Nov-2023
• Refers: ASTM D3740-19 - Standard Practice for Minimum Requirements for Agencies Engaged in Testing and/or Inspection of Soil and Rock as Used in Engineering Design and Construction
• Effective Date: 01-Oct-2019
• Refers: ASTM D2216-19 - Standard Test Methods for Laboratory Determination of Water (Moisture) Content of Soil and Rock by Mass
• Effective Date: 01-Mar-2019
• Refers: ASTM D2168-10(2018) - Standard Practices for Calibration of Laboratory Mechanical-Rammer Soil Compactors
• Effective Date: 01-Jul-2018
• Refers: ASTM D2487-17e1 - Standard Practice for Classification of Soils for Engineering Purposes (Unified Soil Classification System)
• Effective Date: 15-Dec-2017
• Refers: ASTM D2487-17 - Standard Practice for Classification of Soils for Engineering Purposes (Unified Soil Classification System)
• Effective Date: 15-Dec-2017
• Refers: ASTM D2488-17 - Standard Practice for Description and Identification of Soils (Visual-Manual Procedures)
• Effective Date: 15-Jul-2017
• Refers: ASTM D4253-16e1 - Standard Test Methods for Maximum Index Density and Unit Weight of Soils Using a Vibratory Table
• Effective Date: 01-Mar-2016
• Refers: ASTM D4253-16 - Standard Test Methods for Maximum Index Density and Unit Weight of Soils Using a Vibratory Table
• Effective Date: 01-Mar-2016
• Refers: ASTM D4914/D4914M-16 - Standard Test Methods for Density of Soil and Rock in Place by the Sand Replacement Method in a Test Pit
• Effective Date: 01-Mar-2016
• Refers: ASTM D4753-15 - Standard Guide for Evaluating, Selecting, and Specifying Balances and Standard Masses for Use in Soil, Rock, and Construction Materials Testing
• Effective Date: 01-May-2015

Overview

ASTM D1557-12(2021), commonly known as the "Modified Proctor Compaction Test," provides standardized laboratory test methods for determining the compaction characteristics of soil using a modified effort of 56,000 ft-lbf/ft³ (2,700 kN-m/m³). Developed by ASTM International, this standard is widely adopted in geotechnical engineering and construction to evaluate the relationship between molding water content and dry unit weight of soils-information critical to ensuring soil is properly compacted for use in fills, embankments, foundations, and road bases.

Proper soil compaction is essential to achieve desired engineering properties such as shear strength, reduced compressibility, and improved permeability. Laboratory compaction test results are often used as a reference for specifying required field compaction levels during construction projects.

Key Topics

• Purpose and Significance

  • Ensures soil used in engineered fills achieves necessary density and water content for optimal performance.
  • Results provide guidelines for controlling construction processes to meet design specifications.

• Methods Covered

  • Three alternative compaction methods (A, B, and C), differentiated by mold size and gradation of soil.
    • Method A: 4-inch mold, material passing No. 4 (4.75-mm) sieve.
    • Method B: 4-inch mold, material passing 3/8-inch (9.5-mm) sieve.
    • Method C: 6-inch mold, material passing 3/4-inch (19.0-mm) sieve.
  • Choice of method depends on material gradation; specific guidance for soils with coarse fractions.

• Procedure Highlights

  • Soil is compacted in five layers, each subjected to a standardized number of blows from a 10-lbf rammer.
  • Compactive effort is significantly greater than in standard methods (e.g., ASTM D698), resulting in higher dry unit weights and lower optimum moisture contents.

• Data Utilization

  • Compaction curves developed from test results are used to determine optimum moisture content and maximum dry density.
  • Degree of compaction in the field is specified as a percentage of the laboratory determined maximum dry unit weight.

• Special Considerations

  • Addresses oversize correction practices for soils containing coarse material.
  • Outlines potential issues (such as particle degradation or gap grading) and references solutions for problematic soils.

Applications

• Construction Quality Control

  • Used to develop and enforce specifications for earthwork compaction in infrastructure and building projects.
  • Helps ensure fills and foundations meet safety and durability requirements.

• Soil Suitability Assessment

  • Evaluates the compactibility of natural and processed soils, soil-aggregate mixtures, gravels, and crushed rock.
  • Guides selection of appropriate compaction techniques based on material characteristics.

• Field Compaction Comparisons

  • Provides a laboratory reference point against which field compaction efforts are measured.

• Code Compliance

  • Often specified by building and construction codes for projects requiring dense, stable, and low-permeability compacted soils.

Related Standards

• ASTM D698 - Standard Test Methods for Laboratory Compaction Characteristics of Soil Using Standard Effort
• ASTM D4718/D4718M - Practice for Correction of Unit Weight and Water Content for Soils Containing Oversize Particles
• ASTM D2487 - Practice for Classification of Soils for Engineering Purposes (Unified Soil Classification System)
• ASTM D2216 - Test Methods for Laboratory Determination of Water (Moisture) Content of Soil and Rock by Mass
• ASTM D4253 - Test Methods for Maximum Index Density and Unit Weight of Soils Using a Vibratory Table

By following ASTM D1557-12(2021), engineers and construction professionals can standardize soil compaction procedures, optimize project outcomes, and confidently meet regulatory and safety requirements for soil-based structural elements. This method is fundamental for controlling the compaction characteristics of soils to achieve the desired engineering properties crucial for long-lasting infrastructure.

Standards Content (Sample)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

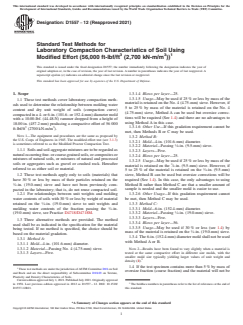

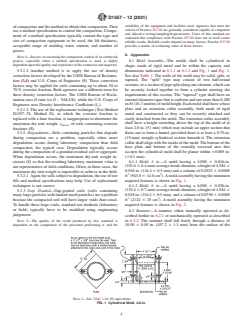

Designation: D1557 −12 (Reapproved 2021)
