ASTM E1938-13(2018)
(Test Method)Standard Test Method for Determination of Titanium in Nickel Alloys by Diantipyrylmethane Spectrophotometry
Standard Test Method for Determination of Titanium in Nickel Alloys by Diantipyrylmethane Spectrophotometry
SIGNIFICANCE AND USE
5.1 This test method is used for the determination of titanium in nickel alloy samples by molecular absorption spectrometry to check compliance with compositional specifications. It is assumed that all who use the procedure will be trained analysts capable of performing common laboratory procedures skillfully and safely. It is expected that the work will be performed in a properly equipped laboratory and that proper waste disposal procedures will be followed. Appropriate quality control practices must be followed such as those described in Guide E882.
SCOPE
1.1 This test method covers the determination of titanium in nickel alloys in the range 0.3 % to 5.0 %. With appropriate reference materials, the test method may be extended down to 0.05 %.
1.2 Molybdenum, if present, may cause a high bias to the extent of 0.001 % titanium for every 1 % molybdenum.
1.3 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. For specific hazards associated with the use of this test method, see Practices E50.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
- Status
- Published
- Publication Date
- 30-Sep-2018
- Technical Committee
- E01 - Analytical Chemistry for Metals, Ores, and Related Materials
- Drafting Committee
- E01.08 - Ni and Co and High Temperature Alloys
Relations
- Effective Date
- 01-Oct-2018
- Effective Date
- 01-Jan-2020
- Effective Date
- 01-Nov-2019
- Effective Date
- 15-May-2019
- Effective Date
- 01-Sep-2017
- Effective Date
- 01-Dec-2016
- Effective Date
- 01-Dec-2016
- Effective Date
- 01-Aug-2016
- Effective Date
- 15-May-2016
- Effective Date
- 01-Jul-2015
- Effective Date
- 15-May-2015
- Effective Date
- 15-Aug-2014
- Effective Date
- 01-Apr-2014
- Effective Date
- 15-Feb-2014
- Effective Date
- 01-Dec-2013
Overview
ASTM E1938-13(2018), Standard Test Method for Determination of Titanium in Nickel Alloys by Diantipyrylmethane Spectrophotometry, is an internationally recognized analytical procedure developed by ASTM International. This test method specifies the process for quantifying titanium content in nickel alloy samples using molecular absorption spectrometry, particularly leveraging diantipyrylmethane spectrophotometry. The method is designed to support compliance with compositional specifications in manufacturing, quality assurance, and materials certification processes. It is vital for laboratories, manufacturers, and quality control specialists dealing with nickel-based alloys.
Key Topics
- Measurement Range: The method covers titanium determination from 0.3% to 5.0% by mass, with potential extension down to 0.05% using suitable reference materials.
- Analytical Technique: Utilizes diantipyrylmethane to develop a measurable color complex, quantifying titanium via spectrophotometric absorbance at 390 nm.
- Sample Types & Preparation: Applicable to laboratory samples such as millings or drillings; contamination control and sample homogeneity are critical.
- Interferences: Molybdenum can cause high analytical bias (0.001% titanium per 1% molybdenum). The presence of elements like tantalum and tungsten requires specific procedural modifications.
- Calibration and Quality Control: Employs standard calibration solutions for accurate quantification; mandates duplicate determinations and testing against known reference samples for performance verification.
- Safety Compliance: Calls for adherence to established safety, health, and environmental protocols as outlined in referenced ASTM practices.
Applications
- Material Certification: Ensures nickel alloys meet required titanium content, which is crucial for their mechanical and chemical properties in high-value applications.
- Manufacturing Quality Control: Supports ongoing process monitoring and verification to conform with industry and customer specifications for titanium levels in alloy production.
- Research and Development: Useful in metallurgical research for characterizing alloy compositions and developing new nickel-based materials with tailored properties.
- Regulatory Compliance: Assists manufacturers in meeting international trade and quality assurance requirements, leveraging globally accepted standardization principles.
- Industrial Sectors: Widely used in aerospace, energy, chemical processing, and other industries that utilize advanced nickel alloys where precise compositional control is essential.
Related Standards
Several standards are referenced in ASTM E1938-13(2018), providing a framework for method execution, terminology, and quality assurance:
- ASTM E29: Practice for Using Significant Digits in Test Data to Determine Conformance with Specifications
- ASTM E50: Practices for Apparatus, Reagents, and Safety Considerations for Chemical Analysis of Metals, Ores, and Related Materials
- ASTM E882: Guide for Accountability and Quality Control in the Chemical Analysis Laboratory
- ASTM E1601: Practice for Conducting an Interlaboratory Study to Evaluate the Performance of an Analytical Method
- ASTM E135: Terminology Relating to Analytical Chemistry for Metals, Ores, and Related Materials
- ISO 5725: Precision of Test Methods-Determination of Repeatability and Reproducibility for a Standard Test Method by Inter-Laboratory Tests
- ISO 11433: Nickel Alloys-Determination of Titanium Content-Diantipyrylmethane Molecular Absorption Spectrometric Method
Practical Value
Adopting ASTM E1938-13(2018) enhances laboratory precision and consistency in determining titanium content in nickel alloys. The standard delivers a vetted, reproducible protocol crucial for product quality, regulatory compliance, and material reliability. Its robust framework and international recognition make it indispensable in modern metallurgical analysis and alloy production environments.
Keywords: ASTM E1938, titanium determination, nickel alloys, spectrophotometry, molecular absorption spectrometry, alloy analysis, quality control, diantipyrylmethane, standards compliance, chemical analysis.
Get Certified
Connect with accredited certification bodies for this standard
Element Materials Technology
Materials testing and product certification.
Inštitut za kovinske materiale in tehnologije
Institute of Metals and Technology. Materials testing, metallurgical analysis, NDT.
Sponsored listings
Frequently Asked Questions
ASTM E1938-13(2018) is a standard published by ASTM International. Its full title is "Standard Test Method for Determination of Titanium in Nickel Alloys by Diantipyrylmethane Spectrophotometry". This standard covers: SIGNIFICANCE AND USE 5.1 This test method is used for the determination of titanium in nickel alloy samples by molecular absorption spectrometry to check compliance with compositional specifications. It is assumed that all who use the procedure will be trained analysts capable of performing common laboratory procedures skillfully and safely. It is expected that the work will be performed in a properly equipped laboratory and that proper waste disposal procedures will be followed. Appropriate quality control practices must be followed such as those described in Guide E882. SCOPE 1.1 This test method covers the determination of titanium in nickel alloys in the range 0.3 % to 5.0 %. With appropriate reference materials, the test method may be extended down to 0.05 %. 1.2 Molybdenum, if present, may cause a high bias to the extent of 0.001 % titanium for every 1 % molybdenum. 1.3 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard. 1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. For specific hazards associated with the use of this test method, see Practices E50. 1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
SIGNIFICANCE AND USE 5.1 This test method is used for the determination of titanium in nickel alloy samples by molecular absorption spectrometry to check compliance with compositional specifications. It is assumed that all who use the procedure will be trained analysts capable of performing common laboratory procedures skillfully and safely. It is expected that the work will be performed in a properly equipped laboratory and that proper waste disposal procedures will be followed. Appropriate quality control practices must be followed such as those described in Guide E882. SCOPE 1.1 This test method covers the determination of titanium in nickel alloys in the range 0.3 % to 5.0 %. With appropriate reference materials, the test method may be extended down to 0.05 %. 1.2 Molybdenum, if present, may cause a high bias to the extent of 0.001 % titanium for every 1 % molybdenum. 1.3 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard. 1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. For specific hazards associated with the use of this test method, see Practices E50. 1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
ASTM E1938-13(2018) is classified under the following ICS (International Classification for Standards) categories: 77.120.40 - Nickel, chromium and their alloys. The ICS classification helps identify the subject area and facilitates finding related standards.
ASTM E1938-13(2018) has the following relationships with other standards: It is inter standard links to ASTM E1938-13, ASTM E135-20, ASTM E1601-19, ASTM E135-19, ASTM E50-17, ASTM E882-10(2016), ASTM E882-10(2016)e1, ASTM E50-11(2016), ASTM E135-16, ASTM E135-15a, ASTM E135-15, ASTM E135-14b, ASTM E135-14a, ASTM E135-14, ASTM E135-13a. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
ASTM E1938-13(2018) is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

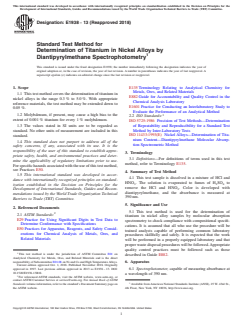

Designation: E1938 − 13 (Reapproved 2018)
Standard Test Method for
Determination of Titanium in Nickel Alloys by
Diantipyrylmethane Spectrophotometry
This standard is issued under the fixed designation E1938; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope E135 Terminology Relating to Analytical Chemistry for
Metals, Ores, and Related Materials
1.1 This test method covers the determination of titanium in
E882 Guide for Accountability and Quality Control in the
nickel alloys in the range 0.3 % to 5.0 %. With appropriate
Chemical Analysis Laboratory
reference materials, the test method may be extended down to
E1601 Practice for Conducting an Interlaboratory Study to
0.05 %.
Evaluate the Performance of an Analytical Method
1.2 Molybdenum, if present, may cause a high bias to the 3
2.2 ISO Standards:
extent of 0.001 % titanium for every 1 % molybdenum.
ISO 5725:1986 Precision of Test Methods—Determination
1.3 The values stated in SI units are to be regarded as of Repeatability and Reproducibility for a Standard Test
Method by Inter-Laboratory Tests
standard. No other units of measurement are included in this
standard. ISO 11433:1993(E) Nickel Alloys—Determination of Tita-
nium Content—Diantipyrylmethane Molecular Absorp-
1.4 This standard does not purport to address all of the
tion Spectrometric Method
safety concerns, if any, associated with its use. It is the
responsibility of the user of this standard to establish appro-
3. Terminology
priate safety, health, and environmental practices and deter-
3.1 Definitions—For definitions of terms used in this test
mine the applicability of regulatory limitations prior to use.
method, refer to Terminology E135.
Forspecifichazardsassociatedwiththeuseofthistestmethod,
see Practices E50.
4. Summary of Test Method
1.5 This international standard was developed in accor-
4.1 This test sample is dissolved in a mixture of HCl and
dance with internationally recognized principles on standard-
HNO . The solution is evaporated to fumes of H SO to
3 2 4
ization established in the Decision on Principles for the
remove the HCl and HNO . Color is developed with
Development of International Standards, Guides and Recom-
diantipyrylmethane, and the absorbance is measured at
mendations issued by the World Trade Organization Technical
390 nm.
Barriers to Trade (TBT) Committee.
5. Significance and Use
2. Referenced Documents
5.1 This test method is used for the determination of
2.1 ASTM Standards:
titanium in nickel alloy samples by molecular absorption
E29 Practice for Using Significant Digits in Test Data to
spectrometry to check compliance with compositional specifi-
Determine Conformance with Specifications
cations. It is assumed that all who use the procedure will be
E50 Practices for Apparatus, Reagents, and Safety Consid-
trained analysts capable of performing common laboratory
erations for Chemical Analysis of Metals, Ores, and
procedures skillfully and safely. It is expected that the work
Related Materials
will be performed in a properly equipped laboratory and that
properwastedisposalprocedureswillbefollowed.Appropriate
quality control practices must be followed such as those
This test method is under the jurisdiction of ASTM Committee E01 on
described in Guide E882.
Analytical Chemistry for Metals, Ores, and Related Materials and is the direct
responsibility of Subcommittee E01.08 on Ni and Co and HighTemperatureAlloys.
6. Apparatus
Current edition approved Oct. 1, 2018. Published November 2018. Originally
6.1 Spectrophotometer, capable of measuring absorbance at
approved in 1997. Last previous edition approved in 2013 as E1938 – 13. DOI:
10.1520/E1938-13R18.
a wavelength of 390 nm.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
Standards volume information, refer to the standard’s Document Summary page on Available fromAmerican National Standards Institute (ANSI), 25 W. 43rd St.,
the ASTM website. 4th Floor, New York, NY 10036, http://www.ansi.org.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States

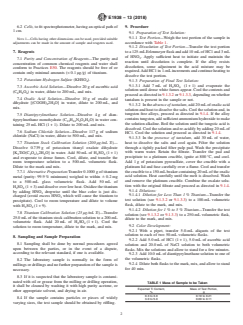

E1938 − 13 (2018)
6.2 Cells, to fit spectrophotometer, having an optical path of 9. Procedure
1 cm.
9.1 Preparation of Test Solution:
9.1.1 Test Portion—Weigh the test portion of the sample in
NOTE 1—Cells having other dimensions can be used, provided suitable
adjustments can be made in the amount of sample and reagents used. accordance with Table 1.
9.1.2 Dissolution of Test Portion—Transfer the test portion
7. Reagents
toa125-mLErlenmeyerflaskandadd10 mLofHC1and3 mL
of HNO . Apply sufficient heat to initiate and maintain the
7.1 Purity and Concentration of Reagents—The purity and
reaction until dissolution is complete. If the alloy resists
concentration of common chemical reagents and water shall
dissolution, some adjustment in the acid mixture may be
conform to Practices E50. The reagents should be free of or
required.AddHC1in1-mLincrementsandcontinueheatingto
contain only minimal amounts (< 0.1 µg⁄g) of titanium.
dissolve the test portion.
7.2 Potassium Hydrogen Sulfate (KHSO ).
4 9.1.3 Preparation of Final Test Solution:
9.1.3.1 Add 7 mL of H SO (1 + 1) and evaporate the
2 4
7.3 Ascorbic Acid Solution—Dissolve 20 g of ascorbic acid
solution until dense white fumes appear. Cool the contents and
(C H O ) in water, dilute to 200 mL, and mix.
6 8 6
proceed as directed in 9.1.3.2 or 9.1.3.3, depending on whether
7.4 Oxalic Acid Solution—Dissolve 10 g of oxalic acid
tantalum is present in the sample or not.
dihydrate [(COOH) 2H O] in water, dilute to 200 mL, and
2 2
9.1.3.2 In the absence of tantalum, add 20 mLof oxalic acid
mix.
solution and heat to dissolve the salts. Cool the solution and, in
tungsten free alloys, proceed as directed in 9.1.4. If the alloy
7.5 Diantipyrylmethane Solution—Dissolve 4 g of dian-
containstungsten,addsufficientammoniumhydroxidetomake
tipyrylmethane monohydrate (C H N O H O) in water con-
23 24 4 2 2
the solution alkaline. Boil the solution until the tungstic acid is
taining 25 mL HCl (1 + 1). Dilute to 200 mL and mix.
dissolved. Cool the solution and re-acidify by adding 20 mLof
7.6 Sodium Chloride Solution—Dissolve 117 g of sodium
HC1. Cool the solution and proceed as directed in 9.1.4.
chloride (NaCl) in water, dilute to 500 mL, and mix.
9.1.3.3 In the presence of tantalum, add 30 mL of water,
heat to dissolve the salts and cool again. Filter the solution
7.7 Titanium Stock Calibration Solution (200 µg⁄mL Ti)—
through a tightly packed filter pulp pad. Wash the precipitate
Dissolve 0.739 g of potassium titanyl oxalate dihydrate
with warm water. Retain the filtrate. Transfer the pad and
[K TiO(C O ) 2H O] in water. Add 50 mL of H SO (1+1)
2 2 4 2 2 2 4
precipitate to a platinum crucible, ignite at 800 °C, and cool.
and evaporate to dense fumes. Cool, dilute, and transfer the
Add 1 g of potassium pyrosulfate, cover the crucible with a
room temperature solution to a 500-mL volumetric flask.
platinum lid and fuse carefully over a flame. Cool and transfer
Dilute to the mark and mix.
thecrucibletoa150-mLbeakercontaining20 mLoftheoxalic
7.7.1 Alternative Preparation:Transfer 0.1000 g of titanium
acid solution. Heat carefully until the melt is dissolved. Wash
metal (purity: 99.9
...
