ASTM C1483/C1483M-17(2022)
(Specification)Standard Specification for Exterior Solar Radiation Control Coatings on Buildings
Standard Specification for Exterior Solar Radiation Control Coatings on Buildings
ABSTRACT
This specification provides the general physical and mechanical requirements for liquid-applied exterior solar radiation control coatings designed for exterior application on buildings or other structures for the purpose of reducing thermal loads on buildings by reflecting solar radiation from roofs and walls. The specification also includes the testing procedures by which the acceptability of the material may be determined. The physical and mechanical properties to which the coatings shall be tested and accordingly adhere to are total solid weight, solid volume, solar reflectance, infrared emittance, elongation, adhesion, water vapor permeance, flame retardancy, fungi resistance, water absorption, cured sample thickness, and outdoor durability.
SCOPE
1.1 The purpose of this specification is to provide general requirements for products used to reduce solar gains on buildings by reflecting solar radiation from roofs and walls. Radiation Control Coating (RCC) is a liquid applied material that cures to form a solid coating having a solar reflectance of at least 0.8 and an ambient temperature infrared emittance of at least 0.8.
1.2 This specification covers the physical and mechanical properties of liquid-applied RCCs designed for exterior application for buildings.
1.3 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system are not necessarily exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems has the potential to result in non-conformance with the standard.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
- Status
- Published
- Publication Date
- 30-Sep-2022
- Technical Committee
- C16 - Thermal Insulation
- Drafting Committee
- C16.21 - Reflective Insulation
Relations
- Effective Date
- 15-Apr-2024
- Effective Date
- 01-Mar-2024
- Effective Date
- 01-Dec-2023
- Effective Date
- 15-Nov-2023
- Effective Date
- 01-Sep-2023
- Effective Date
- 01-Mar-2020
- Effective Date
- 01-Oct-2019
- Effective Date
- 01-Jul-2019
- Effective Date
- 15-Apr-2019
- Effective Date
- 01-Mar-2019
- Effective Date
- 01-Oct-2018
- Effective Date
- 01-Jul-2018
- Effective Date
- 15-Apr-2018
- Effective Date
- 01-Mar-2018
- Effective Date
- 01-Nov-2017
Overview
ASTM C1483/C1483M-17(2022), Standard Specification for Exterior Solar Radiation Control Coatings on Buildings, establishes comprehensive requirements for liquid-applied coatings designed to reflect solar radiation from the exterior surfaces of buildings. The goal is to reduce thermal loads by controlling the amount of solar energy absorbed by roofs and walls. The standard details the physical and mechanical properties required for exterior solar radiation control coatings (RCCs), as well as the test procedures to assess their quality and effectiveness. Developed by ASTM International, this standard aligns with globally accepted principles for the creation of international standards, supporting the reduction of energy use and improving building performance.
Key Topics
Purpose and Scope
The specification covers the criteria and test methods for liquid-applied RCCs intended to reflect solar radiation, with a minimum solar reflectance and infrared emittance of 0.8.Material Properties
The coatings must be elastomeric or resinous materials, suitable for brushing, rolling, or spraying, with added pigments and additives to achieve required performance metrics.Performance Requirements
The standard specifies key properties and the corresponding test methods, including:- Total solids (by weight and volume)
- Solar reflectance and infrared emittance
- Elongation and UV durability
- Adhesion to substrates
- Water vapor permeance
- Flame retardancy
- Fungi resistance
- Water absorption
- Cured sample thickness
- Outdoor durability
Testing and Quality Assurance
Detailed methods are included for sampling, curing, and evaluating coatings to ensure they meet performance expectations under real-world conditions.
Applications
Exterior solar radiation control coatings have significant practical value in modern construction and building maintenance. The primary applications include:
Energy Efficiency
By increasing solar reflectance and thermal emittance, RCCs help reduce interior cooling loads, leading to lower energy consumption and utility costs in residential, commercial, and institutional buildings.Urban Heat Island Mitigation
Applying these coatings helps diminish heat absorption in urban environments, contributing to lower city-wide temperatures.Roof and Wall Protection
These coatings protect exterior surfaces from weathering, UV degradation, and fungal growth, extending roof and wall lifespans.Compliance and Sustainability Initiatives
Using RCCs that meet ASTM C1483/C1483M is often part of green building programs and supports sustainability certifications.Climate Adaptation
In hot climates, RCCs are an effective adaptation strategy to address rising temperatures and enhance building occupant comfort.
Related Standards
Several referenced standards support the implementation and testing of coatings as specified in ASTM C1483/C1483M-17(2022):
- ASTM C461 - Test Methods for Mastics and Coatings Used With Thermal Insulation
- ASTM C1371 - Determination of Emittance of Materials Near Room Temperature
- ASTM D471 - Rubber Property-Effect of Liquids
- ASTM D903 - Peel or Stripping Strength of Adhesive Bonds
- ASTM D2370 - Tensile Properties of Organic Coatings
- ASTM D2697 - Volume Nonvolatile Matter in Clear or Pigmented Coatings
- ASTM D3274 - Evaluating Surface Disfigurement by Fungal or Algal Growth
- ASTM E84 - Surface Burning Characteristics of Building Materials
- ASTM E903, E1175 - Solar Absorptance, Reflectance, and Transmittance Testing
- ASTM E96/E96M - Water Vapor Transmission Rate of Materials
- ASTM G155 - Durability Testing with Xenon Arc Lamp Apparatus
Practical Value
Complying with ASTM C1483/C1483M-17(2022) provides assurance that radiation control coatings deliver reliable, quantifiable benefits related to building sustainability, occupant comfort, and reduced maintenance costs. This standard also supports regulatory compliance, energy standards, and facilitates product selection in the construction industry focused on improving the environmental performance of buildings.
Get Certified
Connect with accredited certification bodies for this standard
ICC Evaluation Service
Building products evaluation and certification.
QAI Laboratories
Building and construction product testing and certification.
Aboma Certification B.V.
Specialized in construction, metal, and transport sectors.
Sponsored listings
Frequently Asked Questions
ASTM C1483/C1483M-17(2022) is a technical specification published by ASTM International. Its full title is "Standard Specification for Exterior Solar Radiation Control Coatings on Buildings". This standard covers: ABSTRACT This specification provides the general physical and mechanical requirements for liquid-applied exterior solar radiation control coatings designed for exterior application on buildings or other structures for the purpose of reducing thermal loads on buildings by reflecting solar radiation from roofs and walls. The specification also includes the testing procedures by which the acceptability of the material may be determined. The physical and mechanical properties to which the coatings shall be tested and accordingly adhere to are total solid weight, solid volume, solar reflectance, infrared emittance, elongation, adhesion, water vapor permeance, flame retardancy, fungi resistance, water absorption, cured sample thickness, and outdoor durability. SCOPE 1.1 The purpose of this specification is to provide general requirements for products used to reduce solar gains on buildings by reflecting solar radiation from roofs and walls. Radiation Control Coating (RCC) is a liquid applied material that cures to form a solid coating having a solar reflectance of at least 0.8 and an ambient temperature infrared emittance of at least 0.8. 1.2 This specification covers the physical and mechanical properties of liquid-applied RCCs designed for exterior application for buildings. 1.3 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system are not necessarily exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems has the potential to result in non-conformance with the standard. 1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. 1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
ABSTRACT This specification provides the general physical and mechanical requirements for liquid-applied exterior solar radiation control coatings designed for exterior application on buildings or other structures for the purpose of reducing thermal loads on buildings by reflecting solar radiation from roofs and walls. The specification also includes the testing procedures by which the acceptability of the material may be determined. The physical and mechanical properties to which the coatings shall be tested and accordingly adhere to are total solid weight, solid volume, solar reflectance, infrared emittance, elongation, adhesion, water vapor permeance, flame retardancy, fungi resistance, water absorption, cured sample thickness, and outdoor durability. SCOPE 1.1 The purpose of this specification is to provide general requirements for products used to reduce solar gains on buildings by reflecting solar radiation from roofs and walls. Radiation Control Coating (RCC) is a liquid applied material that cures to form a solid coating having a solar reflectance of at least 0.8 and an ambient temperature infrared emittance of at least 0.8. 1.2 This specification covers the physical and mechanical properties of liquid-applied RCCs designed for exterior application for buildings. 1.3 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system are not necessarily exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems has the potential to result in non-conformance with the standard. 1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. 1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
ASTM C1483/C1483M-17(2022) is classified under the following ICS (International Classification for Standards) categories: 91.120.99 - Other standards related to protection of and in buildings. The ICS classification helps identify the subject area and facilitates finding related standards.
ASTM C1483/C1483M-17(2022) has the following relationships with other standards: It is inter standard links to ASTM C168-24, ASTM E96/E96M-24, ASTM E84-23d, ASTM E96/E96M-23, ASTM E84-23c, ASTM C419-20, ASTM E349-06(2019)e1, ASTM E84-19b, ASTM E84-19a, ASTM E84-19, ASTM E84-18b, ASTM E84-18a, ASTM C168-18, ASTM E84-18, ASTM E84-17a. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
ASTM C1483/C1483M-17(2022) is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

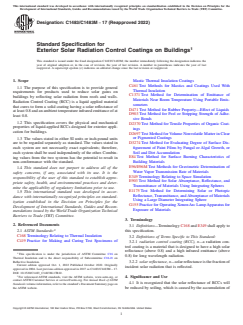

Designation: C1483/C1483M −17 (Reapproved 2022)
Standard Specification for
Exterior Solar Radiation Control Coatings on Buildings
This standard is issued under the fixed designation C1483/C1483M; the number immediately following the designation indicates the
year of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last
reapproval. A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope Mastic Thermal Insulation Coatings
C461 Test Methods for Mastics and Coatings Used With
1.1 The purpose of this specification is to provide general
Thermal Insulation
requirements for products used to reduce solar gains on
C1371 Test Method for Determination of Emittance of
buildings by reflecting solar radiation from roofs and walls.
Materials Near Room Temperature Using Portable Emis-
Radiation Control Coating (RCC) is a liquid applied material
someters
that cures to form a solid coating having a solar reflectance of
D471 Test Method for Rubber Property—Effect of Liquids
at least 0.8 and an ambient temperature infrared emittance of at
D903 Test Method for Peel or Stripping Strength of Adhe-
least 0.8.
sive Bonds
1.2 This specification covers the physical and mechanical
D2370 Test Method for Tensile Properties of Organic Coat-
properties of liquid-applied RCCs designed for exterior appli-
ings
cation for buildings.
D2697 Test Method for Volume Nonvolatile Matter in Clear
1.3 The values stated in either SI units or inch-pound units or Pigmented Coatings
D3274 Test Method for Evaluating Degree of Surface Dis-
are to be regarded separately as standard. The values stated in
each system are not necessarily exact equivalents; therefore, figurement of Paint Films by Fungal or Algal Growth, or
Soil and Dirt Accumulation
each system shall be used independently of the other. Combin-
ing values from the two systems has the potential to result in E84 Test Method for Surface Burning Characteristics of
Building Materials
non-conformance with the standard.
E96/E96M Test Methods for Gravimetric Determination of
1.4 This standard does not purport to address all of the
Water Vapor Transmission Rate of Materials
safety concerns, if any, associated with its use. It is the
E349 Terminology Relating to Space Simulation
responsibility of the user of this standard to establish appro-
E903 Test Method for Solar Absorptance, Reflectance, and
priate safety, health, and environmental practices and deter-
Transmittance of Materials Using Integrating Spheres
mine the applicability of regulatory limitations prior to use.
E1175 Test Method for Determining Solar or Photopic
1.5 This international standard was developed in accor-
Reflectance, Transmittance, andAbsorptance of Materials
dance with internationally recognized principles on standard-
Using a Large Diameter Integrating Sphere
ization established in the Decision on Principles for the
G155 Practice for Operating XenonArc LampApparatus for
Development of International Standards, Guides and Recom-
Exposure of Materials
mendations issued by the World Trade Organization Technical
Barriers to Trade (TBT) Committee.
3. Terminology
2. Referenced Documents
3.1 Definitions—Terminology C168 and E349 shall apply to
this specification.
2.1 ASTM Standards:
C168 Terminology Relating to Thermal Insulation
3.2 Definitions of Terms Specific to This Standard:
C419 Practice for Making and Curing Test Specimens of
3.2.1 radiation control coating (RCC), n—a radiation con-
trol coating is a material that is designed to have a high solar
reflectance (above 0.8) and a high infrared emittance (above
This specification is under the jurisdiction of ASTM Committee C16 on
0.8) for long wavelength radiation.
Thermal Insulation and is the direct responsibility of Subcommittee C16.21 on
Reflective Insulation.
3.2.2 solar reflectance, n—solarreflectanceisthefractionof
Current edition approved Oct. 1, 2022 Published October 2022. Originally
incident solar radiation that is reflected.
approved in 2004. Last previous edition approved in 2017 as C1483/C1483M – 17.
DOI: 10.1520/C1483_C1483M-17R22.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or 4. Significance and Use
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
4.1 It is recognized that the solar reflectance of RCCs will
Standards volume information, refer to the standard’s Document Summary page on
the ASTM website. be reduced by soiling, which is caused by the accumulation of
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States

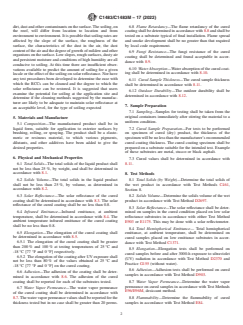

C1483/C1483M − 17 (2022)
dirt,dustandothercontaminantsonthesurface.Thesoiling,on 6.8 Flame Retardancy—The flame retardancy of the cured
the roof, will differ from location to location and from coatingshallbedeterminedinaccordancewith8.8andshallbe
environment to environment. It is possible that soiling rates are tested on a substrate typical of final installation. Flame spread
affected by the slope of the surface, the roughness of the and smoke development shall be no greater than that required
surface, the characteristics of the dust in the air, the dust by local code requirement.
contentoftheairandthedegreeofgrowthofmildewandother
6.9 Fungi Resistance—The fungi resistance of the cured
organismsonthesurface.Lowslopes,roughsurfaces,dustyair
coating shall be determined and found acceptable in accor-
and persistent moisture and conditions of high humidity are all
dance with 8.9.
conducive to soiling. At this time there are insufficient obser-
6.10 Water Absorption—Water absorption of the cured coat-
vations available to predict the amount of soiling for a given
ing shall be determined in accordance with 8.10.
locale or the effect of the soiling on solar reflectance. Nor have
any test procedures been developed to determine the ease with
6.11 Cured Sample Thickness—The cured sample thickness
which the RCCs can be cleaned and the degree to which the
shall be determined in accordance with 8.11.
solar reflectance can be restored. It is suggested that users
6.12 Outdoor Durability—The outdoor durability shall be
examine the potential for soiling at th
...
