ASTM B863-23

Standard Specification for Titanium and Titanium Alloy Wire

ABSTRACT
This specification covers for titanium and titanium alloy wire. The chemical composition; physical properties such as density; and mechanical properties such as tensile strength, elongation and hardness are detailed.
SCOPE
1.1 This specification covers titanium and titanium alloy wire as follows:
1.1.1 Grade 1—UNS R50250. Unalloyed titanium,
1.1.2 Grade 2—UNS R50400. Unalloyed titanium,
1.1.2.1 Grade 2H—UNS R50400. Unalloyed titanium (Grade 2 with 58 ksi (400 MPa) minimum UTS),
1.1.3 Grade 3—UNS R50550. Unalloyed titanium,
1.1.4 Grade 4—UNS R50700. Unalloyed titanium,
1.1.5 Grade 5—UNS R56400. Titanium alloy (6 % aluminum, 4 % vanadium),
1.1.6 Grade 6—UNS R54520. Titanium alloy (5 % aluminum, 2.5 % tin),
1.1.7 Grade 7—UNS R52400. Unalloyed titanium plus 0.12 % to 0.25 % palladium,
1.1.7.1 Grade 7H—UNS R52400. Unalloyed titanium plus 0.12 % to 0.25 % palladium (Grade 7 with 58 ksi (400 MPa) minimum UTS),
1.1.8 Grade 9—UNS R56320. Titanium alloy (3 % aluminum, 2.5 % vanadium),
1.1.9 Grade 11—UNS R52250. Unalloyed titanium plus 0.12 % to 0.25 % palladium,
1.1.10 Grade 12—UNS R53400. Titanium alloy (0.3 % molybdenum, 0.8 % nickel),
1.1.11 Grade 13—UNS R53413. Titanium alloy (0.5 % nickel, 0.05 % ruthenium),
1.1.12 Grade 14—UNS R53414. Titanium alloy (0.5 % nickel, 0.05 % ruthenium),
1.1.13 Grade 15—UNS R53415. Titanium alloy (0.5 % nickel, 0.05 % ruthenium),
1.1.14 Grade 16—UNS R52402. Unalloyed titanium plus 0.04 % to 0.08 % palladium,
1.1.14.1 Grade 16H—UNS R52402. Unalloyed titanium plus 0.04 % to 0.08 % palladium (Grade 16 with 58 ksi (400 MPa) minimum UTS),
1.1.15 Grade 17—UNS R52252. Unalloyed titanium plus 0.04 % to 0.08 % palladium,
1.1.16 Grade 18—UNS R56322. Titanium alloy (3 % aluminum, 2.5 % vanadium) plus 0.04 % to 0.08 % palladium,
1.1.17 Grade 19—UNS R58640. Titanium alloy (3 % aluminum, 8 % vanadium, 6 % chromium, 4 % zirconium, 4 % molybdenum),
1.1.18 Grade 20—UNS R58645. Titanium alloy (3 % aluminum, 8 % vanadium, 6 % chromium, 4 % zirconium, 4 % molybdenum) plus 0.04 % to 0.08 % palladium,
1.1.19 Grade 21—UNS R58210. Titanium alloy (15 % molybdenum, 3 % aluminum, 2.7 % niobium, 0.25 % silicon),
1.1.20 Grade 23—UNS R56407. Titanium alloy (6 % aluminum, 4 % vanadium with extra low interstitial elements, ELI),
1.1.21 Grade 24—UNS R56405. Titanium alloy (6 % aluminum, 4 % vanadium) plus 0.04 % to 0.08 % palladium,
1.1.22 Grade 25—UNS R56403. Titanium alloy (6 % aluminum, 4 % vanadium) plus 0.3 % to 0.8 % nickel and 0.04 % to 0.08 % palladium,
1.1.23 Grade 26—UNS R52404. Unalloyed titanium plus 0.08 % to 0.14 % ruthenium,
1.1.23.1 Grade 26H—UNS R52404. Unalloyed titanium plus 0.08 % to 0.14 % ruthenium (Grade 26 with 58 ksi (400 MPa) minimum UTS),
1.1.24 Grade 27—UNS R52254. Unalloyed titanium plus 0.08 % to 0.14 % ruthenium,
1.1.25 Grade 28—UNS R56323. Titanium alloy (3 % aluminum, 2.5 % vanadium) plus 0.08 % to 0.14 % ruthenium,
1.1.26 Grade 29—UNS R56404. Titanium alloy (6 % aluminum, 4 % vanadium with extra low interstitial elements, ELI) plus 0.08 % to 0.14 % ruthenium,
1.1.27 Grade 32—UNS R55111. Titanium alloy (5 % aluminum, 1 % tin, 1 % vanadium, 1 % zirconium, 0.8 % molybdenum),
1.1.28 Grade 33—UNS R53442. Titanium alloy (0.4 % nickel, 0.015 % palladium, 0.025 % ruthenium, 0.15 % chromium),
1.1.29 Grade 34—UNS R53445. Titanium alloy (0.4 % nickel, 0.015 % palladium, 0.025 % ruthenium, 0.15 % chromium),
1.1.30 Grade 35—UNS R56340. Titanium alloy (4.5 % aluminum, 2 % molybdenum, 1.6 % vanadium, 0.5 % iron, 0.3 % silicon),
1.1.31 Grade 36—UNS R58450. Titanium alloy (45 % niobium),
1.1.32 Grade 37—UNS R52815. Titanium alloy (1.5 % aluminum),
1.1.33 Grade 38—UNS R54250. Titanium alloy (4 % aluminum, 2.5 % vanadium, 1.5 % iron), and
1.1.34 Grade 39—UNS R53390. Titanium alloy (0.25 % iron, 0.4 % silicon).
Note 1: H grade material is identical to the corresponding numeric grade (tha...

General Information

• Status: Published
• Publication Date: 31-Oct-2023
• ICS: 77.150.50 - Titanium products
• Technical Committee: B10 - Reactive and Refractory Metals and Alloys
• Drafting Committee: B10.01 - Titanium

Relations

• Replaces: ASTM B863-19 - Standard Specification for Titanium and Titanium Alloy Wire
• Effective Date: 01-Nov-2023
• Refers: ASTM E8/E8M-24 - Standard Test Methods for Tension Testing of Metallic Materials
• Effective Date: 01-Jan-2024
• Refers: ASTM E8/E8M-22 - Standard Test Methods for Tension Testing of Metallic Materials
• Effective Date: 01-May-2022
• Referred By: ASTM F1155-10(2019) - Standard Practice for Selection and Application of Piping System Materials
• Effective Date: 01-Nov-2023

Overview

ASTM B863-23: Standard Specification for Titanium and Titanium Alloy Wire provides the internationally recognized requirements for titanium and titanium alloy wire products. Developed by ASTM International Committee B10 on Reactive and Refractory Metals and Alloys, this specification outlines the necessary chemical, physical, and mechanical properties for a wide range of grades of titanium wire, ensuring consistency, reliability, and safety across various industries.

Titanium and its alloys are prized for their high strength-to-weight ratio, corrosion resistance, and biocompatibility. ASTM B863-23 applies to wire supplied as coils, straight lengths, and welding wire, specifying grades suitable for diverse industrial and commercial applications.

Key Topics

• Scope and Grades
  ASTM B863-23 covers both unalloyed (commercially pure) and alloyed titanium wire, including numerous grades such as:

  • Grade 1 through Grade 39, with both regular and "H" grades (higher minimum ultimate tensile strength), and special alloy compositions featuring aluminum, vanadium, palladium, ruthenium, molybdenum, nickel, and more.
  • Product forms include round, flat, and shaped wire, ranging from 0.005 in. (0.127 mm) up to 0.750 in. (19.05 mm) in thickness or major dimension.

• Chemical Composition
  Detailed chemical requirements are specified for each grade, including maximum levels for elements such as oxygen, iron, carbon, nitrogen, hydrogen, and various alloy additions. This ensures proper performance for mechanical integrity and corrosion resistance.

• Mechanical Properties
  The standard sets out explicit tensile strength, yield strength, and elongation requirements for each grade and product form. For H-grades, higher guaranteed minimum ultimate tensile strength values are mandated, making them suitable for critical applications, such as pressure vessels.

• Physical Properties and Tolerances
  Wire must meet specifications for density, dimensions, and permissible variations in size, as well as requirements for cleanliness, surface finish, and packaging for safe handling and shipping.

• Testing and Certification
  ASTM B863-23 prescribes standard test methods for analyzing chemical composition and mechanical properties, including:

  • Tension testing per ASTM E8/E8M
  • Various chemical and analytical test methods to ensure material conformance
  • Requirements for retesting, reporting, certification, and dispute resolution

Applications

Titanium and titanium alloy wire produced per ASTM B863-23 is used in a wide range of demanding fields for its unique combination of lightness, strength, and corrosion resistance, including:

• Aerospace and Defense: Components, fasteners, and structural applications needing high strength-to-weight ratio and resistance to extreme environments.
• Medical Devices: Surgical implants, dental archwires, and other medical applications, especially with grades that offer excellent biocompatibility.
• Chemical Processing: Wire used in corrosive process environments due to superior resistance to chlorides and other chemicals.
• Marine and Offshore: Fasteners, screens, and components exposed to saltwater and harsh marine conditions.
• Welding and Fabrication: As filler metal or weld wire, conforming to specific restrictions for welding titanium securely and reliably.
• Automotive and Sports Equipment: Lightweight, high-strength components for competitive and recreational use.

Related Standards

Organizations and professionals working with titanium wire should also reference these related standards:

• ASTM E8/E8M: Test Methods for Tension Testing of Metallic Materials
• AWS A5.16/A5.16M: Specification for Titanium and Titanium Alloy Welding Electrodes and Rods
• ASTM E539, E1409, E1447, E1941, E2371, E2994: Test methods for the chemical analysis of titanium and its alloys

ASTM B863-23 promotes uniform quality and interoperability in the supply and application of titanium wire, supporting global engineering, manufacturing, and quality assurance requirements. Proper adherence to this standard helps ensure safety, performance, and compliance across diverse industry sectors.

Standards Content (Sample)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

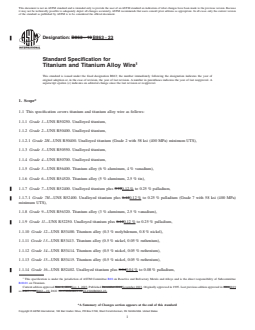

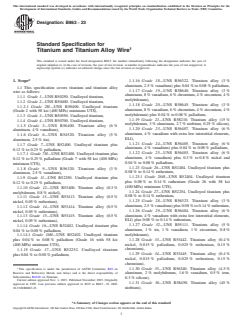

Designation: B863 − 23
Standard Specification for
Titanium and Titanium Alloy Wire
This standard is issued under the fixed designation B863; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope* 1.1.16 Grade 18—UNS R56322. Titanium alloy (3 %
aluminum, 2.5 % vanadium) plus 0.04 % to 0.08 % palladium,
1.1 This specification covers titanium and titanium alloy
1.1.17 Grade 19—UNS R58640. Titanium alloy (3 %
wire as follows:
aluminum, 8 % vanadium, 6 % chromium, 4 % zirconium, 4 %
1.1.1 Grade 1—UNS R50250. Unalloyed titanium,
molybdenum),
1.1.2 Grade 2—UNS R50400. Unalloyed titanium,
1.1.18 Grade 20—UNS R58645. Titanium alloy (3 %
1.1.2.1 Grade 2H—UNS R50400. Unalloyed titanium
aluminum, 8 % vanadium, 6 % chromium, 4 % zirconium, 4 %
(Grade 2 with 58 ksi (400 MPa) minimum UTS),
molybdenum) plus 0.04 % to 0.08 % palladium,
1.1.3 Grade 3—UNS R50550. Unalloyed titanium,
1.1.19 Grade 21—UNS R58210. Titanium alloy (15 %
1.1.4 Grade 4—UNS R50700. Unalloyed titanium,
molybdenum, 3 % aluminum, 2.7 % niobium, 0.25 % silicon),
1.1.5 Grade 5—UNS R56400. Titanium alloy (6 %
1.1.20 Grade 23—UNS R56407. Titanium alloy (6 %
aluminum, 4 % vanadium),
aluminum, 4 % vanadium with extra low interstitial elements,
1.1.6 Grade 6—UNS R54520. Titanium alloy (5 %
ELI),
aluminum, 2.5 % tin),
1.1.21 Grade 24—UNS R56405. Titanium alloy (6 %
1.1.7 Grade 7—UNS R52400. Unalloyed titanium plus
aluminum, 4 % vanadium) plus 0.04 % to 0.08 % palladium,
0.12 % to 0.25 % palladium,
1.1.22 Grade 25—UNS R56403. Titanium alloy (6 %
1.1.7.1 Grade 7H—UNS R52400. Unalloyed titanium plus
aluminum, 4 % vanadium) plus 0.3 % to 0.8 % nickel and
0.12 % to 0.25 % palladium (Grade 7 with 58 ksi (400 MPa)
0.04 % to 0.08 % palladium,
minimum UTS),
1.1.23 Grade 26—UNS R52404. Unalloyed titanium plus
1.1.8 Grade 9—UNS R56320. Titanium alloy (3 %
0.08 % to 0.14 % ruthenium,
aluminum, 2.5 % vanadium),
1.1.23.1 Grade 26H—UNS R52404. Unalloyed titanium
1.1.9 Grade 11—UNS R52250. Unalloyed titanium plus
plus 0.08 % to 0.14 % ruthenium (Grade 26 with 58 ksi
0.12 % to 0.25 % palladium,
(400 MPa) minimum UTS),
1.1.10 Grade 12—UNS R53400. Titanium alloy (0.3 %
1.1.24 Grade 27—UNS R52254. Unalloyed titanium plus
molybdenum, 0.8 % nickel),
0.08 % to 0.14 % ruthenium,
1.1.11 Grade 13—UNS R53413. Titanium alloy (0.5 %
1.1.25 Grade 28—UNS R56323. Titanium alloy (3 %
nickel, 0.05 % ruthenium),
aluminum, 2.5 % vanadium) plus 0.08 % to 0.14 % ruthenium,
1.1.12 Grade 14—UNS R53414. Titanium alloy (0.5 %
1.1.26 Grade 29—UNS R56404. Titanium alloy (6 %
nickel, 0.05 % ruthenium),
aluminum, 4 % vanadium with extra low interstitial elements,
1.1.13 Grade 15—UNS R53415. Titanium alloy (0.5 %
ELI) plus 0.08 % to 0.14 % ruthenium,
nickel, 0.05 % ruthenium),
1.1.27 Grade 32—UNS R55111. Titanium alloy (5 %
1.1.14 Grade 16—UNS R52402. Unalloyed titanium plus
aluminum, 1 % tin, 1 % vanadium, 1 % zirconium, 0.8 %
0.04 % to 0.08 % palladium,
molybdenum),
1.1.14.1 Grade 16H—UNS R52402. Unalloyed titanium
1.1.28 Grade 33—UNS R53442. Titanium alloy (0.4 %
plus 0.04 % to 0.08 % palladium (Grade 16 with 58 ksi
nickel, 0.015 % palladium, 0.025 % ruthenium, 0.15 %
(400 MPa) minimum UTS),
chromium),
1.1.15 Grade 17—UNS R52252. Unalloyed titanium
1.1.29 Grade 34—UNS R53445. Titanium alloy (0.4 %
plus 0.04 % to 0.08 % palladium,
nickel, 0.015 % palladium, 0.025 % ruthenium, 0.15 %
chromium),
1.1.30 Grade 35—UNS R56340. Titanium alloy (4.5 %
This specification is under the jurisdiction of ASTM Committee B10 on
Reactive and Refractory Metals and Alloys and is the direct responsibility of
aluminum, 2 % molybdenum, 1.6 % vanadium, 0.5 % iron,
Subcommittee B10.01 on Titanium.
0.3 % silicon),
Current edition approved Nov. 1, 2023. Published November 2023. Originally
1.1.31 Grade 36—UNS R58450. Titanium alloy (45 %
approved in 1995. Last previous edition approved in 2019 as B863 – 19. DOI:
10.1520/B0863-23. niobium),
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States

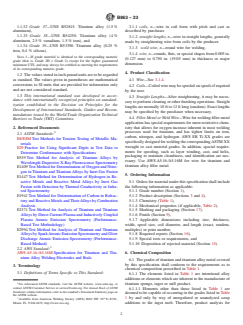

B863 − 23
1.1.32 Grade 37—UNS R52815. Titanium alloy (1.5 % 3.1.1 coils, n—wire in coil form with pitch and cast as
aluminum), described by purchaser.
1.1.33 Grade 38—UNS R54250. Titanium alloy (4 %
3.1.2 straight lengths, n—wire in straight lengths, generally
aluminum, 2.5 % vanadium, 1.5 % iron), and
made by straightening wire from coils by the producer.
1.1.34 Grade 39—UNS R53390. Titanium alloy (0.25 %
3.1.3 weld wire, n—round wire for welding.
iron, 0.4 % silicon).
3.1.4 wire, n—rounds, flats, or special shapes from 0.005 in.
NOTE 1—H grade material is identical to the corresponding numeric
(0.127 mm) to 0.750 in. (19.05 mm) in thickness or major
grade (that is, Grade 2H = Grade 2) except for the higher guaranteed
dimension.
minimum UTS, and may always be certified as meeting the requirements
of its corresponding numeric grade.
4. Product Classification
1.2 The values stated in inch-pound units are to be regarded
4.1 Wire—See 3.1.4.
as standard. The values given in parentheses are mathematical
conversions to SI units that are provided for information only
4.2 Coils—Coiled wire may be spooled on spools if required
and are not considered standard.
by the user.
1.3 This international standard was developed in accor-
4.3 Straight Lengths—After straightening, it may be neces-
dance with internationally recognized principles on standard-
sary to perform cleaning or other finishing operations. Straight
ization established in the Decision on Principles for the
lengths are normally 10 ft to 12 ft long (random). Exact lengths
Development of International Standards, Guides and Recom-
may be specified by the purchaser when necessary.
mendations issued by the World Trade Organization Technical
4.4 Filler Metal or Weld Wire—Wire for welding filler metal
Barriers to Trade (TBT) Committee.
application has special requirements for more restrictive chem-
2. Referenced Documents istry that allows for oxygen increase inherent in most welding
processes used for titanium, and has tighter limits on iron,
2.1 ASTM Standards:
carbon, nitrogen, and hydrogen. AWS ER Ti-XX grades are
E8/E8M Test Methods for Tension Testing of Metallic Ma-
specifically designed for welding the corresponding ASTM XX
terials
wrought or cast material grades. In addition, special require-
E29 Practice for Using Significant Digits in Test Data to
ments for spooling, such as layer winding, cast, and helix,
Determine Conformance with Specifications
packaging to maintain cleanliness, and identification are nec-
E539 Test Method for Analysis of Titanium Alloys by
essary. Use AWS A5.16 ⁄A5.16M for wire for titanium and
Wavelength Dispersive X-Ray Fluorescence Spectrometry
titanium alloy filler metal.
E1409 Test Method for Determination of Oxygen and Nitro-
gen in Titanium and Titanium Alloys by Inert Gas Fusion

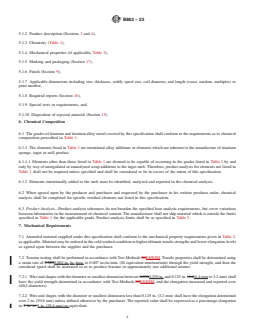

5. Ordering Information
E1447 Test Method for Determination of Hydrogen in Re-
active Metals and Reactive Metal Alloys by Inert Gas 5.1 Orders for material under this specification shall include
Fusion with Detection by Thermal Conductivity or Infra- the following information as applicable:
red Spectrometry 5.1.1 Grade number (Section 1),
E1941 Test Method for Determination of Carbon in Refrac- 5.1.2 Product description (Sections 3 and 4),
tory and Reactive Metals and Their Alloys by Combustion 5.1.3 Chemistry (Table 1),
Analysis
5.1.4 Mechanical properties (if applicable, Table 2),
E2371 Test Method for Analysis of Titanium and Titanium 5.1.5 Marking and packaging (Section 17),
Alloys by Direct Current Plasma and Inductively Coupled
5.1.6 Finish (Section 9),
Plasma Atomic Emission Spectrometry (Performance- 5.1.7 Applicable dimensions including size, thickness,
Based Test Methodology)
width, spool size, coil diameter, and length (exact, random,
E2994 Test Method for Analysis of Titanium and Titanium multiples) or print number,
Alloys by Spark Atomic Emission Spectrometry and Glow 5.1.8 Required reports (Section 16),
Discharge Atomic Emission Spectrometry (Performance- 5.1.9 Special tests or requirements, and
Based Method) 5.1.10 Disposition of rejected material (Section 15).
2.2 AWS Standard:
AWS A5.16 ⁄A5.16M Specification for Titanium and Tita- 6. Chemical Composition
nium Alloy Welding Electrodes and Rods
6.1 The grades of titanium and titanium alloy metal covered
by this specification shall conform to the requirements as to
3. Terminology
chemical composition prescribed in Table 1.
3.1 Definitions of Terms Specific to This Standard:
6.1.1 The elements listed in Table 1 are intentional alloy
additions or elements which are inherent to the manufacture of
titanium sponge, ingot or mill product.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM
6.1.1.1 Elements other than those listed in Table 1 are
Standards volume information, refer to the standard’s Document Summary page on
deemed to be capable of occurring in the grades listed in Table
the ASTM website.
3 th
1 by and only by way of unregulated or unanalyzed scrap
Available from American Welding Society (AWS), 8669 NW 36 St #130.,
Miami, FL 33166-6672, http://www.aws.org. additions to the ingot melt. Therefore, product analysis for
B863 − 23

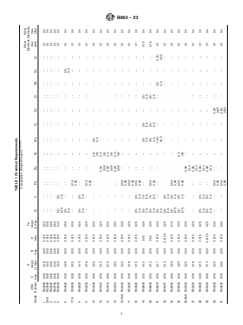

TABLE 1 Chemical Requirements
A,B,C,D,E
Composition, Weight Percent
Other Other
O Fe Elements,Elements,
UNS C range N H range max. max.
Grade Number max. or max. max. max. or max. Al V Pd Ru Ni Mo Cr Co Zr Nb Sn Si each total
1 R50250 0.08 0.18 0.03 0.015 0.20 - - - - - - - - - - - - - - - - - - - - - - - - 0.1 0.4
2/2H R50400 0.08 0.25 0.03 0.015 0.30 - - - - - - - - - - - - - - - - - - - - - - - - 0.1 0.4
3 R50550 0.08 0.35 0.05 0.015 0.30 - - - - - - - - - - - - - - - - - - - - - - - - 0.1 0.4
4 R50700 0.08 0.40 0.05 0.015 0.50 - - - - - - - - - - - - - - - - - - - - - - - - 0.1 0.4
5 R56400 0.08 0.20 0.05 0.015 0.40 5.5- 3.5- - - - - - - - - - - - - - - - - - - - - 0.1 0.4
6.75 4.5
6 R54520 0.08 0.20 0.03 0.015 0.50 4.0- - - - - - - - - - - - - - - - - - - 2.0- - - 0.1 0.4
6.0 3.0
7/7H R52400 0.08 0.25 0.03 0.015 0.30 - - - - 0.12- - - - - - - - - - - - - - - - - - - 0.1 0.4
0.25
9 R56320 0.08 0.15 0.03 0.015 0.25 2.5- 2.0- - - - - - - - - - - - - - - - - - - - - 0.1 0.4
3.5 3.0
11 R52250 0.08 0.18 0.03 0.015 0.20 - - - - 0.12- - - - - - - - - - - - - - - - - - - 0.1 0.4
0.25
12 R53400 0.08 0.25 0.03 0.015 0.30 - - - - - - - - 0.6- 0.2- - - - - - - - - - - - - 0.1 0.4
0.9 0.4
13 R53413 0.08 0.10 0.03 0.015 0.20 - - - - - - 0.04- 0.4- - - - - - - - - - - - - - - 0.1 0.4
0.06 0.6
14 R53414 0.08 0.15 0.03 0.015 0.30 - - - - - - 0.04- 0.4- - - - - - - - - - - - - - - 0.1 0.4
0.06 0.6
15 R53415 0.08 0.25 0.05 0.015 0.30 - - - - - - 0.04- 0.4- - - - - - - - - - - - - - - 0.1 0.4
0.06 0.6
16/16H R52402 0.08 0.25 0.03 0.015 0.30 - - - - 0.04- - - - - - - - - - - - - - - - - - - 0.1 0.4
0.08
17 R52252 0.08 0.18 0.03 0.015 0.20 - - - - 0.04- - - - - - - - - - - - - - - - - - - 0.1 0.4
0.08
18 R56322 0.08 0.15 0.03 0.015 0.25 2.5- 2.0- 0.04- - - - - - - - - - - - - - - - - - - 0.1 0.4
3.5 3.0 0.08
19 R58640 0.05 0.12 0.03 0.02 0.30 3.0- 7.5- - - - - - - 3.5- 5.5- - - 3.5- - - - - - - 0.15 0.4
4.0 8.5 4.5 6.5 4.5
20 R58645 0.05 0.12 0.03 0.02 0.30 3.0- 7.5- 0.04- - - - - 3.5- 5.5- - - 3.5- - - - - - - 0.15 0.4
4.0 8.5 0.08 4.5 6.5 4.5
21 R58210 0.05 0.17 0.03 0.015 0.40 2.5- - - - - - - - - 14.0- - - - - - - 2.2- - - 0.15- 0.1 0.4
3.5 16.0 3.2 0.25
23 R56407 0.08 0.13 0.03 0.0125 0.25 5.5- 3.5- - - - - - - - - - - - - - - - - - - - - 0.1 0.4
6.5 4.5
24 R56405 0.08 0.20 0.05 0.015 0.40 5.5- 3.5- 0.04- - - - - - - - - - - - - - - - - - - 0.1 0.4
6.75 4.5 0.08
25 R56403 0.08 0.20 0.05 0.015 0.40 5.5- 3.5- 0.04- - - 0.3- - - - - - - - - - - - - - - 0.1 0.4
6.75 4.5 0.08 0.8
26/26H R52404 0.08 0.25 0.03 0.015 0.30 - - - - - - 0.08- - - - - - - - - - - - - - - - - 0.1 0.4
0.14
27 R52254 0.08 0.18 0.03 0.015 0.20 - - - - - - 0.08- - - - - - - - - - - - - - - - - 0.1 0.4
0.14
28 R56323 0.08 0.15 0.03 0.015 0.25 2.5- 2.0- - - 0.08- - - - - - - - - - - - - - - - - 0.1 0.4
3.5 3.0 0.14
29 R56404 0.08 0.13 0.03 0.0125 0.25 5.5- 3.5- - - 0.08- - - - - - - - - - - - - - - - - 0.1 0.4
6.5 4.5 0.14
30 R53530 0.08 0.25 0.03 0.015 0.30 - - - - 0.04- - - - - - - - - 0.20- - - - - - - - - 0.1 0.4
0.08 0.80
31 R53532 0.08 0.35 0.05 0.015 0.30 - - - - 0.04- - - - - - - - - 0.20- - - - - - - - - 0.1 0.4
0.08 0.80
B863 − 23

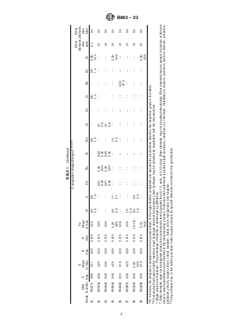

TABLE 1 Continued
A,B,C,D,E
Composition, Weight Percent
Other Other
O Fe Elements,Elements,
UNS C range N H range max. max.
Grade Number max. or max. max. max. or max. Al V Pd Ru Ni Mo Cr Co Zr Nb Sn Si each total
32 R55111 0.08 0.11 0.03 0.015 0.25 4.5- 0.6- - - - - - - 0.6- - - - - 0.6- - - 0.6- 0.06- 0.1. 0.4
5.5 1.4 1.2 1.4 1.4 0.14
33 R53442 0.08 0.25 0.03 0.015 0.30 - - - - 0.01- 0.02- 0.35- - - 0.1- - - - - - - - - - - 0.1 0.4
0.02 0.04 0.55 0.2
34 R53445 0.08 0.35 0.05 0.015 0.30 - - - - 0.01- 0.02- 0.35- - - 0.1- - - - - - - - - - - 0.1 0.4
0.02 0.04 0.55 0.2
35 R56340 0.08 0.25 0.05 0.015 0.20- 4.0- 1.1- - - - - - - 1.5- - - - - - - - - - - 0.20- 0.1 0.4
0.80 5.0 2.1 2.5 0.40
36 R58450 0.04 0.16 0.03 0.015 0.03 - - - - - - - - - - - - - - - - - - 42.0- - - - - 0.1 0.4
47.0
37 R52815 0.08 0.25 0.03 0.015 0.30 1.0- - - - - - - - - - - - - - - - - - - - - - - 0.1 0.4
2.0
38 R54250 0.08 0.20- 0.03 0.015 1.2-1.8 3.5- 2.0- - - - - - - - - - - - - - - - - - - - - 0.1 0.4
0.30 4.5 3.0
39 R53390 0.08 0.15 0.
...

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
Designation: B863 − 19 B863 − 23
Standard Specification for
Titanium and Titanium Alloy Wire
This standard is issued under the fixed designation B863; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope*
1.1 This specification covers titanium and titanium alloy wire as follows:
1.1.1 Grade 1—UNS R50250. Unalloyed titanium,
1.1.2 Grade 2—UNS R50400. Unalloyed titanium,
1.1.2.1 Grade 2H—UNS R50400. Unalloyed titanium (Grade 2 with 58 ksi (400 MPa) minimum UTS),
1.1.3 Grade 3—UNS R50550. Unalloyed titanium,
1.1.4 Grade 4—UNS R50700. Unalloyed titanium,
1.1.5 Grade 5—UNS R56400. Titanium alloy (6 % aluminum, 4 % vanadium),
1.1.6 Grade 6—UNS R54520. Titanium alloy (5 % aluminum, 2.5 % tin),
1.1.7 Grade 7—UNS R52400. Unalloyed titanium plus 0.120.12 % to 0.25 % palladium,
1.1.7.1 Grade 7H—UNS R52400. Unalloyed titanium plus 0.120.12 % to 0.25 % palladium (Grade 7 with 58 ksi (400 MPa)
minimum UTS),
1.1.8 Grade 9—UNS R56320. Titanium alloy (3 % aluminum, 2.5 % vanadium),
1.1.9 Grade 11—UNS R52250. Unalloyed titanium plus 0.120.12 % to 0.25 % palladium,
1.1.10 Grade 12—UNS R53400. Titanium alloy (0.3 % molybdenum, 0.8 % nickel),
1.1.11 Grade 13—UNS R53413. Titanium alloy (0.5 % nickel, 0.05 % ruthenium),
1.1.12 Grade 14—UNS R53414. Titanium alloy (0.5 % nickel, 0.05 % ruthenium),
1.1.13 Grade 15—UNS R53415. Titanium alloy (0.5 % nickel, 0.05 % ruthenium),
1.1.14 Grade 16—UNS R52402. Unalloyed titanium plus 0.040.04 % to 0.08 % palladium,
This specification is under the jurisdiction of ASTM Committee B10 on Reactive and Refractory Metals and Alloys and is the direct responsibility of Subcommittee
B10.01 on Titanium.
Current edition approved Nov. 1, 2019Nov. 1, 2023. Published December 2019November 2023. Originally approved in 1995. Last previous edition approved in 20142019
as B863 – 14.B863 – 19. DOI: 10.1520/B0863-19.10.1520/B0863-23.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
B863 − 23

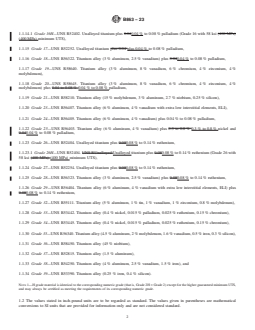

1.1.14.1 Grade 16H—UNS R52402. Unalloyed titanium plus 0.040.04 % to 0.08 % palladium (Grade 16 with 58 ksi (400 MPa)
(400 MPa) minimum UTS),
1.1.15 Grade 17—UNS R52252. Unalloyed titanium plus 0.04 plus 0.04 % to 0.08 % palladium,
1.1.16 Grade 18—UNS R56322. Titanium alloy (3 % aluminum, 2.5 % vanadium) plus 0.040.04 % to 0.08 % palladium,
1.1.17 Grade 19—UNS R58640. Titanium alloy (3 % aluminum, 8 % vanadium, 6 % chromium, 4 % zirconium, 4 %
molybdenum),
1.1.18 Grade 20—UNS R58645. Titanium alloy (3 % aluminum, 8 % vanadium, 6 % chromium, 4 % zirconium, 4 %
molybdenum) plus 0.04 to 0.08 % 0.04 % to 0.08 % palladium,
1.1.19 Grade 21—UNS R58210. Titanium alloy (15 % molybdenum, 3 % aluminum, 2.7 % niobium, 0.25 % silicon),
1.1.20 Grade 23—UNS R56407. Titanium alloy (6 % aluminum, 4 % vanadium with extra low interstitial elements, ELI),
1.1.21 Grade 24—UNS R56405. Titanium alloy (6 % aluminum, 4 % vanadium) plus 0.04 % to 0.08 % palladium,
1.1.22 Grade 25—UNS R56403. Titanium alloy (6 % aluminum, 4 % vanadium) plus 0.3 to 0.8 % 0.3 % to 0.8 % nickel and
0.040.04 % to 0.08 % palladium,
1.1.23 Grade 26—UNS R52404. Unalloyed titanium plus 0.080.08 % to 0.14 % ruthenium,
1.1.23.1 Grade 26H—UNS R52404. UNS RUnalloyed Unalloyed titanium plus 0.080.08 % to 0.14 % ruthenium (Grade 26 with
58 ksi (400 MPa) (400 MPa) minimum UTS),
1.1.24 Grade 27—UNS R52254. Unalloyed titanium plus 0.080.08 % to 0.14 % ruthenium,
1.1.25 Grade 28—UNS R56323. Titanium alloy (3 % aluminum, 2.5 % vanadium) plus 0.080.08 % to 0.14 % ruthenium,
1.1.26 Grade 29—UNS R56404. Titanium alloy (6 % aluminum, 4 % vanadium with extra low interstitial elements, ELI) plus
0.080.08 % to 0.14 % ruthenium,
1.1.27 Grade 32—UNS R55111. Titanium alloy (5 % aluminum, 1 % tin, 1 % vanadium, 1 % zirconium, 0.8 % molybdenum),
1.1.28 Grade 33—UNS R53442. Titanium alloy (0.4 % nickel, 0.015 % palladium, 0.025 % ruthenium, 0.15 % chromium),
1.1.29 Grade 34—UNS R53445. Titanium alloy (0.4 % nickel, 0.015 % palladium, 0.025 % ruthenium, 0.15 % chromium),
1.1.30 Grade 35—UNS R56340. Titanium alloy (4.5 % aluminum, 2 % molybdenum, 1.6 % vanadium, 0.5 % iron, 0.3 % silicon),
1.1.31 Grade 36—UNS R58450. Titanium alloy (45 % niobium),
1.1.32 Grade 37—UNS R52815. Titanium alloy (1.5 % aluminum),
1.1.33 Grade 38—UNS R54250. Titanium alloy (4 % aluminum, 2.5 % vanadium, 1.5 % iron), and
1.1.34 Grade 39—UNS R53390. Titanium alloy (0.25 % iron, 0.4 % silicon).
NOTE 1—H grade material is identical to the corresponding numeric grade (that is, Grade 2H = Grade 2) except for the higher guaranteed minimum UTS,
and may always be certified as meeting the requirements of its corresponding numeric grade.
1.2 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical
conversions to SI units that are provided for information only and are not considered standard.
B863 − 23

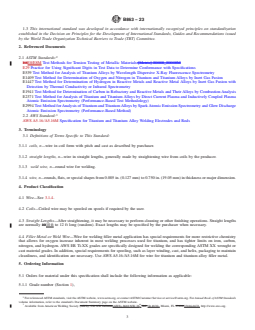

1.3 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 ASTM Standards:
E8E8/E8M Test Methods for Tension Testing of Metallic Materials [Metric] E0008_E0008M
E29 Practice for Using Significant Digits in Test Data to Determine Conformance with Specifications
E539 Test Method for Analysis of Titanium Alloys by Wavelength Dispersive X-Ray Fluorescence Spectrometry
E1409 Test Method for Determination of Oxygen and Nitrogen in Titanium and Titanium Alloys by Inert Gas Fusion
E1447 Test Method for Determination of Hydrogen in Reactive Metals and Reactive Metal Alloys by Inert Gas Fusion with
Detection by Thermal Conductivity or Infrared Spectrometry
E1941 Test Method for Determination of Carbon in Refractory and Reactive Metals and Their Alloys by Combustion Analysis
E2371 Test Method for Analysis of Titanium and Titanium Alloys by Direct Current Plasma and Inductively Coupled Plasma
Atomic Emission Spectrometry (Performance-Based Test Methodology)
E2994 Test Method for Analysis of Titanium and Titanium Alloys by Spark Atomic Emission Spectrometry and Glow Discharge
Atomic Emission Spectrometry (Performance-Based Method)
2.2 AWS Standard:
AWS A5.16 ⁄A5.16M Specification for Titanium and Titanium Alloy Welding Electrodes and Rods
3. Terminology
3.1 Definitions of Terms Specific to This Standard:
3.1.1 coils, n—wire in coil form with pitch and cast as described by purchaser.
3.1.2 straight lengths, n—wire in straight lengths, generally made by straightening wire from coils by the producer.
3.1.3 weld wire, n—round wire for welding.
3.1.4 wire, n—rounds, flats, or special shapes from 0.005 in. (0.127 mm) to 0.750 in. (19.05 mm) in thickness or major dimension.
4. Product Classification
4.1 Wire—See 3.1.4.
4.2 Coils—Coiled wire may be spooled on spools if required by the user.
4.3 Straight Lengths—After straightening, it may be necessary to perform cleaning or other finishing operations. Straight lengths
are normally 1010 ft to 12 ft long (random). Exact lengths may be specified by the purchaser when necessary.
4.4 Filler Metal or Weld Wire—Wire for welding filler metal application has special requirements for more restrictive chemistry
that allows for oxygen increase inherent in most welding processes used for titanium, and has tighter limits on iron, carbon,
nitrogen, and hydrogen. AWS ER Ti-XX grades are specifically designed for welding the corresponding ASTM XX wrought or
cast material grades. In addition, special requirements for spooling, such as layer winding, cast, and helix, packaging to maintain
cleanliness, and identification are necessary. Use AWS A5.16 ⁄A5.16M for wire for titanium and titanium alloy filler metal.
5. Ordering Information
5.1 Orders for material under this specification shall include the following information as applicable:
5.1.1 Grade number (Section 1),
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
th
Available from American Welding Society (AWS), 550 NW LeJeune(AWS), 8669 NW 36 Rd., St #130., Miami, FL 33126,33166-6672, http://www.aws.org.
B863 − 23
5.1.2 Product description (Sections 3 and 4),
5.1.3 Chemistry (Table 1),
5.1.4 Mechanical properties (if applicable, Table 2),
5.1.5 Marking and packaging (Section 17),
5.1.6 Finish (Section 9),
5.1.7 Applicable dimensions including size, thickness, width, spool size, coil diameter, and length (exact, random, multiples) or
print number,
5.1.8 Required reports (Section 16),
5.1.9 Special tests or requirements, and
5.1.10 Disposition of rejected material (Section 15).
6. Chemical Composition
6.1 The grades of titanium and titanium alloy metal covered by this specification shall conform to the requirements as to chemical
composition prescribed in Table 1.
6.1.1 The elements listed in Table 1 are intentional alloy additions or elements which are inherent to the manufacture of titanium
sponge, ingot or mill product.
6.1.1.1 Elements other than those listed in Table 1 are deemed to be capable of occurring in the grades listed in Table 1 by and
only by way of unregulated or unanalyzed scrap additions to the ingot melt. Therefore, product analysis for elements not listed in
Table 1 shall not be required unless specified and shall be considered to be in excess of the intent of this specification.
6.1.2 Elements intentionally added to the melt must be identified, analyzed and reported in the chemical analysis.
6.2 When agreed upon by the producer and purchaser and requested by the purchaser in his written purchase order, chemical
analysis shall be completed for specific residual elements not listed in this specification.
6.3 Product Analysis—Product analysis tolerances do not broaden the specified heat analysis requirements, but cover variations
between laboratories in the measurement of chemical content. The manufacturer shall not ship material which is outside the limits
specified in Table 1 for the applicable grade. Product analysis limits shall be as specified in Table 3.
7. Mechanical Requirements
7.1 Annealed material supplied under this specification shall conform to the mechanical property requirements given in Table 2,
as applicable. Material may be ordered in the cold worked condition to higher ultimate tensile strengths and lower elongation levels
as agreed upon between the supplier and the purchaser.
7.2 Tension testing shall be performed in accordance with Test Methods E8E8/E8M. Tensile properties shall be determined using
a strain rate of 0.0030.003 in. ⁄in. ⁄min. to 0.007 in./in./min. (SI equivalent mm/mm/min) through the yield strength, and then the
crosshead speed shall be increased so as to produce fracture in approximately one additional minute.
7.2.1 Wire and shapes with the diameter or smallest dimension between 0.2500.250 in. and 0.125 in. (6.4(6.4 mm to 3.2 mm) shall
have the yield strength determined in accordance with Test Methods E8E8/E8M, and the elongation measured and reported over
4D(4 diameters).
7.2.2 Wire and shapes with the diameter or smallest dimension less than 0.125 in. (3.2 mm) shall have the elongation determined
over 2 in. (50.8 mm) unless defined otherwise by the purchaser. The reported value shall be expressed as a percentage elongation
in 1 in. or 1 in. (25.4 mm) or equivalent.
B863 − 23
TABLE 1 Chemical Requirements
A,B,C,D,E
Composition, Weight Percent
Other Other
O Fe Elements,Elements,
UNS C range N H range max. max.
Grade Number max. or max. max. max. or max. Al V Pd Ru Ni Mo Cr Co Zr Nb Sn Si each total
1 R50250 0.08 0.18 0.03 0.015 0.20 - - - - - - - - - - - - - - - - - - - - - - - - 0.1 0.4
2/2H R50400 0.08 0.25 0.03 0.015 0.30 - - - - - - - - - - - - - - - - - - - - - - - - 0.1 0.4
3 R50550 0.08 0.35 0.05 0.015 0.30 - - - - - - - - - - - - - - - - - - - - - - - - 0.1 0.4
4 R50700 0.08 0.40 0.05 0.015 0.50 - - - - - - - - - - - - - - - - - - - - - - - - 0.1 0.4
5 R56400 0.08 0.20 0.05 0.015 0.40 5.5- 3.5- - - - - - - - - - - - - - - - - - - - - 0.1 0.4
6.75 4.5
6 R54520 0.08 0.20 0.03 0.015 0.50 4.0- - - - - - - - - - - - - - - - - - - 2.0- - - 0.1 0.4
6.0 3.0
7/7H R52400 0.08 0.25 0.03 0.015 0.30 - - - - 0.12- - - - - - - - - - - - - - - - - - - 0.1 0.4
0.25
9 R56320 0.08 0.15 0.03 0.015 0.25 2.5- 2.0- - - - - - - - - - - - - - - - - - - - - 0.1 0.4
3.5 3.0
11 R52250 0.08 0.18 0.03 0.015 0.20 - - - - 0.12- - - - - - - - - - - - - - - - - - - 0.1 0.4
0.25
12 R53400 0.08 0.25 0.03 0.015 0.30 - - - - - - - - 0.6- 0.2- - - - - - - - - - - - - 0.1 0.4
0.9 0.4
13 R53413 0.08 0.10 0.03 0.015 0.20 - - - - - - 0.04- 0.4- - - - - - - - - - - - - - - 0.1 0.4
0.06 0.6
14 R53414 0.08 0.15 0.03 0.015 0.30 - - - - - - 0.04- 0.4- - - - - - - - - - - - - - - 0.1 0.4
0.06 0.6
15 R53415 0.08 0.25 0.05 0.015 0.30 - - - - - - 0.04- 0.4- - - - - - - - - - - - - - - 0.1 0.4
0.06 0.6
16/16H R52402 0.08 0.25 0.03 0.015 0.30 - - - - 0.04- - - - - - - - - - - - - - - - - - - 0.1 0.4
0.08
17 R52252 0.08 0.18 0.03 0.015 0.20 - - - - 0.04- - - - - - - - - - - - - - - - - - - 0.1 0.4
0.08
18 R56322 0.08 0.15 0.03 0.015 0.25 2.5- 2.0- 0.04- - - - - - - - - - - - - - - - - - - 0.1 0.4
3.5 3.0 0.08
19 R58640 0.05 0.12 0.03 0.02 0.30 3.0- 7.5- - - - - - - 3.5- 5.5- - - 3.5- - - - - - - 0.15 0.4
4.0 8.5 4.5 6.5 4.5
20 R58645 0.05 0.12 0.03 0.02 0.30 3.0- 7.5- 0.04- - - - - 3.5- 5.5- - - 3.5- - - - - - - 0.15 0.4
4.0 8.5 0.08 4.5 6.5 4.5
21 R58210 0.05 0.17 0.03 0.015 0.40 2.5- - - - - - - - - 14.0- - - - - - - 2.2- - - 0.15- 0.1 0.4
3.5 16.0 3.2 0.25
23 R56407 0.08 0.13 0.03 0.0125 0.25 5.5- 3.5- - - - - - - - - - - - - - - - - - - - - 0.1 0.4
6.5 4.5
24 R56405 0.08 0.20 0.05 0.015 0.40 5
...
