ASTM D7713-18(2023)
(Specification)Standard Specification for Aqueous Engine Coolant Grade Glycol (53 % by Volume Nominal)
Standard Specification for Aqueous Engine Coolant Grade Glycol (53 % by Volume Nominal)
ABSTRACT
This specification covers both commercial products, engine coolant grade ethylene glycol and propylene glycol, including virgin glycols and those derived from the recycling of vehicle engine coolants and industrial source glycols. Types EG-1 and PG-1, which will probably be virgin materials, cover glycols with sufficiently low limits on components to allow a blended coolant to meet most Original Equipment Manufacturer (OEM) specifications. Types EG-2 and PG-2, on the other hand, can be either redistilled or virgin. These cover glycol that will be suitable for many coolants.
SCOPE
1.1 This specification covers both commercial products, engine coolant grade ethylene glycol and propylene glycol, including virgin glycols and those derived from the recycling of vehicle engine coolants and industrial source glycols.
1.2 Types EG-1 and PG-1 cover glycols with sufficiently low limits on components to allow a blended coolant to meet most OEM (Original Equipment Manufacturer) specifications. These types will probably be virgin materials, although redistillation could produce a sufficiently pure product. Types EG-2 and PG-2 cover glycol that will be suitable for many coolants. These types can be either redistilled or virgin.
1.3 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
- Status
- Published
- Publication Date
- 31-Oct-2023
- Technical Committee
- D15 - Engine Coolants and Related Fluids
- Drafting Committee
- D15.07 - Specifications
Relations
- Effective Date
- 01-Nov-2023
Overview
ASTM D7713-18(2023) is the standard specification established by ASTM International for aqueous engine coolant grade glycol, specifically formulated at a nominal 53% concentration by volume. This standard details requirements for ethylene glycol and propylene glycol used in pre-diluted engine coolants, addressing both virgin and recycled sources. By defining physical and chemical properties, purity requirements, and testing methods, it ensures that coolants meet safety, performance, and compatibility parameters necessary for use in automotive and industrial applications.
The standard supports manufacturers, recyclers, and quality assurance professionals in producing and verifying glycol-based engine coolants that comply with Original Equipment Manufacturer (OEM) expectations.
Key Topics
Product Types:
- EG-1 and PG-1: High-purity, likely virgin glycols, suitable for most OEM specifications.
- EG-2 and PG-2: Virgin or redistilled glycols, suitable for many coolant applications.
Applicable Glycol Sources:
- Virgin glycols.
- Recycled vehicle engine coolants.
- Glycols from industrial recycling.
Quality Parameters:
- Clarity and color (Platinum-Cobalt scale).
- Relative density at 20/20°C.
- pH range.
- Minimum glycol content and limits on impurities.
- Freezing point and resistance to corrosion-related contaminants.
Testing Methods:
Includes references to validated ASTM and ISO test methods for determining chemical composition, acidity, metals content, freezing point, density, and more.Safety and Compliance:
- Only SI units are accepted as standard.
- Users are responsible for health, safety, and environmental practices.
- Regulatory compliance regarding packaging, labeling, and transport is required.
Applications
ASTM D7713-18(2023) provides essential specifications for a wide range of automotive and industrial applications:
- OEM Engine Coolants: Supports the formulation of engine coolants that comply with critical OEM requirements for long service life, corrosion resistance, and freeze protection.
- Recycled Coolant Production: Establishes requirements for recycling and redistilling glycol from used vehicle coolants or industrial byproducts, promoting sustainability.
- Quality Assurance: Used as a benchmark by manufacturers and quality-control laboratories to certify glycol blends prior to distribution.
- Regulatory Compliance: Ensures coolant products meet federal, state, and local transportation and labeling rules.
This specification serves coolant manufacturers, recyclers, automotive OEMs, and testing laboratories, facilitating consistent and reliable engine coolant performance across domestic and international markets.
Related Standards
ASTM D7713-18(2023) references several key testing and terminology standards, essential for conformity evaluation and product development:
- ASTM D1122, D4052, D5931: Measurement of density and relative density.
- ASTM D1177, D6660: Determination of freezing point.
- ASTM D1209: Color measurement.
- ASTM D1287: pH testing.
- ASTM D1613: Acidity determination.
- ASTM D3634, D5827: Analysis for chloride, sulfate, and anions.
- ASTM D6130: Elemental analysis (silicon, metals).
- ASTM E202: Glycol content analysis.
- ASTM D7736: Assay of acids and glycol esters.
- ASTM D4725: Terminology for engine coolants and related fluids.
- ASTM E300: Sampling of industrial chemicals.
Referencing these standards ensures accurate testing and consistent product quality for engine coolant grade glycol as specified in ASTM D7713-18(2023). For further details or purchasing information, consult the ASTM International website.
Get Certified
Connect with accredited certification bodies for this standard
ECOCERT
Organic and sustainability certification.
Eurofins Food Testing Global
Global leader in food, environment, and pharmaceutical product testing.
Intertek Bangladesh
Intertek certification and testing services in Bangladesh.
Sponsored listings
Frequently Asked Questions
ASTM D7713-18(2023) is a technical specification published by ASTM International. Its full title is "Standard Specification for Aqueous Engine Coolant Grade Glycol (53 % by Volume Nominal)". This standard covers: ABSTRACT This specification covers both commercial products, engine coolant grade ethylene glycol and propylene glycol, including virgin glycols and those derived from the recycling of vehicle engine coolants and industrial source glycols. Types EG-1 and PG-1, which will probably be virgin materials, cover glycols with sufficiently low limits on components to allow a blended coolant to meet most Original Equipment Manufacturer (OEM) specifications. Types EG-2 and PG-2, on the other hand, can be either redistilled or virgin. These cover glycol that will be suitable for many coolants. SCOPE 1.1 This specification covers both commercial products, engine coolant grade ethylene glycol and propylene glycol, including virgin glycols and those derived from the recycling of vehicle engine coolants and industrial source glycols. 1.2 Types EG-1 and PG-1 cover glycols with sufficiently low limits on components to allow a blended coolant to meet most OEM (Original Equipment Manufacturer) specifications. These types will probably be virgin materials, although redistillation could produce a sufficiently pure product. Types EG-2 and PG-2 cover glycol that will be suitable for many coolants. These types can be either redistilled or virgin. 1.3 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard. 1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. 1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
ABSTRACT This specification covers both commercial products, engine coolant grade ethylene glycol and propylene glycol, including virgin glycols and those derived from the recycling of vehicle engine coolants and industrial source glycols. Types EG-1 and PG-1, which will probably be virgin materials, cover glycols with sufficiently low limits on components to allow a blended coolant to meet most Original Equipment Manufacturer (OEM) specifications. Types EG-2 and PG-2, on the other hand, can be either redistilled or virgin. These cover glycol that will be suitable for many coolants. SCOPE 1.1 This specification covers both commercial products, engine coolant grade ethylene glycol and propylene glycol, including virgin glycols and those derived from the recycling of vehicle engine coolants and industrial source glycols. 1.2 Types EG-1 and PG-1 cover glycols with sufficiently low limits on components to allow a blended coolant to meet most OEM (Original Equipment Manufacturer) specifications. These types will probably be virgin materials, although redistillation could produce a sufficiently pure product. Types EG-2 and PG-2 cover glycol that will be suitable for many coolants. These types can be either redistilled or virgin. 1.3 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard. 1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. 1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
ASTM D7713-18(2023) is classified under the following ICS (International Classification for Standards) categories: 71.100.45 - Refrigerants and antifreezes. The ICS classification helps identify the subject area and facilitates finding related standards.
ASTM D7713-18(2023) has the following relationships with other standards: It is inter standard links to ASTM D7713-18. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
ASTM D7713-18(2023) is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

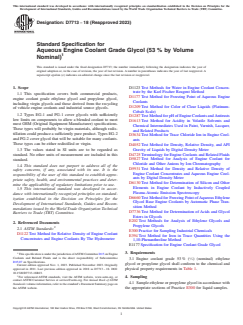

Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
Designation: D7713 − 18 (Reapproved 2023)
Standard Specification for
Aqueous Engine Coolant Grade Glycol (53 % by Volume
Nominal)
This standard is issued under the fixed designation D7713; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope D1123 Test Methods for Water in Engine Coolant Concen-
trate by the Karl Fischer Reagent Method
1.1 This specification covers both commercial products,
D1177 Test Method for Freezing Point of Aqueous Engine
engine coolant grade ethylene glycol and propylene glycol,
Coolants
including virgin glycols and those derived from the recycling
D1209 Test Method for Color of Clear Liquids (Platinum-
of vehicle engine coolants and industrial source glycols.
Cobalt Scale)
1.2 Types EG-1 and PG-1 cover glycols with sufficiently
D1287 Test Method for pH of Engine Coolants and Antirusts
low limits on components to allow a blended coolant to meet
D1613 Test Method for Acidity in Volatile Solvents and
most OEM (Original Equipment Manufacturer) specifications.
Chemical Intermediates Used in Paint, Varnish, Lacquer,
These types will probably be virgin materials, although redis-
and Related Products
tillation could produce a sufficiently pure product. Types EG-2
D3634 Test Method for Trace Chloride Ion in Engine Cool-
and PG-2 cover glycol that will be suitable for many coolants.
ants
These types can be either redistilled or virgin.
D4052 Test Method for Density, Relative Density, and API
Gravity of Liquids by Digital Density Meter
1.3 The values stated in SI units are to be regarded as
standard. No other units of measurement are included in this D4725 Terminology for Engine Coolants and Related Fluids
D5827 Test Method for Analysis of Engine Coolant for
standard.
Chloride and Other Anions by Ion Chromatography
1.4 This standard does not purport to address all of the
D5931 Test Method for Density and Relative Density of
safety concerns, if any, associated with its use. It is the
Engine Coolant Concentrates and Aqueous Engine Cool-
responsibility of the user of this standard to establish appro-
ants by Digital Density Meter
priate safety, health, and environmental practices and deter-
D6130 Test Method for Determination of Silicon and Other
mine the applicability of regulatory limitations prior to use.
Elements in Engine Coolant by Inductively Coupled
1.5 This international standard was developed in accor-
Plasma-Atomic Emission Spectroscopy
dance with internationally recognized principles on standard-
D6660 Test Method for Freezing Point of Aqueous Ethylene
ization established in the Decision on Principles for the
Glycol Base Engine Coolants by Automatic Phase Tran-
Development of International Standards, Guides and Recom-
sition Method
mendations issued by the World Trade Organization Technical
D7736 Test Method for Determination of Acids and Glycol
Barriers to Trade (TBT) Committee.
Esters in Glycols
E202 Test Methods for Analysis of Ethylene Glycols and
2. Referenced Documents
Propylene Glycols
2.1 ASTM Standards:
E300 Practice for Sampling Industrial Chemicals
D1122 Test Method for Relative Density of Engine Coolant
E394 Test Method for Iron in Trace Quantities Using the
Concentrates and Engine Coolants By The Hydrometer
1,10-Phenanthroline Method
E1177 Specification for Engine Coolant Grade Glycol
3. Requirements
This specification is under the jurisdiction of ASTM Committee D15 on Engine
Coolants and Related Fluids and is the direct responsibility of Subcommittee
v
3.1 Engine coolant grade 53 % ( ⁄v) (nominal) ethylene
D15.07 on Specifications.
glycol or propylene glycol shall conform to the chemical and
Current edition approved Nov. 1, 2023. Published November 2023. Originally
approved in 2011. Last previous edition approved in 2018 as D7713 – 18. DOI: physical property requirements in Table 1.
10.1520/D7713-18R23.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or 4.
...
