ASTM D7184-20

Standard Test Method for Ultra Low Nitrogen in Aromatic Hydrocarbons by Oxidative Combustion and Reduced Pressure Chemiluminescence Detection

SIGNIFICANCE AND USE
5.1 This test method is useful to detect and quantify nitrogen-containing compounds at a concentration of 0.1 to 1.2 mg N/kg in light aromatic hydrocarbons used or produced in manufacturing process. These nitrogen-containing compounds are undesirable in finished aromatic products and may be used in setting specification for determining the total nitrogen content in aromatic hydrocarbons.
5.2 This test method requires the use of reduced pressure at the detector. Loss of vacuum or pressure fluctuations impact the sensitivity of the detector and the ability to determine nitrogen concentrations less than 1 mg N/kg.
SCOPE
1.1 This test method covers the determination of total nitrogen in aromatic hydrocarbons, such as benzene, toluene, and xylene.
1.2 This test method is applicable to samples with nitrogen concentrations up to 1.2 mg/kg. The Limit of Detection (LOD) is 0.04 mg/kg N and the Limit of Quantitation (LOQ) is 0.13 mg/kg N. For higher nitrogen concentrations refer to Test Method D4629. With careful analytical technique, this method can be used to successfully analyze concentrations below the current scope (see Appendix X1).
Note 1: LOD and LOQ were calculated using data in ASTM Research Report RR:D16-1044.
1.3 In determining the conformance of the test results using this method to applicable specifications; results shall be rounded off in accordance with the rounding-off method of Practice E29.
1.4 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.5 This standard does not purport to address all of the safety concerns, if any associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. For specific hazard statements, see Section 9.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

General Information

• Status: Published
• Publication Date: 31-May-2020
• ICS: 71.080.15 - Aromatic hydrocarbons
• Technical Committee: D16 - Aromatic, Industrial, Specialty and Related Chemicals
• Drafting Committee: D16.04 - Instrumental Analysis

Relations

• Replaces: ASTM D7184-19 - Standard Test Method for Ultra Low Nitrogen in Aromatic Hydrocarbons by Oxidative Combustion and Reduced Pressure Chemiluminescence Detection
• Effective Date: 01-Jun-2020
• Refers: ASTM D6809-02(2016) - Standard Guide for Quality Control and Quality Assurance Procedures for Aromatic Hydrocarbons and Related Materials
• Effective Date: 01-Nov-2016
• Refers: ASTM E691-13 - Standard Practice for Conducting an Interlaboratory Study to Determine the Precision of a Test Method
• Effective Date: 01-May-2013
• Refers: ASTM E691-11 - Standard Practice for Conducting an Interlaboratory Study to Determine the Precision of a Test Method
• Effective Date: 01-Nov-2011
• Refers: ASTM D3437-11 - Standard Practice for Sampling and Handling Liquid Cyclic Products
• Effective Date: 01-Jan-2011
• Refers: ASTM D4629-10 - Standard Test Method for Trace Nitrogen in Liquid Petroleum Hydrocarbons by Syringe/Inlet Oxidative Combustion and Chemiluminescence Detection
• Effective Date: 01-Jul-2010
• Refers: ASTM D3437-10 - Standard Practice for Sampling and Handling Liquid Cyclic Products
• Effective Date: 01-Jun-2010
• Refers: ASTM D4629-09 - Standard Test Method for Trace Nitrogen in Liquid Petroleum Hydrocarbons by Syringe/Inlet Oxidative Combustion and Chemiluminescence Detection
• Effective Date: 15-Apr-2009
• Refers: ASTM E691-08 - Standard Practice for Conducting an Interlaboratory Study to Determine the Precision of a Test Method
• Effective Date: 01-Oct-2008
• Refers: ASTM E29-08 - Standard Practice for Using Significant Digits in Test Data to Determine Conformance with Specifications
• Effective Date: 01-Oct-2008
• Refers: ASTM D4629-08 - Standard Test Method for Trace Nitrogen in Liquid Petroleum Hydrocarbons by Syringe/Inlet Oxidative Combustion and Chemiluminescence Detection
• Effective Date: 01-Jul-2008
• Refers: ASTM D3437-08 - Standard Practice for Sampling and Handling Liquid Cyclic Products
• Effective Date: 01-Jun-2008
• Refers: ASTM D6809-02(2007) - Standard Guide for Quality Control and Quality Assurance Procedures for Aromatic Hydrocarbons and Related Materials
• Effective Date: 01-Jun-2007
• Refers: ASTM D4629-02(2007) - Standard Test Method for Trace Nitrogen in Liquid Petroleum Hydrocarbons by Syringe/Inlet Oxidative Combustion and Chemiluminescence Detection
• Effective Date: 01-May-2007
• Refers: ASTM E29-06b - Standard Practice for Using Significant Digits in Test Data to Determine Conformance with Specifications
• Effective Date: 15-Nov-2006

Overview

ASTM D7184-20 is the international standard test method that specifies procedures for determining ultra low nitrogen content in aromatic hydrocarbons, including benzene, toluene, and xylene. Utilizing oxidative combustion combined with reduced pressure chemiluminescence detection, this method enables sensitive detection and quantification of nitrogen-containing compounds at concentrations ranging from 0.1 to 1.2 mg N/kg. The presence of nitrogen compounds in aromatic hydrocarbons is undesirable in finished products, making this standard essential for quality control and specification compliance in manufacturing processes.

Key Topics

• Analytical Range: Detects total nitrogen in light aromatic hydrocarbons with concentrations from 0.1 to 1.2 mg N/kg. The method's Limit of Detection (LOD) is 0.04 mg N/kg, and the Limit of Quantitation (LOQ) is 0.13 mg N/kg.
• Testing Methodology: Involves injecting a sample into a high-temperature furnace for oxidative combustion, where nitrogen compounds are converted to nitric oxide (NO). Chemiluminescence detection at reduced pressure increases sensitivity, enabling trace analysis.
• Interferences: High halogen content (above 10% by weight) and moisture can interfere with the test results. Sample and reagent purity, as well as proper sample handling, are vital to avoid contamination and ensure accurate analysis.
• Calibration and Quality Control: Emphasizes calibration using gravimetrically prepared standards and the importance of regular quality assurance and instrument validation according to established protocols.
• SI Units: All results are reported in SI units, ensuring international consistency and comparability.

Applications

• Aromatic Hydrocarbons Manufacturing: Used to screen and control nitrogen content in key process intermediates and finished products, including benzene, toluene, and xylene. Helps manufacturers meet product specifications and industry standards.
• Quality Assurance: Critical for setting and verifying specifications for total nitrogen content in light aromatic hydrocarbons, ensuring compliance with environmental and market requirements.
• Regulatory Compliance: Supports adherence to global regulatory standards, including environmental and safety regulations related to nitrogenous impurities in petrochemicals.
• Laboratory Testing: Ideal for laboratory environments requiring detection of trace levels of nitrogen. The standard's procedures support repeatable and reproducible results, vital for inter-laboratory studies.

Related Standards

• ASTM D4629: For measuring higher nitrogen concentrations in liquid hydrocarbons by syringe/inlet oxidative combustion and chemiluminescence detection.
• ASTM D3437: Practice for sampling and handling of liquid cyclic products.
• ASTM D6809: Guide for quality control and assurance procedures for aromatic hydrocarbons and related materials.
• ASTM E29: Practice for using significant digits in test data to determine conformance with specifications.
• ASTM E691: Practice for conducting interlaboratory studies to determine test method precision.

Practical Value

ASTM D7184-20 is vital for chemical producers, testing laboratories, and quality control personnel involved in the production and certification of aromatic hydrocarbons. By enabling the accurate detection of ultra low levels of nitrogen compounds, it ensures product purity, supports regulatory compliance, and protects end-use applications where even trace nitrogen can lead to product degradation or process complications. The standard underscores the importance of rigorous calibration, sample handling, and adherence to best laboratory practices-ensuring reliable, repeatable, and internationally recognized results.

Keywords: ASTM D7184-20, ultra low nitrogen detection, aromatic hydrocarbons, oxidative combustion, chemiluminescence detection, benzene, toluene, xylene, nitrogen analysis, quality control standards.

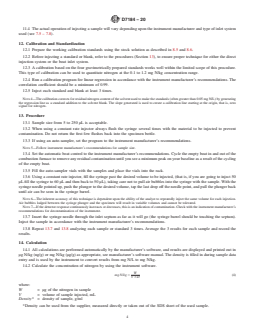

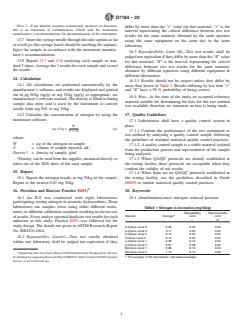

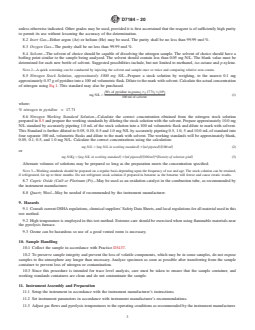

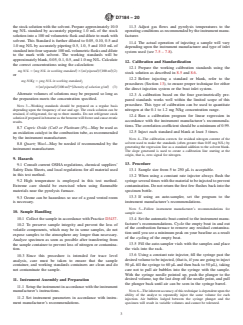

Standards Content (Sample)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
Designation: D7184 − 20
Standard Test Method for
Ultra Low Nitrogen in Aromatic Hydrocarbons by Oxidative
Combustion and Reduced Pressure Chemiluminescence
Detection
This standard is issued under the fixed designation D7184; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope* 2. Referenced Documents
2.1 ASTM Standards:
1.1 This test method covers the determination of total
D3437 Practice for Sampling and Handling Liquid Cyclic
nitrogen in aromatic hydrocarbons, such as benzene, toluene,
Products
and xylene.
D4629 Test Method for Trace Nitrogen in Liquid Hydrocar-
1.2 This test method is applicable to samples with nitrogen
bons by Syringe/Inlet Oxidative Combustion and Chemi-
concentrations up to 1.2 mg/kg. The Limit of Detection (LOD)
luminescence Detection
is 0.04 mg/kg N and the Limit of Quantitation (LOQ) is 0.13
D6809 Guide for Quality Control and Quality Assurance
mg/kg N. For higher nitrogen concentrations refer to Test
Procedures for Aromatic Hydrocarbons and Related Ma-
Method D4629. With careful analytical technique, this method
terials
can be used to successfully analyze concentrations below the
E29 Practice for Using Significant Digits in Test Data to
current scope (see Appendix X1).
Determine Conformance with Specifications
NOTE 1—LOD and LOQ were calculated using data inASTM Research
E691 Practice for Conducting an Interlaboratory Study to
Report RR:D16-1044.
Determine the Precision of a Test Method
1.3 In determining the conformance of the test results using 2.2 Other Documents:
this method to applicable specifications; results shall be OSHA Regulations, 29 CFR paragraphs 1910. 1000 and
rounded off in accordance with the rounding-off method of 1910.1200
Practice E29.
3. Terminology
1.4 The values stated in SI units are to be regarded as
3.1 Definitions:
standard. No other units of measurement are included in this
3.1.1 oxidative pyrolysis, n—a process in which a sample
standard.
undergoes combustion in an oxygen rich environment at
1.5 This standard does not purport to address all of the
temperatures greater than 900°C.
safety concerns, if any associated with its use. It is the
3.1.2 pyrolytic decomposition, n—combusting a compound
responsibility of the user of this standard to establish appro-
to decompose it to carbon dioxide, water and elemental oxides.
priate safety, health, and environmental practices and deter-
3.1.3 reduced pressure chemiluminescence, n—a chemical
mine the applicability of regulatory limitations prior to use.
reaction at pressure less than 760 mm mercury (Hg) in which
For specific hazard statements, see Section 9.
light is emitted.
1.6 This international standard was developed in accor-
dance with internationally recognized principles on standard-
4. Summary of Test Method
ization established in the Decision on Principles for the
Development of International Standards, Guides and Recom- 4.1 A specimen is introduced into a carrier gas stream, at a
mendations issued by the World Trade Organization Technical controlled rate, and incorporated into a high temperature
Barriers to Trade (TBT) Committee. furnace (900 to 1150°C) where an excess of oxygen is added.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
This test method is under the jurisdiction of ASTM Committee D16 on contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM
Aromatic, Industrial, Specialty and Related Chemicals and is the direct responsi- Standards volume information, refer to the standard’s Document Summary page on
bility of Subcommittee D16.04 on Instrumental Analysis. the ASTM website.
Current edition approved June 1, 2020. Published June 2020. Originally AvailablefromU.S.GovernmentPrintingOfficeSuperintendentofDocuments,
approved in 2007. Last previous edition approved in 2019 as D7184 – 19. DOI: 732 N. Capitol St., NW, Mail Stop: SDE, Washington, DC 20401, http://
10.1520/D7184-20. www.access.gpo.gov.
*A Summary of Changes section appears at the end of this standard
