ASTM E1793-00

Standard Practice for Preparation of Aluminum Alloy for Bonding in Foam and Beam Type Transportable Shelters

SCOPE
1.1 This practice covers the preparation of clean, uniform surfaces of aluminum alloy suitable for formation of durable adhesive bonds in "foam and beam" panels used for the manufacture of tactical shelters.
1.2  This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory limitations prior to use.

General Information

• Status: Historical
• Publication Date: 09-Dec-2000
• ICS: 25.220.10 - Surface preparation
• ICS: 77.120.10 - Aluminium and aluminium alloys
• Technical Committee: E06 - Performance of Buildings
• Drafting Committee: E06.53 - Materials and Processes for Durable Rigidwall Relocatable Structures

Relations

• Replaced By: ASTM E1793-05 - Standard Practice for Preparation of Aluminum Alloy for Bonding in Foam and Beam Type Transportable Shelters
• Effective Date: 01-Oct-2005
• Referred By: ASTM E1801-21 - Standard Practice for Adhesive Bonding of Aluminum Facings in Foam and Beam Type Shelters
• Effective Date: 10-Dec-2000

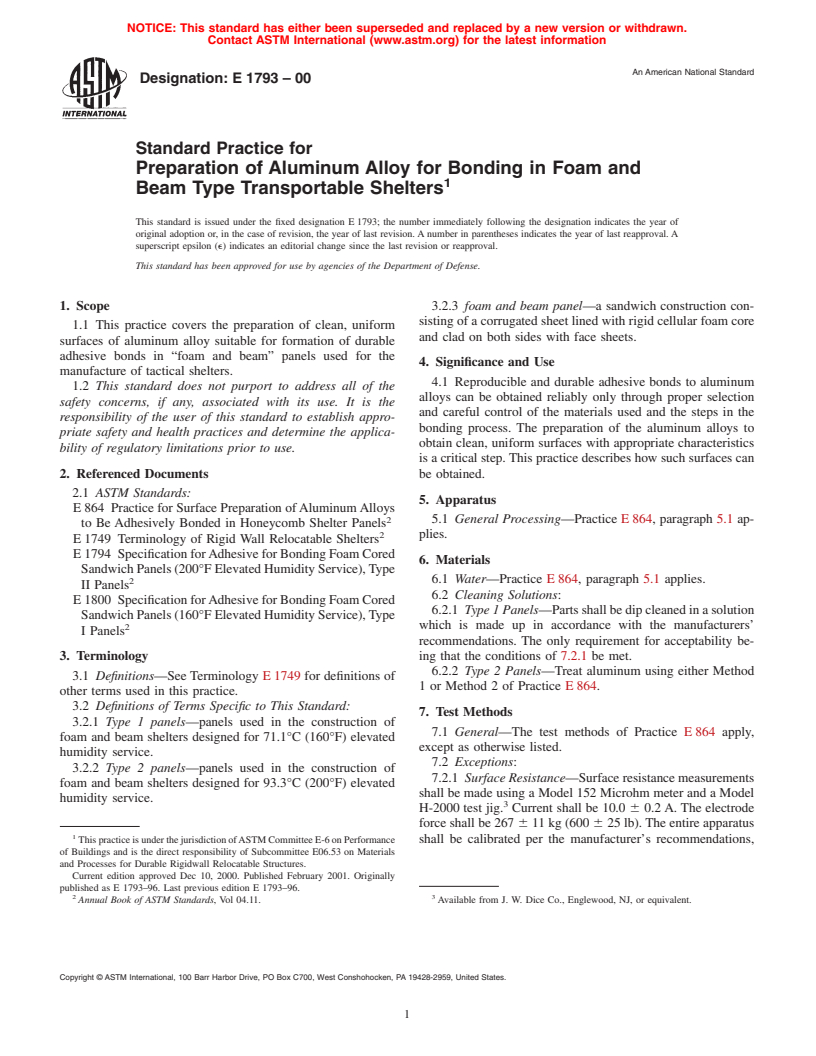

Standards Content (Sample)

NOTICE: This standard has either been superseded and replaced by a new version or withdrawn.
Contact ASTM International (www.astm.org) for the latest information
An American National Standard
Designation:E1793–00
Standard Practice for
Preparation of Aluminum Alloy for Bonding in Foam and
Beam Type Transportable Shelters
This standard is issued under the fixed designation E 1793; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (e) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the Department of Defense.
1. Scope 3.2.3 foam and beam panel—a sandwich construction con-
sisting of a corrugated sheet lined with rigid cellular foam core
1.1 This practice covers the preparation of clean, uniform
and clad on both sides with face sheets.
surfaces of aluminum alloy suitable for formation of durable
adhesive bonds in “foam and beam” panels used for the
4. Significance and Use
manufacture of tactical shelters.
4.1 Reproducible and durable adhesive bonds to aluminum
1.2 This standard does not purport to address all of the
alloys can be obtained reliably only through proper selection
safety concerns, if any, associated with its use. It is the
and careful control of the materials used and the steps in the
responsibility of the user of this standard to establish appro-
bonding process. The preparation of the aluminum alloys to
priate safety and health practices and determine the applica-
obtain clean, uniform surfaces with appropriate characteristics
bility of regulatory limitations prior to use.
is a critical step. This practice describes how such surfaces can
2. Referenced Documents be obtained.
2.1 ASTM Standards:
5. Apparatus
E 864 Practice for Surface Preparation ofAluminumAlloys
5.1 General Processing—Practice E 864, paragraph 5.1 ap-
to Be Adhesively Bonded in Honeycomb Shelter Panels
2 plies.
E 1749 Terminology of Rigid Wall Relocatable Shelters
E 1794 Specification forAdhesive for Bonding Foam Cored
6. Materials
SandwichPanels(200°FElevatedHumidityService),Type
2 6.1 Water—Practice E 864, paragraph 5.1 applies.
II Panels
6.2 Cleaning Solutions:
E 1800 Specification forAdhesive for Bonding Foam Cored
6.2.1 Type 1 Panels—Partsshallbedipcleanedinasolution
SandwichPanels(160°FElevatedHumidityService),Type
which is made up in accordance with the manufacturers’
I Panels
recommendations. The only requirement for acceptability be-
ing that the conditions of 7.2.1 be met.
3. Terminology
6.2.2 Type 2 Panels—Treat aluminum using either Method
3.1 Definitions—See Terminology E 1749 for definitions of
1 or Method 2 of Practice E 864.
other terms used in this practice.
3.2 Definitions of Terms Specific to This Standard:
7. Test Methods
3.2.1 Type 1 panels—panels used in the construction of
7.1 General—The test methods of Practice E 864 apply,
foam and beam shelters designed for 71.1°C (160°F) elevated
except as otherwise listed.
humidity service.
7.2 Exceptions:
3.2.2 Type 2 panels—panels used in the construction of
7.2.1 Surface Resistance—Surface resistance measurements
foam and beam shelters designed for 93.3°C (200°F) elevated
shall be made using a Model 152 Microhm meter and a Model
humidity service.
H-2000 test jig. Current shall be 10.0 6 0.2 A. The electrode
force shall be 267 6 11 kg (600 6 25 lb). The entire apparatus
ThispracticeisunderthejurisdictionofASTMCommitteeE-6onPerformance shall be calibrated per the manufacturer’s recommendations,
of Buildings and is the direct responsibility of Subcommittee E06.53 on Materials
and Processes for Durable Rigidwall Relocatable Structures.
Current edition approved Dec 10, 2000. Published February 2001. Originally
published as E 1793–96. Last previous edition E 1793–96.
2 3
Annual Book of ASTM Standards, Vol 04.11. Available from J. W. Dice Co., Englewood, NJ, or equivalent.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959, United States.
E1793–00
and at least once every week inspect the electrode tips for with the manufacturer’s recommendations or in accordance
deterioration and wear. with the requirements of Practice E 864. Daily titration and
7.2.2 Physical Strength Test—The adequacy for preparing
temperature readings shall be taken to determine complian
...
