iTeh StandardsiTeh Standards
EURUSD
Your shopping cart is empty.
ASTM

ASTM C886-98

(Test Method)

Standard Test Method for Scleroscope Hardness Testing of Carbon and Graphite Materials

Standard Test Method for Scleroscope Hardness Testing of Carbon and Graphite Materials

SCOPE
1.1 This test method covers the apparatus and procedures for determining the hardness of fine-grained carbon and graphite materials using the Model C-2 scleroscope  with the hammer calibrated for use on fine-grained (particles smaller than 0.8 mm (0.032 in.)) carbon and graphite materials.
1.2 The values given in acceptable metric units are to be regarded as the standard. The values given in parentheses are provided for information purposes only.
1.3 This standard does not purport to address all of the safety problems, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory limitations prior to use.

General Information

Status
Historical
Publication Date
09-Mar-1998
ICS
71.100.99 - Other products of the chemical industry
Technical Committee
D02 - Petroleum Products, Liquid Fuels, and Lubricants
Drafting Committee
D02.F0 - Manufactured Carbon and Graphite Products
Current Stage
Ref Project

Relations

Replaced By
ASTM C886-98(2005) - Standard Test Method for Scleroscope Hardness Testing of Carbon and Graphite Materials
Effective Date
01-May-2005
Referred By
ASTM D7775-21 - Standard Guide for Measurements on Small Graphite Specimens
Effective Date
10-Mar-1998

Buy Standard

ASTM C886-98 - Standard Test Method for Scleroscope Hardness Testing of Carbon and Graphite MaterialsASTM C886-98 - Standard Test Method for Scleroscope Hardness Testing of Carbon and Graphite Materials
PreviousNext
Standard
ASTM C886-98 - Standard Test Method for Scleroscope Hardness Testing of Carbon and Graphite Materials
English language
2 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)


NOTICE: This standard has either been superseded and replaced by a new version or withdrawn.
Contact ASTM International (www.astm.org) for the latest information
An American National Standard

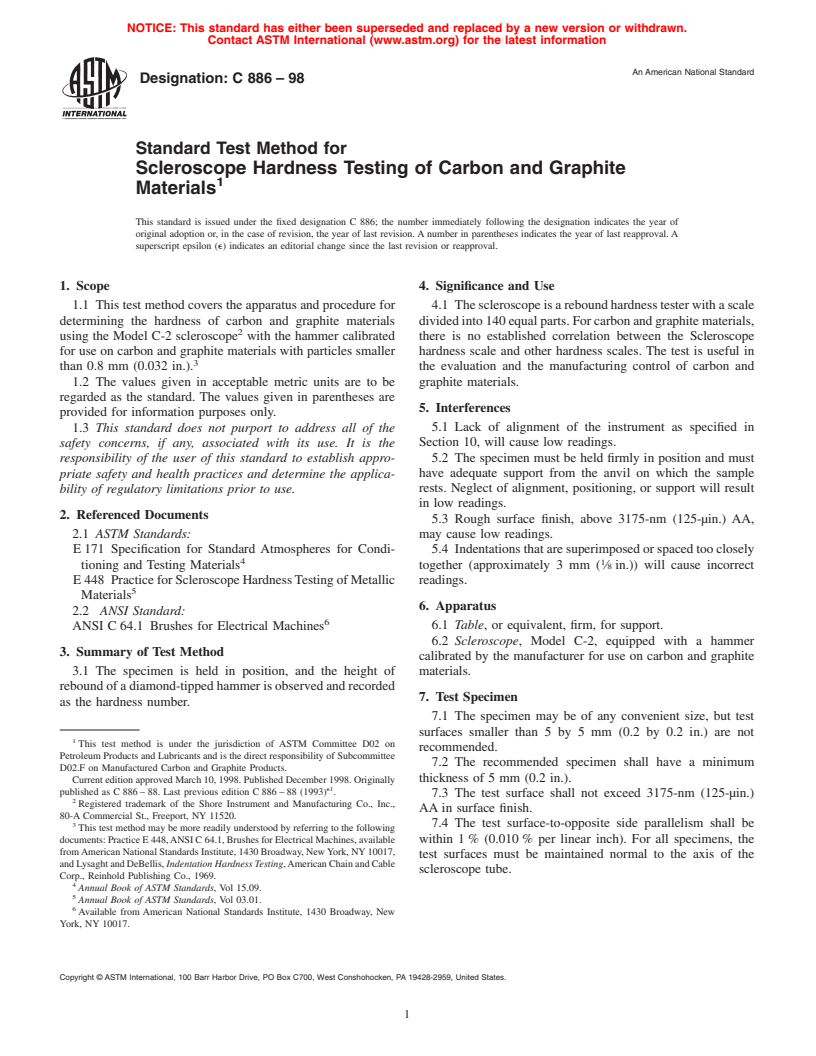

Designation:C 886–98
Standard Test Method for
Scleroscope Hardness Testing of Carbon and Graphite
Materials
This standard is issued under the fixed designation C 886; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (e) indicates an editorial change since the last revision or reapproval.
1. Scope 4. Significance and Use
1.1 This test method covers the apparatus and procedure for 4.1 Thescleroscopeisareboundhardnesstesterwithascale
determining the hardness of carbon and graphite materials dividedinto140equalparts.Forcarbonandgraphitematerials,
using the Model C-2 scleroscope with the hammer calibrated there is no established correlation between the Scleroscope
for use on carbon and graphite materials with particles smaller hardness scale and other hardness scales. The test is useful in
than 0.8 mm (0.032 in.). the evaluation and the manufacturing control of carbon and
1.2 The values given in acceptable metric units are to be graphite materials.
regarded as the standard. The values given in parentheses are
5. Interferences
provided for information purposes only.
1.3 This standard does not purport to address all of the 5.1 Lack of alignment of the instrument as specified in
Section 10, will cause low readings.
safety concerns, if any, associated with its use. It is the
responsibility of the user of this standard to establish appro- 5.2 The specimen must be held firmly in position and must
have adequate support from the anvil on which the sample
priate safety and health practices and determine the applica-
bility of regulatory limitations prior to use. rests. Neglect of alignment, positioning, or support will result
in low readings.
2. Referenced Documents
5.3 Rough surface finish, above 3175-nm (125-µin.) AA,
2.1 ASTM Standards: may cause low readings.
E 171 Specification for Standard Atmospheres for Condi- 5.4 Indentationsthataresuperimposedorspacedtooclosely
tioning and Testing Materials together (approximately 3 mm ( ⁄8 in.)) will cause incorrect
E 448 PracticeforScleroscopeHardnessTestingofMetallic readings.
Materials
6. Apparatus
2.2 ANSI Standard:
6.1 Table, or equivalent, firm, for support.
ANSI C 64.1 Brushes for Electrical Machines
6.2 Scleroscope, Model C-2, equipped with a hammer
3. Summary of Test Method
calibrated by the manufacturer for use on carbon and graphite
3.1 The specimen is held in position, and the height of materials.
reboundofadiamond-tippedhammerisobservedandrecorded
7. Test Specimen
as the hardness number.
7.1 The specimen may be of any convenient size, but test
surfaces smaller than 5 by 5 mm (0.2 by 0.2 in.) are not
This test method is under the jurisdiction of ASTM Committee D02 on
recommended.
Petroleum Products and Lubricants and is the direct responsibility of Subcommittee
7.2 The recommended specimen shall have a minimum
D02.F on Manufactured Carbon and Graphite Products.
thickness of 5 mm (0.2 in.).
Current edition approved March 10, 1998. Published December 1998. Originally
e1
published as C 886 – 88. Last previous edition C 886 – 88 (1993) .
7.3 The test surface shall not exceed 3175-nm (125-µin.)
Registered trademark of the Shore Instrument and Manufacturing Co., Inc.,
AA in surface finish.
80-A Commercial St., Freeport, NY 11520.
3 7.4 The test surface-to-opposite side parallelism shall be
This test method may be more readily understood by referring to the following
documents:PracticeE 448,ANSIC 64.1,BrushesforElectricalMachines,available within 1 % (0.010 % per linear inch). For all specimens, the
fromAmerican National Standards Institute, 1430 Broadway, NewYork, NY10017,
test surfaces must be maintained normal to the axis of the
andLysaghtandDeBellis,IndentationHardnessTesting,AmericanChainandCable
scleroscope tube.
Corp., Reinhold Publishing Co., 1969.
Annual Book
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.

This May Also Interest You

ASTM
ASTM C886-21(Test Method)
Standard Test Method for Scleroscope Hardness Testing of Carbon and Graphite Materials

SIGNIFICANCE AND USE
5.1 The scleroscope is a rebound hardness tester with a scale divided into 140 equal parts. For carbon and graphite materials, there is no established correlation between the Scleroscope hardness scale and other hardness scales. The test is useful in the evaluation and the manufacturing control of carbon and graphite materials.
SCOPE
1.1 This test method covers the apparatus and procedure for determining the hardness of carbon and graphite materials using the Model C-2 scleroscope2 with the hammer calibrated for use on carbon and graphite materials with particles smaller than 0.8 mm.3
1.2 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    3 pages
    English language
    sale 15% off
  • Standard
    3 pages
    English language
    sale 15% off
ASTM
ASTM C611-21(Test Method)
Standard Test Method for Electrical Resistivity of Manufactured Carbon and Graphite Articles at Room Temperature

SIGNIFICANCE AND USE
3.1 This test method provides a means of determining the electrical resistivity of carbon or graphite specimens. The use of specimens that do not conform to the specimen size limitations described in the test method may result in an alteration of test method accuracy.
SCOPE
1.1 This test method covers the determination of the electrical resistivity of manufactured carbon and graphite articles at room temperature.
1.2 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    5 pages
    English language
    sale 15% off
  • Standard
    5 pages
    English language
    sale 15% off
ASTM
ASTM D6743-20(Test Method)
Standard Test Method for Thermal Stability of Organic Heat Transfer Fluids

SIGNIFICANCE AND USE
5.1 Heat transfer fluids degrade when exposed to sufficiently high temperatures. The amount of degradation increases as the temperature increases or the length of exposure increases, or both. Due to reactions and rearrangement, degradation products can be formed. Degradation products include high and low boiling components, gaseous decomposition products, and products that cannot be evaporated. The type and content of degradation products produced will change the performance characteristics of a heat transfer fluid. In order to evaluate thermal stability, it is necessary to quantitatively determine the mass percentages of high and low boiling components, as well as gaseous decomposition products and those that cannot be vaporized, in the thermally stressed heat transfer fluid.
5.2 This test method differentiates the relative stability of organic heat transfer fluids at elevated temperatures in the absence of oxygen and water under the conditions of the test.
5.3 The user shall determine to his own satisfaction whether the results of this test method correlate to field performance. Heat transfer fluids in industrial plants are exposed to a variety of additional influencing variables. Interaction with the plant's materials, impurities, heat build-up during impaired flow conditions, the temperature distribution in the heat transfer fluid circuit, and other factors can also lead to changes in the heat transfer fluid. The test method provides an indication of the relative thermal stability of a heat transfer fluid, and can be considered as one factor in the decision-making process for selection of a fluid.
5.4 The accuracy of the results depends very strongly on how closely the test conditions are followed.
5.5 This test method does not possess the capability to quantify or otherwise assess the formation and nature of thermal decomposition products within the unstressed fluid boiling range. Decomposition products within the unstressed fluid boiling range may ...
SCOPE
1.1 This test method covers the determination of the thermal stability of unused organic heat transfer fluids. The procedure is applicable to fluids used for the transfer of heat at temperatures both above and below their boiling point (refers to normal boiling point throughout the text unless otherwise stated). It is applicable to fluids with maximum bulk operating temperature between 260 °C (500 °F) and 454 °C (850 °F). The procedure shall not be used to test a fluid above its critical temperature. In this test method, the volatile decomposition products are in continuous contact with the fluid during the test. This test method will not measure the thermal stability threshold (the temperature at which volatile oil fragments begin to form), but instead will indicate bulk fragmentation occurring for a specified temperature and testing period. Because potential decomposition and generation of high pressure gas may occur at temperatures above 260 °C (500 °F), do not use this test method for aqueous fluids or other fluids which generate high-pressure gas at these temperatures.
1.2 DIN Norm 51528 and GB/T 23800 cover other test methods that are similar to this test method.
1.3 The applicability of this test method to siloxane-based heat transfer fluids has not been determined.
1.4 The values stated in SI units are to be regarded as standard. The values given in parentheses are for information only.
1.5 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. For specific warning statements, see 7.2, 8.8, 8.9, and 8.10.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Prin...

  • Standard
    5 pages
    English language
    sale 15% off
  • Standard
    5 pages
    English language
    sale 15% off
ASTM
ASTM C1039-85(2020)e1(Test Method)
Standard Test Methods for Apparent Porosity, Apparent Specific Gravity, and Bulk Density of Graphite Electrodes

SIGNIFICANCE AND USE
3.1 The results of these test methods can be used as a quality control or quality assurance check of electrodes either during their manufacture or at the user's location. The results of these methods tend to be operator-sensitive; therefore, care must be taken in the execution of the test in order to obtain reproducible results.
SCOPE
1.1 These test methods cover the determination of apparent porosity, apparent specific gravity, and bulk density of cores taken from graphite electrodes manufactured for use in electric arc furnaces. (See also C559 and C838.)
1.2 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.3 This standard does not purport to address the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    3 pages
    English language
    sale 15% off
ASTM
ASTM C769-15(2020)e1(Test Method)
Standard Test Method for Sonic Velocity in Manufactured Carbon and Graphite Materials for Use in Obtaining an Approximate Value of Young's Modulus

SIGNIFICANCE AND USE
5.1 Sonic velocity measurements are useful for comparing materials with similar elastic properties, dimensions, and microstructure.
5.2 Eq 1 provides an accurate value of Young’s modulus only for isotropic, non-attenuative, and non-dispersive materials of infinite dimensions. For non-isotropic graphite, Eq 1 can be modified to take into account the Poisson’s ratios in all directions. As graphite is a strongly attenuative material, the value of Young’s modulus obtained with Eq 1 will be dependent on specimen length. If the specimen lateral dimensions are not large compared to the wavelength of the propagated pulse, then the value of Young’s modulus obtained with Eq 1 will be dependent on the specimen lateral dimensions. The accuracy of the Young's modulus calculated from Eq 1 will also depend upon the uncertainty in Poisson's ratio and its impact on the evaluation of the Poisson's factor in Eq 2. However, a value for Young's modulus can be obtained for many applications, which is often in good agreement with the value obtained by other more accurate methods, such as in Test Method C747. The technical issues and typical values of corresponding uncertainties are discussed in detail in STP 1578.5
5.3 If the grain size of the carbon or graphite is greater than or about equal to the wavelength of the sonic pulse, the method may not be providing a value of Young’s modulus representative of the bulk material. Therefore, it would be recommended to test a lower frequency (longer wavelength) to demonstrate that the range of obtained velocity values are within an acceptable level of accuracy. Significant signal attenuation should be expected when the grain size of the material is greater than or about equal to the wavelength of the transmitted sonic pulse or the material is more porous than would be expected for an as-manufactured graphite.
Note 1: Due to frequency dependent attenuation in graphite, the wavelength of the sonic pulse through the test specimen is not nec...
SCOPE
1.1 This test method covers a procedure for measuring the sonic velocity in manufactured carbon and graphite which can be used to obtain an approximate value of Young's modulus.
1.2 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    6 pages
    English language
    sale 15% off
ASTM
ASTM D8356-20(Test Method)
Standard Test Method for Sonic Velocity in Manufactured Carbons and Graphite Materials for use in Obtaining Approximate Elastic Constants: Young’s Modulus, Shear Modulus, and Poisson’s Ratio

SIGNIFICANCE AND USE
5.1 Sonic velocity measurements are useful for comparing materials with similar elastic properties, dimensions, and microstructure.
5.2 Eq 1 provides an accurate value of Young’s modulus only for isotropic, non-attenuative, non-dispersive materials of infinite dimensions. For non-isotropic graphite Eq 1 can be modified to take into account the Poisson’s ratios in all directions. As graphite is a strongly attenuative material, the value of Young’s modulus obtained with Eq 1 will be dependent on specimen length. If the specimen lateral dimensions are not large compared with the wavelength of the propagated pulse, then the value of Young’s modulus obtained with Eq 1 will be dependent on the specimen lateral dimensions. The accuracy of the Young’s modulus calculated from Eq 1 will also depend upon uncertainty in Poisson’s ratio and its impact on the evaluation of the Poisson’s factor in Eq 2. However, a value for Young’s modulus Eq 1 or Eq 7) can be obtained for many applications, which is often in good agreement with the value obtained by other more accurate methods, such as in Test Method C747. The technical issues and typical values of corresponding uncertainties are discussed in detail in STP 1578.6
5.3 If the grain size of the carbon or graphite is greater than or about equal to the wavelength of the sonic pulse, the method may not provide a value of the Young’s modulus representative of the bulk material. Therefore it would be desirable to test a lower frequency (longer wavelength) to demonstrate that the range of obtained velocity values are within acceptable levels of accuracy. Significant signal attenuation should be expected when grain size of the material is greater than or about equal to the wavelength of the transmitted sonic pulse or the material is more porous than would be expected for as-manufactured graphite.
Note 1: Due to frequency dependent attenuation in graphite, the wavelength of the sonic pulse through the test specimen is not necessaril...
SCOPE
1.1 This test method covers a procedure for measuring the longitudinal and transverse (shear) sonic velocities in manufactured carbon and graphite which can be used to obtain approximate values for the elastic constants: Young’s modulus (E), the shear modulus (G), and Poisson’s ratio (v).
1.2 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    8 pages
    English language
    sale 15% off
ASTM
ASTM C783-85(2020)(Practice)
Standard Practice for Core Sampling of Graphite Electrodes

SIGNIFICANCE AND USE
4.1 Core sampling is an acceptable way of obtaining a test specimen without destroying the usefulness of the electrode.
4.1.1 Test specimens obtained by this practice can be used by producers and users of graphite electrodes for the purpose of conducting the tests in Note 1 to obtain comparative physical properties.
4.2 This practice may not provide a test specimen of the appropriate size (with respect to particle size/sample dimension ratios) to allow the determination of absolute property values.
SCOPE
1.1 This practice was developed for electric-arc furnace graphite electrodes, and covers a procedure and equipment for obtaining core samples from electrodes in a manner that does not destroy the electrode nor prevent its subsequent use as originally intended. However, the minimum electrode diameter, for which extraction of a core sample using this practice does not influence subsequent use, is influenced by the particular application and must be determined by the user. Graphite electrodes for use in electric arc furnaces are usually solid cylinders of graphite with threaded sockets machined in each end.
1.2 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
Note 1: The following ASTM standards are noted as sources of useful information: Test Methods C559, C611, C651, C747, C1025, and C1039.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    2 pages
    English language
    sale 15% off
ASTM
ASTM C651-20(Test Method)
Standard Test Method for Flexural Strength of Manufactured Carbon and Graphite Articles Using Four-Point Loading at Room Temperature

ABSTRACT
This test method details the standard procedures for determining the flexural strength of manufactured carbon and graphite articles using a simple beam in four-point loading at room temperature. The four-point loading fixture shall consist of spherical bearing blocks of hardened steel or its equivalent to ensure that forces applied to the beam are normal only and without eccentricity, and distortion of the loading member is prevented. Judicious use of linkages, rocker bearings, and flexure plates may maintain the parallel direction of loads and reactions. The test specimens shall be prepared to yield a parallelepiped with cross sections that are rectangular, faces that are parallel and flat, and edges that are free from visible flaws and chips.
SIGNIFICANCE AND USE
4.1 This test method may be used for material development, quality control, characterization, and design data generation purposes.
4.2 This test method determines the maximum loading on a graphite specimen with simple beam geometry in 4-point bending, and it provides a means for the calculation of flexural strength at ambient temperature and environmental conditions.
SCOPE
1.1 This test method covers determination of the flexural strength of manufactured carbon and graphite articles using a simple beam in four-point loading at room temperature.
1.2 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    4 pages
    English language
    sale 15% off
  • Standard
    4 pages
    English language
    sale 15% off
ASTM
ASTM D7972-14(2020)(Test Method)
Standard Test Method for Flexural Strength of Manufactured Carbon and Graphite Articles Using Three-Point Loading at Room Temperature

SIGNIFICANCE AND USE
4.1 This test method provides a framework for material development, quality control, characterization, and design data generation purposes. The user needs to assess the applicability of the method on the specific material and for the intended use, as shown by the interlaboratory study.
4.2 This test method determines the maximum loading on a graphite specimen with simple beam geometry in three–point bending, and it provides a means for the calculation of flexural strength at ambient temperature and environmental conditions.
4.3 The flexure stress is computed based on simple beam theory with assumptions that the material is isotropic and homogeneous, the moduli of elasticity in tension and compression are identical, and the material is linearly elastic. For materials with large grains, the minimum specimen dimension should be significantly larger than the maximum grain size (see Guide D7775).
4.4 Flexural strength of a group of test specimens is influenced by several parameters associated with the test procedure. Such factors include the loading rate, test environment, specimen size, specimen preparation, and test fixtures. Specimen sizes and fixtures should be chosen to reduce errors due to material variability or testing parameters, such as friction and non-parallelism of specimen surfaces.
4.5 The flexural strength of a manufactured graphite or carbon material is dependent on both its inherent resistance to fracture and the size and severity of flaws. Variations in these cause a natural scatter in test results for a sample of test specimens. Fractographic analysis of fracture surfaces, although beyond the scope of this standard, is highly recommended for all purposes, especially if the data will be used for design as discussed in Practices C1239 and C1322.
4.6 The three-point test configuration exposes only a very small portion of the specimen to the maximum stress. Therefore, three-point flexural strengths are likely to be much greater than four-po...
SCOPE
1.1 This test method covers determination of the flexural strength of manufactured carbon and graphite articles using a square, rectangular or cylindrical beam in three-point loading at room temperature.
1.2 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    5 pages
    English language
    sale 15% off
ASTM
ASTM C559-16(2020)(Test Method)
Standard Test Method for Bulk Density by Physical Measurements of Manufactured Carbon and Graphite Articles

SIGNIFICANCE AND USE
4.1 Bulk density as determined by this test method is a basic material property of importance in manufacturing and application of carbon and graphite.
4.2 This test method can be used for quality and process control, material characterization and description, and other purposes.
SCOPE
1.1 This test method covers the determination of the bulk density of manufactured articles of carbon and graphite of at least 500 mm3 volume. The bulk density is calculated to an accuracy of 0.25 %, using measurements of mass and dimensions in air at 25 °C ± 5 °C.
1.2 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    3 pages
    English language
    sale 15% off
