ASTM F794-21
(Specification)Standard Specification for Poly(Vinyl Chloride) (PVC) Profile Gravity Sewer Pipe and Fittings Based on Controlled Inside Diameter
Standard Specification for Poly(Vinyl Chloride) (PVC) Profile Gravity Sewer Pipe and Fittings Based on Controlled Inside Diameter
ABSTRACT
This specification covers requirements for poly(vinyl chloride) (PVC) profile sewer pipe and fittings with integral bell and elastomeric seal joints or plain end pipe with couplings based on a controlled inside diameter. The requirements of this specification are intended to provide pipe and fittings suitable for nonpressure drainage of sewage and surface water. The pipe and fittings shall conform to the required diameter, wall thickness, and bell wall thickness. The pipe shall be subject to flattening, impact resistance, stiffness, and acid immersion tests.
SCOPE
1.1 This specification covers requirements for poly(vinyl chloride) (PVC) profile sewer pipe and fittings with integral bell and elastomeric seal joints or plain end pipe with couplings in sizes (4 to 48 in.) based on a controlled inside diameter.
1.2 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.3 The following safety hazard caveat pertains only to the test methods portion, Section 8, of this specification: This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
Note 1: Pipe and fittings produced to this specification should be installed in accordance with Practice D2321.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
Relations
Buy Standard
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

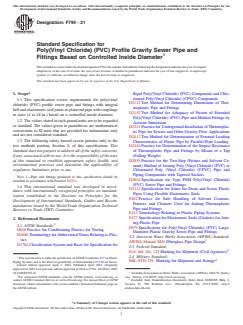

Designation:F794 −21
Standard Specification for
Poly(Vinyl Chloride) (PVC) Profile Gravity Sewer Pipe and
1
Fittings Based on Controlled Inside Diameter
ThisstandardisissuedunderthefixeddesignationF794;thenumberimmediatelyfollowingthedesignationindicatestheyearoforiginal
adoption or, in the case of revision, the year of last revision.Anumber in parentheses indicates the year of last reapproval.Asuperscript
epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope* Rigid Poly(Vinyl Chloride) (PVC) Compounds and Chlo-
rinated Poly(Vinyl Chloride) (CPVC) Compounds
1.1 This specification covers requirements for poly(vinyl
D2122 Test Method for Determining Dimensions of Ther-
chloride) (PVC) profile sewer pipe and fittings with integral
moplastic Pipe and Fittings
bellandelastomericsealjointsorplainendpipewithcouplings
D2152 Test Method for Adequacy of Fusion of Extruded
in sizes (4 to 48 in.) based on a controlled inside diameter.
Poly(Vinyl Chloride) (PVC) Pipe and Molded Fittings by
1.2 The values stated in inch-pound units are to be regarded
Acetone Immersion
as standard. The values given in parentheses are mathematical
D2321 PracticeforUndergroundInstallationofThermoplas-
conversions to SI units that are provided for information only
tic Pipe for Sewers and Other Gravity-Flow Applications
and are not considered standard.
D2412 Test Method for Determination of External Loading
1.3 The following safety hazard caveat pertains only to the
Characteristics of Plastic Pipe by Parallel-Plate Loading
test methods portion, Section 8, of this specification: This D2444 Practice for Determination of the Impact Resistance
standard does not purport to address all of the safety concerns,
of Thermoplastic Pipe and Fittings by Means of a Tup
if any, associated with its use. It is the responsibility of the user (Falling Weight)
of this standard to establish appropriate safety, health, and
D2855 Practice for the Two-Step (Primer and Solvent Ce-
environmental practices and determine the applicability of ment) Method of Joining Poly (Vinyl Chloride) (PVC) or
regulatory limitations prior to use.
Chlorinated Poly (Vinyl Chloride) (CPVC) Pipe and
Piping Components with Tapered Sockets
NOTE 1—Pipe and fittings produced to this specification should be
D3034 Specification for Type PSM Poly(Vinyl Chloride)
installed in accordance with Practice D2321.
(PVC) Sewer Pipe and Fittings
1.4 This international standard was developed in accor-
D3212 Specification for Joints for Drain and Sewer Plastic
dance with internationally recognized principles on standard-
Pipes Using Flexible Elastomeric Seals
ization established in the Decision on Principles for the
F402 Practice for Safe Handling of Solvent Cements,
Development of International Standards, Guides and Recom-
Primers, and Cleaners Used for Joining Thermoplastic
mendations issued by the World Trade Organization Technical
Pipe and Fittings
Barriers to Trade (TBT) Committee.
F412 Terminology Relating to Plastic Piping Systems
F477 Specification for Elastomeric Seals (Gaskets) for Join-
2. Referenced Documents
ing Plastic Pipe
2
2.1 ASTM Standards:
F679 Specification for Poly(Vinyl Chloride) (PVC) Large-
D618 Practice for Conditioning Plastics for Testing
Diameter Plastic Gravity Sewer Pipe and Fittings
D1600 Terminology forAbbreviatedTerms Relating to Plas-
2.2 American Water Works Association (AWWA) Standard:
tics
3
AWWA Manual M45 Fiberglass Pipe Design
D1784 Classification System and Basis for Specification for
2.3 Federal Standard:
4
Fed. Std. No. 123 Marking for Shipment (Civil Agencies)
2.4 Military Standard:
1
This specification is under the jurisdiction ofASTM Committee F17 on Plastic
4
MIL-STD-129 Marking for Shipment and Storage
Piping Systems and is the direct responsibility of Subcommittee F17.62 on Sewer.
Current edition approved April 1, 2021. Published April 2021. Originally
approved in 1983. Last previous edition approved in 2014 as F794 –03(2014). DOI:
3
10.1520/F0794-21. Available fromAmerican Water WorksAssociation (AWWA), 6666 W. Quincy
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or Ave., Denver, CO 80235, http://www.awwa.org.
4
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Available from Standardization Documents Order Desk, DODSSP, Bldg. 4,
Standards volume information, refer to the standard’s Document Summary page on Section D, 700 Robbins Ave., Philadelphia, PA 19111-5098, http://
theASTM website. dodssp.daps.dla.mil.
*A Summary of Changes section appears at the end of this standard
Copyright © AST
...
This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

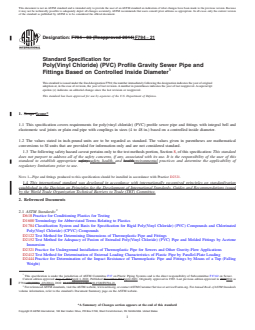

Designation: F794 − 03 (Reapproved 2014) F794 − 21
Standard Specification for
Poly(Vinyl Chloride) (PVC) Profile Gravity Sewer Pipe and
1
Fittings Based on Controlled Inside Diameter
This standard is issued under the fixed designation F794; the number immediately following the designation indicates the year of original
adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A superscript
epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope Scope*
1.1 This specification covers requirements for poly(vinyl chloride) (PVC) profile sewer pipe and fittings with integral bell and
elastomeric seal joints or plain end pipe with couplings in sizes (4 to 48 in.) based on a controlled inside diameter.
1.2 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical
conversions to SI units that are provided for information only and are not considered standard.
1.3 The following safety hazard caveat pertains only to the test methods portion, Section 8, of this specification: This standard
does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this
standard to establish appropriate safety safety, health, and healthenvironmental practices and determine the applicability of
regulatory limitations prior to use.
NOTE 1—Pipe and fittings produced to this specification should be installed in accordance with Practice D2321.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2
2.1 ASTM Standards:
D618 Practice for Conditioning Plastics for Testing
D1600 Terminology for Abbreviated Terms Relating to Plastics
D1784 Classification System and Basis for Specification for Rigid Poly(Vinyl Chloride) (PVC) Compounds and Chlorinated
Poly(Vinyl Chloride) (CPVC) Compounds
D2122 Test Method for Determining Dimensions of Thermoplastic Pipe and Fittings
D2152 Test Method for Adequacy of Fusion of Extruded Poly(Vinyl Chloride) (PVC) Pipe and Molded Fittings by Acetone
Immersion
D2321 Practice for Underground Installation of Thermoplastic Pipe for Sewers and Other Gravity-Flow Applications
D2412 Test Method for Determination of External Loading Characteristics of Plastic Pipe by Parallel-Plate Loading
D2444 Practice for Determination of the Impact Resistance of Thermoplastic Pipe and Fittings by Means of a Tup (Falling
Weight)
1
This specification is under the jurisdiction of ASTM Committee F17 on Plastic Piping Systems and is the direct responsibility of Subcommittee F17.62 on Sewer.
Current edition approved Aug. 1, 2014April 1, 2021. Published November 2014April 2021. Originally approved in 1983. Last previous edition approved in 20092014 as
F794 –03(2009). –03(2014). DOI: 10.1520/F0794-03R14.10.1520/F0794-21.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1
---------------------- Page: 1 ----------------------

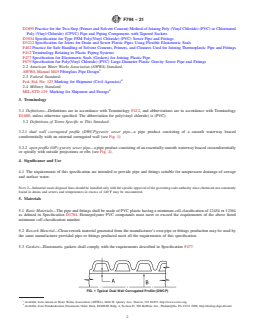

F794 − 21
D2855 Practice for the Two-Step (Primer and Solvent Cement) Method of Joining Poly (Vinyl Chloride) (PVC) or Chlorinated
Poly (Vinyl Chloride) (CPVC) Pipe and Piping Components with Tapered Sockets
D3034 Specification for Type PSM Poly(Vinyl Chloride) (PVC) Sewer Pipe and Fittings
D3212 Specification for Joints for Drain and Sewer Plastic Pipes Using Flexible Elastomeric Seals
F402 Practice for Safe Handling of Solvent Cements, Primers, and Cleaners Used for Joining Thermoplastic Pipe and Fittings
F412 Terminology Relating to Plastic Piping Systems
F477 Specification for Elastomeric Seals (Gaskets) for Joining Plastic Pipe
F679 Specification for Poly(Vinyl Chloride) (PVC) Large-Diameter Plastic Gravity Sewer Pipe and Fittings
2.2 American Water Works Association (AWWA) Standard:
3
AWWA Manual M45 Fiberglass Pipe Design
...
