ASTM B43-20
(Specification)Standard Specification for Seamless Red Brass Pipe, Standard Sizes
Standard Specification for Seamless Red Brass Pipe, Standard Sizes
ABSTRACT
This specification covers seamless red brass pipe in all nominal pipe sizes, both regular and extra-strong. The pipe in the annealed temper shall be suitable for use in plumbing, boiler feed lines, and for similar purposes. In the drawn general purpose temper, the pipe shall be suitable for architectural applications, such as guard railings and stair hand railings. The chemical requirements for the specimen are as follows: copper, lead, iron, and zinc. The Specimen will undergo expansion test and the expanded pipe shall show no cracking or rupture visible to the unaided eye. It shall then undergo the mercurous nitrate test to examine if there are cracks. The material shall be passed through an eddy-current testing unit adjusted to provide information on the suitability of the material for the intended application. It shall then undergo the pneumatic test to for visual detection of any leakage, such as by having the material under water or by the pressured-differential method. The material shall be free of defects of a nature that interfere with normal commercial applications. It shall be well cleaned and free of dirt.
SCOPE
1.1 This specification2 establishes requirements for seamless red brass (Copper Alloy UNS No. C23000)3 pipe in nominal pipe sizes, both regular and extra-strong. In the annealed temper (O61), the pipe is suitable for use in plumbing, boiler feed lines, and for similar purposes. In the drawn general purpose temper (H58), the pipe is suitable for architectural applications, such as guard railings and stair hand railings.
1.2 Units—The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.3 The following hazard caveat pertains only to the test method portion, 9.1.1, of this specification. This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 Warning—Mercury has been designated by many regulatory agencies as a hazardous substance that can cause serious medical issues. Mercury, or its vapor, has been demonstrated to be hazardous to health and corrosive to materials. Use caution when handling mercury and mercury-containing products. See the applicable product Safety Data Sheet (SDS) for additional information. The potential exists that selling mercury or mercury-containing products, or both, is prohibited by local or national law. Users must determine legality of sales in their location. (See 9.2.)
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
Relations
Buy Standard
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

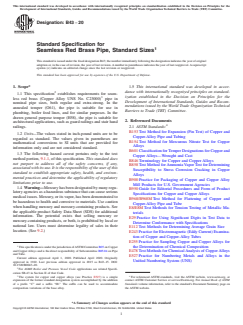

Designation:B43 −20
Standard Specification for
1
Seamless Red Brass Pipe, Standard Sizes
This standard is issued under the fixed designation B43; the number immediately following the designation indicates the year of original
adoption or, in the case of revision, the year of last revision.Anumber in parentheses indicates the year of last reapproval.Asuperscript
epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope* 1.5 This international standard was developed in accor-
2 dance with internationally recognized principles on standard-
1.1 This specification establishes requirements for seam-
3 ization established in the Decision on Principles for the
less red brass (Copper Alloy UNS No. C23000) pipe in
Development of International Standards, Guides and Recom-
nominal pipe sizes, both regular and extra-strong. In the
mendations issued by the World Trade Organization Technical
annealed temper (O61), the pipe is suitable for use in
Barriers to Trade (TBT) Committee.
plumbing, boiler feed lines, and for similar purposes. In the
drawn general purpose temper (H58), the pipe is suitable for
2. Referenced Documents
architectural applications, such as guard railings and stair hand
4
railings. 2.1 ASTM Standards:
B153 Test Method for Expansion (Pin Test) of Copper and
1.2 Units—The values stated in inch-pound units are to be
Copper-Alloy Pipe and Tubing
regarded as standard. The values given in parentheses are
B154 Test Method for Mercurous Nitrate Test for Copper
mathematical conversions to SI units that are provided for
Alloys
information only and are not considered standard.
B601 ClassificationforTemperDesignationsforCopperand
1.3 The following hazard caveat pertains only to the test
Copper Alloys—Wrought and Cast
method portion, 9.1.1, of this specification. This standard does
B846 Terminology for Copper and Copper Alloys
not purport to address all of the safety concerns, if any,
B858 Test Method forAmmoniaVaporTest for Determining
associatedwithitsuse.Itistheresponsibilityoftheuserofthis
Susceptibility to Stress Corrosion Cracking in Copper
standard to establish appropriate safety, health, and environ-
Alloys
mental practices and determine the applicability of regulatory
B900 Practice for Packaging of Copper and Copper Alloy
limitations prior to use.
Mill Products for U.S. Government Agencies
1.4 Warning—Mercury has been designated by many regu-
B950 Guide for Editorial Procedures and Form of Product
latory agencies as a hazardous substance that can cause serious
Specifications for Copper and Copper Alloys
medicalissues.Mercury,oritsvapor,hasbeendemonstratedto
B968/B968M Test Method for Flattening of Copper and
be hazardous to health and corrosive to materials. Use caution
Copper-Alloy Pipe and Tube
when handling mercury and mercury-containing products. See
E8/E8M Test Methods for Tension Testing of Metallic Ma-
the applicable product Safety Data Sheet (SDS) for additional
terials
information. The potential exists that selling mercury or
E29 Practice for Using Significant Digits in Test Data to
mercury-containing products, or both, is prohibited by local or
Determine Conformance with Specifications
national law. Users must determine legality of sales in their
E112 Test Methods for Determining Average Grain Size
location. (See 9.2.)
E243 Practice for Electromagnetic (Eddy Current) Examina-
tion of Copper and Copper-Alloy Tubes
E255 Practice for Sampling Copper and Copper Alloys for
1
ThisspecificationisunderthejurisdictionofASTMCommitteeB05onCopper the Determination of Chemical Composition
and CopperAlloys and is the direct responsibility of Subcommittee B05.04 on Pipe
E478 Test Methods for ChemicalAnalysis of CopperAlloys
and Tube.
E527 Practice for Numbering Metals and Alloys in the
Current edition approved April 1, 2020. Published April 2020. Originally
Unified Numbering System (UNS)
approved in 1922. Last previous edition approved in 2015 as B43–15. DOI:
10.1520/B0043–20.
2
For ASME Boiler and Pressure Vessel Code applications see related Specifi-
cation SB-43 in Section II of that Code.
3 4
The system for copper and copper alloys (see Practice E527) is a simple For referenced ASTM standards, visit the ASTM website, www.astm.org, or
expansion of the former standard designation system accomplished by the addition contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
of a prefix “C” and a suffix “00.” The suffix can be used to accommodate Standards volume information, refer to the standard’s Document Summary page on
composition variations of the base alloy. the ASTM web
...
This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

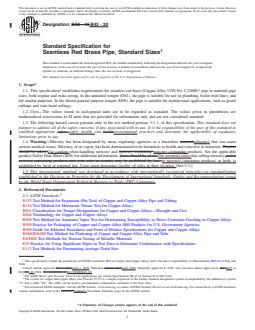

Designation: B43 − 15 B43 − 20
Standard Specification for
1
Seamless Red Brass Pipe, Standard Sizes
This standard is issued under the fixed designation B43; the number immediately following the designation indicates the year of original
adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A superscript
epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope*
2 3
1.1 This specification establishes requirements for seamless red brass (Copper Alloy UNS No. C23000) pipe in nominal pipe
sizes, both regular and extra-strong. In the annealed temper (O61), the pipe is suitable for use in plumbing, boiler feed lines, and
for similar purposes. In the drawn general purpose temper (H58), the pipe is suitable for architectural applications, such as guard
railings and stair hand railings.
1.2 Units—The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are
mathematical conversions to SI units that are provided for information only and are not considered standard.
1.3 The following hazard caveat pertains only to the test method portion, 9.1.1, of this specification. This standard does not
purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to
establish appropriate safety safety, health, and healthenvironmental practices and determine the applicability of regulatory
limitations prior to use.
1.4 Warning—Mercury has been designated by many regulatory agencies as a hazardous materialsubstance that can cause
serious medical issues. Mercury, or its vapor, has been demonstrated to be hazardous to health and corrosive to materials. Caution
should be taken Use caution when handling mercury and mercury containing mercury-containing products. See the applicable
product Safety Data Sheet (SDS) for additional information. Users should be aware The potential exists that selling mercury and/or
mercury containing products into your state or country may be prohibited by law. or mercury-containing products, or both, is
prohibited by local or national law. Users must determine legality of sales in their location. (See 9.2.)
1.5 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
4
2.1 ASTM Standards:
B153 Test Method for Expansion (Pin Test) of Copper and Copper-Alloy Pipe and Tubing
B154 Test Method for Mercurous Nitrate Test for Copper Alloys
B601 Classification for Temper Designations for Copper and Copper Alloys—Wrought and Cast
B846 Terminology for Copper and Copper Alloys
B858 Test Method for Ammonia Vapor Test for Determining Susceptibility to Stress Corrosion Cracking in Copper Alloys
B900 Practice for Packaging of Copper and Copper Alloy Mill Products for U.S. Government Agencies
B950 Guide for Editorial Procedures and Form of Product Specifications for Copper and Copper Alloys
B968/B968M Test Method for Flattening of Copper and Copper-Alloy Pipe and Tube
E8/E8M Test Methods for Tension Testing of Metallic Materials
E29 Practice for Using Significant Digits in Test Data to Determine Conformance with Specifications
E112 Test Methods for Determining Average Grain Size
1
This specification is under the jurisdiction of ASTM Committee B05 on Copper and Copper Alloys and is the direct responsibility of Subcommittee B05.04 on Pipe and
Tube.
Current edition approved Oct. 1, 2015April 1, 2020. Published October 2015April 2020. Originally approved in 1922. Last previous edition approved in 20142015 as
B43-14.–15. DOI: 10.1520/B0043-15.10.1520/B0043–20.
2
For ASME Boiler and Pressure Vessel Code applications see related Specification SB-43 in Section II of that Code.
3
The system for copper and copper alloys (see Practice E527) is a simple expansion of the former standard designation system accomplished by the addition of a prefix
“C” and a suffix “00.” The suffix can be used to accommodate composition variations of the base alloy.
4
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer t
...
