ASTM D6262-23

Standard Specification for Extruded, Compression Molded, and Injection Molded Basic Shapes of Poly(aryl ether ketone) (PAEK)

ABSTRACT
This specification covers requirements and methods of test for the material, dimensions, and workmanship, and the properties of extruded, compression molded, and injection molded PAEK sheet, plate, rod, and tubular bar manufactured from PAEK. The type of PAEK extruded, compression molded, and injection molded product may be categorized by type, grade and class depending on resin and filler compositions. Every type of PAEK shape may be categorized into one of several grades as follows: Grade 1 (general purpose) which is extruded, compression molded or injection molded product made using only 100% virgin PAEK resin and Grade 2 (recycle grade) which is extruded, compression molded or injection molded product made using any amount up to 100% of recycled thermoplastic PAEK. The type, class and grade is further differentiated based on dimensional stability. Different tests shall be conducted in order to determine the following properties of PAEK: tensile stress at break, elongation at break, tensile modulus, dimensional stability, lengthwise camber and widthwise bow, squareness, flexural modulus, and Izod impact.
SCOPE
1.1 This specification covers requirements for the PAEK materials used and the requirements and methods of test for the dimensions, workmanship, and the properties of extruded, compression molded, and injection molded PAEK sheet, plate, rod, and tubular bar manufactured from PAEK. PAEK is a family of thermoplastic materials that differ in properties (see Section 3).
1.2 The properties included in this specification are those required for the compositions covered. Requirements necessary to identify particular characteristics important to specialized applications are described by using the classification system given in Section 4.
1.3 This specification allows the use of key clad plastics (see Section 4).
1.4 The values are stated in inch-pound units and are regarded as the standard in all property and dimensional tables. For reference purposes, SI units are also included in Table 1.
1.5 The following precautionary caveat pertains only to the test method portion Section 11, of this specification. This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
Note 1: There is no known ISO equivalent to this standard.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

General Information

• Status: Published
• Publication Date: 31-Jul-2023
• ICS: 83.140.99 - Other rubber and plastics products
• Technical Committee: D20 - Plastics
• Drafting Committee: D20.15 - Thermoplastic Materials

Relations

• Refers: ASTM D883-24 - Standard Terminology Relating to Plastics
• Effective Date: 01-Feb-2024
• Refers: ASTM D883-23 - Standard Terminology Relating to Plastics
• Effective Date: 01-Nov-2023
• Refers: ASTM D883-20 - Standard Terminology Relating to Plastics
• Effective Date: 01-Jan-2020
• Refers: ASTM D883-19c - Standard Terminology Relating to Plastics
• Effective Date: 01-Aug-2019
• Refers: ASTM D883-19a - Standard Terminology Relating to Plastics
• Effective Date: 15-Apr-2019
• Refers: ASTM D883-19 - Standard Terminology Relating to Plastics
• Effective Date: 01-Feb-2019
• Refers: ASTM D883-18a - Standard Terminology Relating to Plastics
• Effective Date: 01-Dec-2018
• Refers: ASTM D883-18 - Standard Terminology Relating to Plastics
• Effective Date: 01-Nov-2018
• Refers: ASTM D883-17 - Standard Terminology Relating to Plastics
• Effective Date: 15-Aug-2017
• Refers: ASTM D790-17 - Standard Test Methods for Flexural Properties of Unreinforced and Reinforced Plastics and Electrical Insulating Materials
• Effective Date: 01-Jul-2017
• Refers: ASTM D790-15e1 - Standard Test Methods for Flexural Properties of Unreinforced and Reinforced Plastics and Electrical Insulating Materials
• Effective Date: 01-Dec-2015
• Refers: ASTM D790-15 - Standard Test Methods for Flexural Properties of Unreinforced and Reinforced Plastics and Electrical Insulating Materials
• Effective Date: 01-Dec-2015
• Refers: ASTM D3892-15 - Standard Practice for Packaging/Packing of Plastics
• Effective Date: 01-Sep-2015
• Refers: ASTM D883-12e1 - Standard Terminology Relating to Plastics
• Effective Date: 15-Nov-2012
• Refers: ASTM D4000-12 - Standard Classification System for Specifying Plastic Materials
• Effective Date: 01-May-2012

Overview

ASTM D6262-23, "Standard Specification for Extruded, Compression Molded, and Injection Molded Basic Shapes of Poly(aryl ether ketone) (PAEK)," is a critical international standard developed by ASTM International. This specification establishes requirements and test methods for poly(aryl ether ketone) (PAEK) shapes - including sheets, plates, rods, and tubular bars - produced using extrusion, compression molding, or injection molding. The standard addresses both virgin and recycled PAEK, with classification by type, grade, and class according to resin and filler content as well as dimensional stability.

PAEK is a family of semi-crystalline thermoplastics noted for their high temperature resistance, mechanical strength, and chemical stability. Materials in scope include PEK, PEEK, PEKK, PEEKK, and PEKEKK resins. ASTM D6262-23 guides manufacturers, suppliers, and purchasers to ensure product quality, performance, and uniformity, especially in high-value engineering applications.

Key Topics

• Scope of the Standard

  • Covers material, dimension, workmanship, and property requirements for PAEK basic shapes
  • Applicable to extruded, compression molded, and injection molded products
  • Includes both 100% virgin and recycled PAEK

• Classification System

  • Type: Based on manufacturing process and resin type (e.g., PEEK, PEKK)
  • Grade: General purpose (100% virgin resin) or recycle grade (includes recycled PAEK)
  • Class: Determined by resin and filler composition

• Physical and Mechanical Property Requirements

  • Tensile stress at break
  • Elongation at break
  • Tensile modulus
  • Dimensional stability (especially at elevated temperatures)
  • Flexural modulus
  • Izod impact resistance
  • Camber, bow, and squareness for rods, sheets, and plates

• Acceptance Criteria for Workmanship and Appearance

  • Products must be free from blisters, cracks, voids, and foreign material
  • Uniform color and surface finish as specified

• Testing and Certification

  • Standardized conditioning and test methods
  • Certification available upon request for materials and conformance

Applications

The ASTM D6262-23 standard is widely used in industries where PAEK materials are valued for their performance in demanding environments, including:

• Aerospace and Defense
  • Precision components requiring resistance to high temperatures and aggressive chemicals
• Automotive
  • Under-the-hood parts, electrical connectors, and structural components
• Medical Device Manufacturing
  • Surgical instruments, sterilizable trays, and dental devices
• Oil and Gas Industry
  • Insulators, valve components, and pump parts exposed to harsh conditions
• Electrical and Electronics
  • Connectors, insulators, and high-performance parts requiring dimensional stability

Using ASTM D6262-23 ensures the selection of PAEK plastic shapes that will deliver consistent mechanical and physical properties for finished parts and assemblies. It also supports sustainability goals by including grades made with recycled PAEK.

Related Standards

To ensure comprehensive compliance and quality, the following related ASTM standards are often referenced with ASTM D6262-23:

• ASTM D638: Test Method for Tensile Properties of Plastics
• ASTM D790: Test Methods for Flexural Properties of Unreinforced and Reinforced Plastics
• ASTM D256: Test Methods for Izod Impact Resistance of Plastics
• ASTM D3892: Practice for Packaging/Packing of Plastics
• ASTM D8033: Classification System for PEEK Molding and Extrusion Materials
• ASTM D883, D4000: Terminology and classification systems for plastics

By adhering to ASTM D6262-23, manufacturers, engineers, and buyers can ensure the proper specification, testing, and application of extruded, compression molded, and injection molded PAEK basic shapes for reliable, high-performance results.

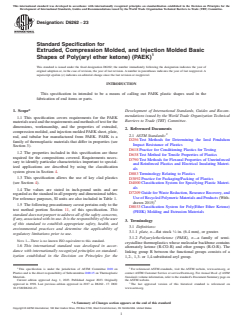

Standards Content (Sample)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
Designation: D6262 − 23
Standard Specification for
Extruded, Compression Molded, and Injection Molded Basic
Shapes of Poly(aryl ether ketone) (PAEK)
This standard is issued under the fixed designation D6262; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
INTRODUCTION
This specification in intended to be a means of calling out PAEK plastic shapes used in the
fabrication of end items or parts.
1. Scope* Development of International Standards, Guides and Recom-
mendations issued by the World Trade Organization Technical
1.1 This specification covers requirements for the PAEK
Barriers to Trade (TBT) Committee.
materials used and the requirements and methods of test for the
dimensions, workmanship, and the properties of extruded,
2. Referenced Documents
compression molded, and injection molded PAEK sheet, plate,
2.1 ASTM Standards:
rod, and tubular bar manufactured from PAEK. PAEK is a
D256 Test Methods for Determining the Izod Pendulum
family of thermoplastic materials that differ in properties (see
Impact Resistance of Plastics
Section 3).
D618 Practice for Conditioning Plastics for Testing
1.2 The properties included in this specification are those
D638 Test Method for Tensile Properties of Plastics
required for the compositions covered. Requirements neces-
D790 Test Methods for Flexural Properties of Unreinforced
sary to identify particular characteristics important to special-
and Reinforced Plastics and Electrical Insulating Materi-
ized applications are described by using the classification
als
system given in Section 4.
D883 Terminology Relating to Plastics
1.3 This specification allows the use of key clad plastics
D3892 Practice for Packaging/Packing of Plastics
(see Section 4).
D4000 Classification System for Specifying Plastic Materi-
als
1.4 The values are stated in inch-pound units and are
D7209 Guide for Waste Reduction, Resource Recovery, and
regarded as the standard in all property and dimensional tables.
Use of Recycled Polymeric Materials and Products (With-
For reference purposes, SI units are also included in Table 1.
drawn 2015)
1.5 The following precautionary caveat pertains only to the
D8033 Classification System for Poly(Ether Ether Ketone)
test method portion Section 11, of this specification. This
(PEEK) Molding and Extrusion Materials
standard does not purport to address all of the safety concerns,
if any, associated with its use. It is the responsibility of the user
3. Terminology
of this standard to establish appropriate safety, health, and
3.1 Definitions:
environmental practices and determine the applicability of
3.1.1 plate, n—flat stock ⁄4 in. (6.4 mm), or greater.
regulatory limitations prior to use.
3.1.2 Polyaryletherketone (PAEK), n—a family of semi-
NOTE 1—There is no known ISO equivalent to this standard.
crystalline thermoplastics whose molecular backbone contains
1.6 This international standard was developed in accor-
alternately ketone (R-CO-R) and ether groups (R-O-R). The
dance with internationally recognized principles on standard-
linking group R between the functional groups consists of a
ization established in the Decision on Principles for the
1,2-, 1,3- or 1,4-substituted aryl group.
1 2
This specification is under the jurisdiction of ASTM Committee D20 on For referenced ASTM standards, visit the ASTM website, www.astm.org, or
Plastics and is the direct responsibility of Subcommittee D20.15 on Thermoplastic contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM
Materials. Standards volume information, refer to the standard’s Document Summary page on
Current edition approved Aug. 1, 2023. Published August 2023. Originally the ASTM website.
approved in 1998. Last previous edition approved in 2017 as D6262 - 17. DOI: The last approved version of this historical standard is referenced on
10.1520/D6262-23. www.astm.org.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
D6262 − 23
3.1.2.1 Discussion—Plastic materials that fall within this 4.4.1 Table S-PAEK is used to describe extruded, compres-
family include PEK, PEEK, PEKK, PEEKK and PEKEKK. sion molded, and injection molded products for specific PAEK
These PAEK polymers differ in thermal transitions and prop- polymers.
erties. The current types 01, 02 and 03 in this standard cover 4.4.2 Table 1 is also used to describe extruded, compression
shapes made from PEEK materials while the shapes produced molded, and injection molded products not included in Table
of these three types are referred to as PAEK shapes per long S-PAEK via a cell callout which includes the applicable Table
standing use since 1998. In the future, other types referring to S-PAEK PAEK type and specific properties (Designations 1
specific PAEK polymers may be added. through 7).
4.4.3 To facilitate the incorporation of future or special
3.1.3 recycled plastic shape, n—a product made from up to
materials not covered by the Table S-PAEK, the “as specified”
100 % recycled plastic.
category (00) for type, class and grade is shown on the table
3.1.4 rod, n—solid cylindrical shape with a minimum diam-
with the basic properties to be obtained from Table 1, as they
eter of ⁄8 in. (3.2 mm).
apply.
4.4.4 Reinforcements and additive materials. A symbol
3.1.5 sheet, n—flat stock less than and including ⁄4 in. (6.4
(single-letter) will be used for the major reinforcement or
mm) thickness.
combination, or both, along with two numbers which indicate
3.1.6 tubular bar, n—annular shapes with minimum inside
the percentage of addition by mass with the tolerances as
3 1
diameter of ⁄8 in. (9.5 mm) and minimum wall thickness of ⁄16
tabulated below. This must be included in all Table 1 callouts.
in. (1.6 mm).
Tolerance
3.1.7 virgin plastic shape, n—product that is produced from
Symbol Material (Based on the Total
Mass);
100 % plastic resin that has not been subjected to subsequent
melt processing.
C Carbon and graphite fiber ±2 %
G Glass ± 2 %
3.2 Definitions of Terms Specific to This Standard:
L Lubricants (for example, PTFE, graphite, ± 2 %
3.2.1 For definitions of other technical terms pertaining to
silicone and molybdenum disulfide)
M Mineral ± 2 %
plastics used in this specification, see Terminology D883 or
R Combinations of reinforcements by ± 3 %
Guide D7209.
agreement between supplier a and the
user for the total reinforcement or fillers,
or both
4. Classification and Material
4.5 Callout Designation—A one-line system shall be used to
4.1 Product shape and size as defined in the applicable
specify PAEK shapes covered by this specification. The system
purchase order.
uses predefined cells to refer to specific aspects of this
4.2 This specification covers product extruded as listed in specification, as illustrated below:
Table S-PAEK. Products included in the designations reference 4.5.1 Description:
Classification D8033 callout for PEEK materials where appli- 4.5.1.1 Example 1—Extruded natural PAEK extruded rod
cable. Other products produced from other PAEK materials from PEEK:
may be added in the future, with reference to appropriate
CELL CALLOUT: S-PAEK0111
ASTM D4000 classification standard.
S-PAEK01 = Product made from PAEK resin as called in the
4.2.1 The type of PAEK extruded, compression molded, and
material designation in Table S-PAEK and meeting
injection molded product is categorized by type, grade and
shape requirements in Table S-PAEK
1 = Unfilled class
class depending on resin and filler compositions as defined in
1 = General purpose grade product
Table S-PAEK.

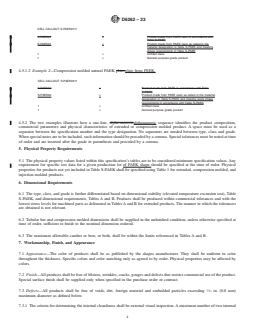

4.5.1.2 Example 2—Compression molded natural PAEK
NOTE 2—The PAEK shape producer should verify that characteristics of
plate from PEEK.
the PAEK material such as molecular weight parameters, viscosity and
CELL CALLOUT: S-PAEK0211
rheological properties, are suitable for the required consistency and flow
patterns, for the specific shape production process used.
S-PAEK02 = Product made from PAEK resin as called in the material
designation in Table S-PAEK and meeting stock shape
4.2.2 Every type of PAEK shape is categorized into one of
requirements in accordance with Table S-PAEK
several grades as follows:
1 = Unfilled class
1 = General purpose grade product
4.2.2.1 Grade 1 — General Purpose—Extruded, compres-
sion molded or injection molded product made using only
4.5.2 The two examples illustrate how a one-line, alphanu-
100 % virgin PAEK resin. meric sequence identifies the product composition, commercial
parameters and physical characteristics of extruded or com-
4.2.2.2 Grade 2 — Recycle Grade—Extruded, compression
pression molded product. A space must be used as a separator
molded or injection molded product made using any amount up
between the specification number and the type designation. No
to 100 % of recycled thermoplastic PAEK.
separators are needed between type, class and grade. When
4.3 The type, class and grade is further differentiated based
special notes are to be included, such information should be
on dimensional stability (elevated temperature excursion test),
preceded by a comma. Special tolerances must be noted at time
Table S-PAEK and dimensional requirements, Tables A and B.
of order and are inserted after the grade in parenthesis and
4.4 Property Tables: preceded by a comma.
D6262 − 23

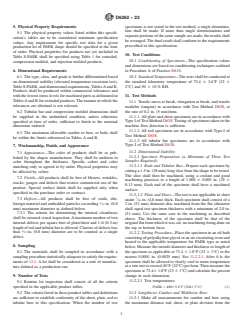

5. Physical Property Requirements specimens is not stated in the test method, a single determina-
tion shall be made. If more than single determinations and
5.1 The physical property values listed within this specifi-
separate portions of the same sample are made, the results shall
cation’s tables are to be considered minimum specification
be averaged. The final result shall conform to the requirements
values. Any requirement for specific test data for a given
prescribed in this specification.
production lot of PAEK shape should be specified at the time
of order. Physical properties for products not yet included in
10. Test Conditions
Table S-PAEK shall be specified using Table 1 for extruded,
10.1 Conditioning of Specimens—The specification values
compression molded, and injection molded products.
and dimensions are based on conditioning techniques outlined
6. Dimensional Requirements in Procedure A of Practice D618.
6.1 The type, class, and grade is further differentiated based
10.2 Standard Temperature—The tests shall be conducted at
on dimensional stability (elevated temperature excursion test), the standard laboratory temperature of 73.4 6 3.6°F (23 6
Table S-PAEK, and dimensional requirements, Tables A and B.
2°C) and 50 6 10 % RH.
Products shall be produced within commercial tolerances and
with the lowest stress levels for machined parts as delineated in 11. Test Methods
Tables A and B for extruded products. The manner in which the
11.1 Tensile stress at break, elongation at break, and tensile
tolerances are obtained is not relevant.
modulus (tangent) in accordance with Test Method D638, at
6.2 Tubular bar and compression molded dimensions shall the rate of 0.2 in. (5 mm)/min.
be supplied in the unfinished condition, unless otherwise 11.1.1 All plate and sheet specimens are in accordance with
specified at time of order, sufficient to finish to the nominal Type I of Test Method D638. Testing of specimens taken in the
dimension ordered. machine flow direction is sufficient.
11.1.2 All rod specimens are in accordance with Type I of
6.3 The maximum allowable camber or bow, or both, shall
Test Method D638.
be within the limits referenced in Tables A and B.
11.1.3 All tubular bar specimens are in accordance with
Type I of Test Method D638.
7. Workmanship, Finish, and Appearance
11.2 Dimensional Stability:
7.1 Appearance—The color of products shall be as pub-
11.2.1 Specimen Preparation (a Minimum of Three Test
lished by the shapes manufacturer. They shall be uniform in
Samples Required):
color throughout the thickness. Specific colors and color
11.2.1.1 Rods and Tubular Bar—Prepare each specimen by
matching only as agreed to by order. Physical properties may
cutting a 1.5 in. (38 mm) long slice from the shape to be tested.
be affected by colors.
The slice shall then be machined, using a coolant and good
7.2 Finish—All products shall be free of blisters, wrinkles,
machining practices to a length of 1.000 6 0.005 in. (25 6
cracks, gouges and defects that restrict commercial use of the
0.13 mm). Each end of the specimen shall have a machined
product. Special surface finish shall be supplied only when
surface.
specified in the purchase order or contract.
11.2.1.2 Plate and Sheer—The test is not applicable to sheet
7.3 Defects—All products shall be free of voids, dirt,
under ⁄16 in. (4.8 mm) thick. Each specimen shall consist of a
foreign material and embedded particles exceeding ⁄32 in. (0.8
2 in. (51 mm) diameter disc machined from the flat (diameter
mm) maximum diameter as defined below.
shall equal test specimen thickness with a minimum of 2.0 in.
7.3.1 The criteria for determining the internal cleanliness
(51 mm). Use the same care in the machining as described
shall be external visual inspection. A maximum number of two
above. The thickness of the specimen shall be that of the
internal defects per square foot of plate/sheet and 1-ft (0.3-m)
original flat from whi
...

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

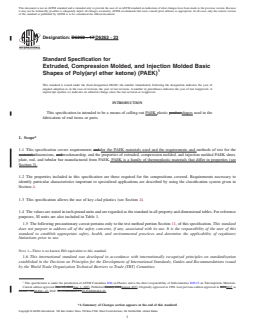

Designation: D6262 − 17 D6262 − 23
Standard Specification for
Extruded, Compression Molded, and Injection Molded Basic
Shapes of Poly(aryl ether ketone) (PAEK)
This standard is issued under the fixed designation D6262; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
INTRODUCTION
This specification in intended to be a means of calling out PAEK plastic productshapes used in the
fabrication of end items or parts.
1. Scope*
1.1 This specification covers requirements and for the PAEK materials used and the requirements and methods of test for the
material, dimensions, and workmanship, and the properties of extruded, compression molded, and injection molded PAEK sheet,
plate, rod, and tubular bar manufactured from PAEK. PAEK is a family of thermoplastic materials that differ in properties (see
Section 3).
1.2 The properties included in this specification are those required for the compositions covered. Requirements necessary to
identify particular characteristics important to specialized applications are described by using the classification system given in
Section 4.
1.3 This specification allows the use of key clad plastics (see Section 4).
1.4 The values are stated in inch-pound units and are regarded as the standard in all property and dimensional tables. For reference
purposes, SI units are also included in Table 1.
1.5 The following precautionary caveat pertains only to the test method portion Section 11, of this specification. This standard
does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this
standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory
limitations prior to use.
NOTE 1—There is no known ISO equivalent to this standard.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
This specification is under the jurisdiction of ASTM Committee D20 on Plastics and is the direct responsibility of Subcommittee D20.15 on Thermoplastic Materials.
Current edition approved Dec. 15, 2017Aug. 1, 2023. Published January 2018August 2023. Originally approved in 1998. Last previous edition approved in 20122017 as
D6262 - 12.D6262 - 17. DOI: 10.1520/D6262-17.10.1520/D6262-23.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
D6262 − 23

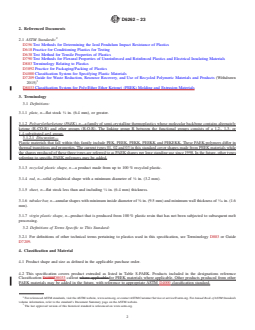

2. Referenced Documents
2.1 ASTM Standards:
D256 Test Methods for Determining the Izod Pendulum Impact Resistance of Plastics
D618 Practice for Conditioning Plastics for Testing
D638 Test Method for Tensile Properties of Plastics
D790 Test Methods for Flexural Properties of Unreinforced and Reinforced Plastics and Electrical Insulating Materials
D883 Terminology Relating to Plastics
D3892 Practice for Packaging/Packing of Plastics
D4000 Classification System for Specifying Plastic Materials
D7209 Guide for Waste Reduction, Resource Recovery, and Use of Recycled Polymeric Materials and Products (Withdrawn
2015)
D8033 Classification System for Poly(Ether Ether Ketone) (PEEK) Molding and Extrusion Materials
3. Terminology
3.1 Definitions:
3.1.1 plate, n—flat stock ⁄4 in. (6.4 mm), or greater.
3.1.2 Polyaryletherketone (PAEK), n—a family of semi-crystalline thermoplastics whose molecular backbone contains alternately
ketone (R-CO-R) and ether groups (R-O-R). The linking group R between the functional groups consists of a 1,2-, 1,3- or
1,4-substituted aryl group.
3.1.2.1 Discussion—
Plastic materials that fall within this family include PEK, PEEK, PEKK, PEEKK and PEKEKK. These PAEK polymers differ in
thermal transitions and properties. The current types 01, 02 and 03 in this standard cover shapes made from PEEK materials while
the shapes produced of these three types are referred to as PAEK shapes per long standing use since 1998. In the future, other types
referring to specific PAEK polymers may be added.
3.1.3 recycled plastic shape, n—a product made from up to 100 % recycled plastic.
3.1.4 rod, n—solid cylindrical shape with a minimum diameter of ⁄8 in. (3.2 mm).
3.1.5 sheet, n—flat stock less than and including ⁄4 in. (6.4 mm) thickness.
3 1
3.1.6 tubular bar, n—annular shapes with minimum inside diameter of ⁄8 in. (9.5 mm) and minimum wall thickness of ⁄16 in. (1.6
mm).
3.1.7 virgin plastic shape, n—product that is produced from 100 % plastic resin that has not been subjected to subsequent melt
processing.
3.2 Definitions of Terms Specific to This Standard:
3.2.1 For definitions of other technical terms pertaining to plastics used in this specification, see Terminology D883 or Guide
D7209.
4. Classification and Material
4.1 Product shape and size as defined in the applicable purchase order.
4.2 This specification covers product extruded as listed in Table S-PAEK. Products included in the designations reference
Classification D4000D8033 callout where applicable.for PEEK materials where applicable. Other products produced from other
PAEK materials may be added in the future, with reference to appropriate ASTM D4000 classification standard.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
The last approved version of this historical standard is referenced on www.astm.org.
D6262 − 23

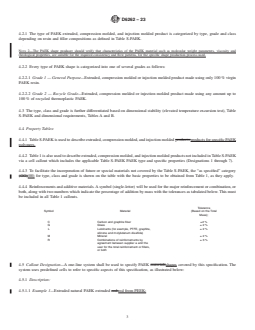

4.2.1 The type of PAEK extruded, compression molded, and injection molded product is categorized by type, grade and class
depending on resin and filler compositions as defined in Table S-PAEK.
NOTE 2—The PAEK shape producer should verify that characteristics of the PAEK material such as molecular weight parameters, viscosity and
rheological properties, are suitable for the required consistency and flow patterns, for the specific shape production process used.
4.2.2 Every type of PAEK shape is categorized into one of several grades as follows:
4.2.2.1 Grade 1 — General Purpose—Extruded, compression molded or injection molded product made using only 100 % virgin
PAEK resin.
4.2.2.2 Grade 2 — Recycle Grade—Extruded, compression molded or injection molded product made using any amount up to
100 % of recycled thermoplastic PAEK.
4.3 The type, class and grade is further differentiated based on dimensional stability (elevated temperature excursion test), Table
S-PAEK and dimensional requirements, Tables A and B.
4.4 Property Tables:
4.4.1 Table S-PAEK is used to describe extruded, compression molded, and injection molded products.products for specific PAEK
polymers.
4.4.2 Table 1 is also used to describe extruded, compression molded, and injection molded products not included in Table S-PAEK
via a cell callout which includes the applicable Table S-PAEK PAEK type and specific properties (Designations 1 through 7).
4.4.3 To facilitate the incorporation of future or special materials not covered by the Table S-PAEK, the “as specified” category
(OO)(00) for type, class and grade is shown on the table with the basic properties to be obtained from Table 1, as they apply.
4.4.4 Reinforcements and additive materials. A symbol (single-letter) will be used for the major reinforcement or combination, or
both, along with two numbers which indicate the percentage of addition by mass with the tolerances as tabulated below. This must
be included in all Table 1 callouts.
Tolerance
Symbol Material (Based on the Total
Mass);
C Carbon and graphite fiber ±2 %
G Glass ± 2 %
L Lubricants (for example, PTFE, graphite, ± 2 %
silicone and molybdenum disulfide)
M Mineral ± 2 %
R Combinations of reinforcements by ± 3 %
agreement between supplier a and the
user for the total reinforcement or fillers,
or both
4.5 Callout Designation—A one-line system shall be used to specify PAEK materialsshapes covered by this specification. The
system uses predefined cells to refer to specific aspects of this specification, as illustrated below:
4.5.1 Description:
4.5.1.1 Example 1—Extruded natural PAEK extruded rod:rod from PEEK:
D6262 − 23
CELL CALLOUT: S-PAEK0111
S-PAEK01 = Product made from PAEK resin in accordance with
Table S-PAEK
S-PAEK01 = Product made from PAEK resin as called in the
material designation in Table S-PAEK and meeting
shape requirements in Table S-PAEK
1 = Unfilled class
1 = General purpose grade product
4.5.1.2 Example 2—Compression molded natural PAEK plate.plate from PEEK.
CELL CALLOUT: S-PAEK0211
S-PAEK02 = Product made from PAEK in accordance with Table
S-PAEK
S-PAEK02 = Product made from PAEK resin as called in the material
designation in Table S-PAEK and meeting stock shape
requirements in accordance with Table S-PAEK
1 = Unfilled class
1 = General purpose grade product
4.5.2 The two examples illustrate how a one-line, alpha-numericalphanumeric sequence identifies the product composition,
commercial parameters and physical characteristics of extruded or compression molded product. A space must be used as a
separator between the specification number and the type designation. No separators are needed between type, class and grade.
When special notes are to be included, such information should be preceded by a comma. Special tolerances must be noted at time
of order and are inserted after the grade in parenthesis and preceded by a comma.
5. Physical Property Requirements
5.1 The physical property values listed within this specification’s tables are to be considered minimum specification values. Any
requirement for specific test data for a given production lot of PAEK shape should be specified at the time of order. Physical
properties for products not yet included in Table S-PAEK shall be specified using Table 1 for extruded, compression molded, and
injection molded products.
6. Dimensional Requirements
6.1 The type, class, and grade is further differentiated based on dimensional stability (elevated temperature excursion test), Table
S-PAEK, and dimensional requirements, Tables A and B. Products shall be produced within commercial tolerances and with the
lowest stress levels for machined parts as delineated in Tables A and B for extruded products. The manner in which the tolerances
are obtained is not relevant.
6.2 Tubular bar and compression molded dimensions shall be supplied in the unfinished condition, unless otherwise specified at
time of order, sufficient to finish to the nominal dimension ordered.
6.3 The maximum allowable camber or bow, or both, shall be within the limits referenced in Tables A and B.
7. Workmanship, Finish, and Appearance
7.1 Appearance—The color of products shall be as published by the shapes manufacturer. They shall be uniform in color
throughout the thickness. Specific colors and color matching only as agreed to by order. Physical properties may be affected by
colors.
7.2 Finish—All products shall be free of blisters, wrinkles, cracks, gouges and defects that restrict commercial use of the product.
Special surface finish shall be supplied only when specified in the purchase order or contract.
7.3 Defects—All products shall be free of voids, dirt, foreign material and embedded particles exceeding ⁄32 in. (0.8 mm)
maximum diameter as defined below.
7.3.1 The criteria for determining the internal cleanliness shall be external visual inspection. A maximum number of two internal
D6262 − 23
defects per square foot of plate/sheet and 1-ft (0.3-m) length of rod and tubular bar is allowed. Clusters of defects less than ⁄32 in.
(0.8 mm) diameter are to be counted as a single defect.
8. Sampling
8.1 The materials shall be sampled in accordance with a sampling procedure statistically adequate to satisfy the requirements of
12.1. A lot shall be considered as a unit of manufacture defined as a production run.
9. Number of Tests
9.1 Routine lot inspection shall consist of all the criteria specified in the applicable product tables.
9.2 The criteria listed in these product tables and definitions are sufficient to establish conformity of the sheet, plate, rod or tubular
bars to this specification. When the number of test specimens is not stated in the test method, a single determination shall be made.
If more than single determinations and separate portions of the same sample are made, the results shall be averaged. The final result
shall conform to the requirements prescribed in this specification.
10. Test Conditions
10.1 Conditioning of Specimens—The specification values and dimensions are based on conditioning techniques outlined in
Procedure A of Practice D618.
10.2 Standard Temperature—The tests shall be conducted at the standard laboratory temperature of 73.4 6 3.6°F (23 6 2°C) and
50 6 10 % RH.
11. Test Methods
11.1 Tensile stress at break, elongation at break, and tensile modulus (tangent) in accordance with Test Method D638, at the rate
of 0.2 in. (5 mm)/min.
11.1.1 All plate and sheet specimens are in accordance with Type I of Test Method D638. Testing of specimens taken in the
machine flow direction is sufficient.
11.1.2 All rod specimens are in accordance with Type I of Test Method D638.
11.1.3 All tubular bar specimens are in accordance with Type I of Test Method D638.
11.2 Dimensional Stability:
11.2.1 Specimen Preparation (a Minimum of Three Test Samples Required):
11.2.1.1 Rods and Tubular Bar—Prepare each specimen by cutting a 1.5 in. (38 mm) long slice from the shape to be tested. The
slice shall then be machined, using a coolant and good machining practices to a length of 1.000 6 0.005 in. (25 6 0.13 mm). Each
end of the specimen shall have a machined surface.
11.2.1.2 Plate and Sheer—The test is not applicable to sheet under ⁄16 in. (4.8 mm) thick. Each specimen shall consist of a 2 in.
(51 mm) diameter disc machined from the flat (diameter shall equal test specimen thickness with a minimum of 2.0 in. (51 mm).
Use the same care in the machining as described above. The thickness of the specimen shall be that of the original flat from which
it was cut, no machining being done on the top or bottom faces.
11.2.2 Testing Procedure—Place the specimen in an oil bath consisting of polyalkylene glycol or an air circulating oven and heated
to the applicable temperature for PAEK type as noted below. Measure the outside diameter and thickness or length of th
...
