ASTM E2069-19

(Test Method)

Standard Test Method for Temperature Calibration on Cooling of Differential Scanning Calorimeters

Standard Test Method for Temperature Calibration on Cooling of Differential Scanning Calorimeters

SIGNIFICANCE AND USE
5.1 This test method is useful in calibrating the temperature signal of a DSC for cooling experiments such as the determination of crystallization temperatures in Test Method D3418 and Test Method E794.
5.2 This test method may be used for research, development, analytical, specification acceptance, quality assurance, and control purposes.
SCOPE
1.1 This test method describes the temperature calibration of differential scanning calorimeters (DSCs) on cooling using the difference between transition temperatures upon heating and cooling in the temperature range of 65 °C to 420 °C. An offset in the indicated temperature between heating and cooling experiments, within this temperature range, may be used to provide temperature calibration on cooling at other temperature ranges.
1.2 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.3 Test Method E3142 is an alternative to this test method.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. Specific precautionary statements are given in Section 6.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

General Information

Status
Published
Publication Date
31-Aug-2019
ICS
17.200.10 - Heat. Calorimetry
Technical Committee
E37 - Thermal Measurements
Drafting Committee
E37.01 - Calorimetry and Mass Loss
Current Stage
Ref Project

Relations

Replaces
ASTM E2069-06(2018) - Standard Test Method for Temperature Calibration on Cooling of Differential Scanning Calorimeters
Effective Date
01-Sep-2019
Refers
ASTM E3142-18 - Standard Test Method for Thermal Lag of Thermal Analysis Apparatus
Effective Date
15-Jan-2018
Refers
ASTM E928-19 - Standard Test Method for Purity by Differential Scanning Calorimetry
Effective Date
01-May-2019
Refers
ASTM E928-08(2014) - Standard Test Method for Purity by Differential Scanning Calorimetry
Effective Date
15-Aug-2014
Refers
ASTM E473-14 - Standard Terminology Relating to Thermal Analysis and Rheology
Effective Date
15-Aug-2014
Referred By
ASTM E3142-18a(2023) - Standard Test Method for Thermal Lag of Thermal Analysis Apparatus
Effective Date
01-Sep-2019

Buy Standard

ASTM E2069-19 - Standard Test Method for Temperature Calibration on Cooling of Differential Scanning CalorimetersASTM E2069-19 - Standard Test Method for Temperature Calibration on Cooling of Differential Scanning Calorimeters
PreviousNext
Standard
ASTM E2069-19 - Standard Test Method for Temperature Calibration on Cooling of Differential Scanning Calorimeters
English language
7 pages
sale 15% off
Preview
sale 15% off
Preview
REDLINE ASTM E2069-19 - Standard Test Method for Temperature Calibration on Cooling of Differential Scanning CalorimetersREDLINE ASTM E2069-19 - Standard Test Method for Temperature Calibration on Cooling of Differential Scanning Calorimeters
PreviousNext
Standard
REDLINE ASTM E2069-19 - Standard Test Method for Temperature Calibration on Cooling of Differential Scanning Calorimeters
English language
7 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

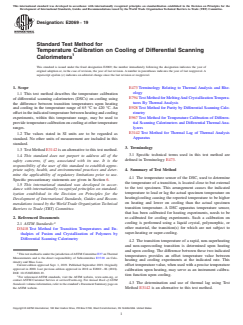

Designation: E2069 − 19
Standard Test Method for
Temperature Calibration on Cooling of Differential Scanning
1
Calorimeters
This standard is issued under the fixed designation E2069; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope E473 Terminology Relating to Thermal Analysis and Rhe-
ology
1.1 This test method describes the temperature calibration
E794 Test Method for MeltingAnd CrystallizationTempera-
of differential scanning calorimeters (DSCs) on cooling using
tures By Thermal Analysis
the difference between transition temperatures upon heating
E928 Test Method for Purity by Differential Scanning Calo-
and cooling in the temperature range of 65 °C to 420 °C. An
rimetry
offsetintheindicatedtemperaturebetweenheatingandcooling
E967 Test Method for Temperature Calibration of Differen-
experiments, within this temperature range, may be used to
providetemperaturecalibrationoncoolingatothertemperature
tial Scanning Calorimeters and Differential Thermal Ana-
ranges.
lyzers
E3142 Test Method for Thermal Lag of Thermal Analysis
1.2 The values stated in SI units are to be regarded as
Apparatus
standard. No other units of measurement are included in this
standard.
3. Terminology
1.3 Test Method E3142 is an alternative to this test method.
3.1 Specific technical terms used in this test method are
1.4 This standard does not purport to address all of the
defined in Terminology E473.
safety concerns, if any, associated with its use. It is the
responsibility of the user of this standard to establish appro-
priate safety, health, and environmental practices and deter- 4. Summary of Test Method
mine the applicability of regulatory limitations prior to use.
4.1 The temperature sensor of the DSC, used to determine
Specific precautionary statements are given in Section 6.
the temperature of a transition, is located close to but external
1.5 This international standard was developed in accor-
to the test specimen. This arrangement causes the indicated
dance with internationally recognized principles on standard-
temperature to lead or lag the actual specimen temperature on
ization established in the Decision on Principles for the
heating/cooling causing the reported temperature to be higher
Development of International Standards, Guides and Recom-
on heating and lower on cooling than the actual specimen
mendations issued by the World Trade Organization Technical
transition temperature. A DSC apparatus temperature sensor,
Barriers to Trade (TBT) Committee.
that has been calibrated for heating experiments, needs to be
2. Referenced Documents re-calibrated for cooling experiments. Such a calibration on
2
cooling is performed using a liquid crystal, polymorphic, or
2.1 ASTM Standards:
other material, the transition(s) for which are not subject to
D3418 Test Method for Transition Temperatures and En-
super-heating or super-cooling.
thalpies of Fusion and Crystallization of Polymers by
Differential Scanning Calorimetry
4.2 The transition temperature of a rapid, non-superheating
and non-supercooling transition is determined upon heating
and upon cooling. The difference between these two indicated
1
ThistestmethodisunderthejurisdictionofASTMCommitteeE37onThermal
temperatures provides an offset temperature value between
Measurements and is the direct responsibility of Subcommittee E37.01 on Calo-
heating and cooling experiments at the indicated rate. This
rimetry and Mass Loss.
Current edition approved Sept. 1, 2019. Published September 2019. Originally offset temperature value, when used with a precise temperature
approved in 2000. Last previous edition approved in 2018 as E2069 – 06 (2018).
calibration upon heating, may serve as an instrument calibra-
DOI: 10.1520/E2069-19.
tion function upon cooling.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
4.3 The determination and use of thermal lag using Test
Standards volume information, refer to the standard’s Document Summary page on
the ASTM website. Method E3142 is an alternative to this test method.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------

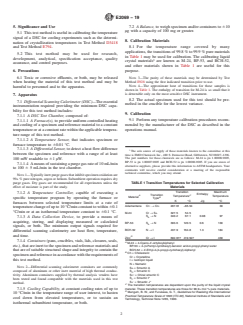

E2069 − 19
5. Significance and Use 7.2 ABalance, to weigh specimen and/or containers to 610
µg with a capacity of 100 mg or greater.
5.1 This test
...

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

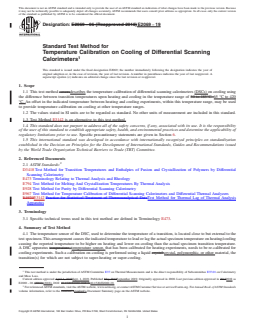

Designation: E2069 − 06 (Reapproved 2018) E2069 − 19
Standard Test Method for
Temperature Calibration on Cooling of Differential Scanning
1
Calorimeters
This standard is issued under the fixed designation E2069; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope
1.1 This test method coversdescribes the temperature calibration of differential scanning calorimeters (DSCs) on cooling using
the difference between transition temperatures upon heating and cooling in the temperature range of 50 to 185°C. 65 °C to 420
°C. An offset in the indicated temperature between heating and cooling experiments, within this temperature range, may be used
to provide temperature calibration on cooling at other temperature ranges.
1.2 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.3 Test Method E3142 is an alternative to this test method.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of
regulatory limitations prior to use. Specific precautionary statements are given in Section 6.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2
2.1 ASTM Standards:
D3418 Test Method for Transition Temperatures and Enthalpies of Fusion and Crystallization of Polymers by Differential
Scanning Calorimetry
E473 Terminology Relating to Thermal Analysis and Rheology
E794 Test Method for Melting And Crystallization Temperatures By Thermal Analysis
E928 Test Method for Purity by Differential Scanning Calorimetry
E967 Test Method for Temperature Calibration of Differential Scanning Calorimeters and Differential Thermal Analyzers
E1970E3142 Practice for Statistical Treatment of Thermoanalytical DataTest Method for Thermal Lag of Thermal Analysis
Apparatus
3. Terminology
3.1 Specific technical terms used in this test method are defined in Terminology E473.
4. Summary of Test Method
4.1 The temperature sensor of the DSC, used to determine the temperature of a transition, is located close to but external to the
test specimen. This arrangement causes the indicated temperature to lead or lag the actual specimen temperature on heating/cooling
causing the reported temperature to be higher on heating and lower on cooling than the actual specimen transition temperature.
A DSC apparatus temperature, temperature sensor, that has been calibrated for heating experiments, needs to be re-calibrated for
cooling experiments. Such a calibration on cooling is performed using a liquid crystal crystal, polymorphic, or other material, the
transition(s) for which are not subject to super-heating or super-cooling.
1
This test method is under the jurisdiction of ASTM Committee E37 on Thermal Measurements and is the direct responsibility of Subcommittee E37.01 on Calorimetry
and Mass Loss.
Current edition approved April 1, 2018Sept. 1, 2019. Published May 2018September 2019. Originally approved in 2000. Last previous edition approved in 20122018 as
E2069 – 06 (2012).(2018). DOI: 10.1520/E2069-06R18.10.1520/E2069-19.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’sstandard’s Document Summary page on the ASTM website.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------

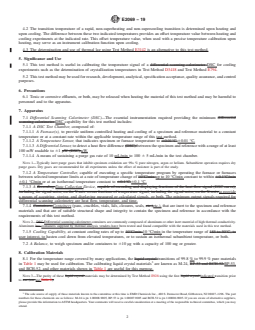

E2069 − 19
4.2 The transition temperature of a rapid, non-superheating and non-supercooling transition is determined upon heating and
upon cooling. The difference between these two indicated temperatures provides an offset temperature value between heating and
cooling experiments at the indicated rate. This offset temperature value, when used with a precise temperature calibratio
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.

This May Also Interest You

ASTM
ASTM E473-23a(Terminology)
Standard Terminology Relating to Thermal Analysis and Rheology

SCOPE
1.1 This terminology is a compilation of definitions of terms used in ASTM documents relating to thermal analysis and rheology. This terminology includes only those terms for which ASTM either has standards or is contemplating some action. It is not intended to be an all-inclusive listing of terms related to thermal analysis and rheology.
1.2 This terminology specifically supports the single-word form for terms using thermo as a prefix, such as thermoanalytical or thermomagnetometry, while recognizing that for some terms a two-word form can be used, such as thermal analysis. This terminology does not support, nor does it recommend, use of the grammatically incorrect, single-word form using thermal as a prefix, such as, thermalanalytical or thermalmagnetometry.
1.3 A definition is a single sentence with additional information included in a Discussion area. It is reviewed every five years.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    4 pages
    English language
    sale 15% off
  • Standard
    4 pages
    English language
    sale 15% off
ASTM
ASTM E1356-23(Test Method)
Standard Test Method for Assignment of the Glass Transition Temperatures by Differential Scanning Calorimetry

SIGNIFICANCE AND USE
5.1 Differential scanning calorimetry provides a rapid test method for determining changes in specific heat capacity in a homogeneous material. The glass transition is manifested as a step change in specific heat capacity. For amorphous and semicrystalline materials the determination of the glass transition temperature may lead to important information about their thermal history, processing conditions, stability, progress of chemical reactions, and mechanical and electrical behavior.
5.2 This test method is useful for research, quality control, and specification acceptance.
SCOPE
1.1 This test method covers the assignment of the glass transition temperatures of materials using differential scanning calorimetry or differential thermal analysis.
1.2 This test method is applicable to amorphous materials or to partially crystalline materials containing amorphous regions, that are stable and do not undergo decomposition or sublimation in the glass transition region.
1.3 The normal operating temperature range is from −120 °C to 500 °C. The temperature range may be extended, depending upon the instrumentation used.
1.4 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.5 ISO standards 11357–2 is equivalent to this standard.
1.6 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.7 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    4 pages
    English language
    sale 15% off
ASTM
ASTM E2041-23(Test Method)
Standard Test Method for Estimating Kinetic Parameters by Differential Scanning Calorimeter Using the Borchardt and Daniels Method

SIGNIFICANCE AND USE
6.1 This test method is useful in research and development.
6.2 The determination of the appropriate model for a chemical reaction or transformation and the values associated with its kinetic parameters may be used in the estimation of reaction performance at temperatures or time conditions not easily tested. This use, however, is not described in this test method.
SCOPE
1.1 This test method describes the determination of the kinetic parameters of activation energy, Arrhenius pre-exponential factor, and reaction order using the Borchardt and Daniels2 treatment of data obtained by differential scanning calorimetry. This test method is applicable to the temperature range from 170 K to 870 K (−100 °C to 600°C).
1.2 This treatment is applicable only to smooth exothermic reactions with no shoulders, discontinuous changes, or shifts in baseline. It is applicable only to reactions with reaction order n ≤ 2. It is not applicable to acceleratory reactions and, therefore, is not applicable to the determination of kinetic parameters for most thermoset curing reactions or to crystallization reactions.
1.3 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    9 pages
    English language
    sale 15% off
  • Standard
    9 pages
    English language
    sale 15% off
ASTM
ASTM E2603-15(2023)(Practice)
Standard Practice for Calibration of Fixed-Cell Differential Scanning Calorimeters

SIGNIFICANCE AND USE
5.1 Fixed-cell differential scanning calorimeters are used to determine the transition temperatures and energetics of materials in solution. For this information to be accepted with confidence in an absolute sense, temperature and heat calibration of the apparatus or comparison of the resulting data to that of known standard materials is required.
5.2 This practice is useful in calibrating the temperature and heat flow axes of fixed-cell differential scanning calorimeters.
SCOPE
1.1 This practice covers the calibration of fixed-cell differential scanning calorimeters over the temperature range from –10 °C to +120 °C.
1.2 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. Specific precautionary statements are given in Section 7.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    5 pages
    English language
    sale 15% off
ASTM
ASTM E1952-23(Test Method)
Standard Test Method for Thermal Conductivity and Thermal Diffusivity by Modulated Temperature Differential Scanning Calorimetry

SIGNIFICANCE AND USE
5.1 Thermal conductivity is a useful design parameter for the rate of heat transfer through a material.
5.2 The results of this test method may be used for design purposes, service evaluation, manufacturing control, research and development, and hazard evaluation. (See Practice E1231.)
SCOPE
1.1 This test method describes the determination of thermal conductivity of homogeneous, non-porous solid materials in the range of 0.10 W/(K·m) to 1.0 W/(K·m) by modulated temperature differential scanning calorimeter. This range includes many polymeric, glass, and ceramic materials. Thermal diffusivity, which is related to thermal conductivity through specific heat capacity and density, may also be derived. Thermal conductivity and diffusivity can be determined at one or more temperatures over the range of 0 °C to 90 °C.
1.2 The values stated in SI units are to be regarded as standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    7 pages
    English language
    sale 15% off
  • Standard
    7 pages
    English language
    sale 15% off
ASTM
ASTM E1142-23a(Terminology)
Standard Terminology Relating to Thermophysical Properties

SCOPE
1.1 This is a compilation of only those terms and corresponding definitions included in or being considered for inclusion in ASTM documents relating to thermophysical properties. It is not intended as an all-inclusive listing of thermophysical property terms. Terms that are generally understood or defined adequately in other readily available sources are not included.
1.2 A definition is a single sentence with additional information included in a Discussion.
1.3 Definitions of terms specific to a particular field (such as dynamic mechanical measurements) are identified with an italicized introductory phrase.
1.4 Units—The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    7 pages
    English language
    sale 15% off
  • Standard
    7 pages
    English language
    sale 15% off
ASTM
ASTM E2009-23(Test Method)
Standard Test Methods for Oxidation Onset Temperature of Hydrocarbons by Differential Scanning Calorimetry

SIGNIFICANCE AND USE
5.1 Oxidation onset temperature is a relative measure of the degree of oxidative stability of the material evaluated at a given heating rate and oxidative environment (e.g., oxygen); the higher the OOT value the more stable the material. The OOT is described in Fig. 1. The OOT values can be used for comparative purposes and are not an absolute measurement, like the oxidation induction time (OIT) at a constant temperature (see Test Method E1858). The presence or effectiveness of antioxidants may be determined by these test methods.
FIG. 1 DSC Oxidation (Extrapolated) Onset Temperature (OOT)
5.2 Typical uses of these test methods include the oxidative stability of edible oils and fats (oxidative rancidity), lubricants, greases, and polyolefins.
SCOPE
1.1 These test methods describe the determination of the oxidative properties of hydrocarbons by differential scanning calorimetry or pressure differential scanning calorimetry under linear heating rate conditions and are applicable to hydrocarbons, which oxidize exothermically in their analyzed form.
1.2 Test Method A—A differential scanning calorimeter (DSC) is used at ambient pressure of one atmosphere of oxygen.
1.3 Test Method B—A pressure DSC (PDSC) is used at high pressure (e.g., 3.5 MPa (500 psig) of oxygen).
1.4 Test Method C—A differential scanning calorimeter (DSC) is used at ambient pressure of one atmosphere of air.
1.5 Units—The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.6 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.7 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    6 pages
    English language
    sale 15% off
  • Standard
    6 pages
    English language
    sale 15% off
ASTM
ASTM E1970-23(Practice)
Standard Practice for Statistical Treatment of Thermoanalytical Data

SIGNIFICANCE AND USE
5.1 The standard deviation, or one of its derivatives, such as relative standard deviation or pooled standard deviation, derived from this practice, provides an estimate of precision in a measured value. Such results are ordinarily expressed as the mean value ± the standard deviation, that is, X ± s.
5.2 If the measured values are, in the statistical sense, “normally” distributed about their mean, then the meaning of the standard deviation is that there is a 67 % chance, that is 2 in 3, that a given value will lie within the range of ± one standard deviation of the mean value. Similarly, there is a 95 % chance, that is 19 in 20, that a given value will lie within the range of ± two standard deviations of the mean. The two standard deviation range is sometimes used as a test for outlying measurements.
5.3 The calculation of precision in the slope and intercept of a line, derived from experimental data, commonly is required in the determination of kinetic parameters, vapor pressure or enthalpy of vaporization. This practice describes how to obtain these and other statistically derived values associated with measurements by thermal analysis.
SCOPE
1.1 This practice details the statistical data treatment used in some thermal analysis methods.
1.2 The method describes the commonly encountered statistical tools of the mean, standard derivation, relative standard deviation, pooled standard deviation, pooled relative standard deviation, the best fit to a (linear regression of a) straight line (or plane), and propagation of uncertainties for all calculations encountered in thermal analysis methods (see Practice E2586).
1.3 Some thermal analysis methods derive the analytical value from the slope or intercept of a linear regression straight line (or plane) assigned to three or more sets of data pairs. Such methods may require an estimation of the precision in the determined slope or intercept. The determination of this precision is not a common statistical tool. This practice details the process for obtaining such information about precision.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    5 pages
    English language
    sale 15% off
  • Standard
    5 pages
    English language
    sale 15% off
ASTM
ASTM E2716-23(Test Method)
Standard Test Method for Determining Specific Heat Capacity by Modulated Temperature Differential Scanning Calorimetry

SIGNIFICANCE AND USE
5.1 Modulated temperature differential scanning calorimetric measurements provide a rapid, simple method for determining specific heat capacities of materials, even under quasi-isothermal conditions.
5.2 Specific heat capacities are important for design purposes, quality control, and research and development.
5.3 The use of a stepped quasi-isothermal program may be used to follow structure changes in materials.
SCOPE
1.1 This test method describes the determination of specific heat capacity by modulated temperature differential scanning calorimetry. For the determination of specific heat capacity by a step-isothermal or multiple step-isothermal temperature program, the reader is referred to Test Method E1269.
1.2 This test method is generally applicable to thermally stable solids and liquids.
1.3 The normal operating range of the test is from (–100 to 600) °C. The temperature range may be extended depending upon the instrumentation and specimen holders used.
1.4 Units—The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.5 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory limitations prior to use.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    4 pages
    English language
    sale 15% off
  • Standard
    4 pages
    English language
    sale 15% off
ASTM
ASTM E1782-22(Test Method)
Standard Test Method for Determining Vapor Pressure by Thermal Analysis

SIGNIFICANCE AND USE
5.1 Vapor pressure is a fundamental thermophysical property of a liquid. Vapor pressure data are useful in process design and control, in establishing environmental regulations for safe handling and transport, for estimation of volatile organic content (VOC), and in deriving hazard assessments. Vapor pressure and boiling temperature data are required for Safety Data Sheets (SDS). The enthalpy of vaporization may also be estimated from the slope of the vapor pressure curve (see Practice E2071).
SCOPE
1.1 This test method describes a procedure for the determination of the vapor pressure of pure liquids or melts from boiling point measurements made using differential thermal analysis (DTA) or differential scanning calorimetry (DSC) instrumentation operated at different applied pressures.
1.2 This test method can be used for the temperature range 273 K to 773 K (0 °C to 500 °C) and for pressures between 0.2 kPa to 2 MPa. These ranges may differ depending upon the instrumentation used and the thermal stability of materials tested. Because a range of applied pressures is required by this test method, the analyst is best served by use of instrumentation referred to as high pressure differential thermal instrumentation (HPDSC or HPDTA).
1.3 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard. (See also IEEE/ASTM SI 10.)
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    8 pages
    English language
    sale 15% off
  • Standard
    8 pages
    English language
    sale 15% off
