ASTM D3299-08
(Specification)Standard Specification for Filament-Wound Glass-Fiber-Reinforced Thermoset Resin Corrosion-Resistant Tanks
Standard Specification for Filament-Wound Glass-Fiber-Reinforced Thermoset Resin Corrosion-Resistant Tanks
ABSTRACT
This specification covers cylindrical corrosion-resistant tanks made of commercial-grade glass-fiber-reinforced polyester or vinylester thermoset resin fabricated by filament winding for above-ground vertical installation, to contain aggressive chemicals at atmospheric pressure as classified herein. This specification does not address the design of vessels intended for pressure above atmospheric, vacuum conditions, except as classified herein, or vessels intended for use with liquids heated above their flash points. Included are requirements for materials, properties, design, construction, dimensions, tolerances, workmanship, and appearance.
SCOPE
1.1 This specification covers cylindrical tanks fabricated by filament winding for above-ground vertical installation, to contain aggressive chemicals at atmospheric pressure as classified herein, and made of a commercial-grade polyester or vinylester resin. Included are requirements for materials, properties, design, construction, dimensions, tolerances, workmanship, and appearance.
1.2 This specification does not cover the design of vessels intended for pressure above atmospheric, vacuum conditions, except as classified herein, or vessels intended for use with liquids heated above their flash points.
1.3 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
Note 1—Special design consideration should be given to vessels subject to superimposed mechanical forces, such as earthquakes, wind load, or agitation, and to vessels subject to service temperature in excess of 180°F (82°C), and to vessels with unsupported bottoms.
Note 2—There is no similar or equivalent ISO standard.
1.4 The following safety hazards caveat pertains only to the test method portion, Section 11, of this specification: This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory limitations prior to use.
General Information
Relations
Buy Standard
Standards Content (Sample)
NOTICE: This standard has either been superseded and replaced by a new version or withdrawn.
Contact ASTM International (www.astm.org) for the latest information.

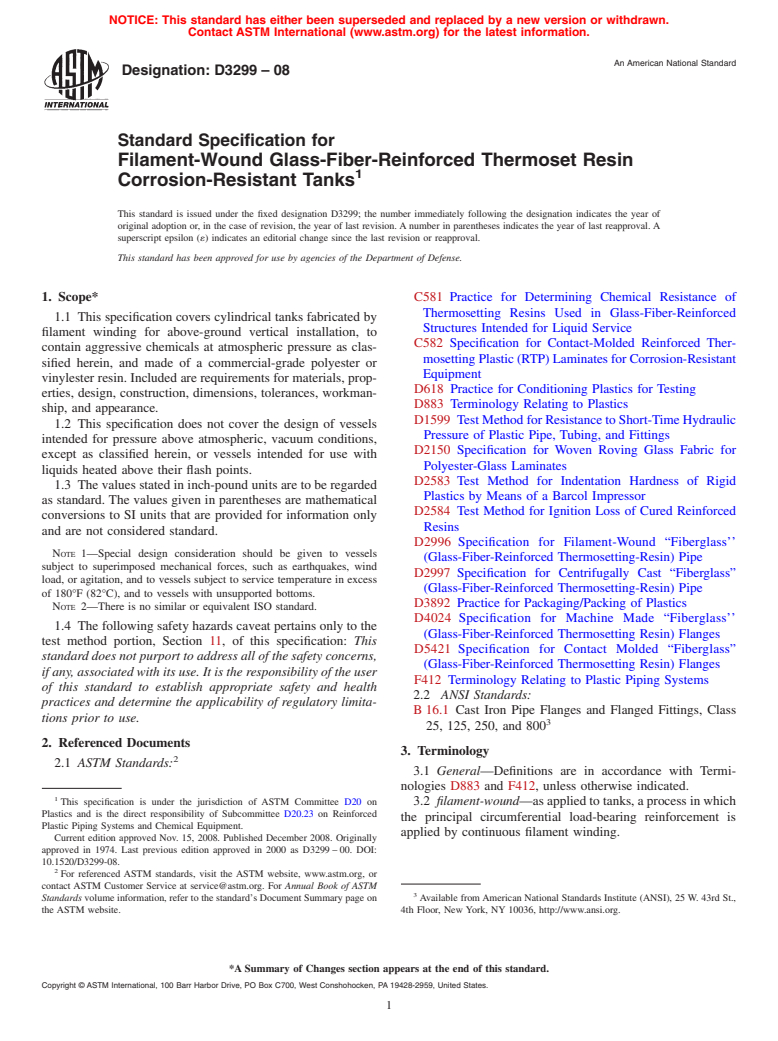

An American National Standard
Designation: D3299 – 08
Standard Specification for
Filament-Wound Glass-Fiber-Reinforced Thermoset Resin
1
Corrosion-Resistant Tanks
This standard is issued under the fixed designation D3299; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision.Anumber in parentheses indicates the year of last reapproval.A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the Department of Defense.
1. Scope* C581 Practice for Determining Chemical Resistance of
Thermosetting Resins Used in Glass-Fiber-Reinforced
1.1 This specification covers cylindrical tanks fabricated by
Structures Intended for Liquid Service
filament winding for above-ground vertical installation, to
C582 Specification for Contact-Molded Reinforced Ther-
contain aggressive chemicals at atmospheric pressure as clas-
mosettingPlastic(RTP)LaminatesforCorrosion-Resistant
sified herein, and made of a commercial-grade polyester or
Equipment
vinylester resin. Included are requirements for materials, prop-
D618 Practice for Conditioning Plastics for Testing
erties, design, construction, dimensions, tolerances, workman-
D883 Terminology Relating to Plastics
ship, and appearance.
D1599 TestMethodforResistancetoShort-TimeHydraulic
1.2 This specification does not cover the design of vessels
Pressure of Plastic Pipe, Tubing, and Fittings
intended for pressure above atmospheric, vacuum conditions,
D2150 Specification for Woven Roving Glass Fabric for
except as classified herein, or vessels intended for use with
Polyester-Glass Laminates
liquids heated above their flash points.
D2583 Test Method for Indentation Hardness of Rigid
1.3 The values stated in inch-pound units are to be regarded
Plastics by Means of a Barcol Impressor
as standard. The values given in parentheses are mathematical
D2584 Test Method for Ignition Loss of Cured Reinforced
conversions to SI units that are provided for information only
Resins
and are not considered standard.
D2996 Specification for Filament-Wound “Fiberglass’’
NOTE 1—Special design consideration should be given to vessels
(Glass-Fiber-Reinforced Thermosetting-Resin) Pipe
subject to superimposed mechanical forces, such as earthquakes, wind
D2997 Specification for Centrifugally Cast “Fiberglass”
load, or agitation, and to vessels subject to service temperature in excess
(Glass-Fiber-Reinforced Thermosetting-Resin) Pipe
of 180°F (82°C), and to vessels with unsupported bottoms.
D3892 Practice for Packaging/Packing of Plastics
NOTE 2—There is no similar or equivalent ISO standard.
D4024 Specification for Machine Made “Fiberglass’’
1.4 The following safety hazards caveat pertains only to the
(Glass-Fiber-Reinforced Thermosetting Resin) Flanges
test method portion, Section 11, of this specification: This
D5421 Specification for Contact Molded “Fiberglass”
standard does not purport to address all of the safety concerns,
(Glass-Fiber-Reinforced Thermosetting Resin) Flanges
if any, associated with its use. It is the responsibility of the user
F412 Terminology Relating to Plastic Piping Systems
of this standard to establish appropriate safety and health
2.2 ANSI Standards:
practices and determine the applicability of regulatory limita-
B16.1 Cast Iron Pipe Flanges and Flanged Fittings, Class
tions prior to use.
3
25, 125, 250, and 800
2. Referenced Documents
3. Terminology
2
2.1 ASTM Standards:
3.1 General—Definitions are in accordance with Termi-
nologies D883 and F412, unless otherwise indicated.
1
This specification is under the jurisdiction of ASTM Committee D20 on 3.2 filament-wound—asappliedtotanks,aprocessinwhich
Plastics and is the direct responsibility of Subcommittee D20.23 on Reinforced
the principal circumferential load-bearing reinforcement is
Plastic Piping Systems and Chemical Equipment.
applied by continuous filament winding.
Current edition approved Nov. 15, 2008. Published December 2008. Originally
approved in 1974. Last previous edition approved in 2000 as D3299–00. DOI:
10.1520/D3299-08.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
3
Standards volume information, refer to the standard’s Document Summary page on Available fromAmerican National Standards Institute (ANSI), 25 W. 43rd St.,
the ASTM website. 4th Floor, New York, NY 10036, http://www.ansi.org.
*A Summary of Changes section appears at the end of this standard.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959, United States.
1
---------------------- Page: 1 ----------------------
D3299 – 08
3.3 contact molding—a molding process that includes 5.1.1.4 Ul
...
This document is not anASTM standard and is intended only to provide the user of anASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

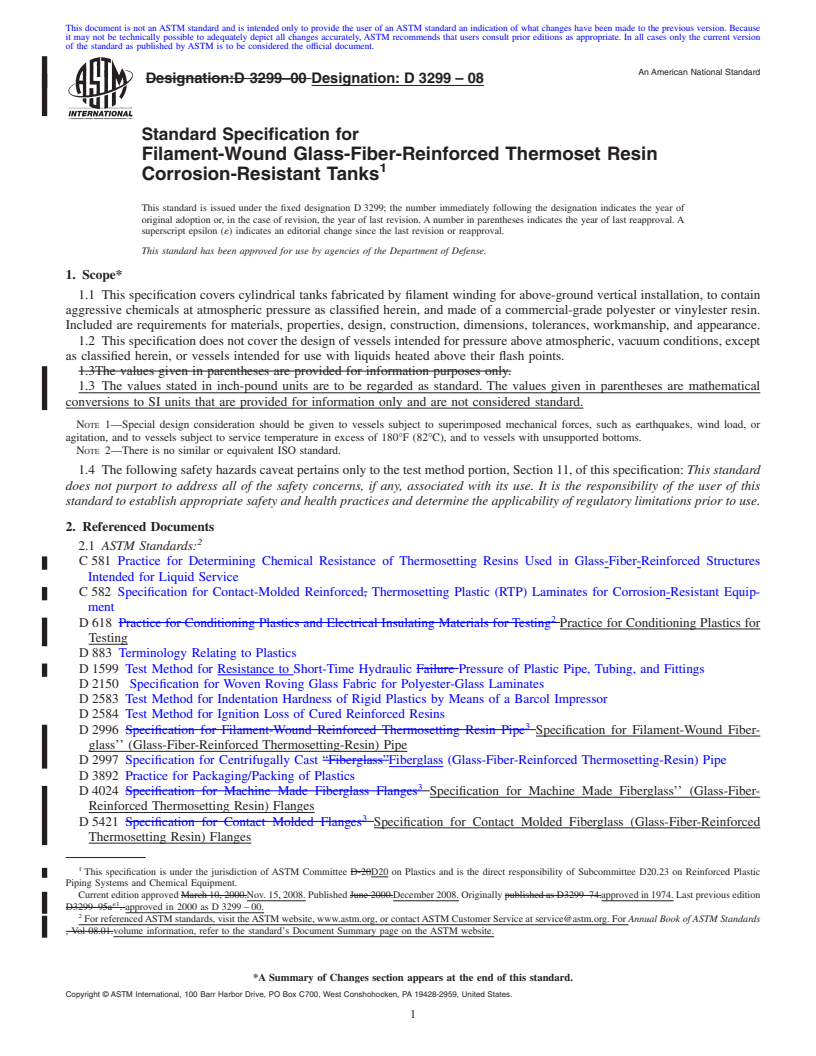

An American National Standard
Designation:D 3299–00 Designation: D 3299 – 08
Standard Specification for
Filament-Wound Glass-Fiber-Reinforced Thermoset Resin
1
Corrosion-Resistant Tanks
This standard is issued under the fixed designation D3299; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision.Anumber in parentheses indicates the year of last reapproval.A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the Department of Defense.
1. Scope*
1.1 This specification covers cylindrical tanks fabricated by filament winding for above-ground vertical installation, to contain
aggressive chemicals at atmospheric pressure as classified herein, and made of a commercial-grade polyester or vinylester resin.
Included are requirements for materials, properties, design, construction, dimensions, tolerances, workmanship, and appearance.
1.2 This specification does not cover the design of vessels intended for pressure above atmospheric, vacuum conditions, except
as classified herein, or vessels intended for use with liquids heated above their flash points.
1.3The values given in parentheses are provided for information purposes only.
1.3 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical
conversions to SI units that are provided for information only and are not considered standard.
NOTE 1—Special design consideration should be given to vessels subject to superimposed mechanical forces, such as earthquakes, wind load, or
agitation, and to vessels subject to service temperature in excess of 180°F (82°C), and to vessels with unsupported bottoms.
NOTE 2—There is no similar or equivalent ISO standard.
1.4 Thefollowingsafetyhazardscaveatpertainsonlytothetestmethodportion,Section11,ofthisspecification: This standard
does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this
standard to establish appropriate safety and health practices and determine the applicability of regulatory limitations prior to use.
2. Referenced Documents
2
2.1 ASTM Standards:
C581 Practice for Determining Chemical Resistance of Thermosetting Resins Used in Glass-Fiber-Reinforced Structures
Intended for Liquid Service
C582 Specification for Contact-Molded Reinforced, Thermosetting Plastic (RTP) Laminates for Corrosion-Resistant Equip-
ment
2
D618 Practice for Conditioning Plastics and Electrical Insulating Materials for Testing Practice for Conditioning Plastics for
Testing
D883 Terminology Relating to Plastics
D1599 Test Method for Resistance to Short-Time Hydraulic Failure Pressure of Plastic Pipe, Tubing, and Fittings
D2150 Specification for Woven Roving Glass Fabric for Polyester-Glass Laminates
D2583 Test Method for Indentation Hardness of Rigid Plastics by Means of a Barcol Impressor
D2584 Test Method for Ignition Loss of Cured Reinforced Resins
3
D2996 Specification for Filament-Wound Reinforced Thermosetting Resin Pipe Specification for Filament-Wound Fiber-
glass’’ (Glass-Fiber-Reinforced Thermosetting-Resin) Pipe
D2997 Specification for Centrifugally Cast “Fiberglass”Fiberglass (Glass-Fiber-Reinforced Thermosetting-Resin) Pipe
D3892 Practice for Packaging/Packing of Plastics
3
D4024 Specification for Machine Made Fiberglass Flanges Specification for Machine Made Fiberglass’’ (Glass-Fiber-
Reinforced Thermosetting Resin) Flanges
3
D5421 Specification for Contact Molded Flanges Specification for Contact Molded Fiberglass (Glass-Fiber-Reinforced
Thermosetting Resin) Flanges
1
This specification is under the jurisdiction of ASTM Committee D-20D20 on Plastics and is the direct responsibility of Subcommittee D20.23 on Reinforced Plastic
Piping Systems and Chemical Equipment.
CurrenteditionapprovedMarch10,2000.Nov.15,2008.PublishedJune2000.December2008.OriginallypublishedasD3299–74.approvedin1974.Lastpreviousedition
´1
D3299–95a . approved in 2000 as D3299–00.
2
ForreferencedASTMstandards,visittheASTMwebsite,www.astm.org,orcontactASTMCustomerServiceatservice@astm.org.For Annual Book of ASTM Standards
, Vol 08.01.volume information, refer to the standard’s Document Summary page on the ASTM website.
*A Summary of Changes section appears at the end of this standard.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959, United States.
1
---------------------- Page: 1
...
This document is not anASTM standard and is intended only to provide the user of anASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
An American National Standard
Designation:D 3299–00 Designation: D 3299 – 08
Standard Specification for
Filament-Wound Glass-Fiber-Reinforced Thermoset Resin
1
Corrosion-Resistant Tanks
This standard is issued under the fixed designation D3299; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision.Anumber in parentheses indicates the year of last reapproval.A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the Department of Defense.
1. Scope*
1.1 This specification covers cylindrical tanks fabricated by filament winding for above-ground vertical installation, to contain
aggressive chemicals at atmospheric pressure as classified herein, and made of a commercial-grade polyester or vinylester resin.
Included are requirements for materials, properties, design, construction, dimensions, tolerances, workmanship, and appearance.
1.2 This specification does not cover the design of vessels intended for pressure above atmospheric, vacuum conditions, except
as classified herein, or vessels intended for use with liquids heated above their flash points.
1.3The values given in parentheses are provided for information purposes only.
1.3 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical
conversions to SI units that are provided for information only and are not considered standard.
NOTE 1—Special design consideration should be given to vessels subject to superimposed mechanical forces, such as earthquakes, wind load, or
agitation, and to vessels subject to service temperature in excess of 180°F (82°C), and to vessels with unsupported bottoms.
NOTE 2—There is no similar or equivalent ISO standard.
1.4 Thefollowingsafetyhazardscaveatpertainsonlytothetestmethodportion,Section11,ofthisspecification: This standard
does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this
standard to establish appropriate safety and health practices and determine the applicability of regulatory limitations prior to use.
2. Referenced Documents
2
2.1 ASTM Standards:
C581 Practice for Determining Chemical Resistance of Thermosetting Resins Used in Glass-Fiber-Reinforced Structures
Intended for Liquid Service
C582 Specification for Contact-Molded Reinforced, Thermosetting Plastic (RTP) Laminates for Corrosion-Resistant Equip-
ment
2
D618 Practice for Conditioning Plastics and Electrical Insulating Materials for Testing Practice for Conditioning Plastics for
Testing
D883 Terminology Relating to Plastics
D1599 Test Method for Resistance to Short-Time Hydraulic Failure Pressure of Plastic Pipe, Tubing, and Fittings
D2150 Specification for Woven Roving Glass Fabric for Polyester-Glass Laminates
D2583 Test Method for Indentation Hardness of Rigid Plastics by Means of a Barcol Impressor
D2584 Test Method for Ignition Loss of Cured Reinforced Resins
3
D2996 Specification for Filament-Wound Reinforced Thermosetting Resin Pipe Specification for Filament-Wound Fiber-
glass’’ (Glass-Fiber-Reinforced Thermosetting-Resin) Pipe
D2997 Specification for Centrifugally Cast “Fiberglass”Fiberglass (Glass-Fiber-Reinforced Thermosetting-Resin) Pipe
D3892 Practice for Packaging/Packing of Plastics
3
D4024 Specification for Machine Made Fiberglass Flanges Specification for Machine Made Fiberglass’’ (Glass-Fiber-
Reinforced Thermosetting Resin) Flanges
3
D5421 Specification for Contact Molded Flanges Specification for Contact Molded Fiberglass (Glass-Fiber-Reinforced
Thermosetting Resin) Flanges
1
This specification is under the jurisdiction of ASTM Committee D-20D20 on Plastics and is the direct responsibility of Subcommittee D20.23 on Reinforced Plastic
Piping Systems and Chemical Equipment.
CurrenteditionapprovedMarch10,2000.Nov.15,2008.PublishedJune2000.December2008.OriginallypublishedasD3299–74.approvedin1974.Lastpreviousedition
´1
D3299–95a . approved in 2000 as D3299–00.
2
ForreferencedASTMstandards,visittheASTMwebsite,www.astm.org,orcontactASTMCustomerServiceatservice@astm.org.For Annual Book of ASTM Standards
, Vol 08.01.volume information, refer to the standard’s Document Summary page on the ASTM website.
*A Summary of Changes section appears at the end of this standard.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959, United States.
1
---------------------- Page: 1
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
