ASTM D8003-22

Standard Test Method for Determination of Light Hydrocarbons and Cut Point Intervals in Live Crude Oils and Condensates by Gas Chromatography

SIGNIFICANCE AND USE
5.1 This test method determines methane (nC1) to hexane (nC6), cut point carbon fraction intervals to nC24 and recovery (nC24+) of live crude oils and condensates without depressurizing, thereby avoiding the loss of highly volatile components and maintaining sample integrity. This test method provides a highly resolved light end profile which can aid in determining and improving appropriate safety measures and product custody transport procedures. Decisions in regards to marketing, scheduling, and processing of crude oils may rely on light end compositional results.
5.2 Equation of state calculations can be applied to variables provided by this method to allow for additional sample characterization.
SCOPE
1.1 This test method covers the determination of light hydrocarbons and cut point intervals by gas chromatography in live crude oils and condensates with VPCR4 (see Note 1) up to 500 kPa at 37.8 °C.
Note 1: As described in Test Method D6377.
1.2 Methane (C1) to hexane (nC6) and benzene are speciated and quantitated. Samples containing mass fractions of up to 0.5 % methane, 2.0 % ethane, 10 % propane, or 15 % isobutane may be analyzed. A mass fraction with a lower limit of 0.001 % exists for these compounds.
1.3 This test method may be used for the determination of cut point carbon fraction intervals (see 3.2.1) of live crude oils and condensates from initial boiling point (IBP) to 391 °C (nC24). The nC24 plus fraction is reported.
1.4 Dead oils or condensates sampled in accordance with 12.1 may also be analyzed.
1.5 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.5.1 Exception—Where there is no direct SI equivalent such as tubing size.
1.6 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.7 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

General Information

• Status: Published
• Publication Date: 31-Oct-2022
• ICS: 75.040 - Crude petroleum
• Technical Committee: D02 - Petroleum Products, Liquid Fuels, and Lubricants
• Drafting Committee: D02.04.0L - Gas Chromatography Methods

Standards Content (Sample)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

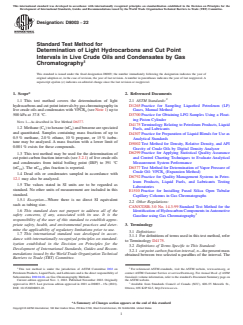

Designation: D8003 − 22
Standard Test Method for
Determination of Light Hydrocarbons and Cut Point
Intervals in Live Crude Oils and Condensates by Gas
1
Chromatography
This standard is issued under the fixed designation D8003; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope* 2. Referenced Documents
2
1.1 This test method covers the determination of light 2.1 ASTM Standards:
hydrocarbonsandcutpointintervalsbygaschromatographyin D1265 Practice for Sampling Liquefied Petroleum (LP)
live crude oils and condensates withVPCR (see Note 1)upto Gases, Manual Method
4
500 kPa at 37.8 °C. D3700 Practice for Obtaining LPG Samples Using a Float-
ing Piston Cylinder
NOTE 1—As described in Test Method D6377.
D4175 Terminology Relating to Petroleum Products, Liquid
1.2 Methane(C )tohexane(nC )andbenzenearespeciated
1 6
Fuels, and Lubricants
and quantitated. Samples containing mass fractions of up to
D4307 Practice for Preparation of Liquid Blends for Use as
0.5 % methane, 2.0 % ethane, 10 % propane, or 15 % isobu-
Analytical Standards
tane may be analyzed. A mass fraction with a lower limit of
D5002 Test Method for Density, Relative Density, and API
0.001 % exists for these compounds.
Gravity of Crude Oils by Digital Density Analyzer
1.3 This test method may be used for the determination of D6299 Practice for Applying Statistical Quality Assurance
and Control Charting Techniques to Evaluate Analytical
cut point carbon fraction intervals (see 3.2.1) of live crude oils
and condensates from initial boiling point (IBP) to 391 °C Measurement System Performance
D6377 Test Method for Determination of Vapor Pressure of
(nC ). The nC plus fraction is reported.
24 24
Crude Oil: VPCR (Expansion Method)
x
1.4 Dead oils or condensates sampled in accordance with
D6792 Practice for Quality Management Systems in Petro-
12.1 may also be analyzed.
leum Products, Liquid Fuels, and Lubricants Testing
1.5 The values stated in SI units are to be regarded as
Laboratories
standard. No other units of measurement are included in this
E1510 Practice for Installing Fused Silica Open Tubular
standard.
Capillary Columns in Gas Chromatographs
1.5.1 Exception—Where there is no direct SI equivalent
2.2 Other Regulations:
such as tubing size.
CAN/CGSB-3.0 No. 14.3-99 Standard Test Method for the
1.6 This standard does not purport to address all of the
Identification of Hydrocarbon Components inAutomotive
3
safety concerns, if any, associated with its use. It is the
Gasoline using Gas Chromatography
responsibility of the user of this standard to establish appro-
priate safety, health, and environmental practices and deter- 3. Terminology
mine the applicability of regulatory limitations prior to use.
3.1 Definitions:
1.7 This international standard was developed in accor-
3.1.1 For definitions of terms used in this test method, refer
dance with internationally recognized principles on standard-
to Terminology D4175.
ization established in the Decision on Principles for the
3.2 Definitions of Terms Specific to This Standard:
Development of International Standards, Guides and Recom-
3.2.1 cut point carbon fraction interval, n—thepercentmass
mendations issued by the World Trade Organization Technical
obtained between two selected n-paraffins of the interval. The
Barriers to Trade (TBT) Committee.
1 2
This test method is under the jurisdiction of ASTM Committee D02 on For referenced ASTM standards, visit the ASTM website, www.astm.org, or
Petroleum Products, Liquid Fuels, and Lubricants and is the direct responsibility of contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM
Subcommittee D02.04.0L on Gas Chromatography Methods. Standards volume information, refer to the standard’s Document Summary page on
Current edition approved Nov. 1, 2022. Published November 2022. Originally the ASTM website.
3
approved in 2015. Last previous edition approved in 2021 as D8003 – 15a (2021). Available from Standards Council of Canada (SCC), 600–55 Metcalfe St.,
DOI: 10.1520/D8003-22. Ottowa, ON K1P 6L5, http://www.scc.ca.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------
D8003 − 22
cut point carbon fraction interval as used in this test method is 5. Significance and Use
defined as the percent mass obtain
...

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

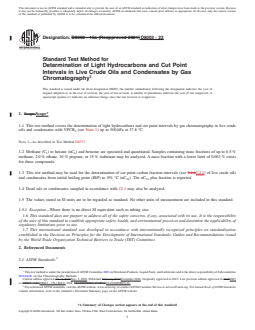

Designation: D8003 − 15a (Reapproved 2021) D8003 − 22
Standard Test Method for
Determination of Light Hydrocarbons and Cut Point
Intervals in Live Crude Oils and Condensates by Gas
1
Chromatography
This standard is issued under the fixed designation D8003; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope Scope*
1.1 This test method covers the determination of light hydrocarbons and cut point intervals by gas chromatography in live crude
oils and condensates with VPCR (see Note 1) up to 500 kPa at 37.8 °C.
4
NOTE 1—As described in Test Method D6377.
1.2 Methane (C ) to hexane (nC ) and benzene are speciated and quantitated. Samples containing mass fractions of up to 0.5 %
1 6
methane, 2.0 % ethane, 10 % propane, or 15 % isobutane may be analyzed. A mass fraction with a lower limit of 0.001 % exists
for these compounds.
1.3 This test method may be used for the determination of cut point carbon fraction intervals (see 3.1.13.2.1) of live crude oils
and condensates from initial boiling point (IBP) to 391 °C (nC ). The nC plus fraction is reported.
24 24
1.4 Dead oils or condensates sampled in accordance with 12.1 may also be analyzed.
1.5 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.5.1 Exception—Where there is no direct SI equivalent such as tubing size.
1.6 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of
regulatory limitations prior to use.
1.7 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2
2.1 ASTM Standards:
1
This test method is under the jurisdiction of ASTM Committee D02 on Petroleum Products, Liquid Fuels, and Lubricants and is the direct responsibility of Subcommittee
D02.04.0L on Gas Chromatography Methods.
Current edition approved Jan. 1, 2021Nov. 1, 2022. Published February 2021November 2022. Originally approved in 2015. Last previous edition approved in 20152021
as D8003 – 15a.D8003 – 15a (2021). DOI: 10.1520/D8003-15AR21.10.1520/D8003-22.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------

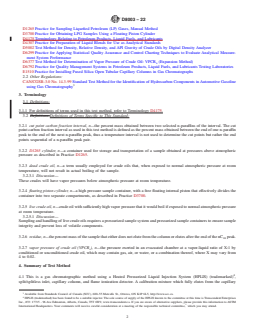

D8003 − 22
D1265 Practice for Sampling Liquefied Petroleum (LP) Gases, Manual Method
D3700 Practice for Obtaining LPG Samples Using a Floating Piston Cylinder
D4175 Terminology Relating to Petroleum Products, Liquid Fuels, and Lubricants
D4307 Practice for Preparation of Liquid Blends for Use as Analytical Standards
D5002 Test Method for Density, Relative Density, and API Gravity of Crude Oils by Digital Density Analyzer
D6299 Practice for Applying Statistical Quality Assurance and Control Charting Techniques to Evaluate Analytical Measure-
ment System Performance
D6377 Test Method for Determination of Vapor Pressure of Crude Oil: VPCR (Expansion Method)
x
D6792 Practice for Quality Management Systems in Petroleum Products, Liquid Fuels, and Lubricants Testing Laboratories
E1510 Practice for Installing Fused Silica Open Tubular Capillary Columns in Gas Chromatographs
2.2 Other Regulations:
CAN/CGSB-3.0 No. 14.3-99 Standard Test Method for the Identification of Hydrocarbon Components in Automotive Gasoline
3
using Gas Chromatography
3. Terminology
3.1 Definitions:
3.1.1 For definitions of terms used in this test method, refer to Terminology D4175.
3.2 Definitions:Definitions of Terms Specific to This Standard:
3.2.1 cut point carbon fraction interval, n—the percent mass obtained between two selected n-paraffins of the inte
...
