ASTM D1524-15(2022)
(Test Method)Standard Test Method for Visual Examination of Used Electrical Insulating Liquids in the Field
Standard Test Method for Visual Examination of Used Electrical Insulating Liquids in the Field
SIGNIFICANCE AND USE
4.1 By use of this test method and Test Methods D1500 or D2129 the color and condition of a test specimen of electrical insulating liquid may be estimated during a field inspection, thus assisting in the decision as to whether or not the sample should be sent to a central laboratory for full evaluation. Cloudiness, particles of insulation, products of metal corrosion, or other undesirable suspended materials, as well as any unusual change in color may be detected.
SCOPE
1.1 This test method for visual examination is applicable to electrical insulating liquids that have been used in transformers, oil circuit breakers, or other electrical apparatus as insulating or cooling media, or both.
1.2 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.3 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
- Status
- Published
- Publication Date
- 30-Jun-2022
- Technical Committee
- D27 - Electrical Insulating Liquids and Gases
- Drafting Committee
- D27.07 - Physical Test
Relations
- Effective Date
- 01-Mar-2024
- Effective Date
- 01-Jan-2017
- Effective Date
- 01-Dec-2012
- Effective Date
- 01-Nov-2010
- Effective Date
- 01-Dec-2007
- Effective Date
- 01-Dec-2005
- Effective Date
- 01-Nov-2004
- Effective Date
- 01-Jun-2004
- Effective Date
- 01-Nov-2003
- Effective Date
- 10-Nov-2002
- Effective Date
- 10-Dec-1997
Overview
ASTM D1524-15(2022) is the international standard test method for the visual examination of used electrical insulating liquids in the field. Developed by ASTM International, this standard provides procedures to visually assess the condition and color of insulating oils and other electrical insulating fluids used in equipment such as transformers and oil circuit breakers. Visual inspection helps identify cloudiness, sediment, corrosion products, and other contaminants, enabling informed decisions about the necessity for further laboratory analysis.
Key Topics
- Visual Examination Procedures: Guidelines for the field inspection of used electrical insulating liquids, focusing on detecting cloudiness, particulate contamination, and color changes.
- Sample Handling: Requirements for sample containers and appropriate light sources to ensure accurate visual assessment.
- Assessment Criteria: Evaluation of clarity, presence of sediment or foreign particles, and any abnormal color shifts indicating potential deterioration, moisture, or contamination.
- Decision Support: Use of field examination results to determine whether samples should be submitted for complete laboratory testing.
- Safety Considerations: Emphasis on user responsibility for ensuring compliance with safety, health, and environmental regulations during the execution of onsite inspections.
- Reporting Requirements: Instructions for documenting liquid type, observed conditions, temperature at sampling and observation, and any deviations from expected clarity.
Applications
The ASTM D1524-15(2022) standard is essential for professionals involved in the maintenance and monitoring of electrical equipment relying on liquid insulation and cooling. Key applications include:
- Field Diagnostics: Enables quick, low-cost screening of insulating oils to detect early signs of contamination, degradation, or moisture ingress during routine maintenance.
- Asset Management: Supports timely decision-making concerning the need for laboratory testing, helping to prioritize resources and maintain system reliability.
- Condition-based Maintenance: Visual results can trigger further action such as dielectric strength tests or oil replacement, contributing to predictive maintenance strategies.
- Quality Assurance: Ensures the ongoing performance of electrical insulating liquids used in high-voltage transformers, circuit breakers, and related apparatus.
Related Standards
Several standards complement and support the guidance provided by ASTM D1524-15(2022):
- ASTM D1500 - Test Method for ASTM Color of Petroleum Products (ASTM Color Scale): Used to determine and compare the color of petroleum-based insulating liquids.
- ASTM D2129 - Test Method for Color of Clear Electrical Insulating Liquids (Platinum-Cobalt Scale): Provides color measurement procedures for clear insulating fluids.
- WTO-TBT Principles - The standard adheres to internationally recognized standardization principles set by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
Practical Value
Implementing ASTM D1524-15(2022) in the field helps utilities and maintenance teams rapidly assess the condition of insulating liquids, detect potential faults before they escalate, and minimize costly equipment failures. This standard streamlines maintenance workflows, ensuring greater safety, equipment longevity, and operational efficiency in electrical power systems.
For more information or to purchase the standard, visit the ASTM International website at www.astm.org.
Get Certified
Connect with accredited certification bodies for this standard
Intertek Testing Services NA Inc.
Intertek certification services in North America.
UL Solutions
Global safety science company with testing, inspection and certification.
ANCE
Mexican certification and testing association.
Sponsored listings
Frequently Asked Questions
ASTM D1524-15(2022) is a standard published by ASTM International. Its full title is "Standard Test Method for Visual Examination of Used Electrical Insulating Liquids in the Field". This standard covers: SIGNIFICANCE AND USE 4.1 By use of this test method and Test Methods D1500 or D2129 the color and condition of a test specimen of electrical insulating liquid may be estimated during a field inspection, thus assisting in the decision as to whether or not the sample should be sent to a central laboratory for full evaluation. Cloudiness, particles of insulation, products of metal corrosion, or other undesirable suspended materials, as well as any unusual change in color may be detected. SCOPE 1.1 This test method for visual examination is applicable to electrical insulating liquids that have been used in transformers, oil circuit breakers, or other electrical apparatus as insulating or cooling media, or both. 1.2 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. 1.3 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
SIGNIFICANCE AND USE 4.1 By use of this test method and Test Methods D1500 or D2129 the color and condition of a test specimen of electrical insulating liquid may be estimated during a field inspection, thus assisting in the decision as to whether or not the sample should be sent to a central laboratory for full evaluation. Cloudiness, particles of insulation, products of metal corrosion, or other undesirable suspended materials, as well as any unusual change in color may be detected. SCOPE 1.1 This test method for visual examination is applicable to electrical insulating liquids that have been used in transformers, oil circuit breakers, or other electrical apparatus as insulating or cooling media, or both. 1.2 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. 1.3 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
ASTM D1524-15(2022) is classified under the following ICS (International Classification for Standards) categories: 29.040.10 - Insulating oils. The ICS classification helps identify the subject area and facilitates finding related standards.
ASTM D1524-15(2022) has the following relationships with other standards: It is inter standard links to ASTM D1500-24, ASTM D2129-17, ASTM D1500-12, ASTM D2129-05(2010), ASTM D1500-07, ASTM D2129-05, ASTM D1500-04a, ASTM D1500-04, ASTM D1500-03, ASTM D1500-02, ASTM D2129-97. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
ASTM D1524-15(2022) is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

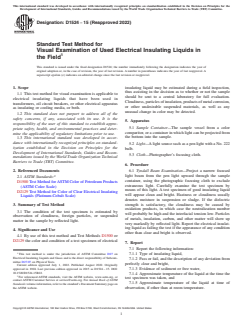

Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
Designation: D1524 − 15 (Reapproved 2022)
Standard Test Method for
Visual Examination of Used Electrical Insulating Liquids in
the Field
This standard is issued under the fixed designation D1524; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope insulating liquid may be estimated during a field inspection,
thus assisting in the decision as to whether or not the sample
1.1 This test method for visual examination is applicable to
should be sent to a central laboratory for full evaluation.
electrical insulating liquids that have been used in
Cloudiness,particlesofinsulation,productsofmetalcorrosion,
transformers, oil circuit breakers, or other electrical apparatus
or other undesirable suspended materials, as well as any
as insulating or cooling media, or both.
unusual change in color may be detected.
1.2 This standard does not purport to address all of the
safety concerns, if any, associated with its use. It is the
5. Apparatus
responsibility of the user of this standard to establish appro-
5.1 Sample Container—The sample vessel from a color
priate safety, health, and environmental practices and deter-
comparitor, or a container in which light can be projected from
mine the applicability of regulatory limitations prior to use.
the bottom into the sample.
1.3 This international standard was developed in accor-
dance with internationally recognized principles on standard-
5.2 Light—Alight source such as a pen light with a No. 222
ization established in the Decision on Principles for the
bulb.
Development of International Standards, Guides and Recom-
5.3 Cloth—Photographer’s focusing cloth.
mendations issued by the World Trade Organization Technical
Barriers to Trade (TBT) Committee.
6. Procedure
2. Referenced Documents
6.1 Tyndall Beam Examination—Project a narrow focused
light beam from the pen light upward through the sample
2.1 ASTM Standards:
container, using the photographic focusing cloth to exclude
D1500 Test Method forASTM Color of Petroleum Products
extraneous light. Carefully examine the test specimen by
(ASTM Color Scale)
means of this light. A test specimen of good insulating liquid
D2129 Test Method for Color of Clear Electrical Insulating
will appear clean and bright. Haziness or cloudiness usually
Liquids (Platinum-Cobalt Scale)
denotes moisture in suspension or sludge. If the dielectric
strength is satisfactory, the cloudiness may be caused by
3. Summary of Test Method
oxidation products, in which case the neutralization number
3.1 The condition of the test specimen is estimated by
will probably be high and the interfacial tension low. Particles
observation of cloudiness, foreign particles, or suspended
of metals, insulation, carbon, and other matter will show up
matter in the sample by reflected light.
very markedly by reflected light. Report the electrical insulat-
ing liquid as failing the test if the appearance of any condition
...
