ASTM A622/A622M-97

Standard Specification for Drawing Steel (DS), Sheet and Strip, Carbon, Hot-Rolled (Withdrawn 2000)

SCOPE
1.1 This specification covers hot-rolled carbon steel sheet and strip of drawing quality, special killed, in coils or cut lengths. This material is intended for use in fabricating identified parts where particularly severe drawing or forming may be involved and surface appearance is usually not of primary importance.
1.2 This specification is applicable for orders in either inch-pound units (as A 622) of SI units (as A 622M).

General Information

• Status: Withdrawn
• Publication Date: 09-Mar-1997
• ICS: 77.140.50 - Flat steel products and semi-products
• Technical Committee: A01 - Steel, Stainless Steel and Related Alloys
• Drafting Committee: A01.19 - Steel Sheet and Strip

Standards Content (Sample)

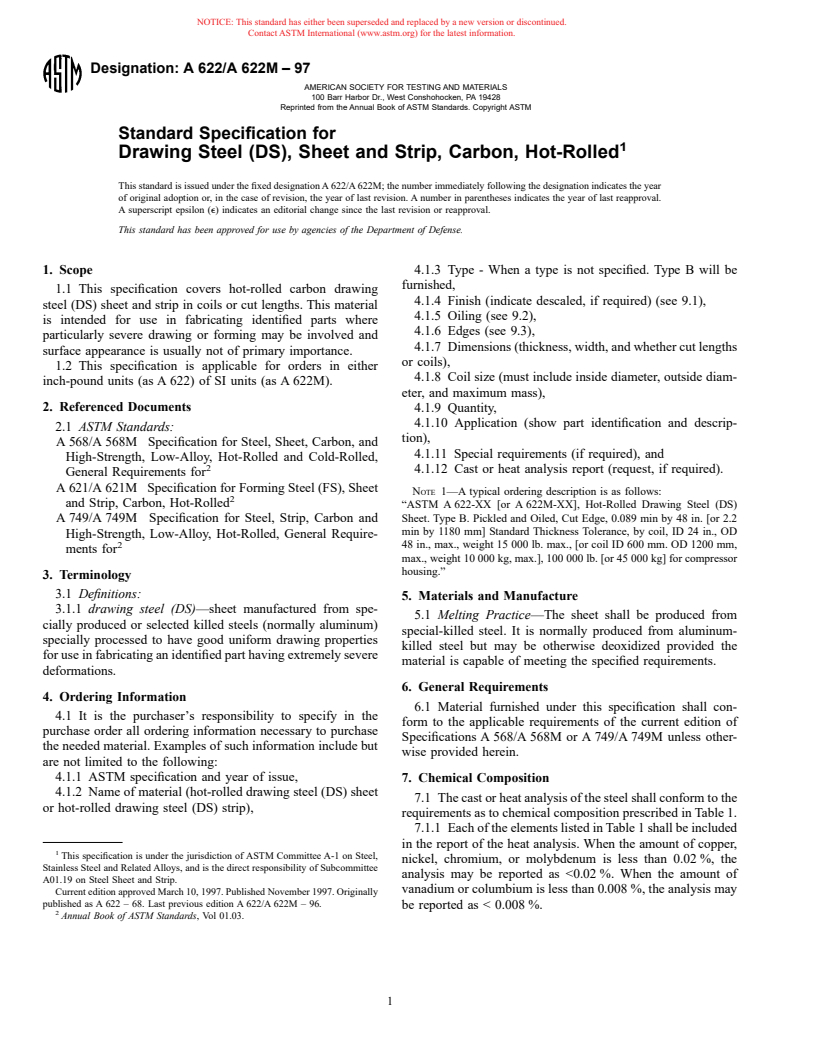

Designation: A 622/A 622M – 97
AMERICAN SOCIETY FOR TESTING AND MATERIALS
100 Barr Harbor Dr., West Conshohocken, PA 19428
Reprinted from the Annual Book of ASTM Standards. Copyright ASTM
Standard Specification for
1
Drawing Steel (DS), Sheet and Strip, Carbon, Hot-Rolled
This standard is issued under the fixed designation A 622/A 622M; the number immediately following the designation indicates the year
of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval.
A superscript epsilon (e) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the Department of Defense.
1. Scope 4.1.3 Type - When a type is not specified. Type B will be
furnished,
1.1 This specification covers hot-rolled carbon drawing
4.1.4 Finish (indicate descaled, if required) (see 9.1),
steel (DS) sheet and strip in coils or cut lengths. This material
4.1.5 Oiling (see 9.2),
is intended for use in fabricating identified parts where
4.1.6 Edges (see 9.3),
particularly severe drawing or forming may be involved and
4.1.7 Dimensions (thickness, width, and whether cut lengths
surface appearance is usually not of primary importance.
or coils),
1.2 This specification is applicable for orders in either
4.1.8 Coil size (must include inside diameter, outside diam-
inch-pound units (as A 622) of SI units (as A 622M).
eter, and maximum mass),
2. Referenced Documents 4.1.9 Quantity,
4.1.10 Application (show part identification and descrip-
2.1 ASTM Standards:
tion),
A 568/A 568M Specification for Steel, Sheet, Carbon, and
4.1.11 Special requirements (if required), and
High-Strength, Low-Alloy, Hot-Rolled and Cold-Rolled,
2
4.1.12 Cast or heat analysis report (request, if required).
General Requirements for
A 621/A 621M Specification for Forming Steel (FS), Sheet
NOTE 1—A typical ordering description is as follows:
2
and Strip, Carbon, Hot-Rolled
“ASTM A 622-XX [or A 622M-XX], Hot-Rolled Drawing Steel (DS)
A 749/A 749M Specification for Steel, Strip, Carbon and Sheet. Type B. Pickled and Oiled, Cut Edge, 0.089 min by 48 in. [or 2.2
min by 1180 mm] Standard Thickness Tolerance, by coil, ID 24 in., OD
High-Strength, Low-Alloy, Hot-Rolled, General Require-
2
48 in., max., weight 15 000 lb. max., [or coil ID 600 mm. OD 1200 mm,
ments for
max., weight 10 000 kg, max.], 100 000 lb. [or 45 000 kg] for compressor
housing.”
3. Terminology
3.1 Definitions:
5. Materials and Manufacture
3.1.1 drawing steel (DS)—sheet manufactured from spe-
5.1 Melting Practice—The sheet shall be produced from
cially produced or selected killed steels (normally aluminum)
special-killed steel. It is normally produced from aluminum-
specially processed to have good uniform drawing properties
killed steel but may be otherwise deoxidized provided the
for use in fabricating an identified part having extremely severe
material is capable of meeting the specified requirements.
deformations.
6. General Requirements
4. Ordering Information
6.1 Material furnished under this specification shall con-
4.1 It is the purchaser’s responsibility to specify in the
form to the applicable requirements of the current edition of
purchase order all ordering information necessary to purchase
Specifications A 568/A 568M or A 749/A 749M unless other-
the needed material. Examples of such information include but
wise provided herein.
are not limited to the following:
4.1.1 ASTM specification and year of issue,
7. Chemical Composition
4.1.2 Name of material (hot-rolled drawing steel (DS) sheet
7.1 The cast or heat analysis of the steel shall conform to the
or hot-rolled drawing steel (DS) strip),
requirements as to chemical composition prescribed in Table 1.
7.1.1 Each of the elements listed in Table 1 shall be included
in the report of the heat analysis. When the amount of copper,
1
This specification is under the jurisdiction of ASTM Committee A-1 on Steel,
nickel, chromium, or molybdenum is less than 0.02 %, the
Stainless Steel and Related Alloys, and is the direct responsibility of Subcommittee
analysis may be reported as <0.02 %. When the amount of
A01.19 on Steel Sheet and Strip.
vanadium or columbium is less than 0.008 %, the analysis may
Current edition approved March 10, 1997. Published November 1997. Originally
published as A 622 – 68. Last previous edition A 622/A 622M – 96.
be reported as < 0.008 %.
2
Annual Book of ASTM Standards, Vol 01.03.
1

---------------------- Page: 1 ----------------------
A 622/A 622M
TABLE 1 Chemical Composition
ability of the material to form identified parts within properly
Composition—Weight % Heat Analysis established breakage limits. (Refer to Specifications A 568/
Element
A B,C
A 568M, Appendix X4.)
Type A Type B
8.3 Drawing steel is required when forming steel in accor-
Carbon 0.08 max 0.02/0.08
dance with Specification A 621/A 621M will not provide a
Manganese, max. 0.50 0.50
Phosphorous, max. 0.020 0.020
sufficient degree of ductil
...
