ASTM F1533-20

Standard Specification for Deformed Polyethylene (PE) Liner

ABSTRACT
This specification covers requirements and test methods for deformed polyethylene (PE) liner for the rehabilitation of gravity flow and nonpressure pipelines. PE material shall conform to the recommended hydrostatic design basis. The process shall involve installing a deformed liner into an existing pipeline then reforming the liner to fit tightly to the bore of the original pipeline. Requirements and test methods that shall conform to this specification include workmanship, dimensions, size, environmental stress crack resistance, tensile strength, tensile elongation, flexural modulus, conditioning, referee testing, quality control testing, marking, and packaging.
SCOPE
1.1 This specification covers requirements and test methods for materials of deformed PE liner intended for the rehabilitation of gravity flow and nonpressure pipelines. This application is for municipal sewage, storm water, industrial process liquids and effluents, conduit, and ducts. This renewal process involves installing a deformed liner into an existing pipeline, conduit, or duct, then reforming the liner with heat and pressure to fit tightly to the bore of the original pipeline, conduit, or duct.
1.2 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard. In referee decisions, inch-pound units shall be used.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

General Information

• Status: Published
• Publication Date: 31-May-2020
• ICS: 23.040.20 - Plastics pipes
• Technical Committee: F17 - Plastic Piping Systems
• Drafting Committee: F17.26 - Olefin Based Pipe

Relations

• Refers: ASTM F412-20 - Standard Terminology Relating to Plastic Piping Systems
• Effective Date: 01-Apr-2020

Standards Content (Sample)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

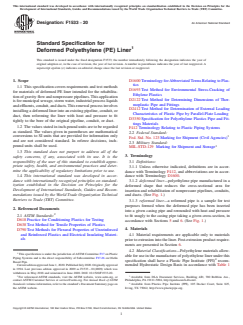

Designation:F1533 −20 An American National Standard
Standard Specification for
1
Deformed Polyethylene (PE) Liner
This standard is issued under the fixed designation F1533; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope D1600 Terminology forAbbreviatedTerms Relating to Plas-
tics
1.1 This specification covers requirements and test methods
D1693 Test Method for Environmental Stress-Cracking of
for materials of deformed PE liner intended for the rehabilita-
Ethylene Plastics
tionofgravityflowandnonpressurepipelines.Thisapplication
D2122 Test Method for Determining Dimensions of Ther-
is for municipal sewage, storm water, industrial process liquids
moplastic Pipe and Fittings
andeffluents,conduit,andducts.Thisrenewalprocessinvolves
D2412 Test Method for Determination of External Loading
installing a deformed liner into an existing pipeline, conduit, or
Characteristics of Plastic Pipe by Parallel-Plate Loading
duct, then reforming the liner with heat and pressure to fit
D3350 Specification for Polyethylene Plastics Pipe and Fit-
tightly to the bore of the original pipeline, conduit, or duct.
tings Materials
1.2 The values stated in inch-pound units are to be regarded
F412 Terminology Relating to Plastic Piping Systems
as standard. The values given in parentheses are mathematical
2.2 Federal Standard:
conversions to SI units that are provided for information only 3
Fed. Std. No. 123 Marking for Shipment (Civil Agencies)
and are not considered standard. In referee decisions, inch-
2.3 Military Standard:
3
pound units shall be used.
MIL-STD-129 Marking for Shipment and Storage
1.3 This standard does not purport to address all of the
3. Terminology
safety concerns, if any, associated with its use. It is the
responsibility of the user of this standard to establish appro-
3.1 Definitions:
priate safety, health, and environmental practices and deter-
3.1.1 Unless otherwise indicated, definitions are in accor-
mine the applicability of regulatory limitations prior to use.
dance with Terminology F412, and abbreviations are in accor-
1.4 This international standard was developed in accor-
dance with Terminology D1600.
dance with internationally recognized principles on standard-
3.1.2 deformed liner—polyethylene pipe manufactured in a
ization established in the Decision on Principles for the
deformed shape that reduces the cross-sectional area for
Development of International Standards, Guides and Recom-
insertion and rehabilitation of nonpressure pipelines, conduits,
mendations issued by the World Trade Organization Technical
and ducts. (See Fig. 1.)
Barriers to Trade (TBT) Committee.
3.1.3 reformed liner—a reformed pipe is a sample for test
purposes formed when the deformed pipe has been inserted
2. Referenced Documents
into a given casing pipe and rerounded with heat and pressure
2
2.1 ASTM Standards:
to fit snugly to the casing pipe taking a given cross-section, in
D618 Practice for Conditioning Plastics for Testing accordance with Sections 5 and 6. (See Fig. 1.)
D638 Test Method for Tensile Properties of Plastics
4. Materials
D790 Test Methods for Flexural Properties of Unreinforced
and Reinforced Plastics and Electrical Insulating Materi-
4.1 Material requirements are applicable only to materials
als
prior to extrusion into the liner. Post-extrusion product require-
ments are presented in Section 6.
4.2 Material Classifications—Polyethylene materials allow-
1
This specification is under the jurisdiction ofASTM Committee F17 on Plastic
able for use in the manufacture of polyethylene liner under this
Piping Systems and is the direct responsibility of Subcommittee F17.26 on Olefin
4
specification shall have a Plastic Pipe Institute (PPI) recom-
Based Pipe.
CurrenteditionapprovedJune1,2020.PublishedJuly2020.Originallyapproved mended Hydrostatic Design Basis in accordance with Table 1
in 1994. Last previous edition approved in 2009 as F1533 – 01(2009) which was
withdrawn in May 2018 and reinstated in June 2020. DOI: 10.1520/F1533-20.
2 3
For referenced ASTM standards, visit the ASTM website, www.astm.org, or Available from DLA Document Services, Building 4/D, 700 Robbins Ave.,
contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM Philadelphia, PA 19111-5094, http://quicksearch.dla.mil.
4
Standards volume information, refer to the standard’s Document Summary page on Available from Plastics Pipe Institute (PPI), 105 Decker Court, Suite 825,
...
